DPL450 175H High Capacity Liquid Oxygen Dewar Tank Brand New with Pump and Pressure Vessel Competitive Price
- Category: >>>
- Supplier: Gansu Shenleng Cryogenic Equipment Co. Ltd.
Share on (1601184760993):
Product Overview
Description
We have 30 years of experience in one-stop solutions for gas storage and transportation, with many specifications and models. The prices of each model vary, and you can send us an inquiry for specific information！
Products Description
The DPL series containers are vacuum insulated, Stainless steel containers designed to store and transport cryogenic liquid oxygen, nitrogen or argon. Containers may be used for over the road transportation of cryogenic fluids, as well as on-site storage and supply in a wide range of applications.
As rugged, long holding time, self-contained gas supply systems, these cylinders are capable of providing continuous flow rates of up to 9.2 cu.m/h, with a delivery pressure of approximately 100psig (6.9bar/690Kpa)
As rugged, long holding time, self-contained gas supply systems, these cylinders are capable of providing continuous flow rates of up to 9.2 cu.m/h, with a delivery pressure of approximately 100psig (6.9bar/690Kpa)
size of product | DPL450-175H | DPL450-195H | DPL450-210H | ||
External size (diameter X height) mm | 508x1500 | 508x1620 | 508x1707 | ||
Working Pressure (MPa) | 2.01 | 2.01 | 2.01 | ||
Safety valve starting pressure (MPa) | 2.41 | 2.41 | 2.41 | ||
Bllasting pressure (MPa) | 3.62 | 3.62 | 3.62 | ||
geometric volume (L) | 175 | 195 | 210 | ||
available capacity (L) | 166 | 185 | 197 | ||
Evaporation rate (liquid nitrogen) | ≤2.4% | ≤2.4% | ≤2.4% | ||
Empty bottle dead weight (Kg) | 125 | 133 | 139 | ||
Charging quality | oxygen (Kg) | 172 | 191 | 205 | |
nitrogen (Kg) | 121 | 135 | 145 | ||
argon (Kg) | 208 | 233 | 250 | ||
Carbon dioxide (Kg) | 177 | 197 | 212 | ||
Nitrous oxide (Kg) | 166 | 187 | 201 | ||
weight (Kg) | |||||
Charging quality | oxygen (Kg) | 172 | 191 | 205 | |
nitrogen (Kg) | 121 | 135 | 145 | ||
argon (Kg) | 208 | 233 | 250 | ||
Carbon dioxide (Kg) | 177 | 197 | 212 | ||
Nitrous oxide (Kg) | 166 | 187 | 201 | ||

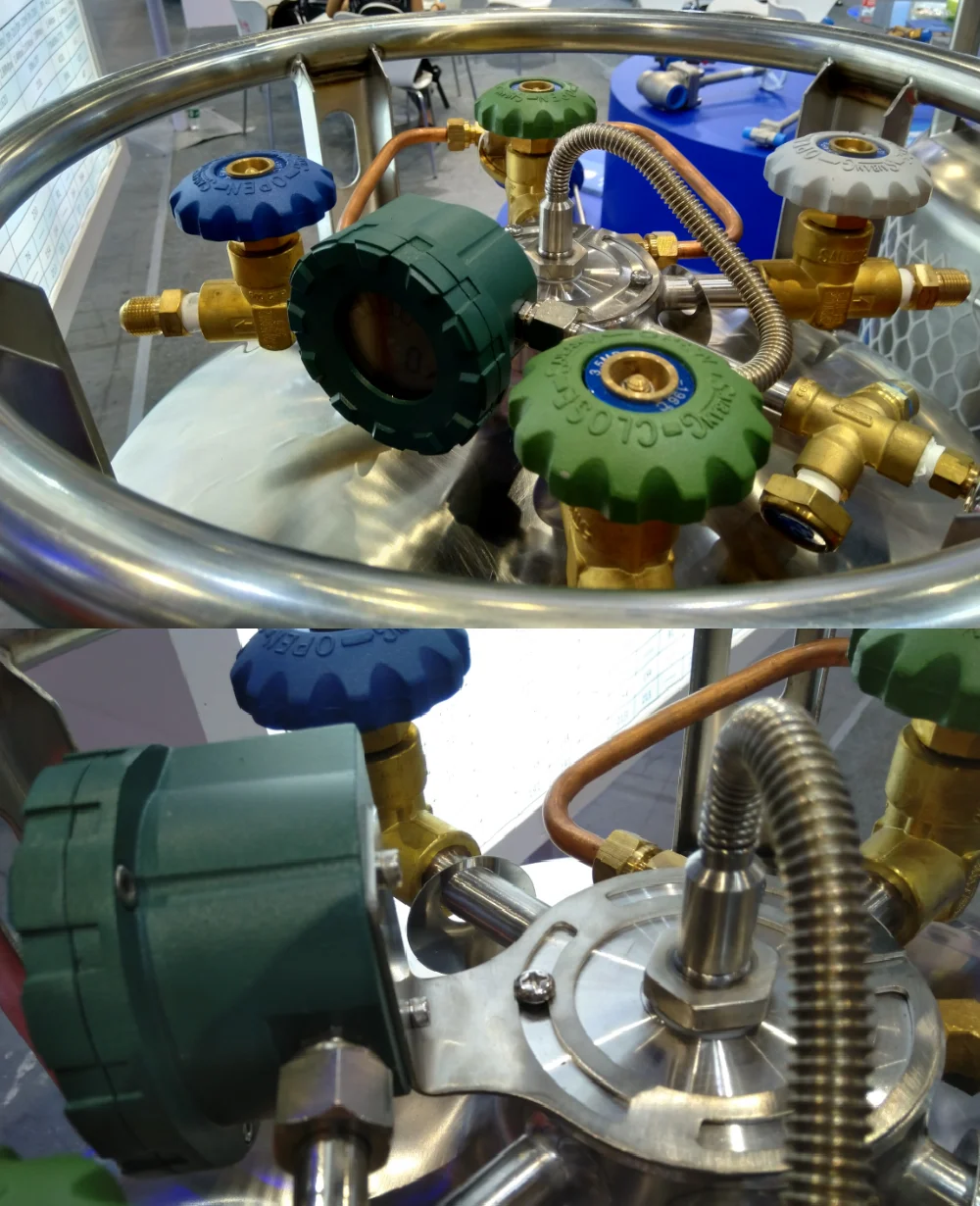

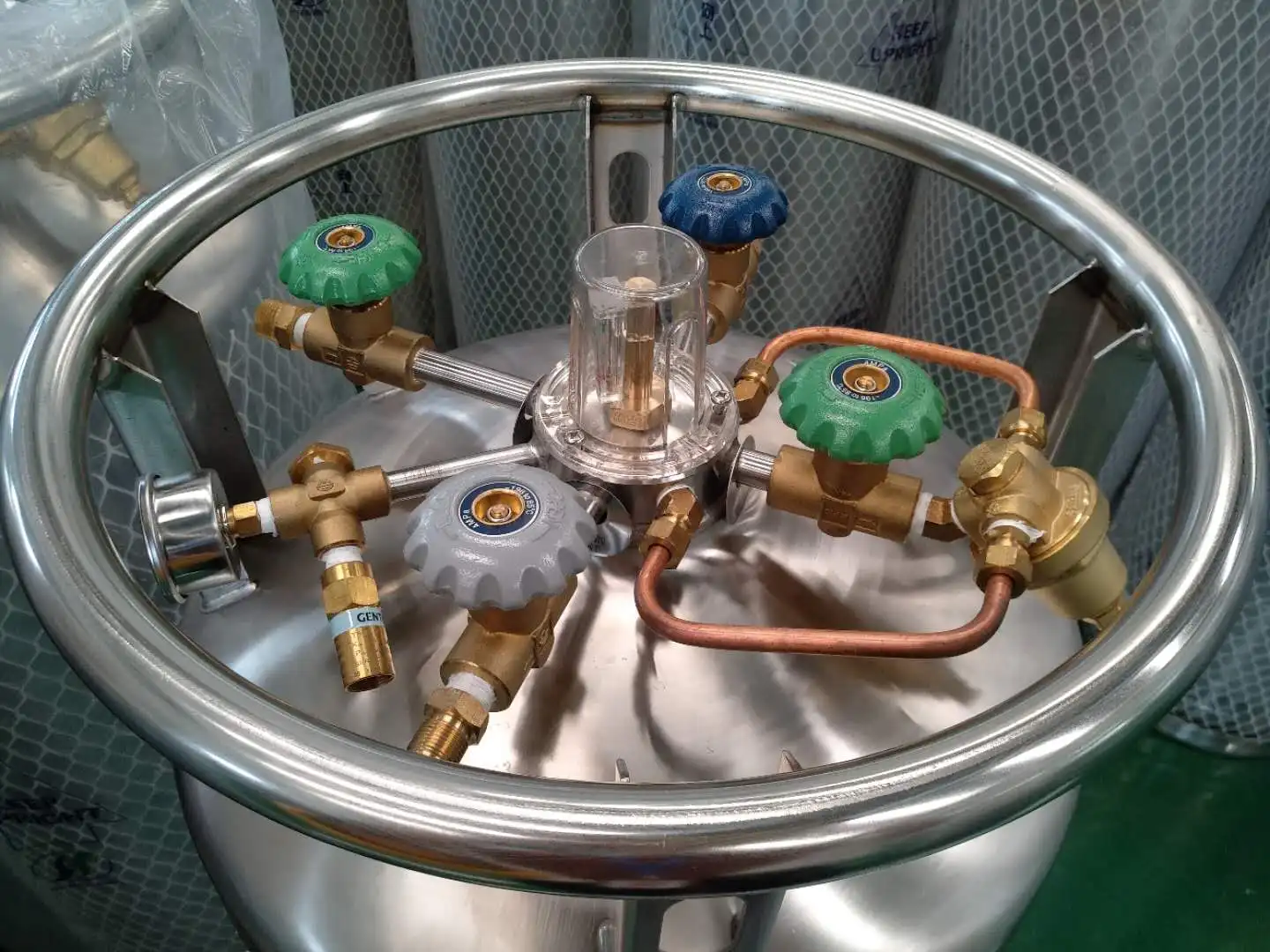

Features
S30408 Refined Polish
Each of our cylinder must strictly go through degreasing and refined polish.
Digital level gauge
we provide digital level gauge for optional liquid level monitor, which is measured by precision percentage
Anti-Shock Rubber Cushion
The thicken rubber cushion can greatly prevent the inner container from any Sudden shock and buffer
the impact.
25 layers of Vacuum insulated quiit
We use 25 layers of mutiple thermal insulated quilt to ensure the vacuum effectiveness
High Vacuum Performance
Each unit of tank will under vacuumized processing, we provide three-year warranty to each user.
irm Foundation Structure
Our DPL-450L&410L serials are all fabricated by bolts and nuts with strong frame foundation
Recommend Products

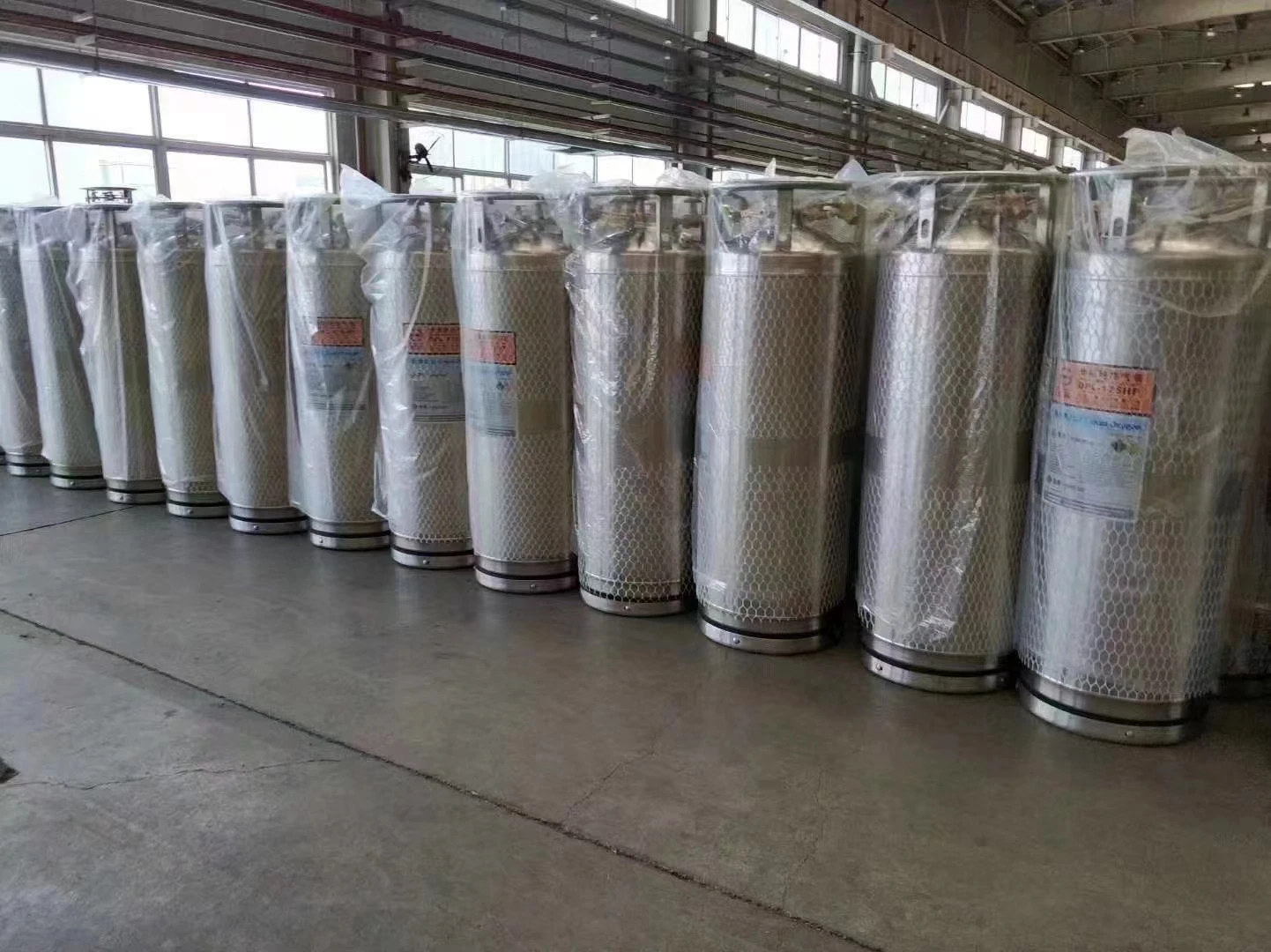

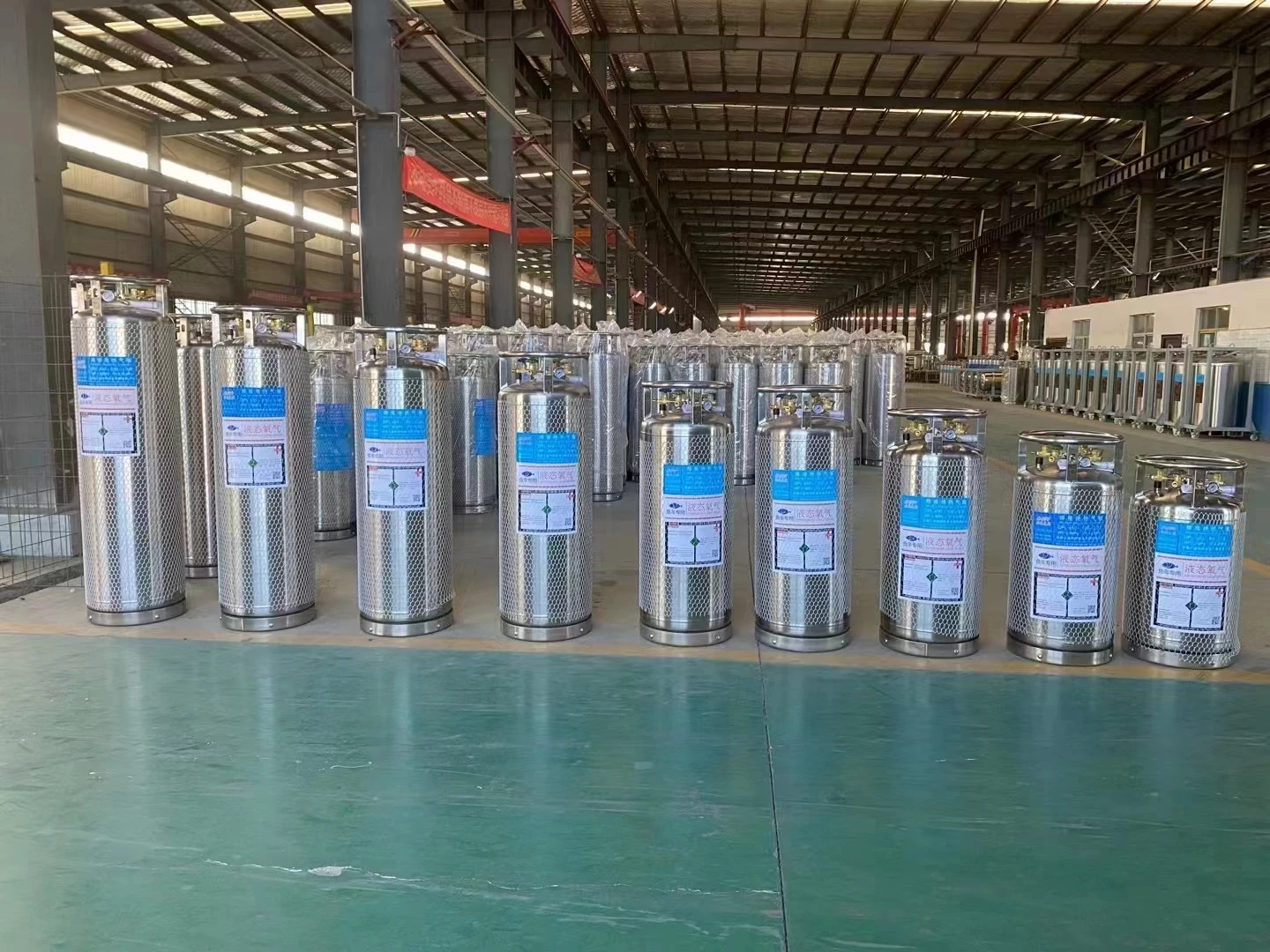

FACTORY SHOOT
Application Area
Company Profile
About us
Gansu Shenleng Cryogenic Equipment Co., Ltd. covers a limited area of 176,000 square meters, and has built a factory building of 100,000 square meters. The office area covers an area of more than 9,000 square meters. It is one of the production bases of automobile gas cylinders and various gas cylinders in Asia.At present it is an enter prise specializing in liquid nitrogen containers for cryogenic equipment.
Main products: All kinds of industrial Dewar car compressed natural gas cylinders (CNG-1&CNG-2) car low-temperature liquefied natural gas cylinders (LNG) civil liquefied petro-leum gas cylinders (LPG) and long pipe trailers and other products. At the same time,we are engaged in the maintenance service of tank vacuuming, tank car vacuuming,Dewar bottle vacuuming, vehicle bottle vacuuming and vehicle bottle vacuuming.
With professional design and production rich engineering and technical team,strong technical force and advanced production technology. The cryogenic laboratory has been established jointly with many scientific research institutions in universities,and there are many successful cases of large-scale cryogenic engineering applications. Focus on the research and development of cryogenic biological storage vacuum insu-lation cryogenic application and system integration to provide users with profession-aland complete technical solutions.
We have numerous qualification system,had obtained ISO9001-2008, ISO/TS149 system products through ISO11439 and EU ECE R110 factory qualification Productsstrictly implement IS09001 and industry standards and carry out production and manufacturing.Products are widely used in universities, research institutes, medical,bioengineering, superconducting food, refrigeration, cold chain, industrial cryogenic application, new materials, industrial and mining enterprises and other fields.
Main products: All kinds of industrial Dewar car compressed natural gas cylinders (CNG-1&CNG-2) car low-temperature liquefied natural gas cylinders (LNG) civil liquefied petro-leum gas cylinders (LPG) and long pipe trailers and other products. At the same time,we are engaged in the maintenance service of tank vacuuming, tank car vacuuming,Dewar bottle vacuuming, vehicle bottle vacuuming and vehicle bottle vacuuming.
With professional design and production rich engineering and technical team,strong technical force and advanced production technology. The cryogenic laboratory has been established jointly with many scientific research institutions in universities,and there are many successful cases of large-scale cryogenic engineering applications. Focus on the research and development of cryogenic biological storage vacuum insu-lation cryogenic application and system integration to provide users with profession-aland complete technical solutions.
We have numerous qualification system,had obtained ISO9001-2008, ISO/TS149 system products through ISO11439 and EU ECE R110 factory qualification Productsstrictly implement IS09001 and industry standards and carry out production and manufacturing.Products are widely used in universities, research institutes, medical,bioengineering, superconducting food, refrigeration, cold chain, industrial cryogenic application, new materials, industrial and mining enterprises and other fields.
Why Choose Us

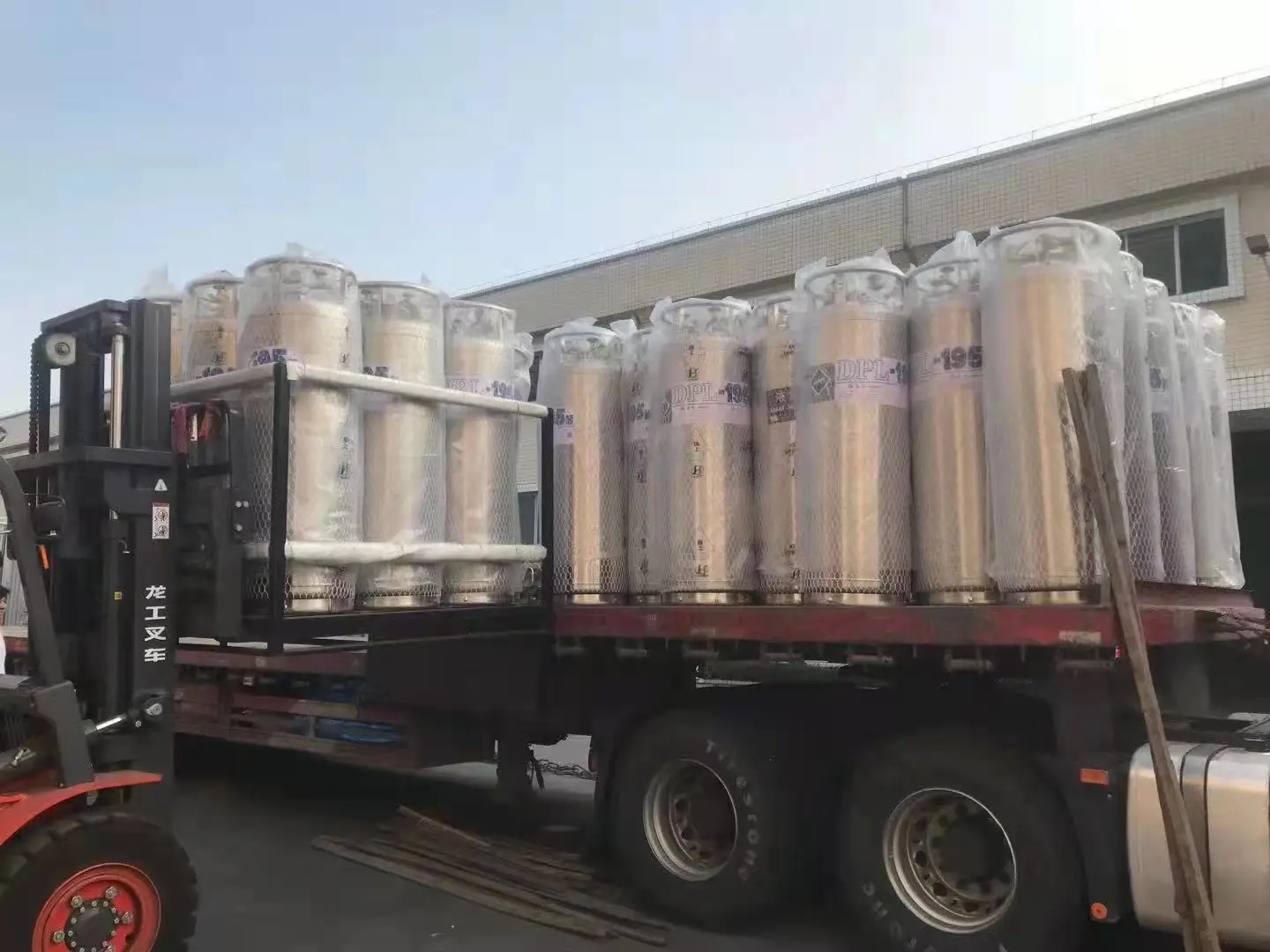

Packaging and Shipping
FAQ
Q1.Are you manufacturer or trading company?
A1:We are professional manufacturer in cryogenic equipment filed.
Q2.What's your advantage?
A2:We provide you not only techology-leading,stable and reliable,cost-efficient equipment,but also solutionsand after-sales service.
Q3.Have your engineers participated in any foreign projects?
A3:Yes,our engineers have more than 30 years experience in this filed and have participated in the design,manufacurer,installation and comissioning of the equipment in Asia.
Q4.How can i get the exact price of the product?
A4:Please tell us your specific requirements and environmental data,so we can provide the most suitable products and solutions for you.
A1:We are professional manufacturer in cryogenic equipment filed.
Q2.What's your advantage?
A2:We provide you not only techology-leading,stable and reliable,cost-efficient equipment,but also solutionsand after-sales service.
Q3.Have your engineers participated in any foreign projects?
A3:Yes,our engineers have more than 30 years experience in this filed and have participated in the design,manufacurer,installation and comissioning of the equipment in Asia.
Q4.How can i get the exact price of the product?
A4:Please tell us your specific requirements and environmental data,so we can provide the most suitable products and solutions for you.
Q5: Why do I trust you?
A: We are "Alibaba" verified supplier and we have high quality goods and service.
Q6: May I visit your factory and office?
A: Sure, you are always welcomed! We will pick you up at the airport and station.
A: We are "Alibaba" verified supplier and we have high quality goods and service.
Q6: May I visit your factory and office?
A: Sure, you are always welcomed! We will pick you up at the airport and station.
