  • ZS4019 desktop multifunctional drilling machine has high precision and stability, and the factory direct sales

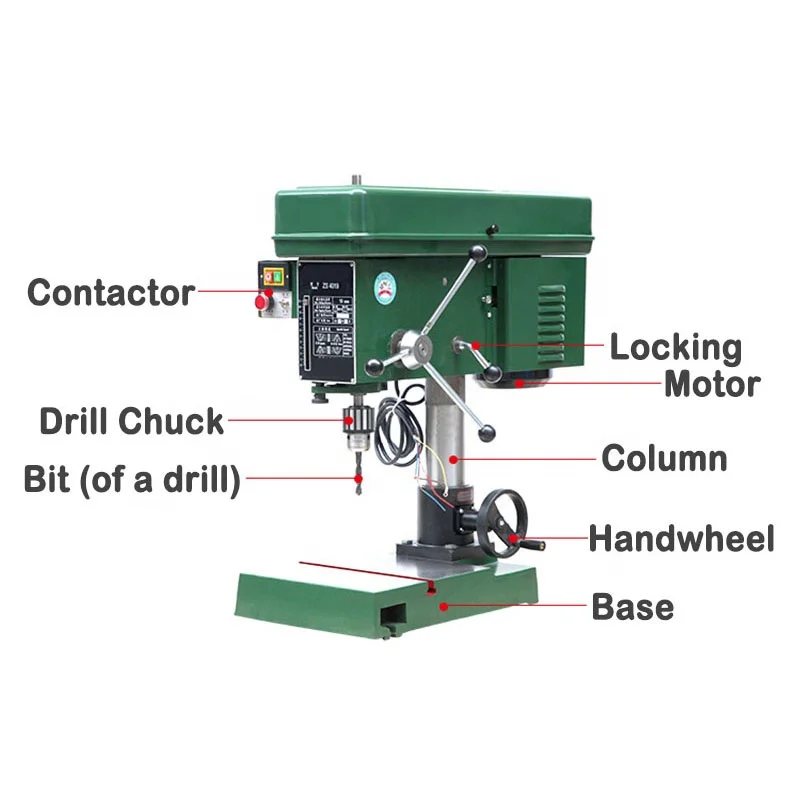

ZS4019 desktop multifunctional drilling machine has high precision and stability, and the factory direct sales
ZS4019 desktop multifunctional drilling machine has high precision and stability, and the factory direct sales

ZS4019 desktop multifunctional drilling machine has high precision and stability, and the factory direct sales

Share on (1601184927143):


Price:$730.00 - $740.00

Quantity:


Product Overview

Description

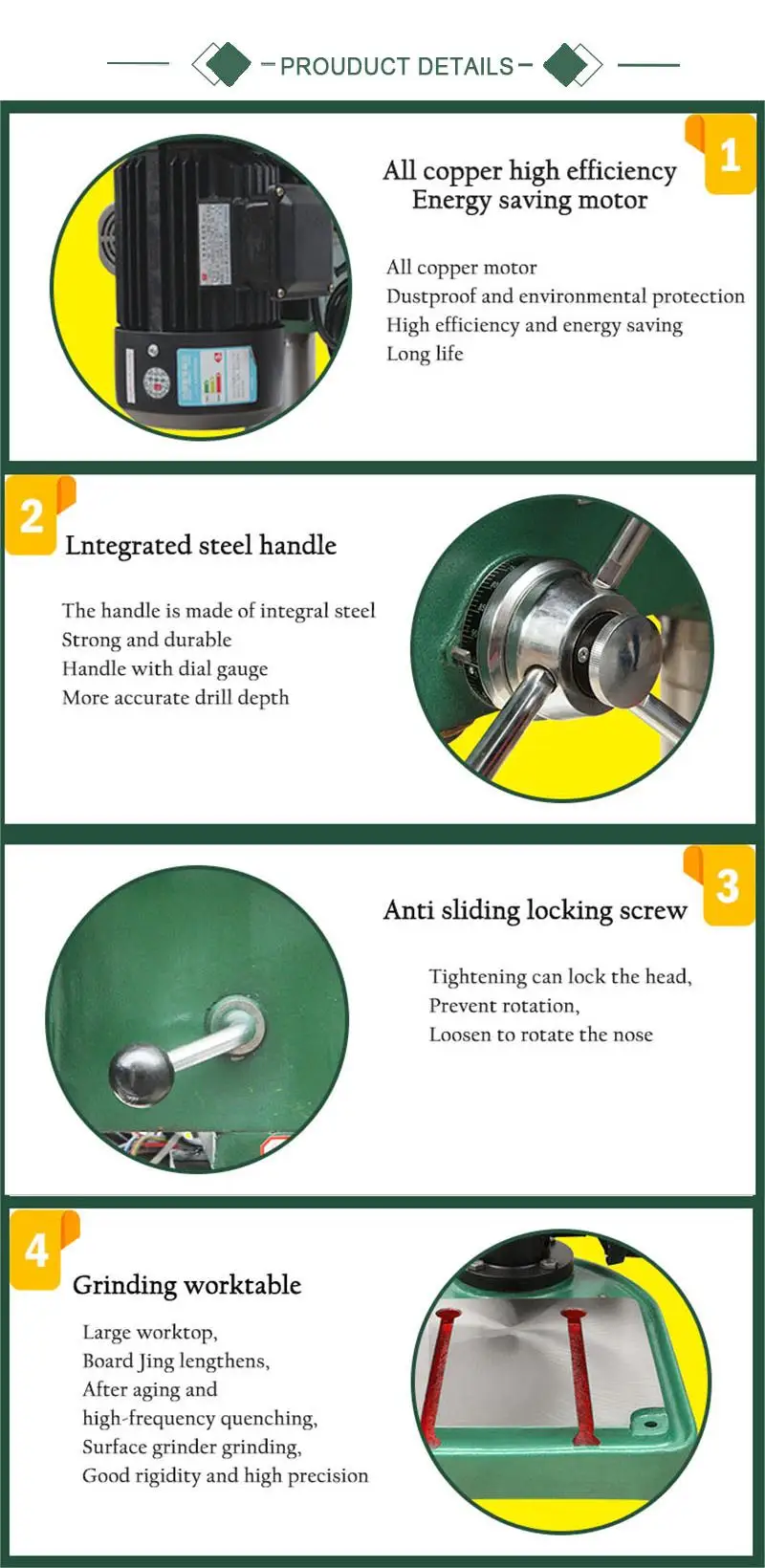

Products Description




The above are FOB ShangHai port prices.
Specializing in manufacturing drilling machines for 60 years, there are about 200 drilling machine models with complete quality.
The company has the right to run its own export business, and its sales network covers more than 20 provinces, cities and autonomous regions in China, and is exported to many countries in Europe, America, Southeast Asia and other places. "Quality first, customer first" is the company's business purpose, and "manufacturing quality drilling machines to continuously meet customer needs" is the company's eternal goal.










Product Paramenters


Model
ZS4019
Max.Drilling capacity
19
Max.Tapping capacity
M16/M12
Diameter of column
74
Max.spindle travel
110
Morse taper of spindle nose
MT.2
Spindle speeds
240-370-550-800-1200-1800-2700-3800
Size of worktable
-
Size of base worktable
320*314
Distance from spindie axis to column surface
198
Distance from spindle nose to worktable
-
Distance from spindle nose to base surface
245-415
Motor
0.55(6 poles)
G.W/N.W
120/105
Ship measurement
80*42.4*81.2


Model
ZS4120B
ZS4125B
ZS4025
Max.Drilling capacity(mm）
20
25
25
Max.Tapping capacity
M16/M12
M20/M16
M18/M14
Diameter of column
85
85
85
Max.spindle travel
125
125
110
Morse taper of spindle nose
MT.2
MT.3
MT.3
Spindle speeds
230-390-680-1230
230-390-680-1230
300-400-550-800-1200-1800-2450-3150
Size of worktable
320*290
320*290
-
Size of base worktable
335*335
335*335
300*280
Distance from spindie axis to column surface
242.5
242.5
192.5
Distance from spindle nose to worktable
0-280
0-265
-
Distance from spindle nose to base surface
280-560
265-545
310-480
Motor
0.75(6 poles)
1.1(6 poles)
0.75(6 poles)
G.W/N.W
160/140
160/140
125/110
Ship measurement
86*47.6*101.3
86*47.6*101.3
80*42.4*96.2

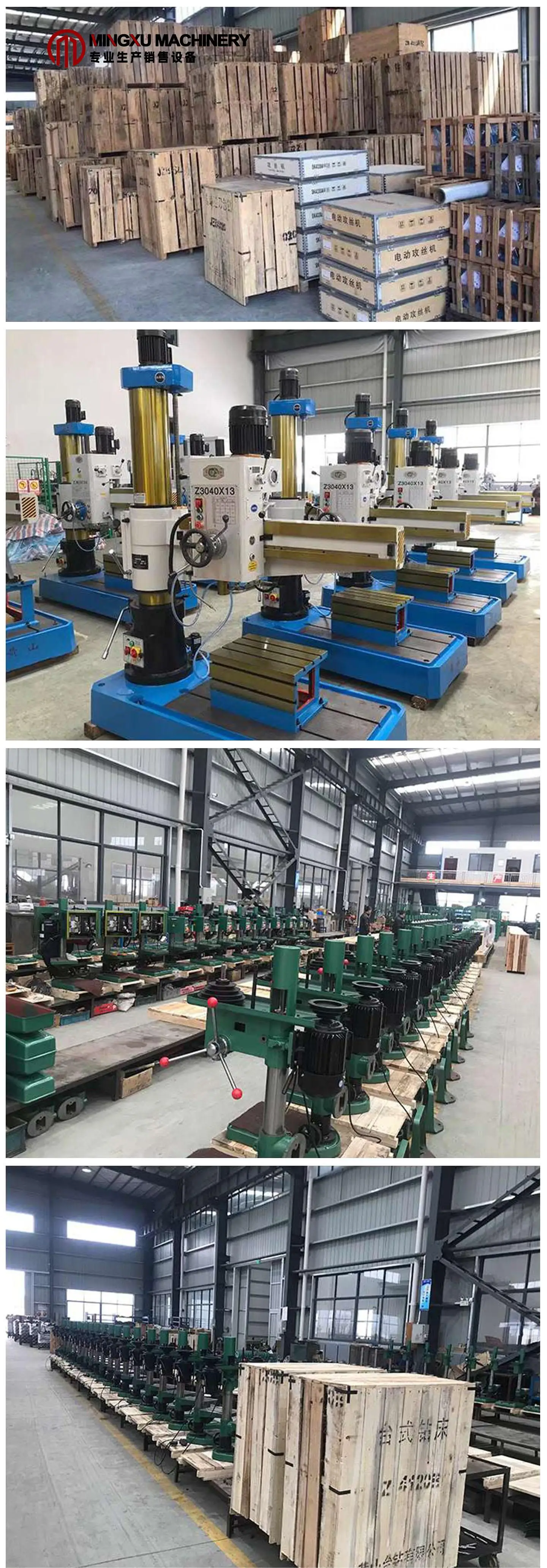

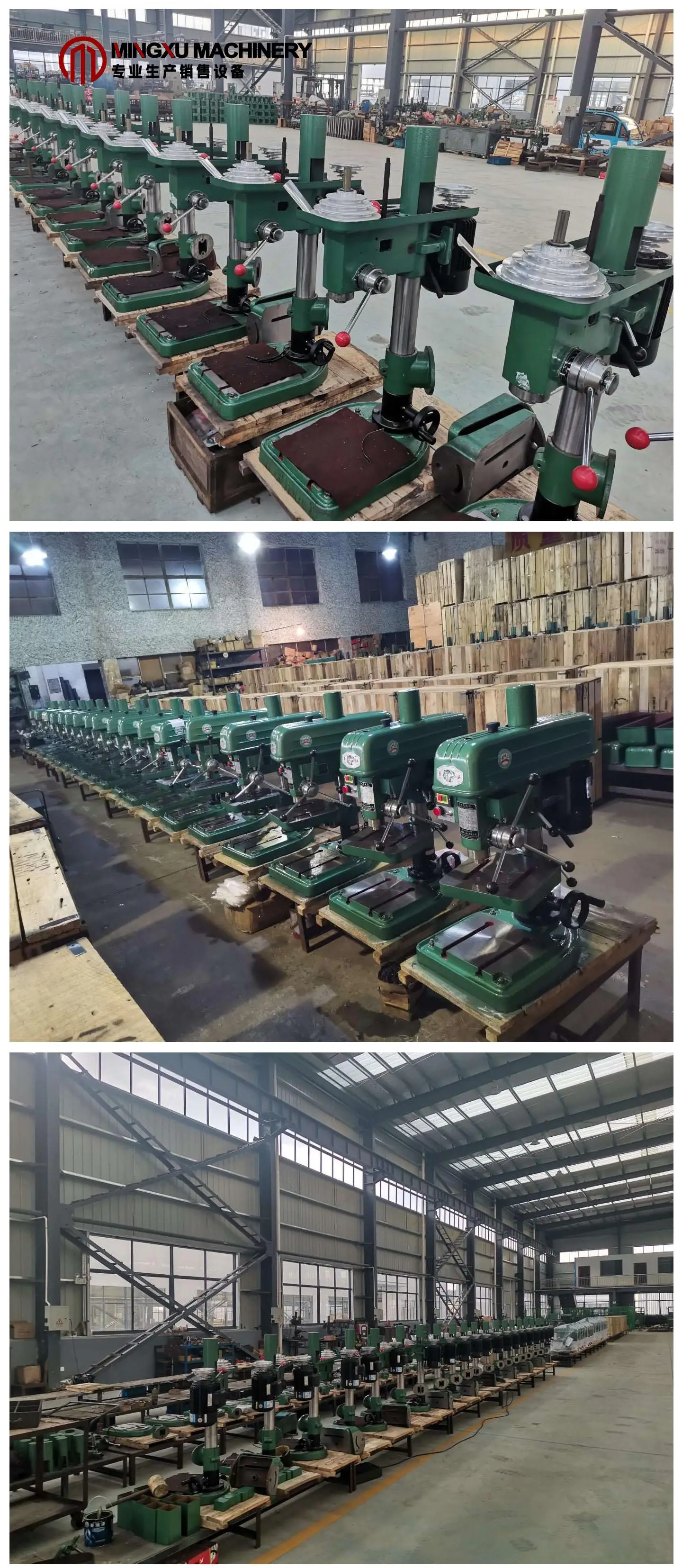

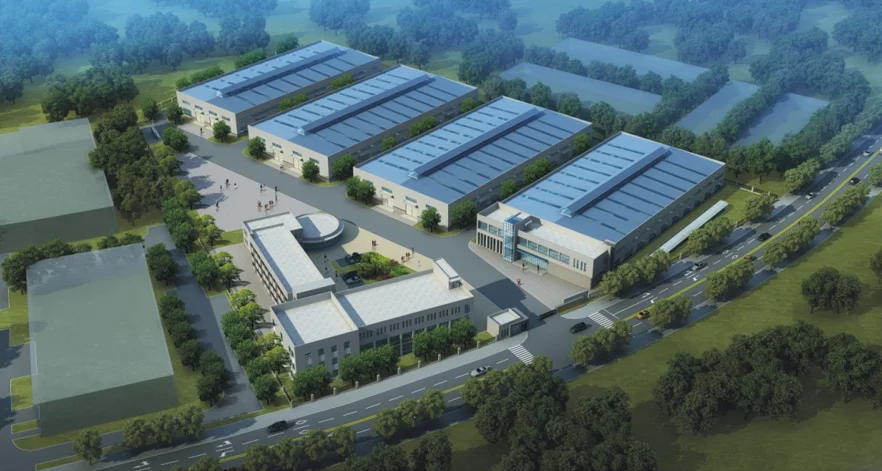

Company Profile


Is a domestic enterprise specializing in the production of drilling machine series products. It is the director unit of cmtba
Drilling and Boring Machine Branch, and the member unit of Drilling and Boring Machine Industry Standardization Technical Committee.
The company has nearly 120 employees, including 40 engineers and technicians, and has more than 200 sets of general-purpose mechanical processing and inspection equipment. The main products produced by the company are: desktop drilling machine, vertical drilling machine, milling drilling machine, tapping machine, dual-purpose drilling and tapping machine, radial drilling machine, universal tool grinder, numerical control drilling machine, numerical control milling machine, vertical machining center, deep hole drill, axial press and so on. With an annual output of more than 20,000 series drilling machines, we can design and customize all kinds of precise, efficient and special machine tools according to users' needs, and provide integrated drilling and processing solutions. The company has always paid attention to product quality and the development of new products, always adhered to the production concept of "innovation and refinement, pursuit of perfection", constantly introduced and absorbed advanced technology and equipment, and actively explored modern management mode. The company has passed the ISO 9001:2008 international quality management system certification.










Product packaging










FAQ


1. Who are we?
A:Wuxi Mingxu Machinery Equipment Co., Ltd. was restructured from Wuxi Machinery Equipment Co., Ltd. Mainly produces and sells mechanical equipment, forging equipment, grinders, machining centers, hot die forging equipment, CNC machine tools, lathes, milling machines, machine tool parts and so on.

2.What is the package of the machines?
A: The machines standard packed by iron pallets with steel box ,high quality package to reduce the risk of damage during delivery.

3.What is your MOQ of this item?
A: Our MOQ is one set.

4.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .

5.When is the delivery time?
A: Conventional Machines, we will deliver then within 20 working days after receiving your deposit. If some special machines will be longer, please contact us for details. According to the delivery date at that time, we will give you a reply accordingly.

6. What is the payment Terms ?
A : Alibaba or T/T ,30% initial payment when order ,70% balance payment before shipment ;

7.What kind of trade terms can you do ?
A:EXW,FOB,CFR,CIF,Etc.

8.What is Trade Assurance?
A:Trade Assurance is a free service by Alibaba .com that's designed to help create trust between buyers
and suppliers.Trade Assurance helps buyers in the event of shipping and quality-related dispute.

9.Dose Trade Assurance charge fees?
A: No.Trade Assurance is free for both buyers and suppliers.
