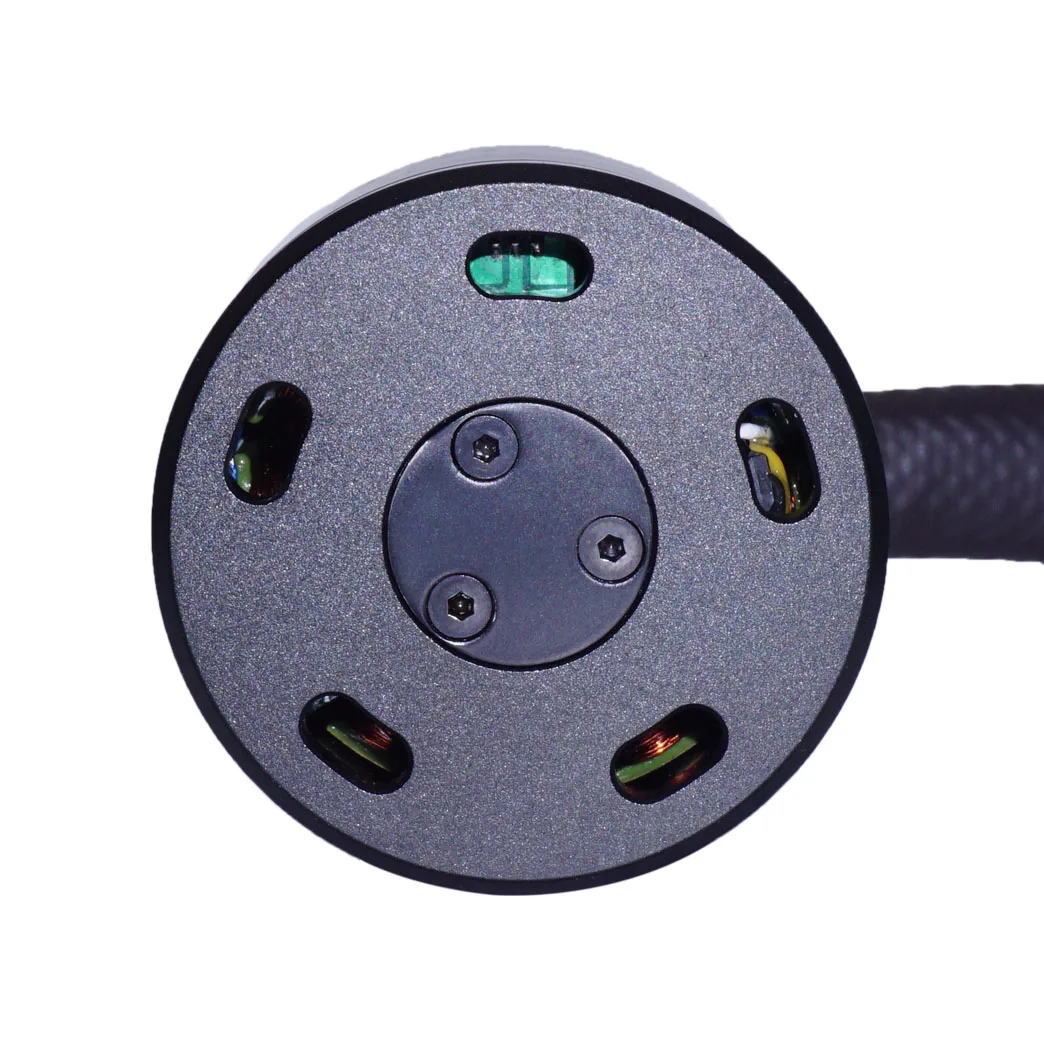

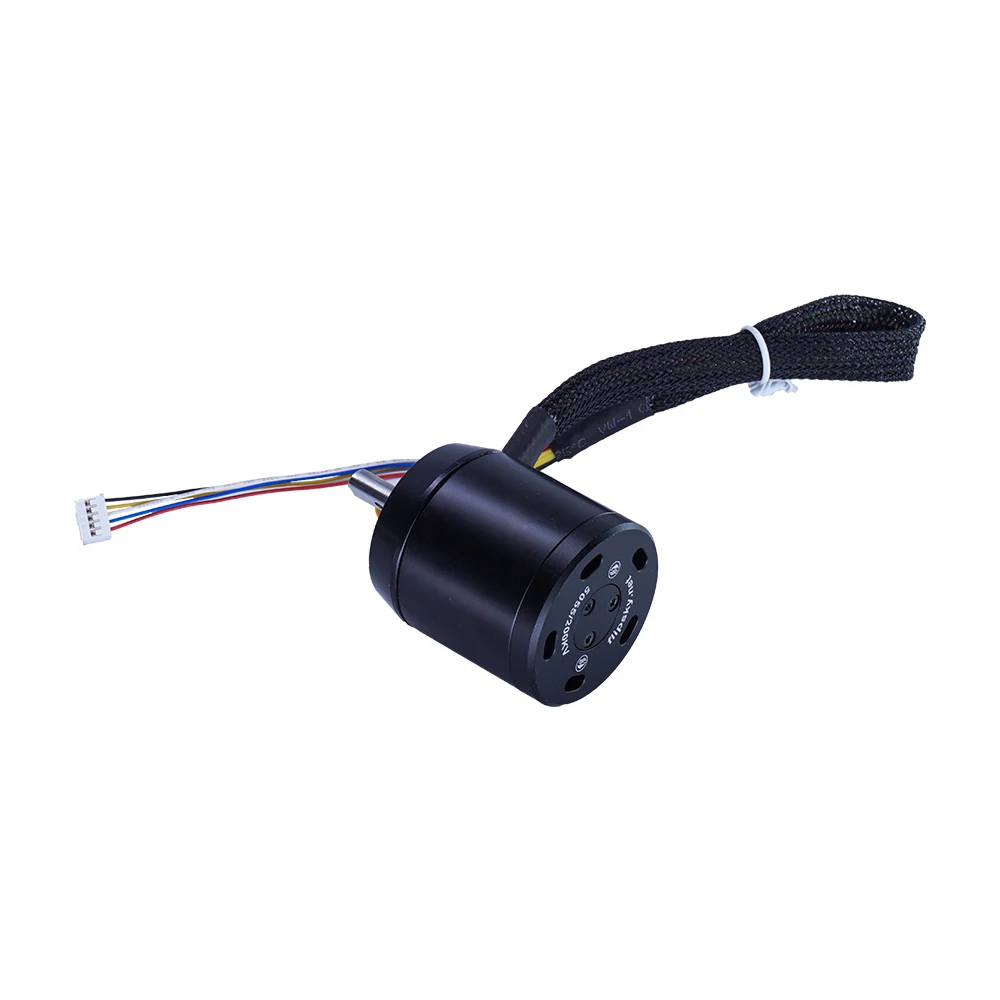

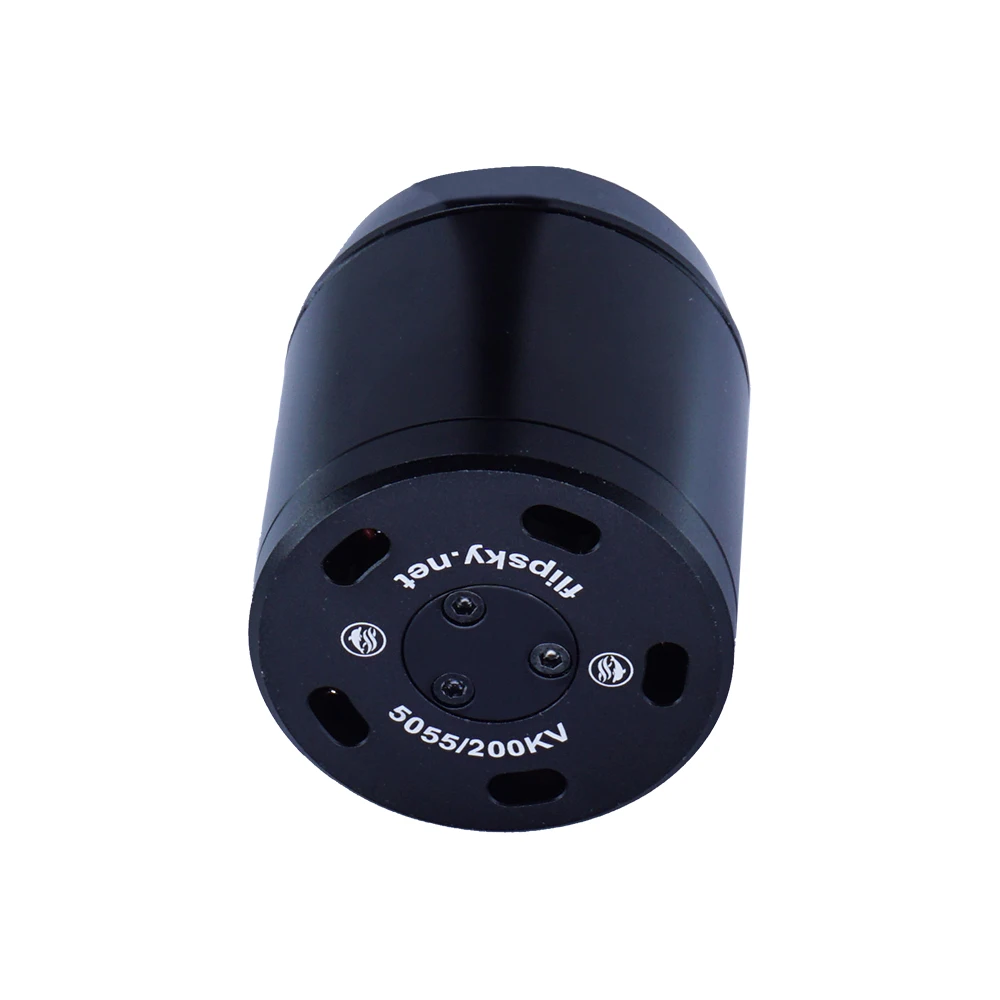

Flipsky Micro Motor H5055 DIY Robots Scooter EBike 12S 39A 1380W 200KV Sensor DC Brushless Belt Motor

Product Spec:
Max Power: 1380W
Max Current: 39A
Max Volts: 12S
Max Torque:1.1N.m
Recommend ESC: 3-12S 50A (FSESC4.12 50A or FSESC 6.6 60A)
Weight: 1.05 lb / 0.475 kg

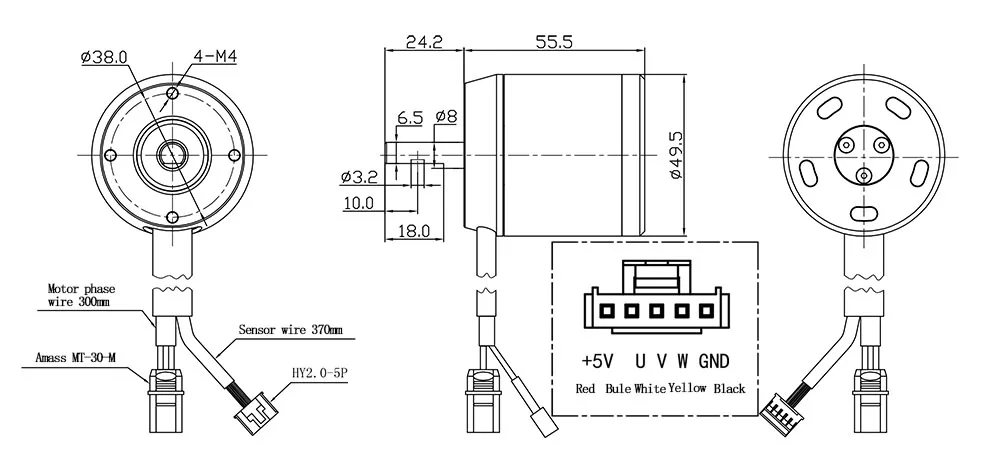

The motor length:55.5mm
The motor diameter: 49.5mm

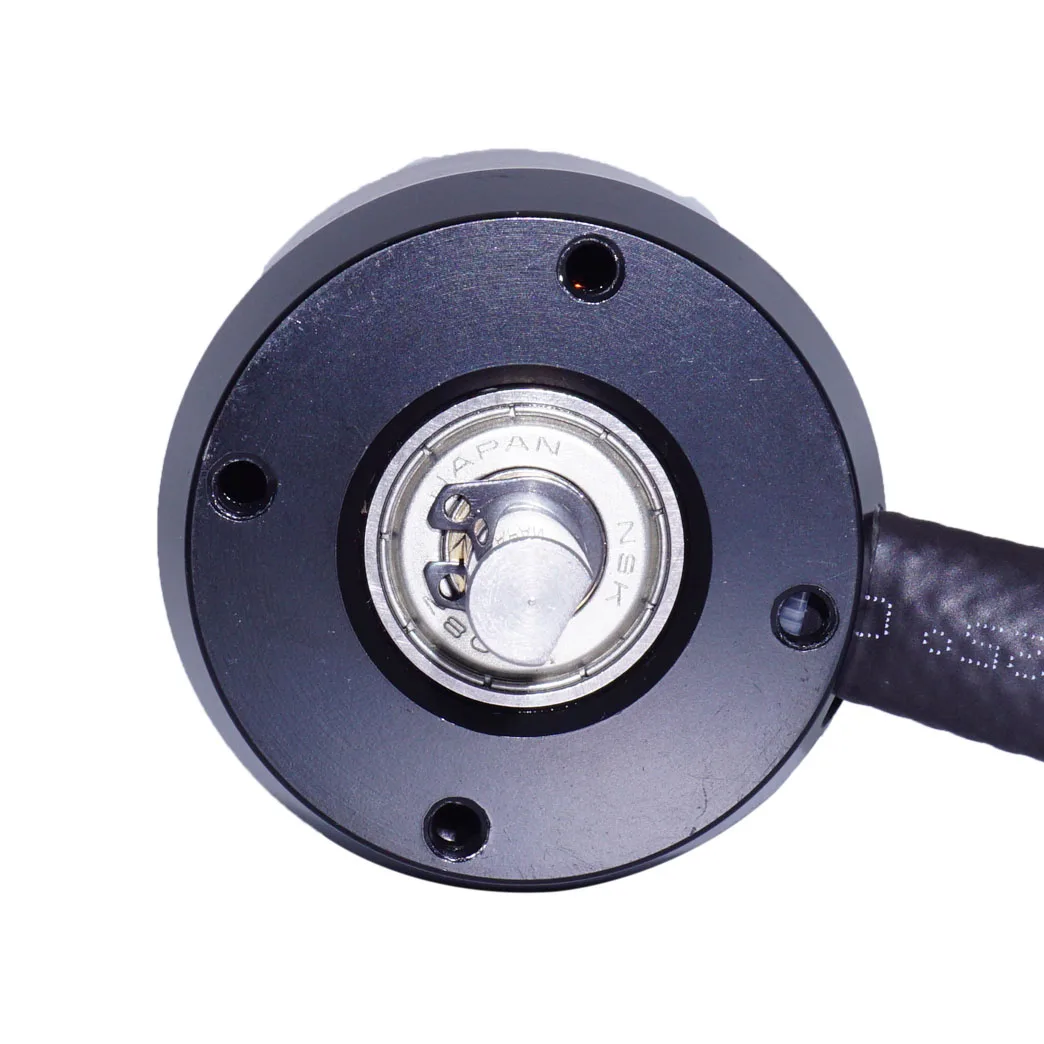

SHAFT: Diameter 8mm, 25mm length

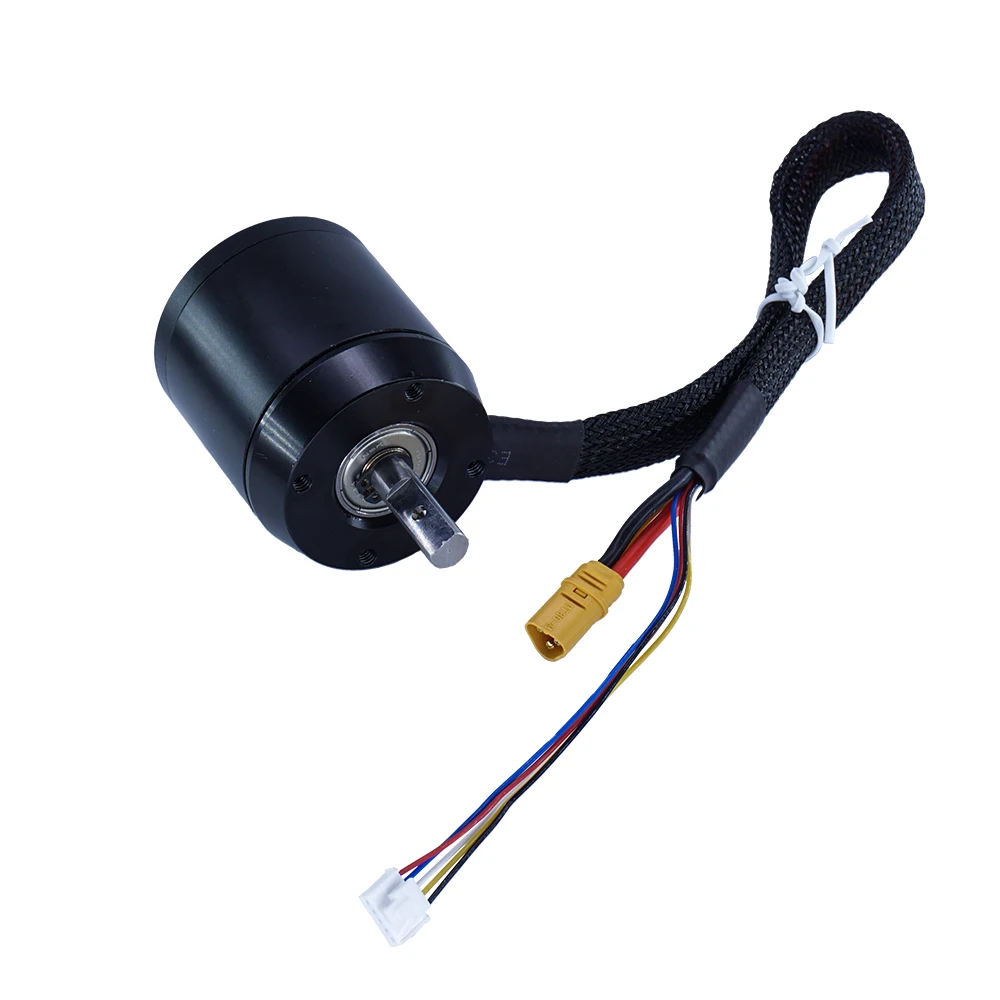

Motor Wire: 300mm silicone 16AWG wire with MT30 male connector.
Wire configuration:
Blue = U
White = V
Yellow = W

BLDC Motor
The number of pole: 14
Sensor Wire: Standard RC Sensor Wire HY2.0-5P connector
