Product Overview
Description
Products Description

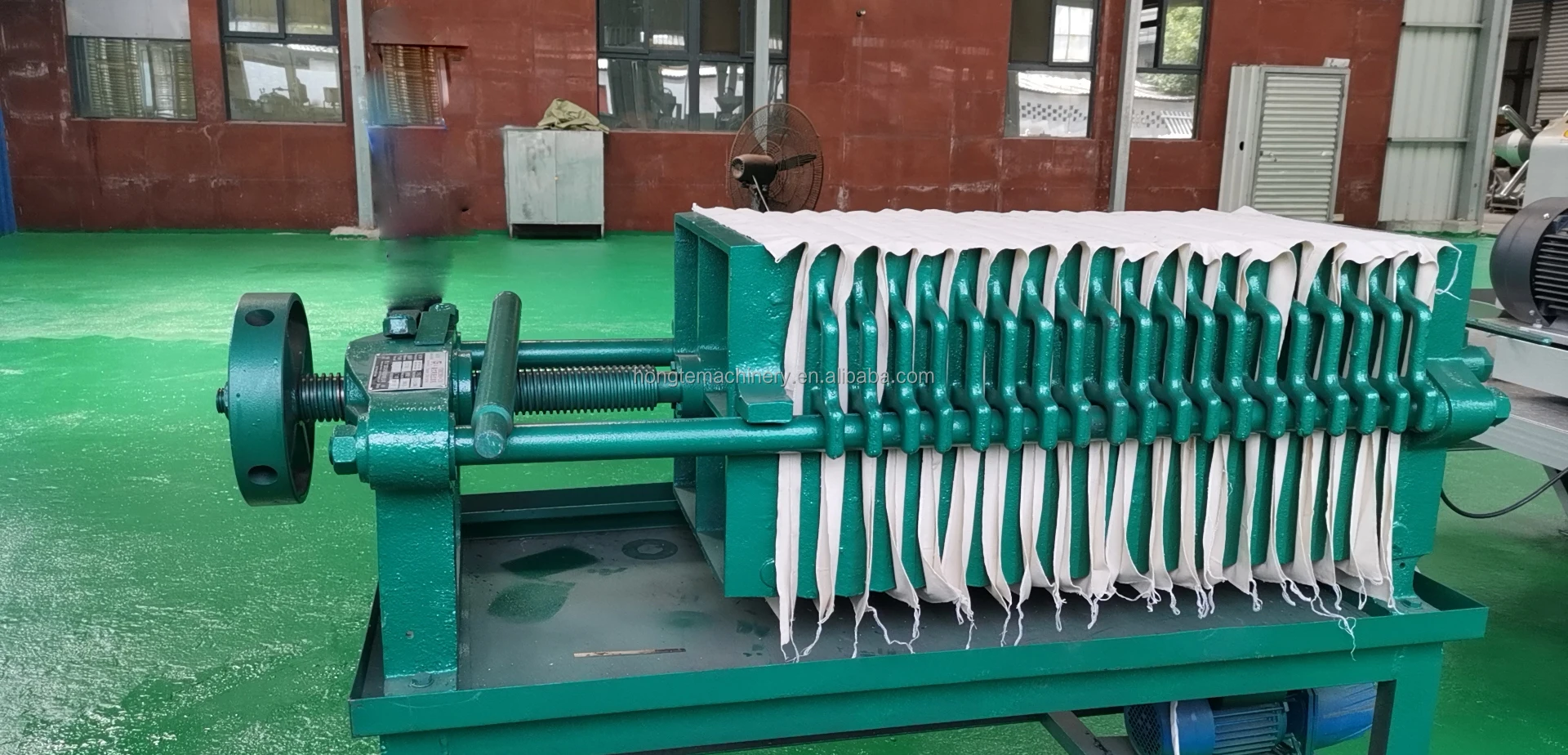

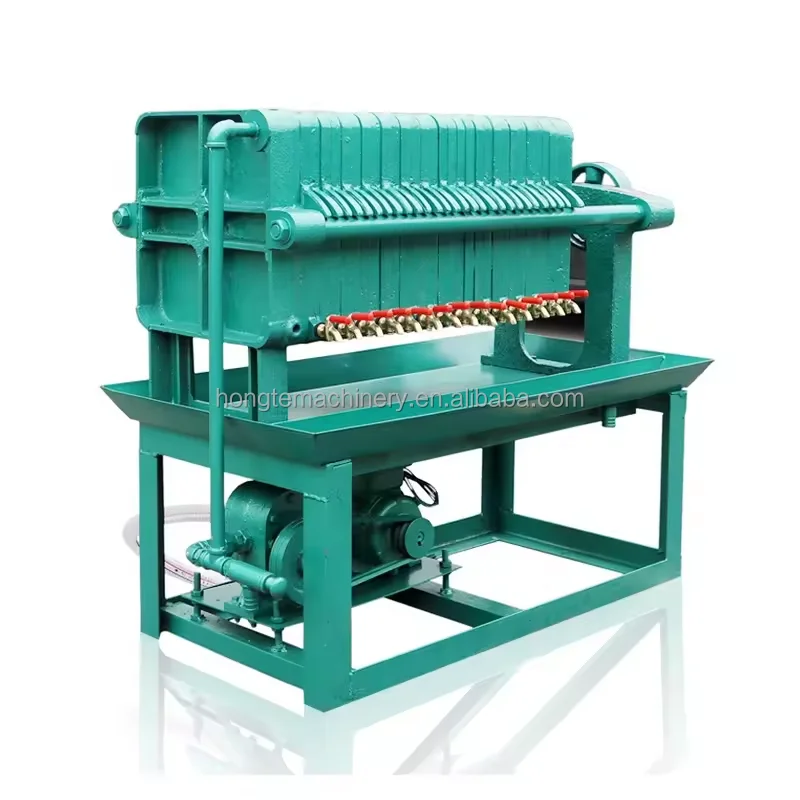

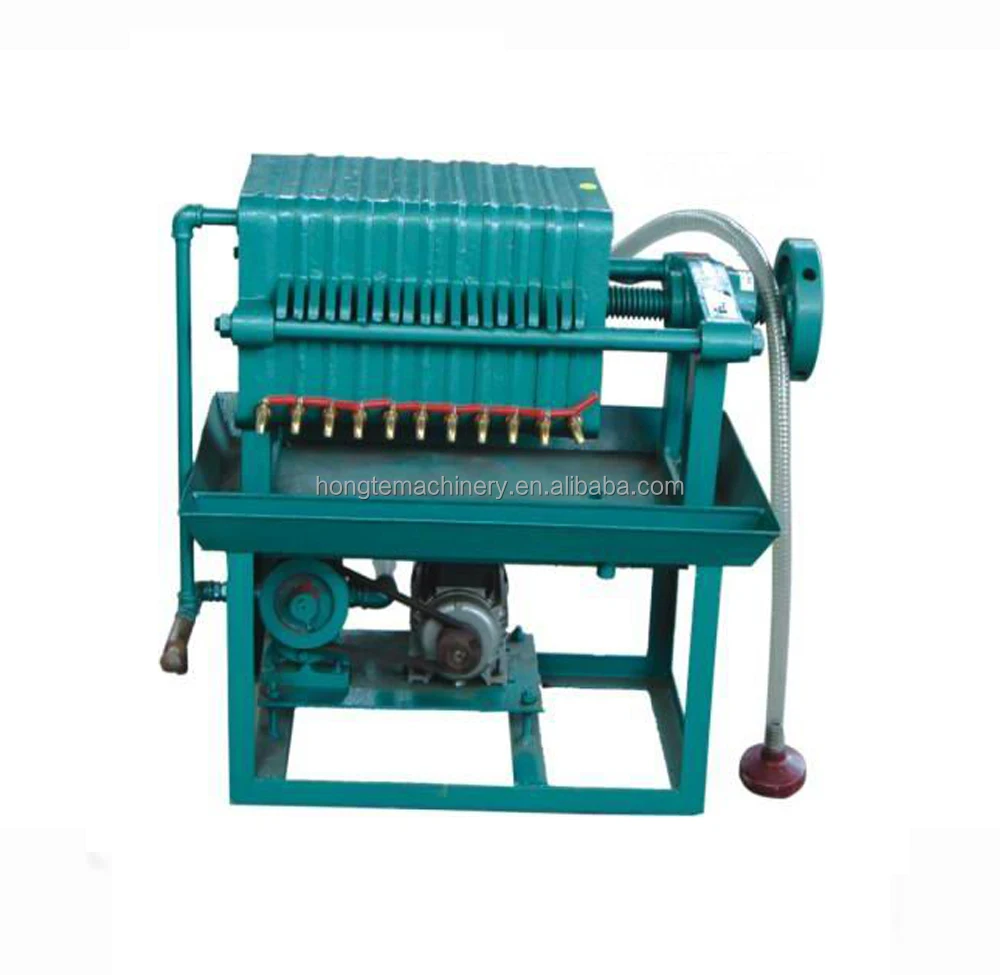

The plate and frame type oil filter produced by our factory uses gear pump to supply oil, which is a filter equipment matching with various types of oil press, mainly used for oil and slag separation of crude oil. This series of oil filter is also widely used in food processing, chemical industry and other sectors for suspension filtration work. The machine has reasonable structure, convenient maintenance and debugging, easy to operate, and is welcomed by the majority of users in various industries.
型号Model | L320x11 | L320x14 | S500x20 |
生产能力Process capacity（L/H） | 140 | 180 | 500 |
过滤面积Filtering area（㎡） | 2.1 | 2.64 | 7.7 |
滤板数量Filter plate qty (pc) | 10 | 13 | 19 |
配用动力Electric power（kw） | 0.75 | 0.75 | 2.2 |
外形尺寸Machine size（mm） | 1010x530x870 | 1150x530x870 | 1984x694x1153 |
工作压力Work pressure（mpa） | ＜0.35 | ＜0.35 | ＜0.35 |
产品重量Machine weight（kg） | 320 | 350 | 1300 |
PRODUCT SPECIFICATIONS

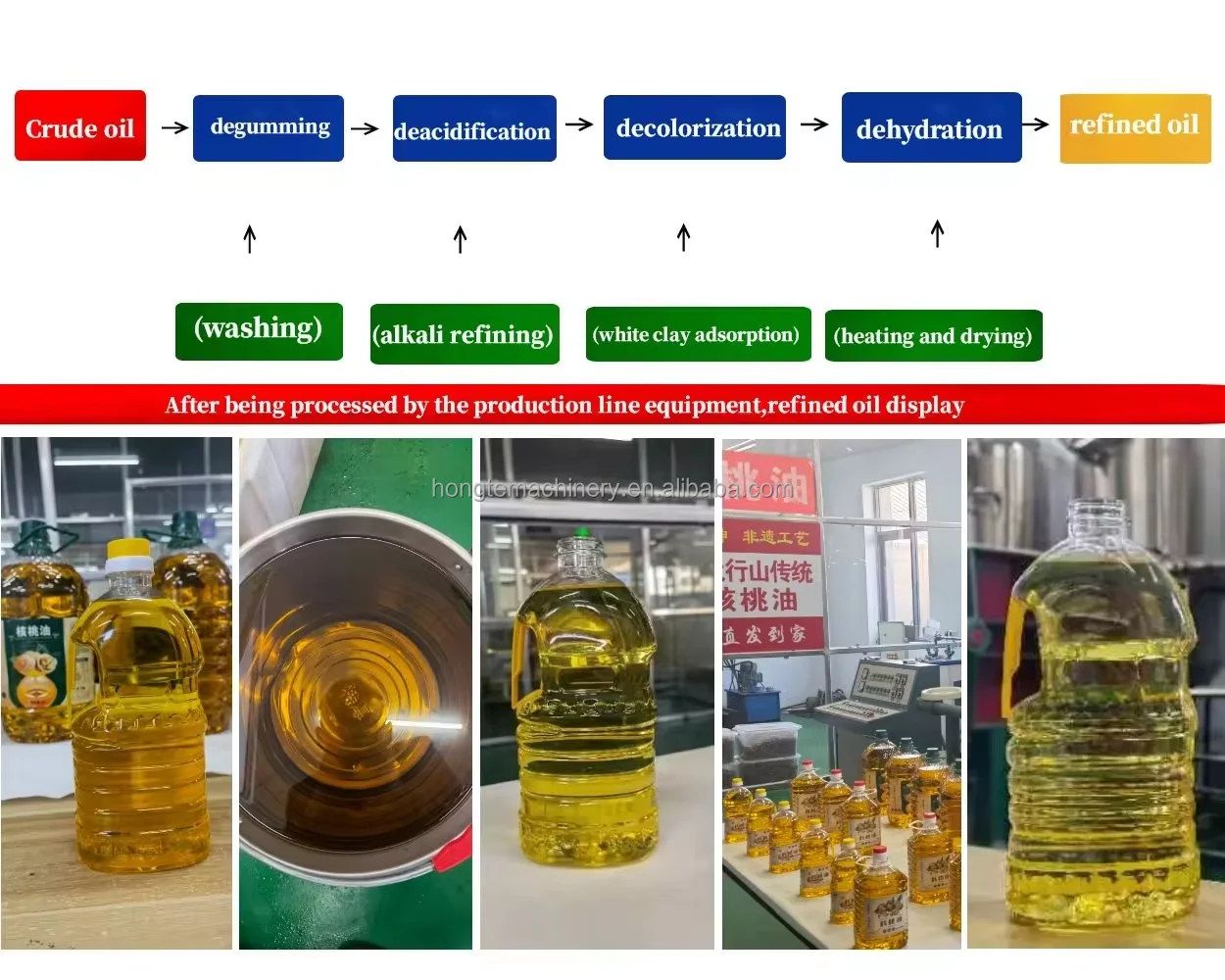

The full refining process can be divided into neutralization, washing, vacuum drying,decolorization, deodorization, and deparaffinization stages.
Fully refined edible oil: light. Odorless, raises the point of smoke, and has a longer shelf life.
Semi refining process: neutralization stage, washing stage, vacuum drying stage.

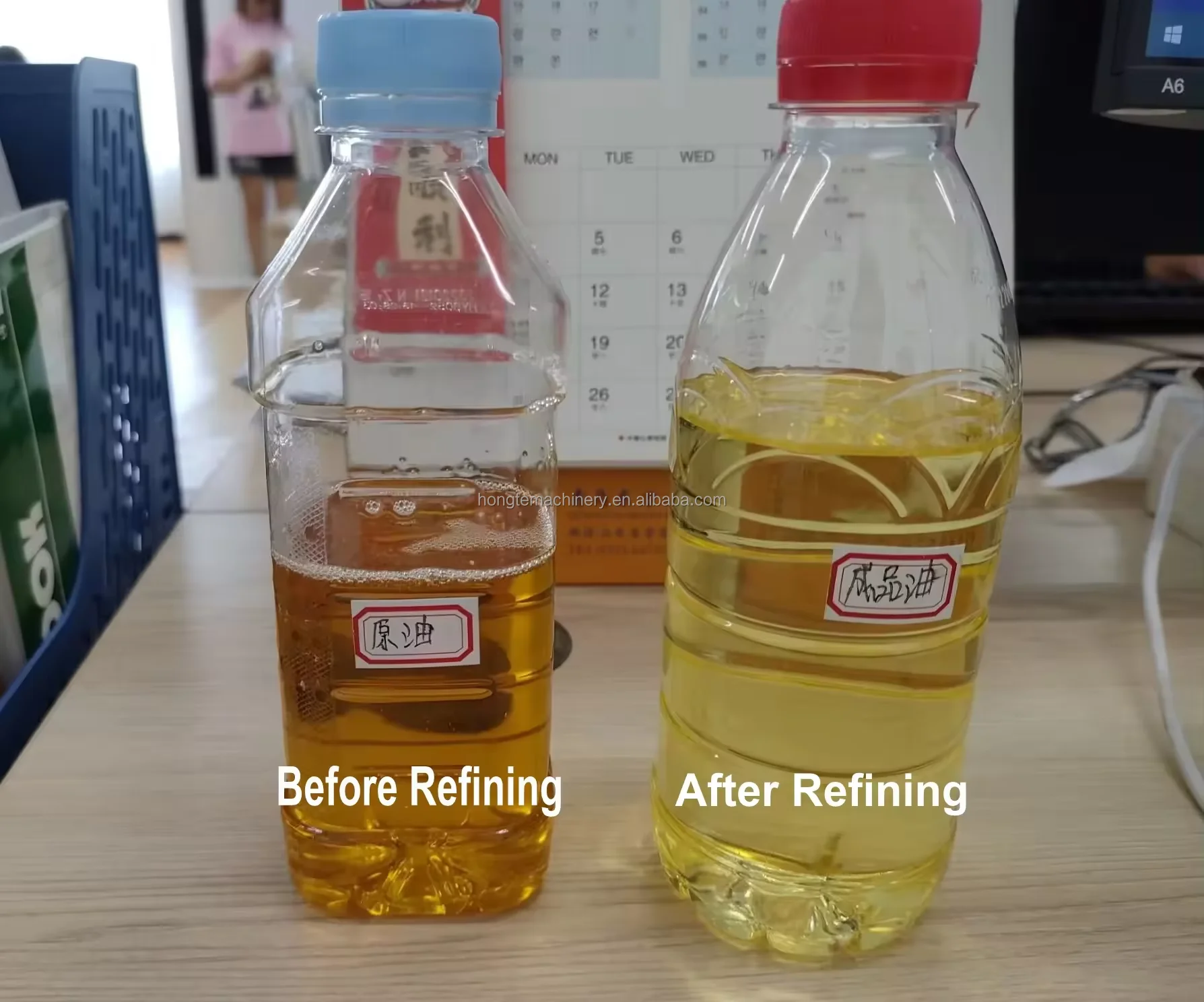

After the semi refined edible oil: clear, the smell of the original edible oil is preserved, the smoke point is raised, and the oil shelf life is extended.
Low temperature cold filtration: after cooling down, precipitation and other processes take off the wax in the edible oil. Heavier solid particles.
Low temperature cold filtration: after cooling down, precipitation and other processes take off the wax in the edible oil. Heavier solid particles.
Low temperature and cold filtration preserved the maximum amount of nutrients in edible oil, and the original smell, after dewaxing guaranteed clear oil.
Edible oil refining is a set of processes or treatments necessary to turn vegetable raw oil into edible oil.Raw vegetable oil, obtained from seeds by pressing, solvent extraction, contains free fatty acids and other components such as phospholipids, waxes, peroxides, aldehydes, and ketones, which contribute to undesirable flavor, odor, and appearance; for these reasons, all the oil has to be refined.

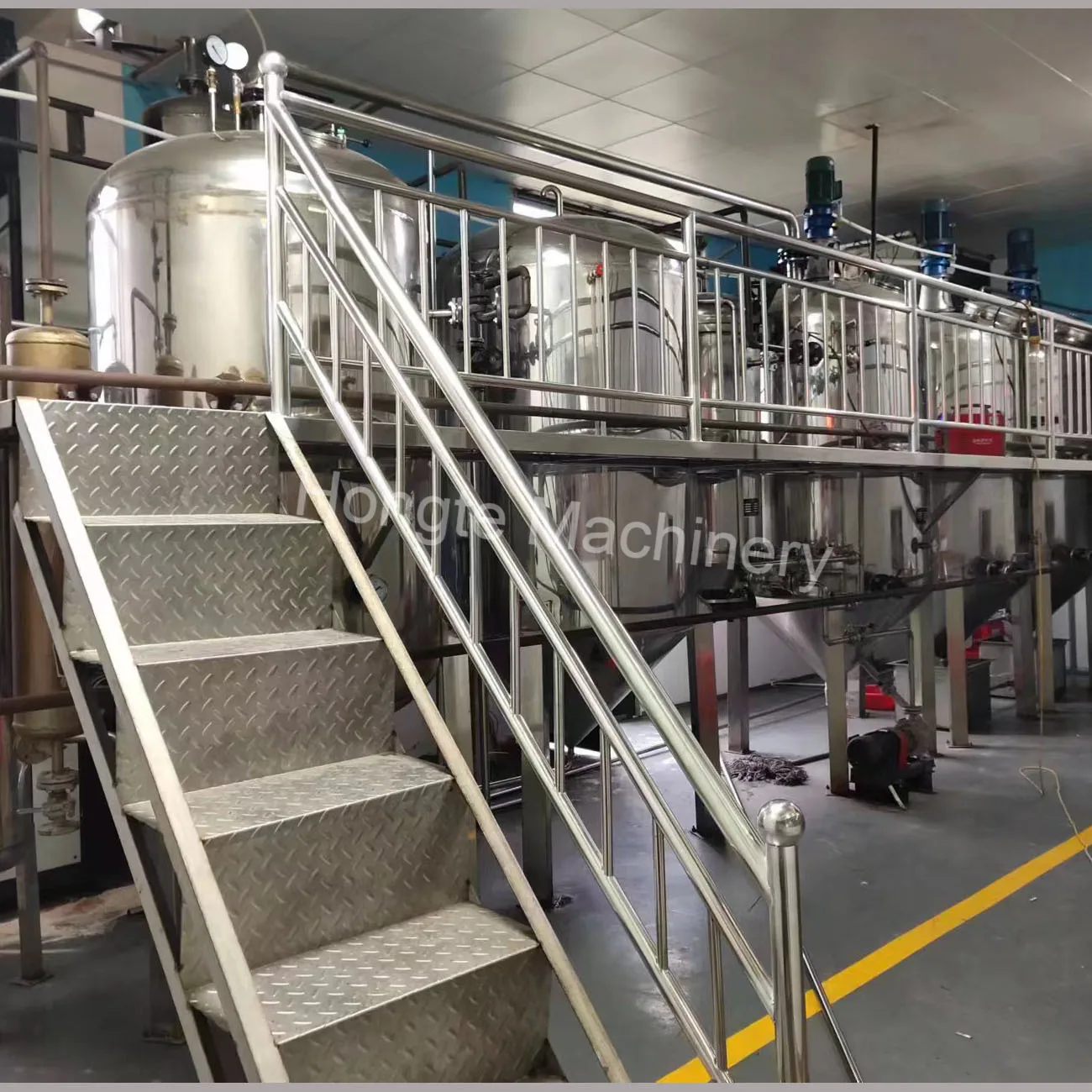

Other Refinery Equipment 1-200T/D Customized
Application

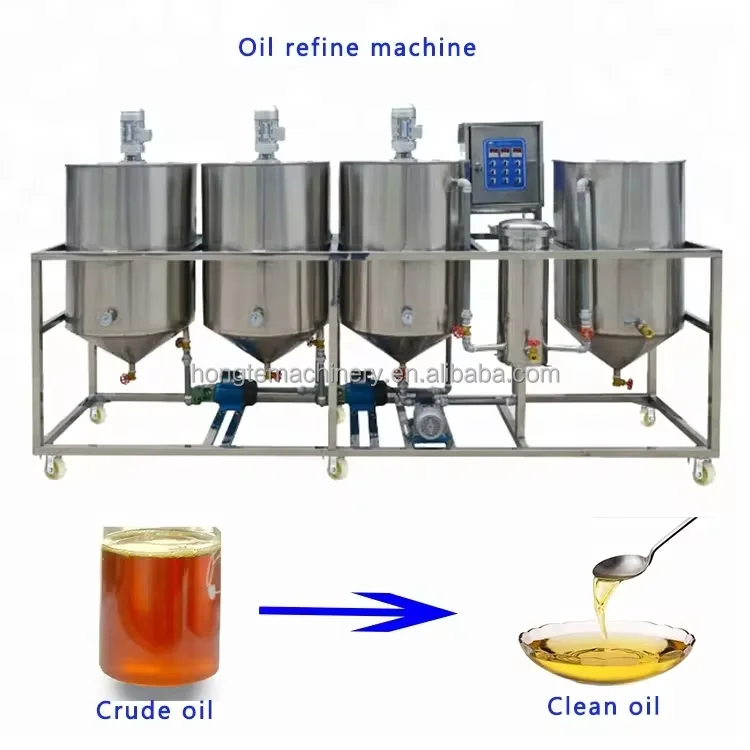

Oil Refining Machine
It is suitable for refining various crude oil, vegetable oil, such as sunflower seed oil, tea seed oil, peanut oil, soybean oil,corn oil, groundnut oil and so on.
It is suitable for refining various crude oil, vegetable oil, such as sunflower seed oil, tea seed oil, peanut oil, soybean oil,corn oil, groundnut oil and so on.

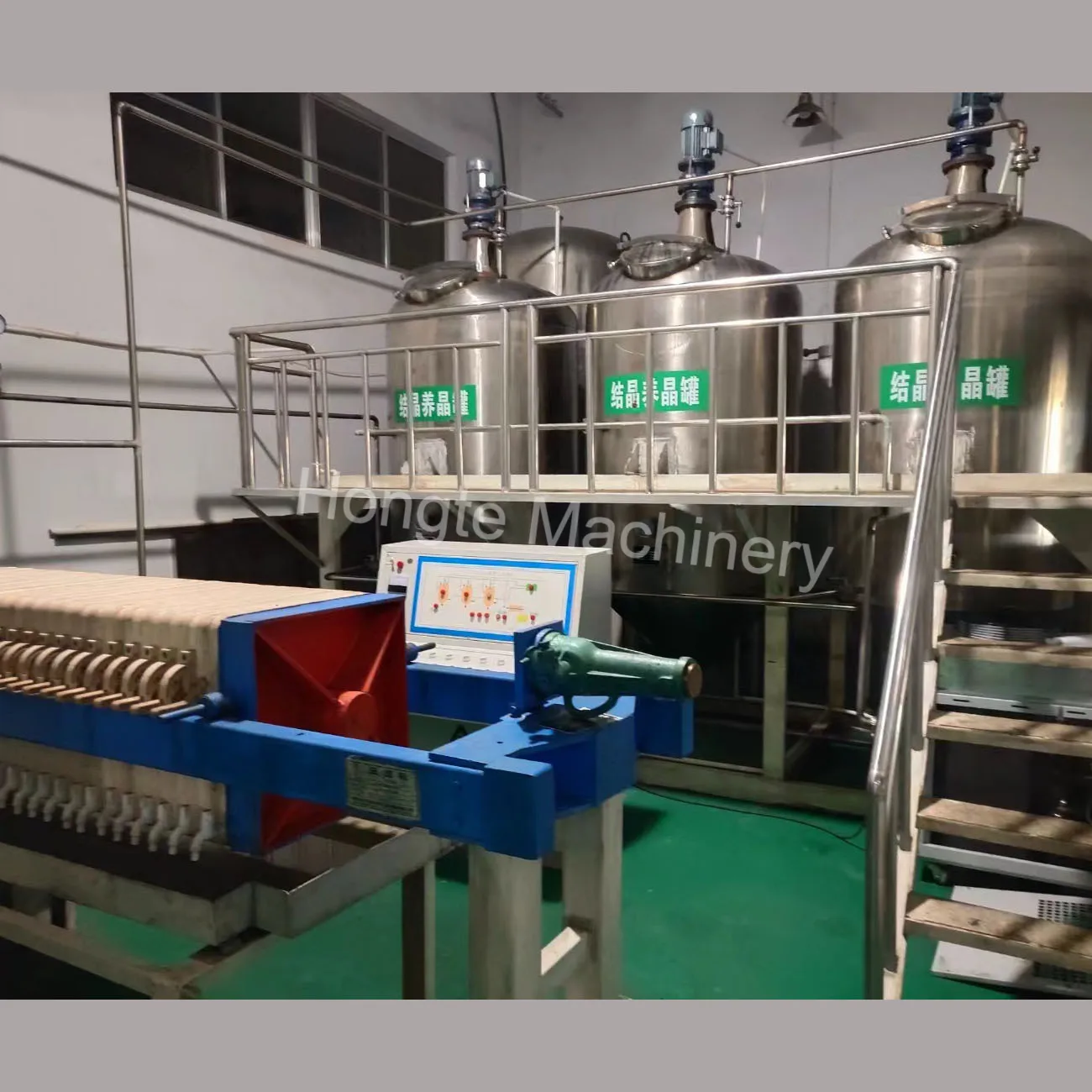

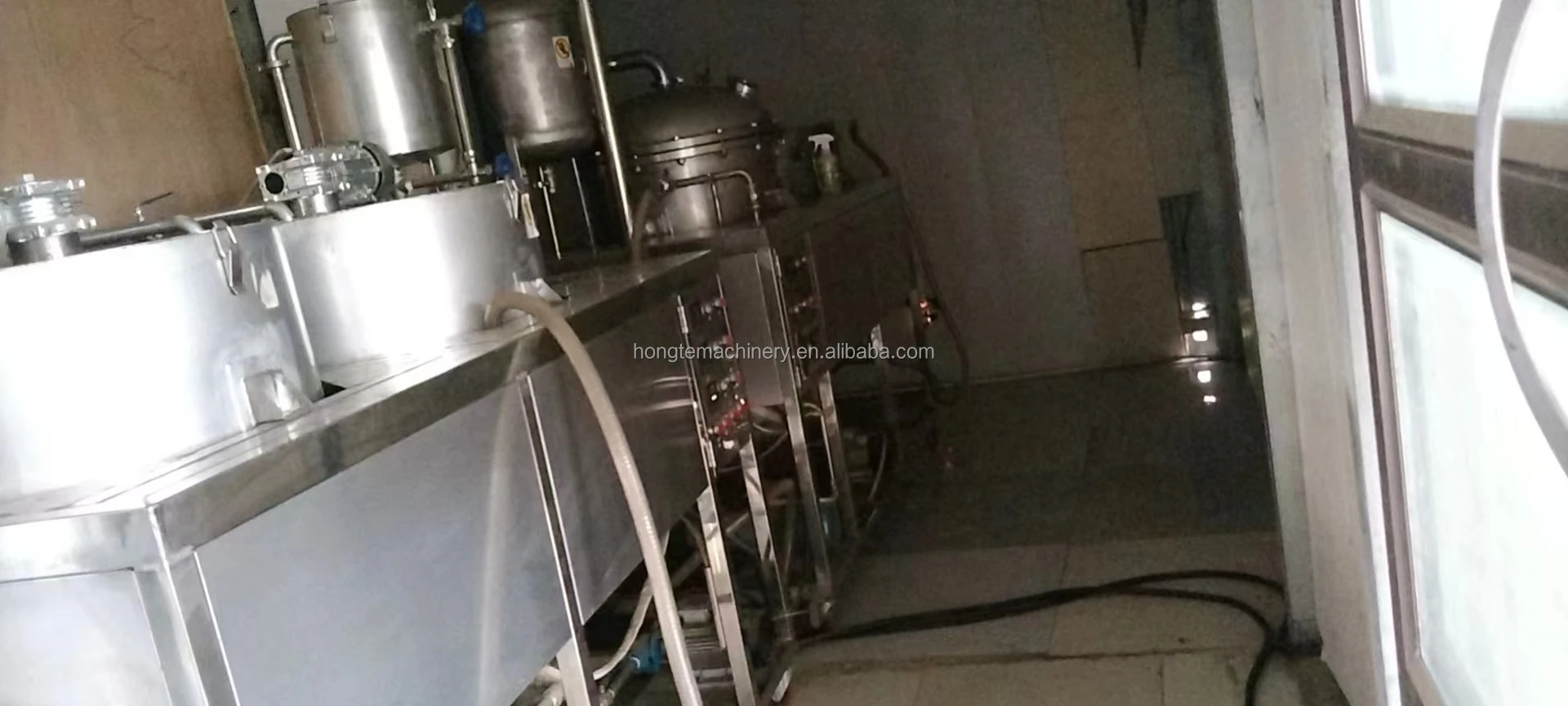

Installation case
