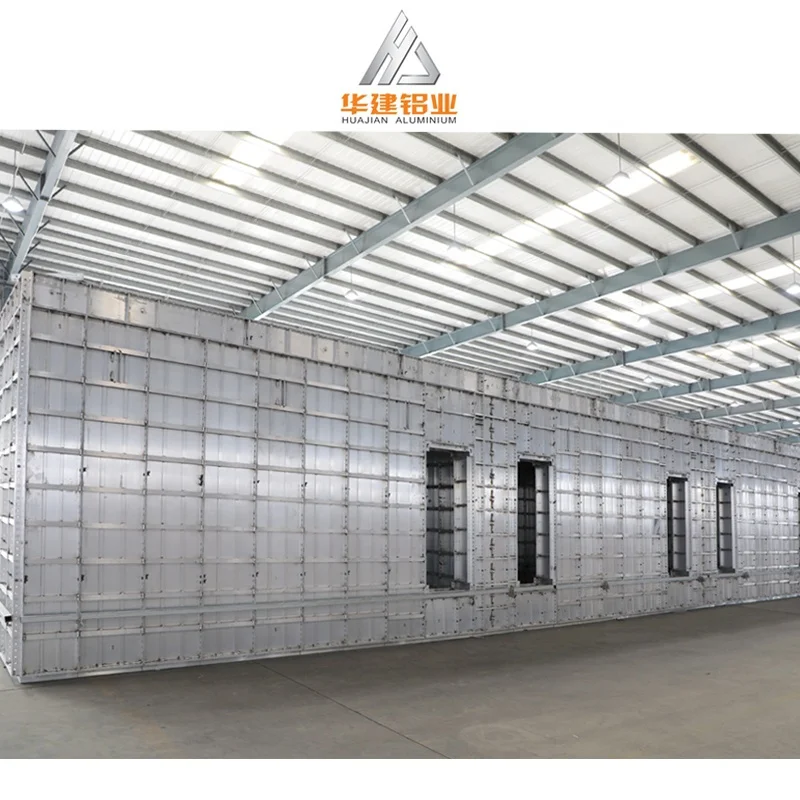

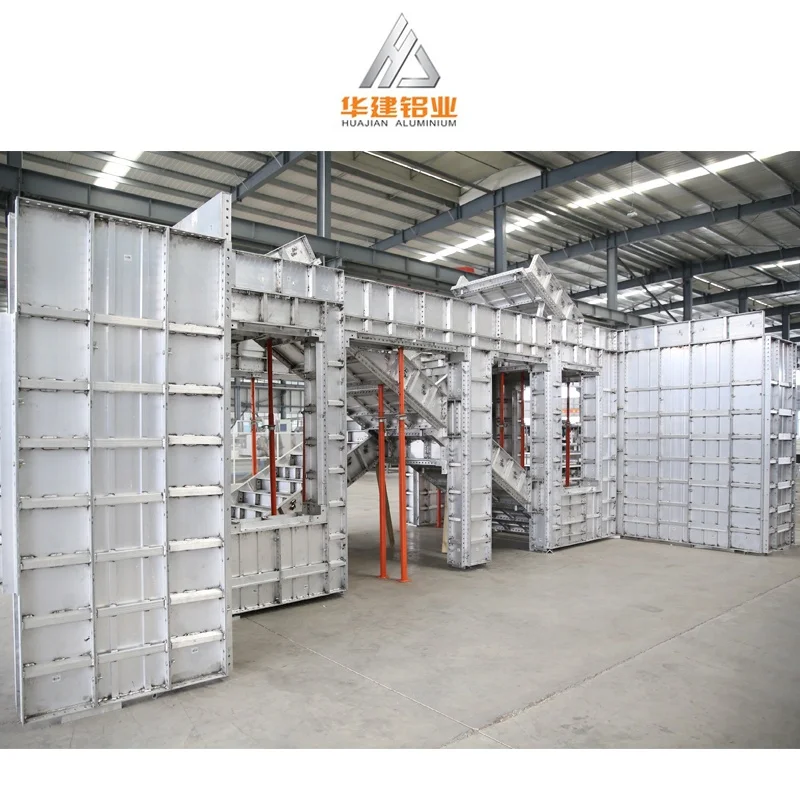

Building Formwork Materials Reusable Aluminum Formwork System For Home Construction
- Category: >>>
- Supplier: Shandong Huajian Aluminium Group Co. ltd.
Share on (1601185178197):
Product Overview
Description
Product Description

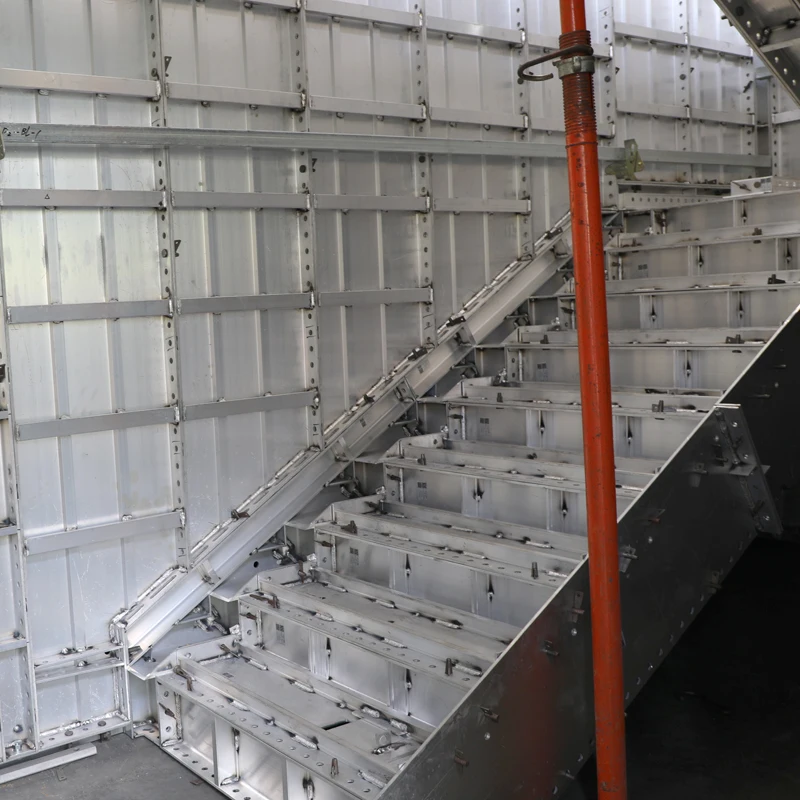

Building Formwork Materials Reusable Aluminum Formwork System For Home Construction
plywood and hardwood formwork is not ideal for the tremendous pressure of fresh concrete on the wall, however the Aluminum Formwork is well-suited for load-bearing wall construction. Fast, simple, versatile, and cost-effective are some of the benefits of this technology. When durability is a top priority, it provides high-quality work that requires less maintenance.
Advantages of Aluminum Formwork
1.Increased Efficiency
Aluminum formwork can help to increase the efficiency of construction projects as it is a reusable system that can be used multiple times. This means that there is less waste generated on construction sites, which can help to reduce costs. Additionally, aluminum formwork is quick and easy to assemble, which can help to save time on construction projects.
2.Reduced Costs
As aluminum formwork is a reusable system, it can help to reduce the overall costs of construction projects. Additionally,
aluminum formwork is often lighter than other types of formwork, which can help to reduce transport costs.
3.Increased Safety
Aluminum formwork can also help to increase safety on construction sites, as it is a non-combustible material. This means that there is less risk of fires on construction sites that use aluminum formwork. Additionally, aluminum formwork is also non-toxic,which can help to create a safer working environment for employees.
4.Improved Quality
Another advantage of using aluminum formwork is that it can help to improve the quality of construction projects. This is because aluminum formwork provides a smooth finish that can be easily painted or coated. Additionally, aluminum formwork is resistant to rot and termites, which can help to improve the longevity of buildings.
5.Enhanced Sustainability
Aluminum formwork is also an environmentally friendly option as it is 100% recyclable. This means that construction projects that use aluminum formwork can help to reduce their carbon footprint. Additionally, using recycled aluminum for formwork can also help to reduce costs as well as environmental impact.
1.Increased Efficiency
Aluminum formwork can help to increase the efficiency of construction projects as it is a reusable system that can be used multiple times. This means that there is less waste generated on construction sites, which can help to reduce costs. Additionally, aluminum formwork is quick and easy to assemble, which can help to save time on construction projects.
2.Reduced Costs
As aluminum formwork is a reusable system, it can help to reduce the overall costs of construction projects. Additionally,
aluminum formwork is often lighter than other types of formwork, which can help to reduce transport costs.
3.Increased Safety
Aluminum formwork can also help to increase safety on construction sites, as it is a non-combustible material. This means that there is less risk of fires on construction sites that use aluminum formwork. Additionally, aluminum formwork is also non-toxic,which can help to create a safer working environment for employees.
4.Improved Quality
Another advantage of using aluminum formwork is that it can help to improve the quality of construction projects. This is because aluminum formwork provides a smooth finish that can be easily painted or coated. Additionally, aluminum formwork is resistant to rot and termites, which can help to improve the longevity of buildings.
5.Enhanced Sustainability
Aluminum formwork is also an environmentally friendly option as it is 100% recyclable. This means that construction projects that use aluminum formwork can help to reduce their carbon footprint. Additionally, using recycled aluminum for formwork can also help to reduce costs as well as environmental impact.
Specification
Aluminum Formwork System Specification & Composition | ||||||
Specification | Aluminum A6061-T6 | |||||
Material | List | Unit | Combined Aluminum (A6061-T6) | |||
Specific Gravity | _ | 2.7 | ||||
Allowable Bending Stress | kg/cm2 | 1250 | ||||
Young's Modulus | kg/cm2 | 7.0*105 | ||||
Composition | Inner Wall Panel | Slab Corner & Beam | ||||

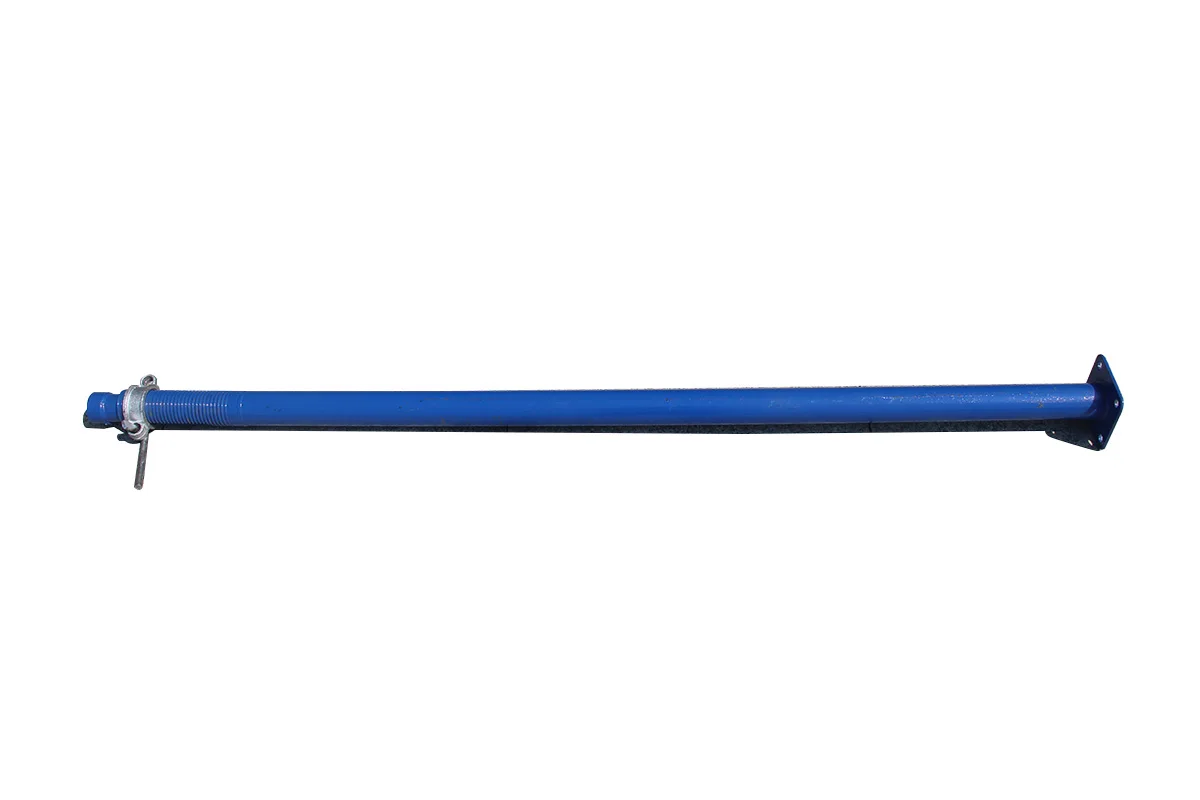

Slab Panel & Support | In-out Corner& Hunch | |||||

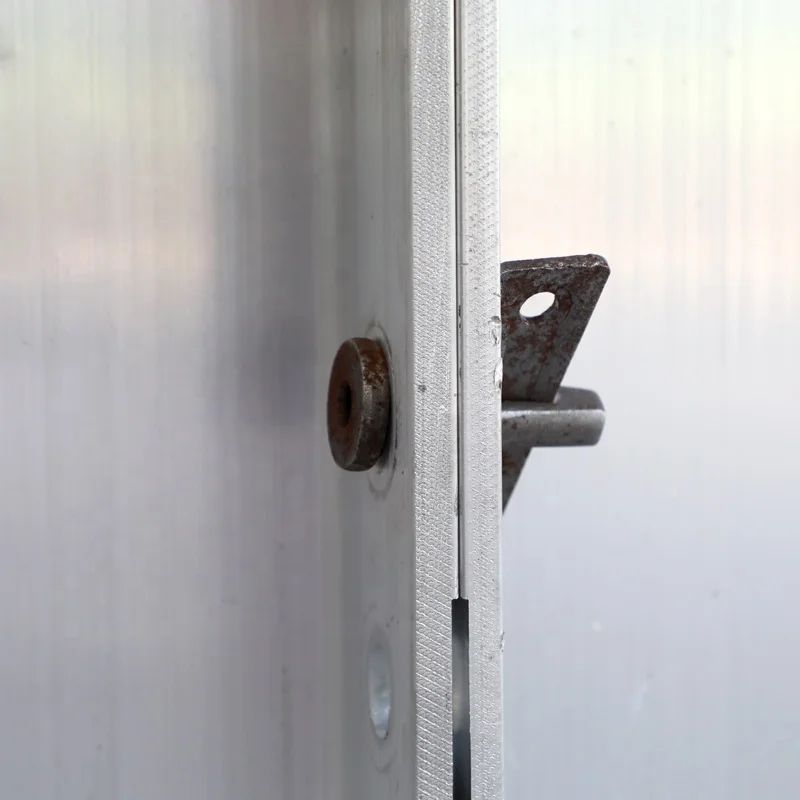

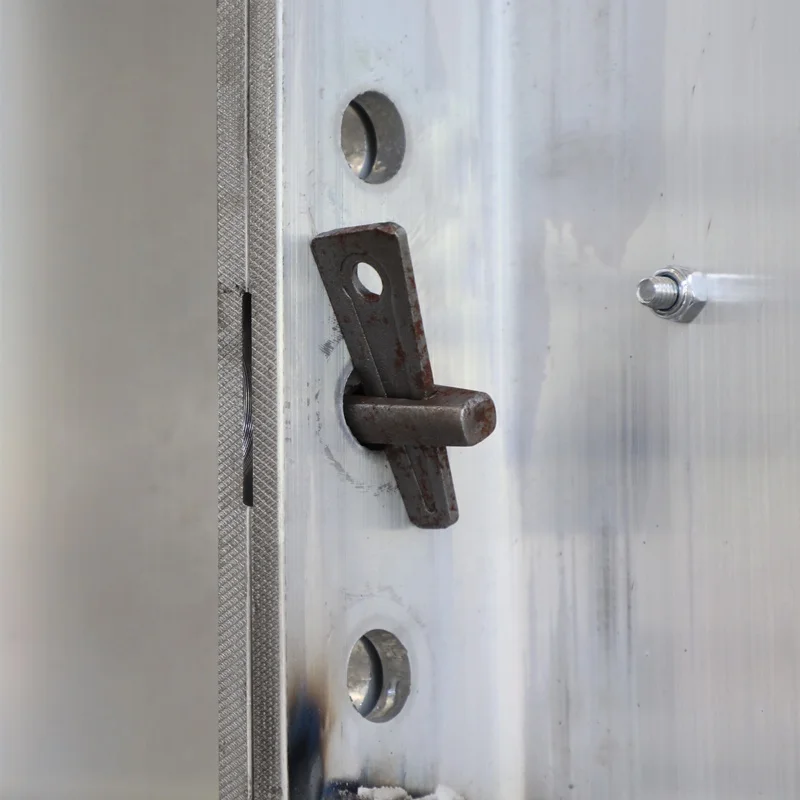

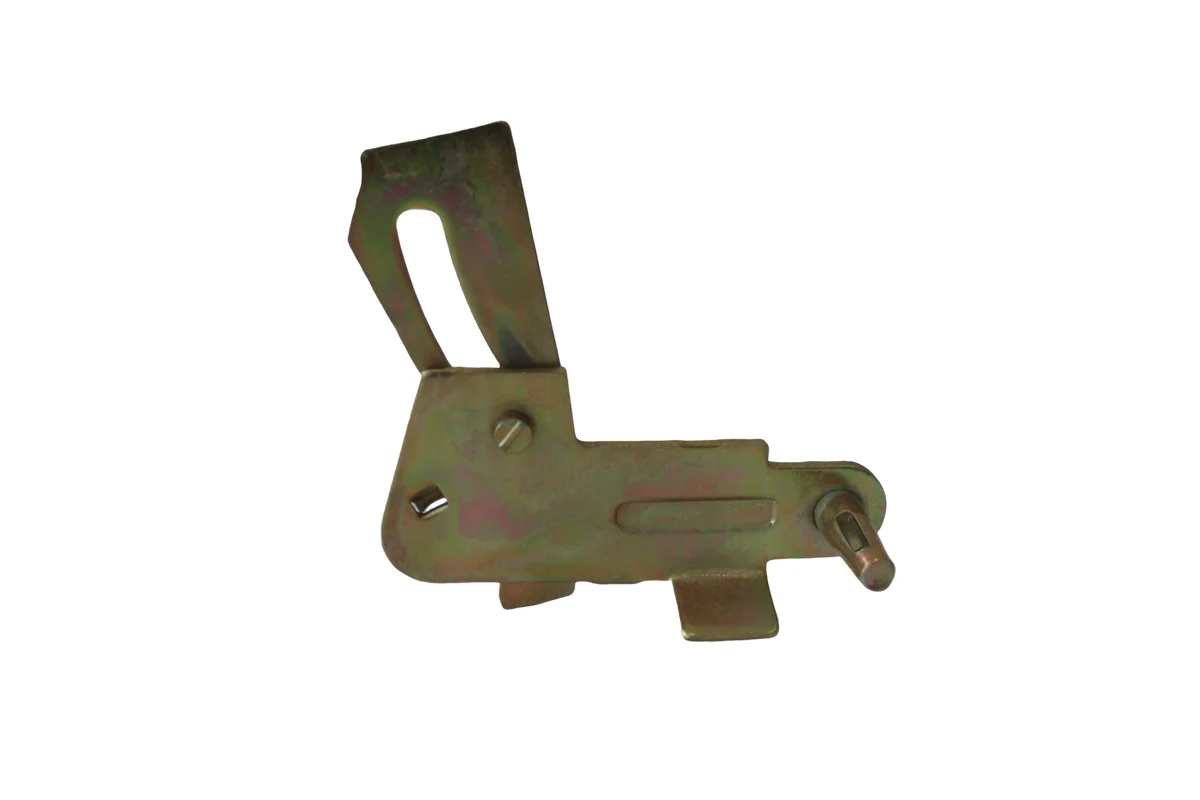

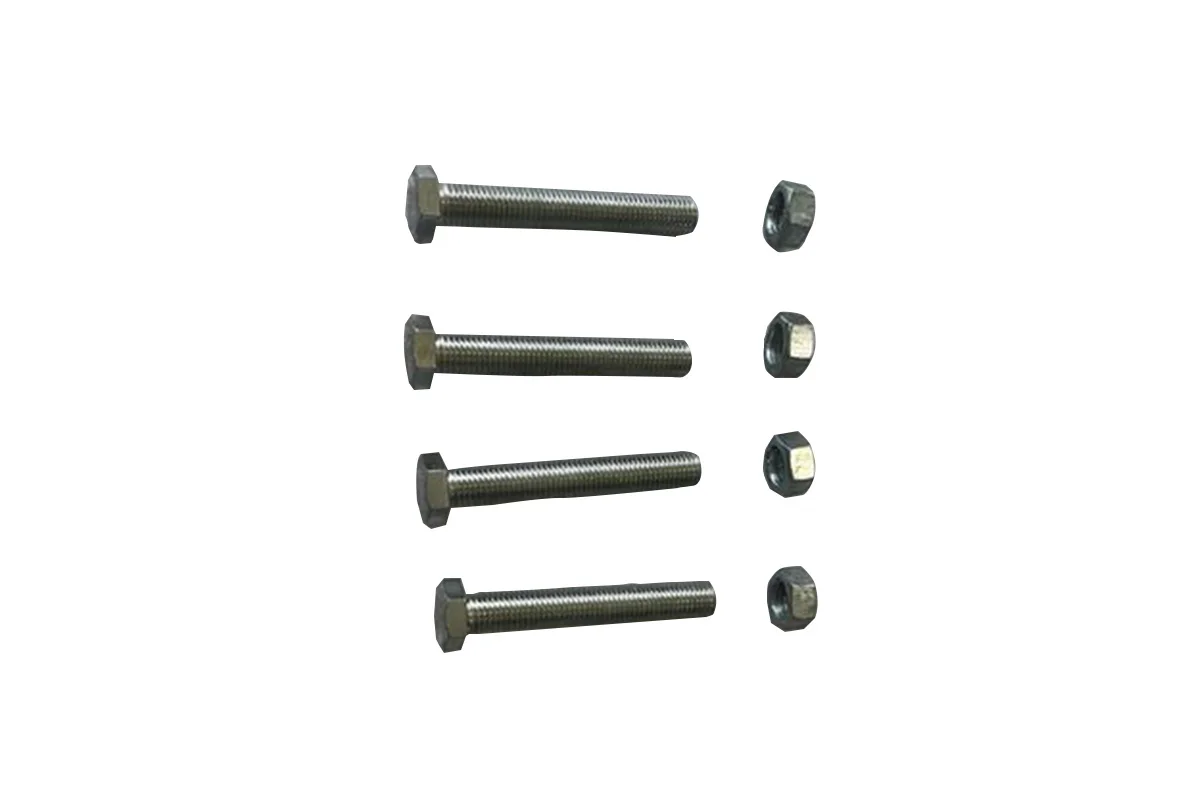

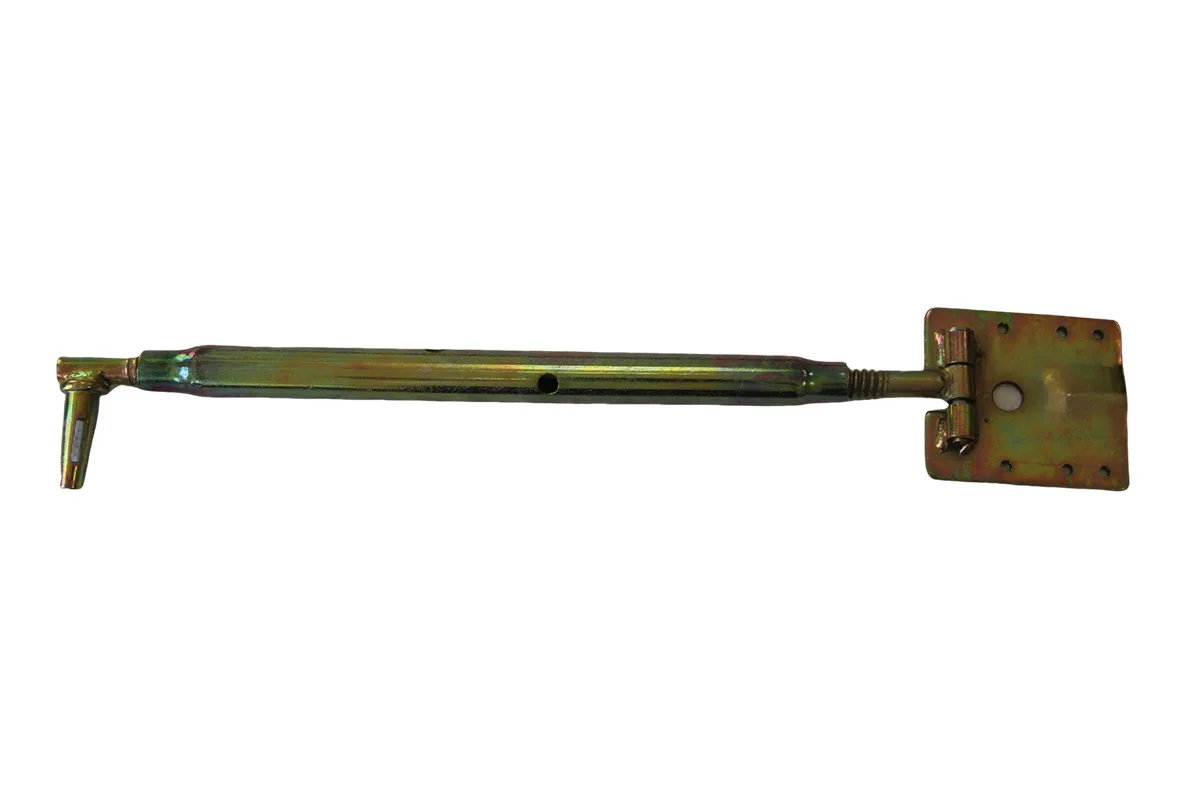

Accessory | Wall Tie/ Round Pin/Wedge Pin | |||||

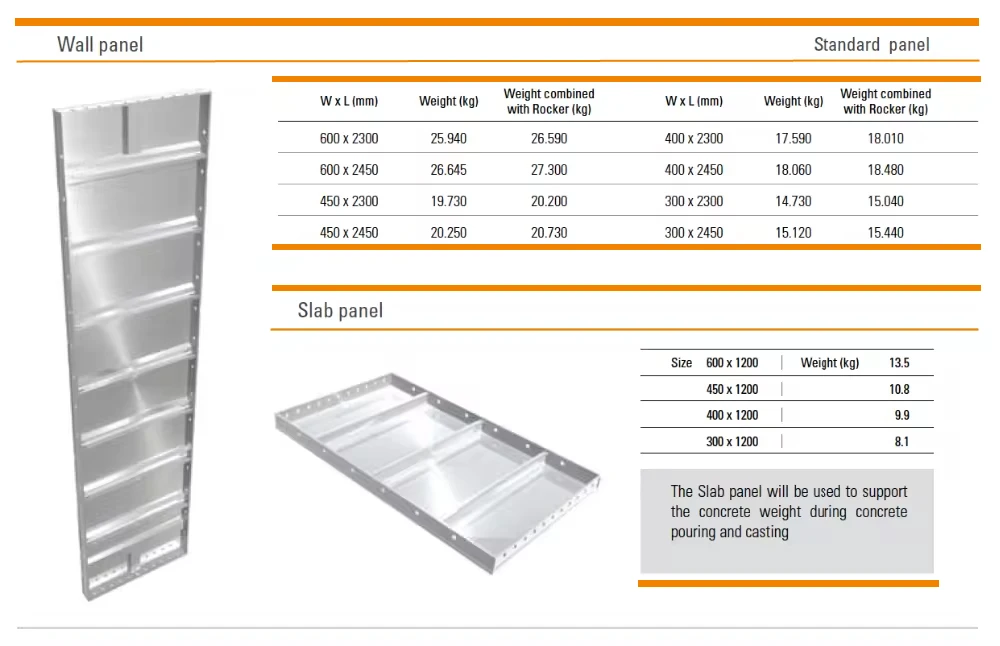

Normal Module | Wall Panel | 600mm *Wall Height(2300 or 2450)*63.5 thk | ||||
Slab Panel | 600mm*1200*63.5 thk | |||||

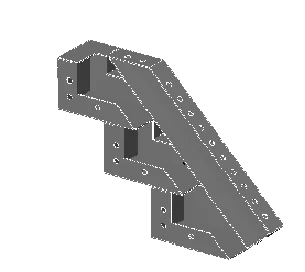

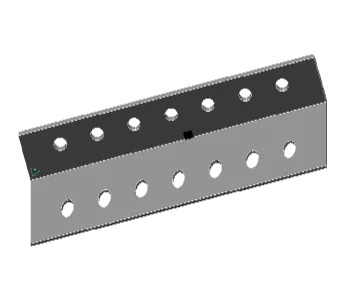

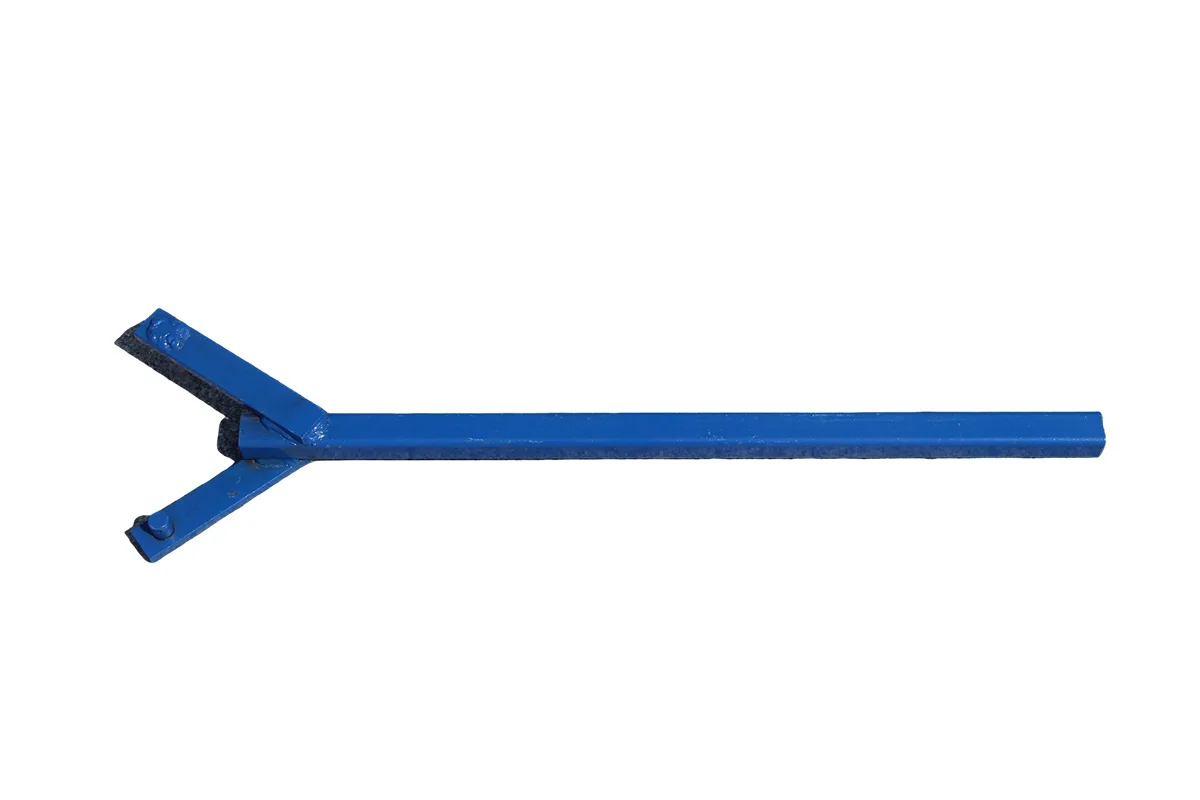

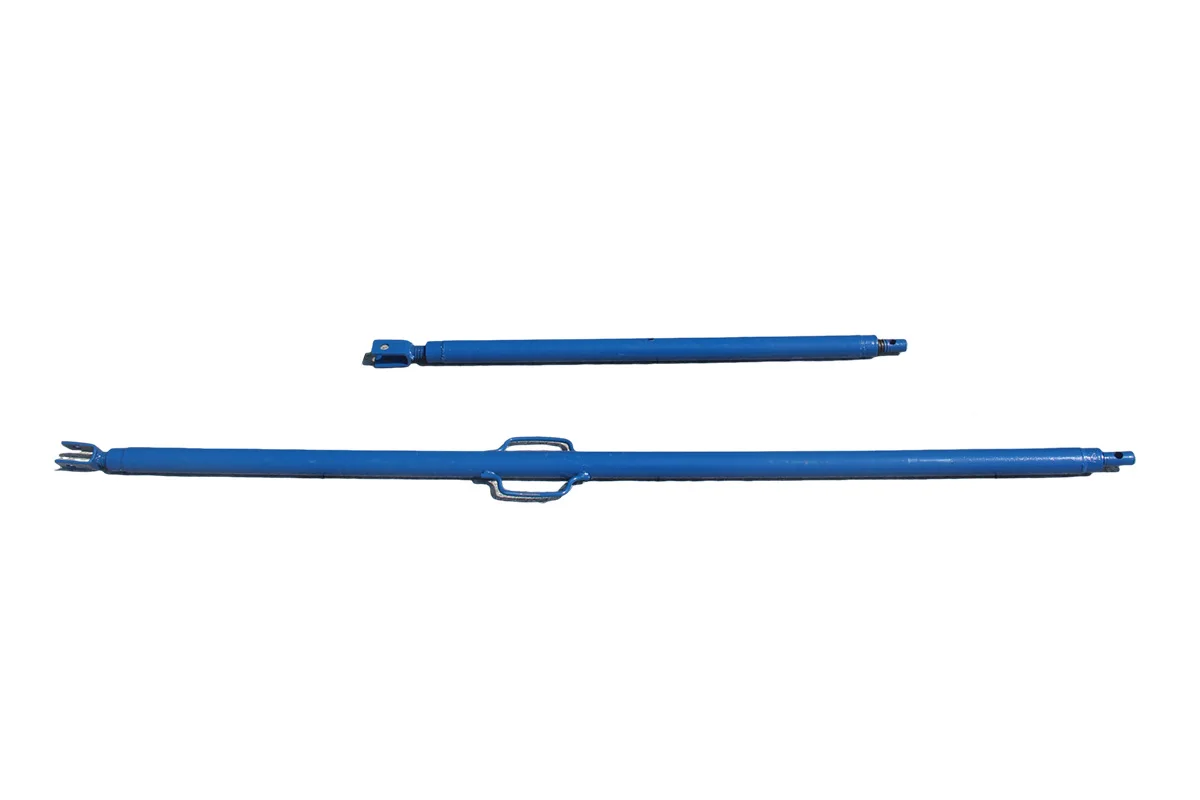

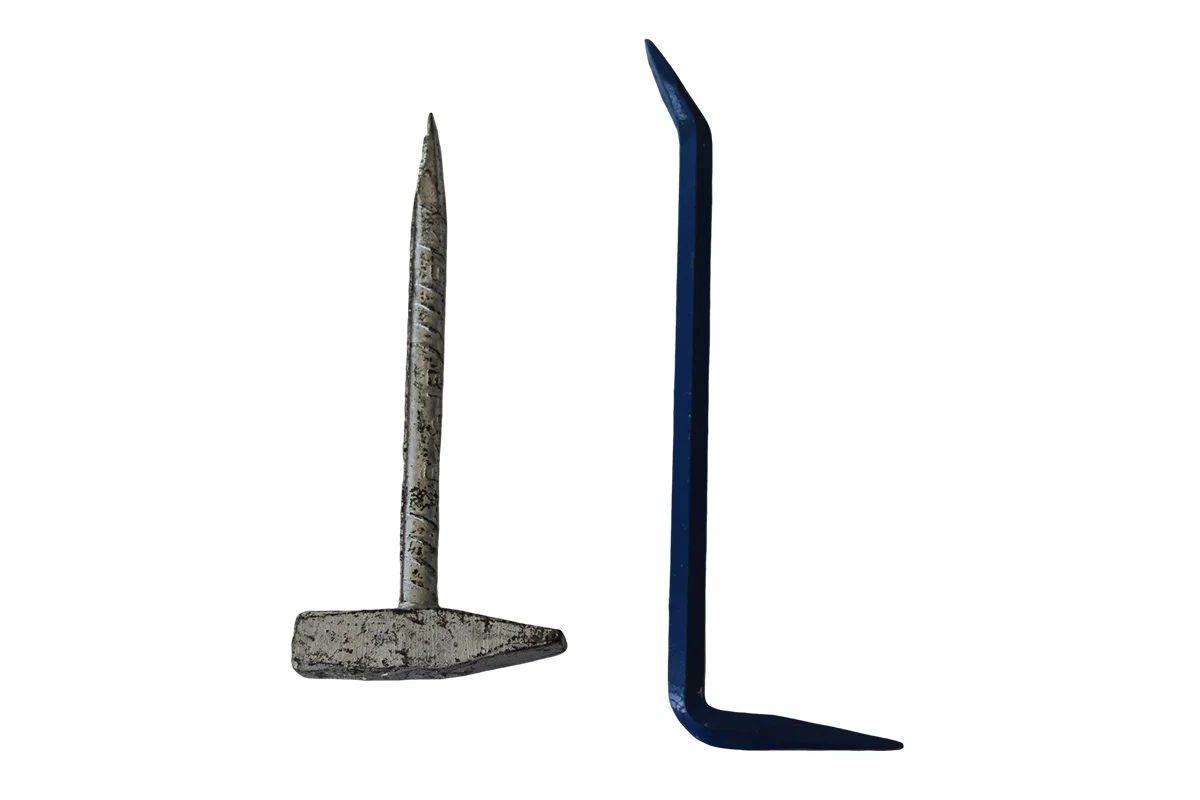

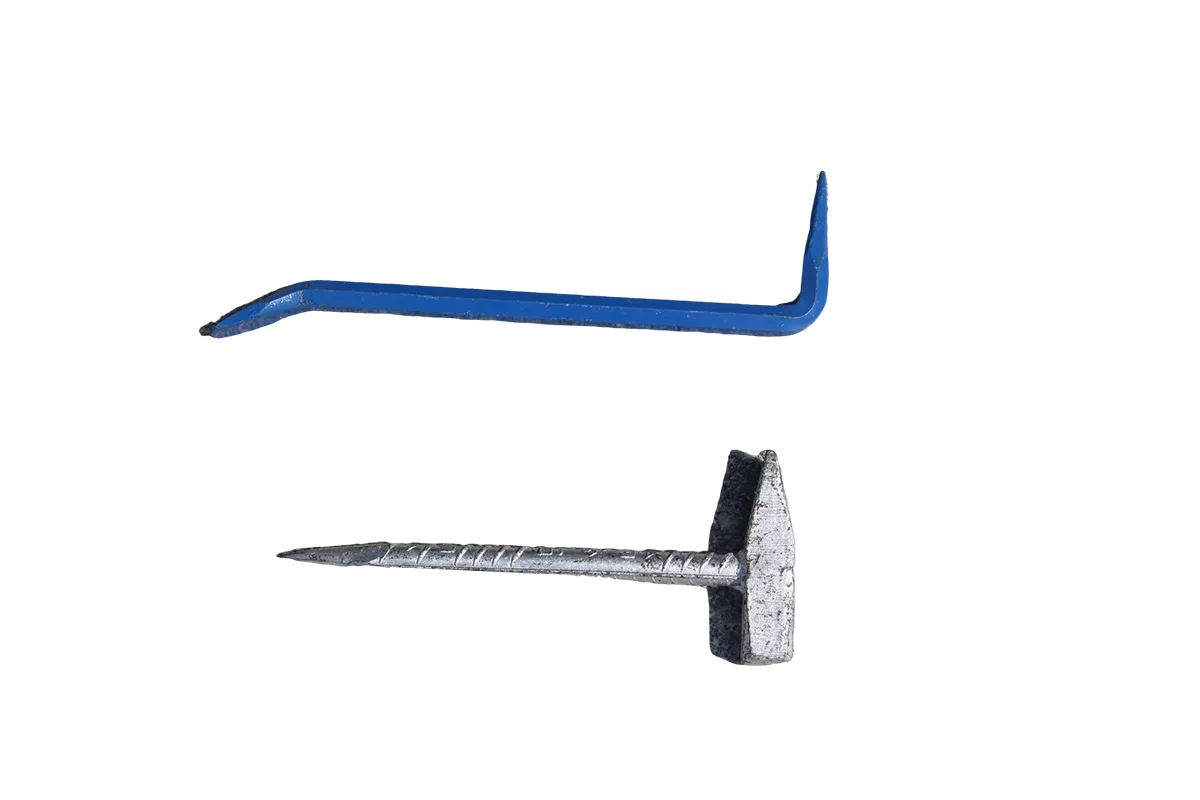

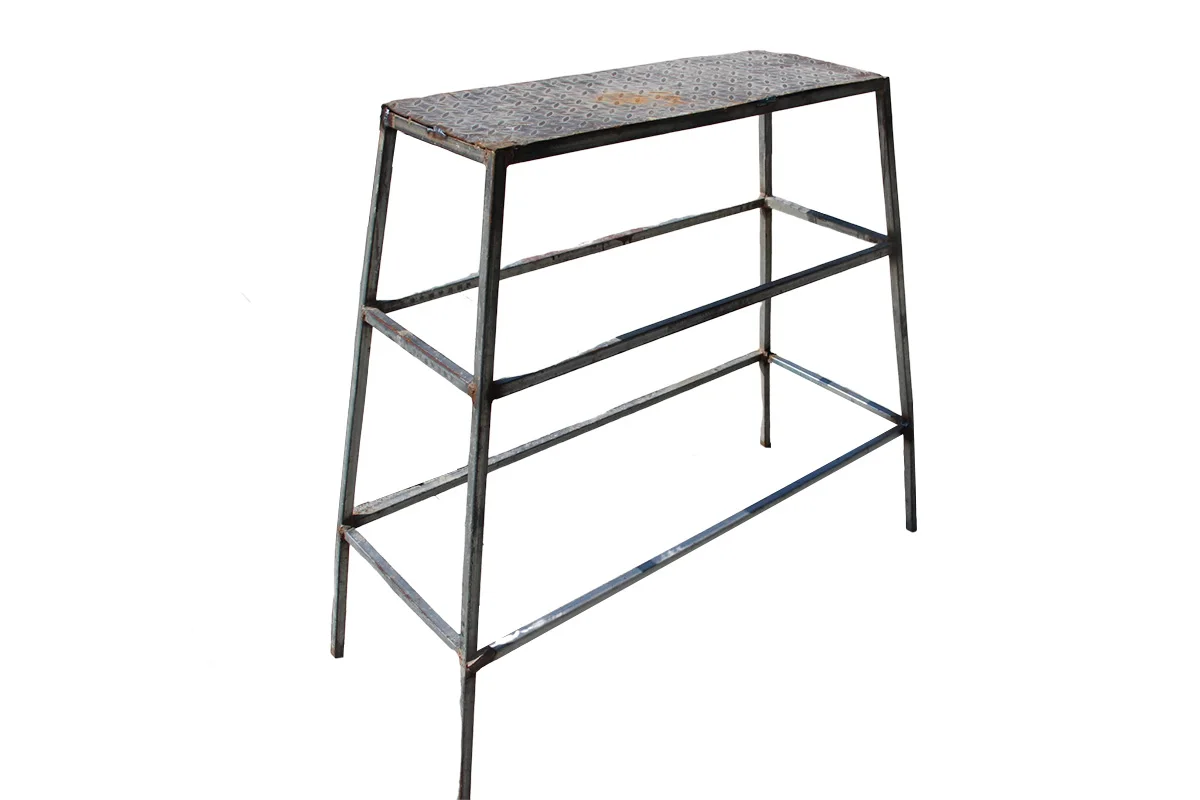

Hualu Components

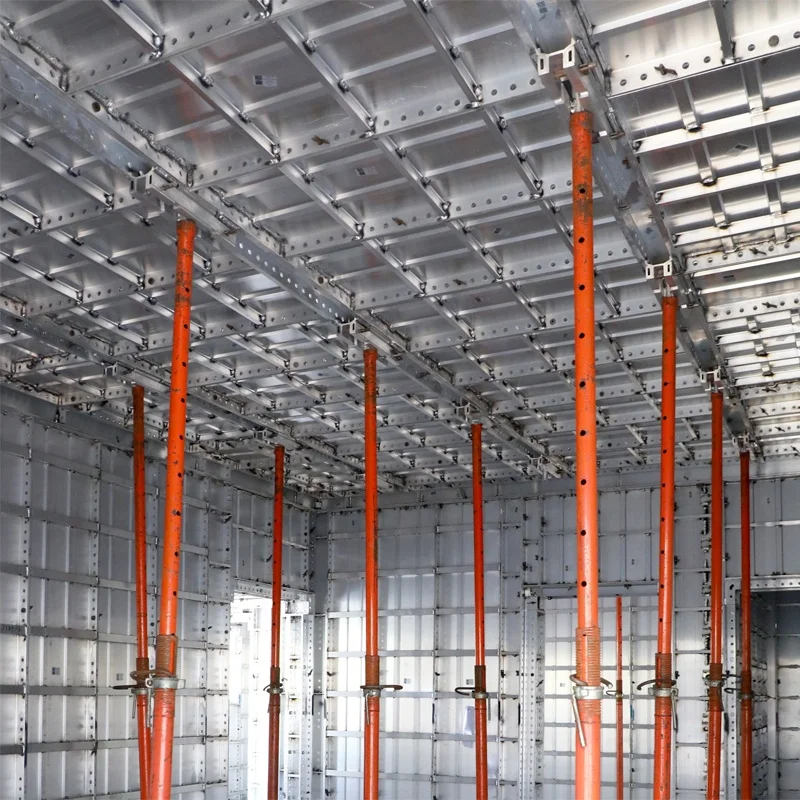

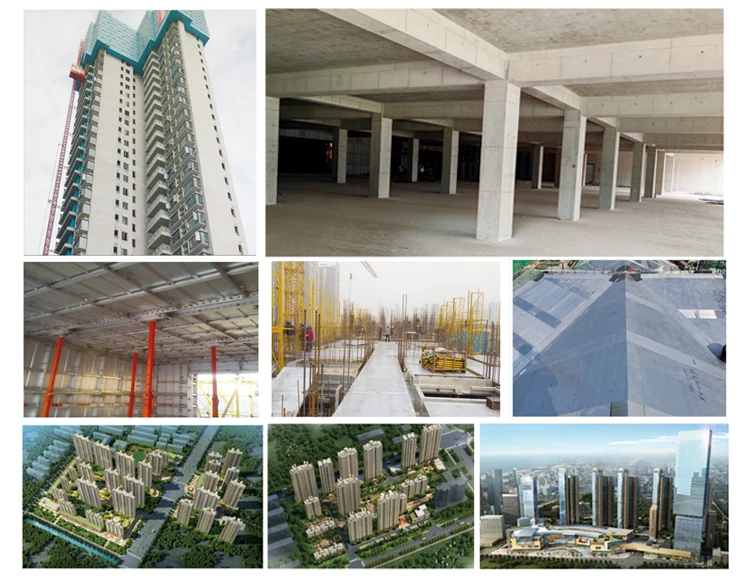

Product Application
THE COMPARISON OF DIFFERENT FORMWORK | ||||||||||||
Items | Plywood formwork | Small steel formwork | Big steel formwork | Heavy steel frame plywood formwork | Light steel frame plywood formwork | Aluminum formwork | ||||||
Material | 12-18mm thickness plywood | 2.3-2.5mm thickness steel plate | 5-6mm thickness steel plate | 18mm thickness plywood | 15mm thickness plywood | 4mm thickness aluminum profilde | ||||||
Thickness | 12-18 | 55 | 86 | 120 | 120 | 65 | ||||||
Weight | 10.5 | 35-40 | 80-85 | 56-68 | 40-42 | 18-22 | ||||||
Loading(KN/m2) | 30 | 30 | 60 | 60 | 50 | 60 | ||||||
Cycle times | 5 | 100 | 250 | 200 | 150 | 300 | ||||||
Execution | Easier | Easy | Difficult | Difficult | Easier | Easier | ||||||
Mending fee | Lower | Low | High | High | High | Low | ||||||
Effectiveness | Low | Low | High | Low | High | Higher | ||||||
Quality of concrete surface | Rough surface | Rough surface,low accuracy | Smooth surface,fair-faced | Smooth surface,can reach facing and ornament fair-faced | ||||||||
Recycle | Low | Middle | Middle | Low | Low | High | ||||||

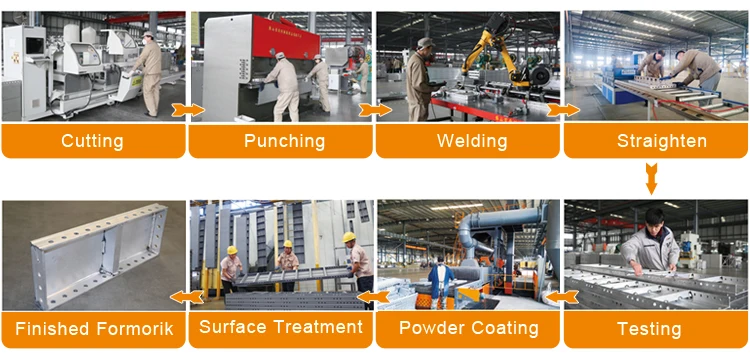

Product Process

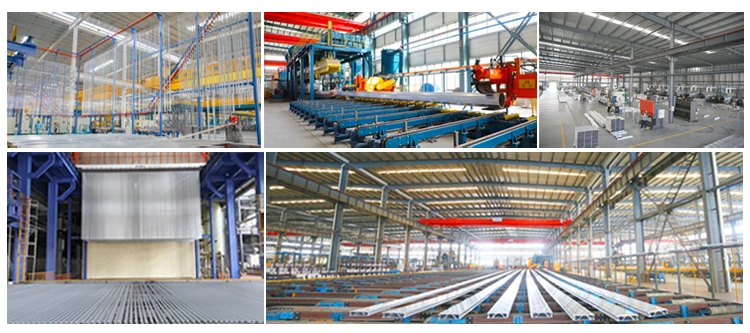

Company Profile

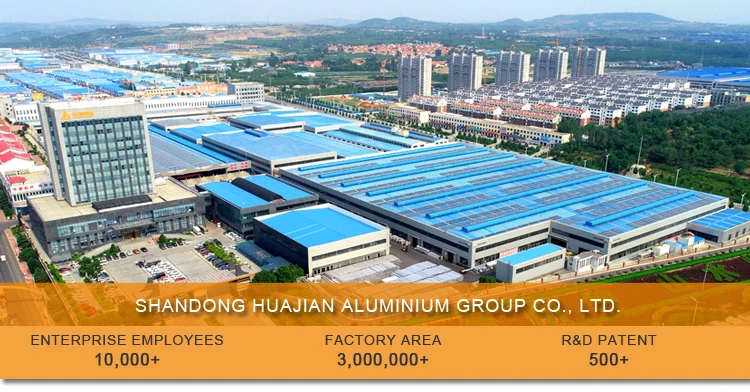

SHANDONG HUAJIAN ALUMINIUM GROUP CO.,LTD SINCE 2000.
The company is located in Aluminum Capital of China, Windows and Doors Capital of China----Linqu County, Shandong Province. It is a key production and research enterprise of aluminum building profiles and industrial profiles in China.
Self-owned Technology, Independent research and development, with completely independent intellectual property rights.
Covered all aluminium windows, doors and curtain wall series with international first-class technology level.
Systematized, standardization, information, a high integrated one-stop shopping services.
Technology research, material supply, test and evaluate, installation equipment, software and technical support system and so on.The product has remarkable energy conservation and environmental protection.Diverse solutions for different climates and regional characteristics
The company is located in Aluminum Capital of China, Windows and Doors Capital of China----Linqu County, Shandong Province. It is a key production and research enterprise of aluminum building profiles and industrial profiles in China.
Self-owned Technology, Independent research and development, with completely independent intellectual property rights.
Covered all aluminium windows, doors and curtain wall series with international first-class technology level.
Systematized, standardization, information, a high integrated one-stop shopping services.
Technology research, material supply, test and evaluate, installation equipment, software and technical support system and so on.The product has remarkable energy conservation and environmental protection.Diverse solutions for different climates and regional characteristics
Customer satisfaction is our eternal pursuit,we will continue to provide you with the most sincere, the most intimate, the most satisfactory service.
Packing & Delivery
FAQ
Q: What is load Bearing Capacity of Aluminum Formwork?
A: The load bearing capacity of aluminum formwork is depending upon the quality of formwork material used and it is very between 50 and 60 Kn/M2.
Q: How do you prevent aluminum formwork failure?
A: Secure the aluminum formwork in place.
It has to be properly stationed and braced, vertically and horizontally, to allow for the right shape once a pour begins. Joints should be tight to protect against leakage. Levels must have a planar surface, and formwork should be set to the required line.
Q: What is aluminum formwork suitable for?
A: Unlike timber, aluminum formwork is best-suited to load-bearing wall construction, as it can easily withstand high pressures from freshly poured concrete. Flexible, lightweight and easy to install, this formwork system offers a cost-effective solution that produces high-quality work every single time.
Q: What is the difference between conventional and aluminum formwork?
A: In most cases, conventional formwork is constructed on-site, while aluminum and steel formwork are prefabricated. This means steel and aluminum forms are constructed off-site and then transported to construction locations.
Q: How many times can aluminum formwork be used?
A: Aluminum formwork produces a high quality concrete surface that is smooth and does not require any finishing treatment.Aluminum formwork can be reused for a staggering number of up to 250 times. Aluminum formwork can prove to be cost-effective if numerous symmetrical structures have to be constructed.
Q: How much does aluminum formwork weight?
A: Average weight is only 23-25 kg m2 so no heavy lifting or cranes are required.
Q: Why use aluminum formwork?
A: Aluminum is almost as strong as steel but not as heavy. Unlike timber, it doesn't absorb moisture that can cause the material to warp, rot and swell. Because an aluminum formwork system is made from highly durable and reliable material, it can easily resist high concrete pressures.
A: The load bearing capacity of aluminum formwork is depending upon the quality of formwork material used and it is very between 50 and 60 Kn/M2.
Q: How do you prevent aluminum formwork failure?
A: Secure the aluminum formwork in place.
It has to be properly stationed and braced, vertically and horizontally, to allow for the right shape once a pour begins. Joints should be tight to protect against leakage. Levels must have a planar surface, and formwork should be set to the required line.
Q: What is aluminum formwork suitable for?
A: Unlike timber, aluminum formwork is best-suited to load-bearing wall construction, as it can easily withstand high pressures from freshly poured concrete. Flexible, lightweight and easy to install, this formwork system offers a cost-effective solution that produces high-quality work every single time.
Q: How thick is aluminum formwork?
A: Aluminum formwork is manufactured in the size and shape to suit the requirements of specific projects. The aluminum formwork is made from a high strength aluminum alloy with a 4mm thick skin plate and a 6mm thick ribbing behind to stiffen the panels.
Q: What is the grade of aluminum formwork?
A: Some commonly used aluminum alloys in formwork include: 6061-T6: This is a heat-treated aluminum alloy that has good strength and corrosion resistance, making it a popular choice for structural applications. 6063-T6: This alloy has good strength and is commonly used for extrusions.
A: Aluminum formwork is manufactured in the size and shape to suit the requirements of specific projects. The aluminum formwork is made from a high strength aluminum alloy with a 4mm thick skin plate and a 6mm thick ribbing behind to stiffen the panels.
Q: What is the grade of aluminum formwork?
A: Some commonly used aluminum alloys in formwork include: 6061-T6: This is a heat-treated aluminum alloy that has good strength and corrosion resistance, making it a popular choice for structural applications. 6063-T6: This alloy has good strength and is commonly used for extrusions.
Q: What is the difference between conventional and aluminum formwork?
A: In most cases, conventional formwork is constructed on-site, while aluminum and steel formwork are prefabricated. This means steel and aluminum forms are constructed off-site and then transported to construction locations.
Q: How many times can aluminum formwork be used?
A: Aluminum formwork produces a high quality concrete surface that is smooth and does not require any finishing treatment.Aluminum formwork can be reused for a staggering number of up to 250 times. Aluminum formwork can prove to be cost-effective if numerous symmetrical structures have to be constructed.
Q: How much does aluminum formwork weight?
A: Average weight is only 23-25 kg m2 so no heavy lifting or cranes are required.
Q: Why use aluminum formwork?
A: Aluminum is almost as strong as steel but not as heavy. Unlike timber, it doesn't absorb moisture that can cause the material to warp, rot and swell. Because an aluminum formwork system is made from highly durable and reliable material, it can easily resist high concrete pressures.
