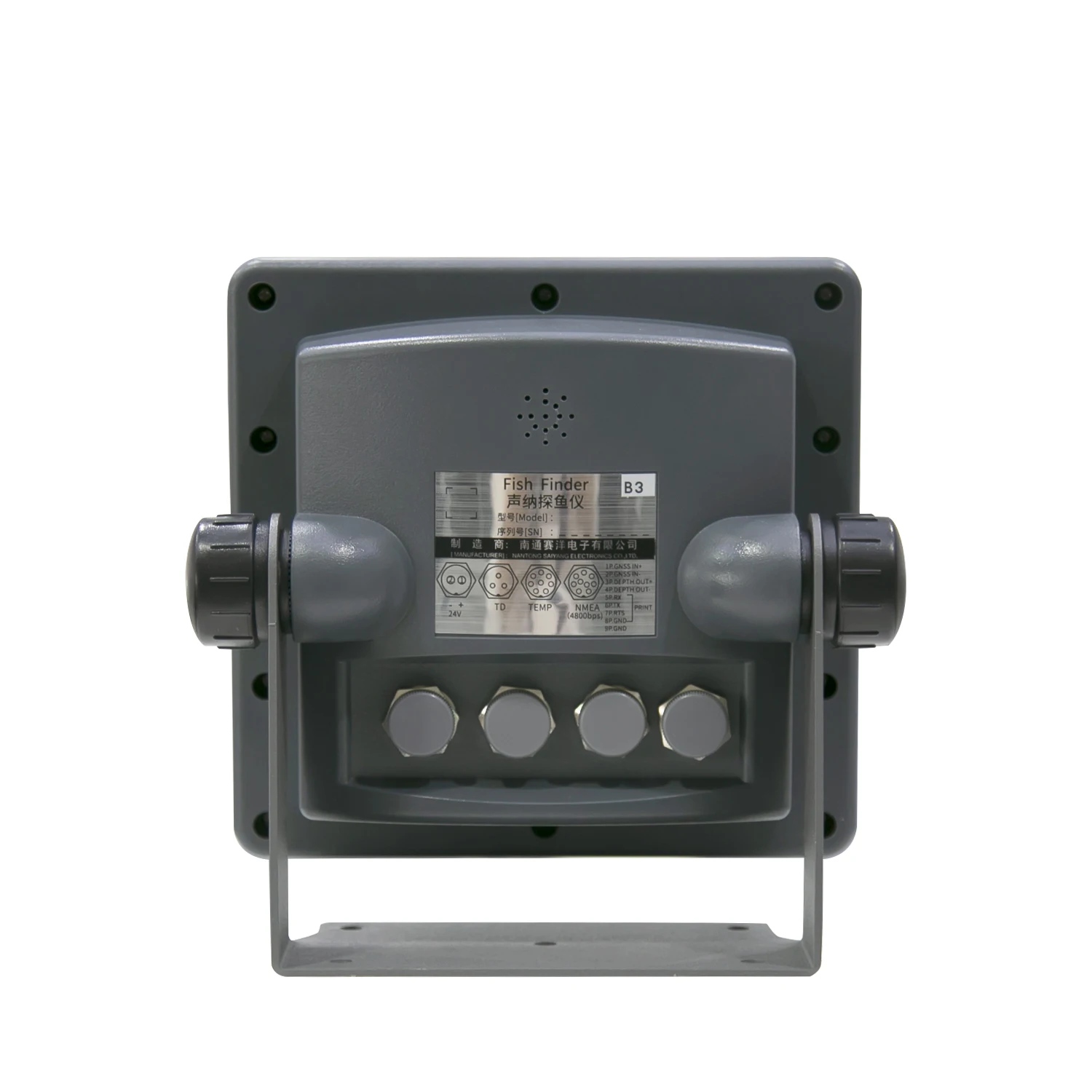

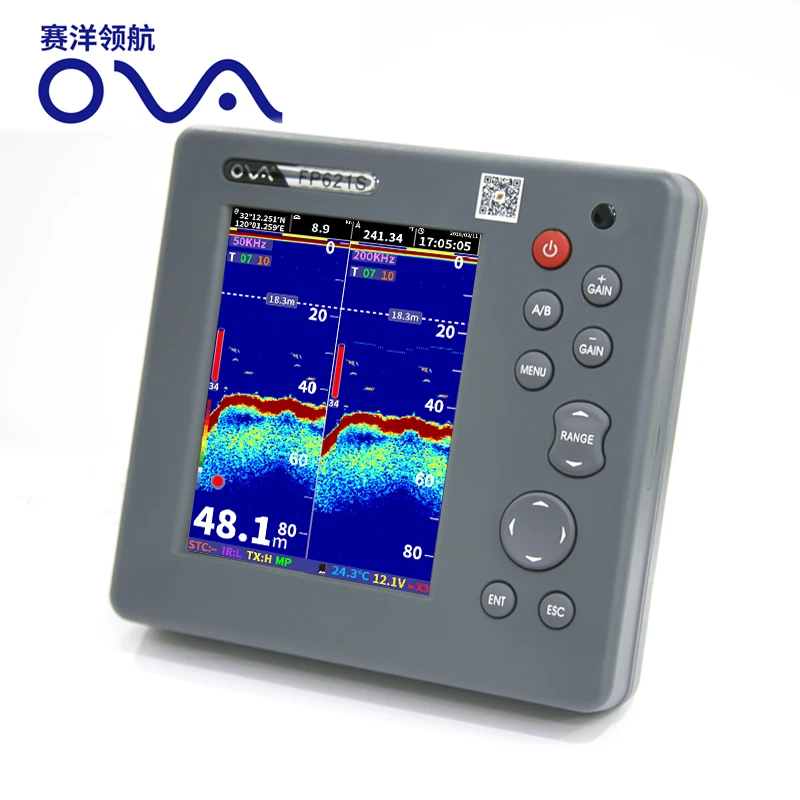

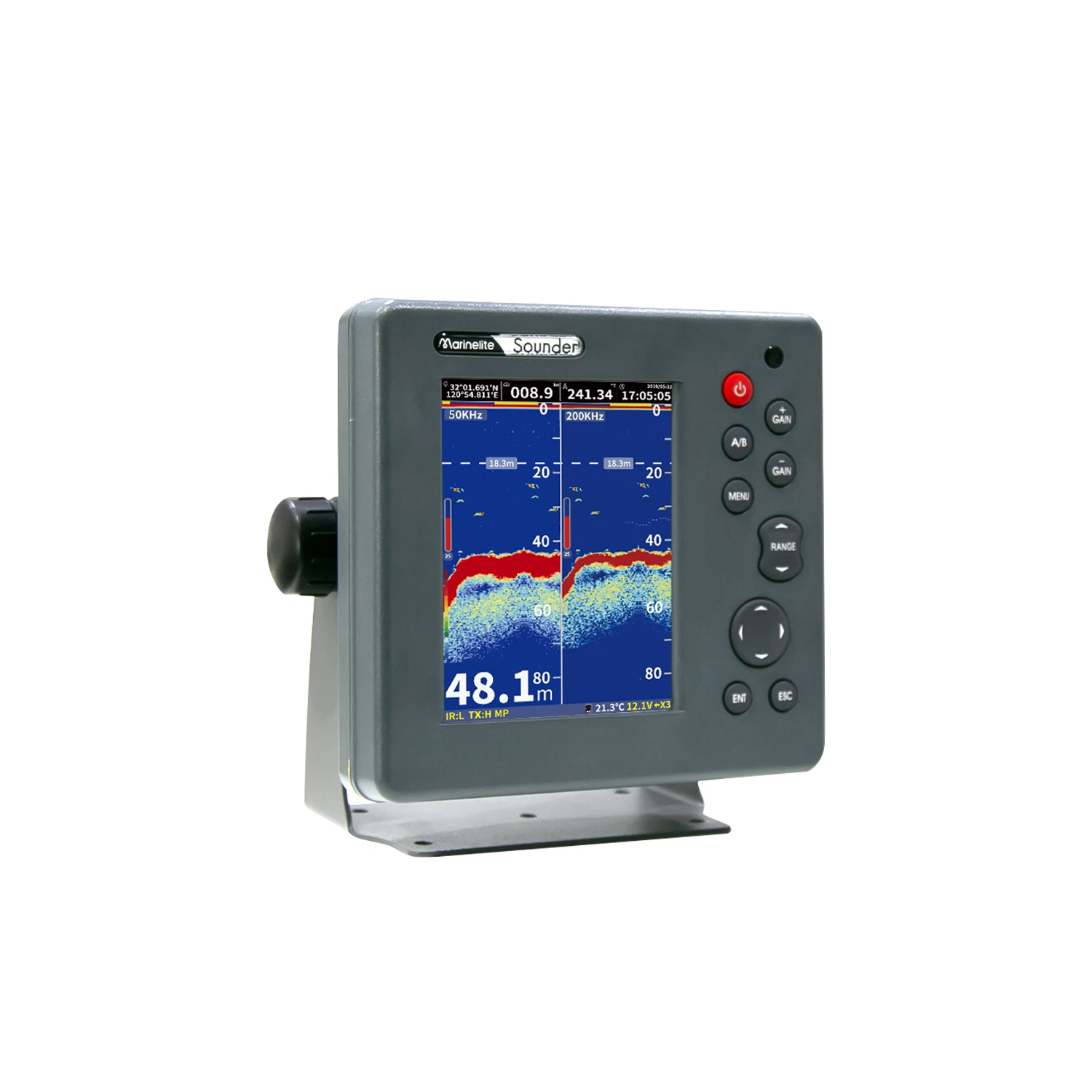

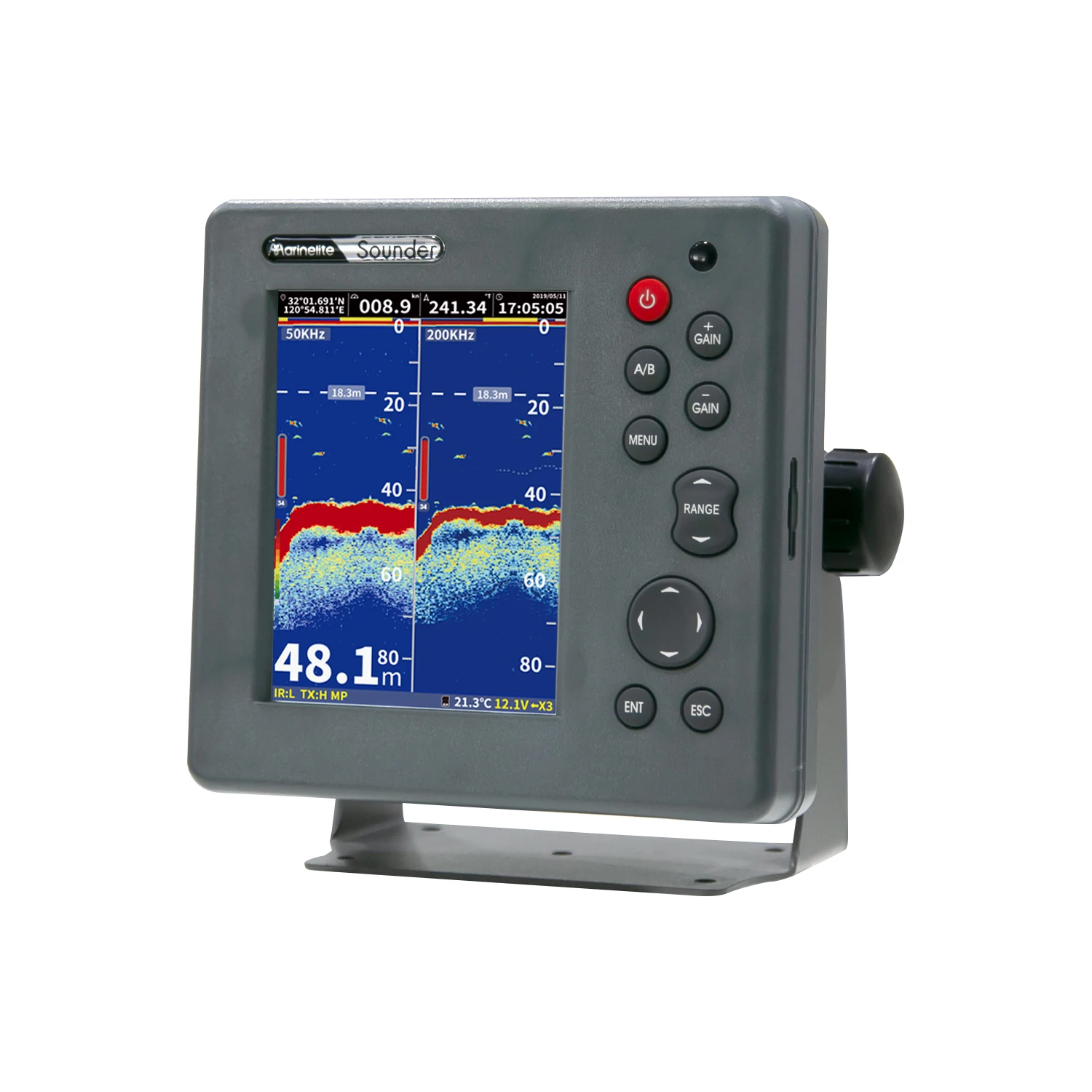

6 Inch Color LCD sounder fish finder sounder and sonar system

Product Overview

Description

Model			FS-601
Display Size			5.7" LCD
Resolution			480x640
External dimension			179mmx186mmx84mm
Language			Chinese,English,Korean,Vietnamese
Voltage Range			12~36V DC
Frequency			50 & 200KHz dual frequency
Output transmit power			300W
Emission rate			3600 pulse/minute on top
Pulse length			0.12~3.0ms
Measuring accuracy			0.1m
Sensitivity			7 dBμV
Depth range			0~1000m
Auto range			off/on
Auto gain			off/low/mid/high
A-mode			off/on
Alarm function			Deep water alarm,shallow water alarm,fish school alarm
Amplify mode/zoom mode			off/Bottom lock/auto zoom/manual zoom
Picture advance speed			5 steps: stop
Background color			4 kinds
Color assortment			7 kinds
Depth unit			meter,inch,feet
Interface			Water temperature interface:x1 Transducer interface:x1 Power interface:DC 24V
Environment			Temperature:-10°C~50°C
Equipment List			Display Unit  FS-601S      1unit
			Installation material
			Operation Manual
			Transducer (optional)
