Medical Oil Free Rotary Vane Vacuum Plant vertical Duplex system for hospital
- Category: >>>
- Supplier: Amcaremed Technology Co. LimitedAmcaremed Limited
Share on (1601187032681):
Product Overview
Description
Product Description

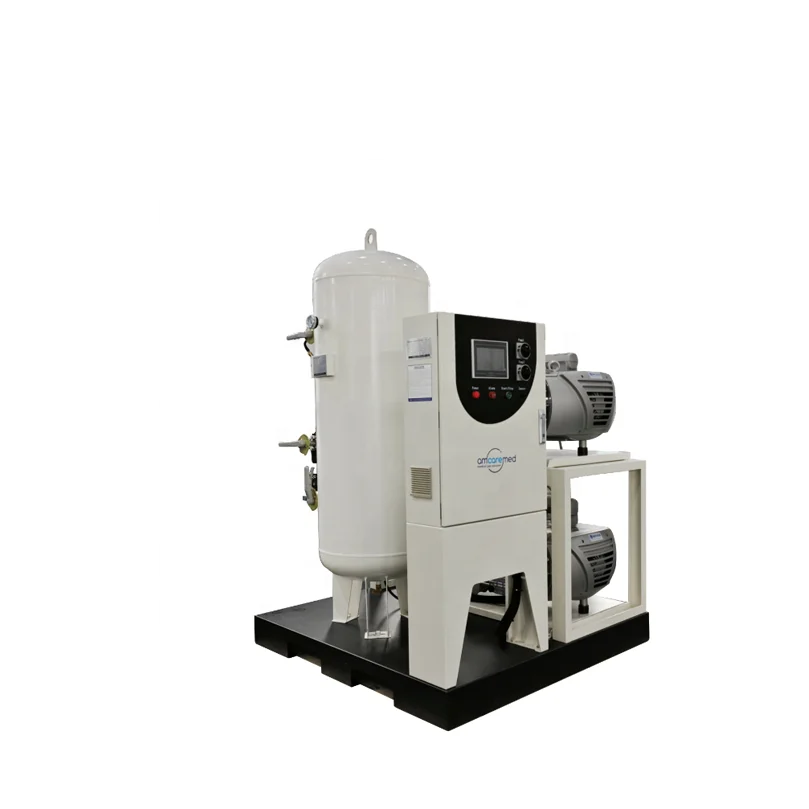

Medical vacuum systems are designed to supply medical vacuum to medical gas pipeline systems in medical facilities.
AmcareMed medical Rotary vane vacuum pump is full meet with NFPA 99 with multiple vacuum pumps, receiver tank and control panel.
The medical vacuum system is equipped with 2 to 4 vacuum pumps. The vacuum pump is available in both oil-lubricated and oil-free type. Each pump includes oil level sight glass, anti-suck-back valve filter. System are manufactory in ISO9001 system to ensure high quality. System are available in two configuration types: Vertical tank and horizontal tank mount.
The medical vacuum system is equipped with an LCD control cabinet to control the vacuum pump.
The system is equipped with double bacteria filter to ensure the purity of the gas entering the vacuum tank. The Medical Vacuum system and its component parts undergo a complete electric and pneumatic test prior to shipment.
AmcareMed medical Rotary vane vacuum pump is full meet with NFPA 99 with multiple vacuum pumps, receiver tank and control panel.
The medical vacuum system is equipped with 2 to 4 vacuum pumps. The vacuum pump is available in both oil-lubricated and oil-free type. Each pump includes oil level sight glass, anti-suck-back valve filter. System are manufactory in ISO9001 system to ensure high quality. System are available in two configuration types: Vertical tank and horizontal tank mount.
The medical vacuum system is equipped with an LCD control cabinet to control the vacuum pump.
The system is equipped with double bacteria filter to ensure the purity of the gas entering the vacuum tank. The Medical Vacuum system and its component parts undergo a complete electric and pneumatic test prior to shipment.
The oil-lubricated rotary vane vacuum pump is a durable long-life pump that has been used for many years in hospital and laboratory applications. Lubricated by circulating oil provides a consistently high vacuum level in continuous operation. The use of oil facilitates higher efficiency of the pump, lower operating temperatures and lower sound levels. Oil-sealed rotary vane pumps are ideal for most hospital applications.
Pros:
• Lowest initial cost
• Highest ultimate vacuum levels
• Long vane life
• Lower noise levels compared to other types
Cons:
• Higher maintenance (oil & filter changes, vanes)
• Lowest initial cost
• Highest ultimate vacuum levels
• Long vane life
• Lower noise levels compared to other types
Cons:
• Higher maintenance (oil & filter changes, vanes)
Specifications
* NFPA 99 and HTM 2022 compliant
* Schneider brand control panel
* Application: Medical or Laboratory
* Technology: rotary vane
* Available in Simplex, Duplex, Triplex or Quad
* Different capacity receiver tank available
* Minimal maintenance, Maximum Durability
* Include LCD digital display to show vacuum information
* Completely tested before to shipment
* Schneider brand control panel
* Application: Medical or Laboratory
* Technology: rotary vane
* Available in Simplex, Duplex, Triplex or Quad
* Different capacity receiver tank available
* Minimal maintenance, Maximum Durability
* Include LCD digital display to show vacuum information
* Completely tested before to shipment
Detailed Images
Model
System | Model | HP(each pump) | System Capacity | Receiver Tank Capacity (L) | ||||||
Vertical Tank Mount | SCFM | L/min | ||||||||
50Hz | 60Hz | 50Hz | 60Hz | |||||||
Duplex | VOL01D-300V | 1.5 | 6 | 7 | 169 | 198 | 300 | |||
VOL02D-300V | 2 | 9 | 11 | 254 | 311 | 300 | ||||
VOL03D-300V | 3 | 14 | 17 | 396 | 481 | 300 | ||||
VOL05D-300V | 5 | 31 | 37 | 876 | 1050 | 300 | ||||
VOL07D-500V | 7.5 | 43 | 52 | 1218 | 1470 | 500 | ||||
VOL10D-500V | 10 | 63 | 77 | 1812 | 2187 | 500 | ||||
VOL15D-1000V | 15 | 92 | 111 | 2633 | 3156 | 1000 | ||||
VOL20D-1000V | 20 | 113 | 136 | 3227 | 3868 | 1000 | ||||
Triplex | VOL02T-300V | 2 | 18 | 22 | 508 | 622 | 300 | |||
VOL03T-300V | 3 | 28 | 34 | 792 | 962 | 300 | ||||
VOL05T-500V | 5 | 62 | 74 | 1752 | 2100 | 500 | ||||
VOL07T-1000V | 7.5 | 86 | 104 | 2436 | 2940 | 1000 | ||||
VOL10T-1000V | 10 | 126 | 154 | 3624 | 4374 | 1000 | ||||
VOL15T-1000V | 15 | 184 | 222 | 5266 | 6312 | 1000 | ||||
VOL20T-1000V | 20 | 226 | 272 | 6454 | 7736 | 1000 | ||||
Quadruplex | VOL02Q-300V | 2 | 27 | 33 | 762 | 933 | 300 | |||
VOL03Q-500V | 3 | 42 | 51 | 1188 | 1443 | 500 | ||||
VOL05Q-1000V | 5 | 93 | 111 | 2628 | 3150 | 1000 | ||||
VOL07Q-1000V | 7.5 | 129 | 156 | 3654 | 4410 | 1000 | ||||
VOL10Q-1000V | 10 | 189 | 231 | 5436 | 6561 | 1000 | ||||
VOL15Q-1000V | 15 | 276 | 333 | 7899 | 9468 | 1000 | ||||
VOL20Q-1000V | 20 | 339 | 408 | 9681 | 11604 | 1000 | ||||
