Best sales HaiLin HA223 L Hydronic Thermostat digital heating floor Hvac Heat Pump

Share on (1601187051656):


Price:$10.00 - $19.00

Quantity:


Product Overview

Description





VR

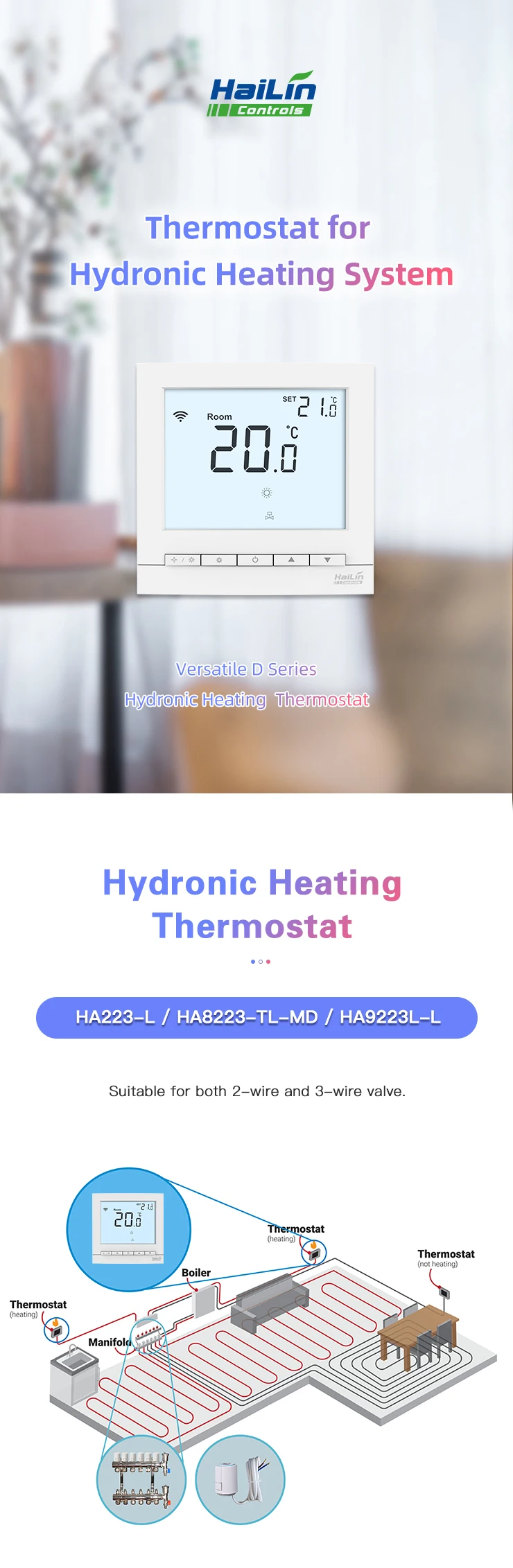

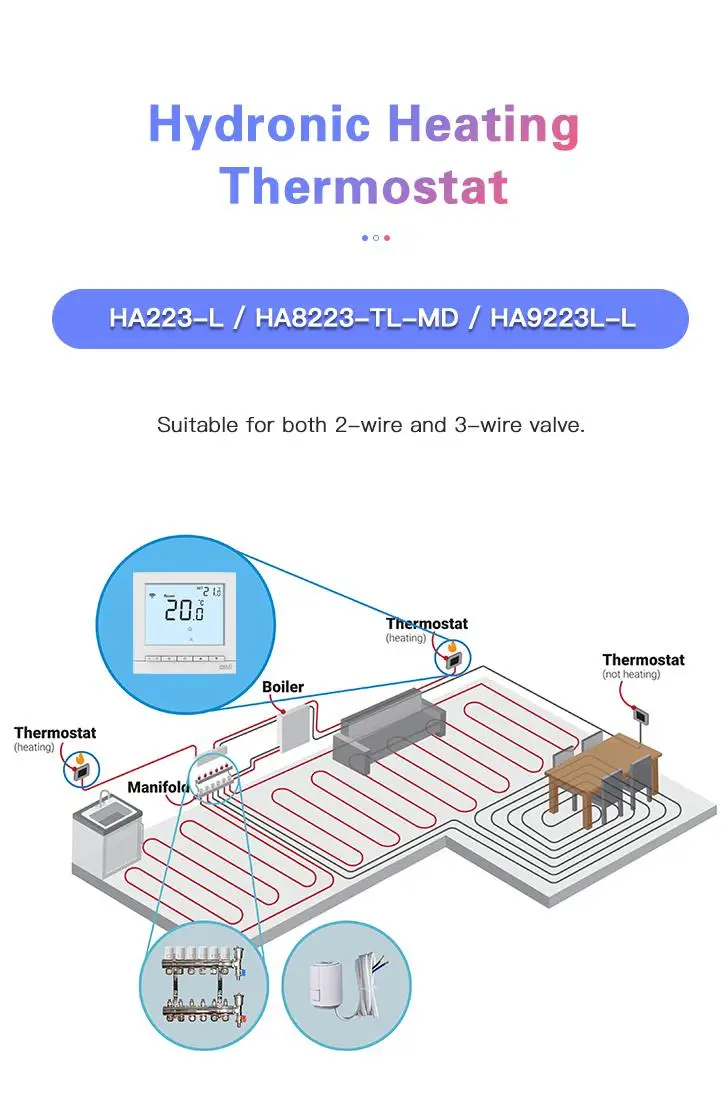

HA223 Series Thermostat Introduction (for electric thermostatic valve).
HA223 series thermostat is a luxury large LCD display dedicated heating thermostat, suitable for industrial, commercial and home temperature control, control the opening and closing of heating equipment.

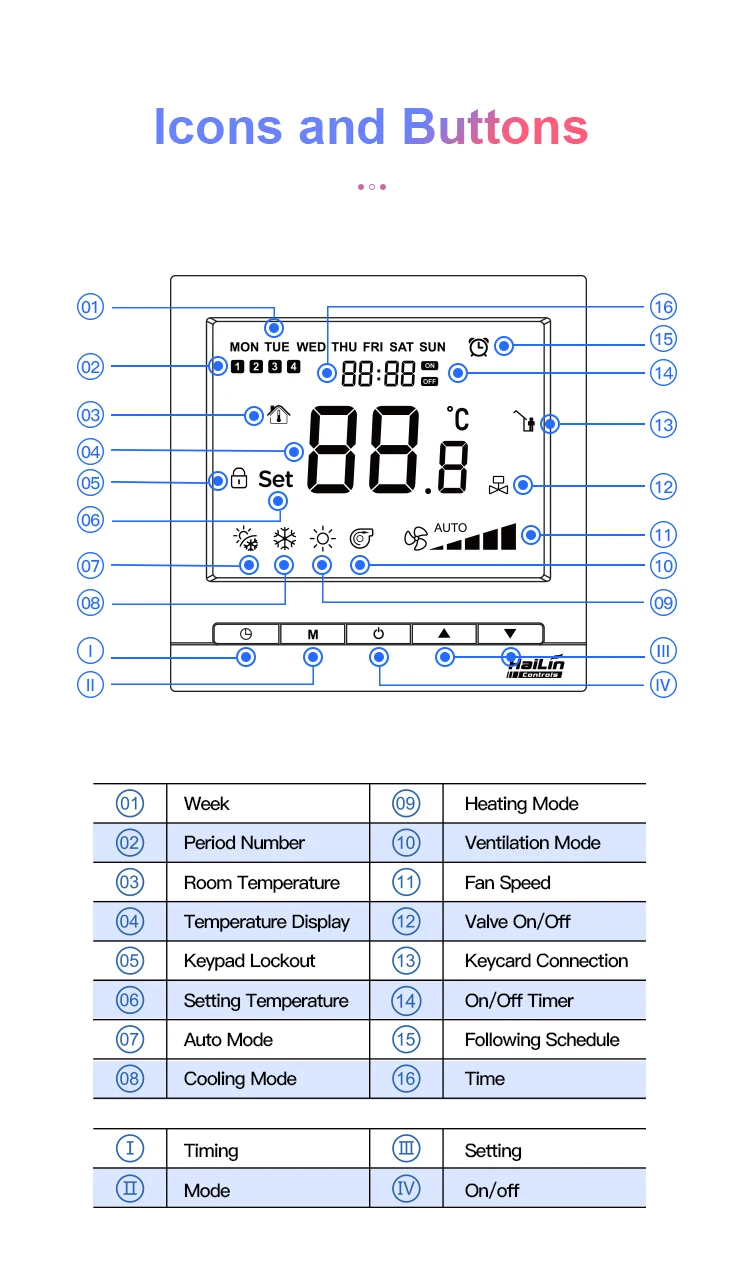

It adopts microcomputer control technology, the display status includes: working status (heating), thermostat output status (display), indoor temperature, equipment temperature, set temperature, clock, etc.


Technical Indicators
Temperature Sensing Element
NTC
Temperature Control Accuracy
±1 ℃
Temperature Setting
5~35℃ (Built-in Sensor) ; 5~90℃ (Single External Sensor)
Working Environment
Temperature 0~45℃;Humidity 5~95% RH (non-condensing)
Button
Touch Button
Self-power Consumption
< 2 W
Power Supply Voltage
AC 85~250 V, 50/60Hz

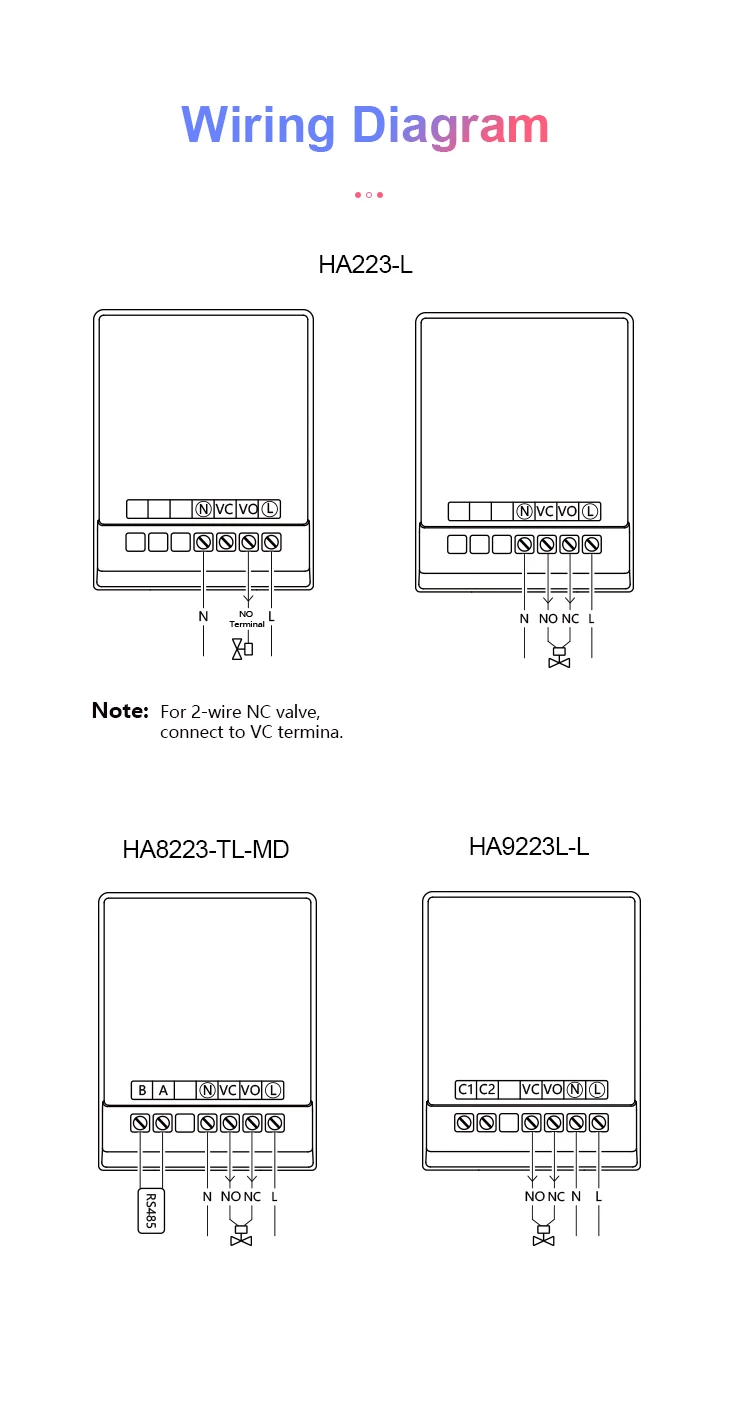

Wiring Terminal
Able to Connect One Wire of 2.5 mm2 or Two Wires of 1.5 mm2
Load Current
< 2 A (Resistive Load), < 1 A (Inductive Load)
Shell
PC+ABS Flame Retardant

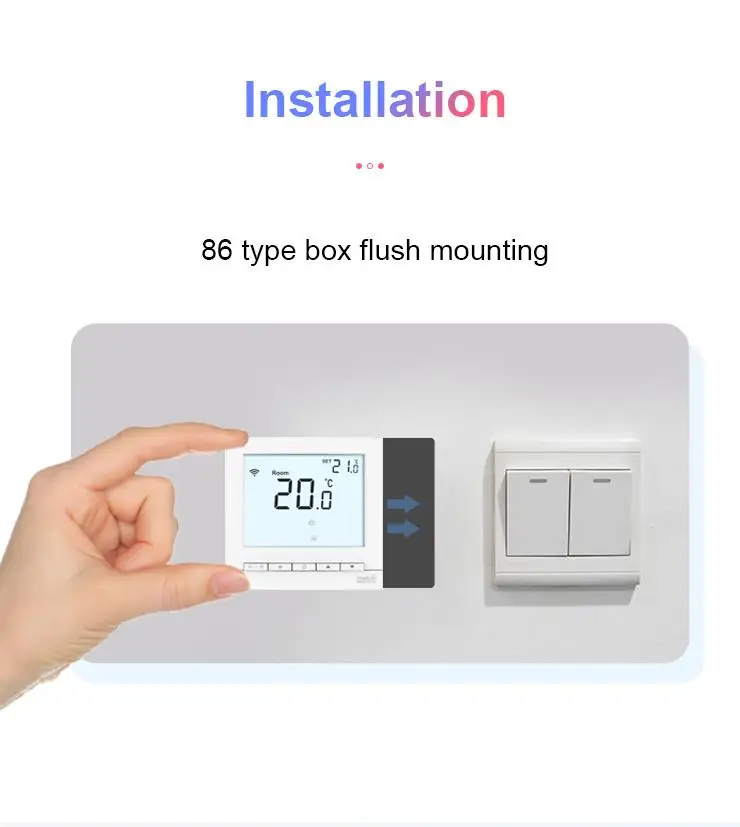

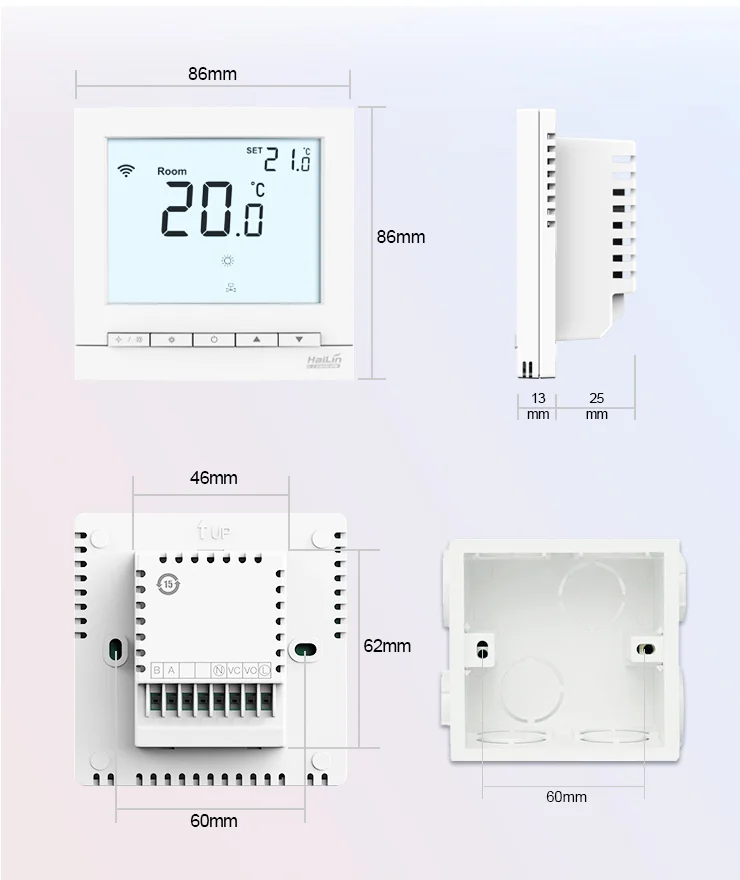

Installation Hole Spacing
60 mm (standard)
Protection Level
IP 30
