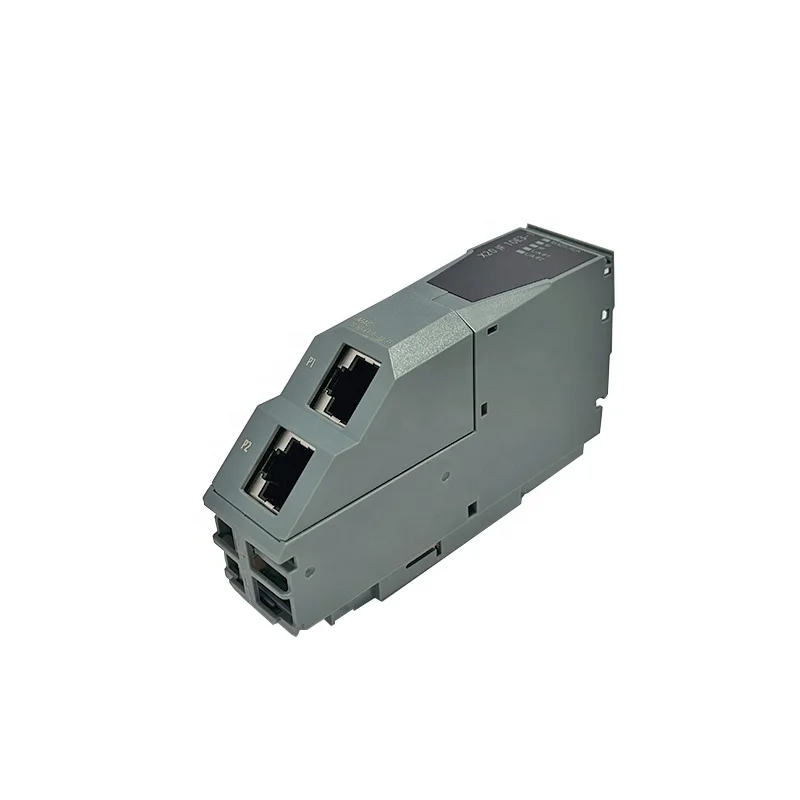

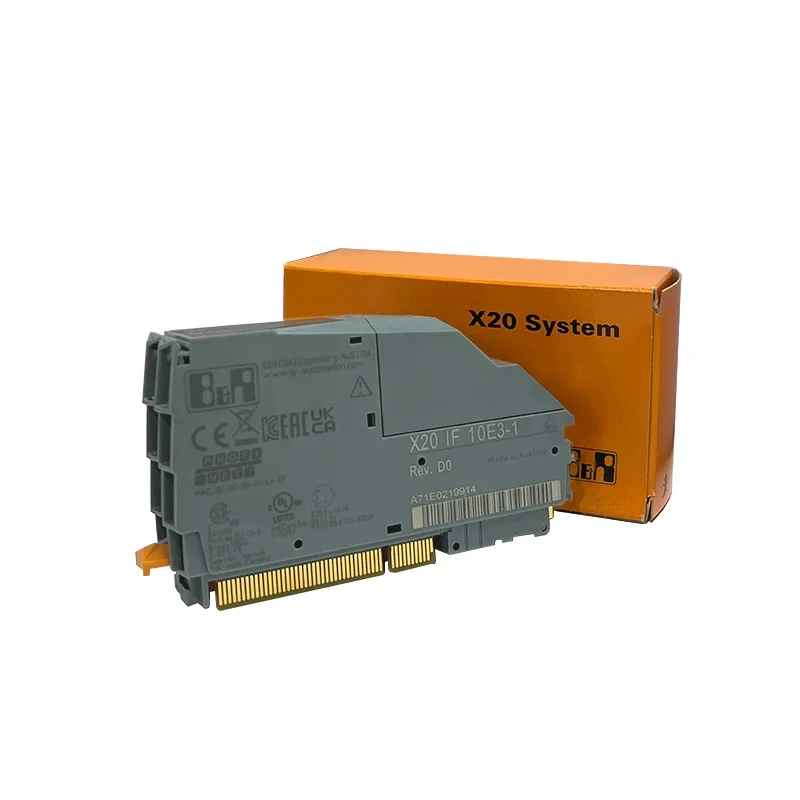

Brand New B&R Original X20 PLC X20IF10E3 1 Interface module B R Industrial Automation A 12 month warranty
- Category: >>>
- Supplier: Shenzhen Xuanze Technology Co. Ltd.
Share on (1601187051885):
Product Overview
Description
Product Description
- PROFINET IO device
- Integrated switch for efficient cabling
The interface module is equipped with a PROFINET IO device interface. This allows the B&R system (I/O modules, POWERLINK, etc.) to be connected to systems from other manufacturers and makes it possible to quickly and easily transfer data in both directions.
The interface module can be operated in X20 CPUs or in the expandable POWERLINK bus controller X20BC1083.
The interface is equipped with 2 RJ45 connections. Both connections result in an integrated switch. This makes it easy to implement daisy chain cabling.
Item | value |

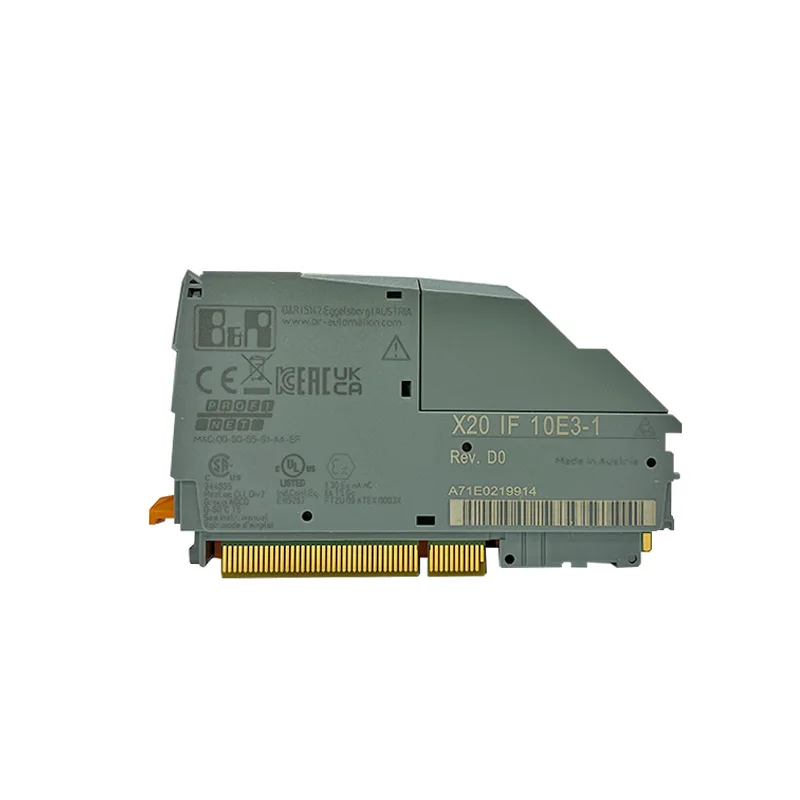

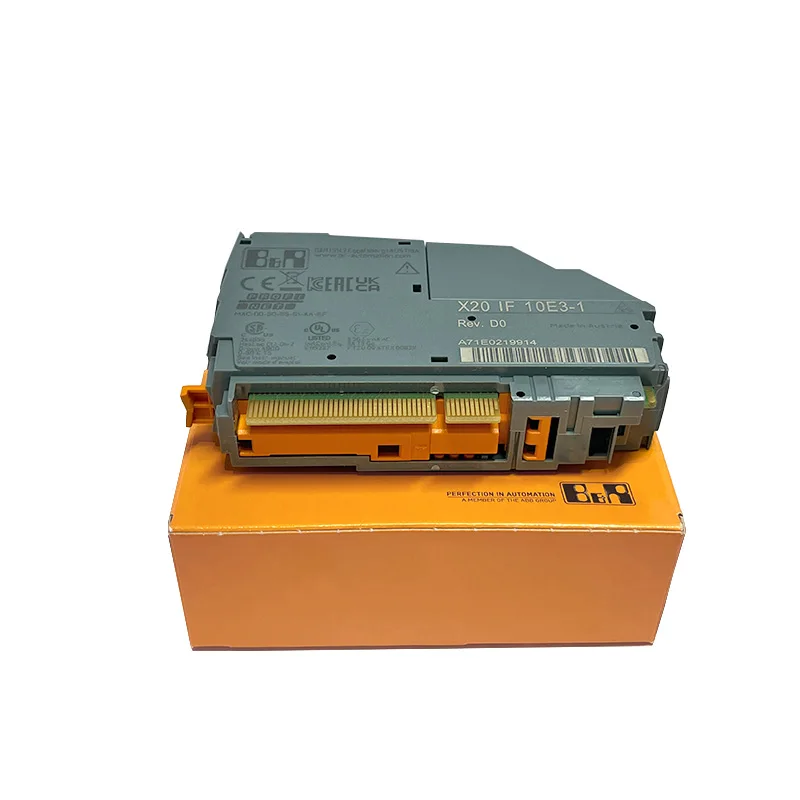

Model Number | X20IF10E3-1 |
Brand Name | B&R |
| Communication module | PROFINET IO device (slave) |
| Status indicators | Module status, network status, data transfer |
| Module status | Yes, using LED status indicator and software |
| Network status | Yes, using LED status indicator and software |
| Data transfer | Yes, using LED status indicator |
| Power consumption | 2 W |
| Certifications(CE,UKCA) | YES |
| Certifications ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X |
| Certifications UL | cULus E115267 Industrial control equipment |
| Certifications HazLoc | cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5 |
| Certifications DNV | Temperature: B(0 to 55°C) Humidity: B(up to 100%) Vibration: B(4 g) EMC: B(bridge and open deck) |
| Certifications LR | ENV1 |
| Certifications(KR,ABS,EAC,KC) | YES |
| Certifications BV | EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck |
