17*17 DR Multipurpose digital radiography X ray flat panel detector
- Category: >>>
- Supplier: Dt Imaging Technology (shanghai) Co. Ltd.
Share on (1601187130554):
Product Overview
Description
We develop and manufacture our own products
We are very confident in our product range, competitive prices, and great delivery services.
FEATURES AT A GLANCE
Name | 17*17 Inch Portable X-Ray Flat Panel Detector |
Model Number | X-Panel 4343a PSM |
Sensor | A-Si |
Active Area | 430 x 430 mm |
Communication Interface | Gigabit Ethernet |

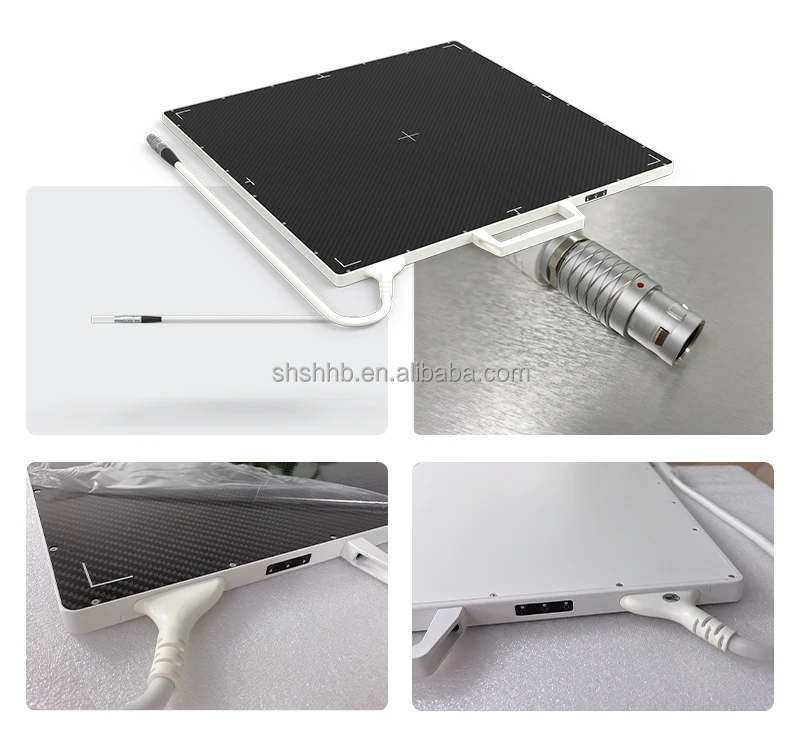

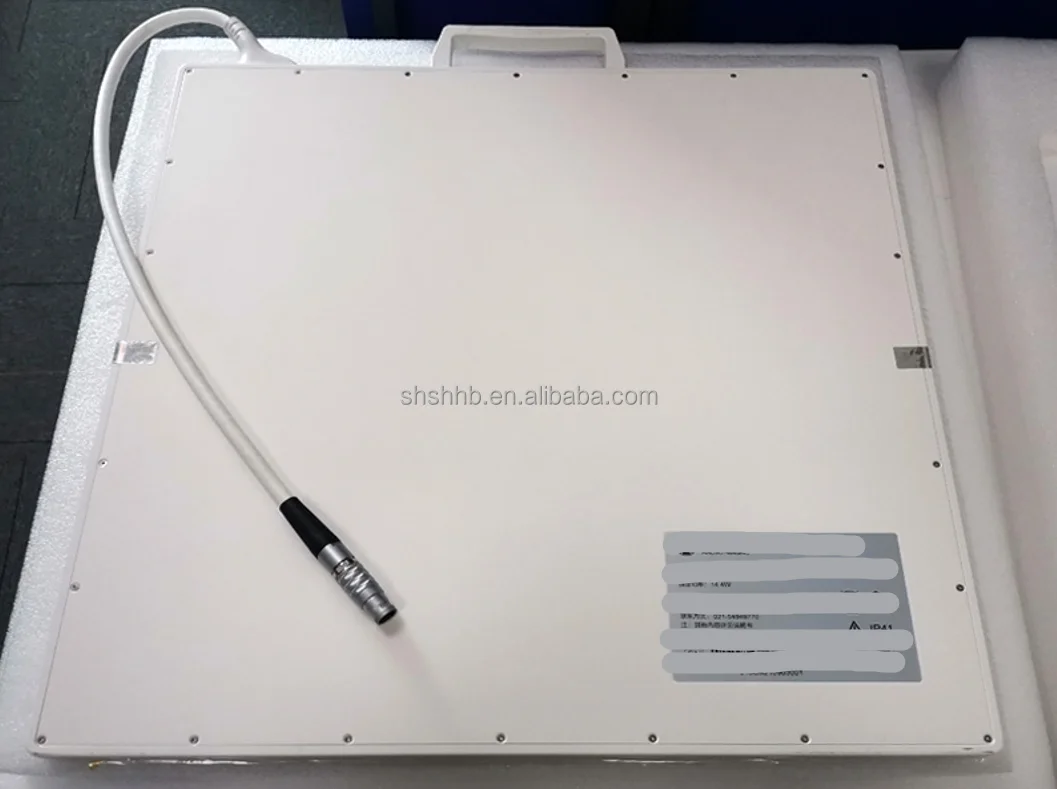

X-Panel 4343a PSM Portable X-Ray Flat Panel Detector
X-Panel 4343a PSM X Ray Detector is portable and low noise x-ray flat panel detector, based on A-Si (amorphous silicon) technology.
A-Si (amorphous silicon) has a lot of advantages such as
higher image quality,
X-Panel 4343a PSM flat panel detectors are widely used in medical, industrial, veterinary and research areas.
A-Si (amorphous silicon) has a lot of advantages such as
higher image quality,
larger dynamic range
LONG life span
multi-gain stage
multi-gain stage
Multi-gain stage makes the flat panel detector be suitable for high sensitivity and large dynamic range requirements.
X-Panel 4343a PSM flat panel detectors are widely used in medical, industrial, veterinary and research areas.
Product Overview
Certifications
We have obtained 36 patents
High technology research & development capability
High R&D investment
Innovation consciousness
Market competitiveness
Development potential
Operation and management ability
Company Profile
About Us
To work with an excellent products manufacturer, our company is your best choice. Warmly welcome you and opening up the boundaries of communication. We are the ideal partner of your business development and look forward to your sincere cooperation. With the development and enlargement of mass clients abroad, now we have set up cooperative relationships with many major brands.
We have our own factory and also have many reliable and well-cooperated factories in the field. Adhering to the "quality first, customer first, We are provideing high-quality, low-cost products and first-class service to customers. We sincerely hope to establish business relationship with customers from all over the world on the basis of quality, mutually benefit. We welcome OEM projects and designs.
Today, We are with great passion and sincerity to further fulfill our global customers' needs with good quality and design
innovation. We fully welcome customers from all over the world to establish stable and mutually beneficial business relationships, to have a bright future together.
Our company will continue to adhere to the " superior quality, reputable, the user first " principle wholeheartedly. We warmly welcome friends from all walks of life to visit and give guidance, work together and create a brilliant future!
With the aim of "compete with good quality and develop with creativity" and the service principle of "take customers' demand asorientation", we will earnestly provide qualified products and good service for domestic and international customers. "Create Values,Serving Customer!" is the aim we pursue. We sincerely hope that all customers will establish long term and mutually beneficial cooperation with us.If you wish to get more details about our company.
Please contact with us now!
PRODUCT SPECIFICATIONS
Technology | ||
Sensor | A-Si | |
Scintillator | GOS / CSI | |
Active Area | 430 x 430 mm | |
Pixel Matrix | 3072 x 3072 | |
Pixel Pitch | 140 μm | |
AD Conversion | 16 bits | |
Interface | ||
Communication Interface | Gigabit Ethernet | |
Exposure Control | Trigger In(Edge or Level) / Trigger Out (Edge or Level) | |
Image Acquisition Time | ≤1 seconds | |
Operating System | Windows7 / Windows10 OS 32 bits or 64 bits | |
Technical Performance | ||
Resolution | 3.5 lp/mm | |
Energy Range | 40-160 KV | |
Lag | ≤1% 1st frame | |
Dynamic Range | ≥86dB | |
Sensitivity | 540 lsb/uGy | |
SNR | 48 dB @(20000lsb) | |
MTF | 70% @(1 lp/mm) | |
38% @(2 lp/mm) | ||
21% @(3 lp/mm) | ||
DQE | 58% @(0 lp/mm) | |
41% @(1 lp/mm) | ||
25% @(2 lp/mm) | ||
Mechanical | ||
Dimension(H x W x D) | 460 x 460 x 15 mm | |
Weight | 4.6 Kg | |
Sensor Protection Material | Carbon Fiber | |
Housing Material | High Strength Aluminum Alloy | |
Environmental | ||
Temperature Range | 10~35℃(operating); -10~50℃(storage) | |
Humidity | 30~70% RH(non-condensing) | |
Vibration | IEC/EN 60721-3 class 2M3(10~150 Hz,0.5 g) | |
Shock | IEC/EN 60721-3 class 2M3(11 ms,2 g) | |
Dust and Water Resistant | IP41 | |
Power | ||
Supply | 100~240 VAC | |
Frequency | 50/60 Hz | |
Consumption | 12.5W | |
Application | ||
Medical | Digital Radiography | |

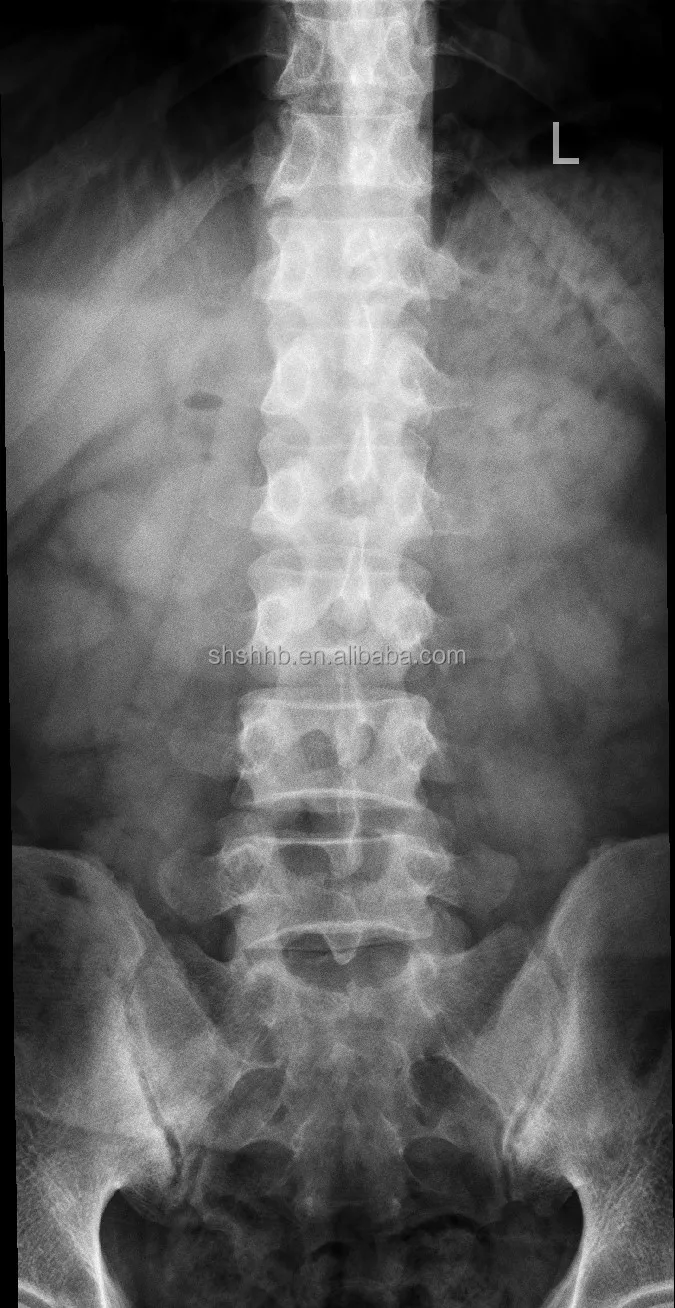

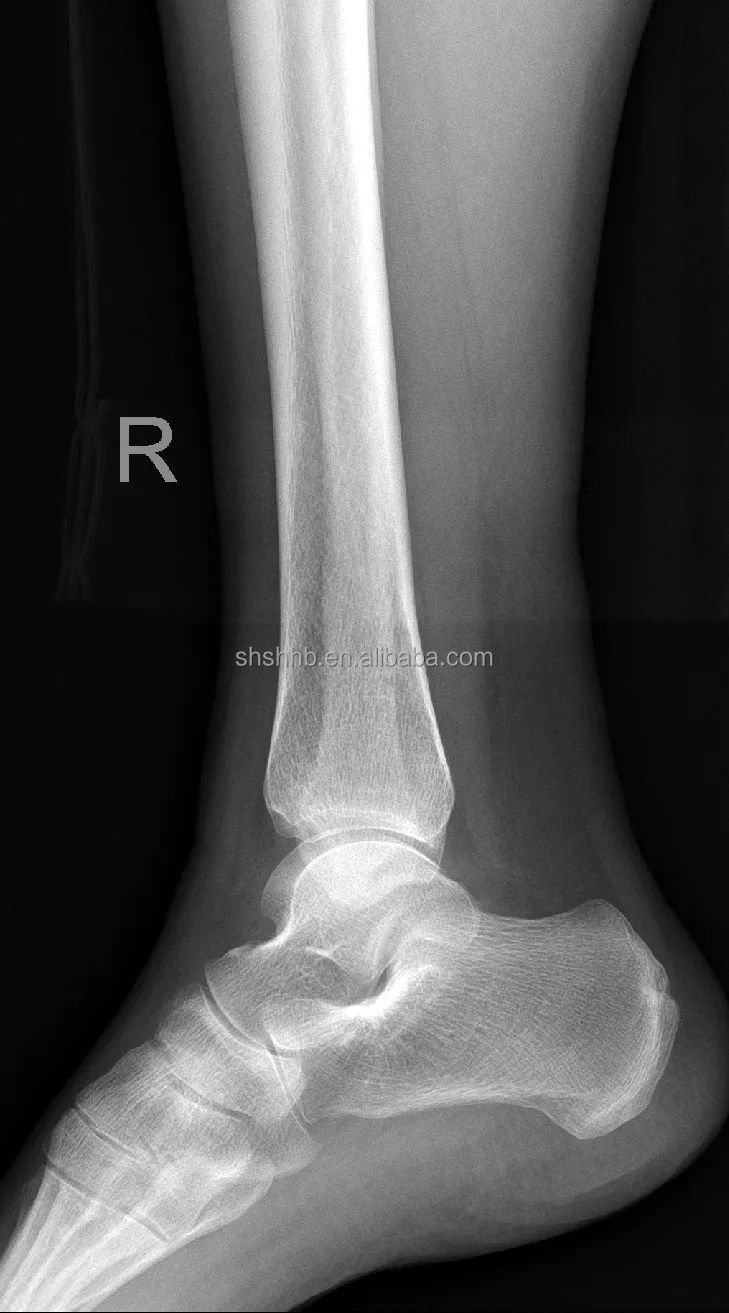

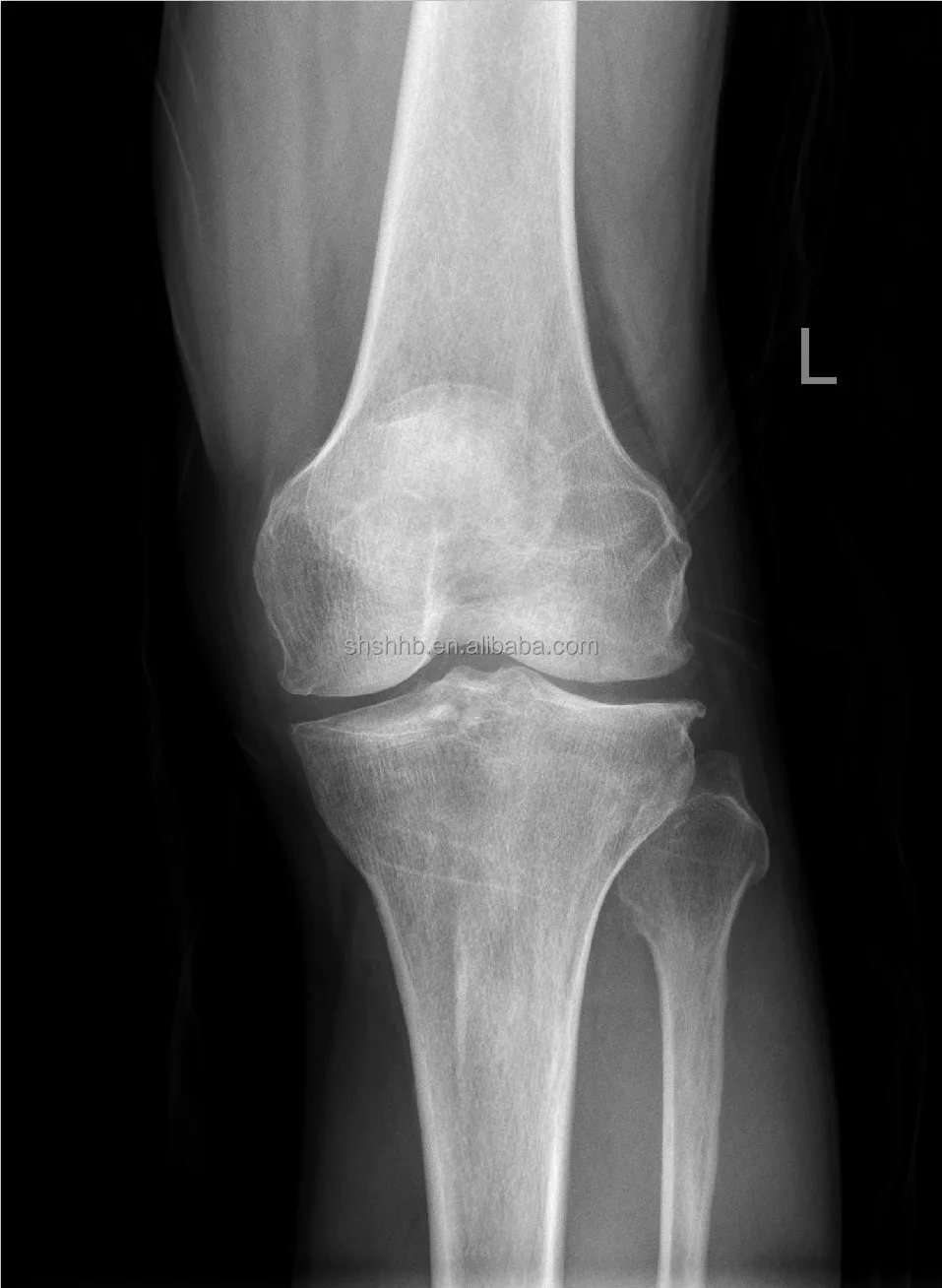

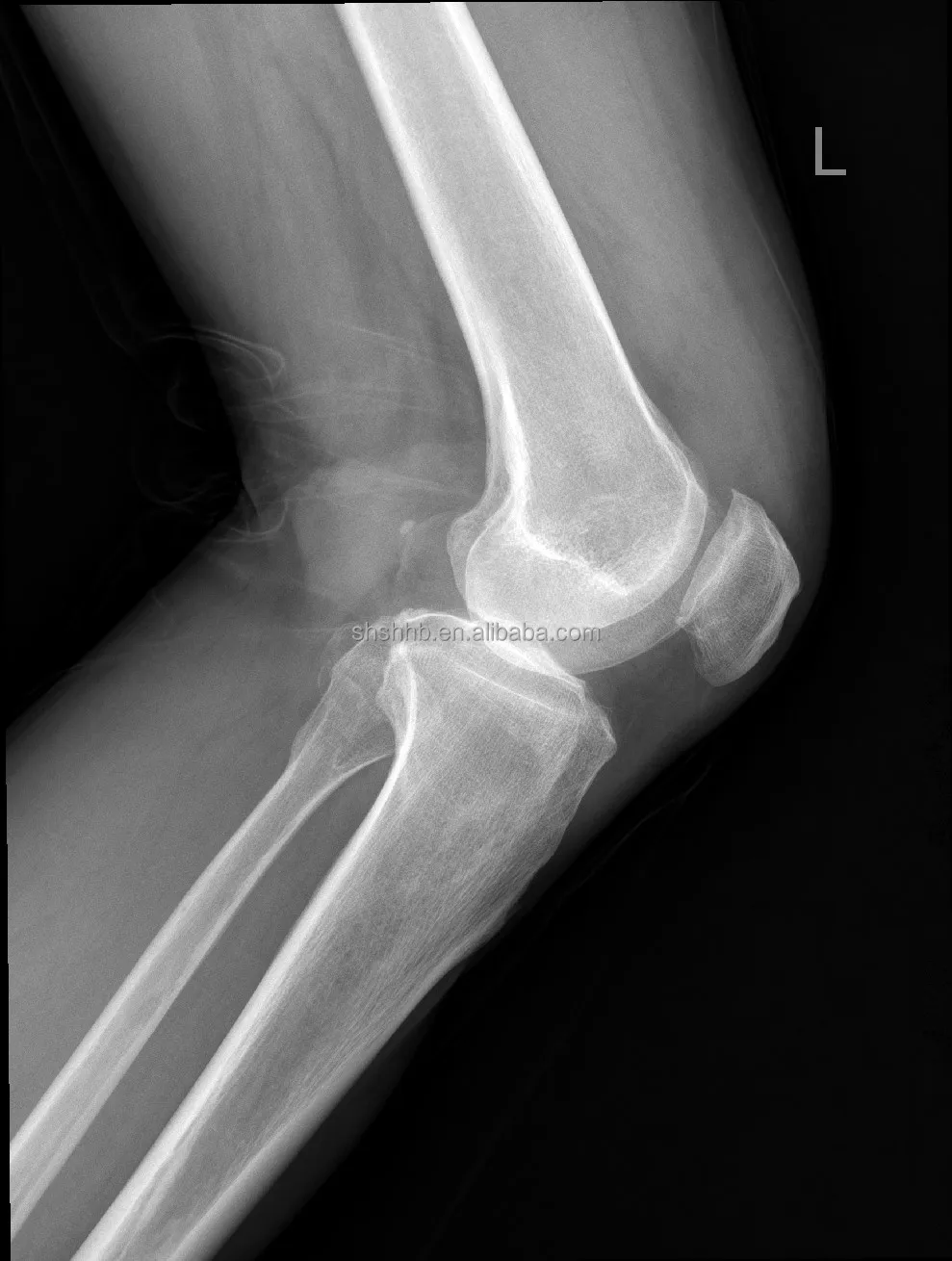

Feedback and Effect Pictures
