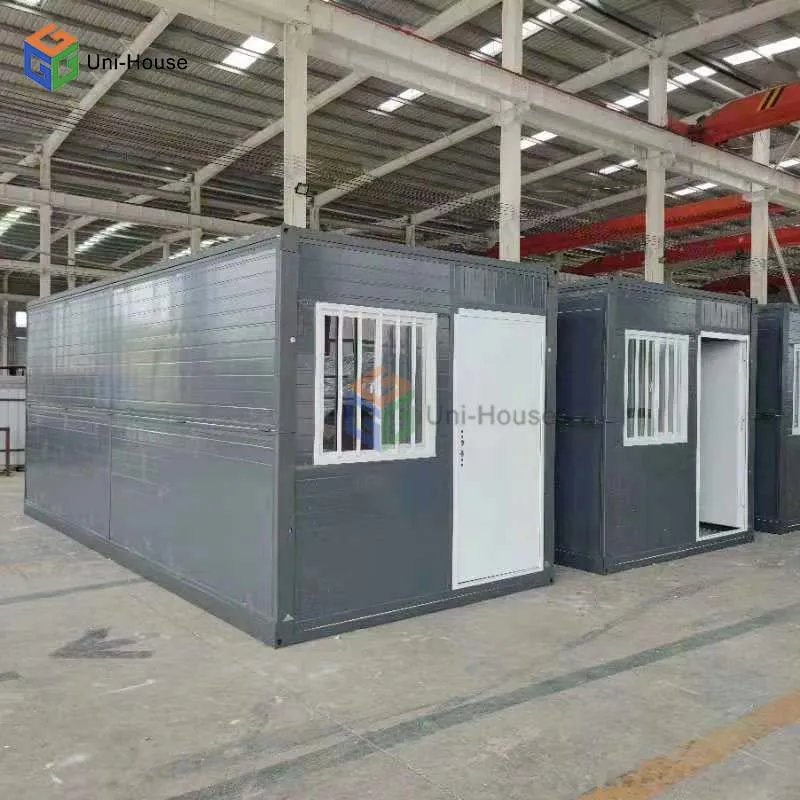

Wholesale 20Ft 40Ft Luxury Prefab Villa Portable Mobile Container folding Expandable tiny Home 2 3 4 5 Bedroom Container House

Share on (1601187243715):


Price:$999.00 - $1,300.00

Quantity:


Product Overview

Description


Product Description

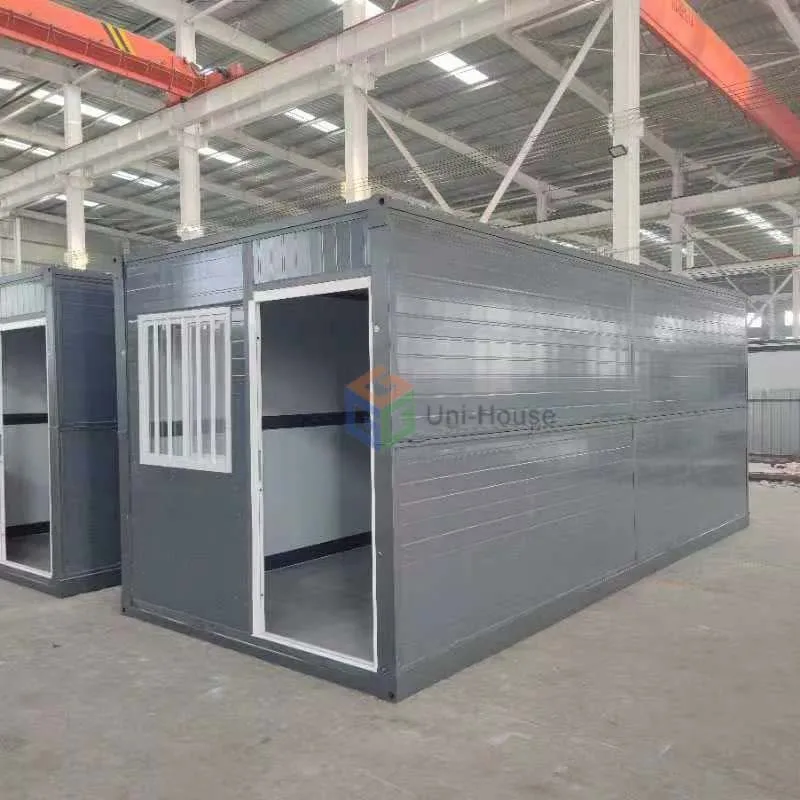

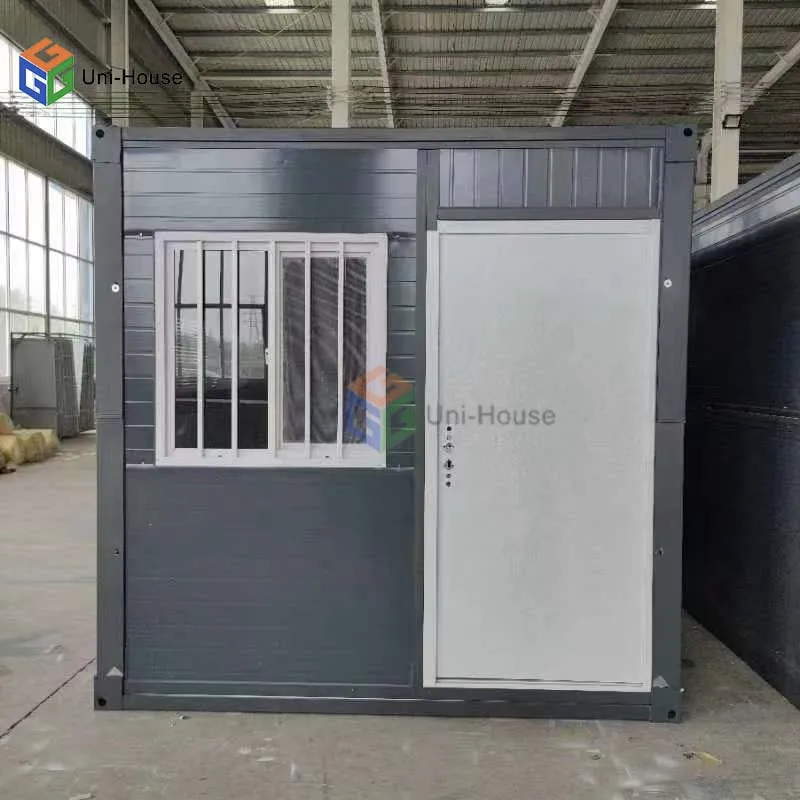

 8 (15).jpg8 (12).jpg

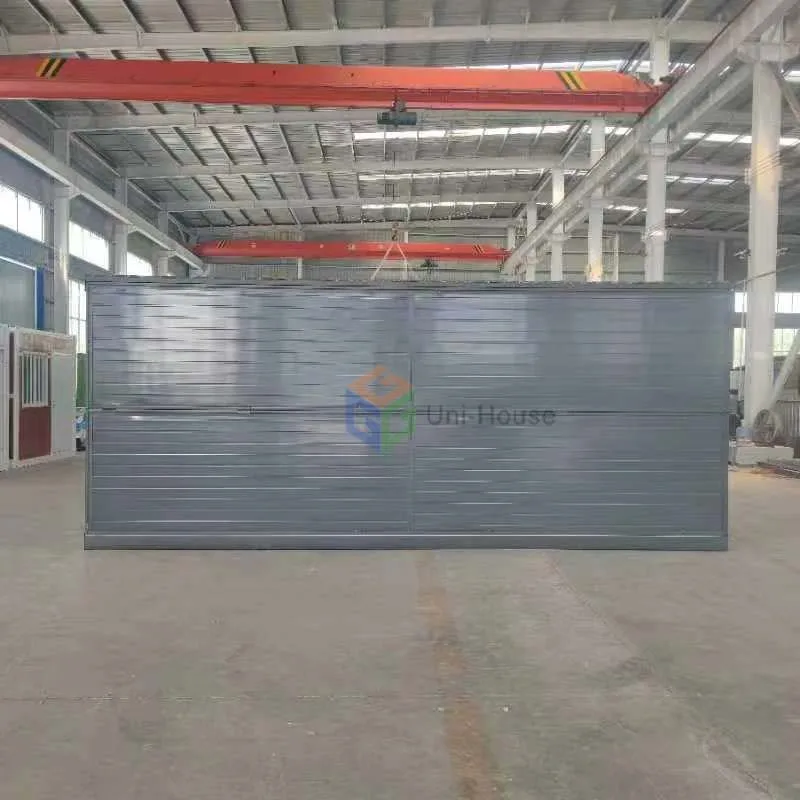

8 (13).jpg8 (14).jpg













































































































Product Name


Folding Flat Pack Container


Product specifications


Folded Height


H=440mm


Loading capacity


1*40HQ=10 units


Length*Width*Height(mm)


5830mm*2500mm*2470mm


Roof Form


Flat Roof


Number Of Layers


≤2 layers


Structure


Column


Specifications=50mm*160mm,Roller beam,Material Thickness=2.3mm,Material=Q235B


Roof Main Beam


Specifications=50*160mm,Roller beam,Material Thickness=2.3mm,Material=Q235B


Roof Secondary Beam


Galvanized Cold Rolled Section Steel C Type,Material Thickness=1.0mm,6 Pices,Material=Q235B


Ground Main Beam


Height=50*140mm,Roller beam,Material Thickness=2.3mm,Material=Q235B


Ground Secondary Beam


Galvanized Cold Rolled Section Steel C Type,Material Thickness=1.5mm,9 Pices,Material=Q235B


Bolt


8.8 Class High-Strength Bolts, 6


Paint


Electrostatic spraying plastic powder baking varnish ≥80μm


Roof


Roof Panel


EPS Color Steel Sandwich Panel,Thickness=50mm,Color=White-Gray, Falls freely into the water


Floor


Substrate


18mm Fireproof Glass Magnesium Board


Panel


Insulation Cotton


50mm Thickness Color Steel EPS Sandwich Panel,Class B Fire Protection


Color steel Plate


Panel Coler Streel Plate Thickness=0.4mm


Door


Specification


Width*Height=840mm*1900mm


Material


Steel Door, Concealed Buckle Lock


Window


Specification


950mm*1100mm


Fram Material


Plastic Steel


Glass


Single Glass


Other


Folding hardware


Special Parts, No Hinges




















Folding box features:

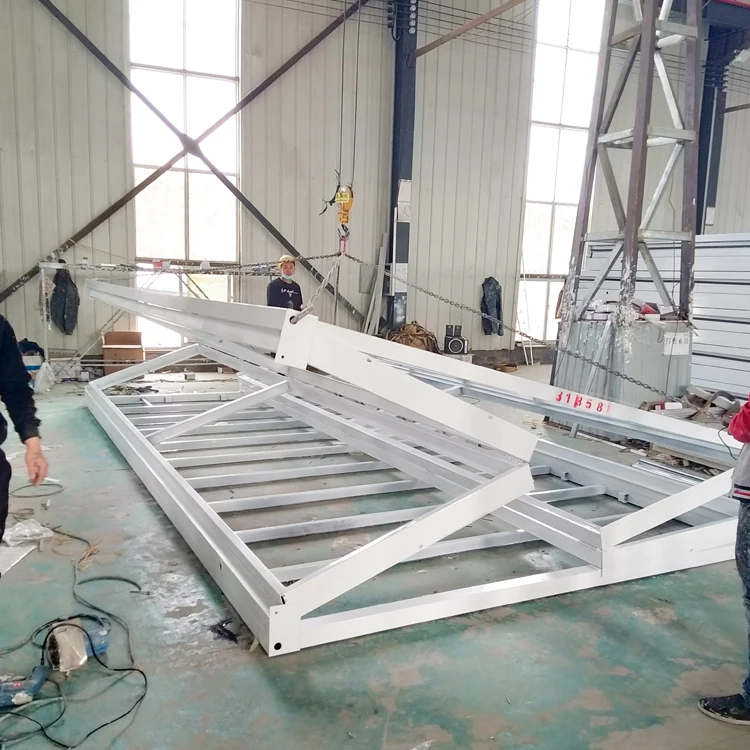

 n 1. Safe and efficient -- convenient installation, fast, before and after the end plate to push in, waist to the middle folding design, installation personnel into the box can be pushed out, a pull molding, fast check-in.


n 2. Strong sealing performance -- the folding place can be seamless splicing of the buckle groove design, which can be rainproof and waterproof. The box frame is made of aluminum, with a simple appearance of the atmosphere and high grade.


n 3. Price advantage -- professional assembly line equipment production and processing, raw materials to cooperate with large steel enterprises, cost compression, profile structure to save production sequence greatly reduce the cost.

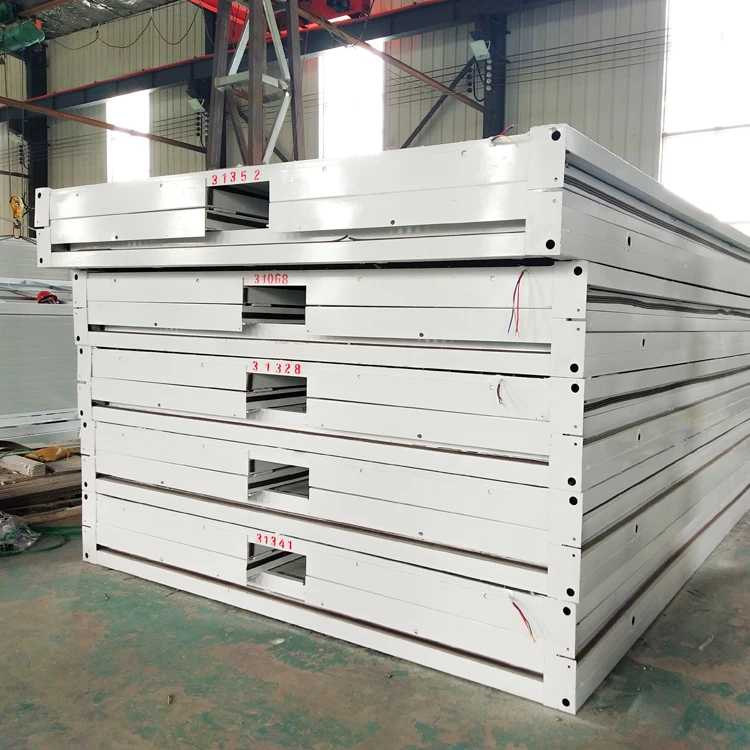

n 4. Save freight -- tailor-made folding room export loading size, 40 feet container can hold 10 sets of folding room.







Office:Removable, Expandable, Reusable, 20 Years Life


Type: Flat Pack Prefab Container Office

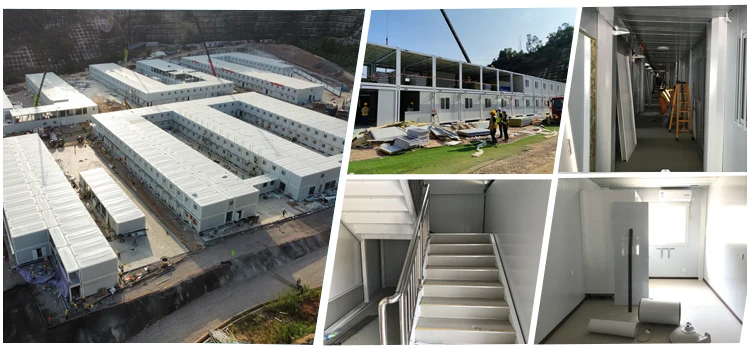

Application: Temporary offices in construction sites, office built in workshops, low-cost outdoor offices.


Advantages: Short installation time, 1-15 days, depending on the project, a single container office only needs one day to complete the installation.


.jpg





 Optional:Air Conditioner, Bed, Table, Chair


For other electrical appliances and furniture, we can also provide options, or we provide the size, and the customer can purchase themself.

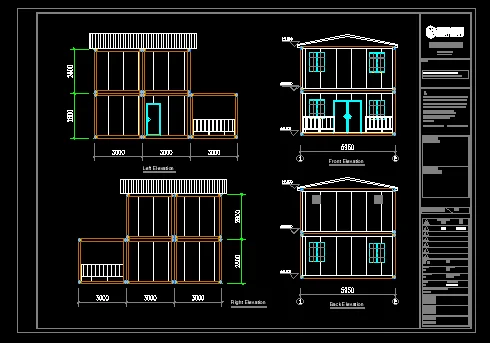

Free Design Service:CAD + Effect Drawing More than 15 designers and engineers, while providing professional advice,


can also ensure compliance with customer requirements.





_20230329105345





Supporting Facilities







 Customized Service:Size, Appearance, Color, Material, etc., Can be customized


CSA






















Company Information



















FAQ


 For Product:




1.How much manpower and time does it take to install the container?
2 hours + 4 workers=1 unit



2.What tools and equipment do I need to prepare for the installation of container?

Crane, hand saw, hand drill, hexagonal screwdriver, rubber hammer, utility knife,hole saw, non-slip gloves, glass glue gun, tape measure, medical box, marker, foot ladder, spirit level.



3.How many days is your fastest lead time?

This depends on the quantity. If it is a regular size, our lead time is generally 7-15 days after receiving the deposit.



4.Can you customize colors?

We are happy to accept color customization. The regular color of our boxes is white, which is popular and well received by customers all over the world. You can also provide the color card number for our reference. What color do you like?



5.What is the largest size that can be made?

The maximum can be 4m*8m, and the 8m surface is equipped with wind-resistant columns to support the top and bottom beams. What kind of functions and requirements are you based on?



6.What is your payment method?

Our payment method is generally TT (wire transfer), 30% deposit, and the remaining 70% paid before shipment.


7.Does your product leak water?

There are quite a number of domestic manufacturers, due to lack of professionalism and irresponsibility for quality, which leads to the problem of water leakage in the box. So far, our company has never experiencedwater leakage problems in overseas orders.



8.Do you need a foundation?

If the land will not subside, there is basically no need to lay foundations. According to different geological conditions, our company will provide guidance and suggestions. If you buy container from us, we will give you complete foundation drawings and we will have video instructions for installation.



9.Can I add an extra roof please?

Roofs can be added, and we can send you some pictures of roofing cases we have done before for your selection and reference. Do you want to add a roof based on wind resistance requirements, thermal insulation requirements or aesthetic requirements?


10.How are your container house insulated?

Wall panels are made of 50mm rock wool sandwich panels, and can be upgraded to 75mm and 100mm thickness, which is better for extreme cold and hot weather



11.Can the floor be covered with insulation?

Yes, no problem.

For Service:

1.Can you please guide the installation?

Yes, our company has a professional installation team to guide. What is the approximate quantity you purchased this time? If the quantity is more than 300 sets, we can guide the installation for free, you only need to be responsible for the engineer's visa, air tickets and room and board expenses.



2.How do you guarantee quality?

Answer: Every step of our production is checked by quality inspectors. We will use vernier calipers to measure the thickness of materials. We will also check whether the paint surface of the materials is in good condition before packing, and the wearing parts and spare materials will be shipped together. Before delivery, we will also take photos and videos for customers to confirm.

3.If our losses are caused by your reasons, will we be compensated?

Of course, we will compensate for our mistakes, and the compensation plan is also reached by a double-issue agreement, or compensation according to the requirements of the contract.
