  • 2mm thick stainless steel pipeline leak repair clamp with EPDM rubber sleeve high pressure SS304 SS316 pipe repair clamp
2mm thick stainless steel pipeline leak repair clamp with EPDM rubber sleeve high pressure SS304 SS316 pipe repair clamp
2mm thick stainless steel pipeline leak repair clamp with EPDM rubber sleeve high pressure SS304 SS316 pipe repair clamp
2mm thick stainless steel pipeline leak repair clamp with EPDM rubber sleeve high pressure SS304 SS316 pipe repair clamp
2mm thick stainless steel pipeline leak repair clamp with EPDM rubber sleeve high pressure SS304 SS316 pipe repair clamp
2mm thick stainless steel pipeline leak repair clamp with EPDM rubber sleeve high pressure SS304 SS316 pipe repair clamp
2mm thick stainless steel pipeline leak repair clamp with EPDM rubber sleeve high pressure SS304 SS316 pipe repair clamp
2mm thick stainless steel pipeline leak repair clamp with EPDM rubber sleeve high pressure SS304 SS316 pipe repair clamp

2mm thick stainless steel pipeline leak repair clamp with EPDM rubber sleeve high pressure SS304 SS316 pipe repair clamp

Share on (1601187272708):


Price:$4.05 - $12.15

Quantity:


Product Overview

Description





MingJu NO.1


Why choose us
2mm thick stainless steel pipeline leak repair clamp with EPDM rubber sleeve high pressure SS304 SS316 pipe repair clamp


3500㎡
Covering an area of 3.500 ㎡
10Years
10 years of production expenence
Equipment
More than 100 production equipment



Advanced
Industry leading automation
production
2mm thick stainless steel pipeline leak repair clamp with EPDM rubber sleeve high pressure SS304 SS316 pipe repair clamp

Engineer
3 senior mechanical engineers
2mm thick stainless steel pipeline leak repair clamp with EPDM rubber sleeve high pressure SS304 SS316 pipe repair clamp

ODM&OEM
Provide ODM&OEM services
2mm thick stainless steel pipeline leak repair clamp with EPDM rubber sleeve high pressure SS304 SS316 pipe repair clamp


OEM Pipe Couplings Gear Repair Clamp Ring Epdm/nbr Rubber Multi-function Fast Seal Stainless Steel 304 Pipeline
10 years of production experience

There are more than 30 categories, hundreds of products for you to choose.To meet your every need









Are you facing

any of these

problems?


Poor product quality
Small workshop inferior products




Don't worry about these problems

We will try our best to solve them for you
2mm thick stainless steel pipeline leak repair clamp with EPDM rubber sleeve high pressure SS304 SS316 pipe repair clamp








Source factory
We are the source manufacturer, there is no middleman to earn the difference






Pipe connector
Product Features Applied to connection of various kinds of metal pipes and composite materials of pipelines . disassem bledand reusable.Good field use effect, no water leakage, fast leak stoppage








Customized Programs
Control the cost and price of products according to your positioning,and customize solutions to meet your needs









Quality control inspection
Engineers will use the supporting machines to produce unique products
Ensure product quality


split sleeve duct leakage plumping water high pressure quick clamps hdpe pipe leak repair clamp

pipe repair
clamp
2mm thick stainless steel pipeline leak repair clamp with EPDM rubber sleeve high pressure SS304 SS316 pipe repair clamp
Pipeline connector has strong versatility, it can be applied to all kinds of metal pipes or non-metal pipes quick connection; There are no special requirements for the fluid medium in the pipeline, the wall thickness of the pipeline and the end face. The product can replace the tedious connection methods such as flange or welding, and can solve the interconnection of different pipe diameters, axial displacement, Angle deviation and different pipes.


2mm thick stainless steel pipeline leak repair clamp with EPDM rubber sleeve high pressure SS304 SS316 pipe repair clamp

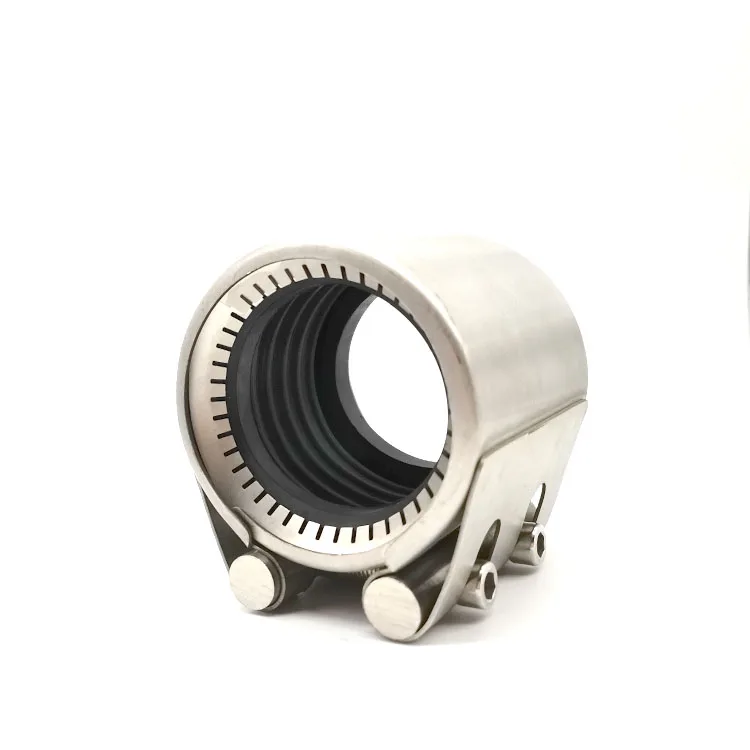

The tooth ring type anti-pulling pipe connector has strong sealing performance and anti-pulling ability, and its tooth ring type design can play a good seismic, anti-impact and reduce noise effect in the pipe connection.
Split sleeve duct leakage plumping water high pressure quick clamps hdpe pipe leak repair clamp
Tooth ring
pipe
repair clamp


Split sleeve duct leakage plumping water high pressure quick clamps hdpe pipe leak repair clamp

Single side
pipe
repair clamp
2mm thick stainless steel pipeline leak repair clamp with EPDM rubber sleeve high pressure SS304 SS316 pipe repair clamp

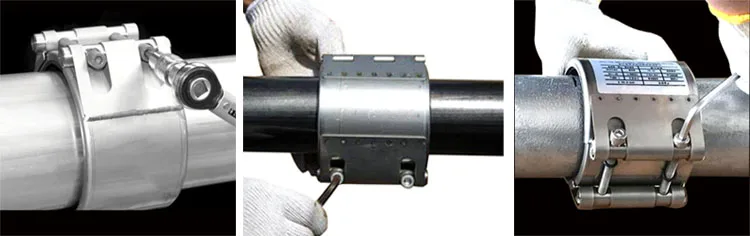

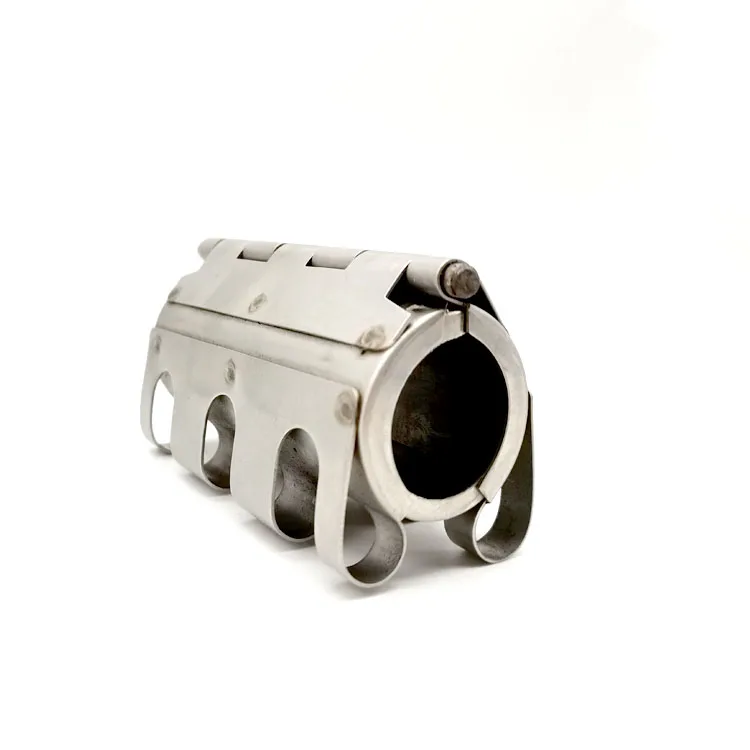

The single card pipeline repair device is mainly used for the quick repair of pipeline leakage. It can repair the sand hole and fracture caused by aging and rust in the case of continuous pressure and no replacement of pipelines. The installation is convenient, the construction efficiency is high, and the construction operation can be performed without special tools.


split sleeve duct leakage plumping water high pressure quick clamps hdpe pipe leak repair clamp

Double-sided
pipe
repair clamp
2mm thick stainless steel pipeline leak repair clamp with EPDM rubber sleeve high pressure SS304 SS316 pipe repair clamp

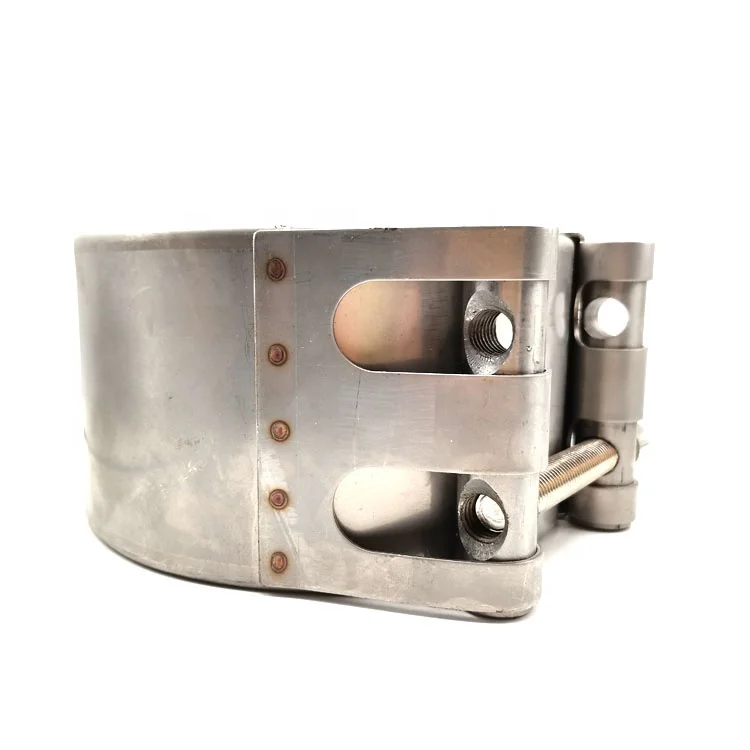

Dual card pipeline connection repair device is mainly used in the connection of new pipelines, quick repair of pipeline leakage, can be in the case of continuous pressure, no replacement of pipelines, aging, corrosion caused by pipeline sand holes, fracture and other conditions for rapid repair, easy installation, high construction efficiency, no special tools can be constructed and operated, especially in the construction environment is harsh conditions.


Note:
1, our company can be customized according to customer requirements of standard or other non-standard caliber products. If you need more than 500 caliber products, please ask our company directly for reference materials. Please note: according to your actual needs, choose ordinary RCD-S or RCD-L type connection repair device.
2, and please indicate the pipe diameter, pipe internal fluid medium and pipe pressure, positive pressure or negative pressure, so that we can better tailor the most practical products.

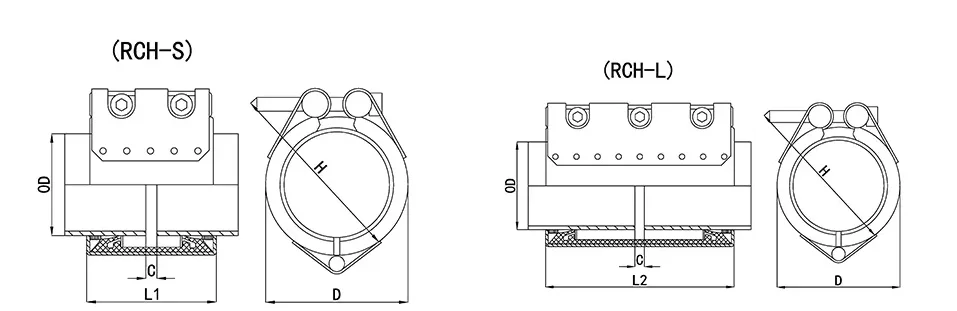

Pipe OD
OD Range
Working pressure
SIZE
Bolts
Screw Torque
OD
OD min- OD max
WP
C
L1
L2
D
H
M
NM
(mm)
(mm)
(bar)
(mm)
(mm)
(mm)
(mm)
(mm)
21.7
21 -23
32
5
57
45
65
6
10
25
24.5 -25.5
32
5
57
50
70
6
10
27.2
26 -28
32
5
57
50
70
6
10
32
31.5 -32.5
32
5
57
55
75
6
10
34
33 -35
32
5
57
55
75
6
10
40
39.5 -41.5
32
5
57
55
75
6
10
42
42 -44
32
5
57
100
65
85
6
15
44.5
44 -45.1
32
5
57
100
65
85
6
15
48.6
47 -49
32
5
57
100
70
90
6
15
54
53.6 -54.6
32
5
57
100
70
90
8
30
57
56.3 -57.7
32
5
57
100
80
100
8
30
60.3
59 -62
32
5
80
139
85
105
8
30
63
62.2 -63.9
32
5
80
139
85
105
8
30
76.1
75-78
28
5
80
139
100
120
8
30
79.9
78.8-80.8
28
5
80
139
100
120
8
30
88.9
88 -92
28
5
107
203
110
130
10
50
108
106 -110
28
5
107
203
130
150
10
50
110
108.9 -111.2
28
5
107
203
130
150
10
50
114.3
112 -116
28
5
107
203
135
155
10
50
118
116 -119.2
28
5
107
203
140
160
10
50
125
123.6 -126.5
28
5
107
203
150
185
10
50
133
131.5 -134.4
28
5
107
203
160
190
10
50
140
137 -143
28
5
116
203
165
195
12
80
159
157 -161
24
5
116
203
185
215
12
80
165.2
163.3 -166.7
24
5
116
203
190
210
12
80
168
166 -170
24
5
116
203
195
225
12
80
170
168.2 -171.9
24
5
116
203
195
225
12
80
200
198.2 -201.5
16
10
155
255
240
270
14
100
219
217 -221
16
10
155
255
250
280
14
100
273
271 -275
16
10
155
255
305
335
14
100
315
313 -317
14
10
155
255
340
375
14
100
325
323 -327
14
10
155
255
355
385
14
100
355.6
354 -358
14
10
155
255
385
420
14
100
377
375 -379
14
10
155
255
410
440
14
100



Customized Services
OEM Pipe Couplings Gear Repair Clamp Ring Epdm/nbr Rubber Multi-function Fast Seal Stainless Steel 304 Pipeline


Regular size *Other sizes can be customized




304 material *Other 316 material be customized




Logo customization *Consult us directly about logo





OEM service
2mm thick stainless steel pipeline leak repair clamp with EPDM rubber sleeve high pressure SS304 SS316 pipe repair clamp


Size & Material
Shape & Logo
Packing


2mm thick stainless steel pipeline leak repair clamp with EPDM rubber sleeve high pressure SS304 SS316 pipe repair clamp
MOQ:100-1000 unit
Mold fee:Consult us directly about Mold fee
Delivery time: 15 to 180 days
Sample time:5-90days
2mm thick stainless steel pipeline leak repair clamp with EPDM rubber sleeve high pressure SS304 SS316 pipe repair clamp


About us:

Cangzhou Mingju Hardware products Co., LTD. 10 years of experience in hardware mold manufacturing. Our company operates the following projects: Forgings and powder metallurgy products Manufacturing, forgings and powder metallurgy products Sales, auto parts and accessories Manufacturing, auto parts retail: Electronic components manufacturing, electronic components retail, Mold manufacturing: Mold sales: Fastener manufacturing, fastener sales: Metal packaging containers and materials manufacturing, metal packaging containers and materials sales, plastic products sales, plastic products manufacturing, Rubber products manufacturing, rubber products sales, first class medical equipment production, first class medical sales, mechanical parts parts processing, mechanical parts parts sales, import and export of goods.
2mm thick stainless steel pipeline leak repair clamp with EPDM rubber sleeve high pressure SS304 SS316 pipe repair clamp










FAQ
Q1. Are you factory or trading company?
A: We are factory with more than 10 years' production experience.
Q2. What is the terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products andpackages before you pay the balance.
Q3. What are your terms of delivery?
A: EXW,FOB
Q4. How about your delivery time?
A: 5-7 days for sample order, 20-30 days for official order
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. OEM and ODM are available.
Q6. What is your sample policy?
A: We will offer sample for free if sample value is less than 15USD. And freight should be paid.
Q7. Do you test all your goods before delivery?
A: Yes, our QC have 100% tested all products before delivery, we also have professionalequipment to inspect the quality of cargo.
