HAORUN Laser Paper Cutter 4060 Engraving Machine Laser Engraving Machine Co2 Laser Cutting Machine For Acrylic Sheet
- Category: >>>
- Supplier: liaocheng haorun commodity company Ltd.
Share on (1601187325158):
Product Overview
Description
PRODUCT DESCRIPTION
DIY Granite Stone Cylinder Laser Engraving Machine can replace the traditional manual carving art, without the help of professional tools can be completed carving, and carving accuracy is very high, customers only need to master the basic software operation, can complete the carving work. The laser engraving machine can carve patterns on granite stone and marble, making it the best choice for crafts. The laser engraving machine can be equipped with special rotating device, easy to complete cylindrical materials and surface engraving.
HAORUN
3-5 days
Product origin
Shandong Province China
Supply capacity
30 Sets / Month In stock!

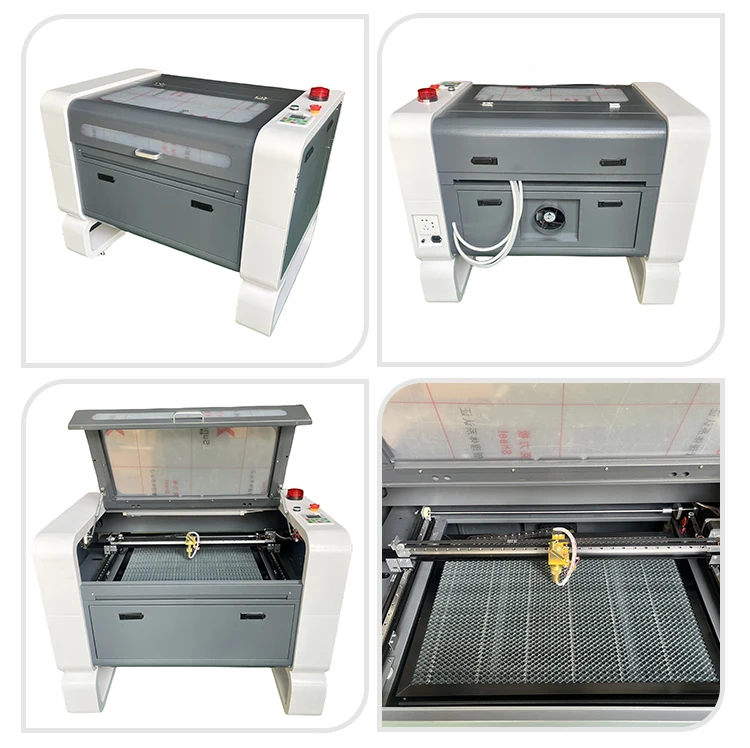

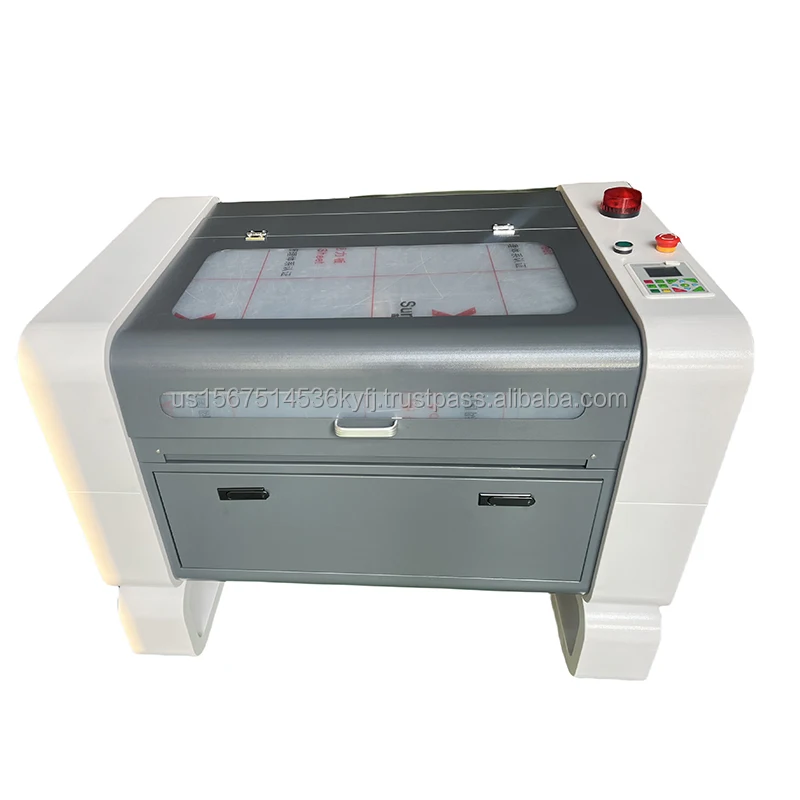

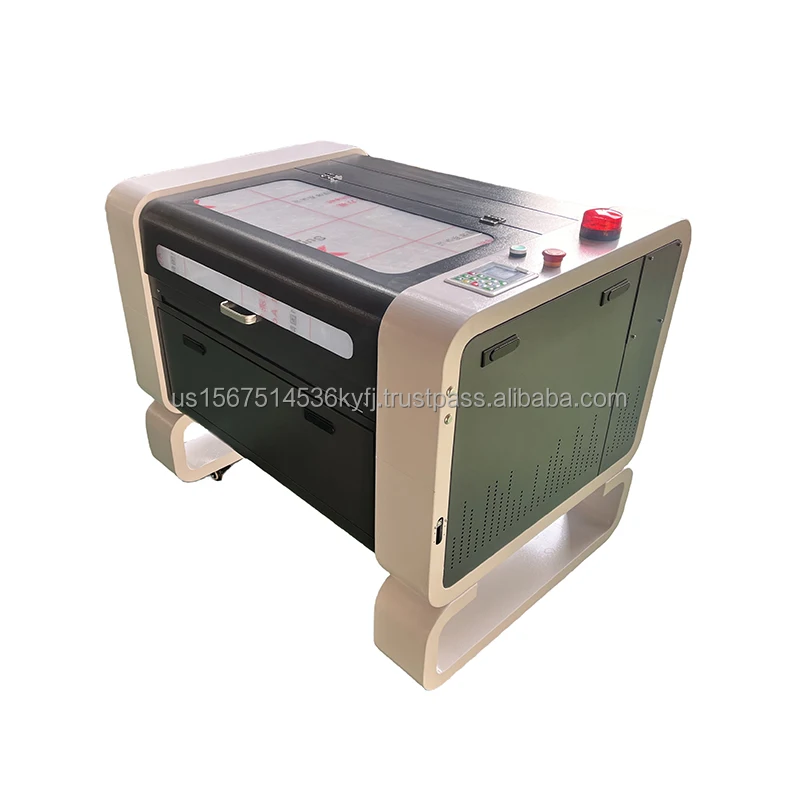

PRODUCT DISPLAY
PRODUCT PARAMETERS
Model | 4060 |
working area | 60cm*40cm / 24in*16in (L*W) |
controller | RUIDA control system |
Laser type | CO2 sealed laser tube |
Cooling type | water cooling |
Laser power | 50w/60w/80w |
Engraving speed | 25-60000mm/min |
Cutting speed | 20-10000mm/min |
Power supply | 220V±10% /50HZ , 110V±10%//60HZ |
Min. shaping a character | Letter 1.0 x 1.0mm |
Graphics format supported | BMP, PLT, DST, DXF, AI, CDR |
Software supported | CorelDraw, PhotoShop, AutoCAD |
Laser Output Control | 1-100% software setting |
Highest Scanning Precision | 2500DPI |
Location precision | 0.1mm |
Working temperature | 5 to 45 degrees |
Operating humidity | 5%-95%(without condensed water) |
Equipment Dimension | 1030mm*730mm*580mm(L*W*H) |
Net Weight | 70KG |
Optional parts | Rotary device, CW3000 or CW5000 Water cooling system |
Warranty | 3 years |
Total power | <500w |
Product Size

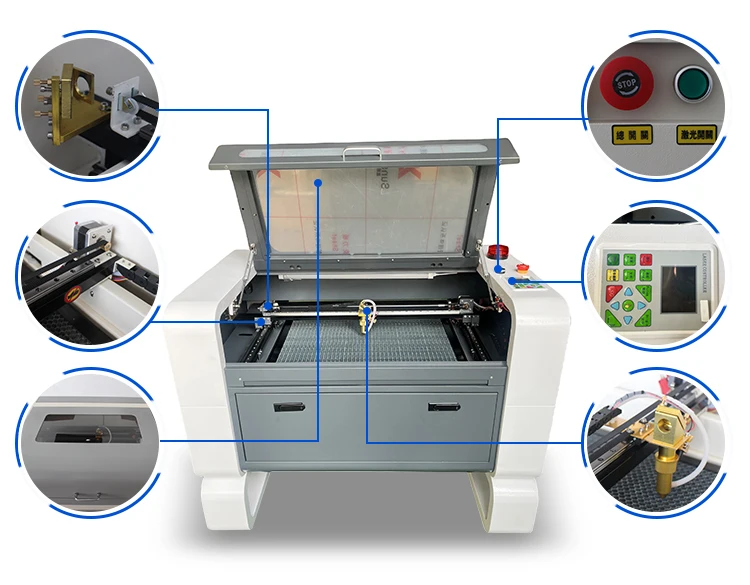

PRODUCT DETAILS

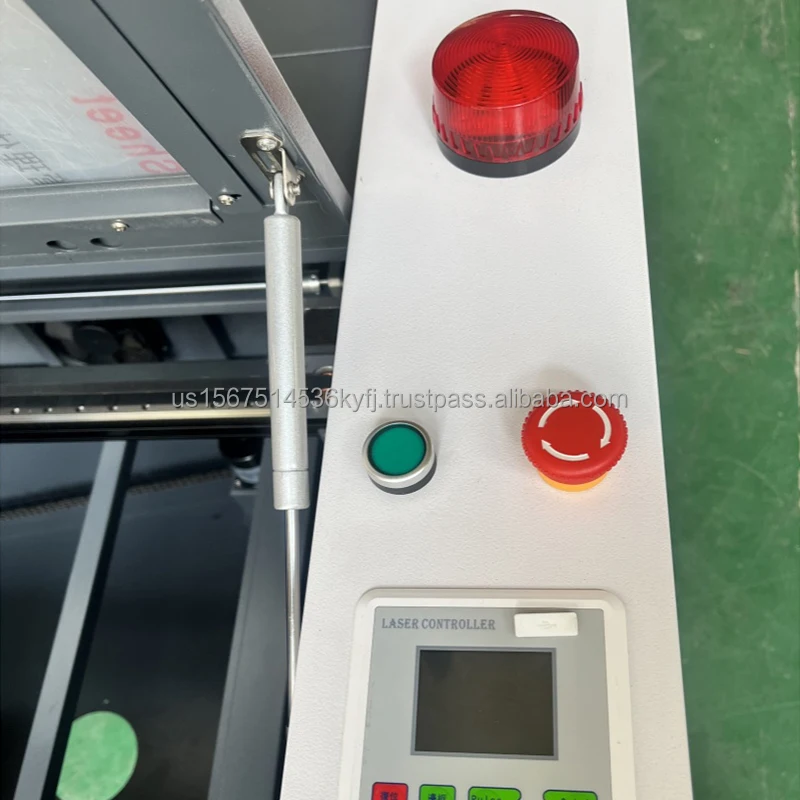

①RUIDA Control system
1, color screen, dynamic display processing trajectory
2. Support to modify layer parameters directly online
3. Onboard memory, high-speed data transmission
4. Different engraving and cutting parameters can be set for different parts of the same pattern,
5.Engraving and cutting can work simultaneously
6. It can be read by usb flash drive or connected to a computer
7. Power cut continuous carving/slope carving function
8. Multi-function key operation
9. Online preview

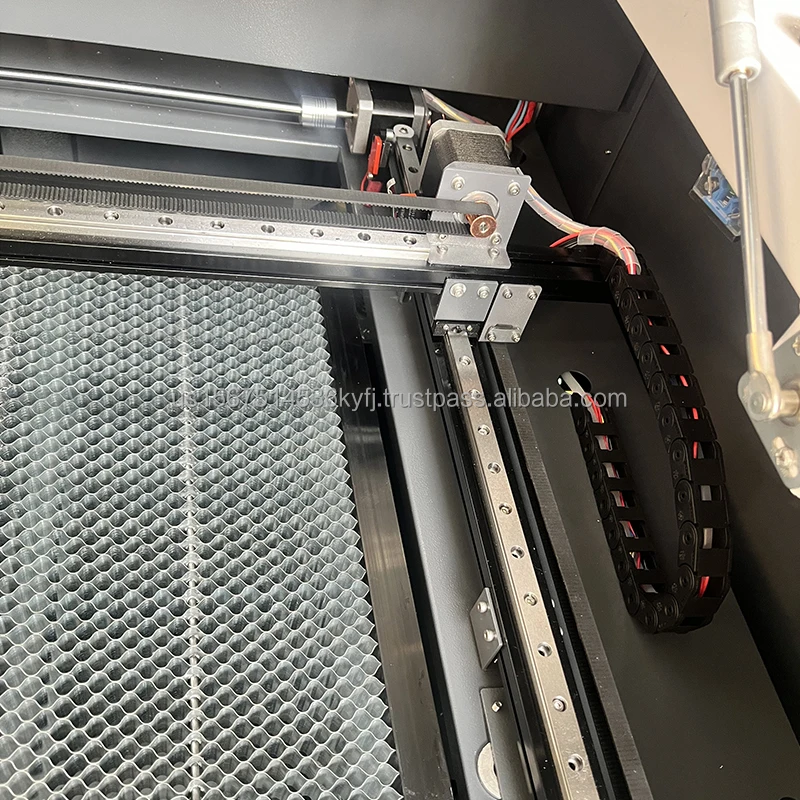

②Galvanized, with good verticality, up and down adjustable.Equipped with red light positioning system, the positioning is more accurate, equipped with automatic blowing system, can prevent burning and clean the role of the lens. X-axis adopts linear square guide rail, and ball drive is adopted between guide rail and slider, which has high precision, low noise and long service life.
③UP and DOWN table,The lifting height of the electric platform is 27cm, which is convenient for carving objects of different heights
1, color screen, dynamic display processing trajectory
2. Support to modify layer parameters directly online
3. Onboard memory, high-speed data transmission
4. Different engraving and cutting parameters can be set for different parts of the same pattern,
5.Engraving and cutting can work simultaneously
6. It can be read by usb flash drive or connected to a computer
7. Power cut continuous carving/slope carving function
8. Multi-function key operation
9. Online preview
②Galvanized, with good verticality, up and down adjustable.Equipped with red light positioning system, the positioning is more accurate, equipped with automatic blowing system, can prevent burning and clean the role of the lens. X-axis adopts linear square guide rail, and ball drive is adopted between guide rail and slider, which has high precision, low noise and long service life.
③UP and DOWN table,The lifting height of the electric platform is 27cm, which is convenient for carving objects of different heights
④Good electrical components to ensure good operation of the machine
⑤The back of the machine is designed to connect the inlet water, outlet water and air interface, the appearance is more
beautiful,after the buyer receives the machine, the installation of the machine is easier
⑥Cellular structure, force uniform stability is not easy to deformation, seismic performance is good
⑤The back of the machine is designed to connect the inlet water, outlet water and air interface, the appearance is more
beautiful,after the buyer receives the machine, the installation of the machine is easier
⑥Cellular structure, force uniform stability is not easy to deformation, seismic performance is good

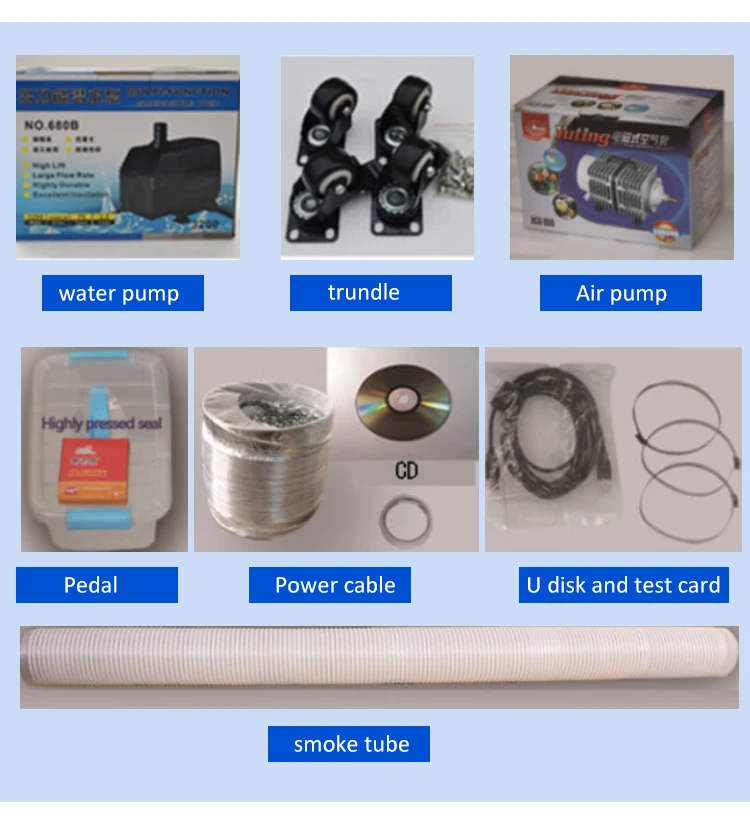

PRODUCT STANDARD ACCESSORIES
PRODUCT OPTIONAL PARTS
Rotary
Simple rotary is suitable for regular cylinder, such as pen holder, cup, bamboo, etc., only need to put the engraving material on the simple rotary, the material will rotate with the roller.
Rotary fixture is suitable for all objects, there are no regular restrictions, if the irregular surface of the object engraving arc patterns, the best choice.
Rotary fixture is suitable for all objects, there are no regular restrictions, if the irregular surface of the object engraving arc patterns, the best choice.
Water-cooling system
The water cooling system can better cool down the laser engraving machine. The customer can choose the water cooling system if the machine is used very frequently or the high-power cutting ground is often used. It is recommended to use the water cooling system at 80W/100W/120W/150W
PRODUCT APPLICATIONS
Laser engraving cutting machine application industry: wood plate cutting, advertising text, large surface cutting, garment proofing, leather industry, footwear industry, decoration industry, furniture industry, packaging and printing industry, model industry, craft gift industry.
Suitable materials for laser engraving and cutting machine: wood sheet, acrylic, plexiglass, glass, cloth, leather, paper, bamboo and wood products, thin film, etc
Suitable materials for laser engraving and cutting machine: wood sheet, acrylic, plexiglass, glass, cloth, leather, paper, bamboo and wood products, thin film, etc
Materials | Cutting | Engraving |
Wood/Cork/Bamboo/Veneer/MDF | √ | √ |
Acrylic/Rubber/Plexiglass/Pmma | √ | √ |
Glass/Fiberglass | √ | |
Mylar/Delrin/Matte Board | √ | √ |
Fabric/Cloth/Textile/Garment | √ | √ |
Leather/Pig leather/Cow leather/Sheep leather | √ | √ |
Ceramic/Marble/Tile | √ | |
Plastic | √ | √ |
Melamine | √ | √ |
Paper/Cardboard/Pressboard | √ | √ |
Organic board / Double color plate | √ | √ |
Corian | √ | √ |
COMPANY INFORMATION
"HAORUN LASER"is a rapidly developing new enterprise, which is special in manufacturing laser engraving machine, laser cutting machine, Fiber marking machine, CO2 laser marking machine, laser welding machine.
"HAORUN LASER” will continue to create value for customers at home and abroad. Continuously introduce advanced production technology and production process at home and abroad, develop and produce high-quality, cost-effective CNC equipment, adhere to provide users with design, installation, training, debugging, maintenance, consulting and other services. The company focuses on advocating the enterprise spirit of "unity and struggle, excellence, thrifty construction, striving for first-class" and the business philosophy of " Strive for quality with preciseness, survive with quality and develop with honesty", strengthening management, strict quality and integrity, willing to return customers at home and abroad with first-class quality and services.
"HAORUN LASER” will continue to create value for customers at home and abroad. Continuously introduce advanced production technology and production process at home and abroad, develop and produce high-quality, cost-effective CNC equipment, adhere to provide users with design, installation, training, debugging, maintenance, consulting and other services. The company focuses on advocating the enterprise spirit of "unity and struggle, excellence, thrifty construction, striving for first-class" and the business philosophy of " Strive for quality with preciseness, survive with quality and develop with honesty", strengthening management, strict quality and integrity, willing to return customers at home and abroad with first-class quality and services.
OUR CERTIFICATES
FAQ
Q1. Are You A Factory Or Trading Company?
We are a manufacturer with export license.
Q2. Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
Q3. Will The Laser Machine Be Safe During Transport?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
Q4. What Should I Do When Something Goes Wrong With The Laser ?
(1)Inner: plastic stretch film and white foam.
(2)Middle: small pieces of wood and screws.
(3)outside: standard export woodencase. So,the laser machine will send to you safely. In case the machine was damaged , please contact us ,We will process the replacement as soon as possible to ensure that it arrives in time .
Q5. How Is The Shipping Method?
As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement
Q6. Payment Terms?.
TT/West Union/Payple/LC/Cash and so on.
Q7. I Don't Know How To Use After I Receive Or I Have Problem During Use,how To Do?
1) We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine.
2) If have any problem during use,you need our technician to judge The problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
Q8. Do The Laser Machines Need To Be Connected To A Laptop Or Desktop Computer To Work?
Yes, either is ok. It supports Windows 2000, Windows XP, Win 7 and other operating systems
