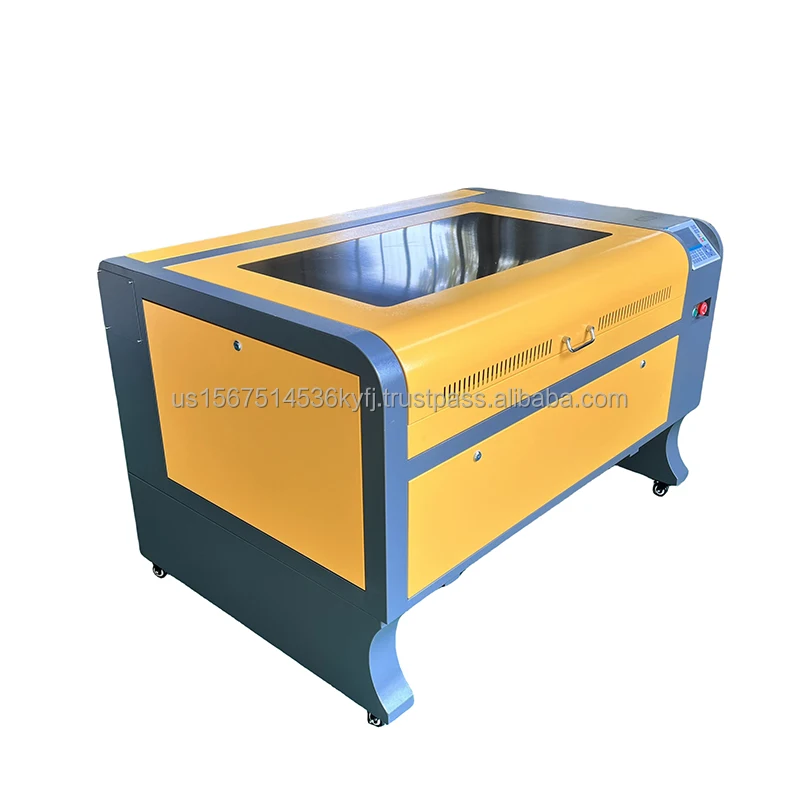

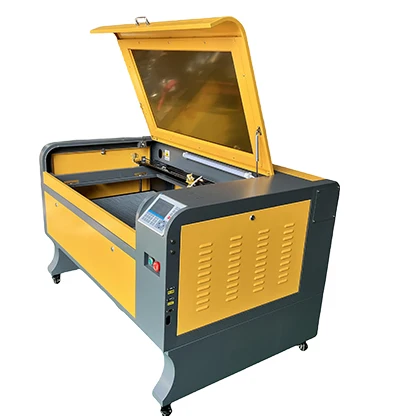

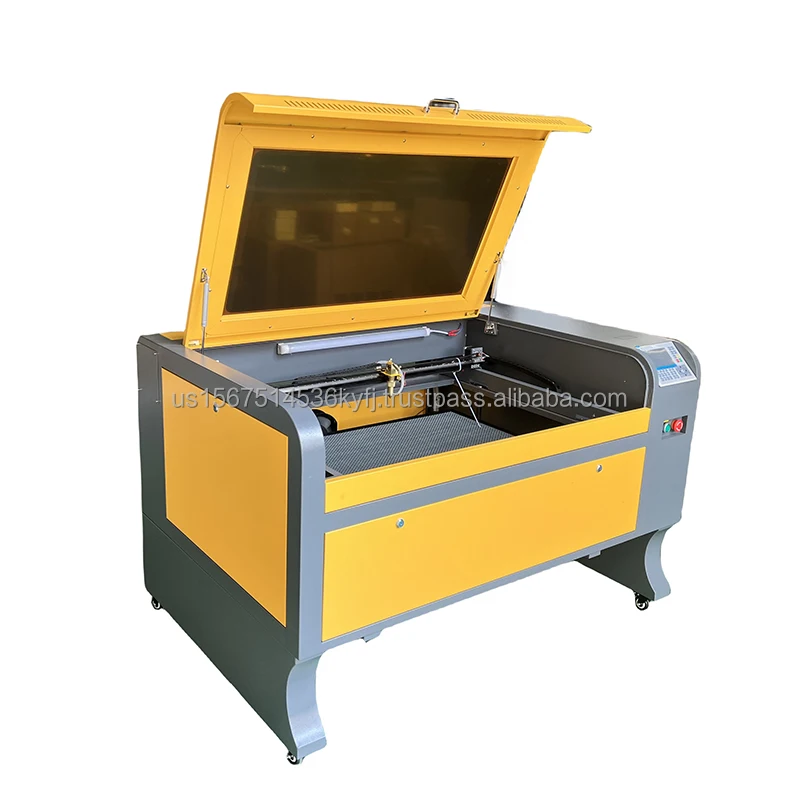

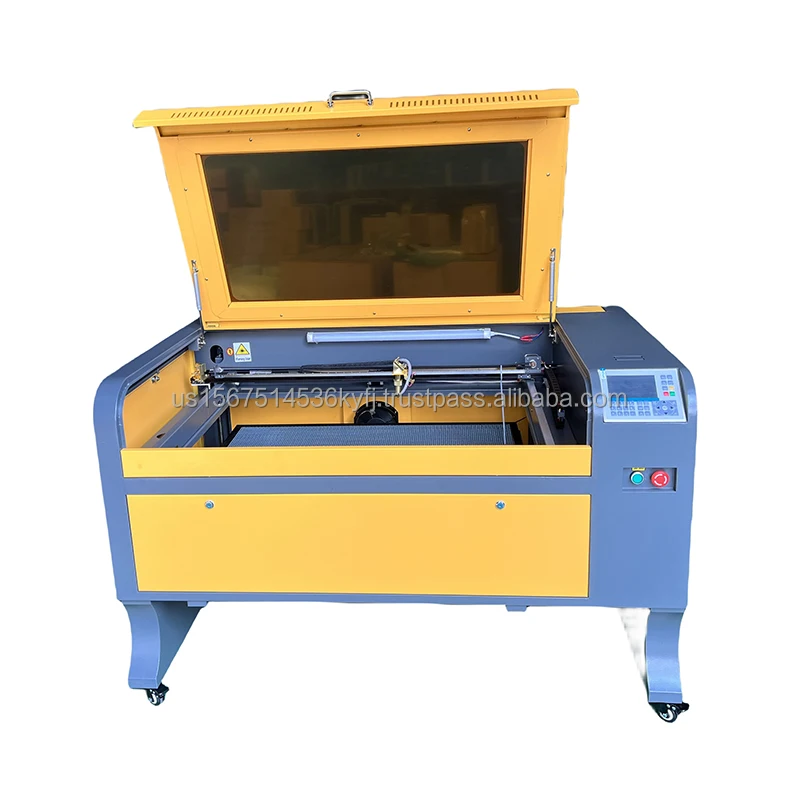

Model | 9060 |

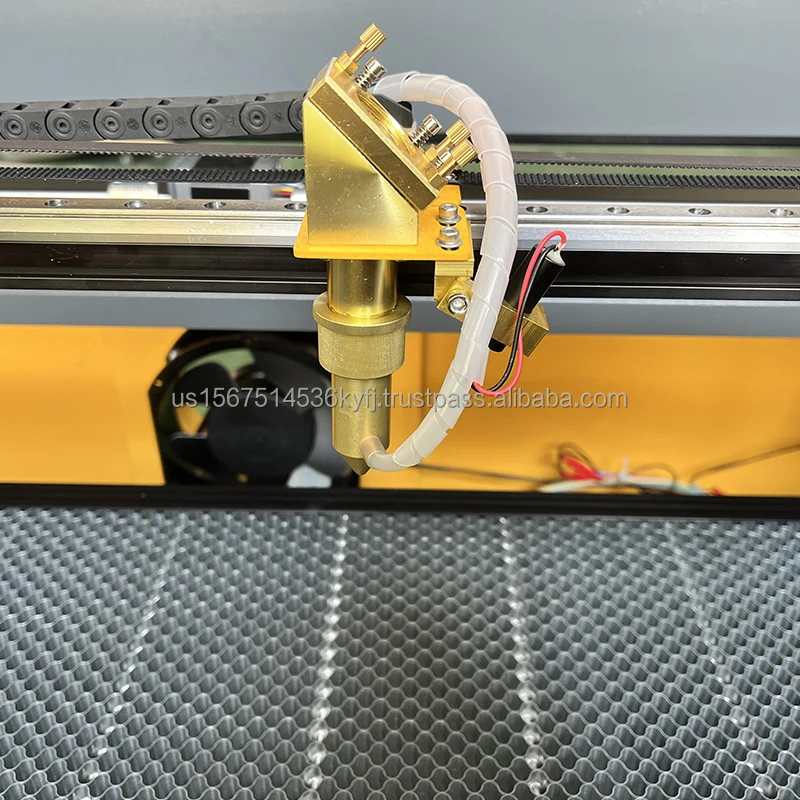

Focus lens | USA imported D20mm/FCL63.5mm |
Power supply | AC220/110V±10% 50/60hz |
Working area | 900*600mm |

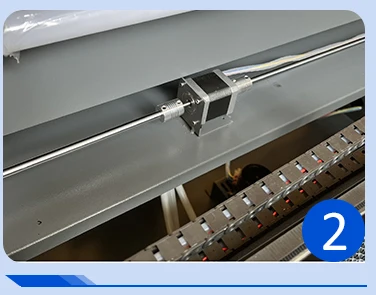

Stepper motors | 42 and 57 |
Laser power | 80-180W(optional) |
Max moving speed | 500mm/s |
Laser energy control | by LCD panel or software |

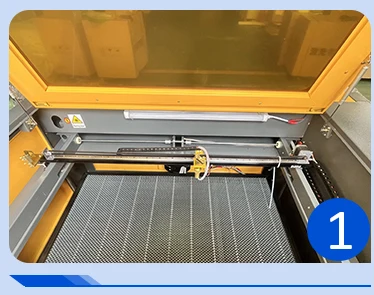

Working table | Up&down Aluminum knife +Honeycomb table |
Locating precision | <0.01mm |
Min shaping character | letter 0.5mm, Chinese 0.5mm |
Operating temperature | -5℃-35℃ |
Resolution ratio | 4500dpi |
Control program | RDWORKS |
Data transfer interface | USB |
System environment | Win7/8/10 |
Cooling way | Chiller CW5200 with protection system |
Graphic format supported | The file which CorelDraw, Photo shop, Auto-CAD can identify |
Compatible software | CorelDraw, Auto-CAD etc. |
Cutting thickness | 0-25 mm (depends on different materials) |
Color separation | Separation of cutting up to 256 colors |
Red dot pointer | yes |
Open door safety | yes |
Packing | Plywood |
Net weight | 150kgs |
gross weight | 170kgs |
Materials | Cutting | Engraving |
Wood/Cork/Bamboo/Veneer/MDF | √ | √ |
Acrylic/Rubber/Plexiglass/Pmma | √ | √ |
Glass/Fiberglass | √ | |
Mylar/Delrin/Matte Board | √ | √ |
Fabric/Cloth/Textile/Garment | √ | √ |
Leather/Pig leather/Cow leather/Sheep leather | √ | √ |
Ceramic/Marble/Tile | √ | |
Plastic | √ | √ |
Melamine | √ | √ |
Paper/Cardboard/Pressboard | √ | √ |
Organic board / Double color plate | √ | √ |
Corian | √ | √ |
