Sunlight Readable Time Attendance Machine Display Waterproof TFT LCD Module 5 Inch 800x480 IPS Touch Screen
- Category: >>>
- Supplier: Shenzhen Hct Electronics Co. Ltd.
Share on (1601187400535):
Product Overview
Description
Focus On High Brightness Outdoor Optical Bonding Solution/Custom Design

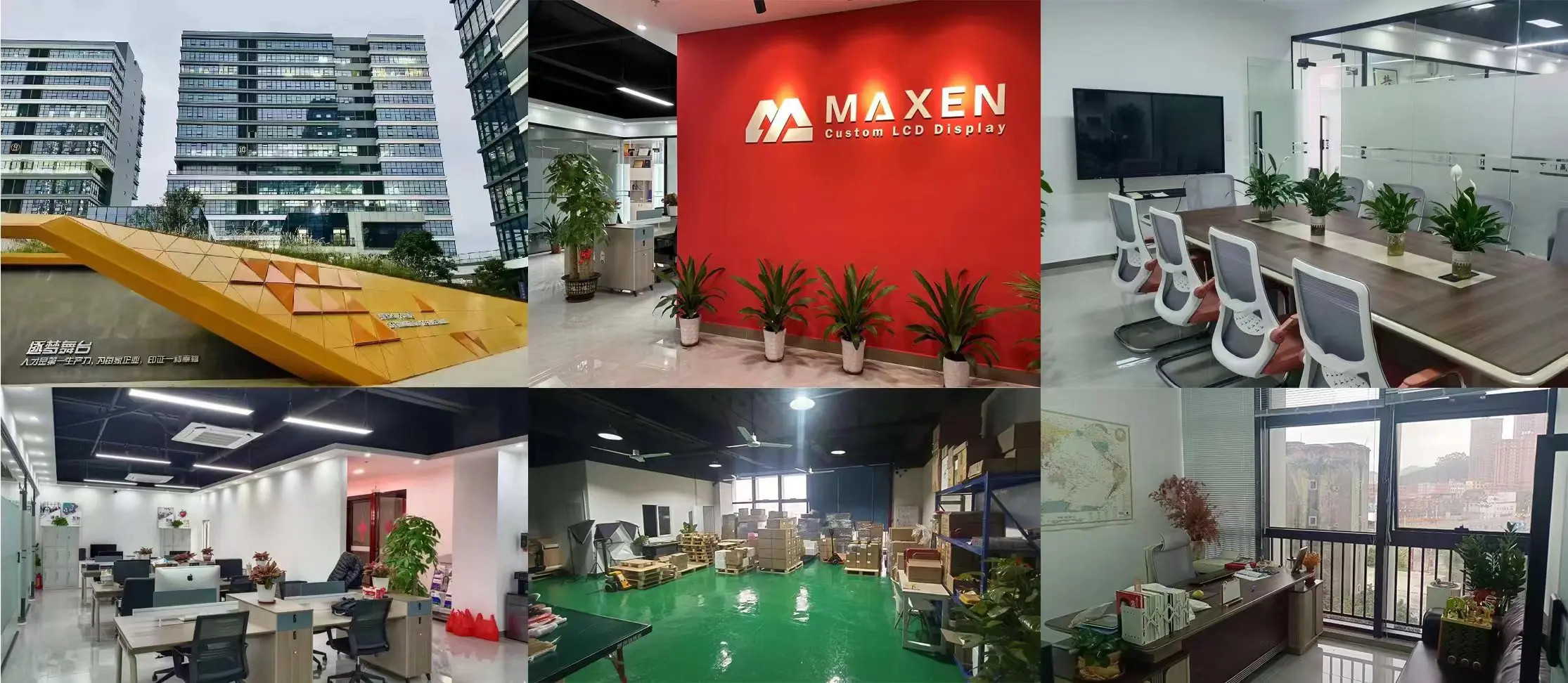

HCT Electronics, under the brand name of Maxen, has 14 years of experience with colorful TFT LCD displays and touch screens. We are more than a manufacturer company, we are also a one-stop service provider including, R&D, bonding, and trading with superior customization capabilities. Our production field covers around 7,000 square meters, including 5,000 square meters of 1000-level dust-free workshop with ISO9001 certification.
We have been working with costumers worldwide from various industries such as Industrial Automation, Transportation, Casino, Hand-held Device, Smart Home Tech, Access Control and Security, etc.

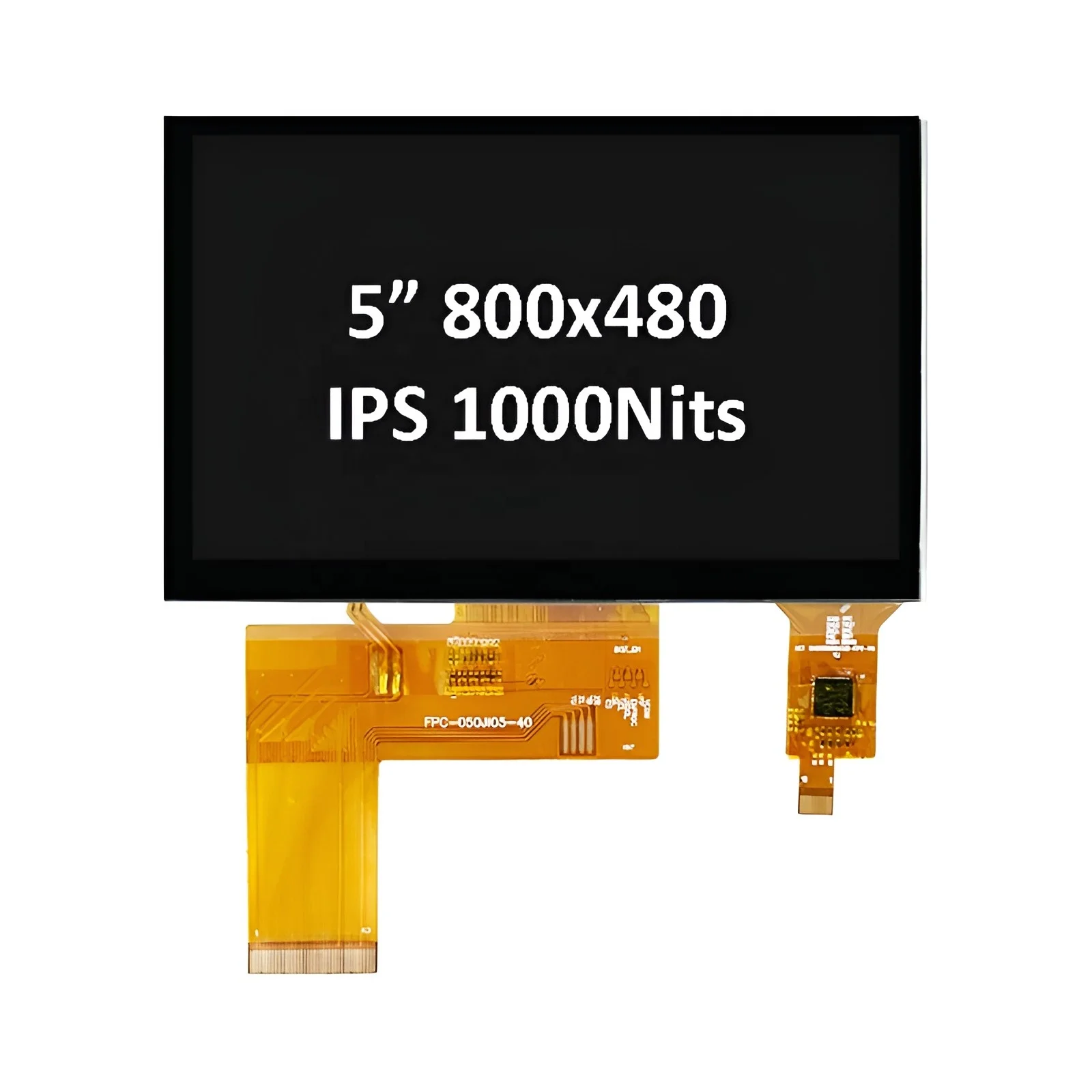

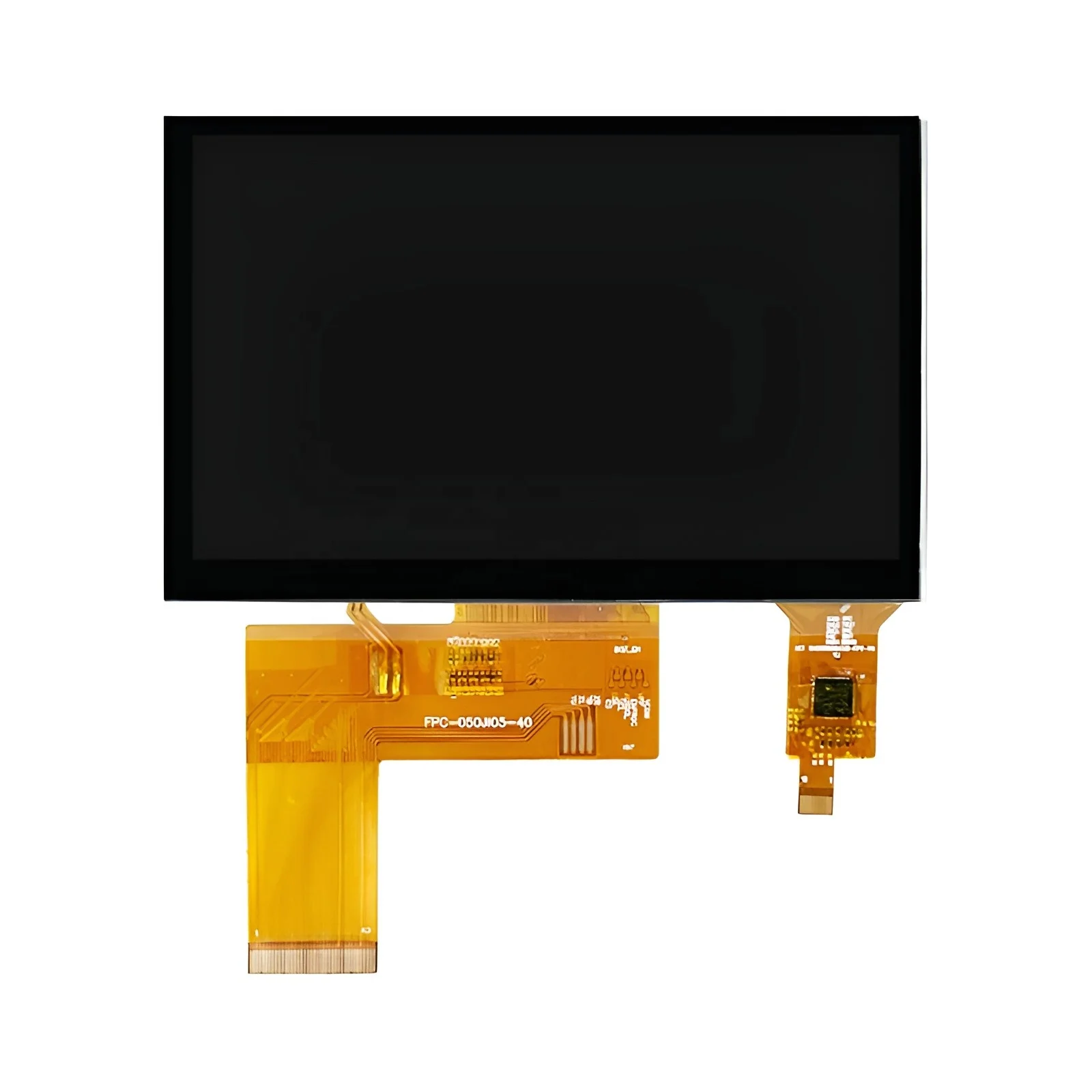

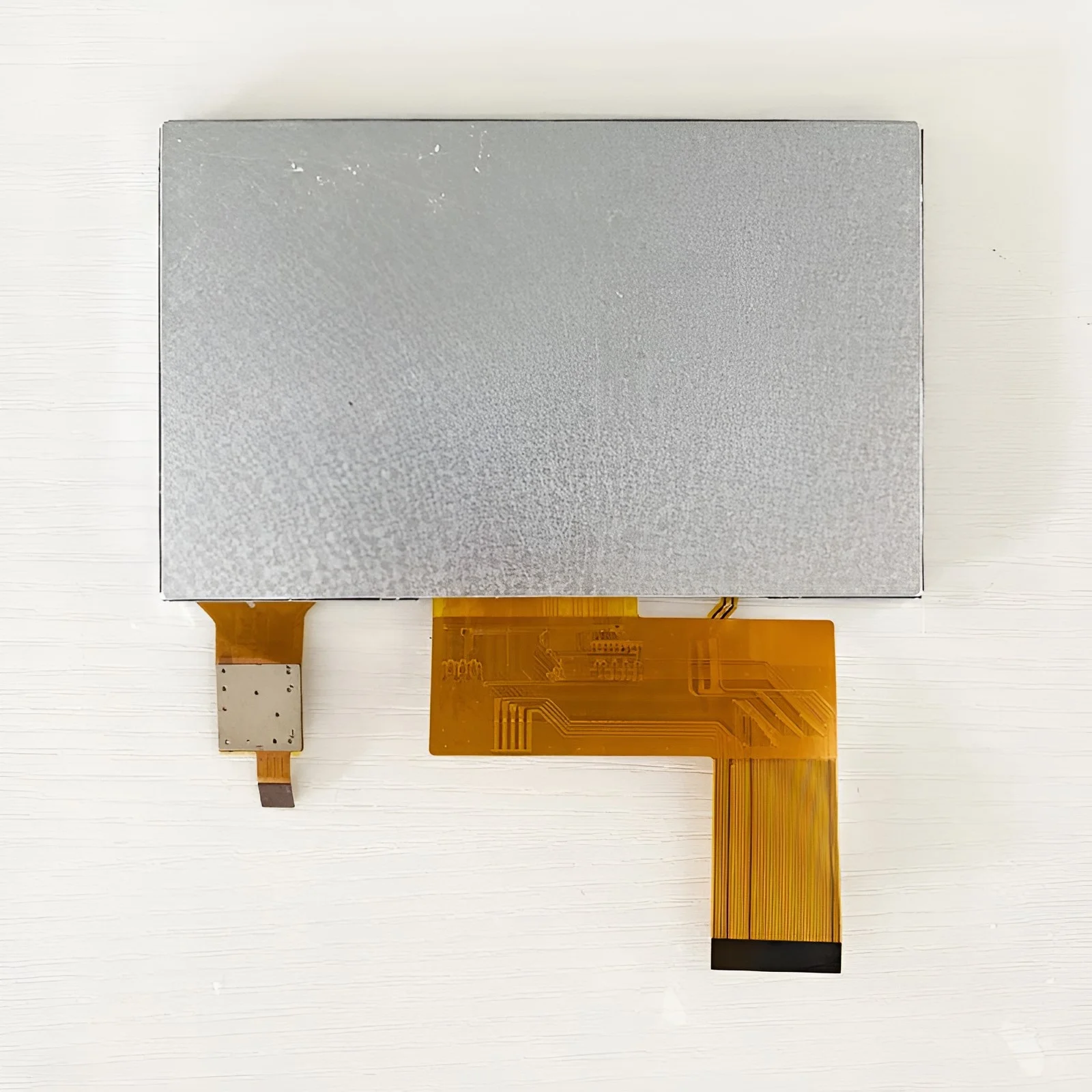

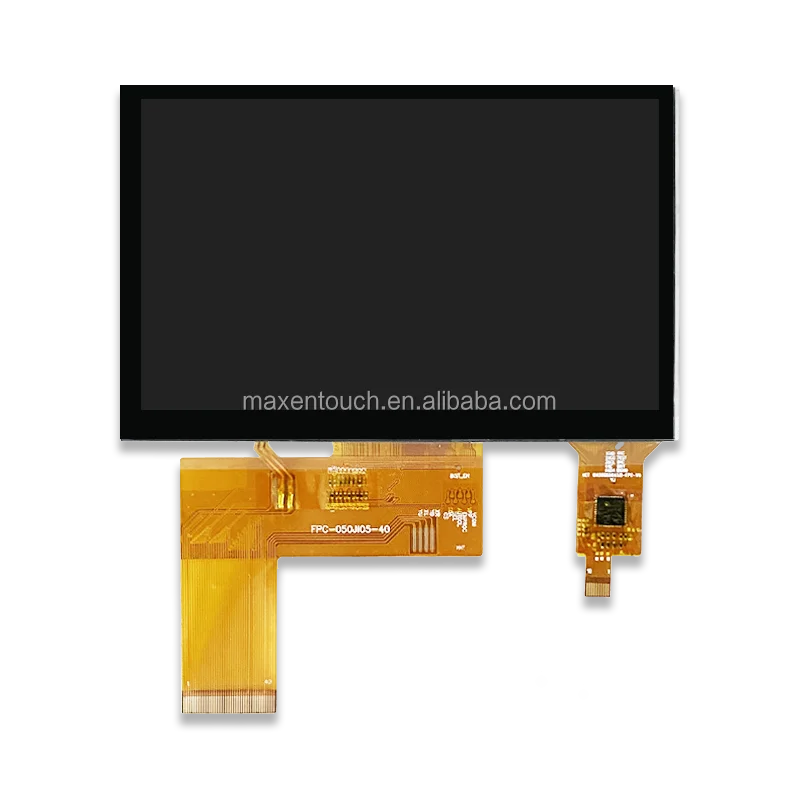

5 Inch 800x480 IPS TFT LCD Module Waterproof Touch Screen
MX-B50HR40-TIS09FL-1565

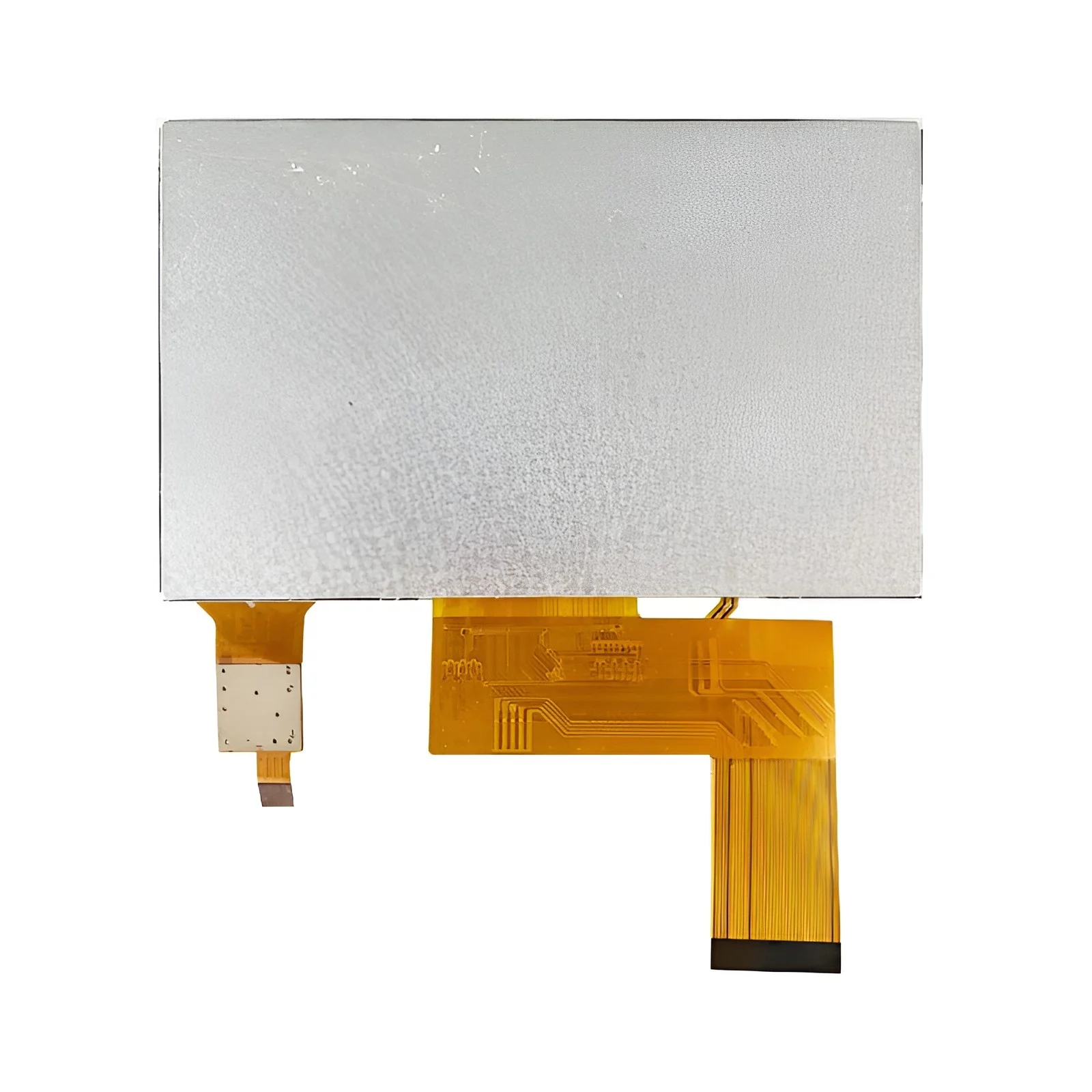

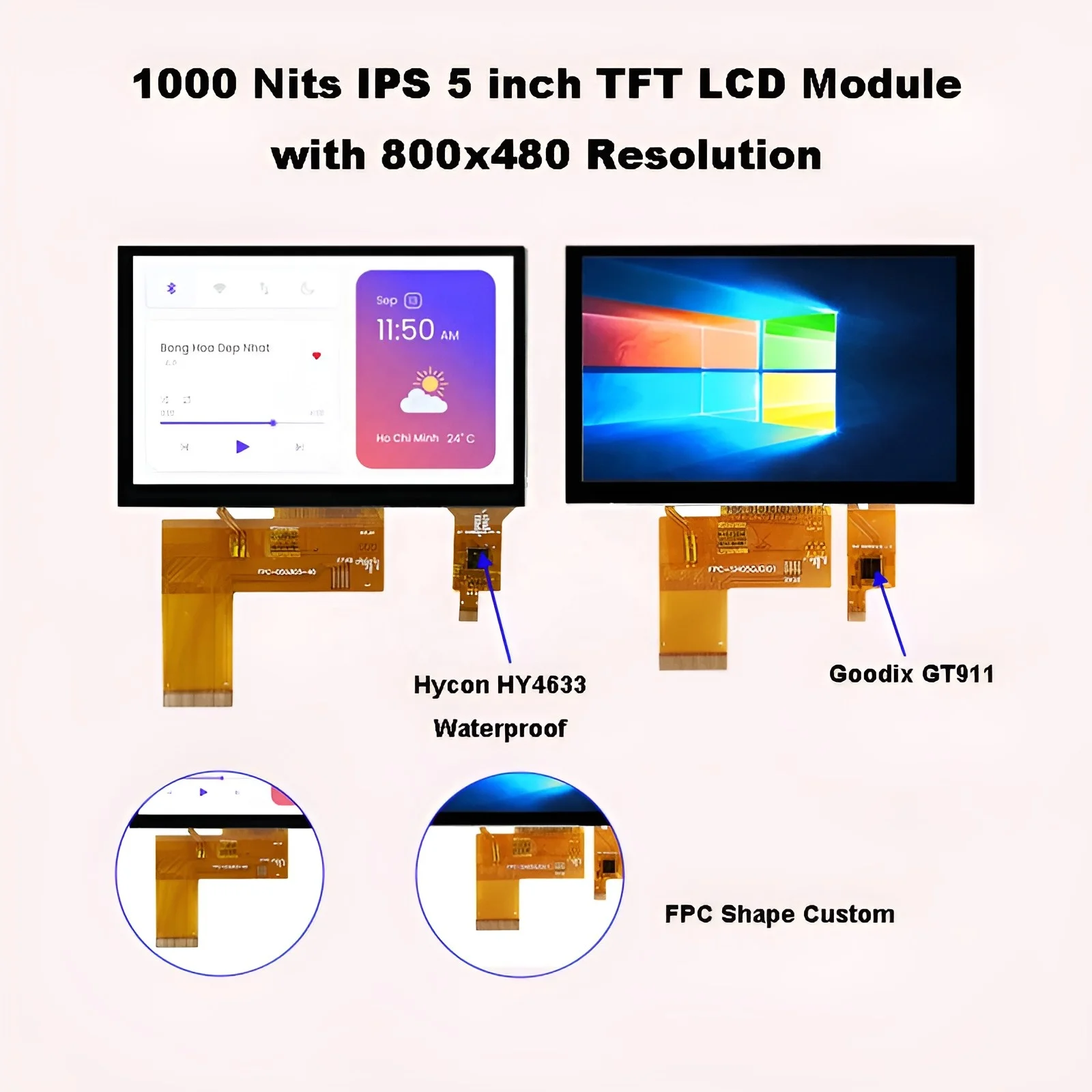

MX-B50HR40-TIS09FL-1565 is a 5 inch sunlight readable LCD touch screen module. It has full viewing angle using IPS technology, and the full viewing feature allows LCD display content to be seen from almost any Angle. What's more, The touch screen comes with HY4633 Hycon IC, which is waterproof compared to other touch IC. This TFT LCD Touch Screen is ideal for various digital devices including time attendance machine or POS systems and so on.
------------------------------------------------Product Parameters------------------------------------------------
ITEM | STANDARD VALUES |
LCD Size | 5 inch |
Resolution | 800x480 |
TFT Type | IPS |
Interface Type | 24 bit RGB |
Touch Controller | HY4633 |
Touch Interface | I2C |
LCD Pin Number | 40pin |

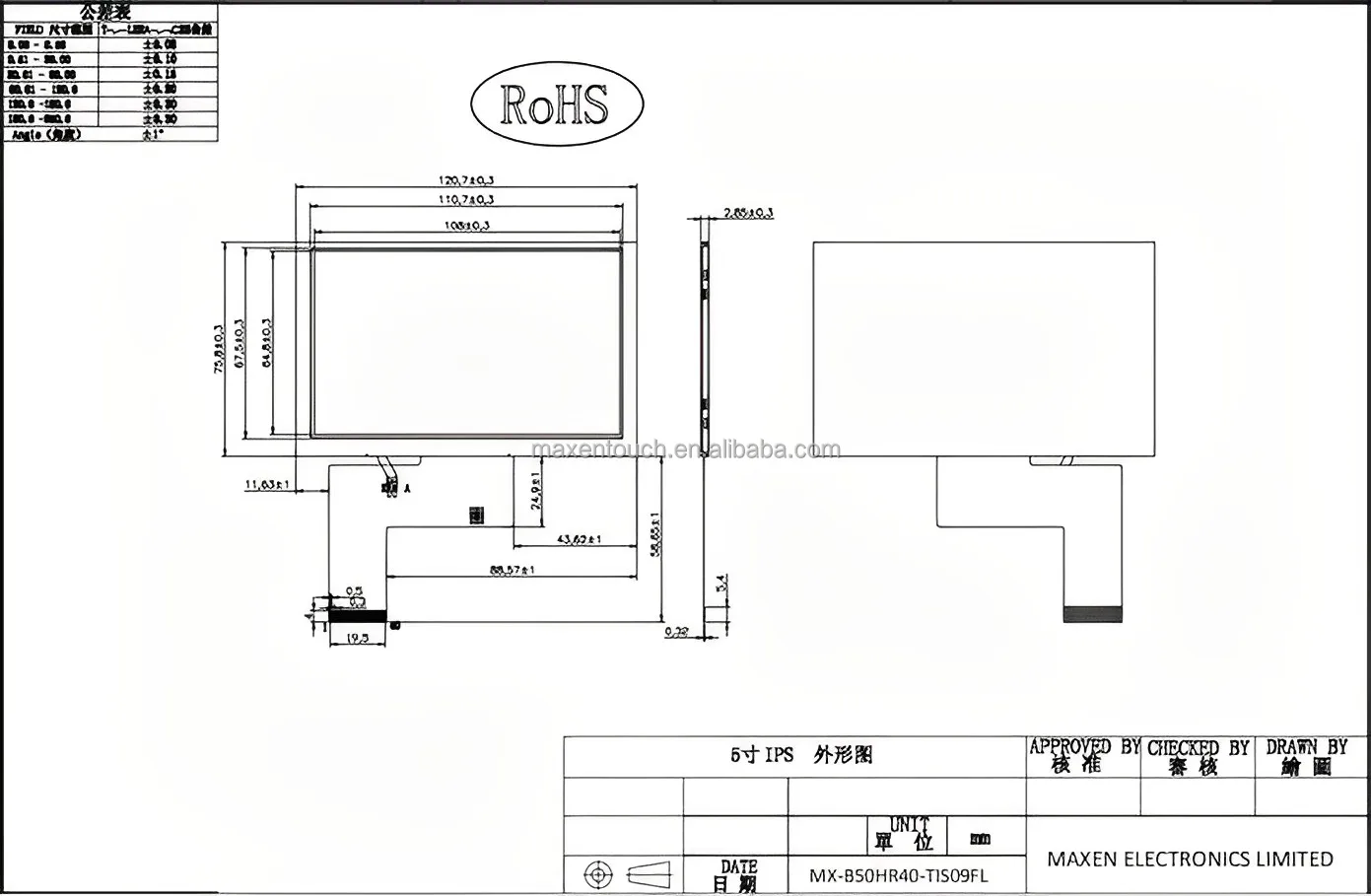

Outline Dimension | 120.70(W)x75.80(H)x4.30(T) mm |
Active Area | 108.00(W)x64.80(H) mm |
Current for LED Backlight | 60mA |
Voltage for LED Backlight | 18.6v |
Brightness | 1000 Nits |
Bonding Method | Adhesive Bonding |

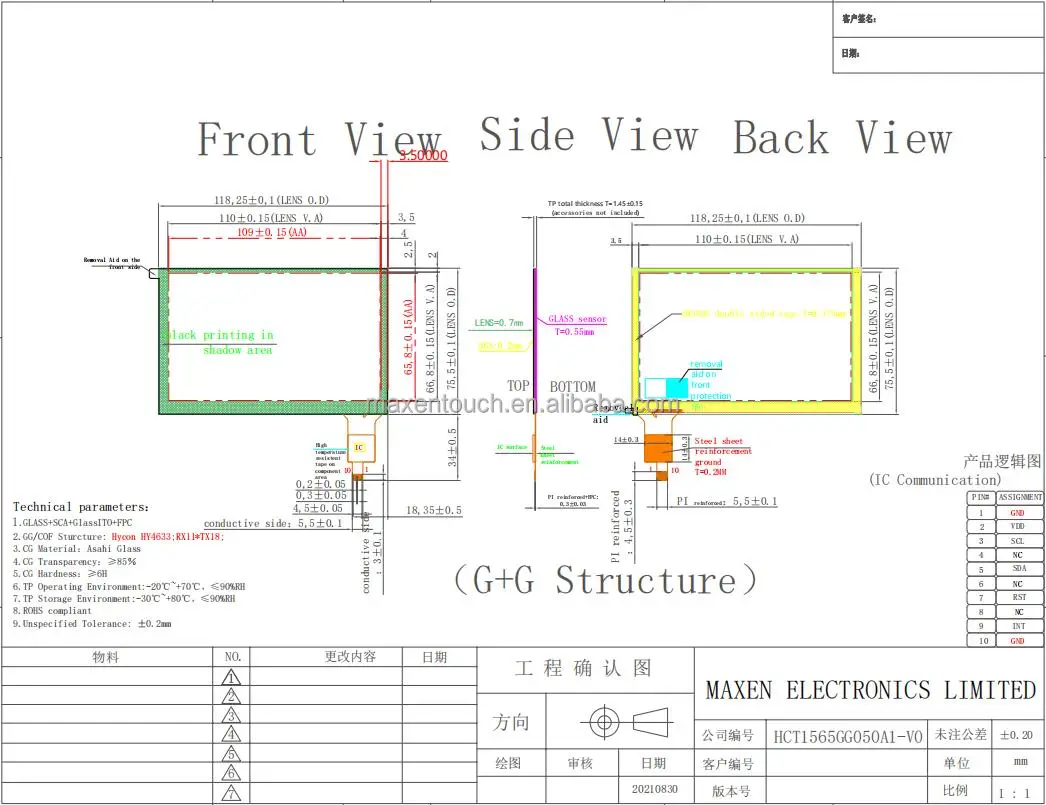

--------------------------------------------------Product Structure--------------------------------------------------
Touch panel- glass cutting
Touch panel- etching
Touch panel- printing circuit
Touch panel- printing circuit
Touch panel- Bubble removing & UV curing
Touch panel- quality control
LCM-backlight
LCM- backlight
LCM- Assembling
Q1. What is your product range?
A1: We are 10 years of experience manufacturing TFT LCD and touch screen.
> 2.4" to 32" TFT LCD Module;> Bar type LCD screen up to 48 inch;
> High brightness LCD panel custom;
> Capacitive touch screen up to 55";
> 4 wire 5 wire resistive touch screen;
> One-step solution TFT LCD assemble with touch screen.
> High brightness LCD panel custom;
> Capacitive touch screen up to 55";
> 4 wire 5 wire resistive touch screen;
> One-step solution TFT LCD assemble with touch screen.

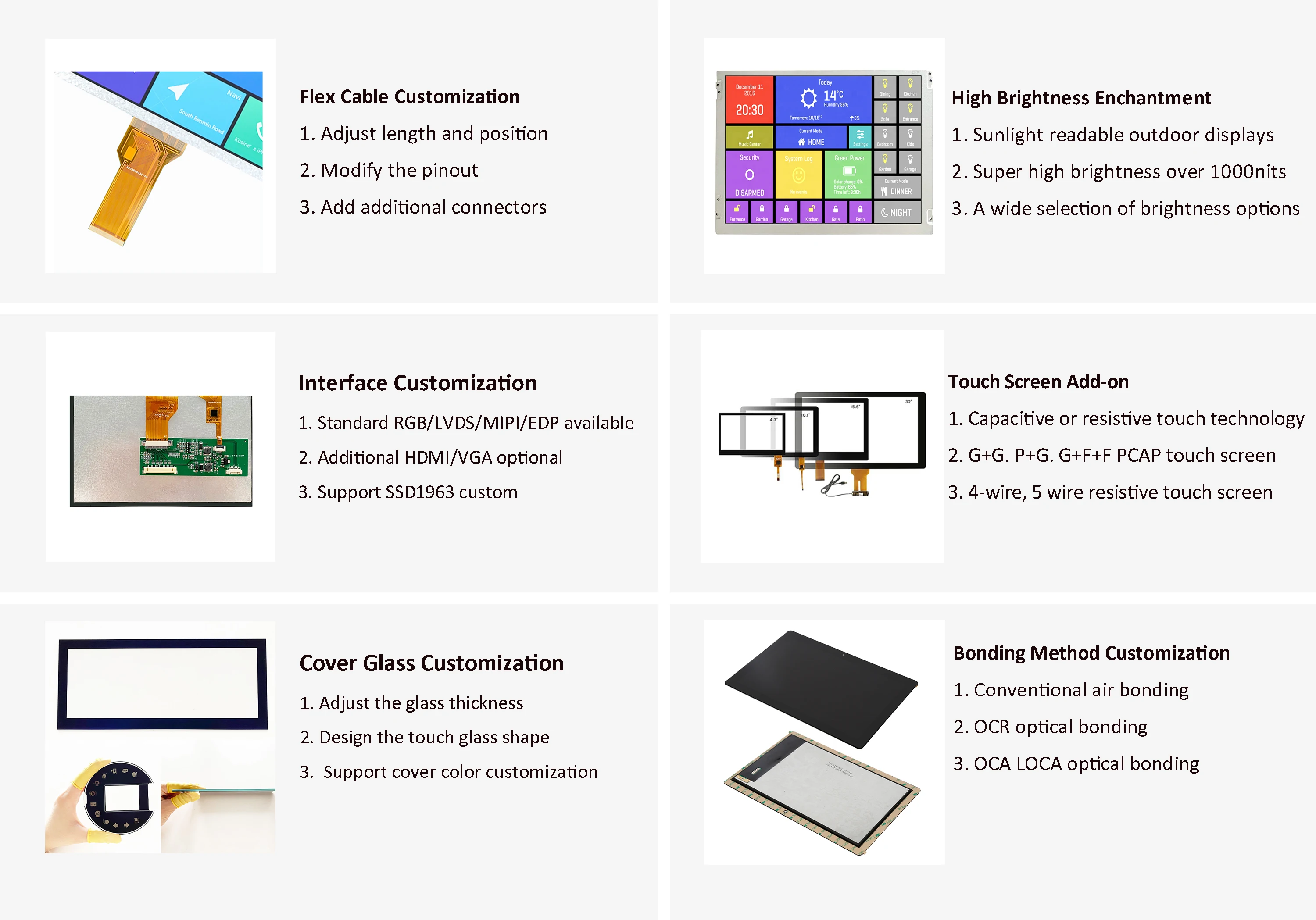

Q2: Can you custom the LCD or touch screen for me?
A2: Yes we can provide the custom services.
> For the LCD display, backlight brightness and FPC cable can be customized;
> For the touch screen, we can custom the whole touch panel like the color, shape, cover thickness and so on according to the customer's requirement.
> NRE cost will be refunded after the total quantity reaches 1K pcs.
Q3. Which applications your products are mainly used for?
A3: Embedded system, Intercom system, Biometric, HMI, Smart home, Robot, Hand-held PDA, after market automotive and etc.
Q4. What's the delivery time?
A4: > For samples order, 2-3weeks;> For mass orders, 4-6weeks.
Q5. Do you provide free samples?
A5: For first time cooperation, samples will be charged, the amount will be returned at the mass order stage.
In regular cooperation, samples are free. Sellers keep the right for any change.
