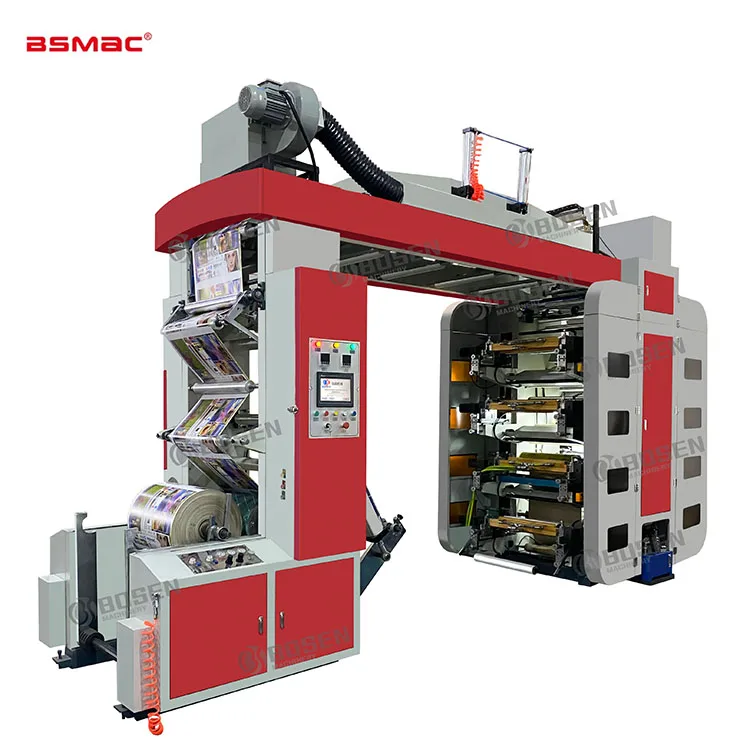

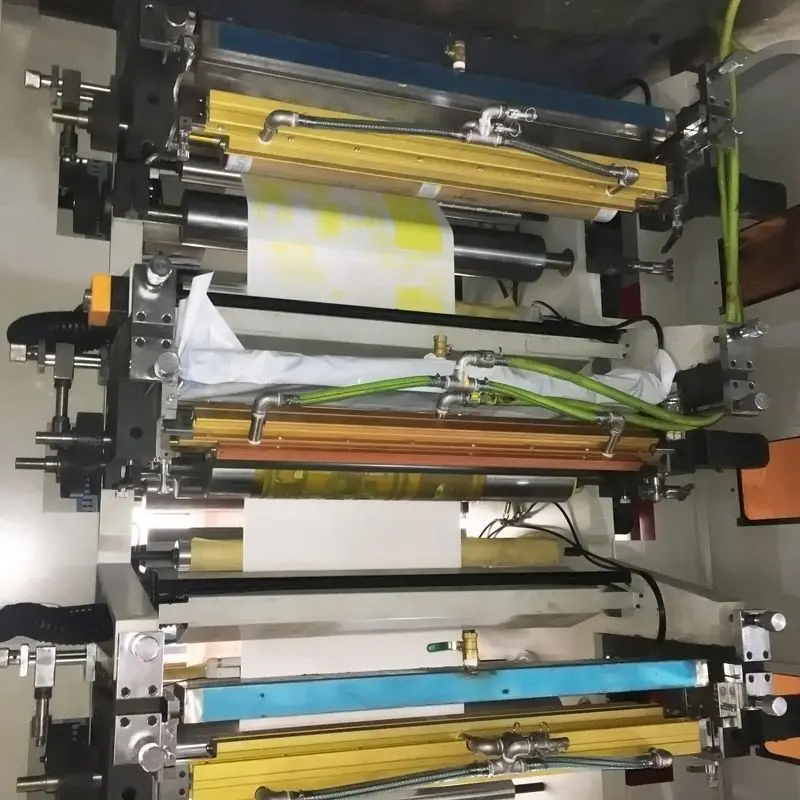

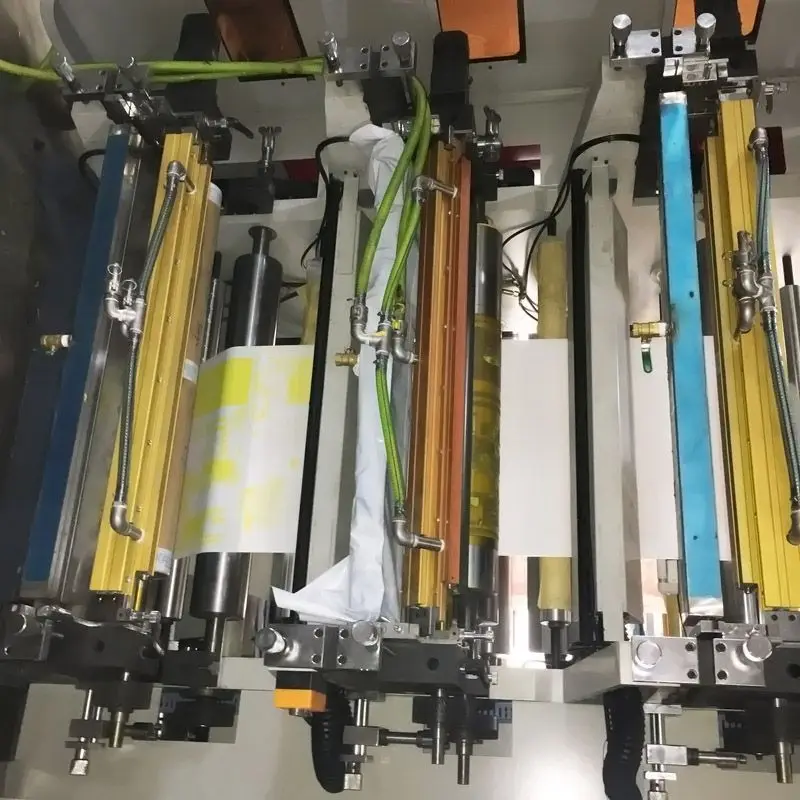

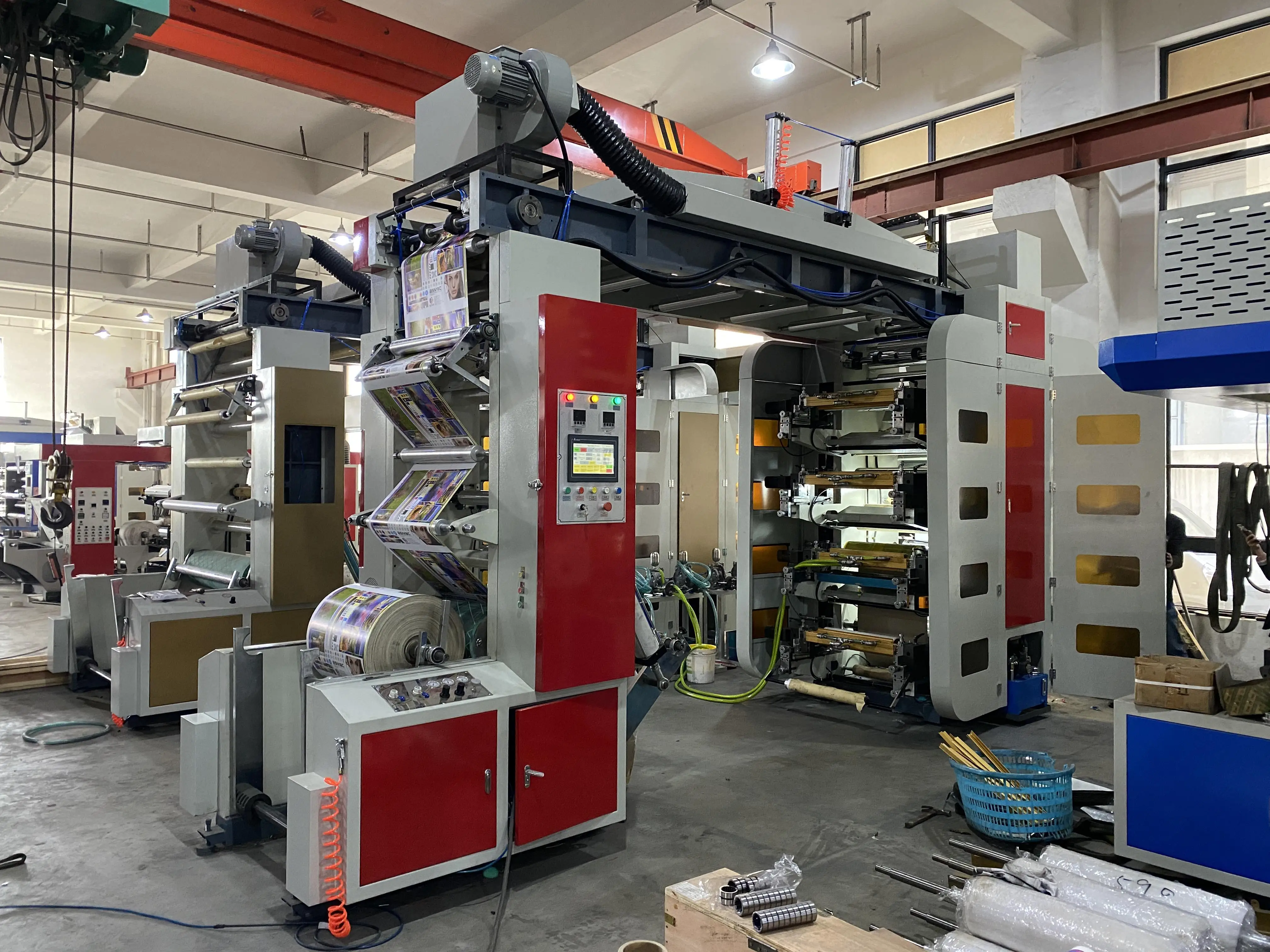

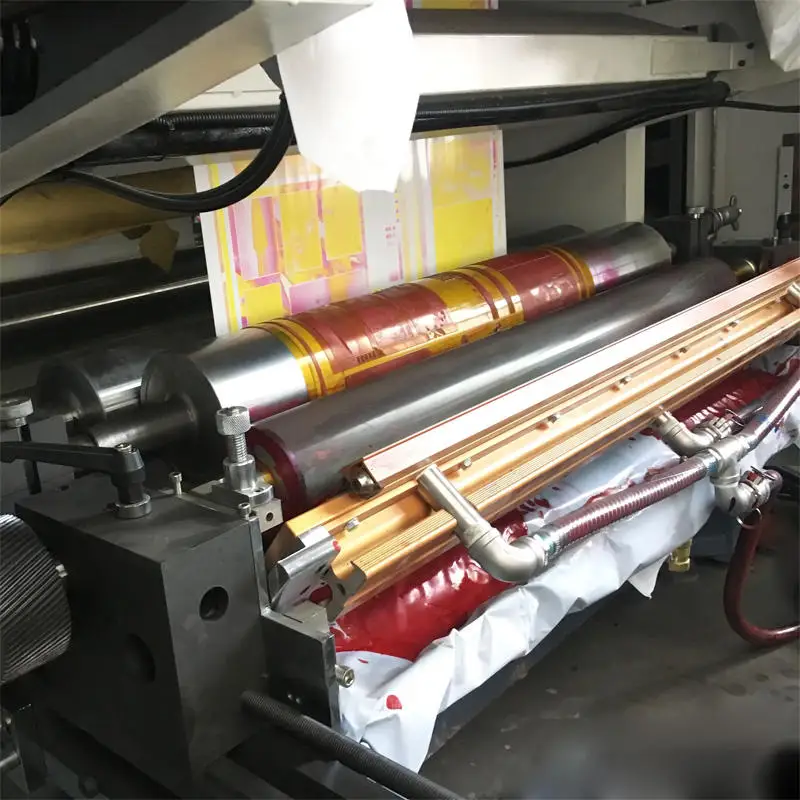

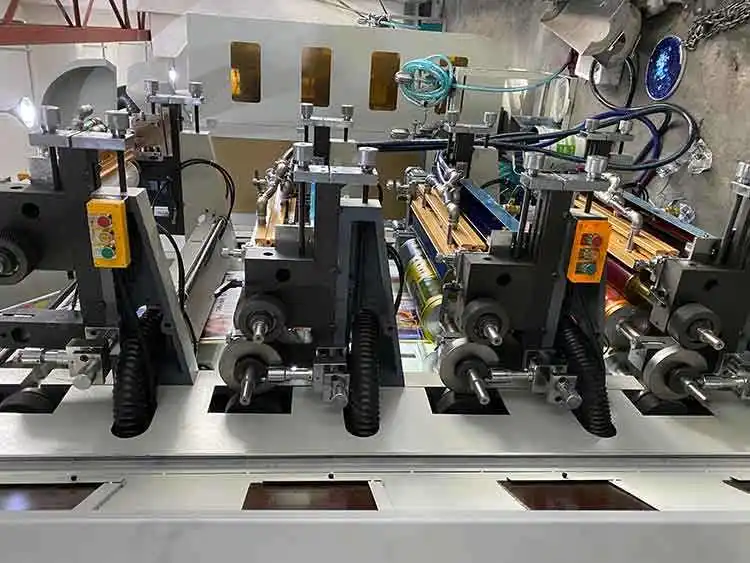

Manufacturer 8 Colour Roll to Roll Plastic Bags PE OPP Flexo Printing Machine in Line With CE
Manufacturer 8 Colour Roll to Roll Plastic Bags PE OPP Flexo Printing Machine in Line With CE
Manufacturer 8 Colour Roll to Roll Plastic Bags PE OPP Flexo Printing Machine in Line With CE
Manufacturer 8 Colour Roll to Roll Plastic Bags PE OPP Flexo Printing Machine in Line With CE
Manufacturer 8 Colour Roll to Roll Plastic Bags PE OPP Flexo Printing Machine in Line With CE
Manufacturer 8 Colour Roll to Roll Plastic Bags PE OPP Flexo Printing Machine in Line With CE
Manufacturer 8 Colour Roll to Roll Plastic Bags PE OPP Flexo Printing Machine in Line With CE

Manufacturer 8 Colour Roll to Roll Plastic Bags PE OPP Flexo Printing Machine in Line With CE

Share on (1601187429941):


Price:$19,000.00 - $20,000.00

Quantity:


Product Overview

Description

















1.After mounting the plate and registration,no longer need registration,improve yield;
2.Replacing 1 set of Plate Roller only 20 Minute registration can be done by printing;
3.Maximum production machine speed up 80-120m/min,Chromatography Precision+0.1mm.
4.The overlay accuracy does not change during lifting running speed up or down.
5.When machine stop,Tension can be maintained,the substrate is deviation shift;
6.With precision structural,easy operation,easy maintenance,only one person can operate.



Suitable Material
OPP.CPP.PE.PVC and Other Soft Film,or Roll Material Such as Paper,Aluminum Foil etc.
Printing Width
600mm
800mm
1000mm
1300mm
Total Power (as six-color)
48kw
70kw
90kw
120kw
Overall Dimension (L×W×H)m
14×1.8×2.4
14×2.1×2.4
14×2.4×2.4
14×2.7×2.8
Weight
≈15T
≈18T
≈20T
≈25T
Pringting Color Number
1-10 Colour
Machine Speed
90-180m/min
Max.Printing Speed
80-120m/min
Chromatography Precision
±0.1mm
Diameter of Plate
Φ100-Φ300mm
Installation of Plate
Shaftless
Marking Method
Single Pressure By Suing
Single Pressure By Slip
Dry Method
Heat-cold Dry/Electric Heat
Plate System
Computer Automatic Colored Plate System

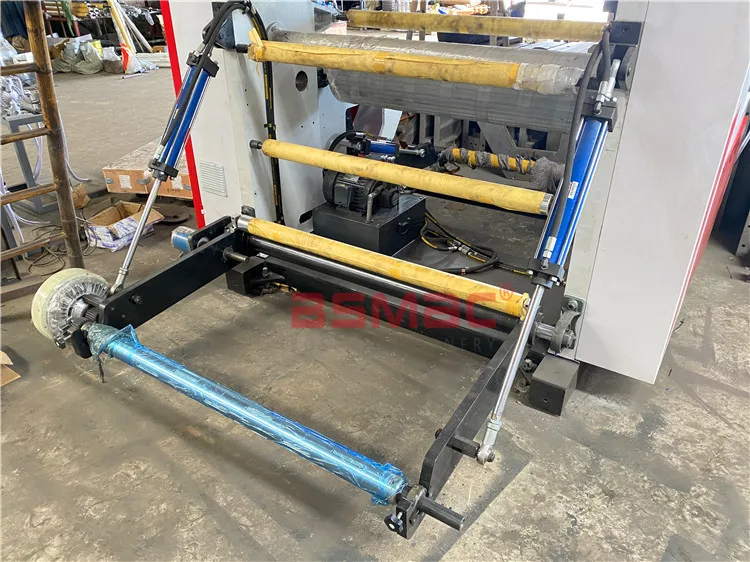

Winding and Unwinding Method
Double Shaft Rotate By Manual
Double Shaft Rotate By Electromtion
Diameter of rewinding or unwinding
Φ600mm, Φ800mm
Rewinder & Unwinder clump
Shaft By Manual
Air-blowing Clump
Deviation-correcting Unit
Hand-moving Deviation-correcting
Photocell Automatic Deviation-correcting Contol System
Tension Control
Output By Electromagnetism Rdgulating Motor and Reducer Output By Transducer motor and Reducer
Feeding Format
Manual Feeding/Auto Loading Feeding Unit
Main Transmission
Transmission Output By Electromagnetism Rdgulating Motor and Reducer Output By Transducer Motor and Reducer

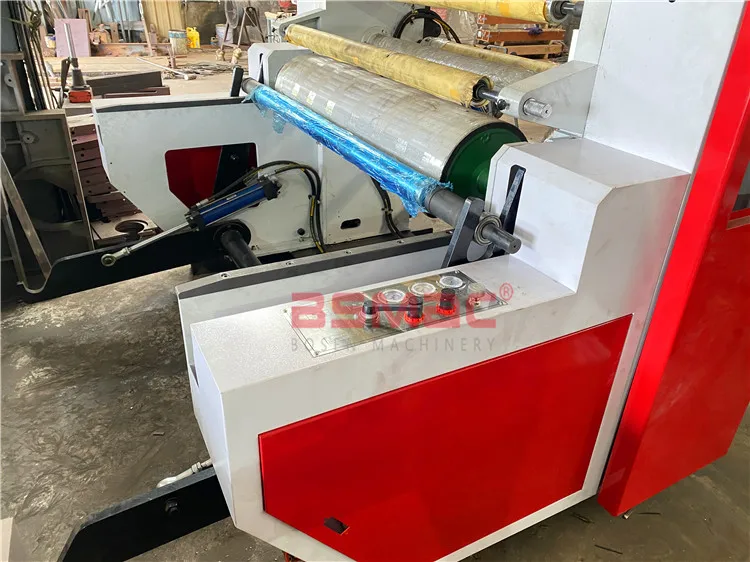

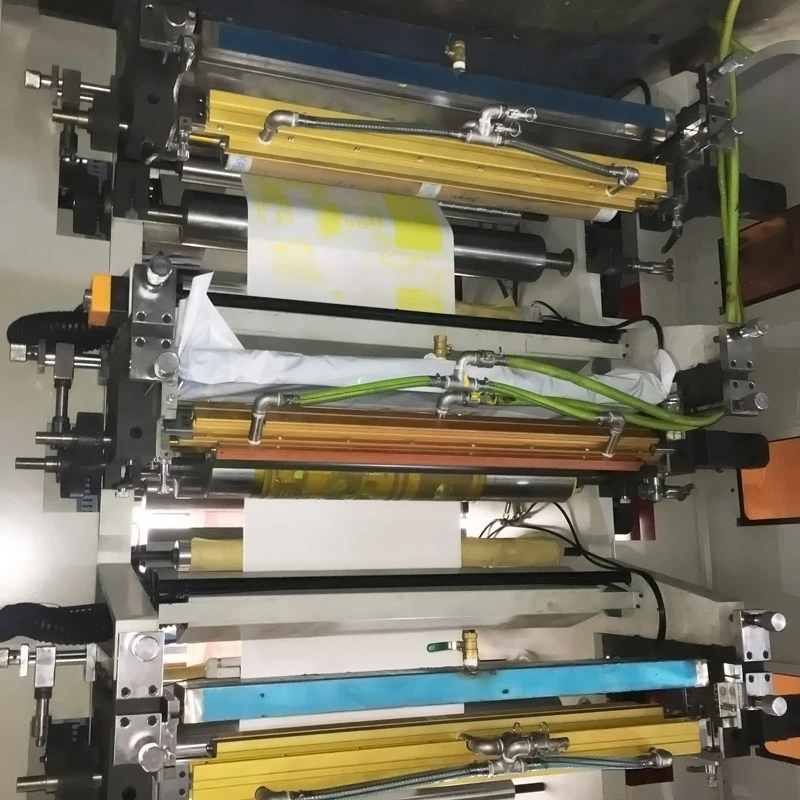

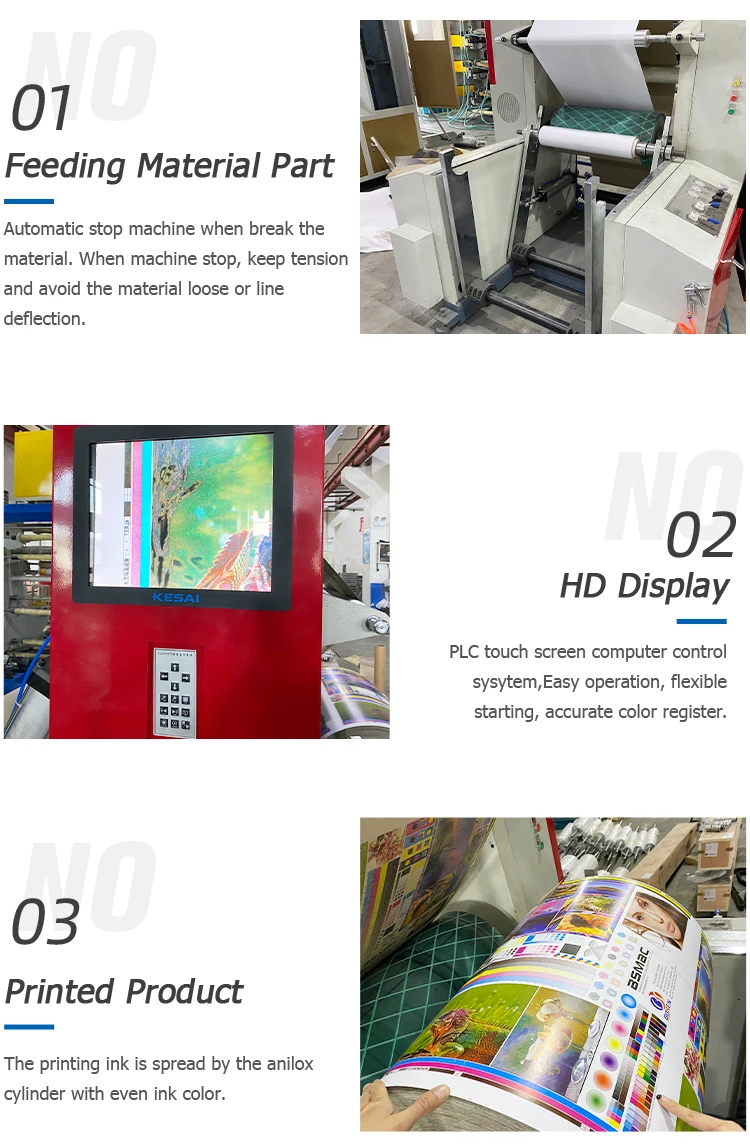

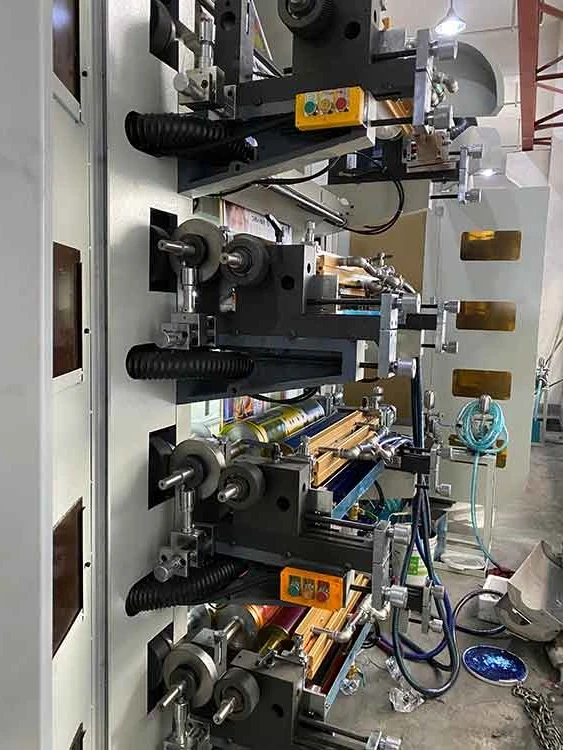

Machine Description
























FAQ


Guest: Are you a manufacturer or a trade company?
BOSEN: We have our factory for manufacturer and we also trade associated products. We are Wenzhou bosen machinery co.,ltd. And Wenzhou bosen trade co., ltd. Our factory has over 20 years experience.
Guest: Do you accept special design?
BOSEN: Yes, we accept design and manufacture products according to client's special requirements.
Guest: Can you arrange engineer to come to us?
Customer: Usually we will arrange video online teaching, also we can send engineer to come.
Guest: How long will you take before shipping?
BOSEN: Normally it will take 25 days after we receive the payment. It is depends on the products that you need, but we guarantee for shipping as fast as we could.
Guest: How can I go to your factory ？
BOSEN: We are in ruian city Zhejiang China. If you want to come, you can take air to Wenzhou air port, Or take train to RuiAn station.
