BESS 1mwh 2mwh 500kwh 400kwh 300kwh 400kwh Battery Solar Energy Storage Cabinet for 100kwh and 200kwh Batteries
- Category: >>>
- Supplier: Shenzhen Sms Energy Storage Technology Co. Ltd.Shenzhen Ltd.
Share on (1601187476729):
Product Overview
Description
Product Description

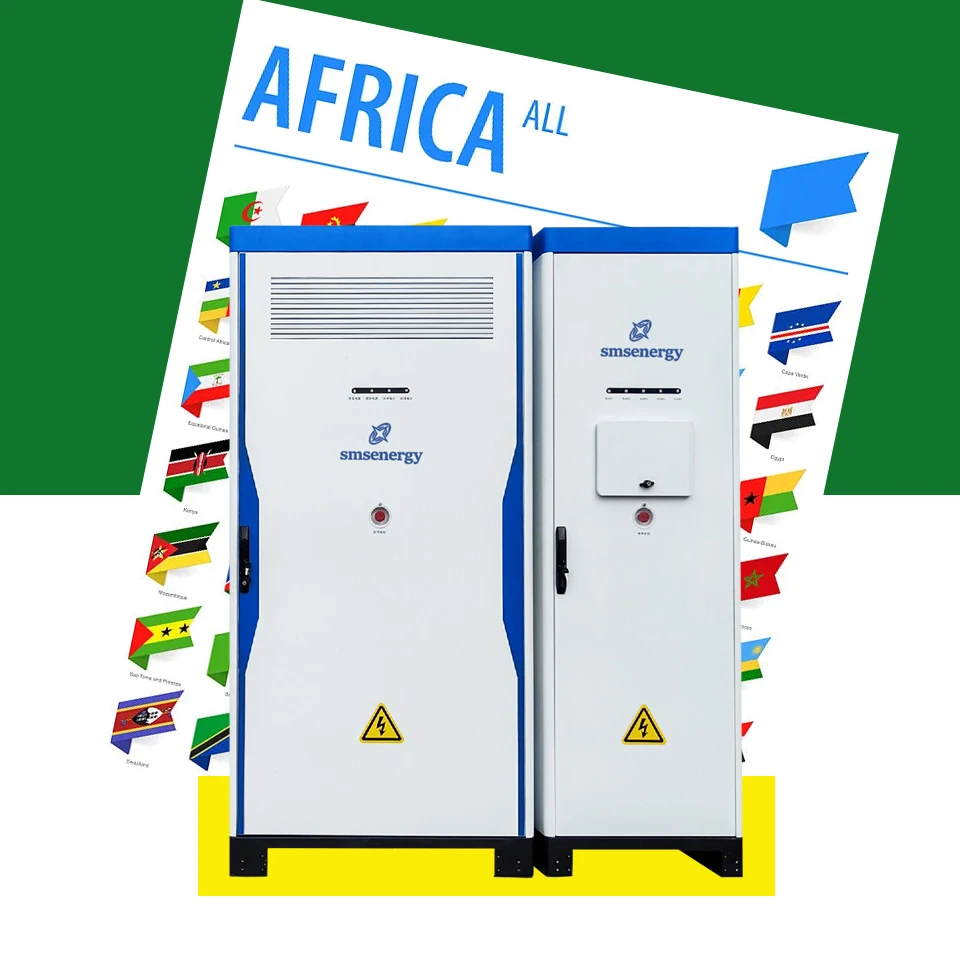

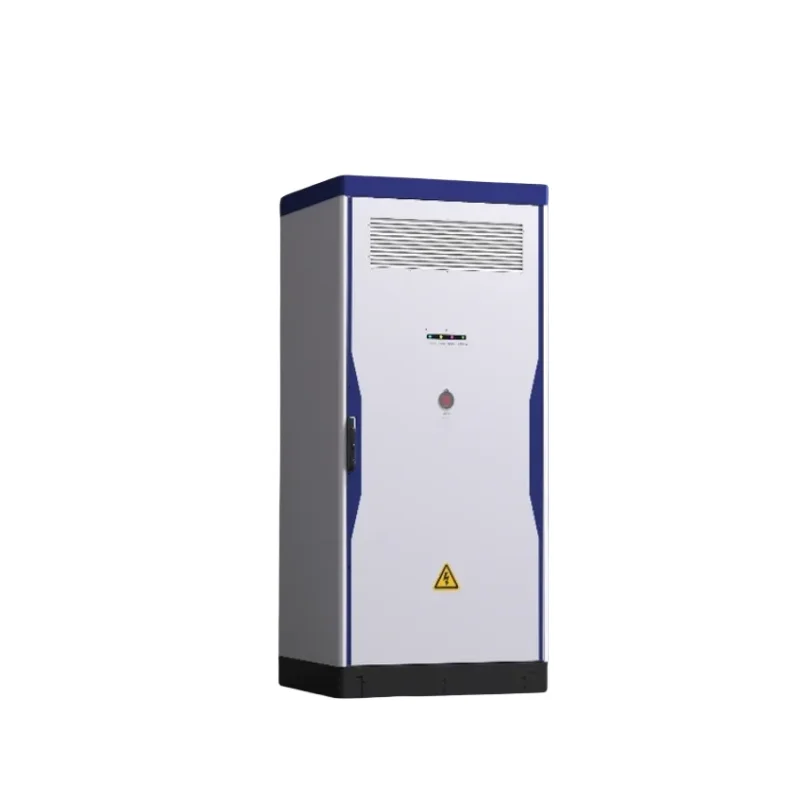

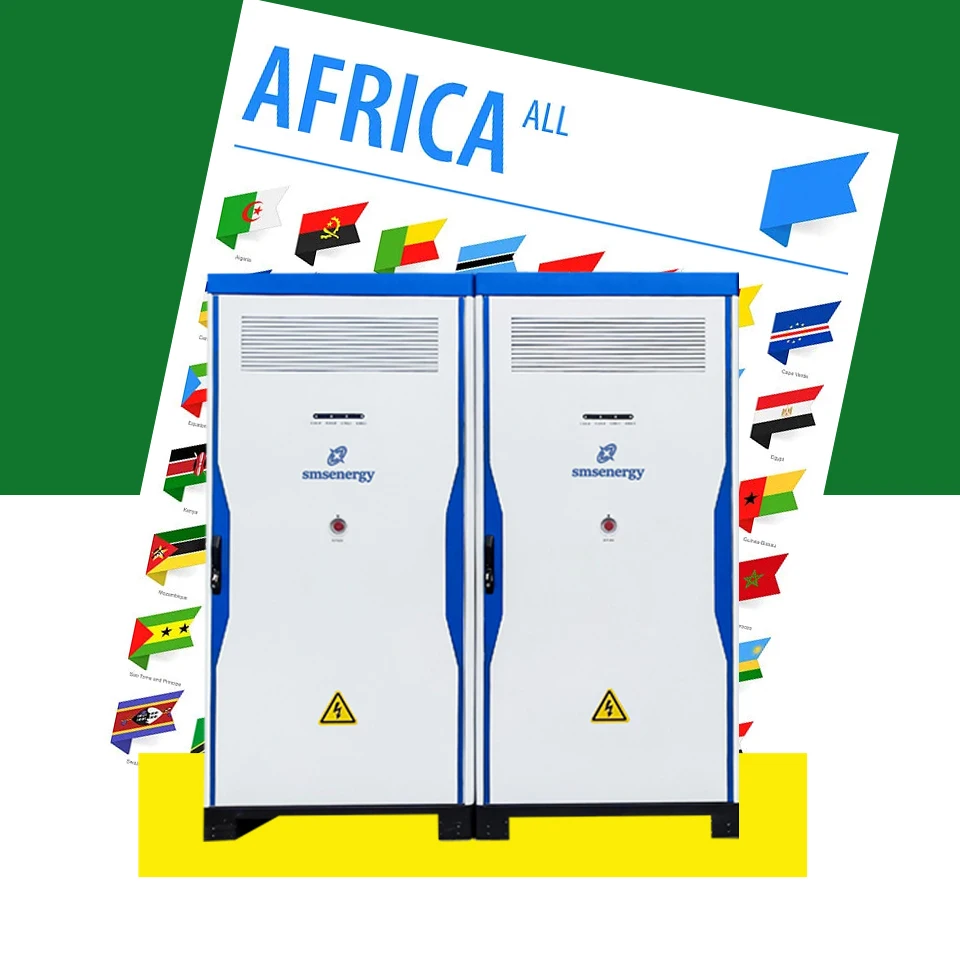

Battery Cabinet Parameters
Serial No. | Name | Parameters | ||
AC parameter | ||||
1 | Grid power voltage | 400V, 3W+PE | ||
2 | Rated AC power | 100kW | ||
3 | Rated AC current | 152A | ||
4 | Rated grid frequency | 50/60Hz | ||
5 | Power factor adjustable range | -1~+1 | ||
6 | THDi (rated power) | ＜3% | ||
DC parameter | ||||

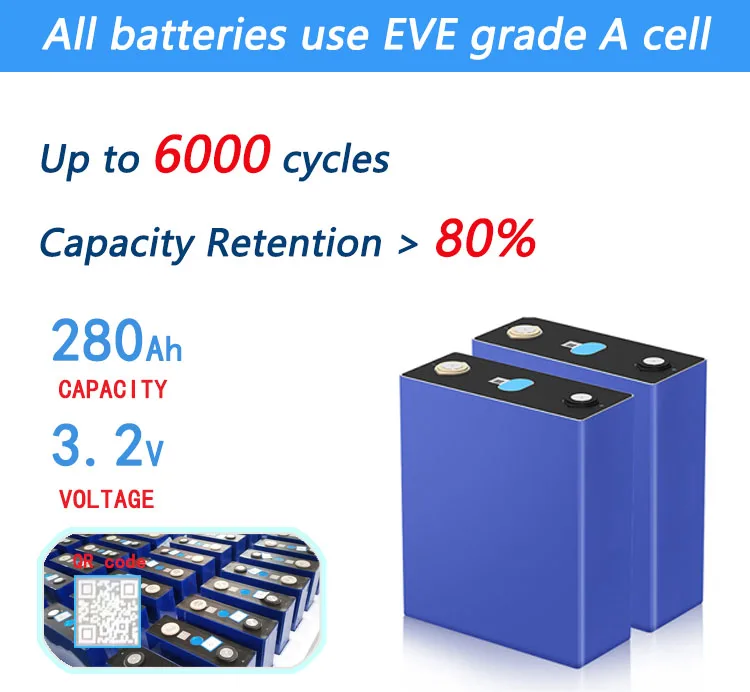

7 | Battery Type | LFP | ||
8 | Battery power | 200.7kWh | ||
9 | DC rated voltage | 716V | ||
10 | DC voltage range | 604~818V | ||
11 | Rated charge and discharge rate | 0.5CP | ||
12 | DC maximum current | 166A | ||
System parameter | ||||
13 | Isolation method | non-isolated | ||
14 | Dimensions (W*H*D) | 1150*2450*1275mm | ||
15 | Weight | 2100kg | ||
16 | System life span | 6000 cycles @25℃, 0.5CP | ||
17 | Communication Interface | RS485, CAN, LAN | ||
18 | Operating temperature | -40℃ ~ 50℃ | ||
19 | Permissible Humidity Range | 0~95% (no condensation) | ||
20 | Altitude | 5000m(>2000m needs de-rating) | ||
21 | Battery temperature control method | Industrial Air Conditioning | ||
22 | Fire Fighting System | Gas fire extinguishing system | ||
23 | IP protection level | IP55 | ||
24 | Anti-corrosion grade | C4 (up to C5 optional) | ||

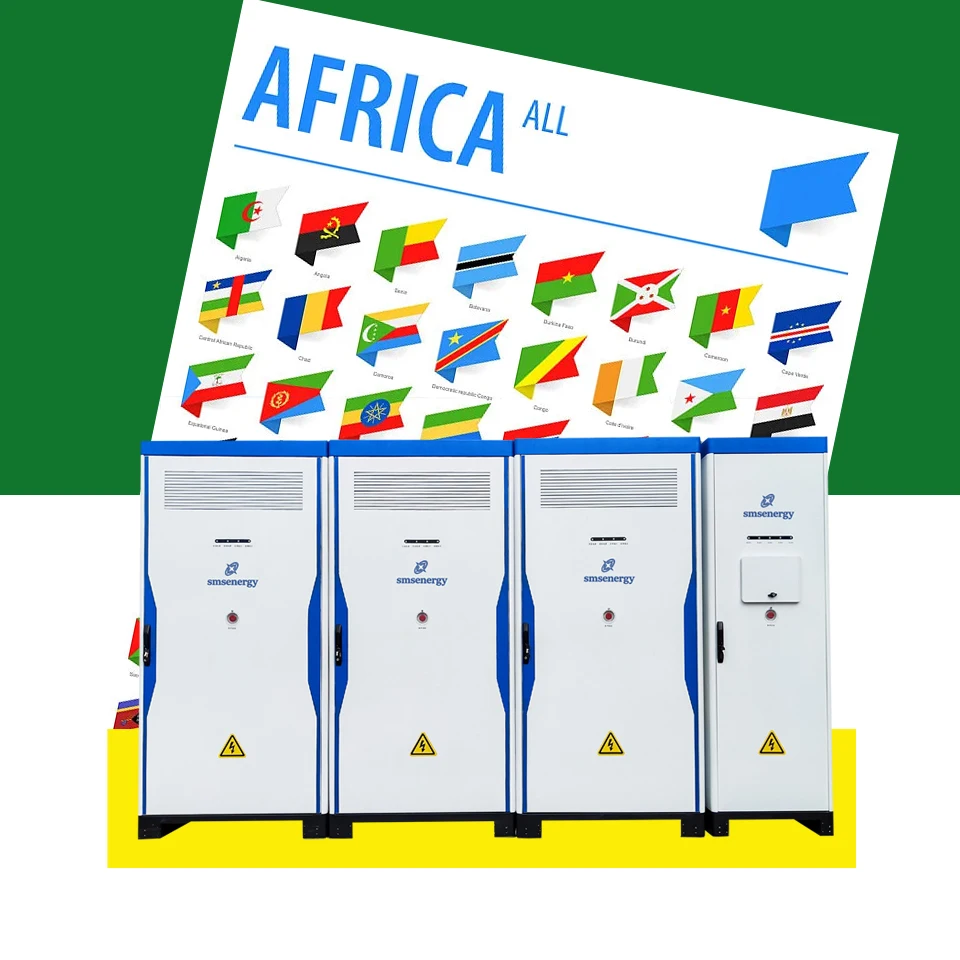

Combiner Cabinet Parameters
Serial No. | Name | Parameters |
1 | Rated AC voltage | 400V，3W+PE |
2 | Rated AC power | 500kW |
3 | Rated AC current | 5*152A |
4 | Number of input channels of the battery cabinet | 5 Channel |
5 | Auxiliary electric power | ≤500W |
6 | Short circuit protection | yes |
7 | Surge protection | yes |
8 | Communication method | RS485, CAN, LAN |
9 | Operating temperature | -40℃ ~ 50℃ |
10 | Permissible Humidity Range | 0~95% (no condensation) |
11 | Operating altitude | 5000m (>2000m needs de-rating) |
12 | Dimensions (W*H*D) | 750*2450*1050mm |
13 | Weight | 500kg |
14 | Protection degree | IP55 |
Product Details
PV Panel
● Peak Power Watts: 450W
● Maximum Power Voltage: 42V
● Maximum Power Current:13.12A
● Dimensions:2094*1038*35mm
● 25 years power output guarantee
● High actual yield during lifetime
● 21.3% Efficency
● Waterproof Label on the Panel
● Dimensions:2094*1038*35mm
● 25 years power output guarantee
● High actual yield during lifetime
● 21.3% Efficency
● Waterproof Label on the Panel

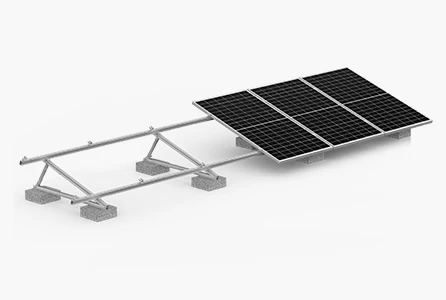

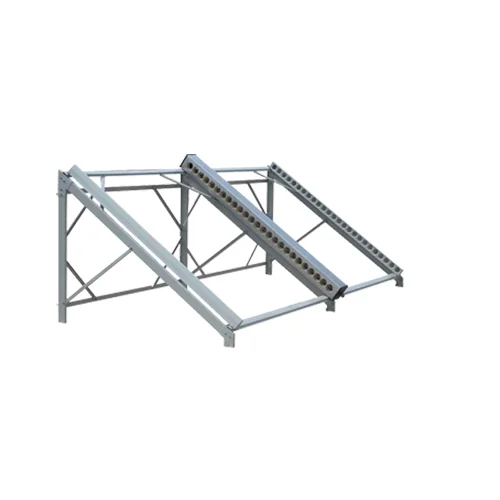

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

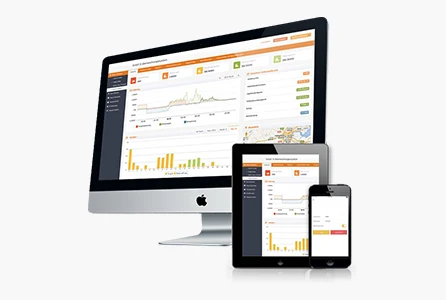

Monitoring System
Open station supports one-click installation and registration Problem support one-click dispatch and navigation Safe operation,
traceable logs, etc
Support full lifecycle data storage to ensure data security and reliability
traceable logs, etc
Support full lifecycle data storage to ensure data security and reliability
All in one hybrid inverter. Seamless on/off grid transfer.Programmable working mode.
Supports remote control of DG.
Touchscreen LCD.
CE , MEA , PEA , EN 61000-6-4:2007+A1:2011 , EN61000-6-2:2005 , EN62109-1:2010 , EN62109-2:2011.
Supports remote control of DG.
Touchscreen LCD.
CE , MEA , PEA , EN 61000-6-4:2007+A1:2011 , EN61000-6-2:2005 , EN62109-1:2010 , EN62109-2:2011.

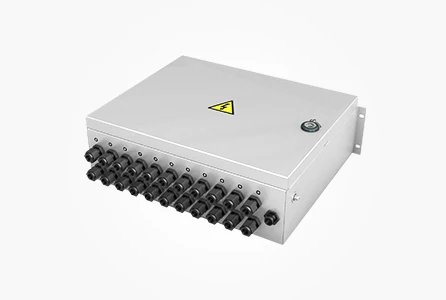

IP Rating: IP65
Rated Voltage: 1000VDC
Input cable terminal: 4-6mm2
Rated Voltage: 1000VDC
Input cable terminal: 4-6mm2

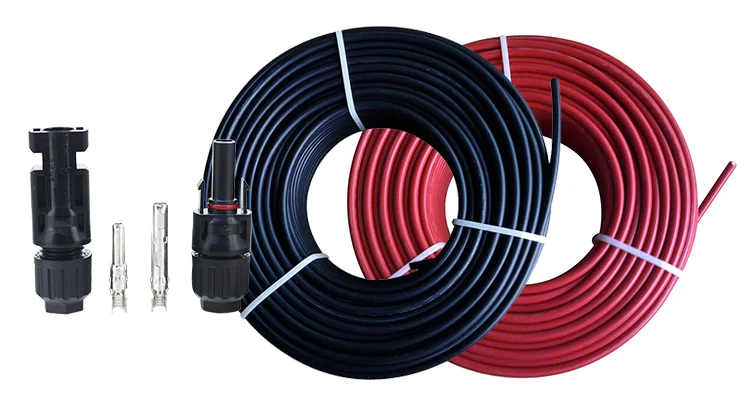

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years

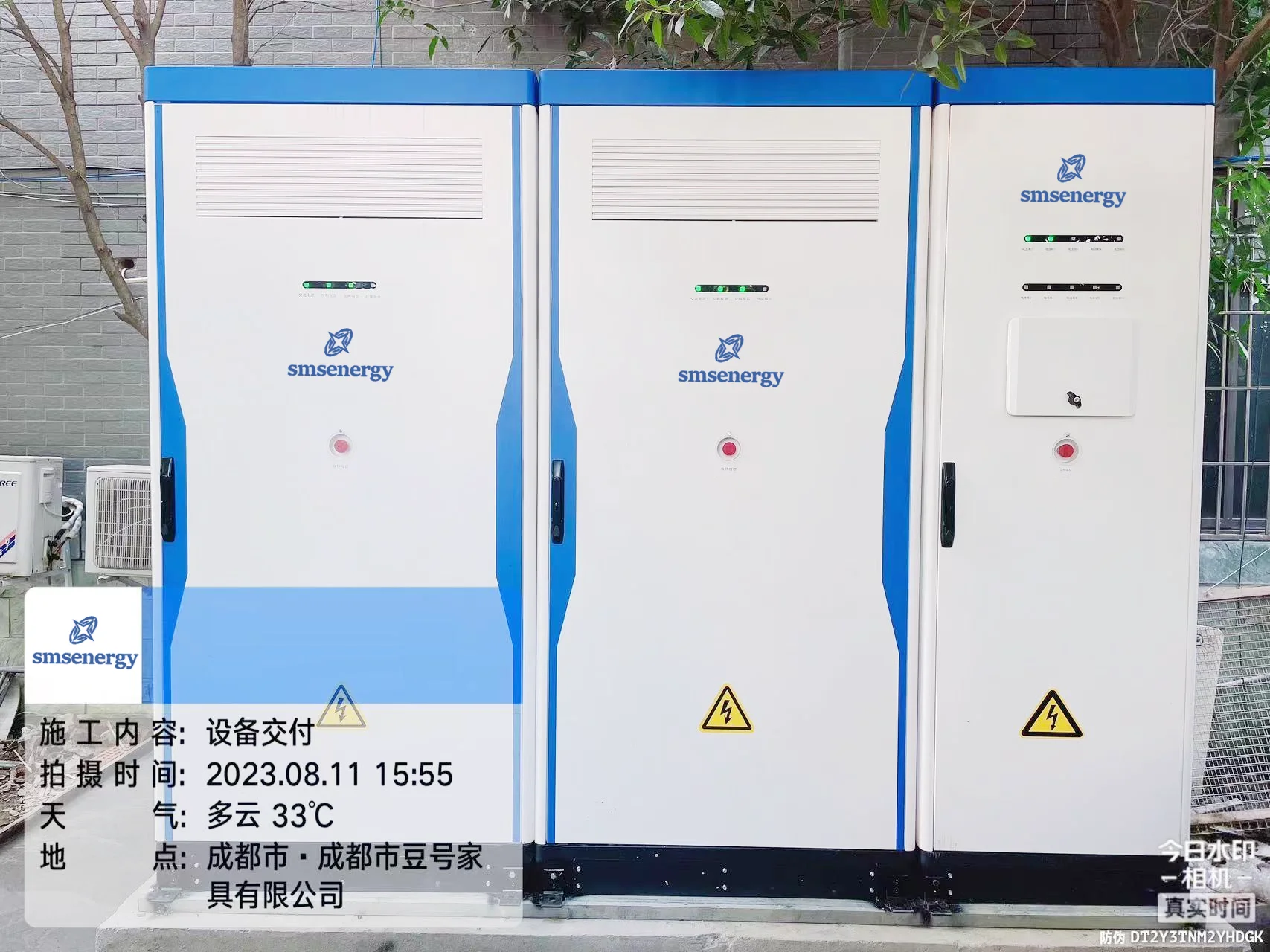

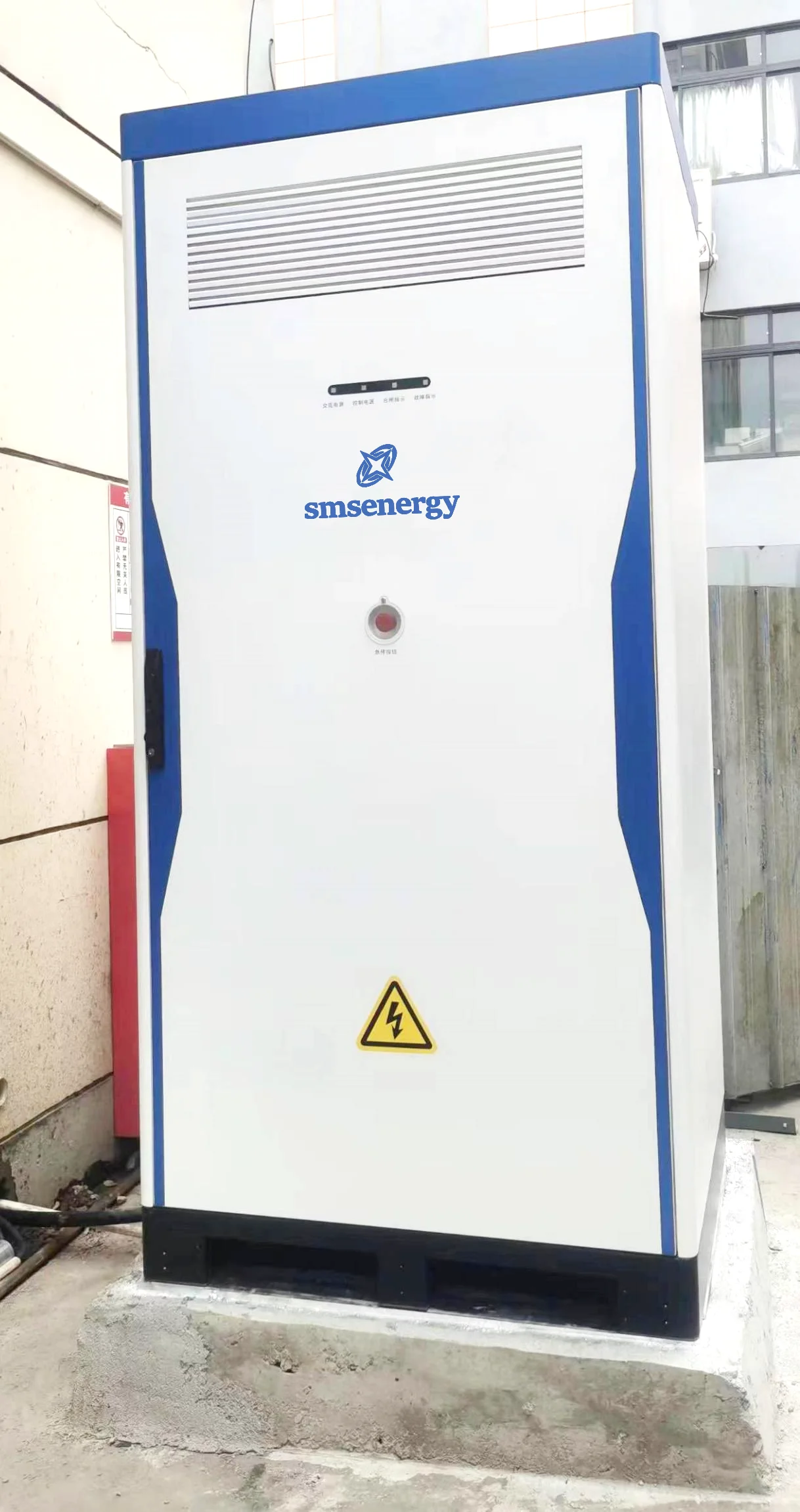

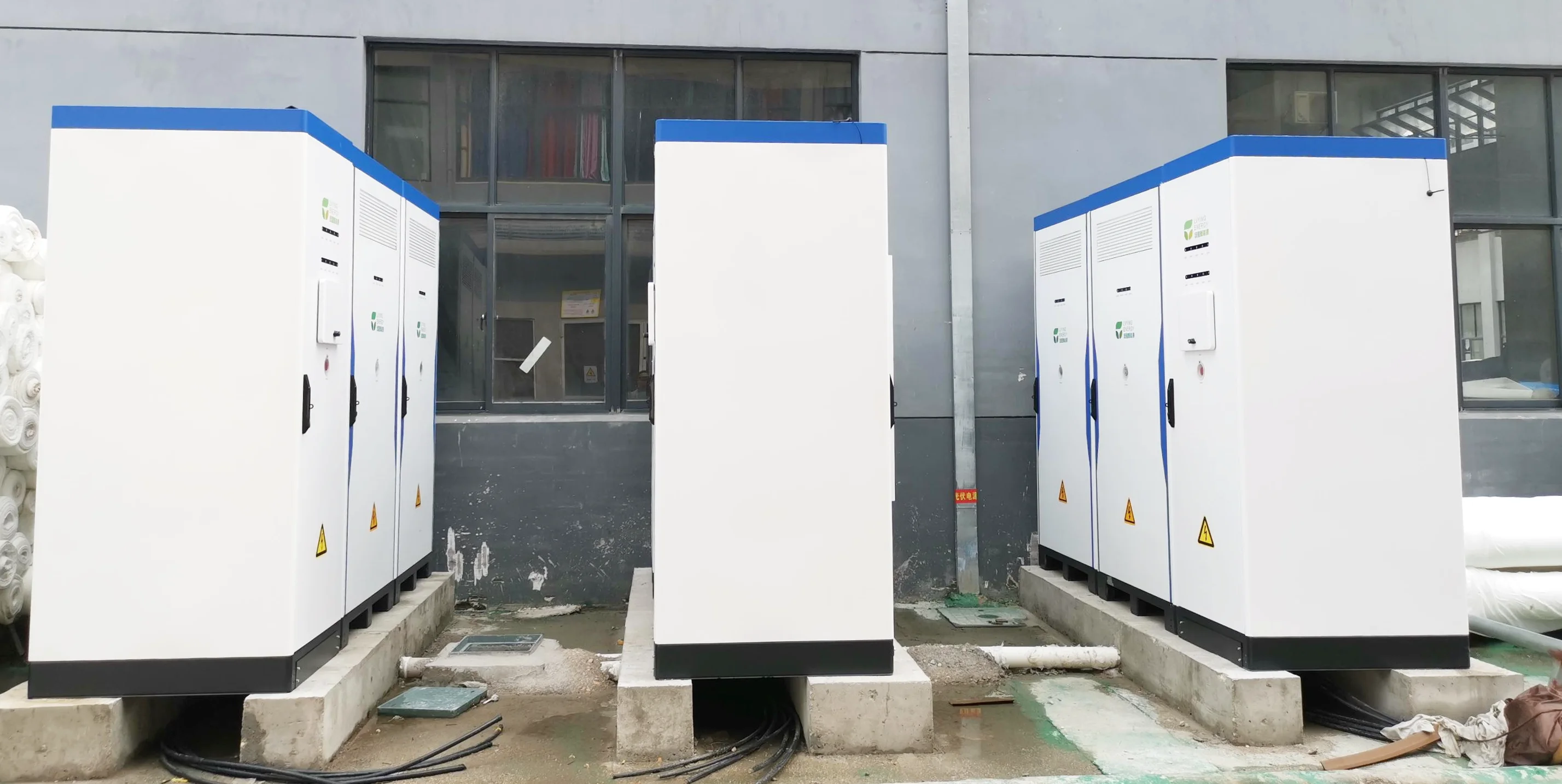

Product Case

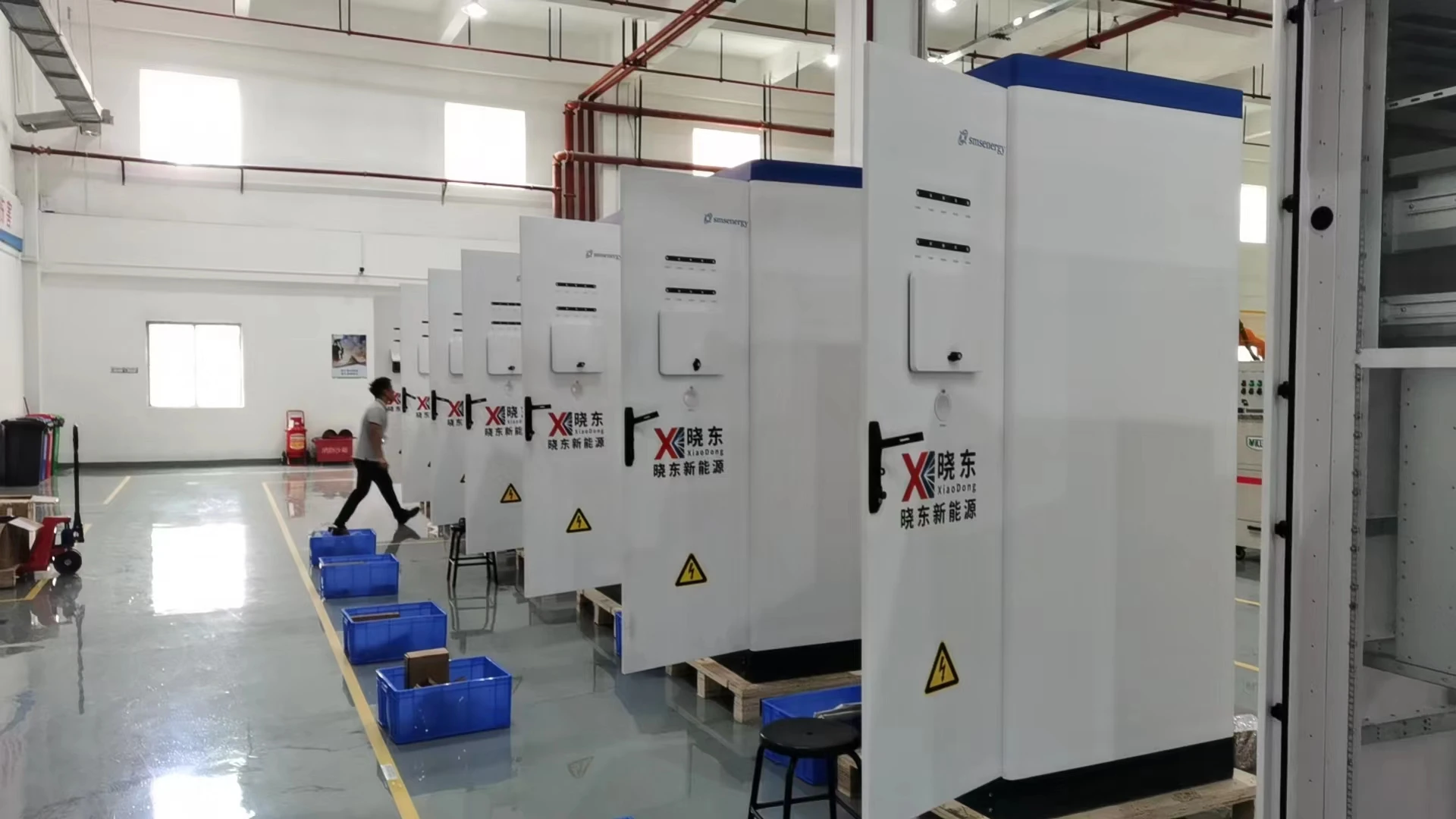

Case 1——400 million
SMS: The company received a procurement contract signed between its holding subsidiary, Shenzhen SMS Energy Storage Technology Co., Ltd and Dongguan Xiaodong New Energy Co. Xiaodong New Energy purchased energy storage system (specification: SE2000L-215, including battery system, BMS, PCS, liquid cooling unit, etc.) from Sanhui Energy, with a total contract amount of RMB 400 million.

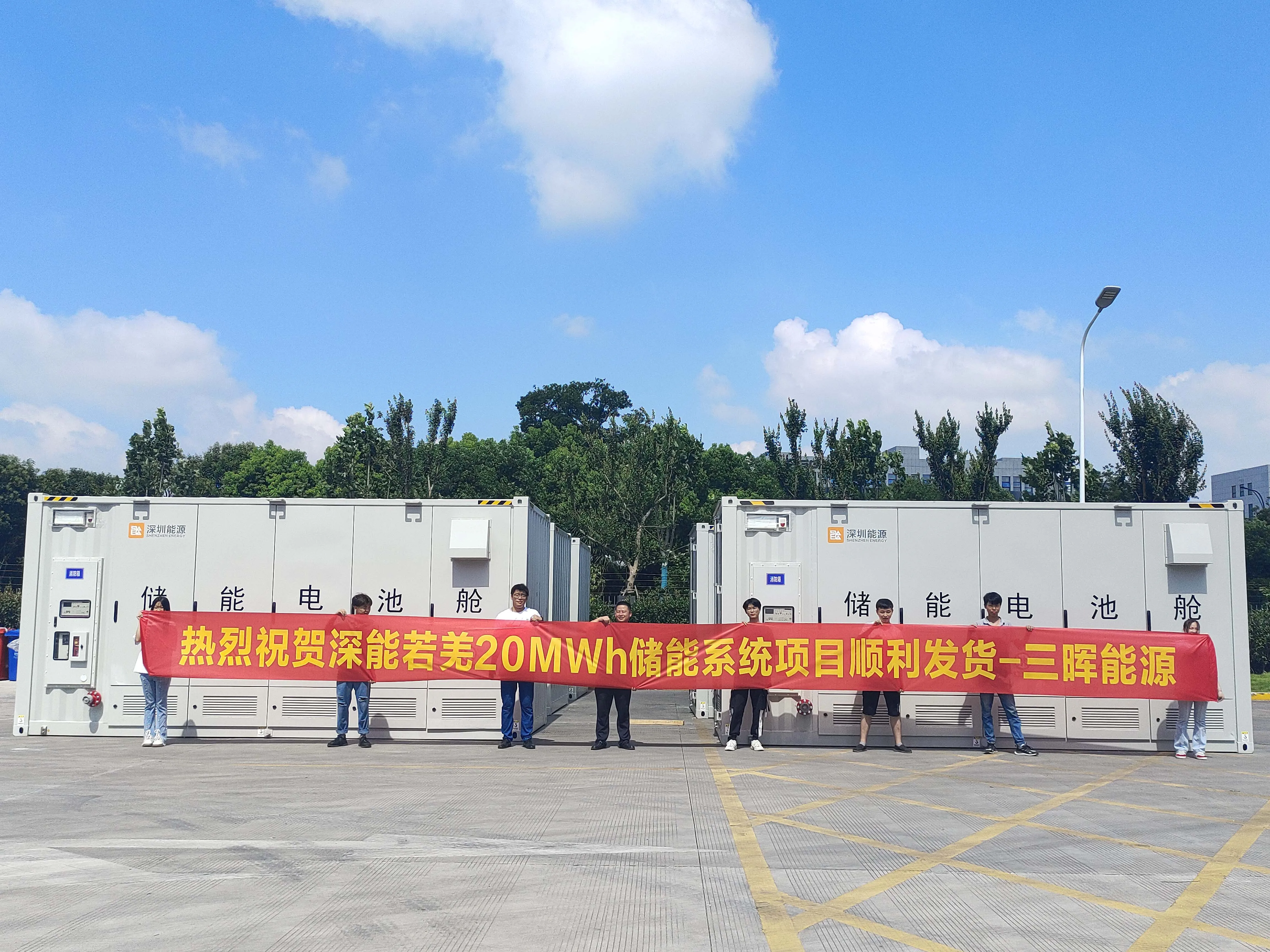

Case 2——20MWh
SMS Energy signed a procurement contract with Xuji Electric Technology Co. Provided "energy storage DC side equipment and system" for "10MWh/20MWh energy storage system project of Shenzhen Ruoqiang wind power project".
Case 3——30MWh
SMS Announcement. Purchase Contract between Holding Subsidiary Shenzhen SMS Energy Storage Technology Co., Ltd and Hebei Xiong'an XuJi DianKe Comprehensive Energy Technology Co. The name of the project is 30MWh photovoltaic project of China Electricity Construction of 1,00MWh photovoltaic base in Shihezi, Northern Xinjiang.
Why Choose Us

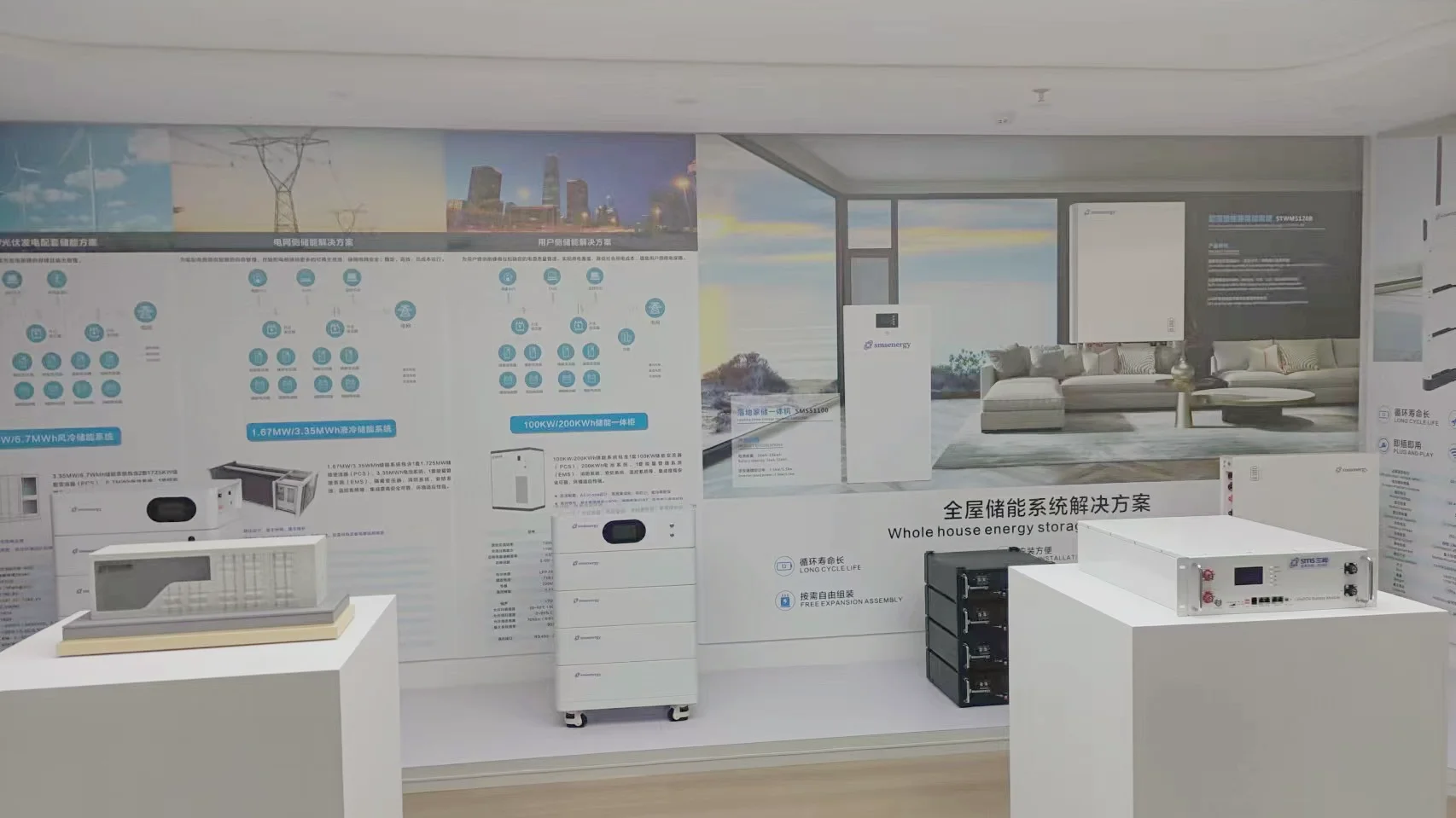

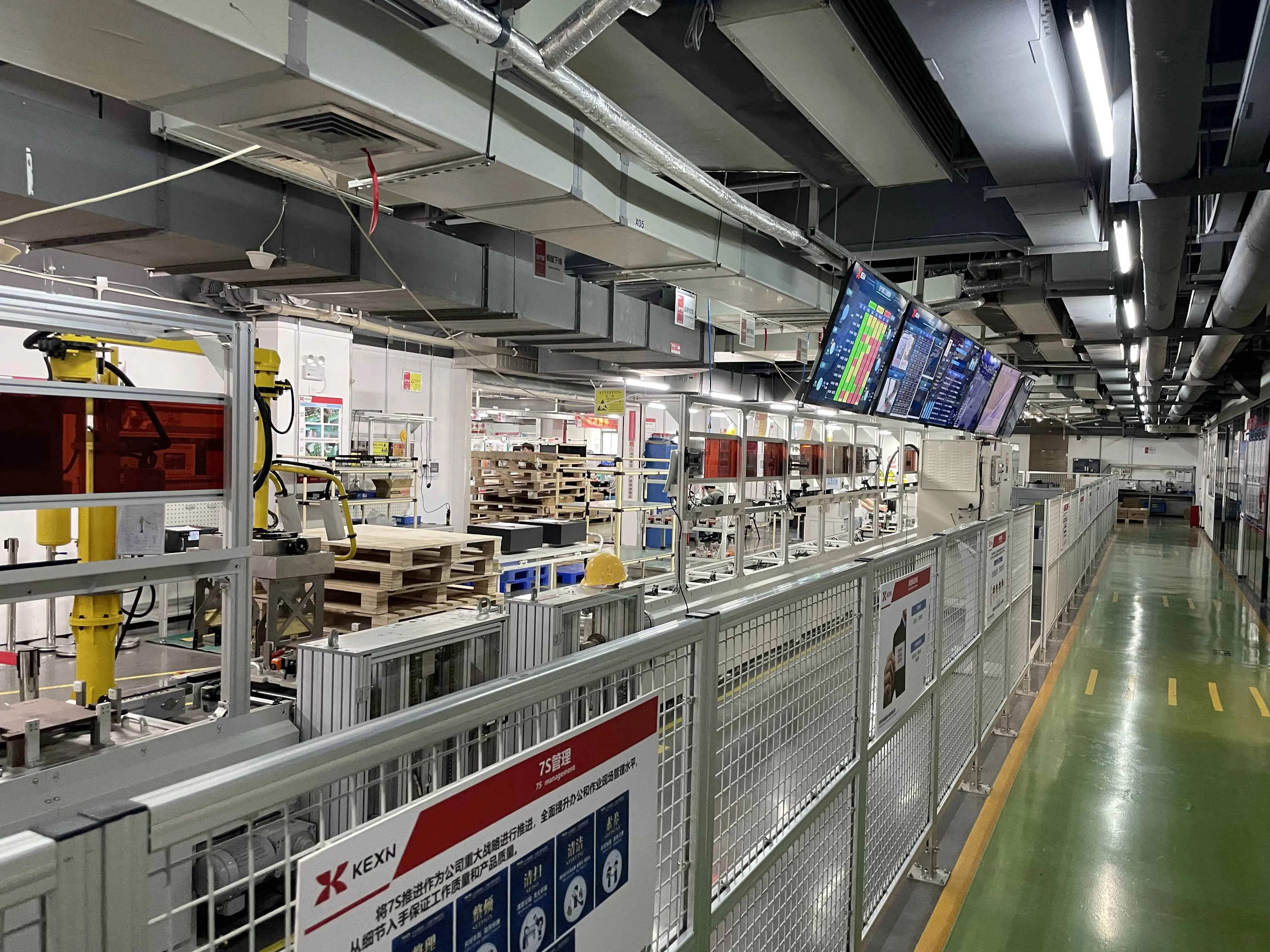

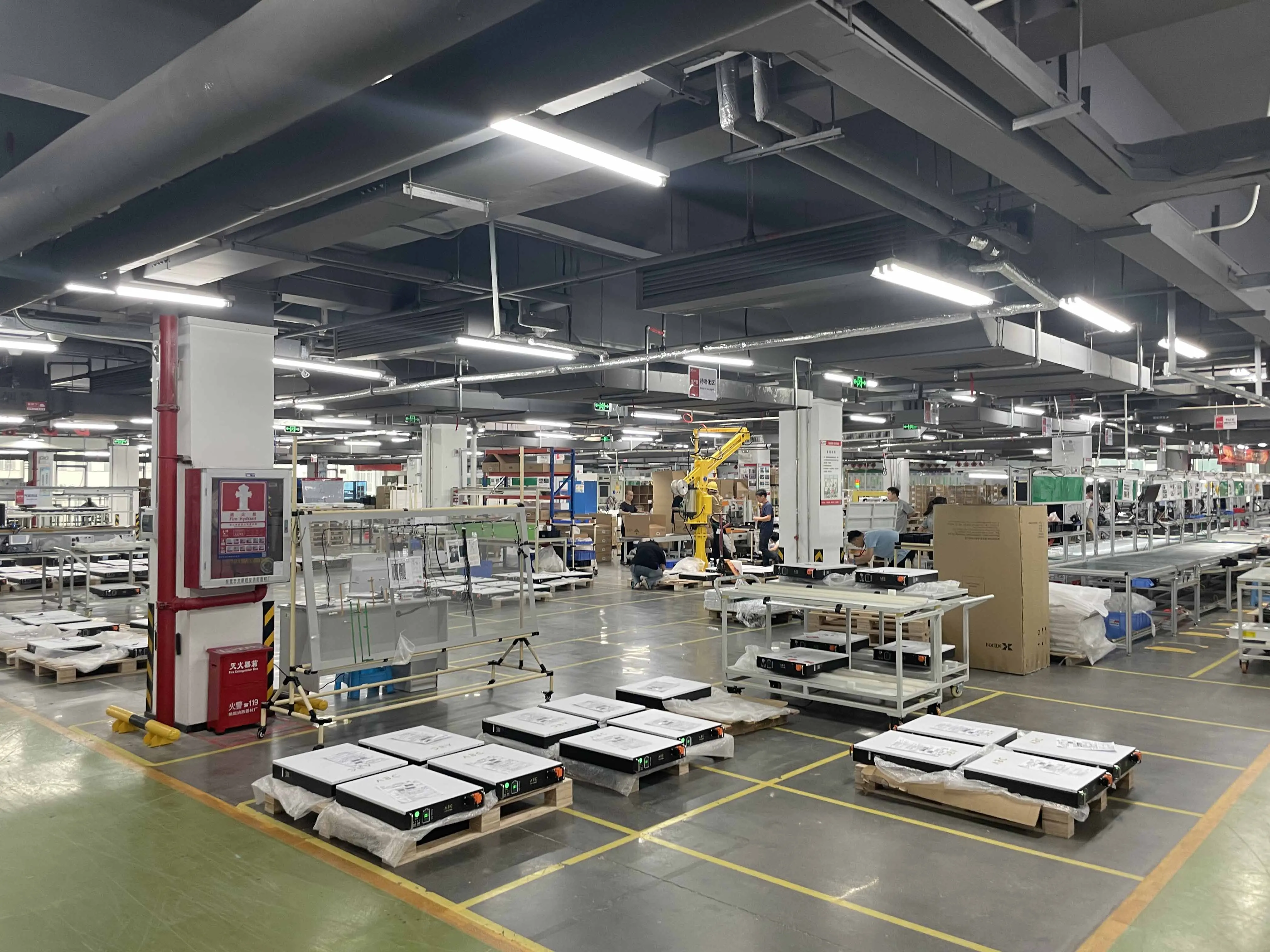

Company Introduction
About Us
Shenzhen SMS Energy Storage Technology Co., Ltd. is the holding subsidiary of Zhengzhou Sanhui Electric Co., LTD. (stock code:002857). Zhengzhou Sanhui Electric Co., LTD. founded in 1996, is mainly engaged in the research and development, design,production and sales of electric energy metering instruments, and can provide standard and calibration comprehensive solutions for smart grid metering instrument users, manufacturers and verification institutions.
Now it has formed four industrial sectors:electric energy metering device, power transformer, power load management collection terminal and energy storage system. Shenzhen SMS Energy Storage Technology Co., Ltd. with 101 patents and software, is a state-level high-tech enterprise. Based on the development of smart grid construction,Shenzhen SMS Energy Storage Technology Co., Ltd.to providing intelligent automation products for customers in the power industry, with new energy power generation enterprises, power grid companies and industrial and commercial users as the main target customers.
Focusing on the research and development, production, sales and service of energy storage products on the power supply side, the power grid side and the user side, deeply involved in the development of green energy and the construction of new power systems, committed to providing customers with high-quality MW energy storage
systems, household energy storage systems and overall solutions, is a scientific and technological innovation enterprise integrating research and development, manufacturing, sales and service. Our company always adheres to the principle of "building first-class brand with strong technical strength, ensuring first-class product quality with advanced management", takes the mission of "continuously creating value for customers and providing development platform for employees", and adheres to the principle of "teamwork, honesty, innovation and service to the society". Aim, dedicated to provide our customers with the best quality service.
VR
Recommend Products
FAQ
Q1. Are you a manufacturer?
A. Yes, sir, we have our own factory, the price is factory direct.
Q2. Can I have a sample order?
A. Yes,welcome sample order to test and check quality.
Q3. What about the lead time?
A. Sample 5-10 days, mass production time 3-5 weeks depending on order quantity.
Q4. Do you have any MOQ limit?
A. Yes, but low MOQ, 1~10pcs sample order is available.
Q5. How do you ship the goods and how long does it take to arrive?
A. We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Bigger order shipped by air or by sea.
Q6. How to proceed with an order?
A. 1st, please let us know your requirements or application. 2nd, We offer our quotation. 3rd, customer confirms the samples and make a deposit for formal order. 4th, We produce your order.
Q7. Can you print my logo on the product?
A. Yes. Please supply us the artwork before mass production.
Q8. How about after-sales service?
A. We will provide you with a 3 years warranty. If there are any problems, please let us know and we will provide you with a
positive solution.
