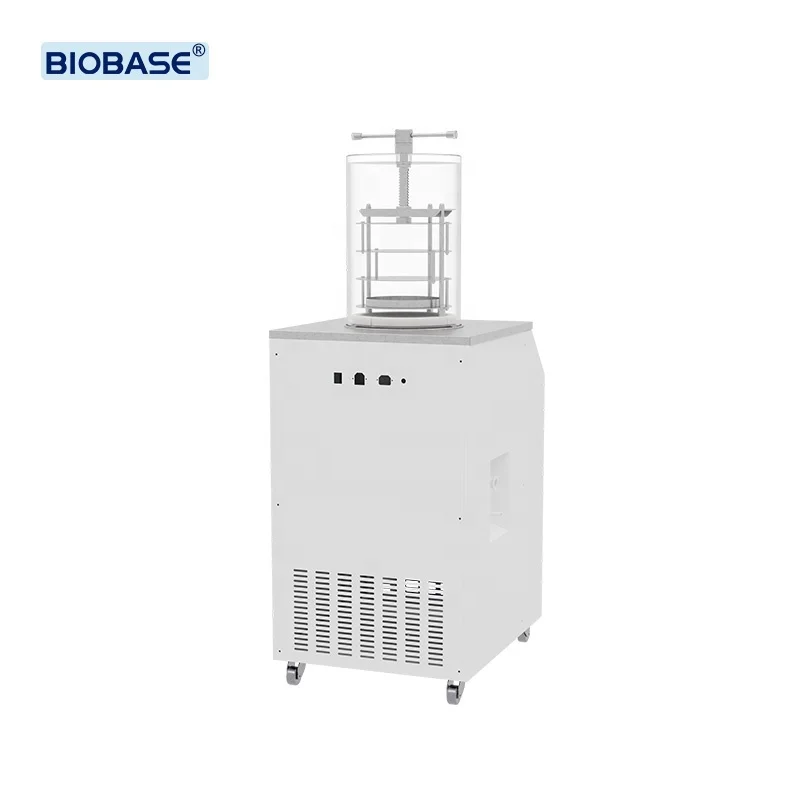

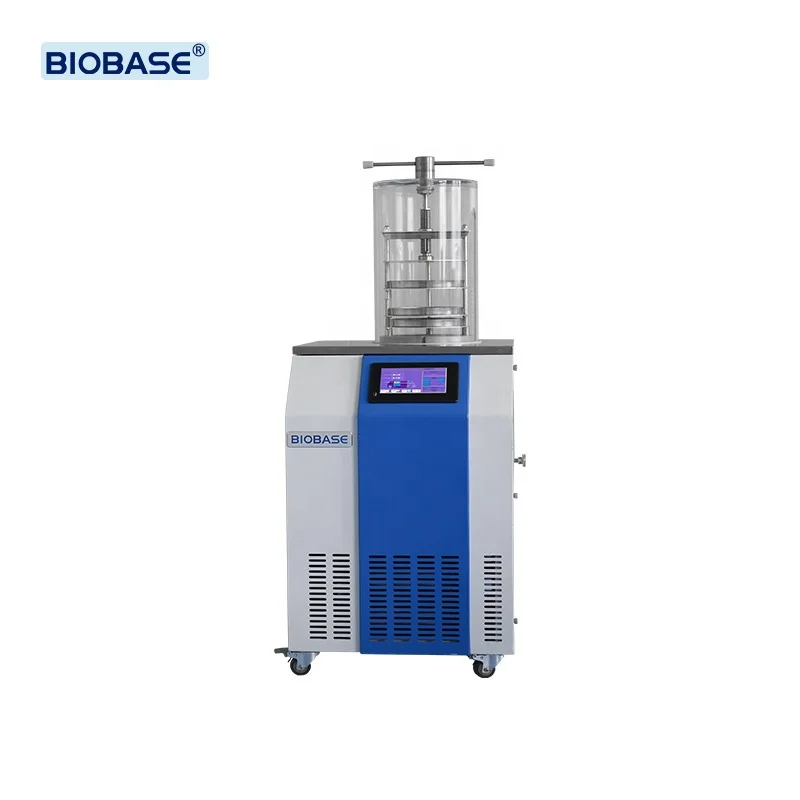

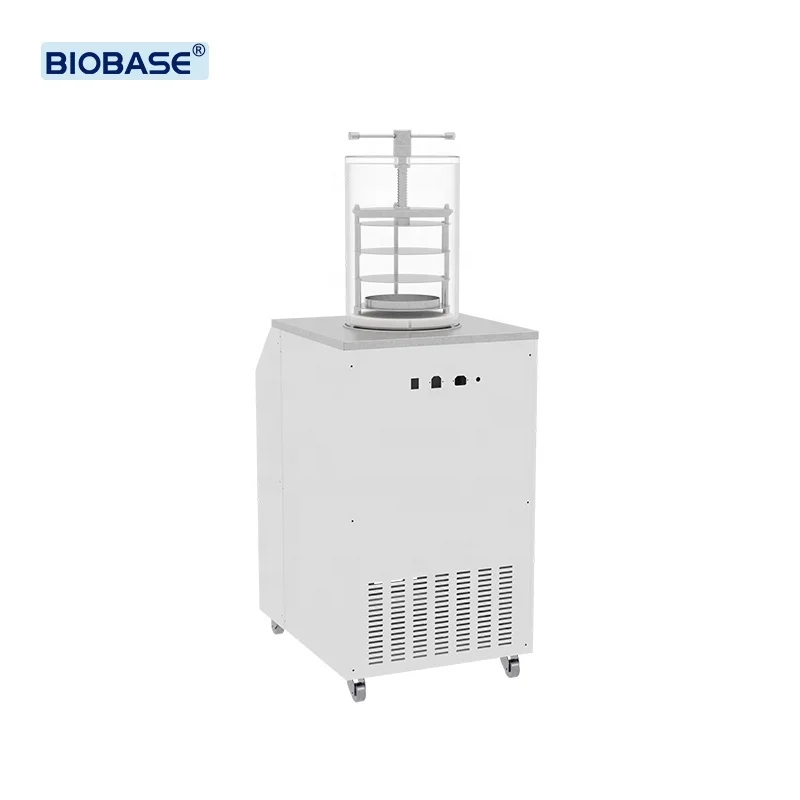

BIOBASE China Laboratory Freeze Dryer Machine Freeze Drying Lyophilizer Equipment for labs
- Category: >>>
- Supplier: Biobase Meihua Trading Co. Ltd.
Share on (1601187500091):
Product Overview
Description
Detailed images
Technical Parameters
Model | BK-FD18S | BK-FD18P | BK-FD18T | BK-FD18PT | |||||||
Type | Standard chamber | Standard chamber with 8 port manifold | Stoppering chamber | Stoppering | |||||||
chamber with | |||||||||||
8 port manifold | |||||||||||
Freeze Drying Area | 0.18㎡ | 0.09 ㎡ | |||||||||
Tray | 4 pcs | 3pcs | |||||||||
Height Between Trays | 80mm | / | |||||||||
Cold Trap Temperature | ≤-60℃(No load)(-80℃ -110℃optional) | ||||||||||
Cold Trap Capacity | 28L | ||||||||||
Cold Trap Size (Diameter*H) | Φ300*410mm | ||||||||||
Vacuum Degree | ≤5 Pa | ||||||||||
Water Capture Capacity | 6L/24h | ||||||||||
Tray Size (D*H) | Φ240*20mm | Φ200*20mm | |||||||||
Freeze Drying Time | 36h | ||||||||||
Loading Capacity/Shelf (Liquid) | 1.8L | 0.9L | |||||||||
Total Loading Capacity (Liquid) | 3.6L | 1.8L | |||||||||
Drying Chamber Size (Diameter*H) | Φ300*445mm | Φ300*465mm | |||||||||
Total Qty. Of VialΦ22 | / | / | 183 | 183 | |||||||
Total Qty. Of VialΦ16 | / | / | 345 | 345 | |||||||
Total Qty. Of VialΦ12 | / | / | 615 | 615 | |||||||
Refrigerant | -60℃:R600a,R23 -80℃:R404a、R23 | ||||||||||
Cooling System | Standard:Air cooling Optional: Water cooling | ||||||||||
Power Supply | Standard:220V 50Hz Optional:220V 60Hz | ||||||||||
Power Consumption | 1800W | ||||||||||
Related And Hot-selling Products

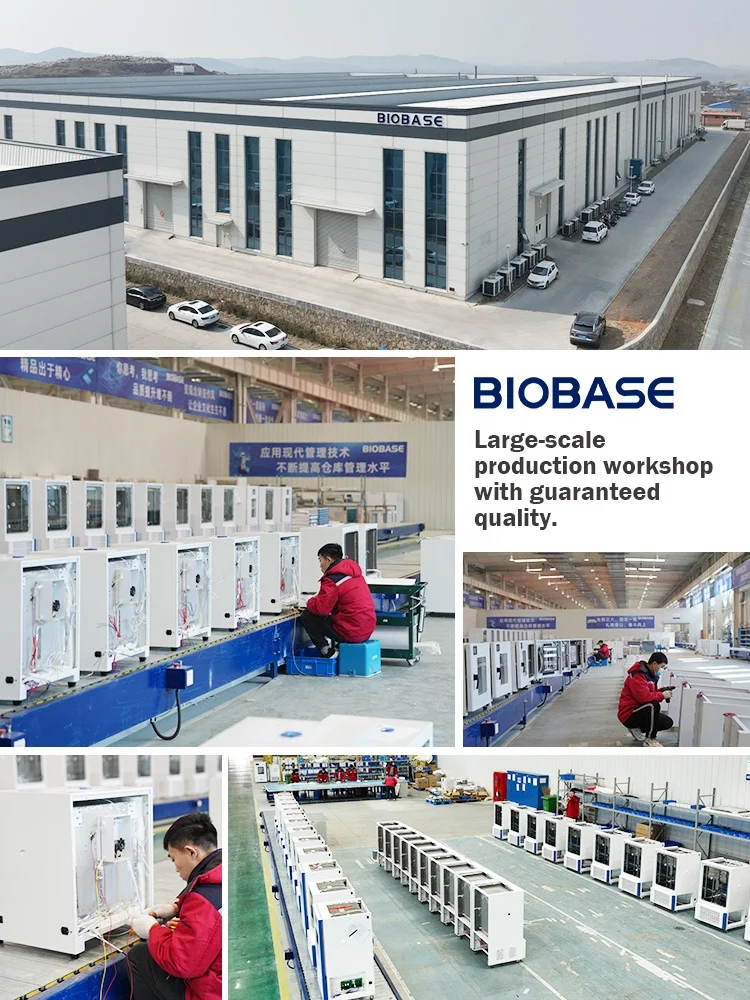

Company Profile
