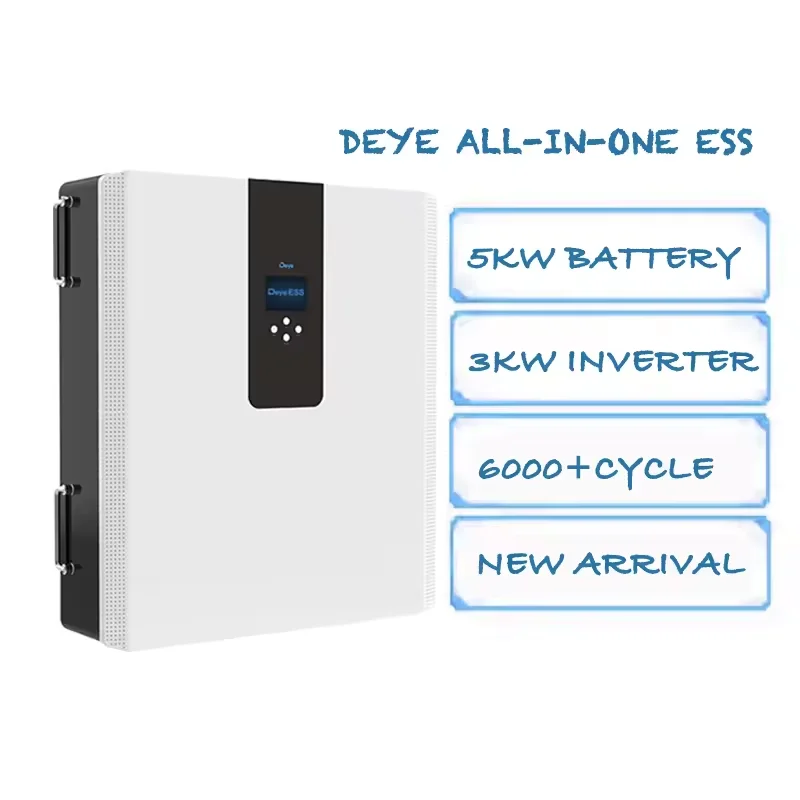

New Arrival Deye All in One 3KW Residential low voltage hybrid inverter Energy Storage System with 5.3KWH LiFePO4 battery PACK
- Category: >>>
- Supplier: Anhui Minvic Import & Export Co. Ltd.
Share on (1601187510227):
Product Overview
Description

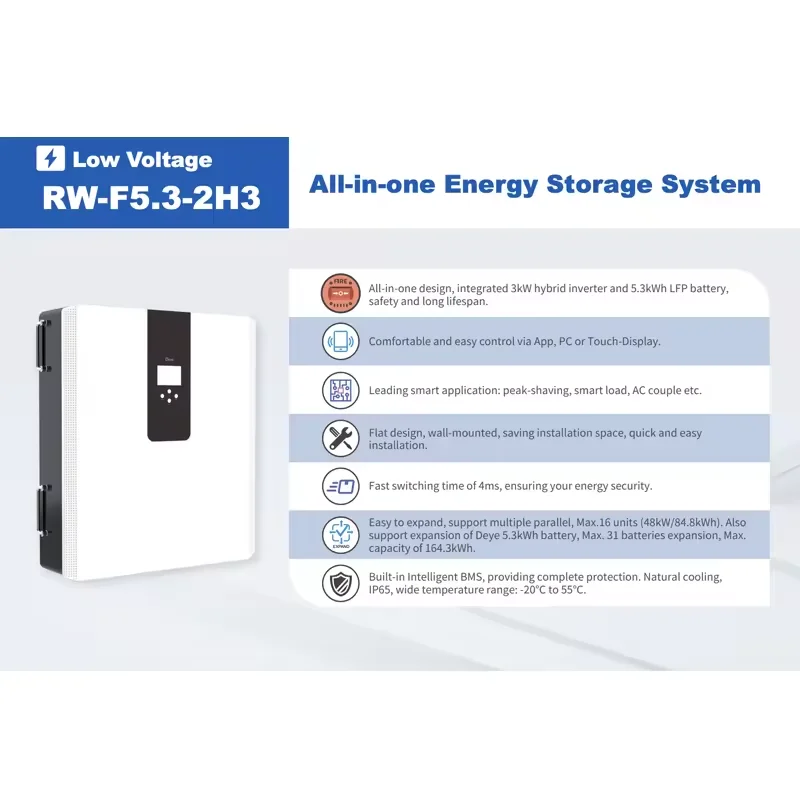

Products Description

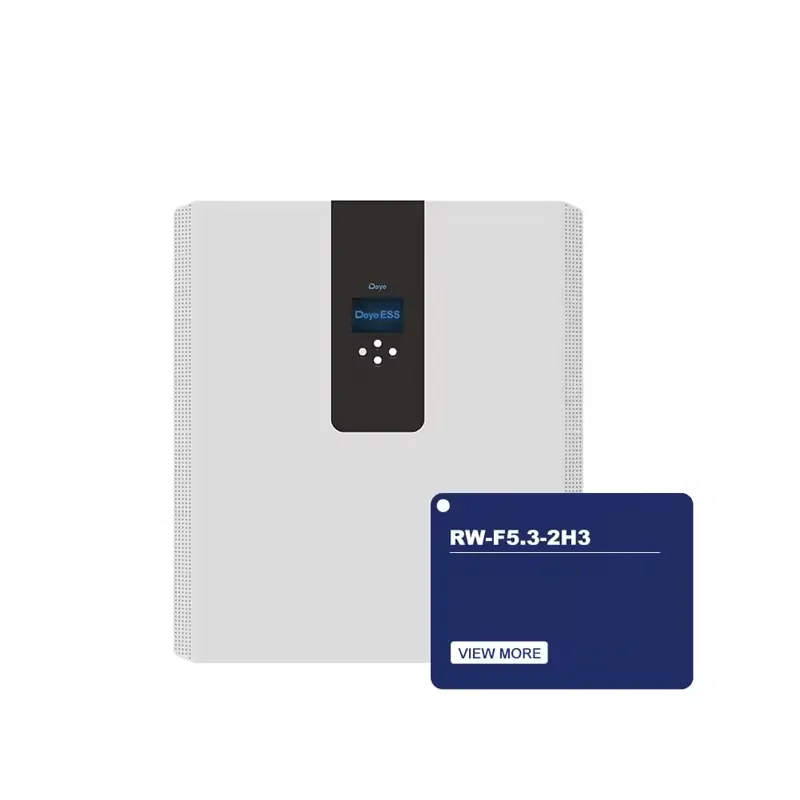

RW-F5.3-2H3
1.This is an all-in-one design that incorporates a 3kW hybrid inverter and a 5.3kWh LFP battery, ensuring both safety and a longlifespan.
2.The system can be conveniently controlled via an app, PC, or touch-display, and features a leading smart application with
peak-shaving, smart load, and AC couple functions.
peak-shaving, smart load, and AC couple functions.

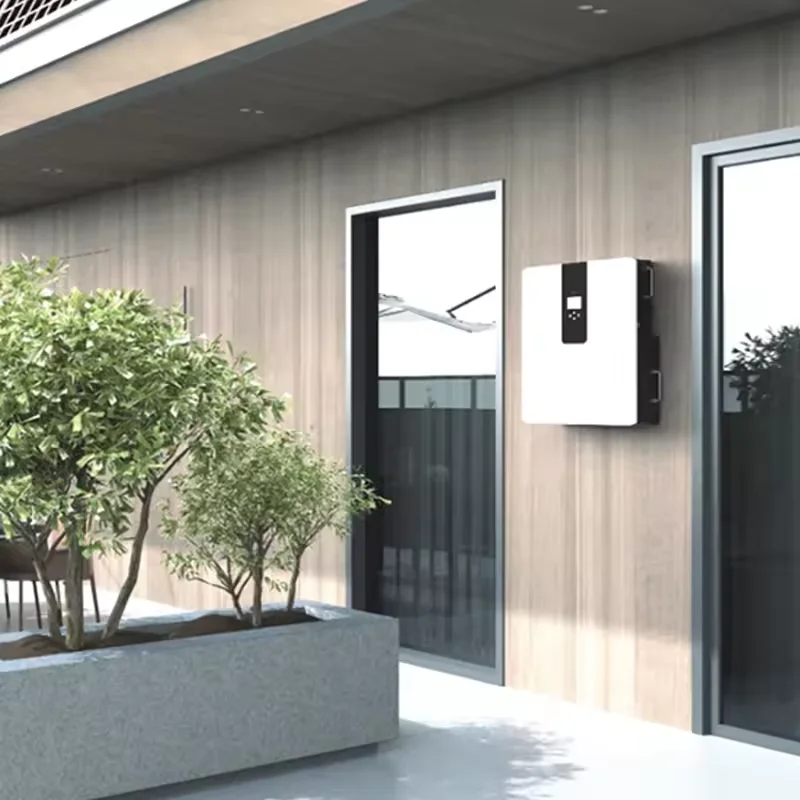

3.Its flat design makes it easy to mount on a wall, saving installation space and allowing for quick and easy installation.
4. The system has a fast switching time of 4ms, ensuring energy security.
5.Additionally, it is easy to expand and supports multiple parallel connections with up to 16 units (48kW/84.8kWh), and it supports the expansion of Deye 5.3kWh battery with up to 31 batteries and a maximum capacity of 164.3kWh.
6.The built-in Intelligent BMS provides complete protection, and the system features natural cooling, IP65, and a wide temperature range of -20°C to 55°C.
Product Parameters
Packing: one piece per carton
Payment term: by TT
Shipping way: by express,by sea,by air
Lead time: about 7-10 working days after received the payment
Payment term: by TT
Shipping way: by express,by sea,by air
Lead time: about 7-10 working days after received the payment
AC Technical Specification | ||
Nominal Input/Output Power/UPS Power | 3,000/3,000W | |
AC Input/Output Frequency and Voltage | 50Hz (45Hz ~ 55Hz), L/N (PE), 220/230 Vac | |
Grid Type | Single phase | |
Peak Power (off grid) | 2 time of rated power, 10s | |
Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | |
Power Factor | 1 | |
DC injection current | THD<3% (Linear load<1.5%) mA | |
DC Technical Specification | ||
Max. PV Input Power | 3,900W | |
Max. PV Input Current | 15A | |
Rated PV Input Voltage | 300 (125 ~ 450) Vdc | |
Start Up DC Voltage | 125Vdc | |
MPPT Voltage Raneg | 150 ~ 425Vdc | |
Max. PV Short-circuit Current | 18A | |
Number of MPPT | 1 | |
Battery Chemistry | LiFePO4 | |
Battery Nominal Voltage | 51.2V | |
Battery Energy Configuration | 5.32kWh | |
Max. Charging/Discharging Current | 75A | |
Battery Operating Voltage | 43.2V ~ 57.6V | |
Battery Cycle Life | ≥6,000 (@25°C±2°C, 0.5C/1C, 70%EOL) | |
Other Technical Specification | ||
Dimension (W × D × H) | 600 × 200 × 700mm | |
Weight Appr. | 76.5kg | |
Operating Temperature Range | Inverter: -40°C ~ 60°C (>45°C derating), Battery Charge: 0 ~55°C/ Discharge: -20°C ~ 55°C | |
Display | LCD | |
Relative Humidity | 15% ~ 85% (No Condensing) | |
Safety EMC/Standard | IEC62619, UN38.3, IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4 | |
Grid Regulation | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150 | |
Max. Efficiency | 97.60% | |
Max. charging/discharging efficiency | 95.50% | |
IP Rating of Enclosure | IP65 | |
Installation Style | Wall-Mounted | |
Warranty | 10 years | |

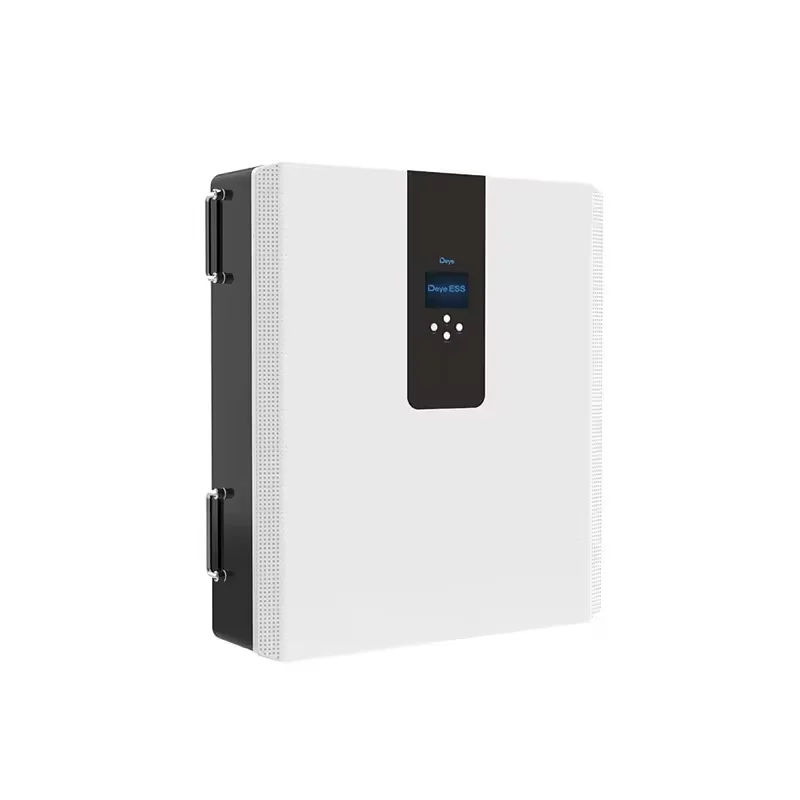

Deye ESS
The Deye RW-F5.3-2H3 is an innovative all-in-one energy storage solution designed to optimize your energy usage and provide an uninterrupted power supply. This compact and efficient system integrates a 3 kW hybrid inverter and a 5.3 kWh LFP battery, offering safety, longevity, and versatility for your home or business.
Project Case
Recommend Products
Product packaging

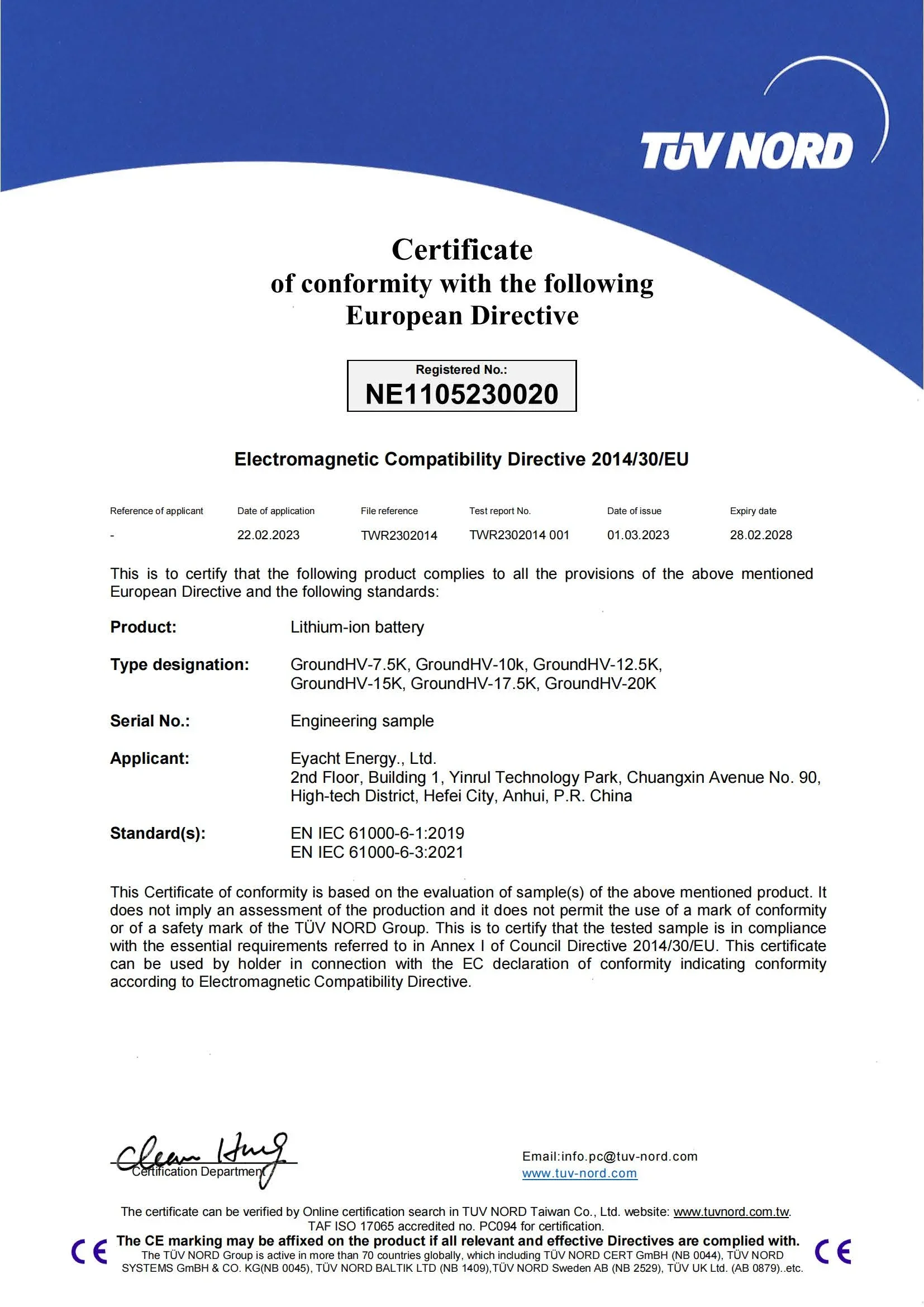

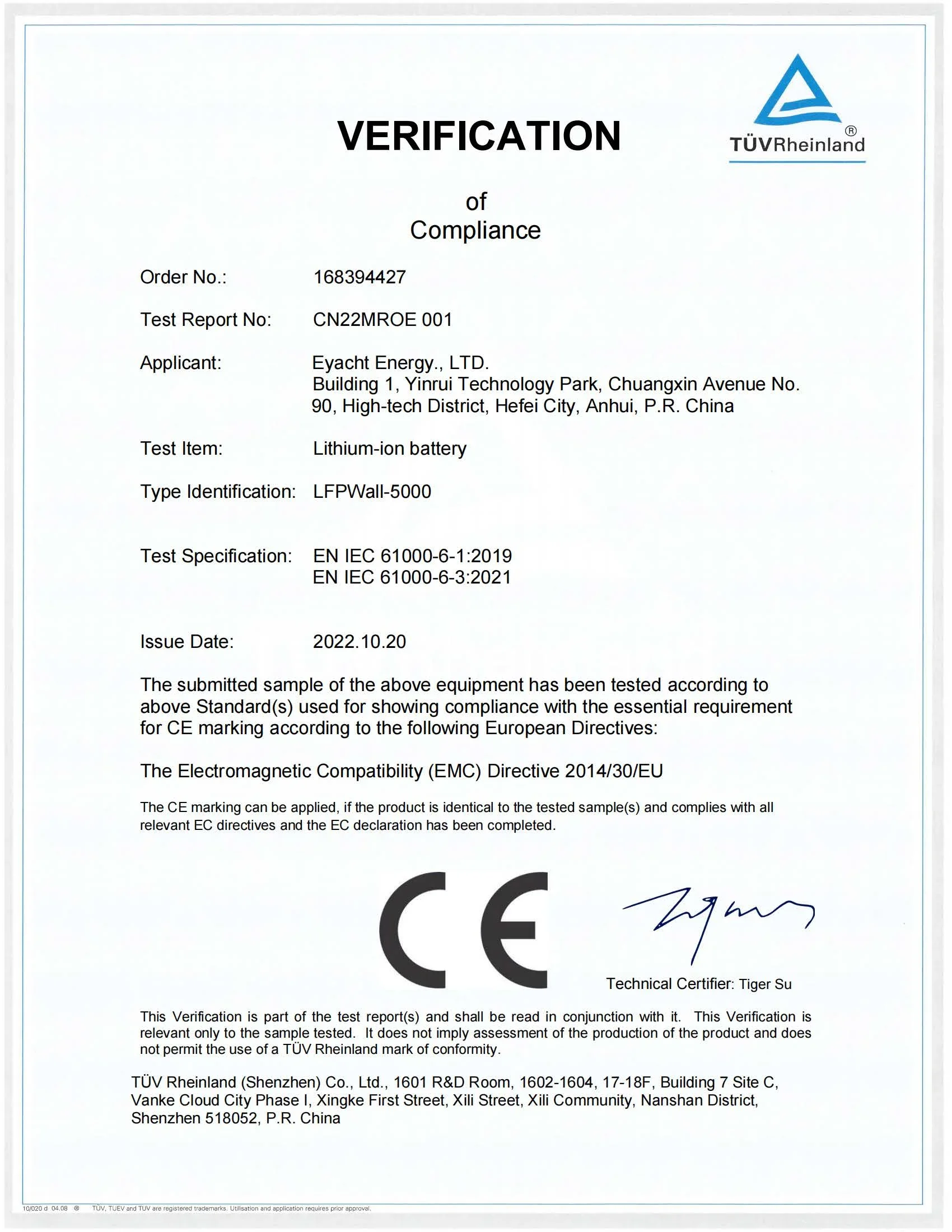

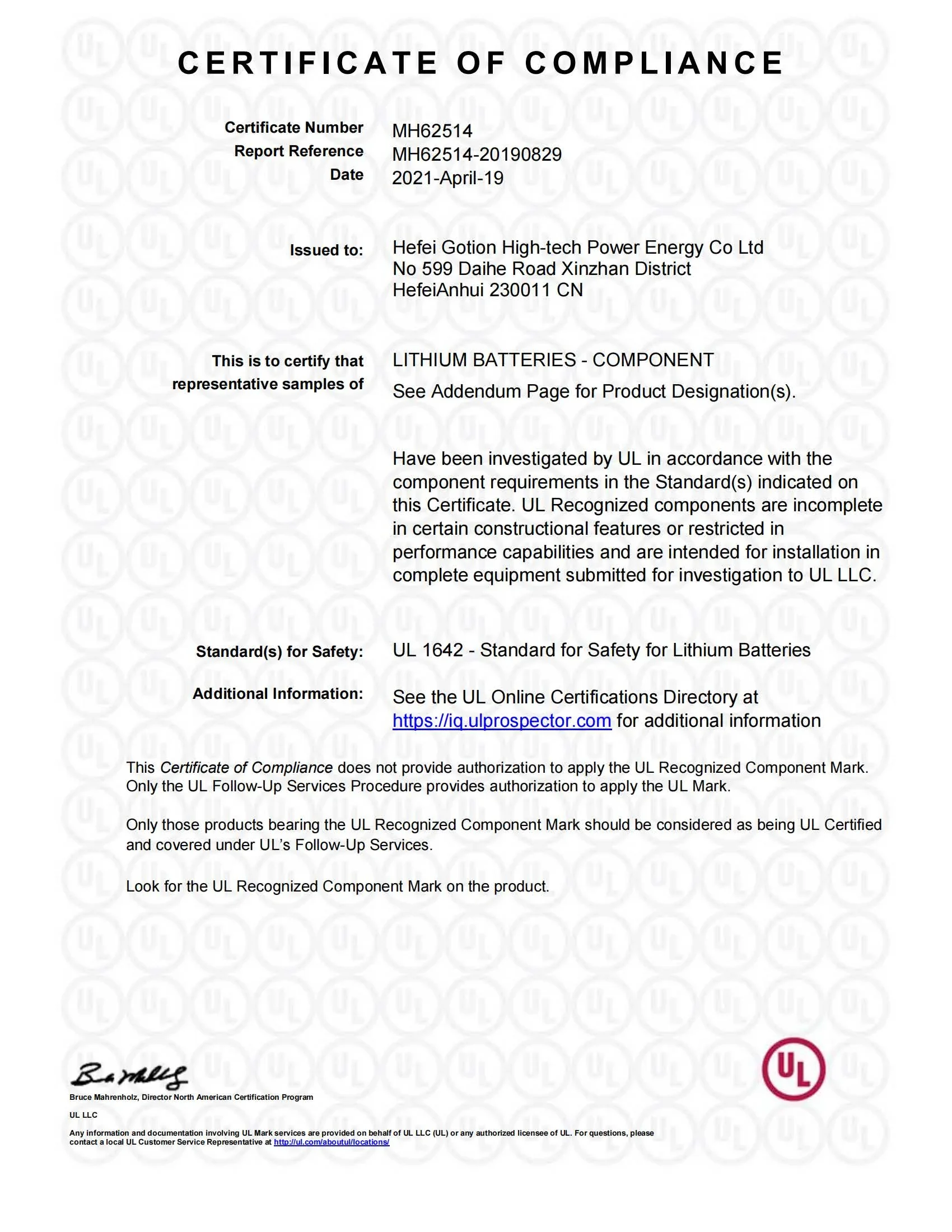

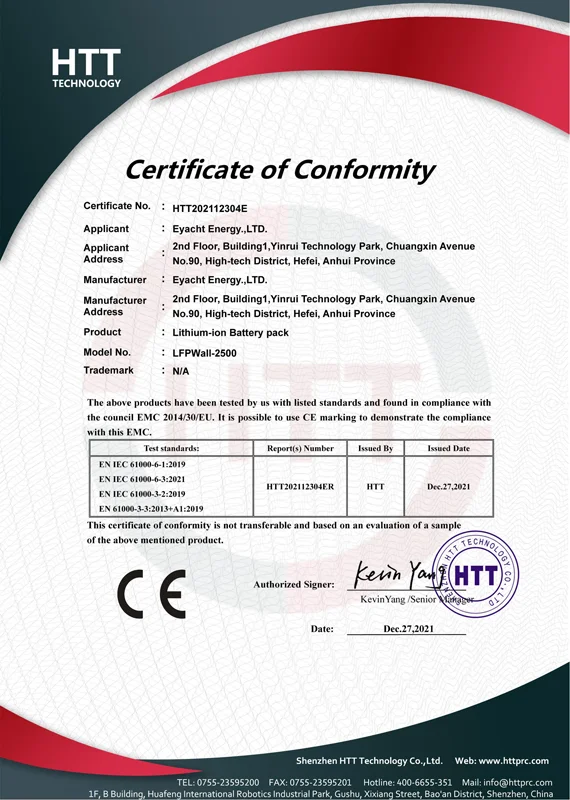

Certificate
