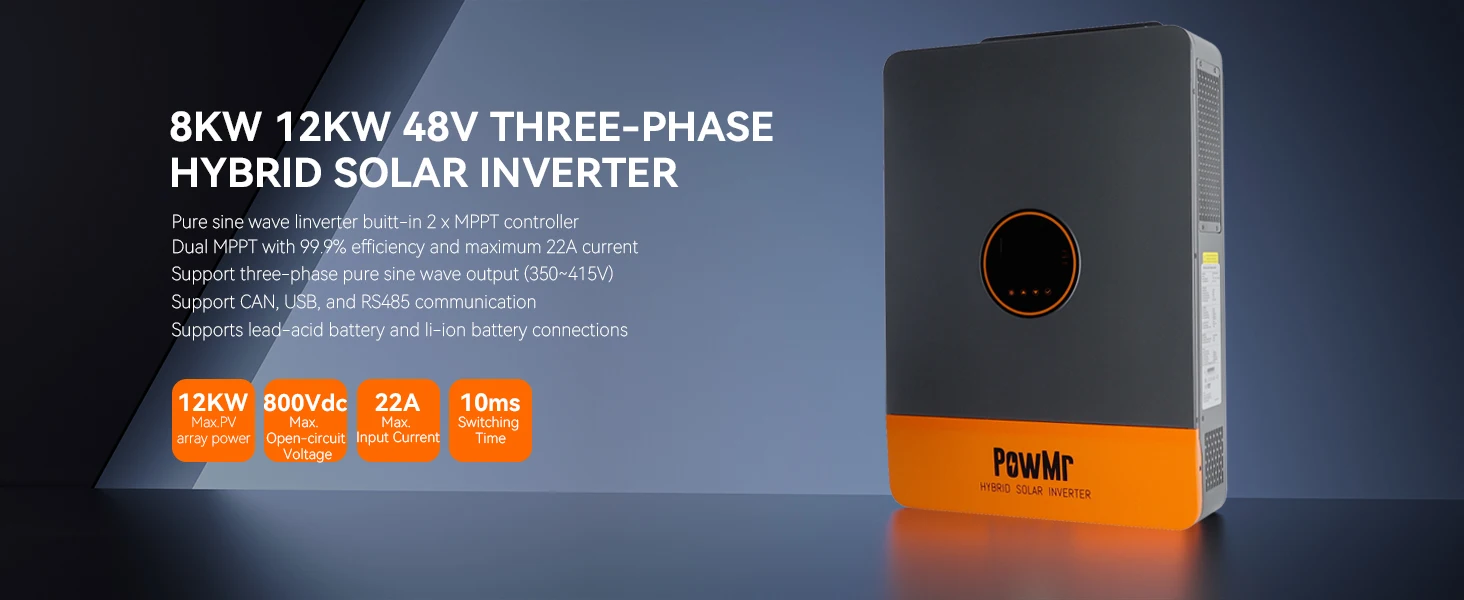

PowMr 8KW 12KW 48V Pure Sine Wave Solar Inverter 230/400Vac Three Phase MPPT Hybrid Solar Inverter
- Category: >>>
- Supplier: Shenzhen Hehejin Industrial Co. Ltd.Shenzhen Ltd.
Share on (1601187529819):
Product Overview
Description
Product Description
Feature

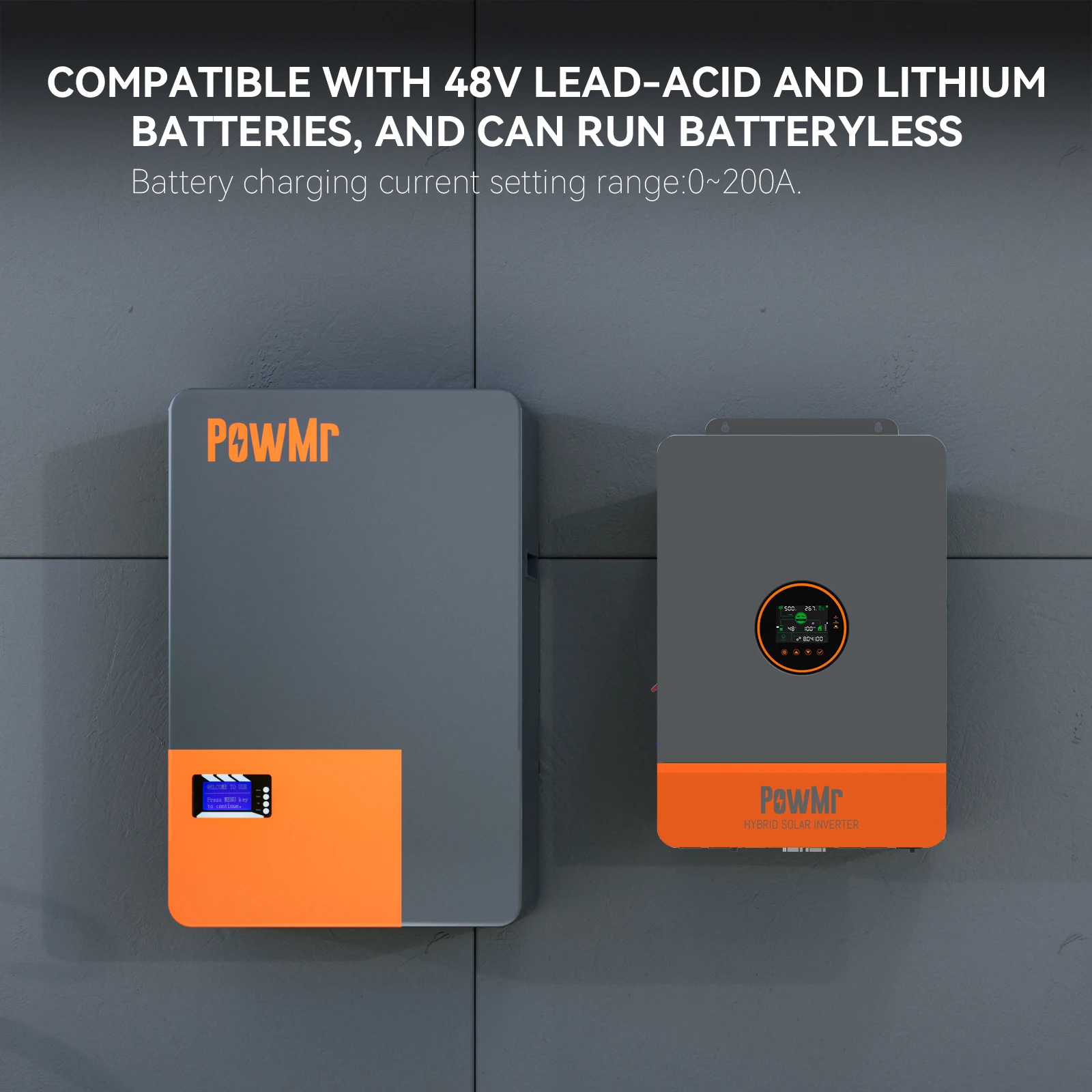

⚫ Supports lead acid battery and li-ion battery connections.
⚫ With a dual activation function when the li-ion battery is dormant; either mains/photovoltaic power supply access can trigger the activation of the li-ion battery.
⚫ Support three-phase pure sine wave output (350~415V)
⚫ Supports phase voltage adjustment in the range of 200, 208, 220, 230, 240Vac.
⚫ Supports two PV inputs, with the function of simultaneously tracking the maximum power charging or carrying capacity of two MPPT.
⚫ Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high power modules.
⚫ 4 charging modes are available: solar only, mains priority, solar priority, and mixed mains/PV charging.
⚫ With time-slot charging and discharging setting function, it helps users to take advantage of peak and valley tariffs and save electricity costs.
⚫ Energy saving mode function to reduce no-load energy losses.
⚫ With two output modes of utility bypass and inverter output, with uninterrupted power supply function.

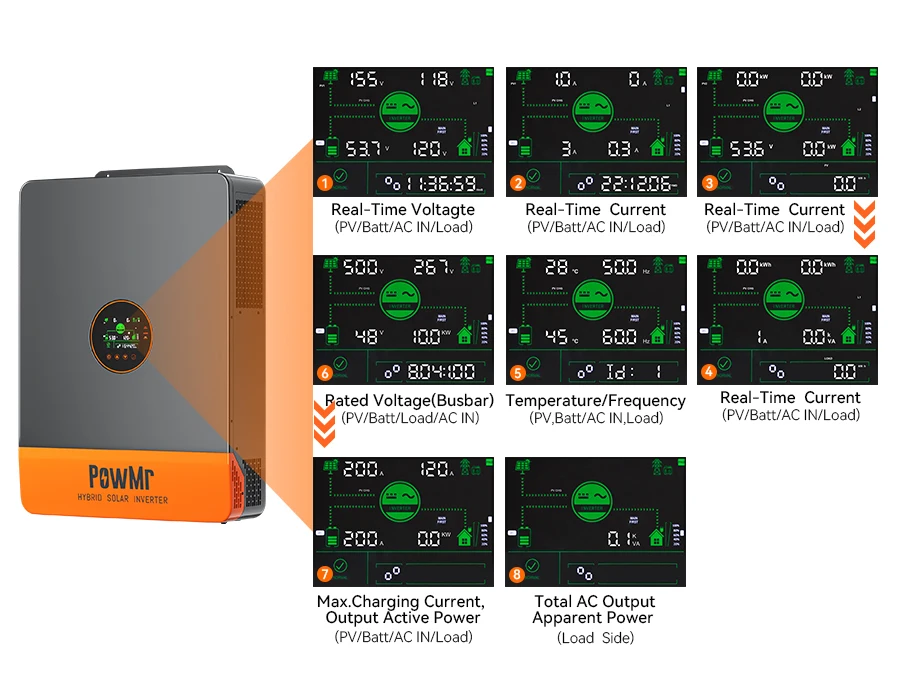

⚫ LCD large screen dynamic flow diagram design, easy to understand the system data and operation status

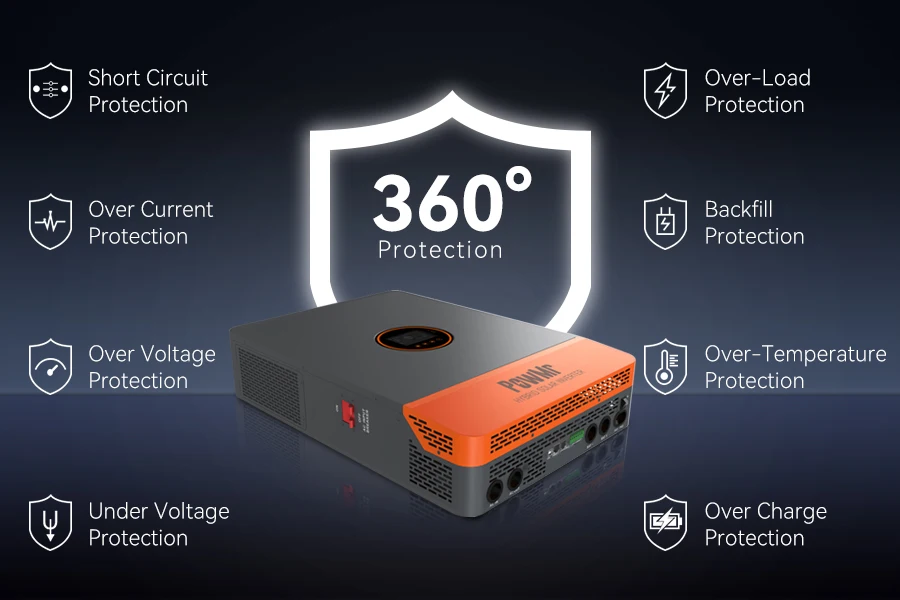

⚫ 360° protection with complete short circuit protection, over current protection, over under voltage protection, overload protection, back fill protection, etc.

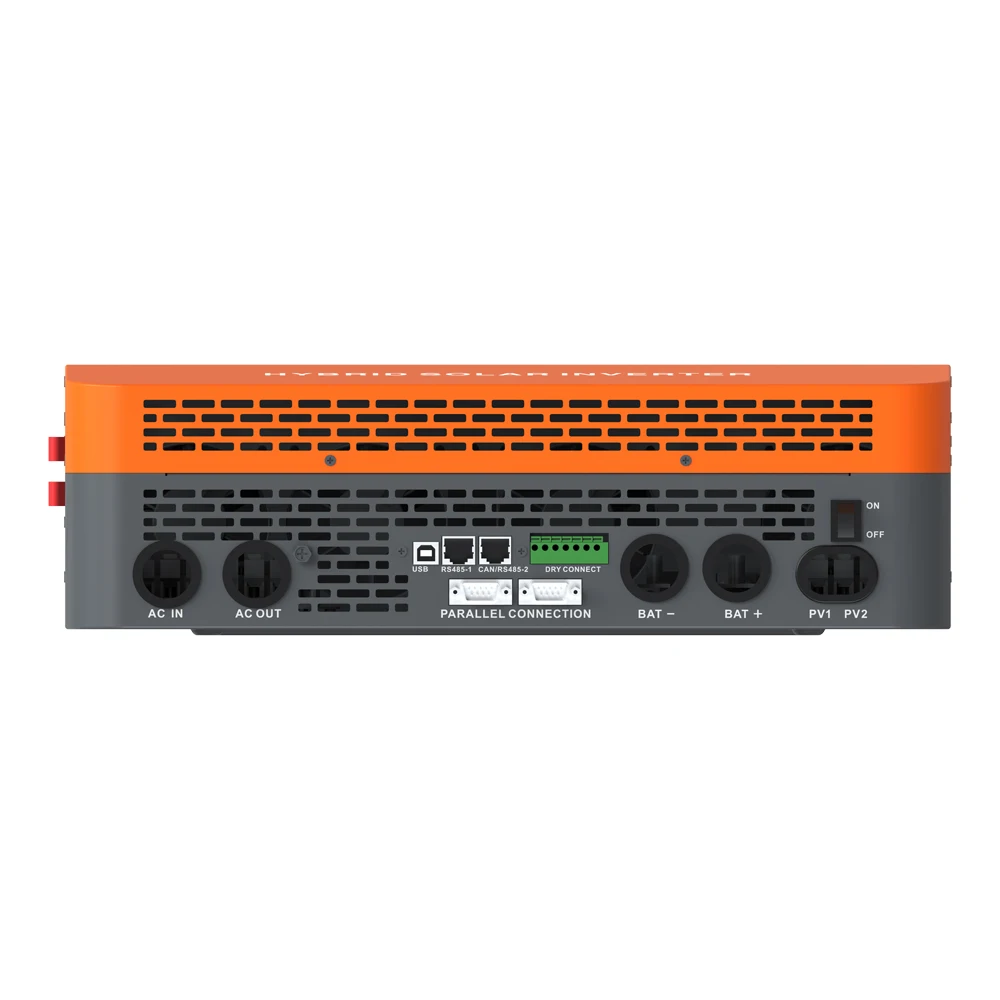

⚫ Support CAN, USB, and RS485 communication.
⚫ With a dual activation function when the li-ion battery is dormant; either mains/photovoltaic power supply access can trigger the activation of the li-ion battery.
⚫ Support three-phase pure sine wave output (350~415V)
⚫ Supports phase voltage adjustment in the range of 200, 208, 220, 230, 240Vac.
⚫ Supports two PV inputs, with the function of simultaneously tracking the maximum power charging or carrying capacity of two MPPT.
⚫ Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high power modules.
⚫ 4 charging modes are available: solar only, mains priority, solar priority, and mixed mains/PV charging.
⚫ With time-slot charging and discharging setting function, it helps users to take advantage of peak and valley tariffs and save electricity costs.
⚫ Energy saving mode function to reduce no-load energy losses.
⚫ With two output modes of utility bypass and inverter output, with uninterrupted power supply function.
⚫ LCD large screen dynamic flow diagram design, easy to understand the system data and operation status
⚫ 360° protection with complete short circuit protection, over current protection, over under voltage protection, overload protection, back fill protection, etc.
⚫ Support CAN, USB, and RS485 communication.
Specification
POW-SunSmart | POW-SunSmart | |||||||||
INVERTER OUTPUT | ||||||||||
Rated Output Power | 8,000W | 12000W | 10000W | 10000W | 5000W | |||||
Max. Peak Power | 16,000W | 24000W | 20000W | 20000W | 10000W | |||||
Rated Output Voltage | 230/400Vac (three-phase) | 230/400Vac (three-phase) | 120/240Vac | 120/240Vac | 110/120Vac | |||||
Capacity of Motor Load | 5HP | 6HP | 4HP | |||||||
Rated Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | |||||
Output Waveform | pure sine wave | pure sine wave | pure sine wave | pure sine wave | pure sine wave | |||||
Switching Time | 10ms | 10ms | 10ms | 10ms | 10ms | |||||
BATTERY | ||||||||||
Rated Battery Voltage | 48Vdc | 48Vdc | 48Vdc | 48Vdc | 48Vdc | |||||
Voltage Range | 40-60Vdc | 40-60Vdc | ||||||||
Max. PV Charging Current | 180A | 260A | 200A | 200A | 100A | |||||
Max. Utility / Generator Charging Current | 100A | 120A | 120A | 120A | ||||||
Max. Hybrid Charging Current | 180A | 260A | 200A | 200A | 100A | |||||
PV INPUT | ||||||||||
No. of MPPT | 2 | 2 | 2 | 2 | 1 | |||||
Max. Input Power | 6000W/6000W | 9000W/9000W | 11,000W | 11,000W | 5500W | |||||
Max. Input Current | 22/22A | 22/22A | 22/22A | 22/22A | 22/22A | |||||
Max. Open-circuit Voltage | 800Vdc | 800Vdc | 500Vdc | 500Vdc | 500Vdc | |||||
MPPT Operating Voltage Range | 200-650Vdc | 200-650Vdc | 125-425Vdc | 125-425Vdc | 120-500Vdc | |||||
EFFICIENCY | ||||||||||
MPPT Tracking Efficiency | 99.9% | 99.9% | ||||||||
Max. Battery Inverter Efficiency | ≥92% | ≥92% | ||||||||
European Efficiency | 97.2% | 97.5% | 99.9% | 99.9% | >95% | |||||
GENERAL | ||||||||||
Dimensions | 620*445*130mm | 620*445*130mm | 620*445*130mm | 620*445*130mm | 446.9*350*133mm | |||||
Weight | 27kg | 27kg | 27kg | 27kg | 14Kg | |||||
COMMUNICATION | ||||||||||
Internal Interface | RS485 / CAN / USB / Dry contact | RS485 / CAN / USB / Dry contact | RS485 / CAN / USB / Dry contact | RS485 / CAN / USB / Dry contact | USBIRS485/Dry contact control | |||||
External Module (optional) | Wi-Fi / GPRS | Wi-Fi / GPRS | Wi-Fi / GPRS | Wi-Fi / GPRS | Wi-Fi / GPRS | |||||
CERTIFICATION | ||||||||||
Safety | IEC62109-1, IEC62109-2, UL1741 | IEC62109-1, IEC62109-2, UL1741 | IEC62109-1, IEC62109-2, UL1741 | IEC62109-1, IEC62109-2, UL1741 | CE(IEC62109-1) | |||||
EMC | EN61000-6-1, EN61000-6-3, FCC 15 class B | EN61000-6-1, EN61000-6-3, FCC 15 class B | EN61000-6-1, EN61000-6-3, FCC 15 class B | EN61000-6-1, EN61000-6-3, FCC 15 class B | EN61000 | |||||
RoHS | Yes | Yes | Yes | Yes | Yes | |||||
