Product Overview
Description
Products Description

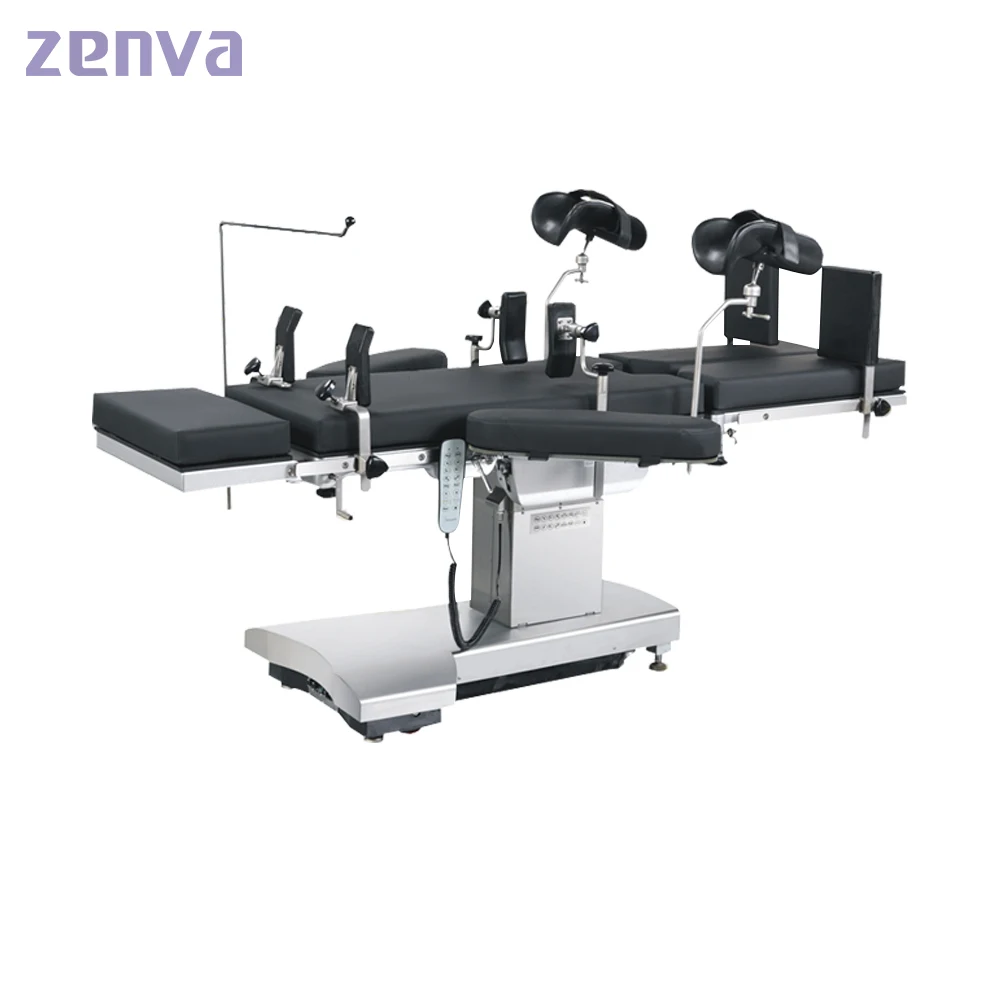

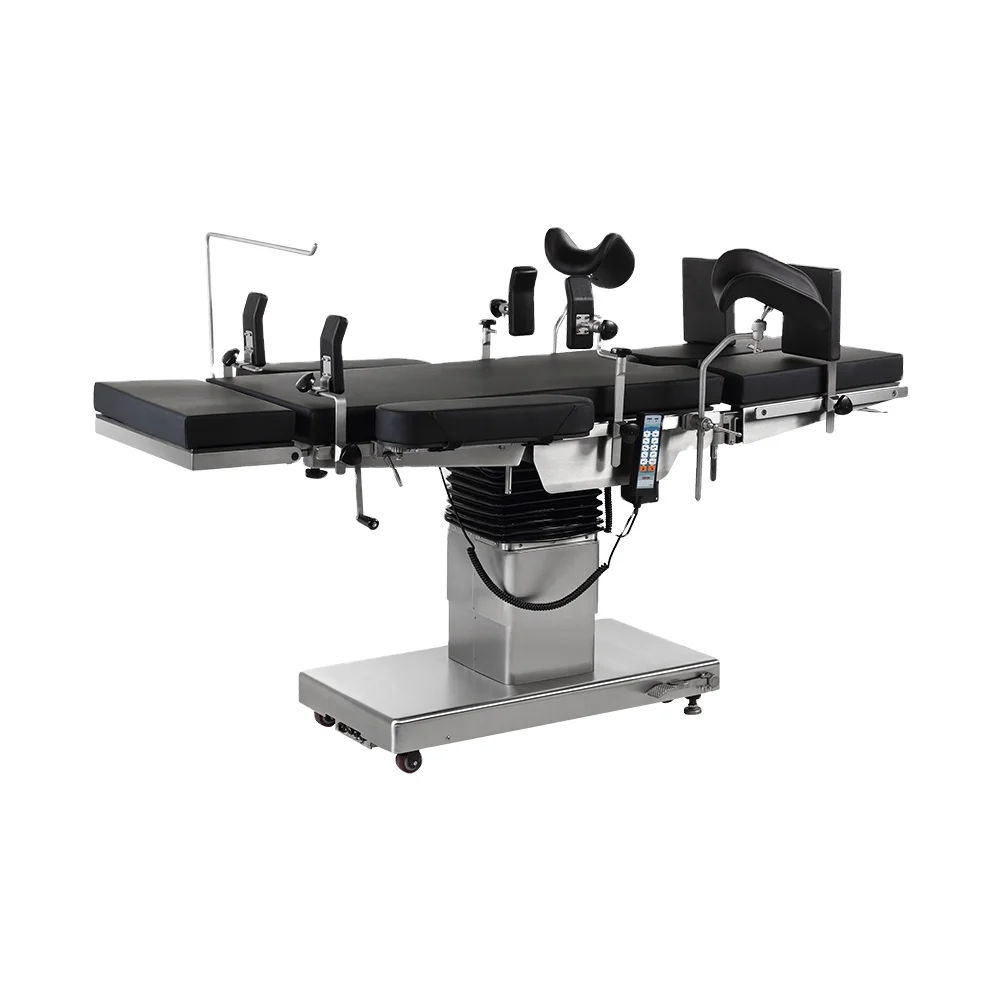

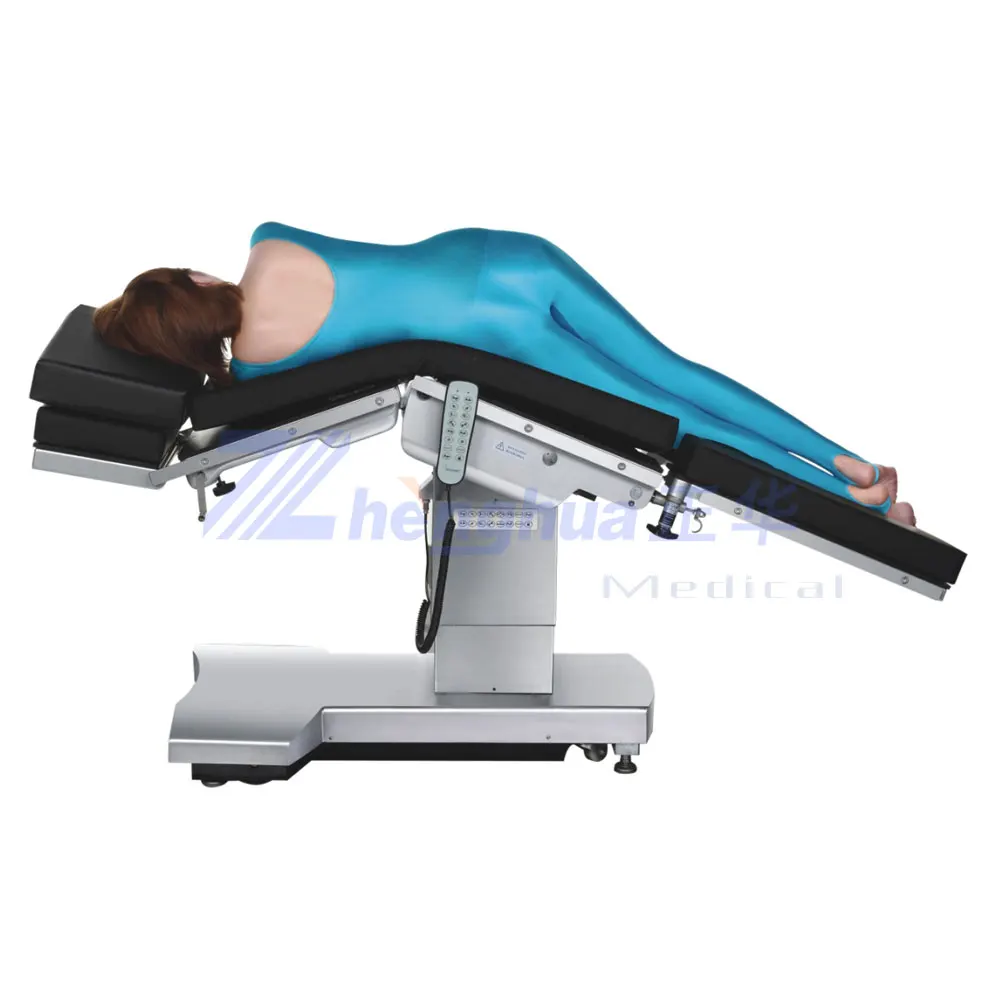

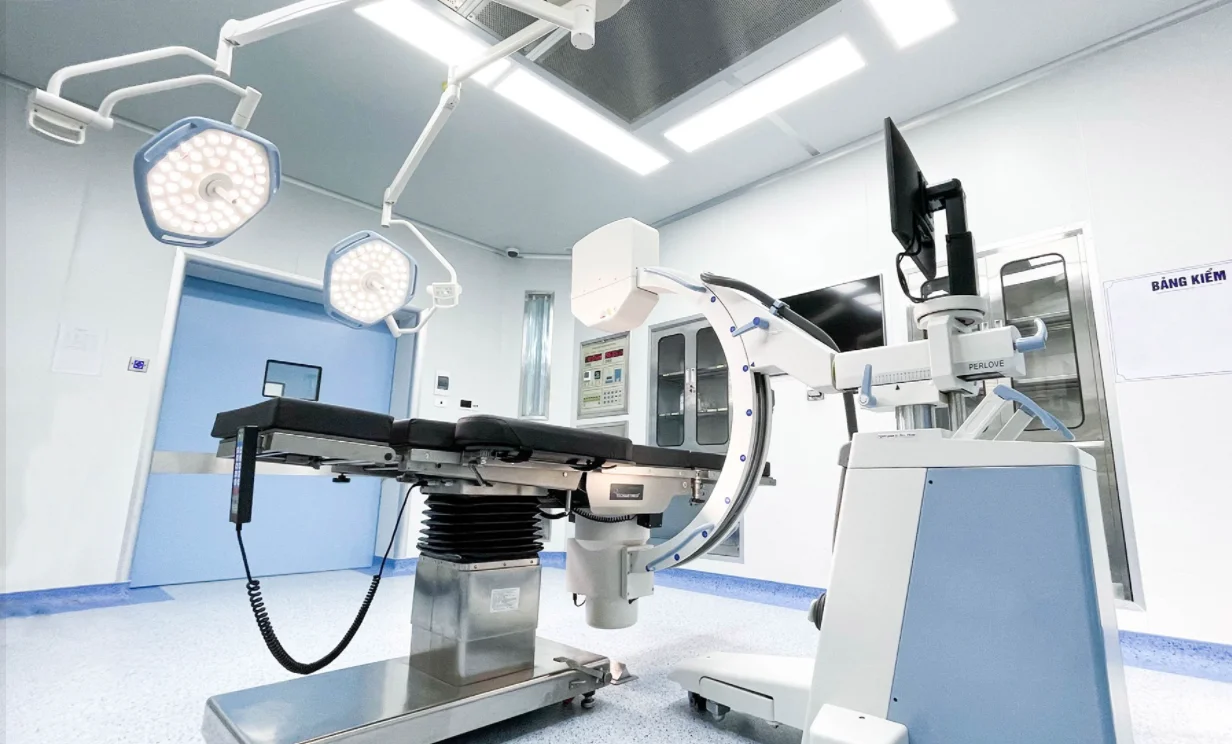

ET700 operating table is widely used in various surgical operations, which is fit for C-arm and X-Raying photographing.
The table adopts electric hydraulic pressure and telecontroller to finish all the actions.
High degree of automation and low noise, reliable, key parts are imported.
Be sure to read the instruction carefully before using, and keep it.
The table adopts electric hydraulic pressure and telecontroller to finish all the actions.
High degree of automation and low noise, reliable, key parts are imported.
Be sure to read the instruction carefully before using, and keep it.
Model | ET700 |
Length | ≥1960 mm |
Width | 500±20 mm |
Tabletop lowest height | 690±50 mm |
Elevation range | ≥400 mm |
Reverse trendelenburg/ trendelenburg | ≥20°/≥15° |
Lateral tilt (left and right) | ≥15°/≥15° |
Head plate up/down | ≥30°/≥90° |
Back plate up/down | ≥85°/≥40° |
Leg plate up/down/outward | ≥15°/≥90°/≥90° |
Kidney bridge up | 100 mm |
Translation | 340 mm |
Packing List
Anaesthesia screen | 1 pcs | Foot plate | 2 pcs |
Shoulder support | 2 pcs | Fixing clamp | 2 pcs |
Body support | 2 pcs | Telecontroller | 1 pcs |
Arm support | 2 pcs | Power line | 1 pcs |
Leg support | 2 pcs | oilcan（with oil） | 1 pcs |
Head plate | 1 pcs | Instruction | 1 pcs |
Leg plate | 1 pcs | User manual | 1 pcs |
Cushion | 1 pcs | -- | -- |
Preparations before using:
1. electric tension: 110 V, frequency :60 Hz;
2. No objects exist that affect the operations;
3. Confirm if all the power lines are connected well, the switch is in” 0” condition;
4. Move the table to the right place you need;
5. Connect the telecontroller with the table;
6. Please check the power supply before turning it on;
7. Lock the base of the table;
8. Fix up the head plate, leg plate and accessories according to the picture.
9. The table adopts short-time work, attention: never press one button over 2 min.
2. No objects exist that affect the operations;
3. Confirm if all the power lines are connected well, the switch is in” 0” condition;
4. Move the table to the right place you need;
5. Connect the telecontroller with the table;
6. Please check the power supply before turning it on;
7. Lock the base of the table;
8. Fix up the head plate, leg plate and accessories according to the picture.
9. The table adopts short-time work, attention: never press one button over 2 min.

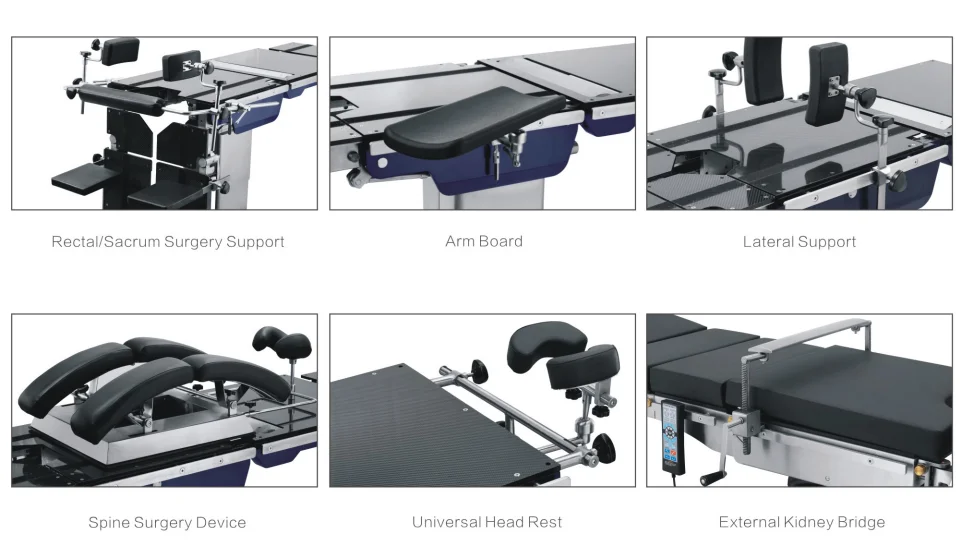

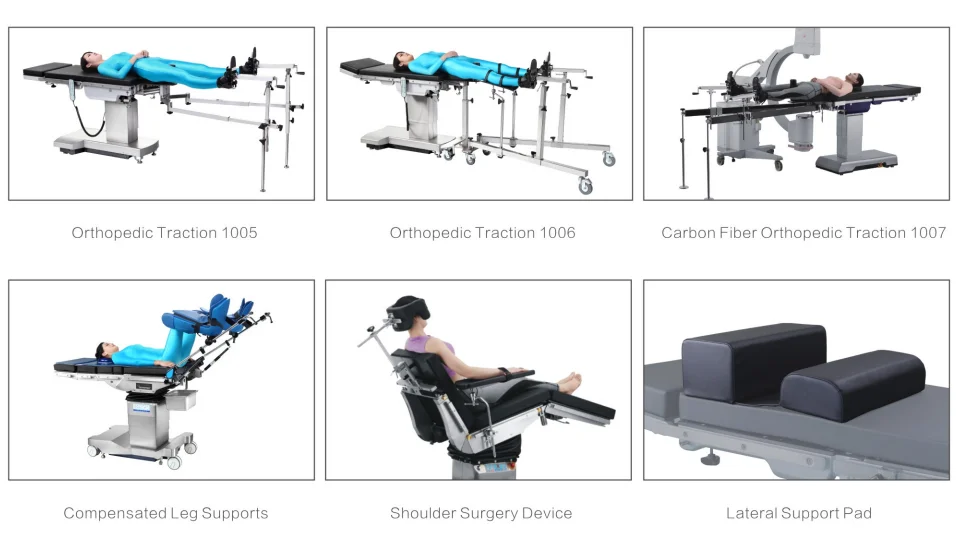

Accessories
Arthroscopy Knee Immobilizer
Arm Surgery Support
Table Width Extender
Packages
Feedback

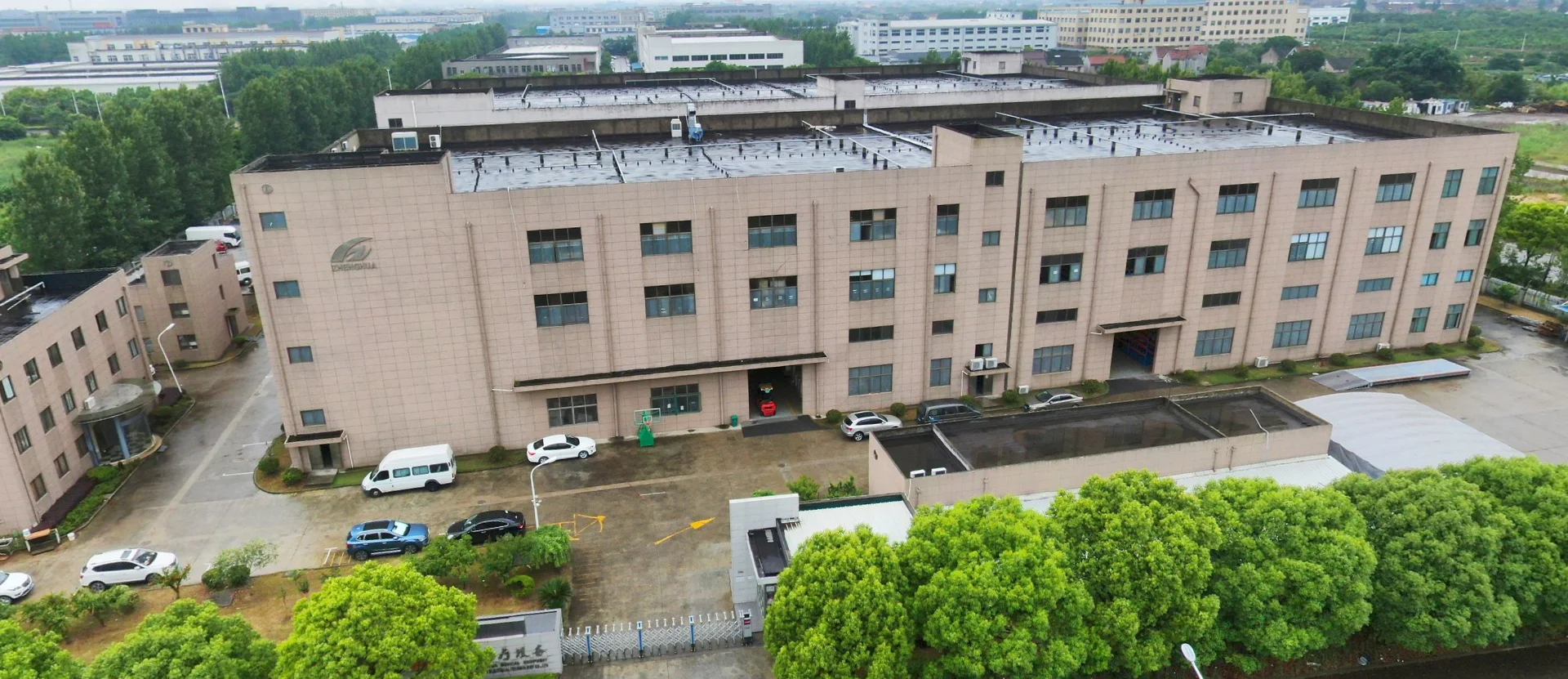

Company Profile
Shanghai Zhenghua Medical Equipment Co.,Ltd established in 1993, is a professional manufacturer engaged in the research, development, production, sale and service of medical pendants, operation light, Operation table and MGPS system,Turnkey Operating Room project, cleaning system of operating room.
In 2013, it established another company "Shanghai Etar Mechanical And Electrical Technology Co.,ltd", which specifically exports Shanghai zhenghua's all products to overseas.
In 2013, it established another company "Shanghai Etar Mechanical And Electrical Technology Co.,ltd", which specifically exports Shanghai zhenghua's all products to overseas.
