Led driver 90 130v inout 12v 24v 36v 48v output constant voltage led power supply 30w 60w 150w
- Category: >>>
- Supplier: Shenzhen Bond Optoelectronic Co. Ltd.
Share on (1601187708318):
Product Overview
Description
Product Description
Ac to Dc led driver 110v 220v input led switching power supply 12v 24V 60W 100w 200W 300W led power supply

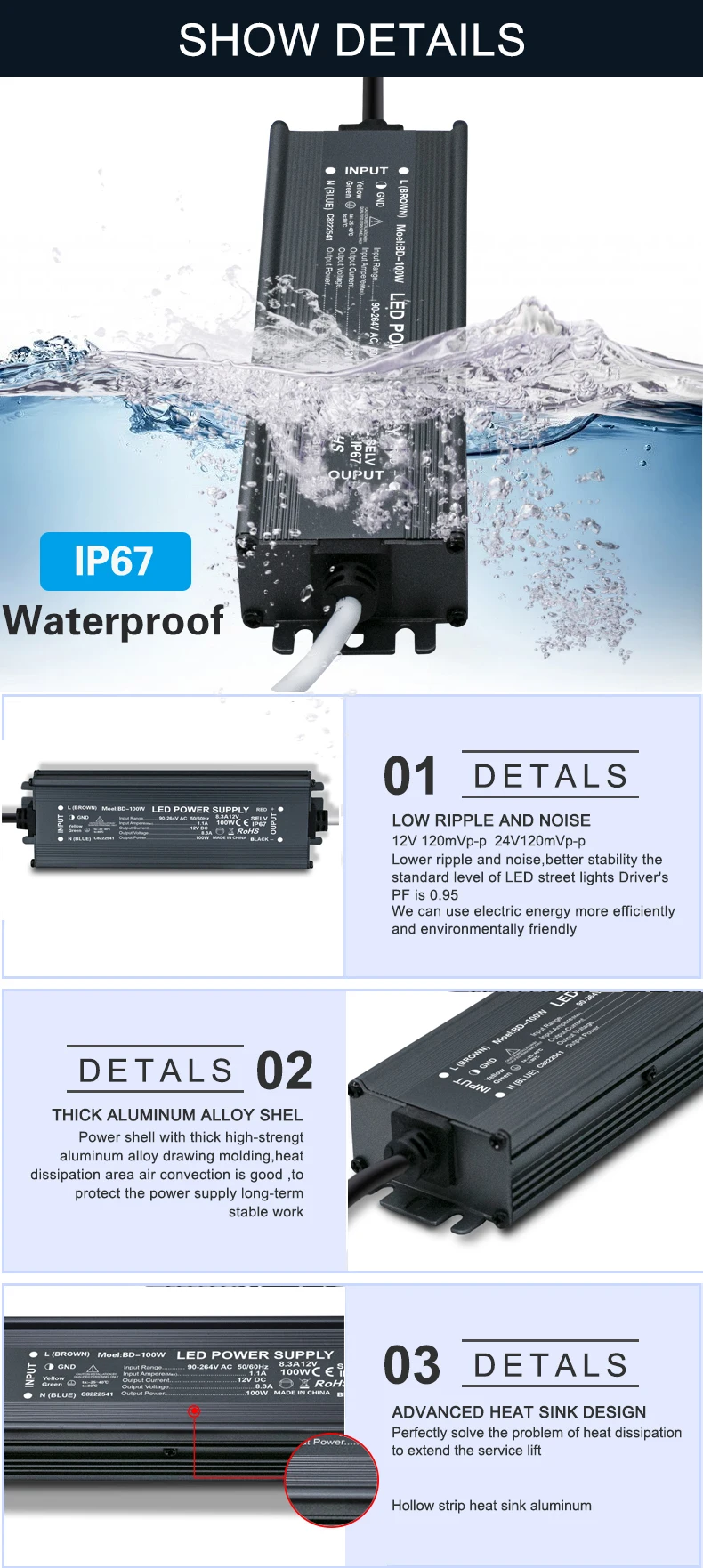

Features :
Constant voltage design
Universal AC input / Full range
Epoxy encapsulated with IP67 level
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage
Fully isolated plastic case
Cooling by free air convection
UL879 Class 2 power unit, pass LPS
100% full load burn-in test
Low cost, high reliability
Suitable for LED lighting and moving sign applications
3 years warranty

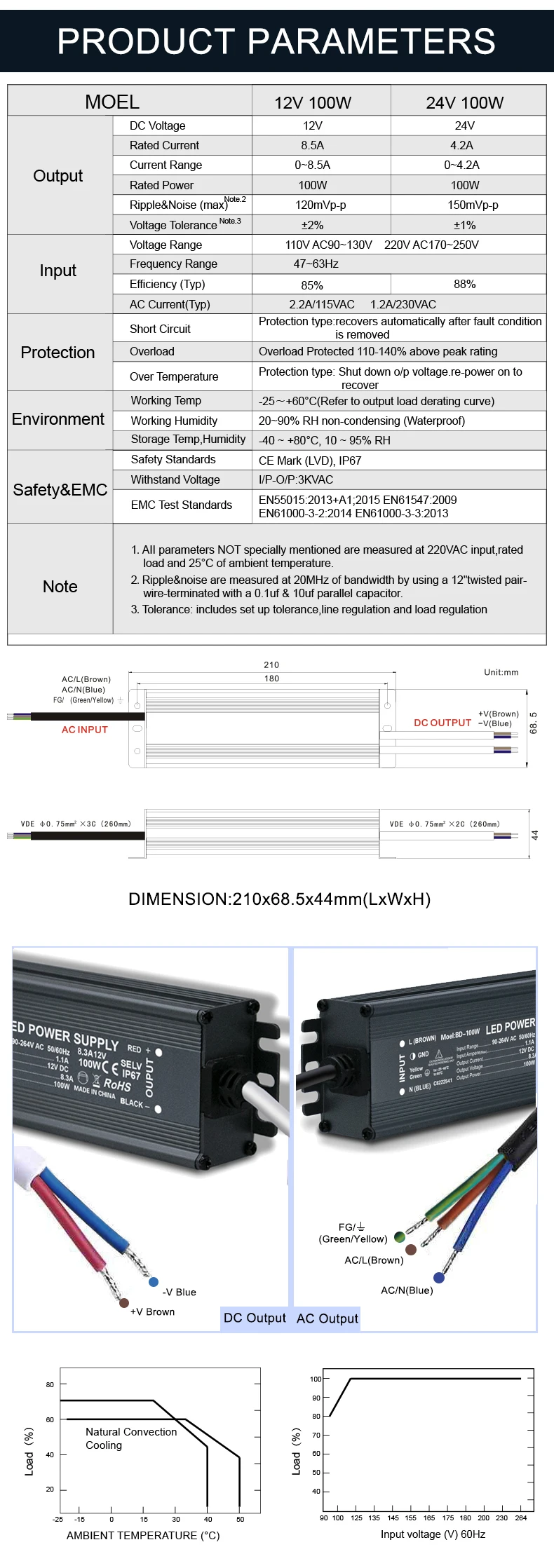

specifications
| Item | Voltage | Watts | Current | Note |
| BOND-20W | 12V/24V | 20W | 1.50A/0.73A | Input AC90-264V |
| BOND-30W | 12V/24V | 30W | 2.5A/1.25A | |
| BOND-40W | 12V/24V | 40W | 3.33A/1.67A | |
| BOND-60W | 12V/24V | 60W | 5A/2.5A | |
| BOND-100W | 12V/24V | 100W | 8.33A/4.2A | |
| BOND-120W | 12V/24V | 120W | 8.33A/4.2A | |
| BOND-150W | 12V/24V | 150W | 12.5A/6.25A | |
| BOND-200W | 12V/24V | 200W | 16.66A/8.33 | Input AC170-264V |
| BOND-300W | 12V/24V | 300W | 25A/12.5A | |
| BOND-200W-US | 12V/24V | 200W | 12.5A/6.25A | Input AC110V |
| BOND-300W-US | 12V/24V | 300W | 25A/12.5A |
Product Uses
1.Indoor LED illuminating lights
2.LED Neon, LED urban Decoration
3.LED Lighting Advertising,LED Display
4.Safety Protection Apparatus
5.Telecommunications, Networks
6.Vehicle Lights, Controller Panels
