SAN Brand New Rail-Mounted Crane MQG1630S Prices
$500,000.00-1,000,000.00
Mini 5t Hydraulic Telescopic Spider Crane Mini Crane
- Category: >>>
- Supplier: Henan Eternalwin Machinery Equipment Co. Ltd.
Share on (1601187788241):
Product Overview
Description
Product Description
Product Application
This machine suitable to work in the dock, warehouse, workshop etc Fixed working conditions,It can work within the 360 degrees to lift, move and materials handling.his type machine is composed by the vertical shaft, revoliving arm, rotating shaft, hoist etc.The bottom of thevertical shaft is fixed on the concreate base.Horizontally Rotation of the revoliving arm: Manual, depend on the operator use the human force to push the impending working or self prepared rope etc device. The hoist travel with the right and left straight line on the H beam, use the hoist to lift the heavy materials.
Main Features
1) Simple installation.
2)Easy handing, lighten laboring work
3) High quality with good price
4) Shorten loading time, improve work efficiency
Model | EW3.0 | ||
Specification | 3.00t | ||
Maximum Working Radius | 8.83m x0.15t | ||
Maximum Ground Lifting Height | 9.9mx0.7t | ||
Maximum Underground Lifting Height | 10mx1t (4 times), 20mx1t (2 times), 40mx0.74t (1 time) | ||
Winch Device | Hook Speed | 0-8m/min 4 fall | |
Rope | Φ8mmx 45m | ||
Telescopic System | Boom Type | five leng automatic 5 section, section 2 extend single out | |
Boom Length/times | 3.14.7m~9.9m/20sec | ||
Up and Downs | Boom Angle/Time | 0~75° /13sec | |
Slew System | Slew Angle/Time | 0-360° continuous/60sec | |
Outrigger | Outrigger Active Form | Manual rotation, oil pressure tension, automatic support | |
Maximum Extended Dimensions | length(4530)x back(4370)x font(3700) | ||
Traction system | Walking Way | Hydraulic motor drive, double speed | |
Walking Speed | 0~2.5km/ h | ||
Grade Ability | 20°（36%） | ||
Motor | Motor power | AC380V | |
Diesel Engine | brand | Eutrophic | |
Starting Method | Electric starting | ||
Displacement | 2V80/F195 | ||
Starting performance | -5-40 C | ||
Fuel/valume | Diesel/8L | ||
Fuel consumption rate | 274g/kW-h | ||
Noise level | Rated speed≤81.5dBA (1m) | ||
Emission standards | II | ||
Battery capacity | Battery capacity | 12V, 45AH | |
Operation kind | (boom/leg), manual walk | Manual operate, manual walk | |
Standard configuration | Diesel and electric (double power) | ||
Dimension | Length x Width x Height | 2950mm x 900mm x 1560mm | |
Weight | Vehicle Weight | 2500kg | |
Model | EW5.0 | ||
Specification | 5.00t | ||
Maximum Working Radius | 14m x0.5t | ||
Maximum Ground Lifting Height | 16.8m | ||
Maximum Underground Lifting Height | 18.5m | ||
Effective lifting height | 16.5m | ||
Winch Device | Hook Speed | 12m/min 4 fall | |
Rope | φ11mmx 80m | ||
Telescopic System | Boom Type | six leng automatic 5 section, section 2 extend single out | |
Boom Length | 4.7m~16.5m | ||
Telescopic Length/Time | 12.3m/54sec | ||
Up and Downs | Boom Angle/Time | 0~75° /13sec | |
Slew System | Slew Angle/Time | 0-360° continuous/38sec | |
Outrigger | Outrigger Active Form | Manual rotation, oil pressure tension, automatic support | |
Maximum Extended Dimensions | Left and right(7800), font and back(3600) | ||
Traction system | Walking Way | Hydraulic motor | |
Walking Speed | 0~2.5km/ h | ||
Grade Ability | 20°（36%） | ||
Diesel Engine | Brand | Yunnei, Chinese brand | |
Starting Method | Electric starting | ||
Displacement | 490 | ||
Starting performance | -5-40 C | ||
Fuel/volume | Diesel/48L | ||
Battery capacity | Battery capacity | 12V, 45AH | |
Operation kind | (boom/leg), manual walk | Manual operate, manual walk | |
Dimension | Length x Width x Height | 4750mm x 1450mm x 2200mm | |
Weight | Vehicle Weight | 6500kg | |
Model | EW8.0 | ||
Specification | 8.00t x 2.5m | ||
Maximum Working Radius | 16m x1t | ||
Maximum Ground Lifting Height | 17.8m | ||
Maximum Underground Lifting Height | 20.5m | ||
Winch Device | Hook Speed | 10m/min 4 fall | |
Rope | φ11mmx 100m | ||
Telescopic System | Boom Type | six leng automatic 5 section, section 2 extend single out | |
Boom Length | 4.7m~16.5m | ||
Telescopic Length/Time | 12.3m/54s | ||
Up and Downs | Boom Angle/Time | 0~75° /25s | |
Slew System | Slew Angle/Time | 0-360° continuous/38s | |
Outrigger | Outrigger Active Form | Manual rotation, oil pressure tension, automatic support | |
Maximum Extended Dimensions | Left and right(7800), font and back(3600) | ||
Traction system | Walking Way | Hydraulic motor | |
Walking Speed | 0~2.5km/ h | ||
Grade Ability | 20°（36%） | ||
Diesel Engine | Brand | Yunnei, Chinese brand | |
Starting Method | Electric starting | ||
Fuel/volume | Diesel/48L | ||
Battery capacity | Battery capacity | 12V, 45AH | |
Operation kind | (boom/leg), manual walk | Manual operate, manual walk | |
Dimension | Length x Width x Height | 5000mm x 1600mm x 2200mm | |
Weight | Vehicle Weight | 7500kg-7800kg | |

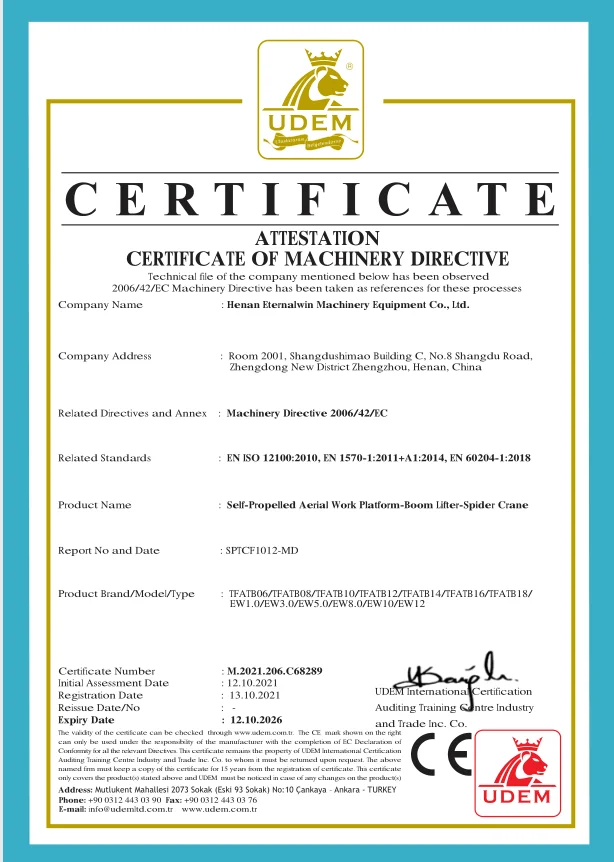

Certifications

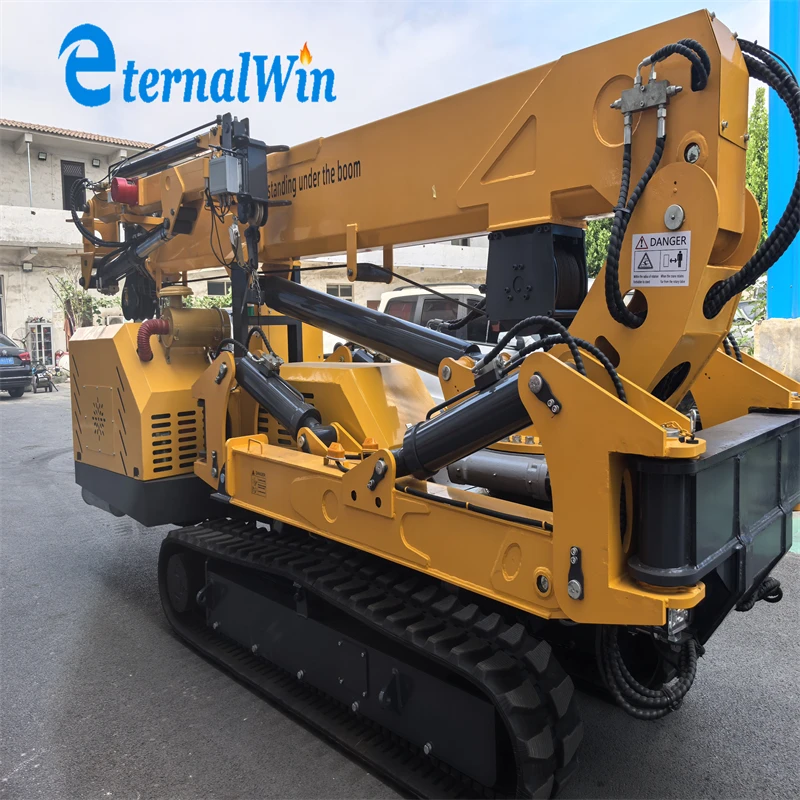

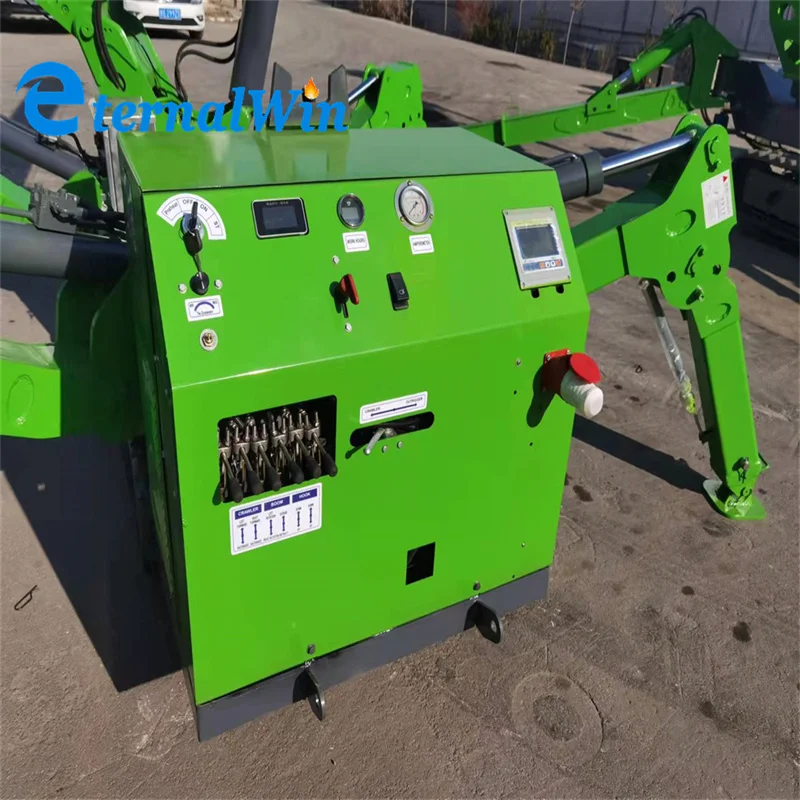

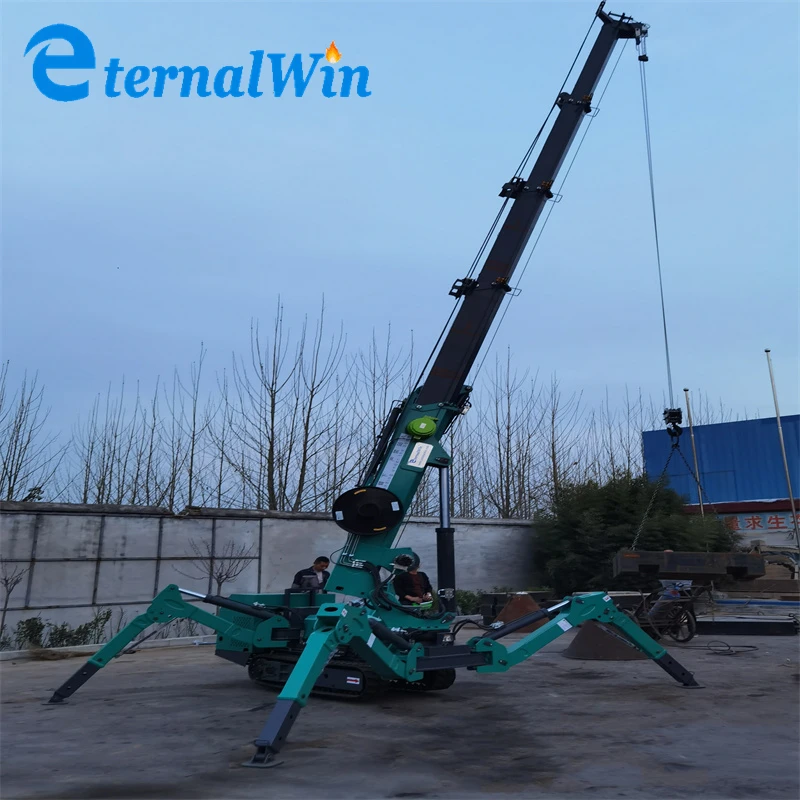

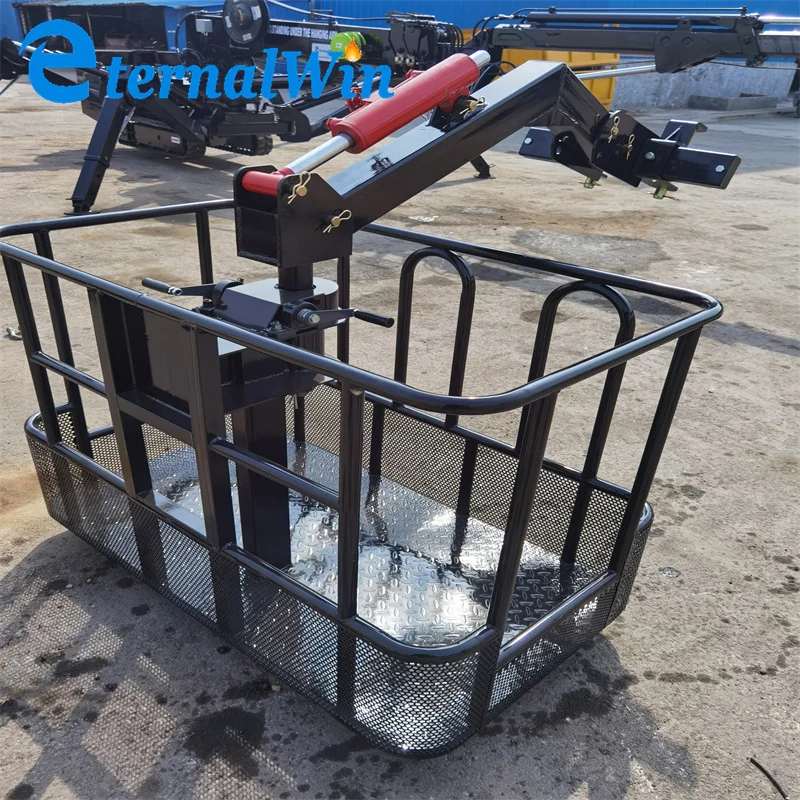

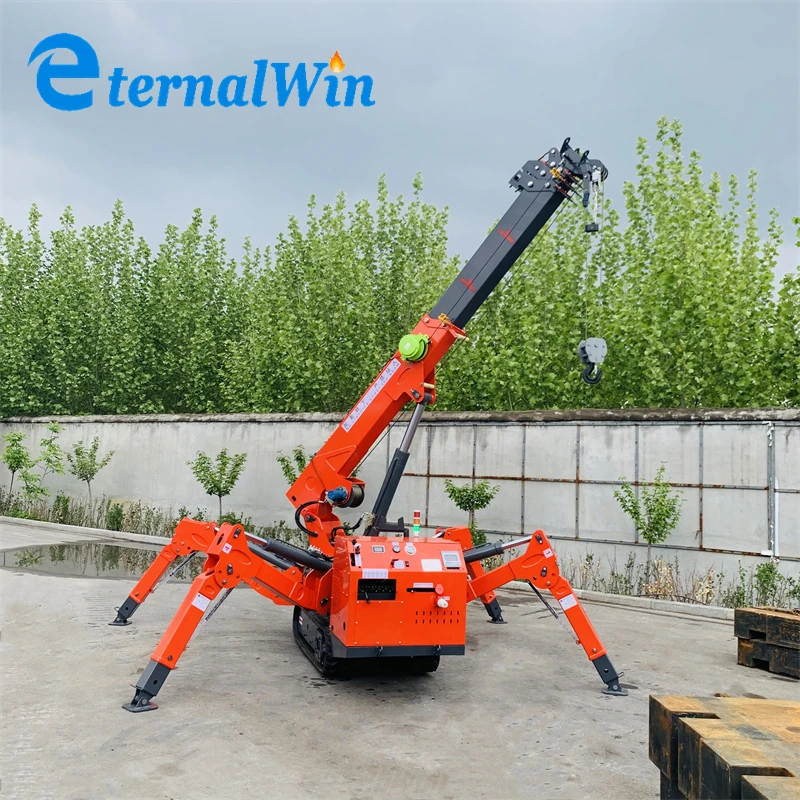

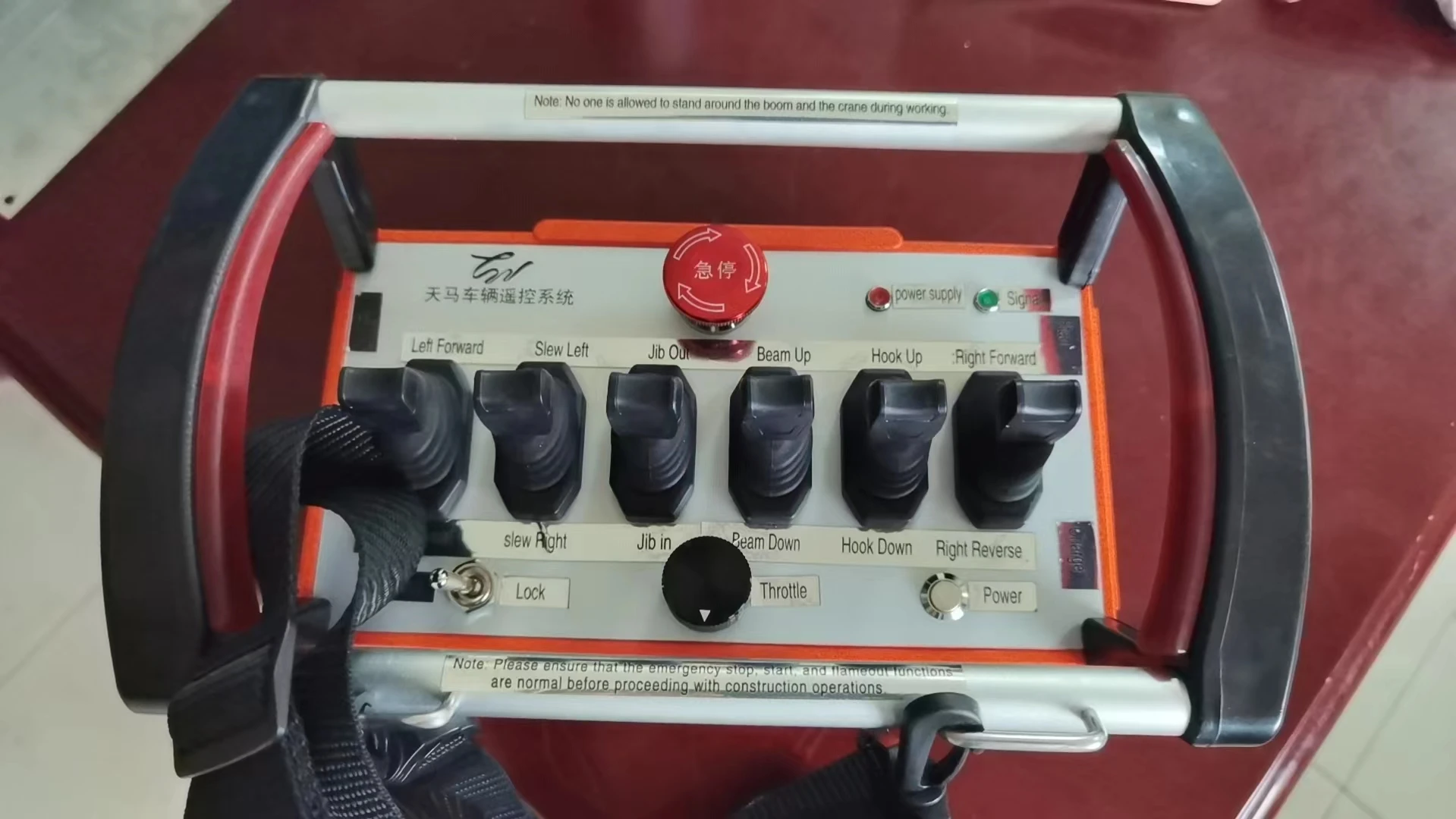

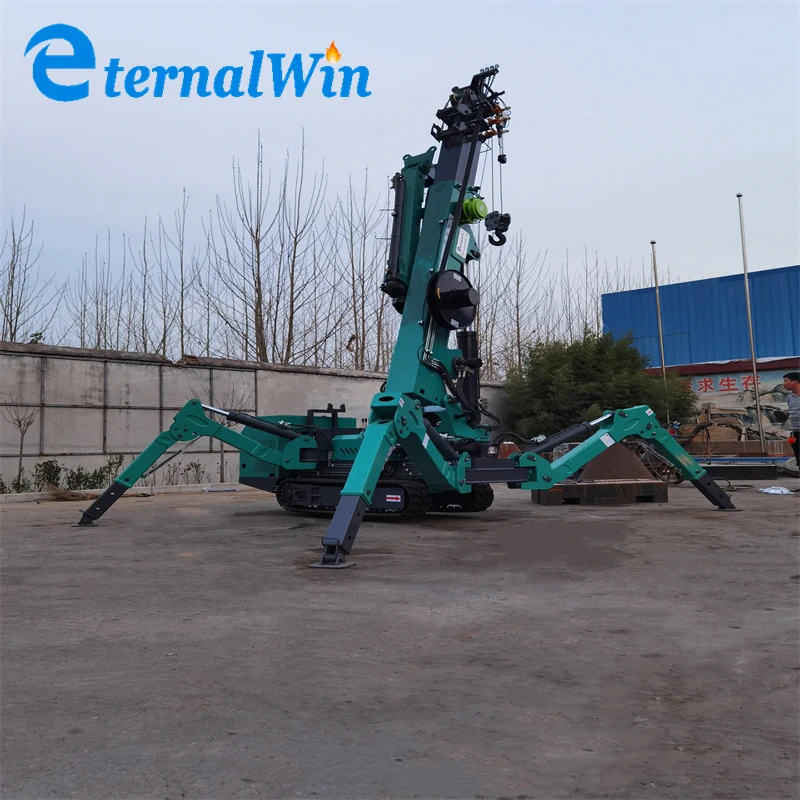

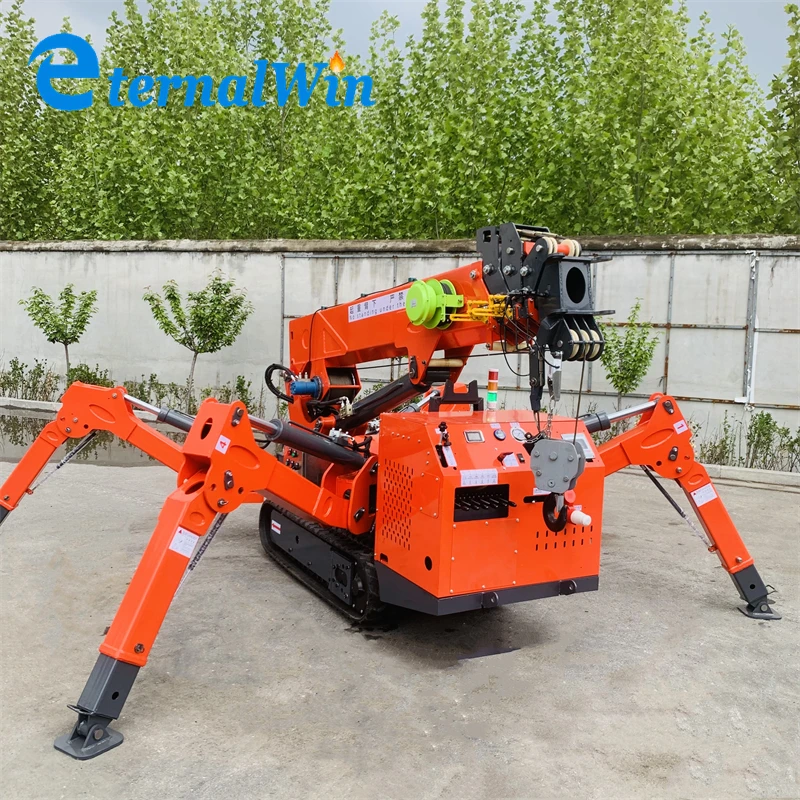

Detailed Images

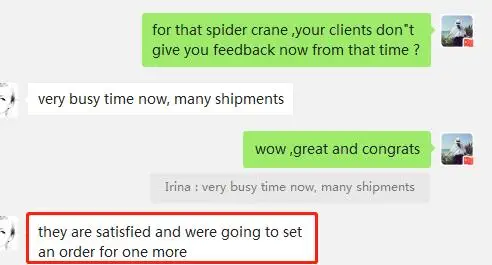

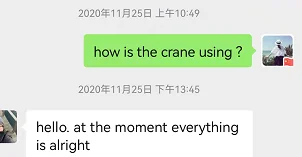

Customer feedback
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 3(L) * 2.5(W) *1 (H) | |
Weight | 2.5 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 123 (L) * 456 (W) * 789 (D) | |
Weight | 1.2 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
