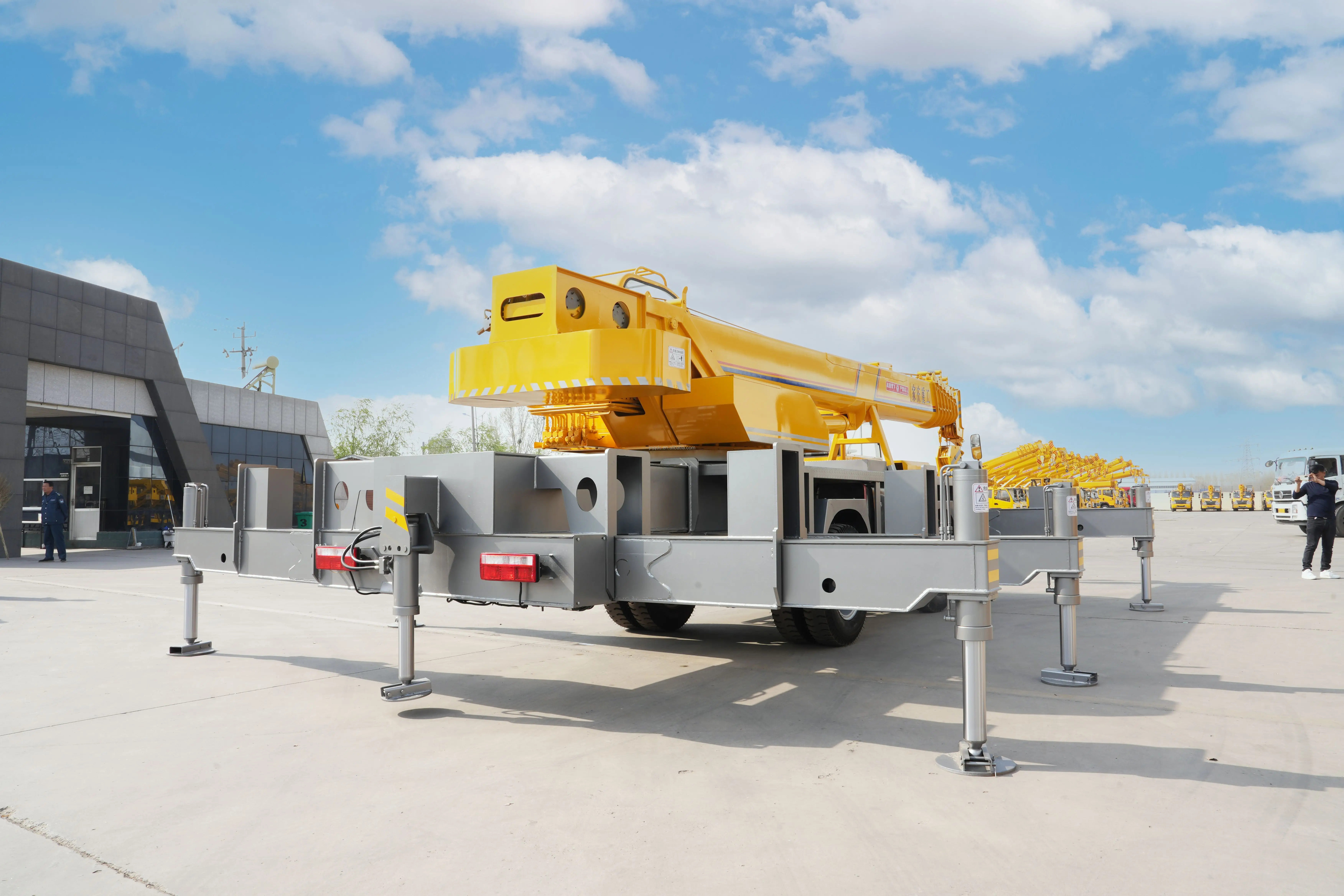

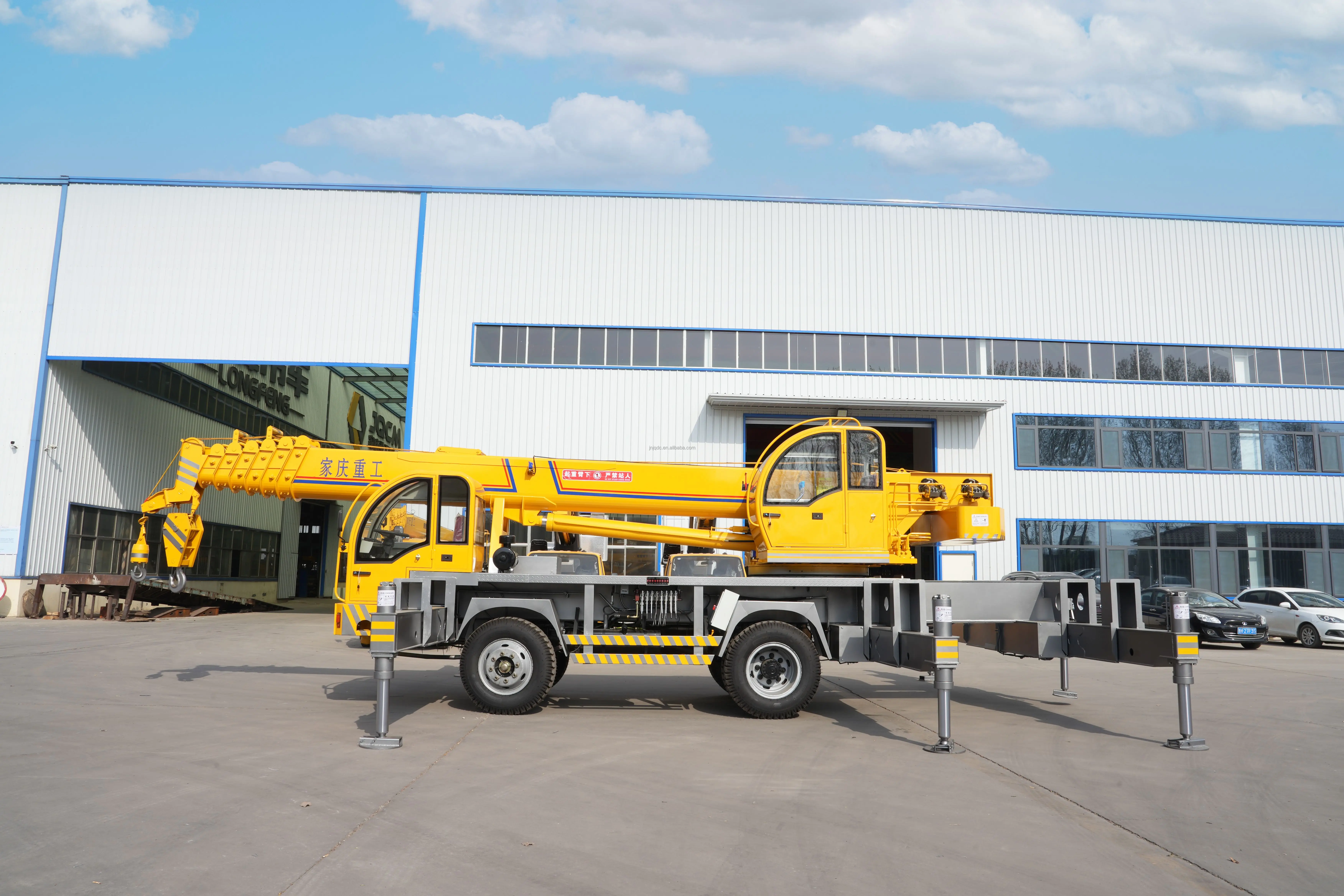

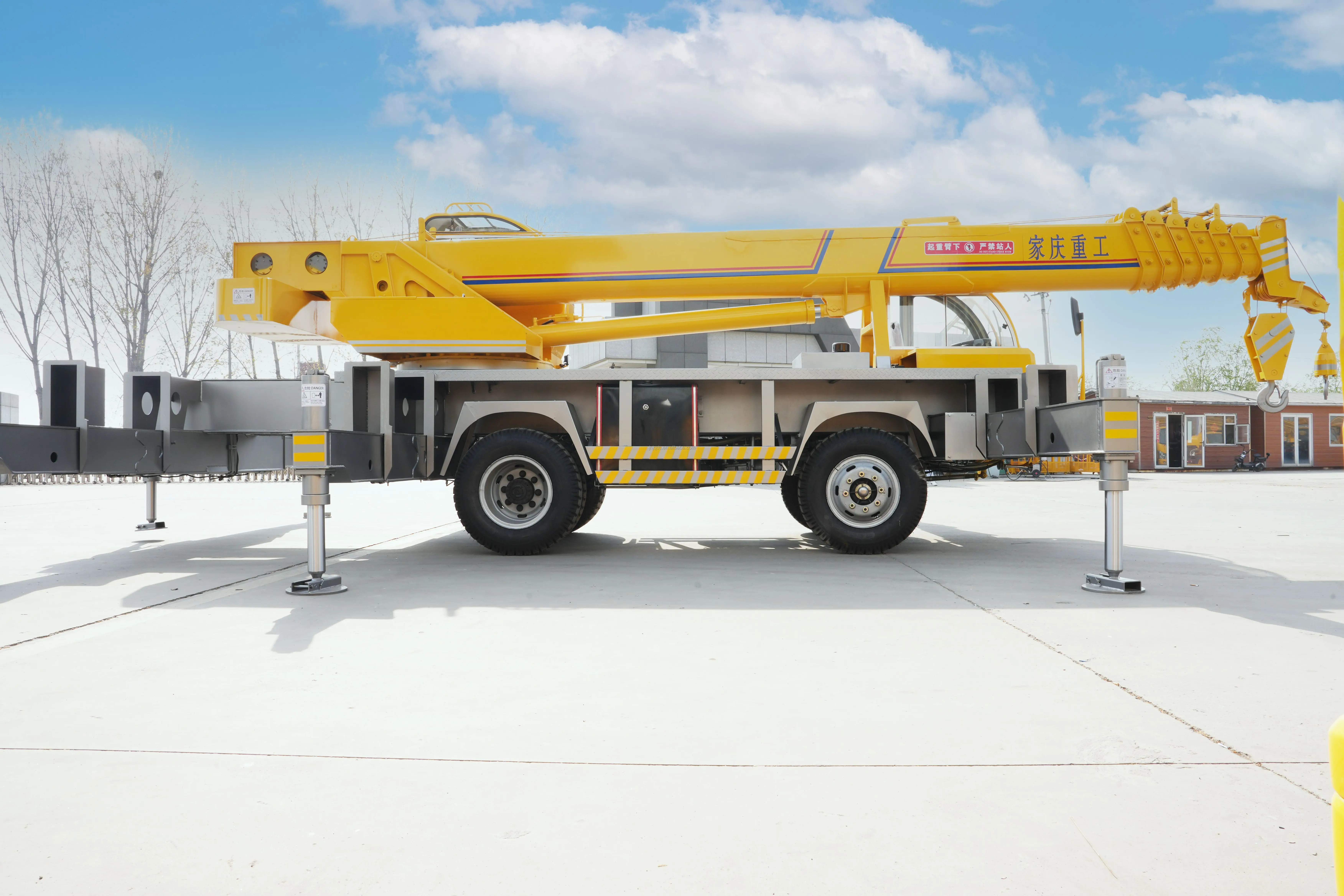

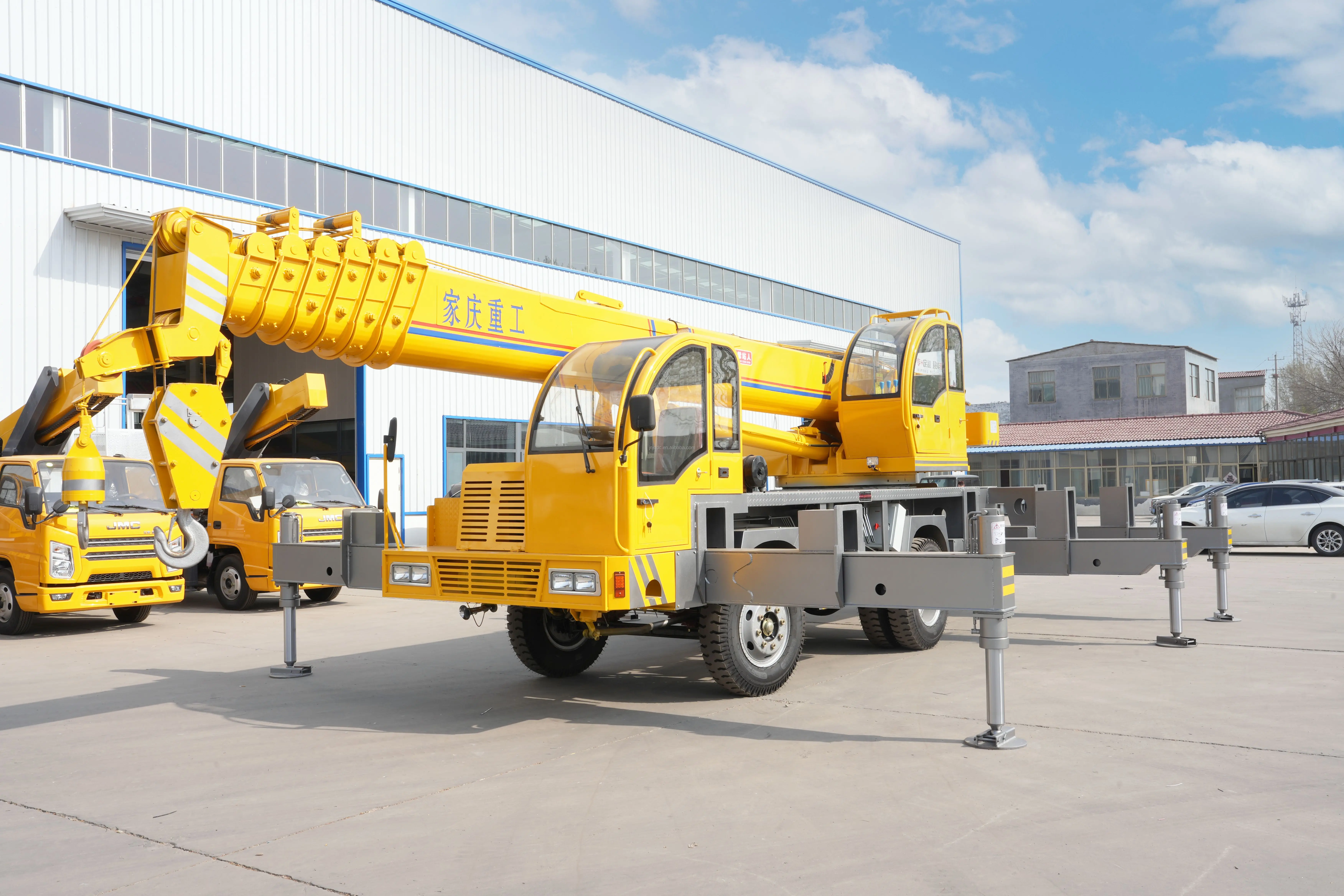

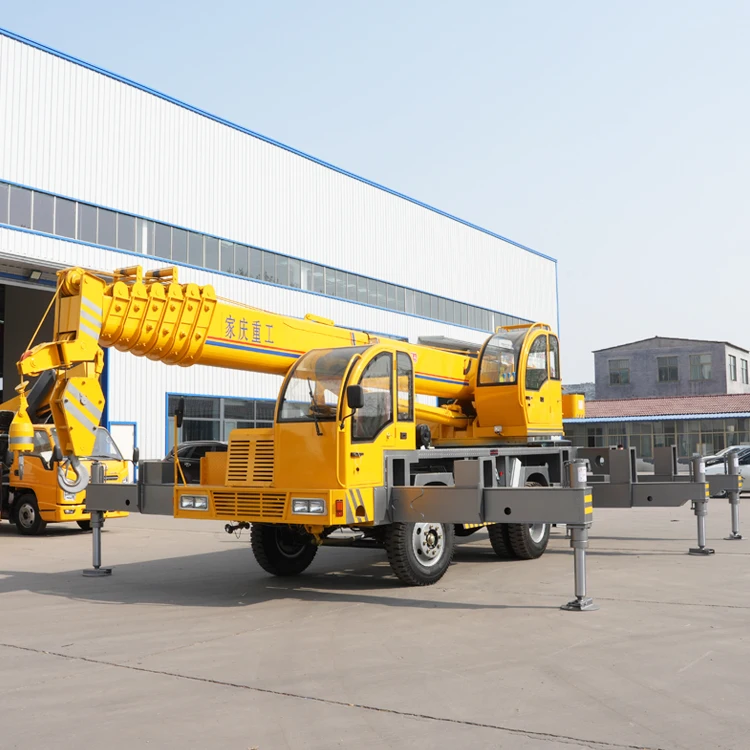

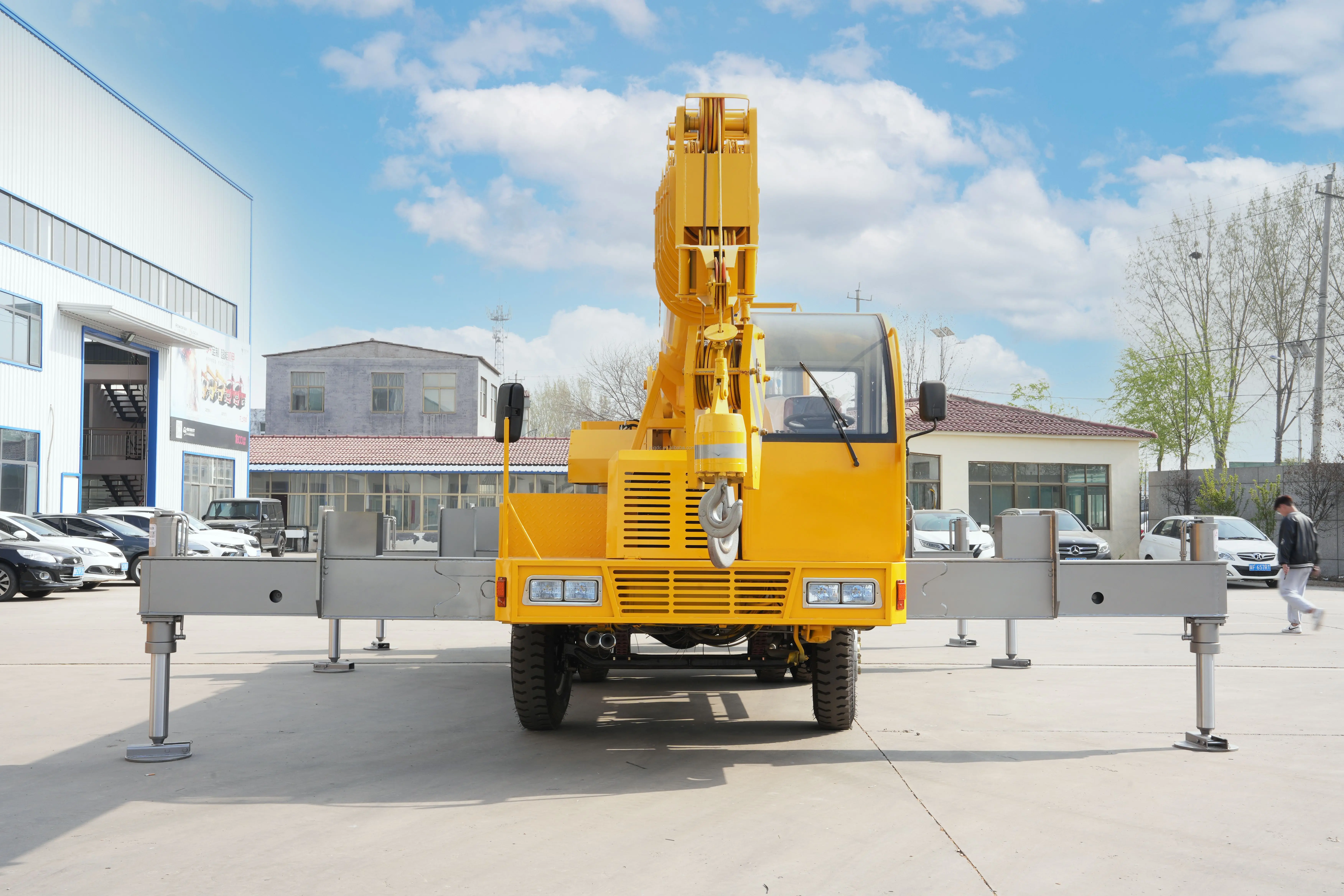

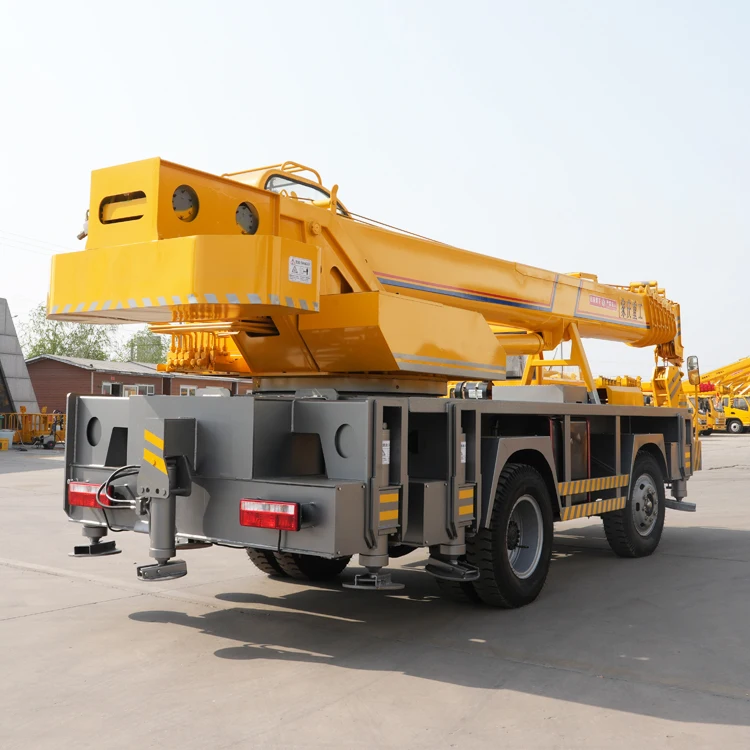

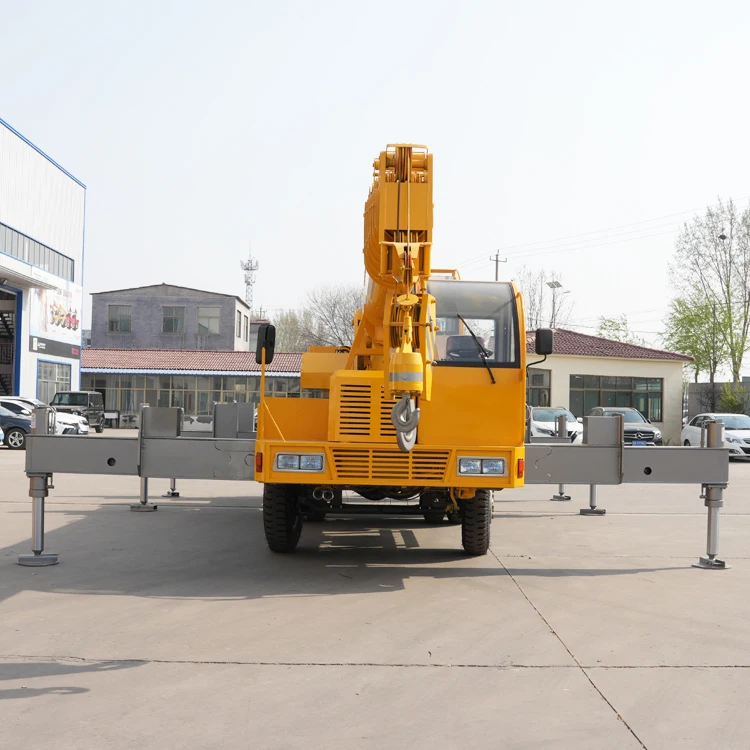

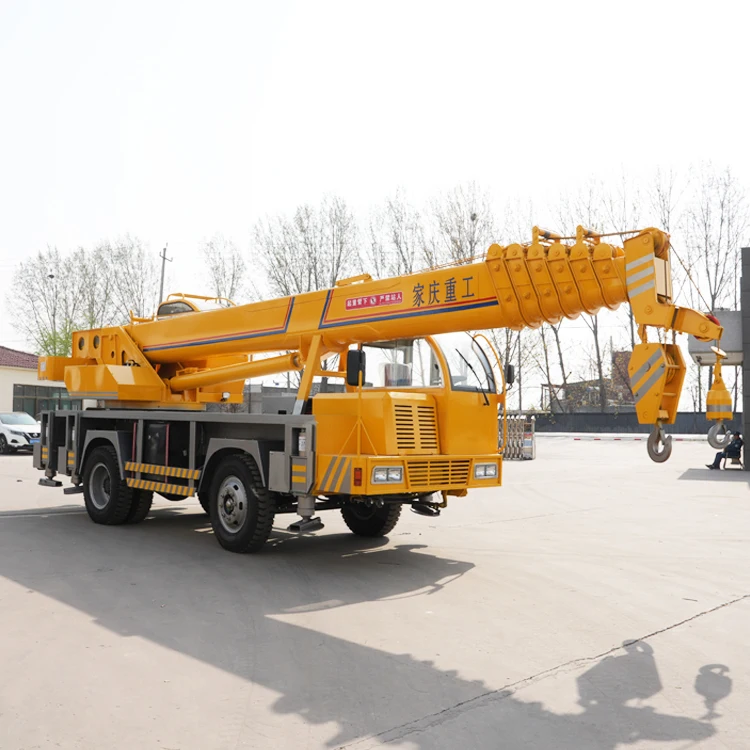

New hot sale construction application telescopic boom crane mobile crane truck 16 tons homemade crane

Jiaqing Heavy Industry's self-made 16T configuration table

brand

JQDC

Rotary mechanism

Secondary planetary steering

Chassis Model

Made by the manufacturer

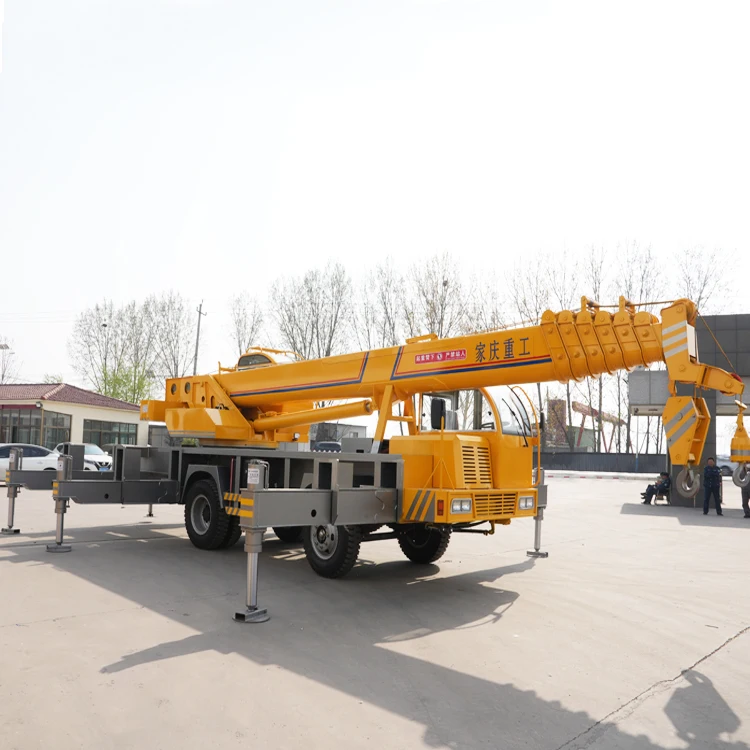

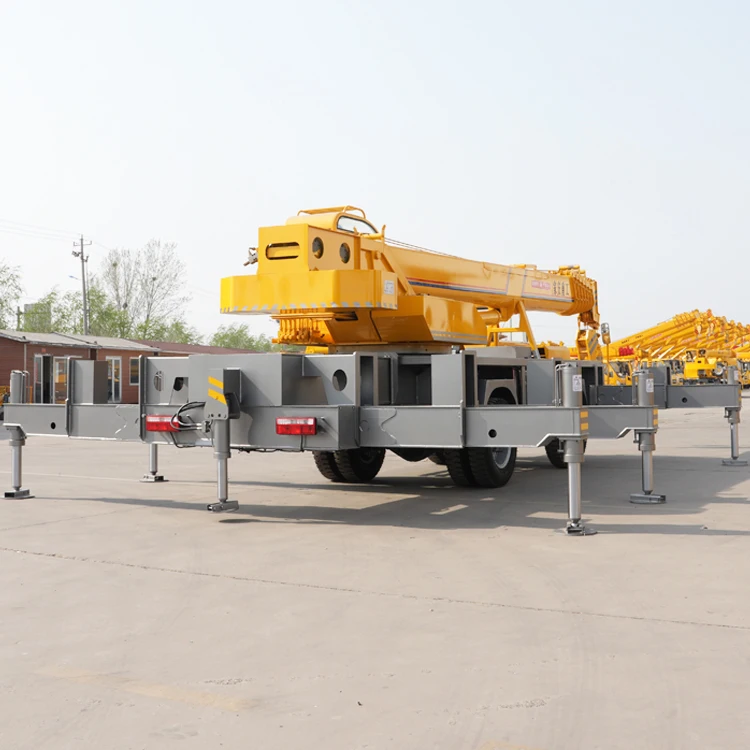

Outrigger

7 fully hydraulic outriggers

total mass

17000KG

Outrigger span (transverse)

6250mm

Full crane size

9200*2200*2900mm

Outrigger span (longitudinal)

5500mm

wheelbase

3100mm

Protective devices

two-way hydraulic lock

Maximum rated lifting capacity

16000kg

Work lights

two

maximum lifting height

42m

hydraulic pump

dual pump

engine model

4108 (pressurized)

Dual use of oil and electricity

15KW-6 pole copper core motor

power

102KW

Rotation radius

2.1m

horsepower

140 horsepower

Frame size

500mm*200mm

gearbox model

Wanliyang gearbox (high and low speed)

top of posterior displacement

standard configuration

tire

900-20

Lifting operation mode

Pushrod operation

brake system

Air brake (ABS)

Rod output form

Synchronous scaling

Steering mechanism

Hydraulic directional assistance

Type of boom structure

7m * 7 arm/6m * 8 arm

Main lifting mechanism

16 ton winch

Big arm size

580mm*380mm

Auxiliary lifting mechanism

12 ton winch

Slewing bearing

1.4 meter turntable

Optional configuration: upper air conditioning, lower air conditioning, weighing device, torque limiter, wireless camera, hanging
basket, air cushion seat

Product features: Equipped with a central rotator, the turntable can rotate 360 degrees at will. Equipped with a planetary reduction mechanism, the rotation is faster and smoother. Equipped with a hydraulic heat dissipation system to reduce oil temperature and improve efficiency; The driving is equipped with high and low speeds, steering wheel assistance, and air brake, making driving the vehicle easier and more flexible.
