eu stock diy power wall high voltage prismatic cell 3.2v 400ah 27ah 384V 25ah lifepo4 48v 200ah solar battery lithium ion
- Category: >>>
- Supplier: Guangdong Yuyang New Energy Co. Ltd.
Share on (1601189768985):
Product Overview
Description
Product Paramenters
Item | Product Parameter |
Model | YY-384V27AH-HW |
Batteries materials | Lithium iron phosphate |
Series parallel mode (S series, P parallel) | 120S1P |
Nominal voltage | 384V(Single module 96V) |
Nominal capacity | 27Ah |

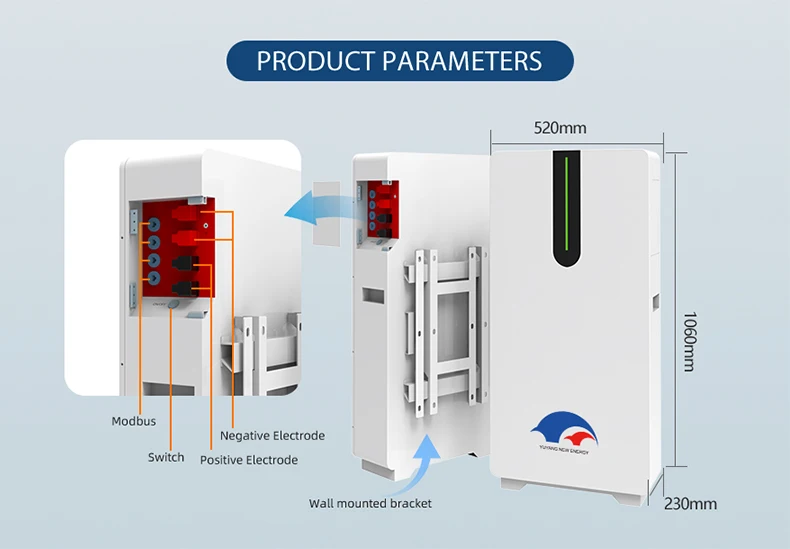

Size(mm) | 520*230*1100 |
Weight | 126KG |
Color | Optional |

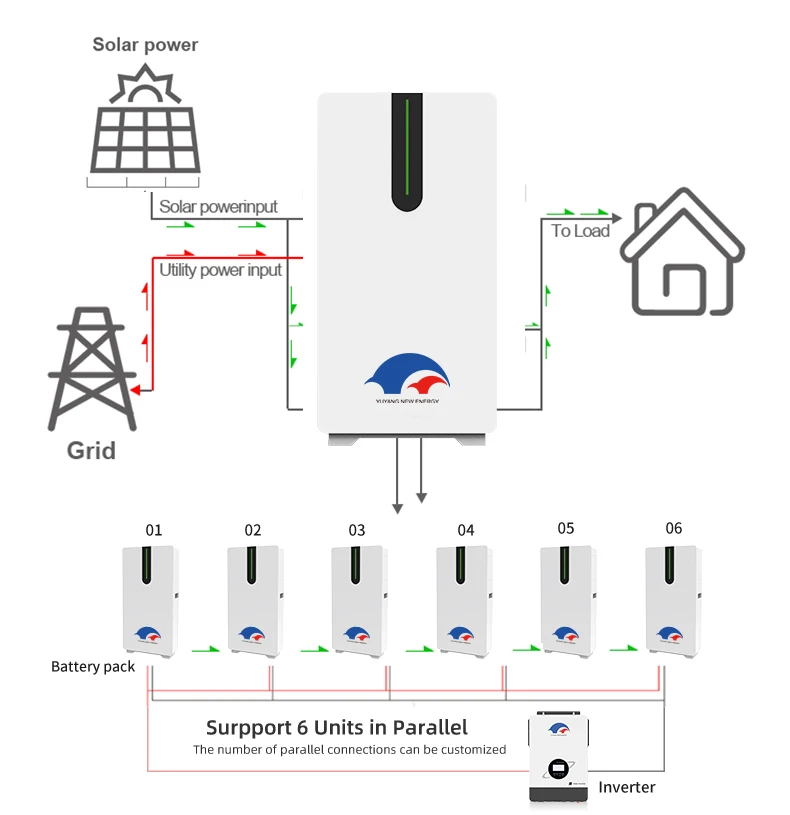

Parallel support | Parallel terminals are supported |
Output port mode | terminal |
Charging way | CC/CPVP |
Charging current | 0.5C(standard) |
Maximum charging current | 1C @25C |
Charge cut-off voltage | 438Vdc |
Discharge way | CC/CPVP |
Discharge current | 0.5C(standard) |
Maximum discharge current | 1C @25C |
Discharge cut-off voltage | 336Vdc |
Indicator | LED |
Communication interface | RS485/RS232/CAN |
Charging operating temperature | charging:0~+50℃ |
Discharge operating temperature | discharge:-20~+55℃ |
Warranty | 60 months |
Product Details
Company Profile
Certifications

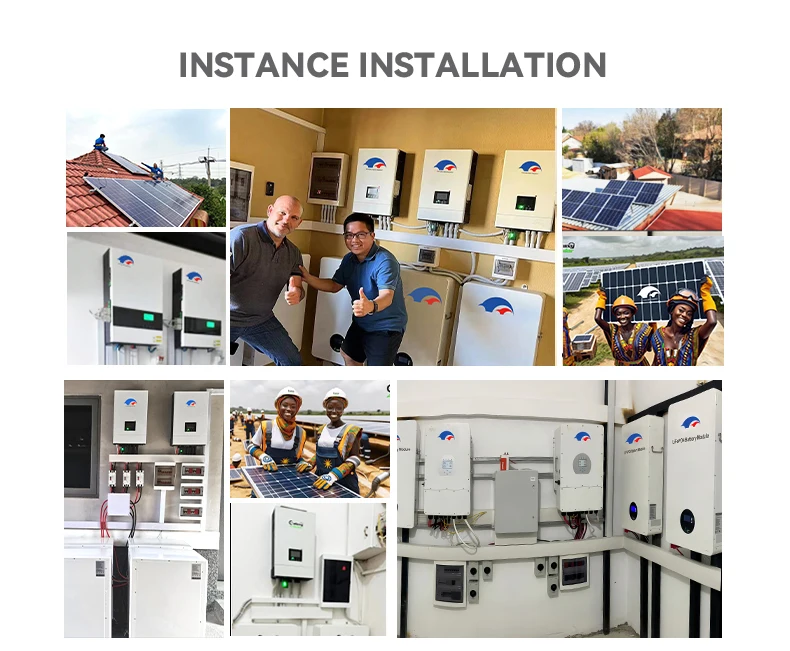

Our Project
