Solar Panel Kit System 6000W 10Kw 12Kw 20Kw 220V 230V Solar Power System For Rv
Solar Panel Kit System 6000W 10Kw 12Kw 20Kw 220V 230V Solar Power System For Rv
Solar Panel Kit System 6000W 10Kw 12Kw 20Kw 220V 230V Solar Power System For Rv
Solar Panel Kit System 6000W 10Kw 12Kw 20Kw 220V 230V Solar Power System For Rv
Solar Panel Kit System 6000W 10Kw 12Kw 20Kw 220V 230V Solar Power System For Rv
Solar Panel Kit System 6000W 10Kw 12Kw 20Kw 220V 230V Solar Power System For Rv
Solar Panel Kit System 6000W 10Kw 12Kw 20Kw 220V 230V Solar Power System For Rv

Solar Panel Kit System 6000W 10Kw 12Kw 20Kw 220V 230V Solar Power System For Rv

Share on (1601189950178):


Price:$0.50-0.65

Quantity:


Product Overview

Description





Products Description




Warranty

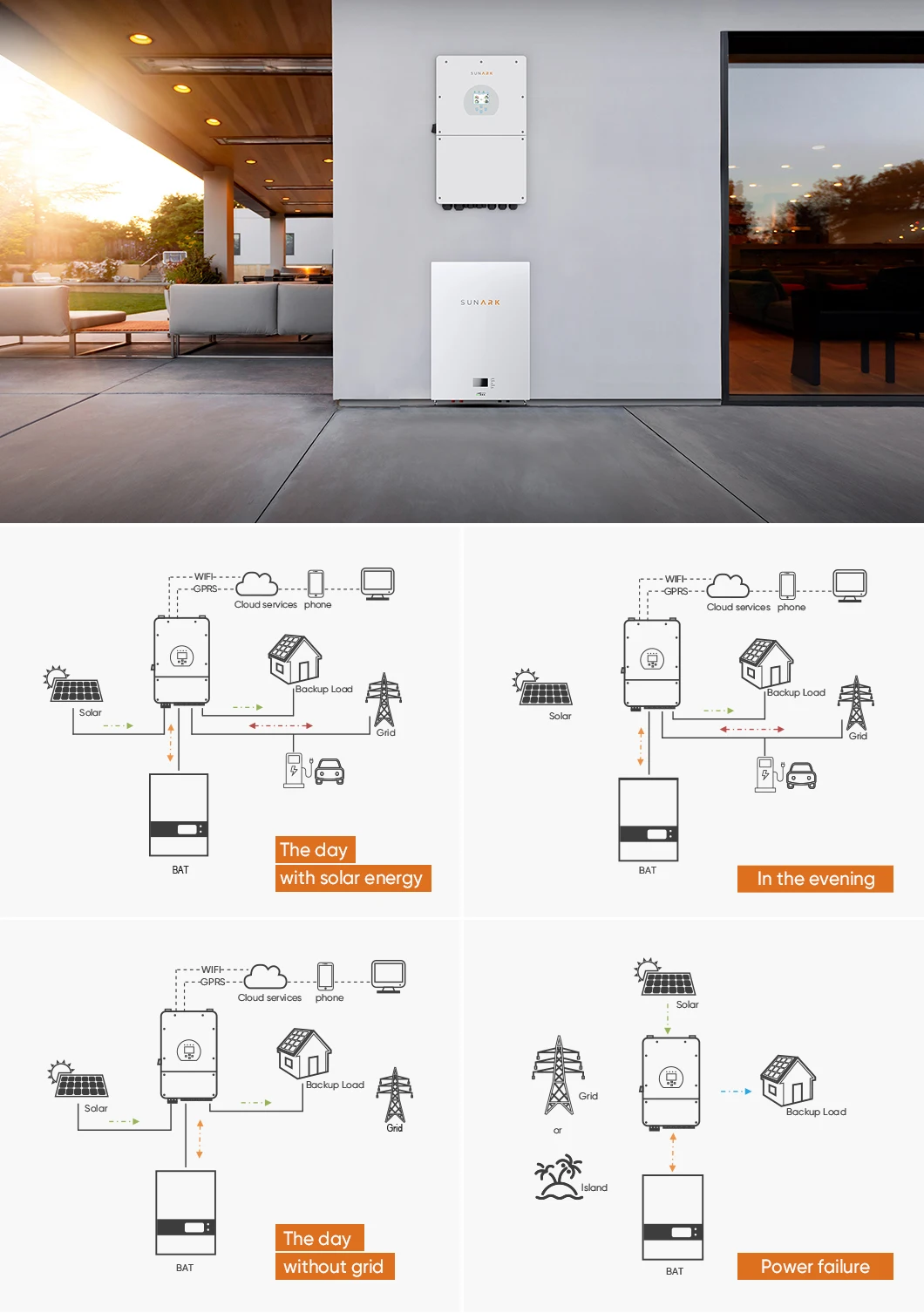

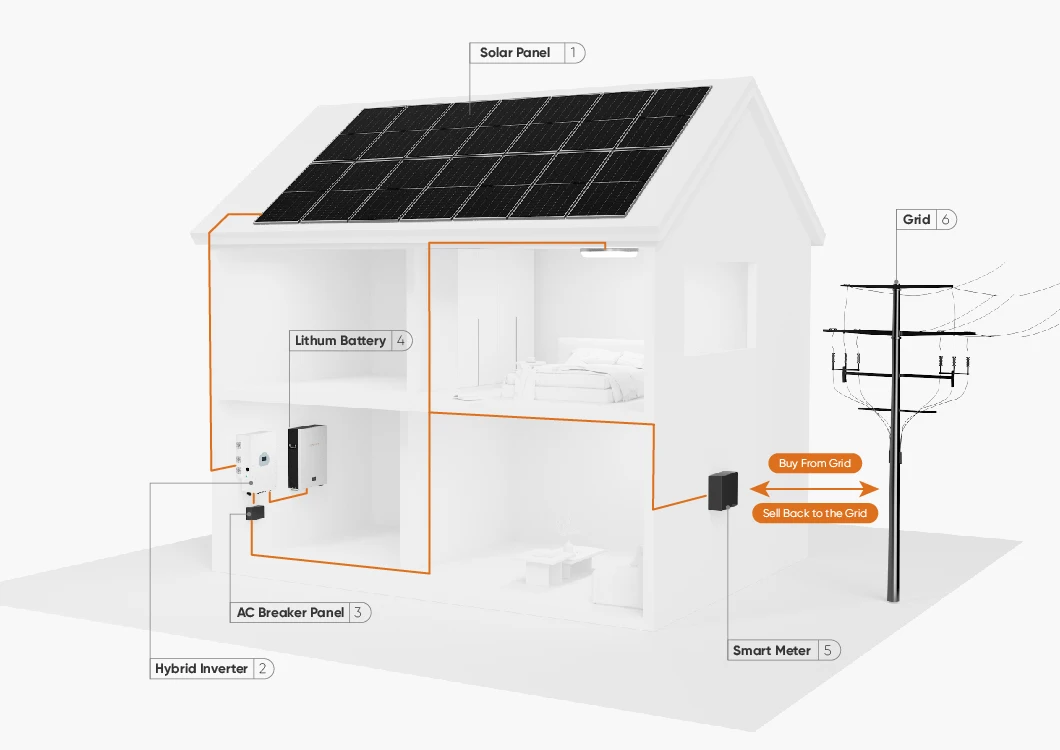

How it works

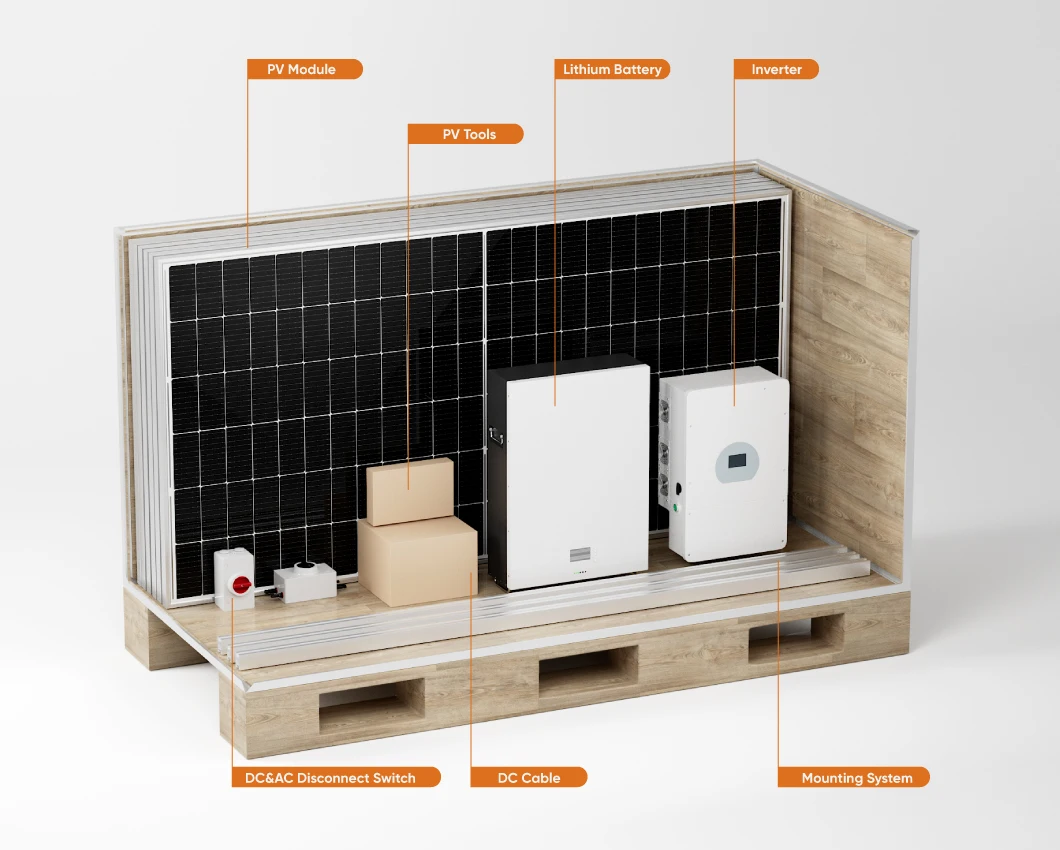

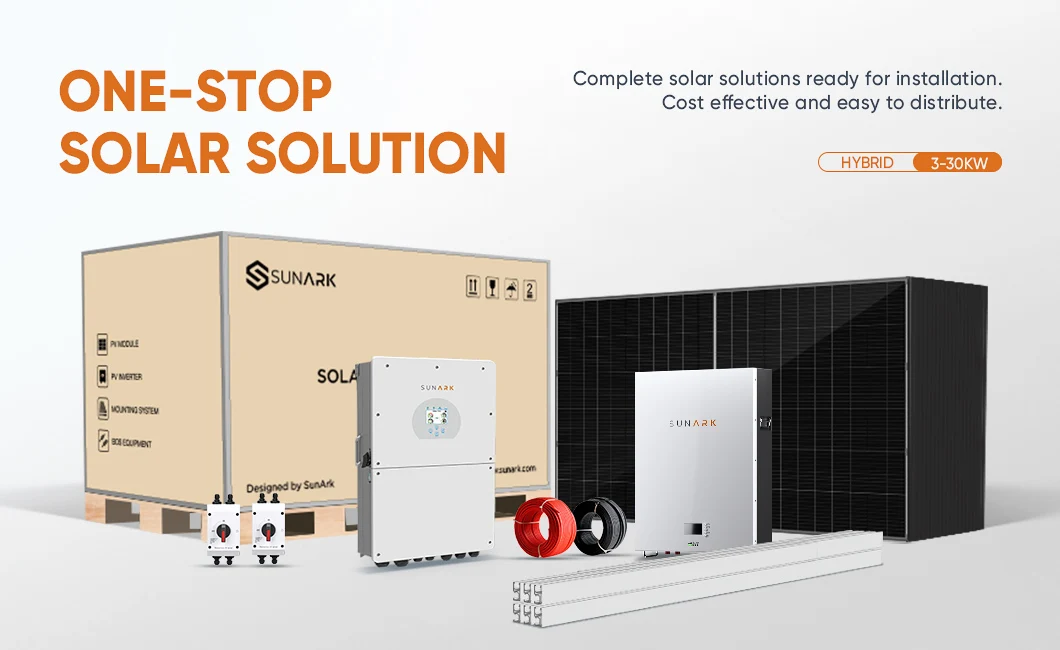

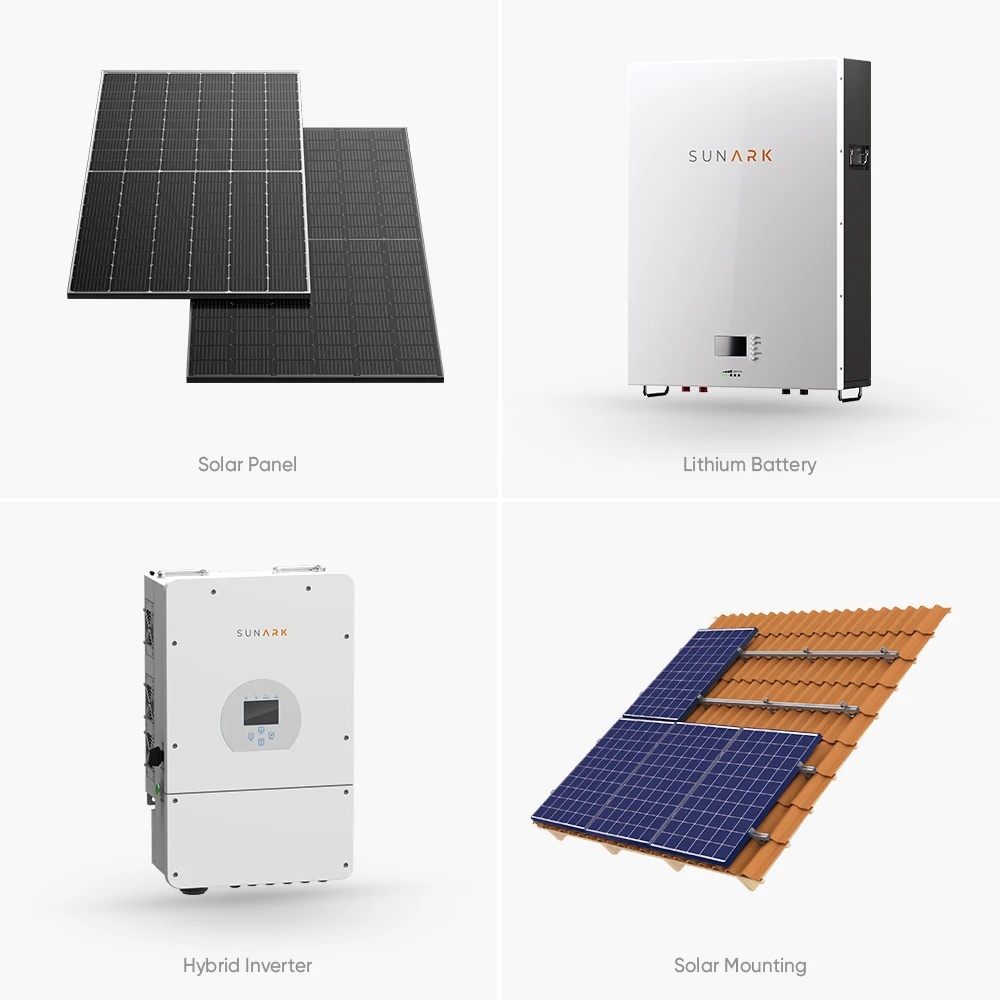

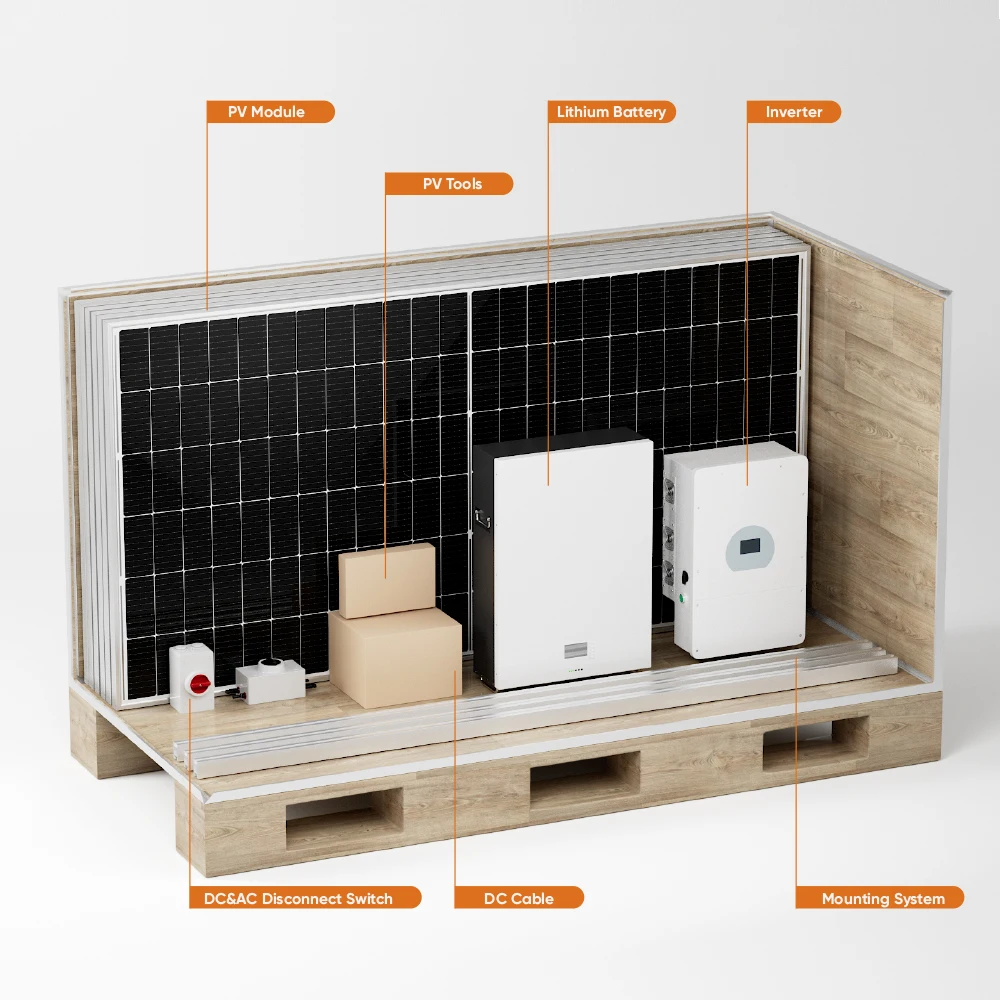

What's Included


Model
SE-3KW-HY
SE-5KW-HY
SE-10KW-HY
Half Cut Mono 550W Solar Panel
6 Pieces
10 Pieces
21 Pieces
DC Disconnect Switch
1 Piece
2 Pieces
3 Pieces
Hybrid Inverter
SUN-3K-SG04LP1-EU
SUN-5K-SG03LP1-EU
SUN-10K-SG04LP3-EU
Wall Mounted LiFePo4 Battery
5Kwh
5Kwh
10Kwh
DC Cable 4mm2
100 meter
200 meter
400 meter
AC Disconnect Switch
1 Piece
1 Piece
1 Piece
MC4 Connector
10 Pairs
10 Pairs
10 Pairs
Mounting System
Customized Product Based On Installation Roof/Ground
PV Installation Tools
1 Set
Model
SE-15KW-HY
SE-20KW-HY
SE-30KW-HY
Half Cut Mono 550W Solar Panel
30 Pieces
42 Pieces
63 Pieces
DC Disconnect Switch
4 Pieces
6 Pieces
9 Pieces
Hybrid Inverter
SUN-5K-SG03LP1-EU 3 Pieces
SUN-10K-SG04LP3-EU 2 Pieces
SUN-10K-SG04LP3-EU 3 Pieces
Wall Mounted LiFePo4 Battery
15Kwh
20Kwh
30Kwh
DC Cable 4mm2
600 meter
800 meter
1000 meter
Mounting System
Customized Product Based On Installation Roof/Ground
PV Installation Tools
1 Set

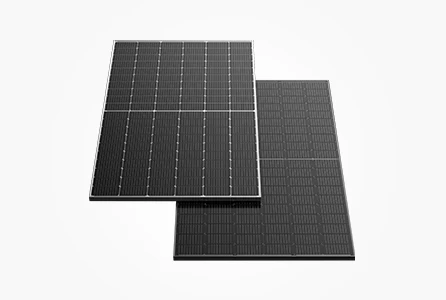

Half Cut Mono 550W Solar Panel
Peak Power Watts: 550W
Maximum Power Voltage: 42.06V
Maximum Power Current: 12.84A
Open Circuit Voltage: 49.75V
Short Circuit Current: 13.63A
Dimensions:2279x1134x35mm
Weight:26.9 kg

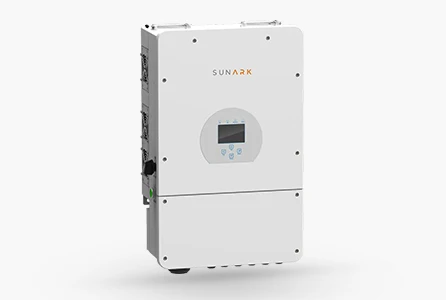

Hybrid Solar Inverter
48V low voltage battery, transformer isolation design. 6 time periods for battery charging and discharging. Max.
charging/discharging current of 240A
Max.10pcs parallel
DC couple and AC couple to retrofit existing solar system

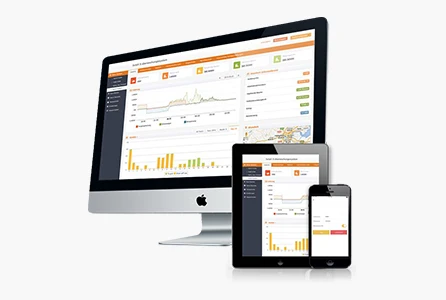

Monitoring System
Open station supports one-click installation and registration Problem support one-click dispatch and navigation Safe operation, traceable logs, etc
Support full lifecycle data storage to ensure data security and reliability

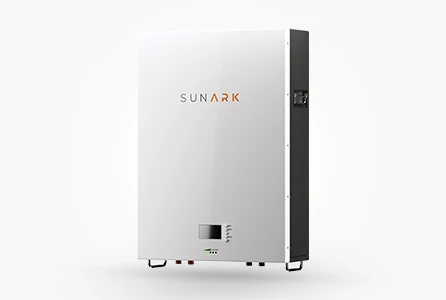

High Voltage LiFePo4 Battery Bank
15-20 years design life. Up to 6000 + cycle Ilfe
Wall mount or ground stack brick, simply connecting to inverter
Battery module is scalable for any larger storage system.
Battery modular built in high quality BMS. Protect battery cells all the way.
Lithium iron phosphate battery cell, stay safe with battery storage at home.

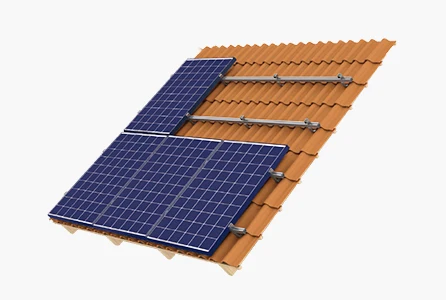

PV Mounting System
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

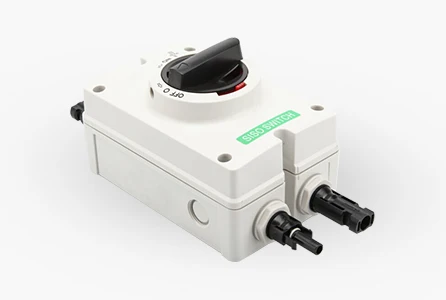

DC & AC Disconnect Switch

IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20A

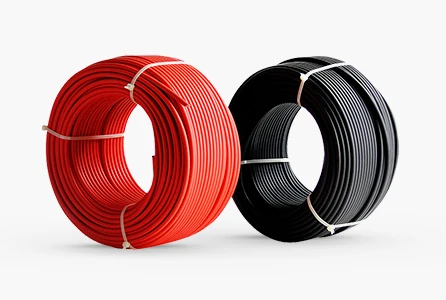

DC Cable & MC4 Connector
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years

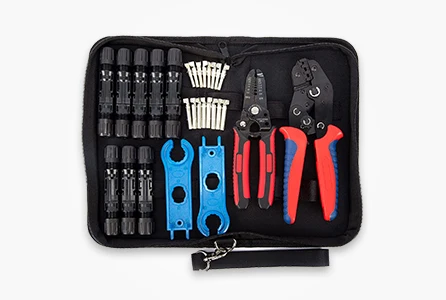

PV Tools
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool

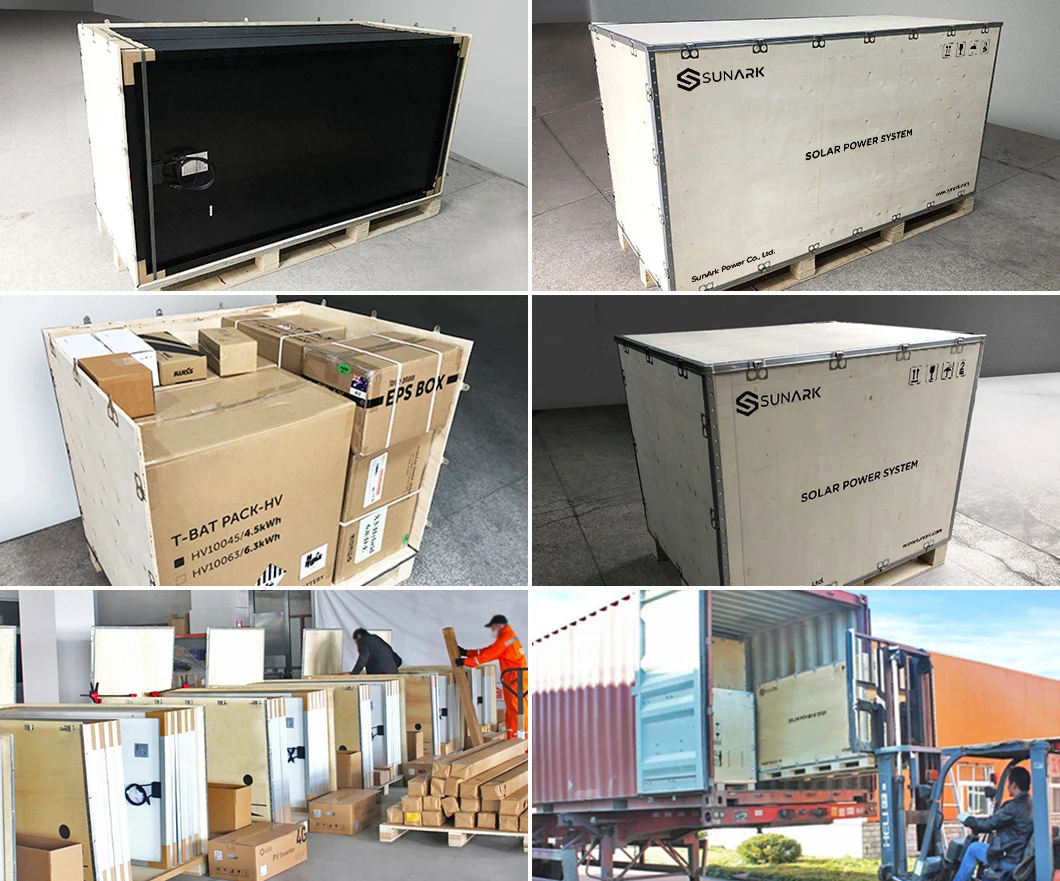

Product Packaging

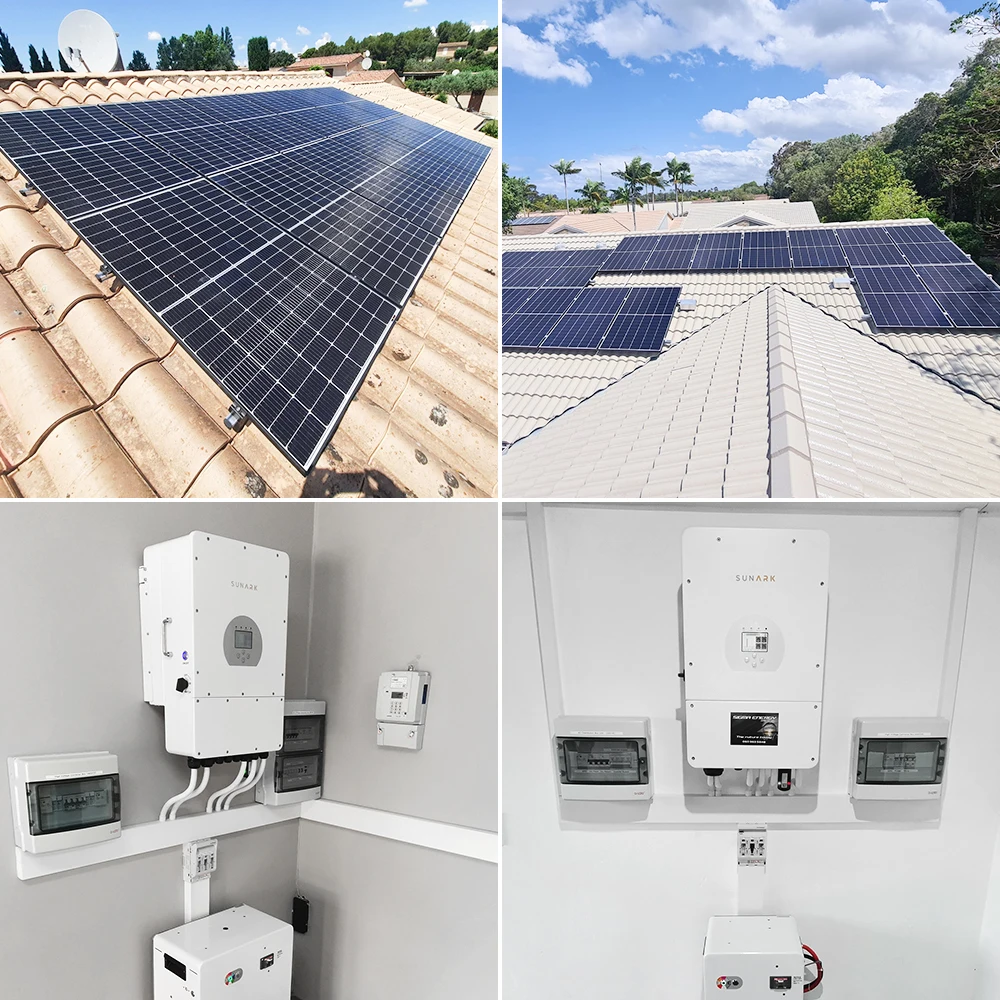

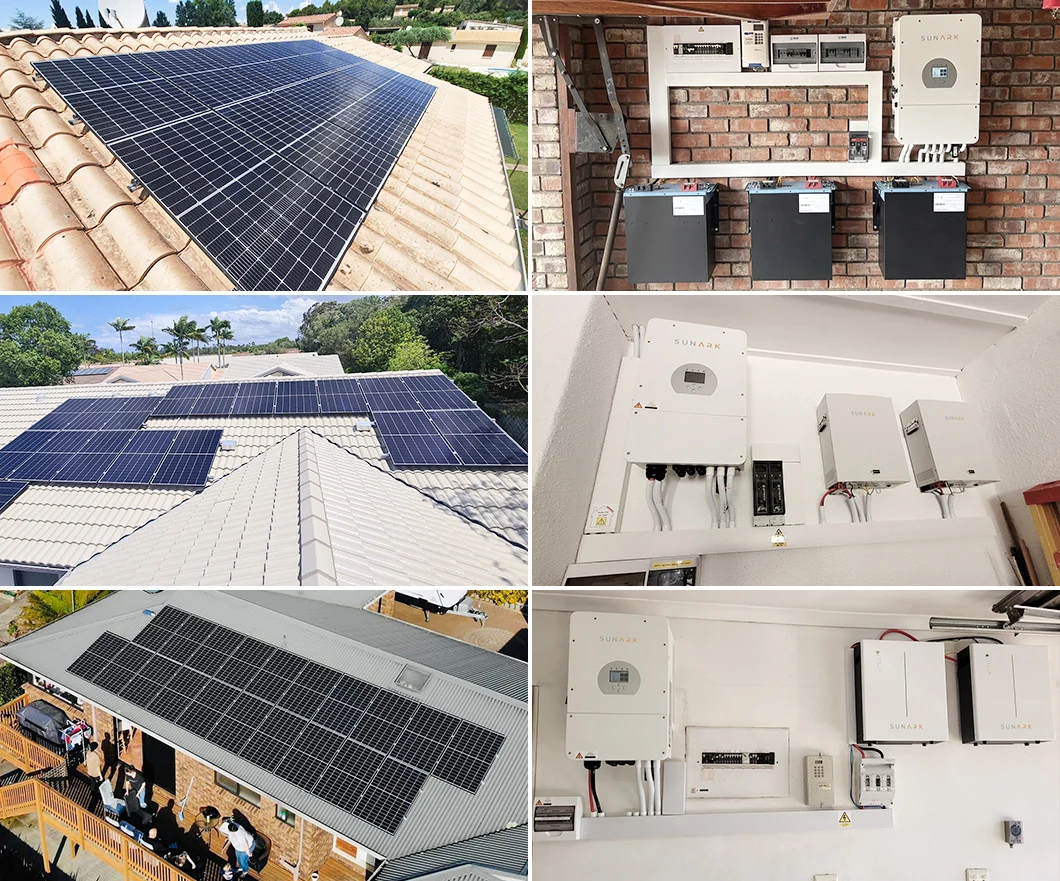

Applications

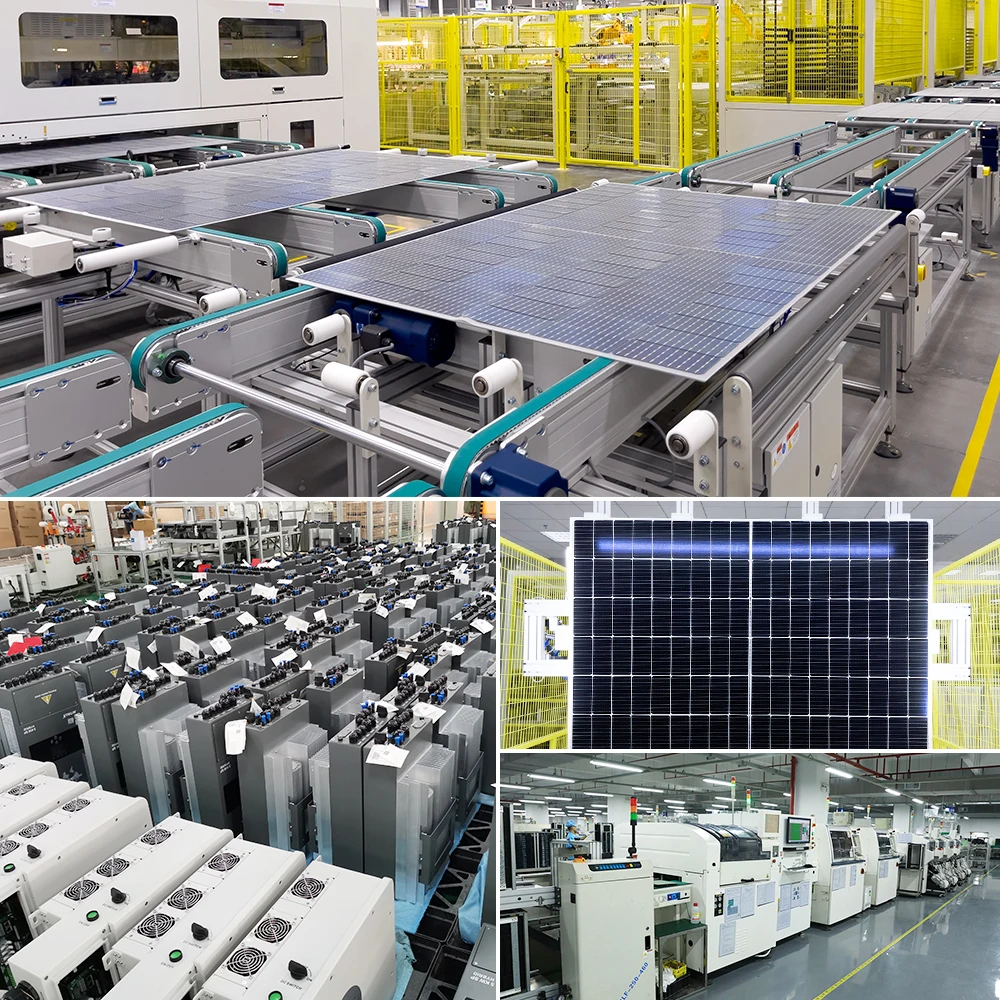

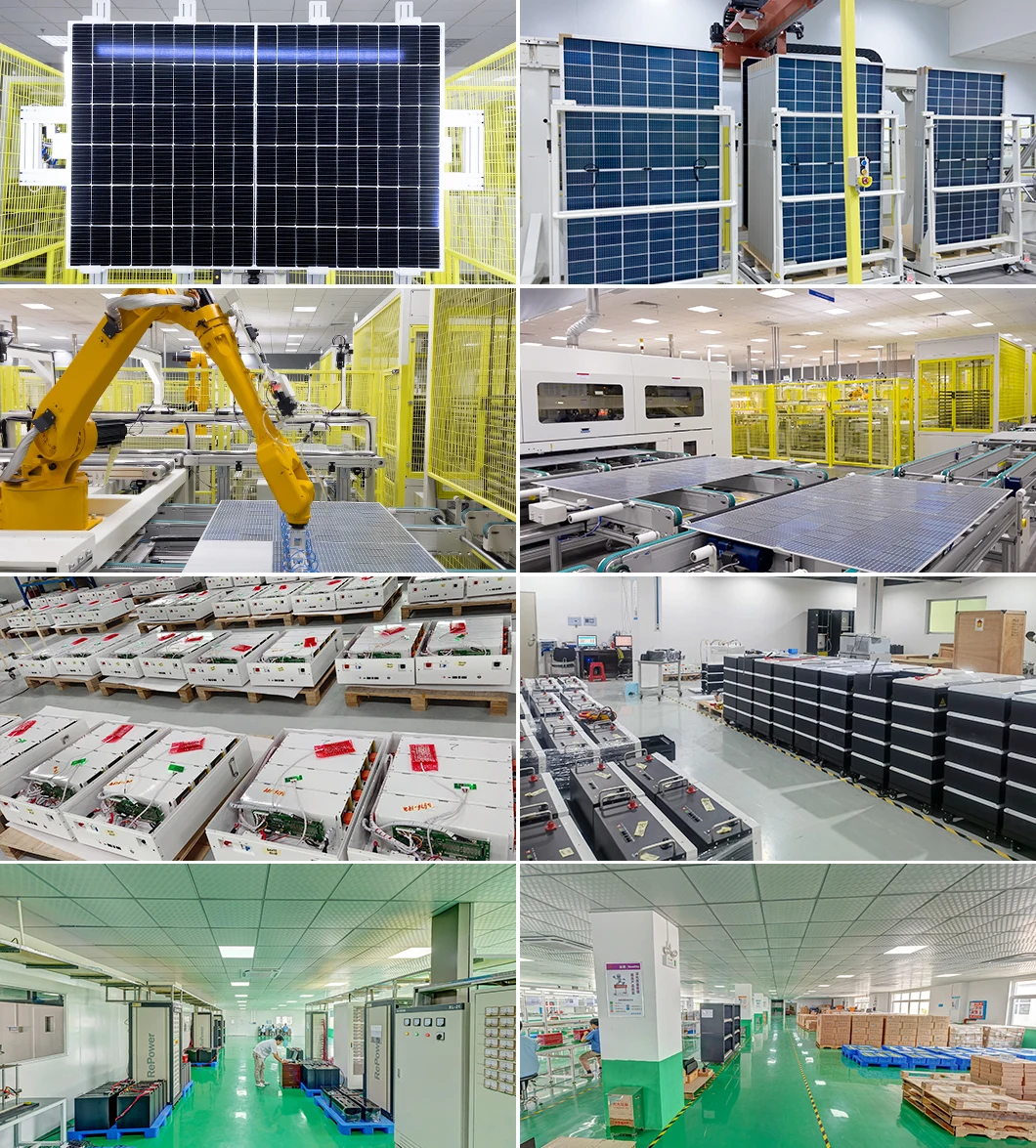

Company Profile




SunArk Power is a leading global energy storage solution and service provider. The company specializes in residential, commercial and utility applications and delivers pre-eminent products and fit-for-purpose solutions. SunArk Power has 20+ experience producing energy storage products and 90,000+ systems actively running in 80+ countries, enabling millions of people to enjoy reliable, accessible and clean energy. SunArk Power has been developing quickly, till end of 2022, accumulatively, the company has manufactured 620MWh BESS and battery strings. Internationally, SunArk Power FlexCombo DC coupling microgrid ESS, from 50kW to 500kW, is a well-known trademark that more than 300 sets has been deployed in EU, US, Canada, Brazil, Myanmar, African countries etc. SunArk Power is a national high-tech enterprise with such innovative platforms as national enterprise technology center, CNAS accredited laboratory, postdoctoral workstation, academician workstation, Equipment and Electronics Research Institute and so on. SunArk Power has core technology patents in new materials, new technologies and new structures of battery power supply, has led and participated in the formulation of a number of international, national and industrial standards.








Contact Us




FAQ


Q1.How to solve the technical problem?
A:24 hours after-service consultancy just for you and to make your problem to solve easily.

Q2.What is your Delivery time?
A:Usually, we make merchandise inventory, if we have the products in stock,The delivery time is 5-10 days after receiving the deposit; If we don’t have the products in stock, we will arrange the production right now, the delivery time will be 10-30days,It depends on the quantity of order

Q3.Why should we choose you?
A:1: Reliable company - 14 years manufacturing and exporting experience.
2: Qualified products - TUV, CE, UL, IEC, CEC, INMETRO, ISO certified.
3: Good payment term for clients.
4: Module with lower degradation rate than standard degradation in the PV field

Q4.How to proceed an order?
A:1.let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. Customer confirms the samples and pay deposit for formal order.
4. We arrange the production.

If you want to know more information, you can send inquiry to our team, we will cover more details.
