Epever Battery Regulateur XTRA N G3 Series Mppt 100V 40A 30A 20A 10A Per 12V/24V Auto Solar Panel Charger Controller
- Category: >>>
- Supplier: Huizhou Epever Technology Co. Ltd.Huizhou Ltd.
Share on (1601190029235):
Product Overview
Description
Technical Specifications
EPEVER XTRA-N G3 Series 10A 20A 30A 40A MPPT Solar Charge Controller
Item | XTRA1206N G3/G3 BLE | XTRA2206N G3/G3 BLE | XTRA1210N G3/G3 BLE | XTRA2210N G3/G3 BLE | XTRA3210N G3/G3 BLE | XTRA4210N G3/G3 BLE | ||||||
Electrical Parameters | ||||||||||||
Battery Rated Voltage | 12/24VDC★ Auto | |||||||||||

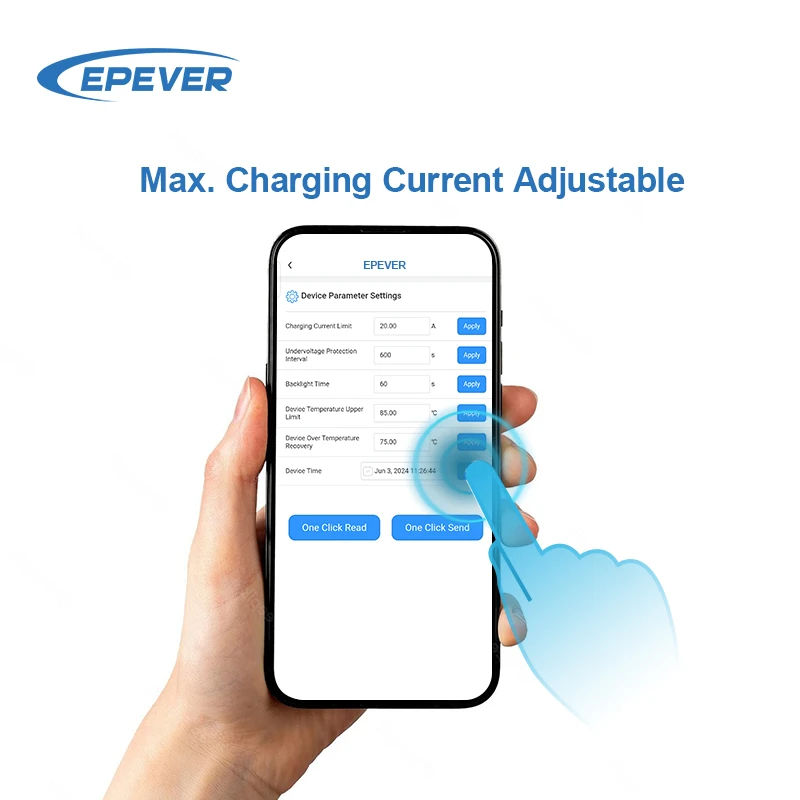

Rated Charging Current | 10A | 20A | 10A | 20A | 30A | 40A | ||||||
Rated Discharging Current | 10A | 20A | 10A | 20A | 30A | 40A | ||||||
Controller Work Voltage Range | 8~31V | |||||||||||
PV Maximum Open-circuit Voltage | 60V(At minimum operating environment temperature) | 100V(At minimum operating environment temperature) | ||||||||||
46V(At 25℃ environment temperature) | 92V(At 25℃ environment temperature) | |||||||||||

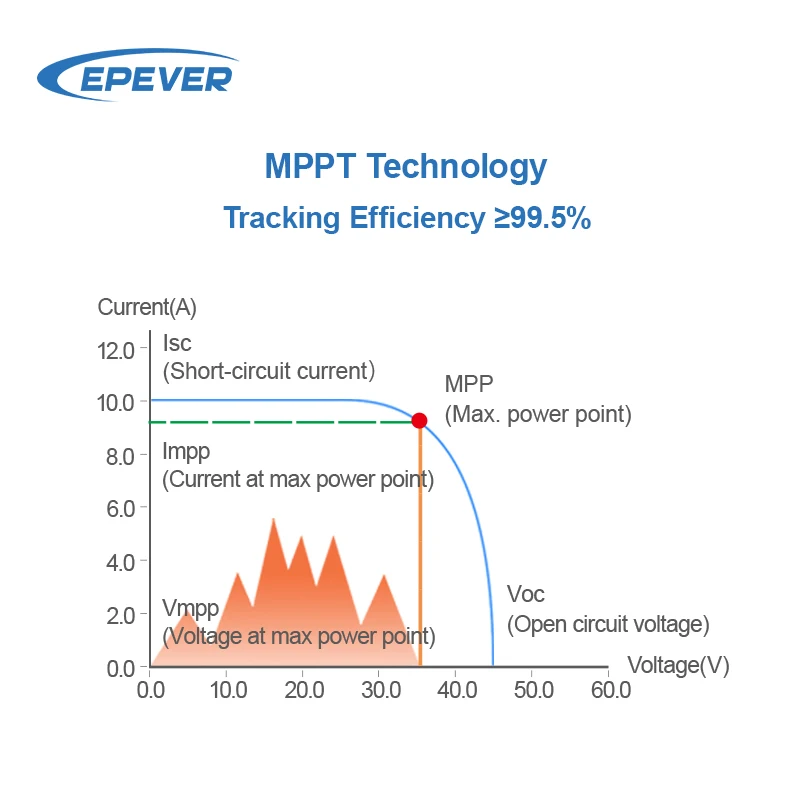

MPPT Voltage Range | (Battery voltage+2V)~36V | (Battery voltage+2V)~72V | ||||||||||
Rated Charging Power | 130W/12V | 260W/12V | 130W/12V | 260W/12V | 390W/12V | 520W/12V | ||||||
260W/24V | 520W/24V | 260W/24V | 520W/24V | 780W/24V | 1040W/24V | |||||||
Maximum Conversion Efficiency | 97.90% | 98.30% | 98.20% | 98.30% | 98.60% | 98.60% | ||||||
Maximum Load Efficiency | 97% | 96.70% | 96.20% | 96.40% | 96.60% | 96.50% | ||||||
Static Losses (Enable the com. port) | ≤10mA(12V) | ≤10mA(12V) | ≤15mA(12V) | ≤15mA(12V) | ≤15mA(12V) | ≤15mA(12V) | ||||||
≤7mA(24V) | ≤7mA(24V) | ≤9mA(24V) | ≤9mA(24V) | ≤9mA(24V) | ≤9mA(24V) | |||||||
Static Losses (Disable the com. port) | ≤8mA(12V) | ≤8mA(12V) | ≤8mA(12V) | ≤8mA(12V) | ≤8mA(12V) | ≤8mA(12V) | ||||||
≤5mA(24V) | ≤5mA(24V) | ≤6mA(24V) | ≤6mA(24V) | ≤5mA(24V) | ≤5mA(24V) | |||||||
Discharge-circuit Voltage Drop | ≤0.23V | |||||||||||
Temperature Compensation◆ | -3mV/℃/2V (Default) | |||||||||||
Grounding Type | Common negative | |||||||||||
RS485 Port | 5VDC/200mA(RJ45) | |||||||||||
LCD Backlight Time | Default: 60S, Range: 0~999S(0S: the backlight is ON all the time) | |||||||||||
