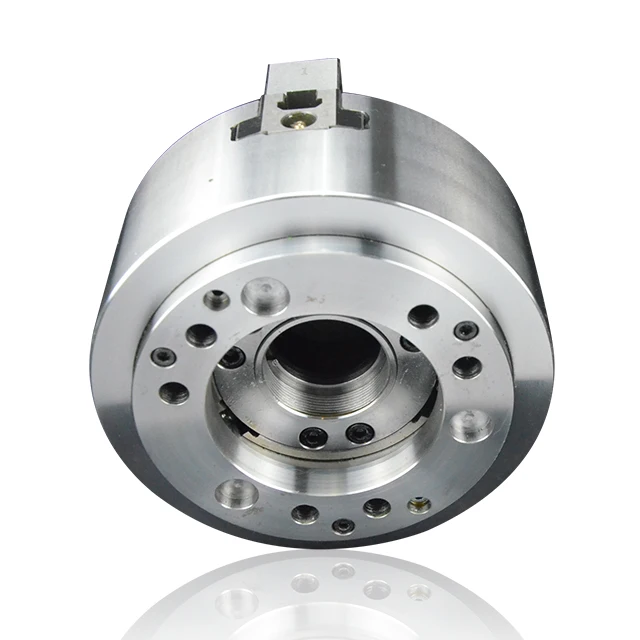

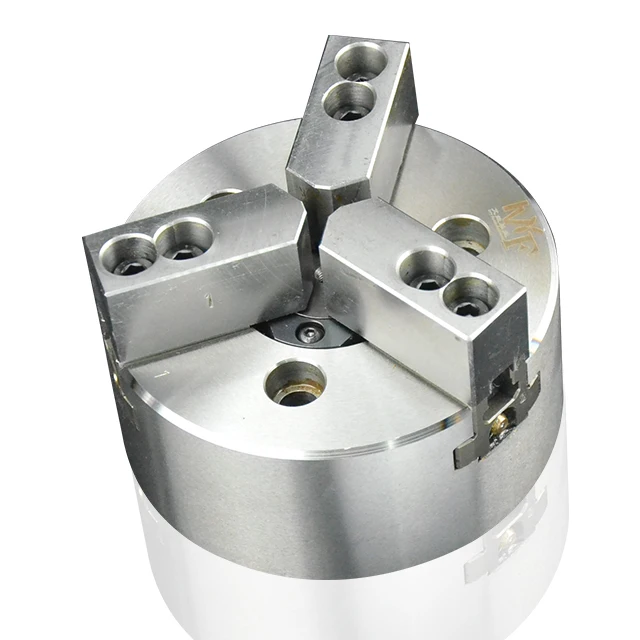

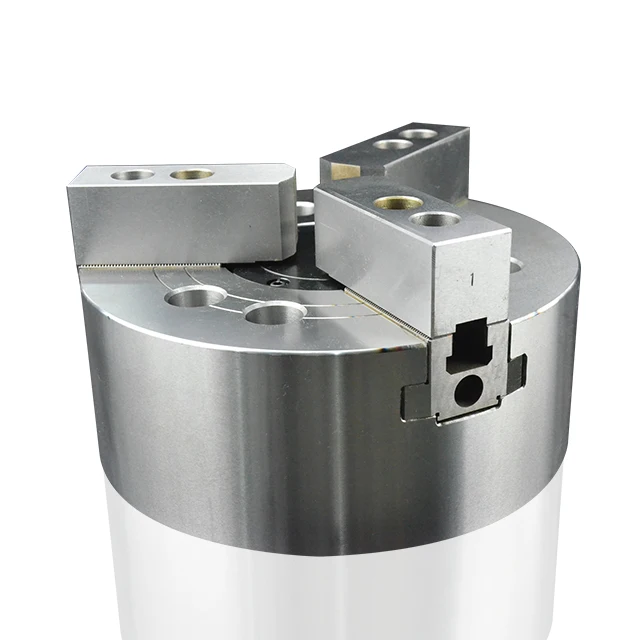

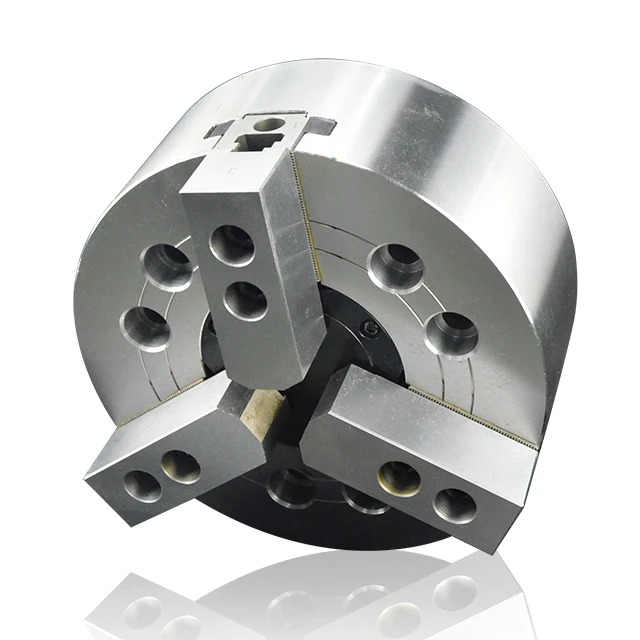

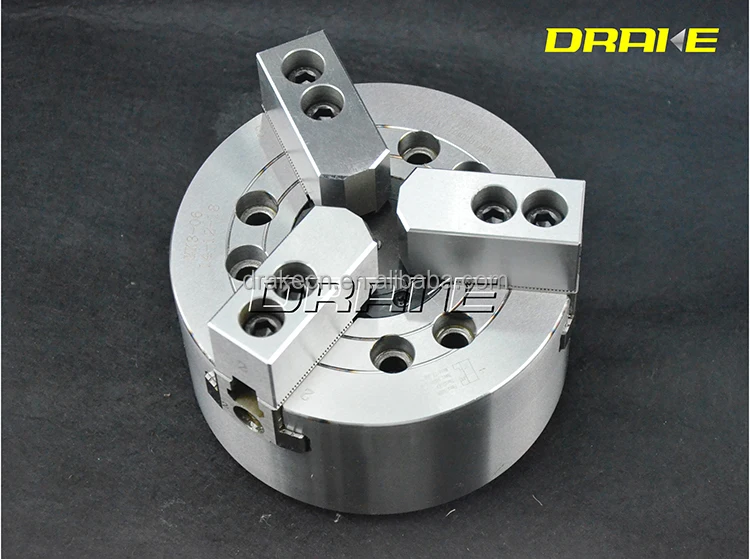

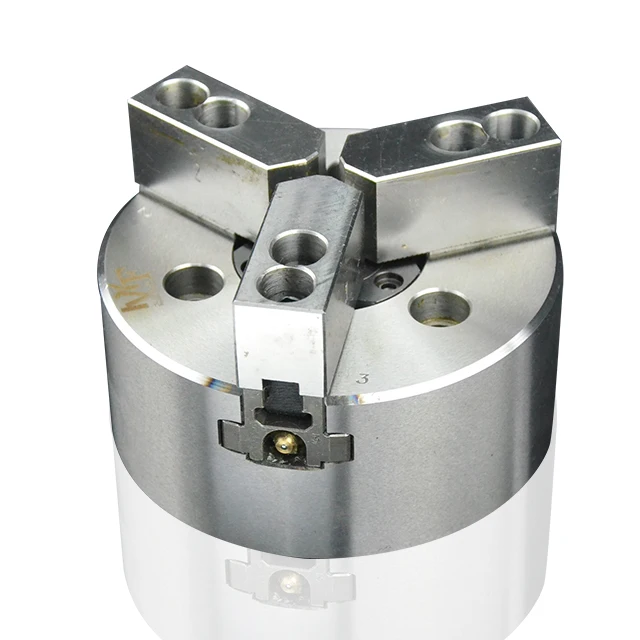

Multiple sizes 3 Jaw Hydraulic Chuck Through Hole Chuck Lathe Machine CNC Power Chuck
- Category: >>>
- Supplier: Changzhou Drake International Trade Co. Ltd.
Share on (1601190039108):
Product Overview

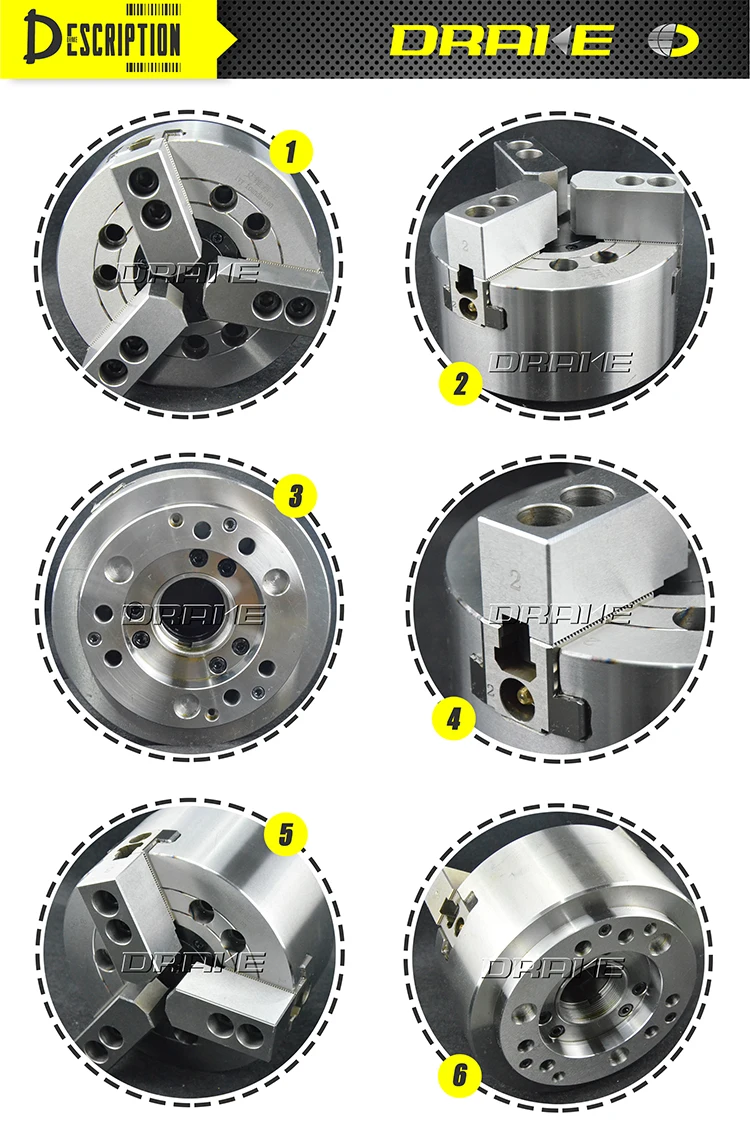

Description
Product Description
Technical Features:
1. Adopt the advanced alloy steel material, all with the surface by surface hardening treatment, in order to improve the accuracy and durability.
2. With flange connection, A connection.

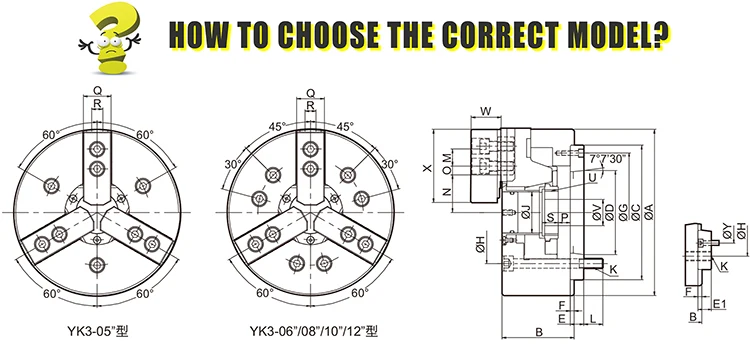

There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?

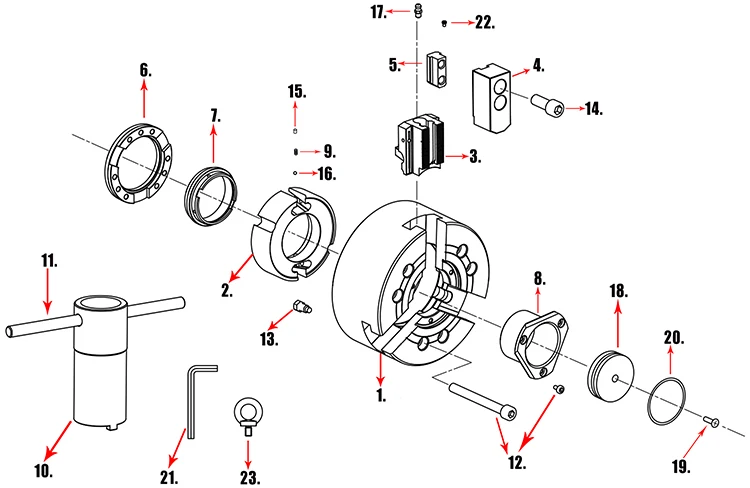

NO. | Name | NO. | Name | |
1 | Body | 11 | Handle pin | |
2 | Wedge plunger | 12 | Stop bolt | |
3 | Master jaw | 13 | Spring | |
4 | Soft jaw | 14 | Hex. socket head bolt | |
5 | T-nut | 15 | Hex. socket head bolt | |
6 | Cover | 16 | Hex. socket head bolt | |
7 | Draw tube | 17 | Set screw | |
8 | Draw nut | 18 | Steel ball | |
9 | Draw bolt | 19 | Grease nipple | |
10 | Handle body | 20 | Pb ball |
It is recommended to grease chucks
at least twice a day in order to
maximize longevity
