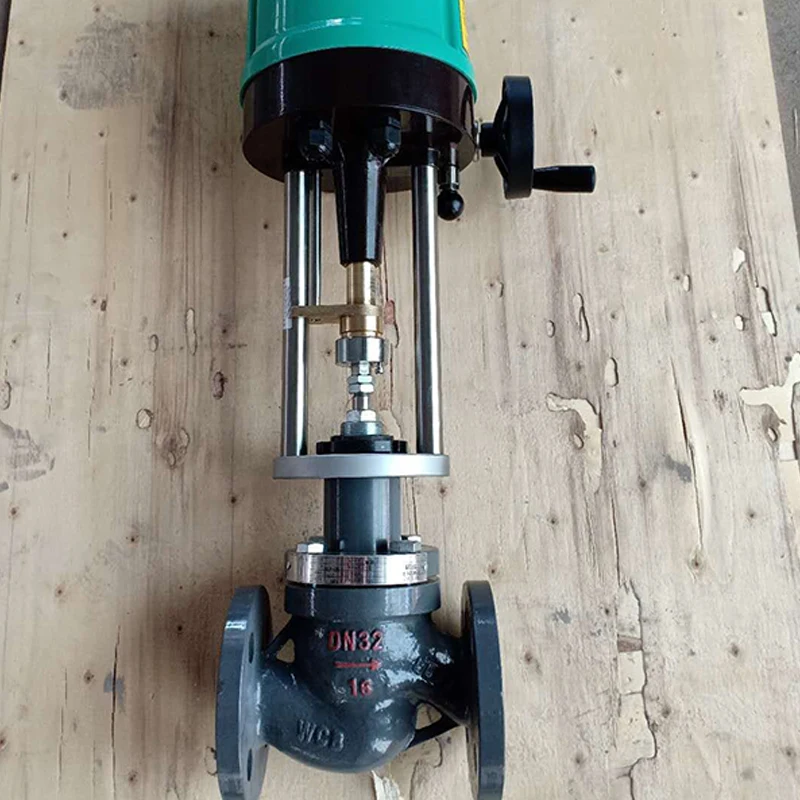

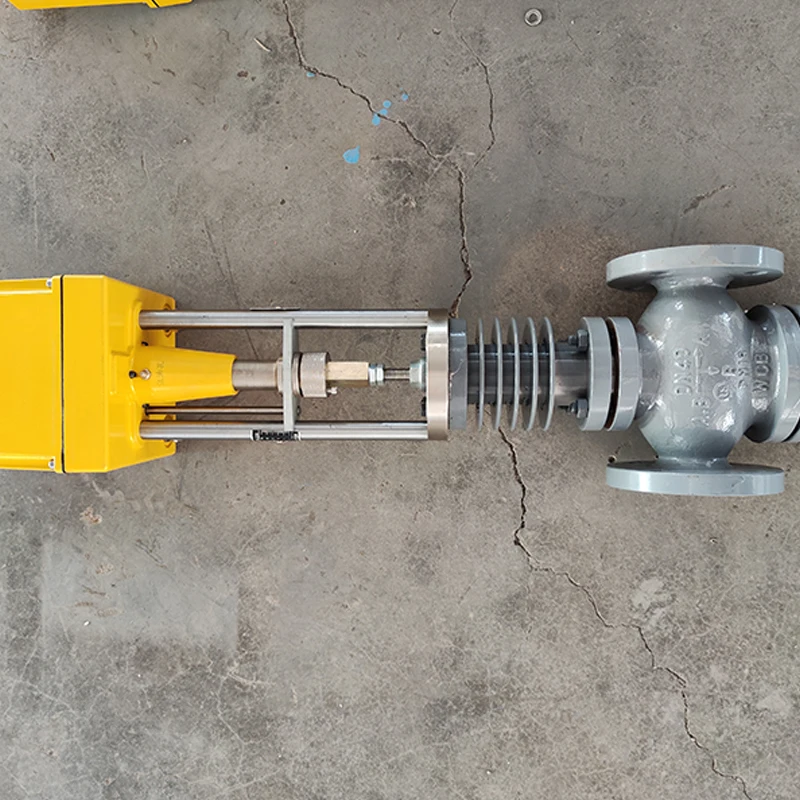

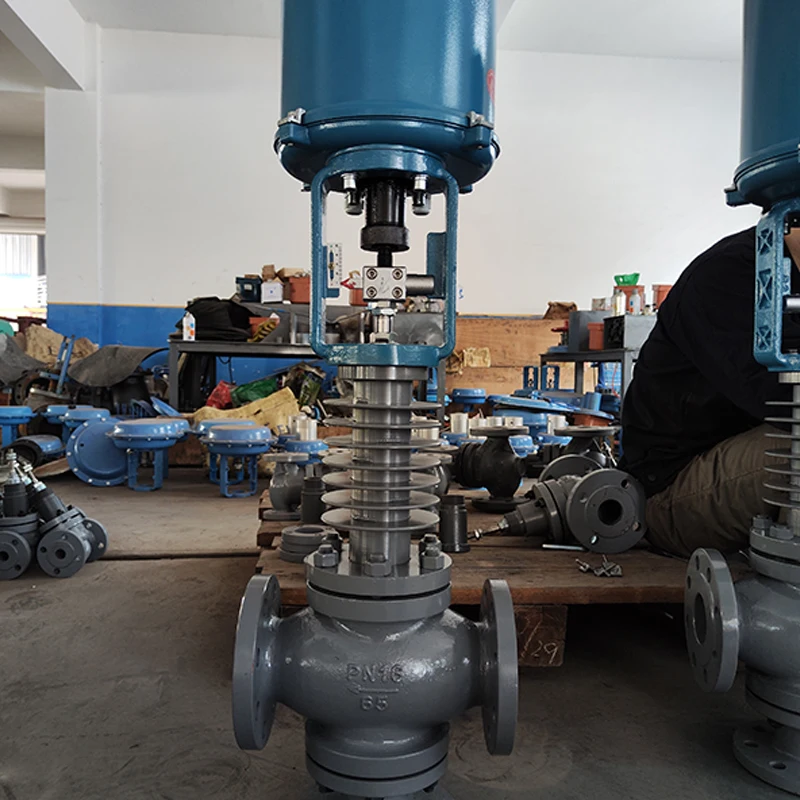

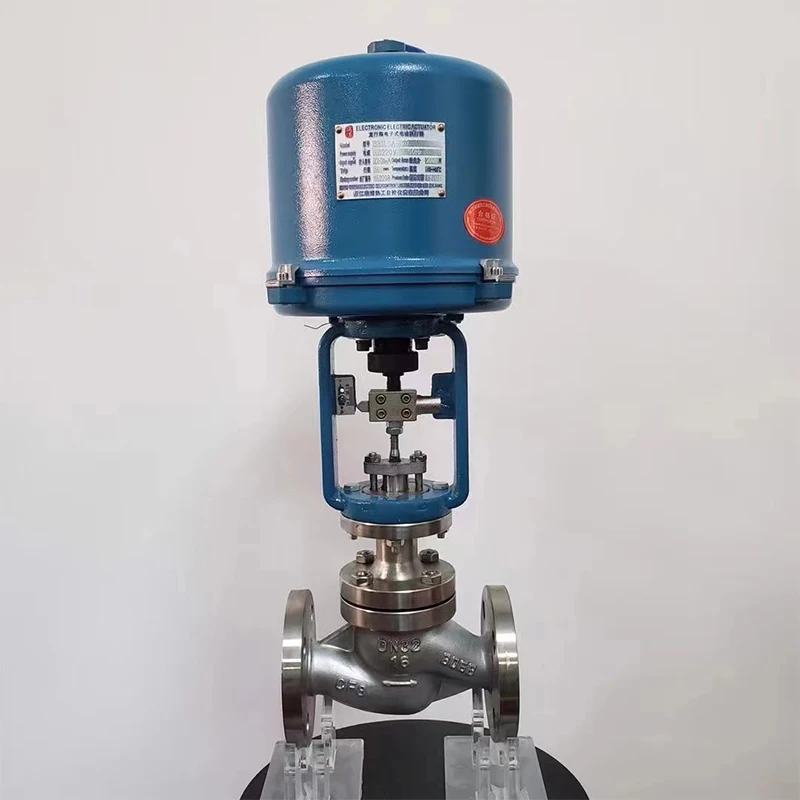

T95 B Stainless Steel Series Sleeve Seated Self actuated Pressure Control Valve
- Category: >>>
- Supplier: Nanjing Bang Win Imp & Exp Co. Ltd.
Share on (1601190078003):
Product Overview
Description
Nominal Diameter | DN15~400 | ||
Nominal Pressure | PN1.6~10.0MPa ANS1 150~600lb | ||
Density temperature | -196~560℃ | ||
Connection type | Flange,Welding | ||
Bonnet type | sTD,High temperature type,Low temperaure type,Bellow sealing type, Jacketed heat preservation type | ||
Body material | WCB、CF8、CF8M、CF3M | ||
Valve trim material | 304、316、316L、(Stainless steel)+PTFE/Stellite | ||
Flow characteristic | EQ%,Linear | ||
Leakage | Hard sealing | ANSI Class IV、V | |
Soft sealing | ANSI Class VI | ||
Nominal Diameter | DN25~400 | ||
Nominal Pressure | PN1.6~10.0MPa ANS1150~6001b | ||
Density temperature | -196~560C | ||
Connection type | Flange,Welding | ||
Bonnet type | sTD,High temperature type,Low temperaure type,Bellow sealing type, Jacketed heat preservation type | ||
Body material | WCB、CF8、CF8M、CF3M | ||
Valve trim material | 304、316、316L、(Stainless steel)+PTFE/Stellite | ||
Flow characteristic | EQ%,Linear | ||
Leakage | Hard sealing | ANSI Class IV | |
Soft sealing | ANSI Class VI | ||
Nominal Diameter | DN25~300 |
Nominal Pressure | PN1.6~10.0MPa ANS1 150~600Ib |
Density temperature | -196~560℃ |
connection type | Flange |
Bonnet type | sTD,High temperature type,Bellow sealing type |
Body material | WCB、CF8、CF8M、CF3M |
Valve trim material | 304、316、316L、(Stainless steel)+Stellite |
Flow characteristic | EQ%,Linear |
Leakage | ANSI Class IV、V |
Nominal Diameter | DN15~200 |
Nominal Pressure | PN1.0~1.6MPa ANSI 150Ib |
Density temperature | -20~200℃ |
Connection type | Flange |
Bonnet type | sTD,Bellow sealing type |
Body material | WCB、CF8、CF8M、CF3M |
Valve trim material | 304、316、316L |

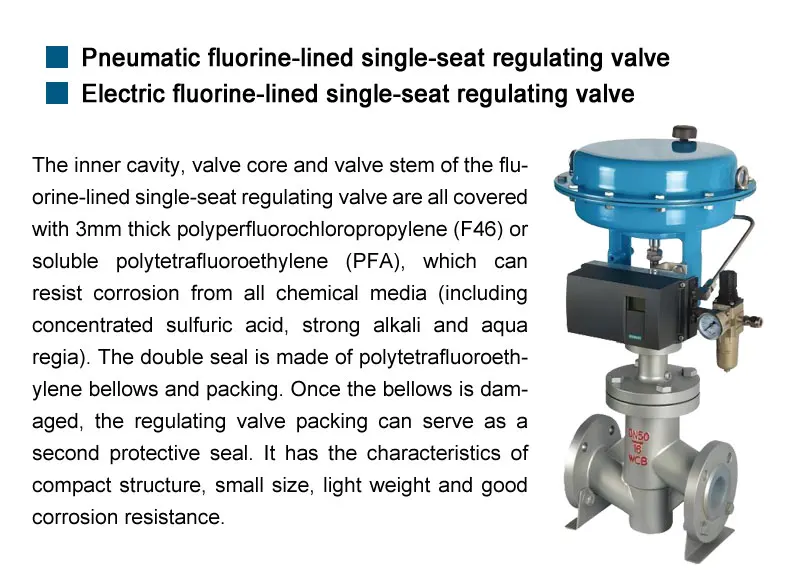

Lining layer | F46、PFA |
Flow characteristic | EQ%,Linear |
Leakage | ANSI Class VI |
Nominal Diameter | DN15~DN300(1/2~12) |
Nominal Pressure | PN16,25,40,64,100:ANS1Class 150,300,600 |
Body &Bonnet Material | WCB.CF8.CF8M,CF3.CF3M,WC1,WC6,WC9,LCB.LCC,LC3,HastelIoy C |
Packing | V-PTFE/Flexible graphite |
Gasket | GRAP+304,GRAP+316,PTFE |
Connections | (RF、MFM)Flange type(RF,MFM)/(SW、BWWelding type(SW.BW |
Painting Color | Brown painting/No painting on stainless steel valve body |
Actuator | Pneumatic type,electro-motion type and manual operation typ |
Nominal Diameter | DN15~300 |
Nominal Pressure | PN15.0~42.0MPa ANS1 900~25001b |
Density temperature | -196~560℃ |
connection type | Flange,Welding |
Bonnet type | STD,High temperature type,Low temperaur e type,Bellow sealing type |
Body material | A105、F11、F22、304、316、316L |
Valve trim material | 304、316、316L |
Flow characteristic | EQ%,Linear |
Leakage | ANSI Class IV、V |
Q1. Is the sample order acceptable?
A: Yes, of course.
Q2. What is your MOQ?
Q2. What is your MOQ?
A: 1 PCS.
Q3. What is the delivery time?
A: It is about 5-7 days after we receive the payment.
Q4. How to make the payment?
A: We accept T/T, Paypal, Ali Trade Assurance.
Q5. Do you have products in stock?
Yes, some stock can be shipped out within 3 days.
Q6. Do you test all your goods before delivery?
A:Yes, all products are fully inspected before delivery.
Q7. What is the warranty?
A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We
will re-make it for re-fund them to customers once we confirm it is our responsibilities.
Q3. What is the delivery time?
A: It is about 5-7 days after we receive the payment.
Q4. How to make the payment?
A: We accept T/T, Paypal, Ali Trade Assurance.
Q5. Do you have products in stock?
Yes, some stock can be shipped out within 3 days.
Q6. Do you test all your goods before delivery?
A:Yes, all products are fully inspected before delivery.
Q7. What is the warranty?
A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We
will re-make it for re-fund them to customers once we confirm it is our responsibilities.
