Slag Ball Mill Cement Ball Grinding Machine for Sale in Malaysia limestone powder production line
Slag Ball Mill Cement Ball Grinding Machine for Sale in Malaysia limestone powder production line
Slag Ball Mill Cement Ball Grinding Machine for Sale in Malaysia limestone powder production line
Slag Ball Mill Cement Ball Grinding Machine for Sale in Malaysia limestone powder production line
Slag Ball Mill Cement Ball Grinding Machine for Sale in Malaysia limestone powder production line
Slag Ball Mill Cement Ball Grinding Machine for Sale in Malaysia limestone powder production line
Slag Ball Mill Cement Ball Grinding Machine for Sale in Malaysia limestone powder production line

Slag Ball Mill Cement Ball Grinding Machine for Sale in Malaysia limestone powder production line

Share on (1601190084111):


Price:$19,000.00 - $26,000.00

Quantity:


Product Overview

Description



Product Overview

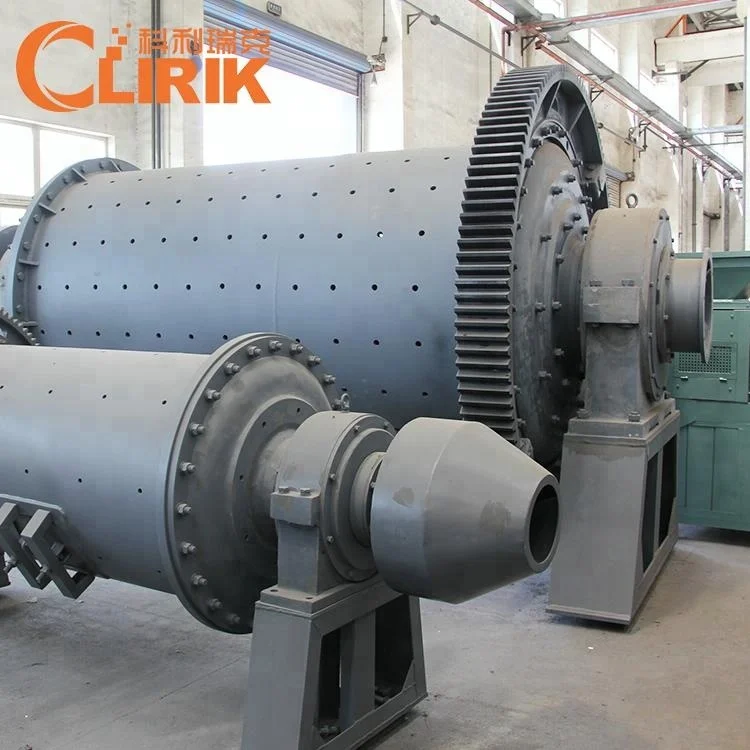

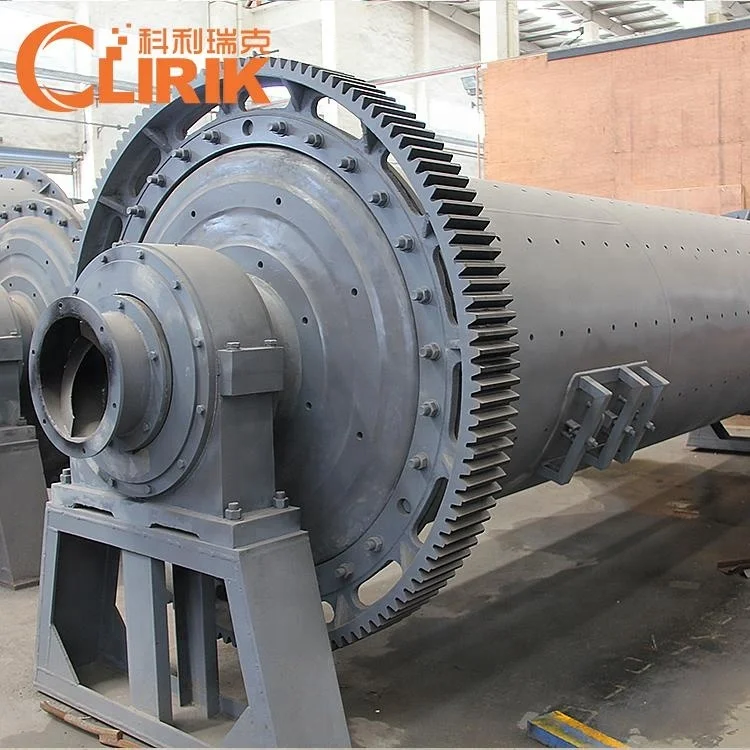

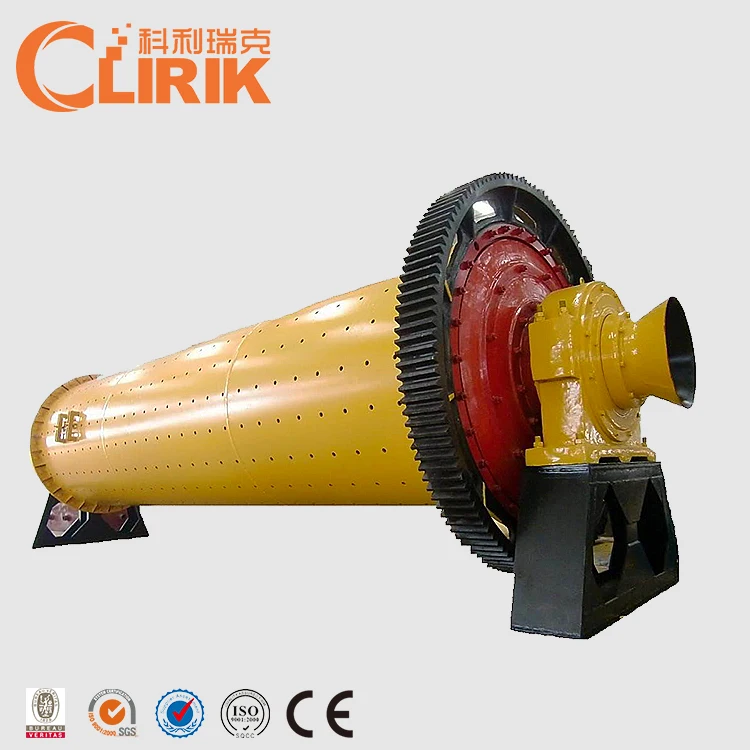

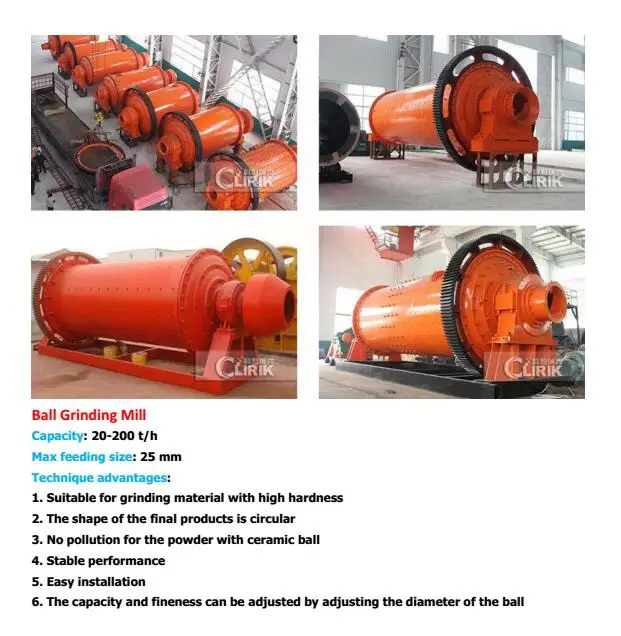

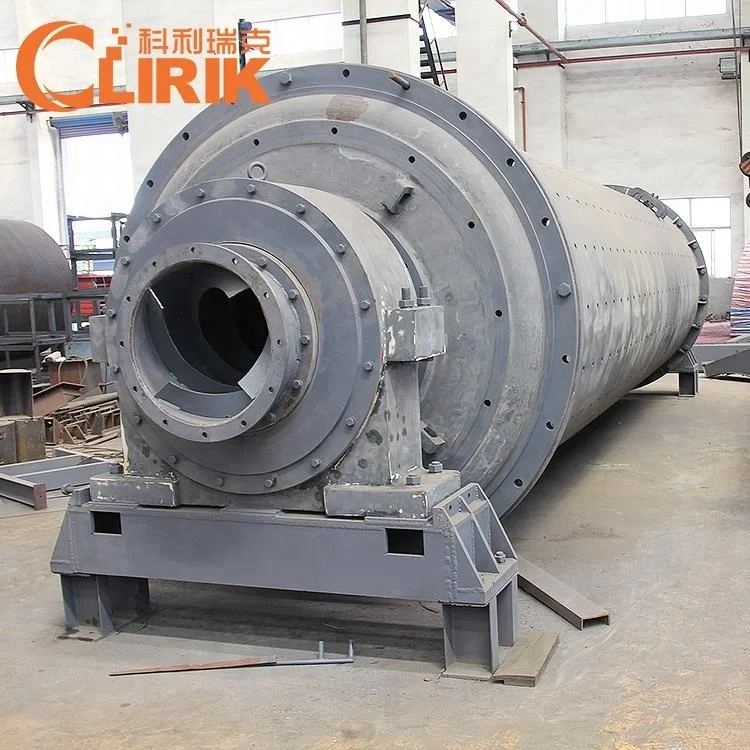

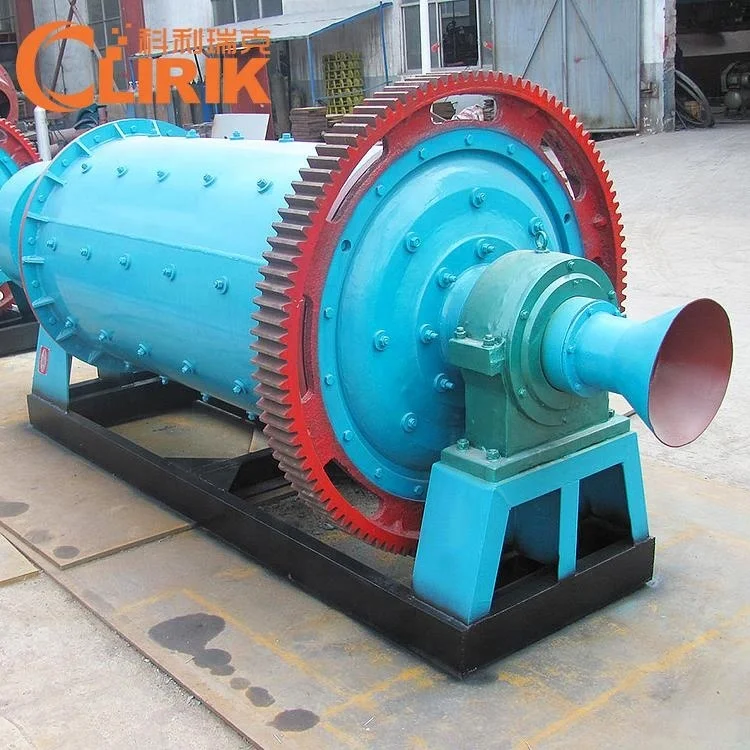

Ball Mill
Ball Mill machine changes the intrinsic grinding mill structure. Its body and ground plank are an integral whole. So when fixing, it can be lowered on a plane surface once only. Use double tiered roller axletree with centripetal spherical surface as the support of the host axletree can reduce energy cost by 30%. The intrinsic grille pattern forcing evacuation is instead by over fall pattern controlling one. This can improve the milling of the granule and the quantity dealt with is reduced by 15-20%.


FEATURES AT A GLANCE




PRODUCT SPECIFICATIONS


Model
Rotary speed （r/min)
weight
 (t)
Input size (mm)
Discharge size (mm)
Capacity  (t/h)
Motor power (kw)
Weight
 (t)
Ф900×1800
39
1.5
≤20
0.075-0.89
0.8-2
18.5
4.6
Ф900×1800
39
2.7
≤20
0.075-0.89
1-4
22
5.6
Ф1200×3000
36
3.5
≤25
0.074-0.4
1.6-5
37
12.8
Ф1200×4500
32
5
≤25
0.074-0.4
1.6-5.8
55
13.8
Ф1500×3000
27
7.5
≤25
0.074-0.4
2-5
75
15.6
Ф1500×5700
28
12
≤25
0.074-0.4
3.5-6
130
24.7
Ф1830×3000
25
11
≤25
0.074-0.4
4-10
130
28
Ф1830×6400
24
21
≤25
0.074-0.4
7-16
210
34
Ф1830×7000
24
23
≤25
0.074-0.4
8-18
245
36
Ф2100×3600
23
19
≤25
0.074-0.4
10-36
210
46
Ф2200×4500
21
27
≤25
0.074-0.4
12-23
280
48.5
Ф2200×6500
21
35
≤25
0.074-0.4
14-26
380
52.8
Ф2200×7000
21
35
≤25
0.074-0.4
15-28
380
54
Ф2200×7500
21
35
≤25
0.074-0.4
15-30
380
56
Ф2400×4500
21
30
≤25
0.074-0.4
18-45
320
65
Ф2400×8000
20
36
≤25
0.074-0.4
20-48
410
81
Ф2700×3600
21
39
≤25
0.074-0.4
19-75
400
83
Ф2700×4000
20
40
≤25
0.074-0.4
20-78
400
85
Ф2700×4500
20
48
≤25
0.074-0.4
22-85
430
89
Ф3200×4500
18
65
≤25
0.074-0.4
29-140
800
137
Ф3200×5400
18
81.6
≤25
0.074-0.4
30-180
800-1000
146
Ф3600×4500
17
88
≤25
0.074-0.4
35-210
1000
190
Ф3600×6000
17
117
≤25
0.074-0.4
38-240
1250-1500
220
Ф3600×8500
17
144
≤25
0.074-0.4
45-260
1800
260


Working Principle


Ball Mill Working Principle:
Cement Ball Mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.


Other Products offered


High pressure suspension grinding mill
Finished Size: 50-450(mesh）
Capacity: 1-28(t/h)
Pass rate: D90 30 micron
Ultrafine vertical roller mills
Finished Size: 600-4500(mesh）Capacity: 3-20(t/h)
Pass rate: D50 2 micron
Micro powder grinding mill
Finished Size:300-2500(mesh） Capacity:0.5-45(t/h)
Pass rate: D97 5 micron


SALES AND SERVICE NETWORK




Company Profile


Company introduction:
SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai china as a professional enterprise, which is specializing in research, manufacture and sales of all kinds of mining equipment. Our company has already formed a full set of modern production line, equipped with intelligent,standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service.




Factory
Our factory has a professional R & D team, first-class production equipment.
Coustomer Visiting
The customer came to the site inspection, the grinding mill equipment is very satisfied and signed a contract.
Exhibition
Participating in the exhibition is favored by friends from all over the world.


FAQ


Q: What can your ball mill do?
A: Our ball mill used for wet or dry type stone powder grinding. Feeding size <25mm, discharging size 200 mesh-425 mesh

Q: I need silica grinding mill, do you have?
A: Yes, we have designed and export many this kind mills, for quartz grinding, 40-100 mesh, Fe free.

Q: How I adjust the discharging mesh size?
A: 1, Change the ball ratio of big size and small size. 2 Adjust the rotation speed

Q: How long need I to change the balls and liners?
A: Balls and liners service time depending on your raw material, we will quota you clearly after got your inquiry
