Cement Concrete Roof Tile Production Line Paver Terrazzo Floor Tiles Making Machinery Roofing Sheet Making Machine Manufacture

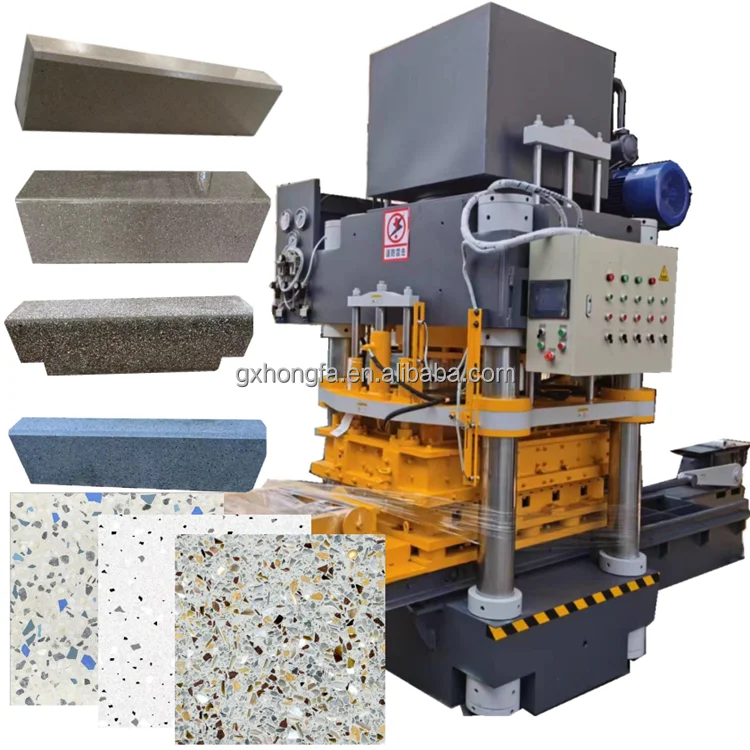

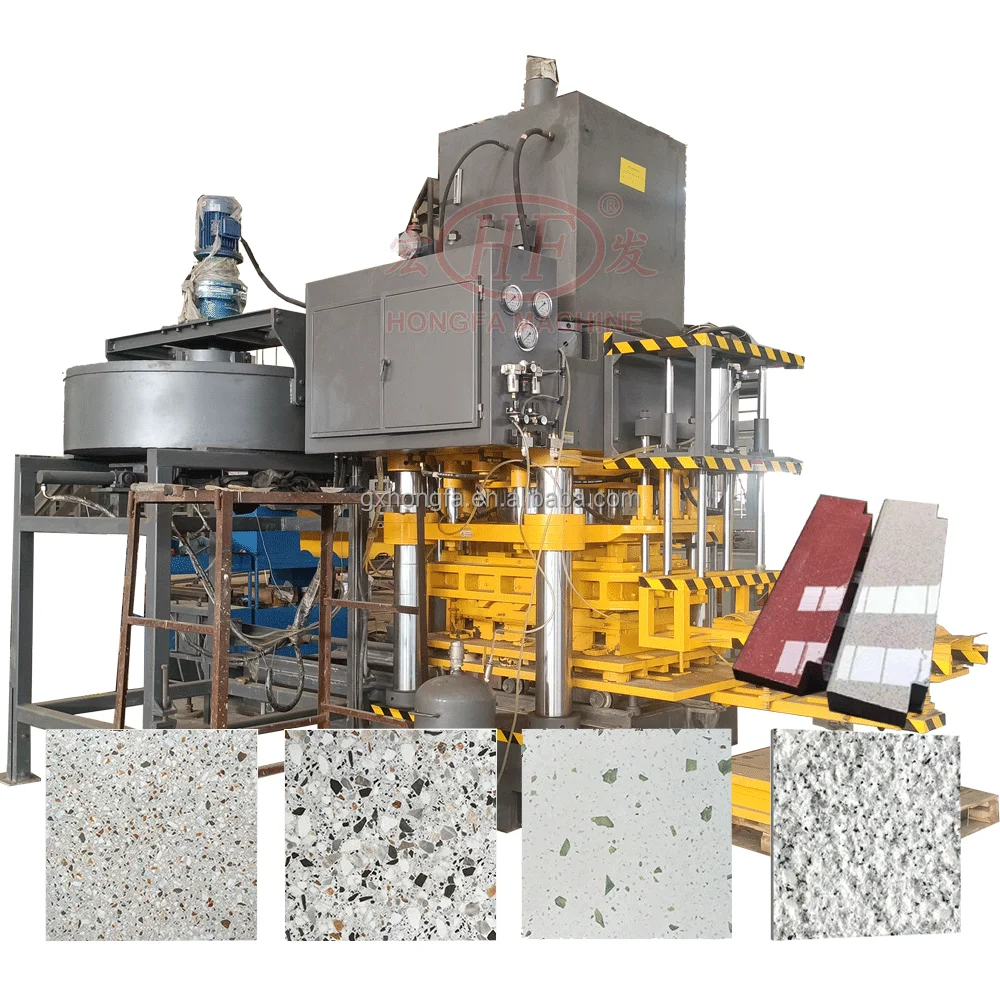

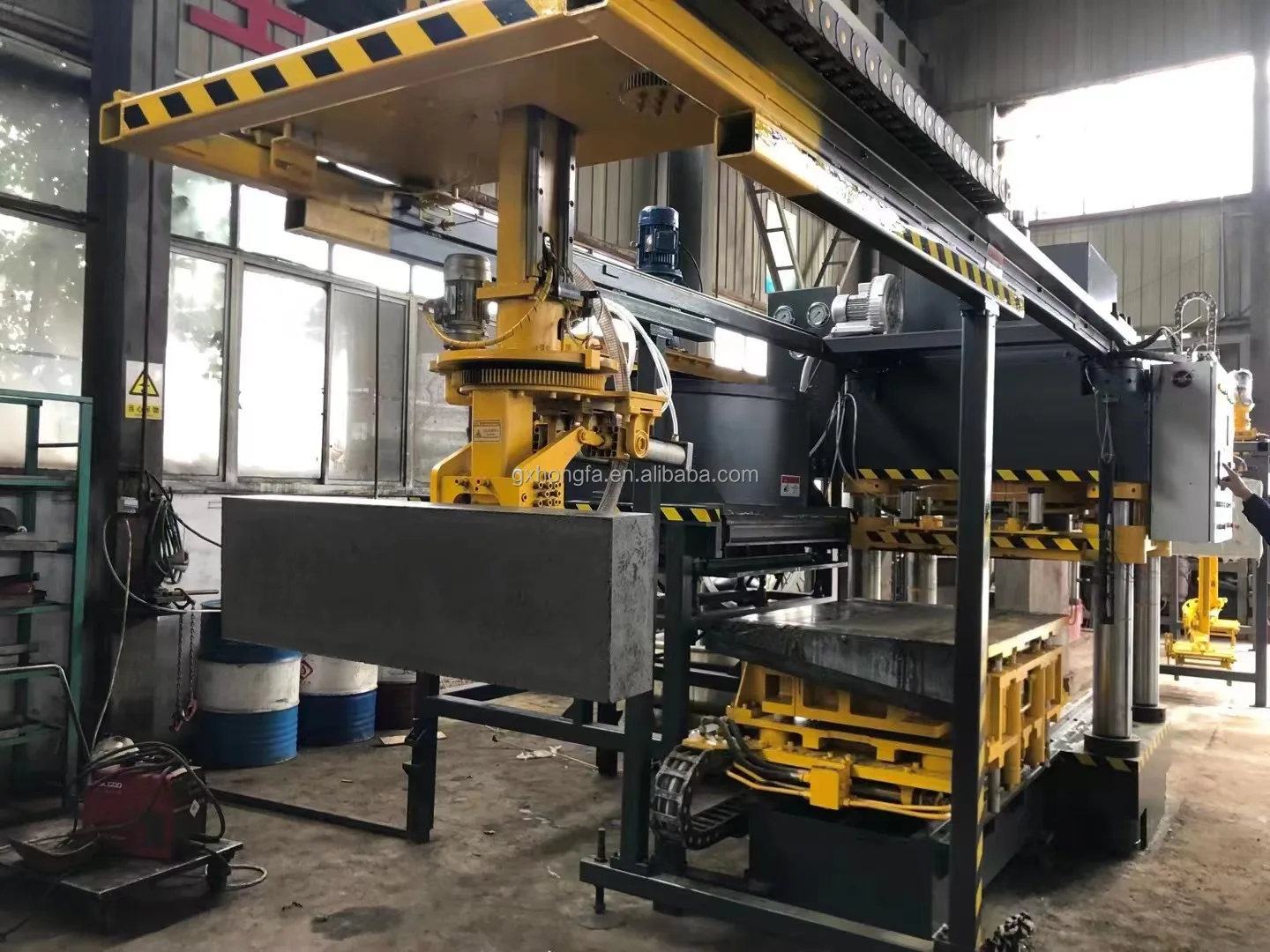

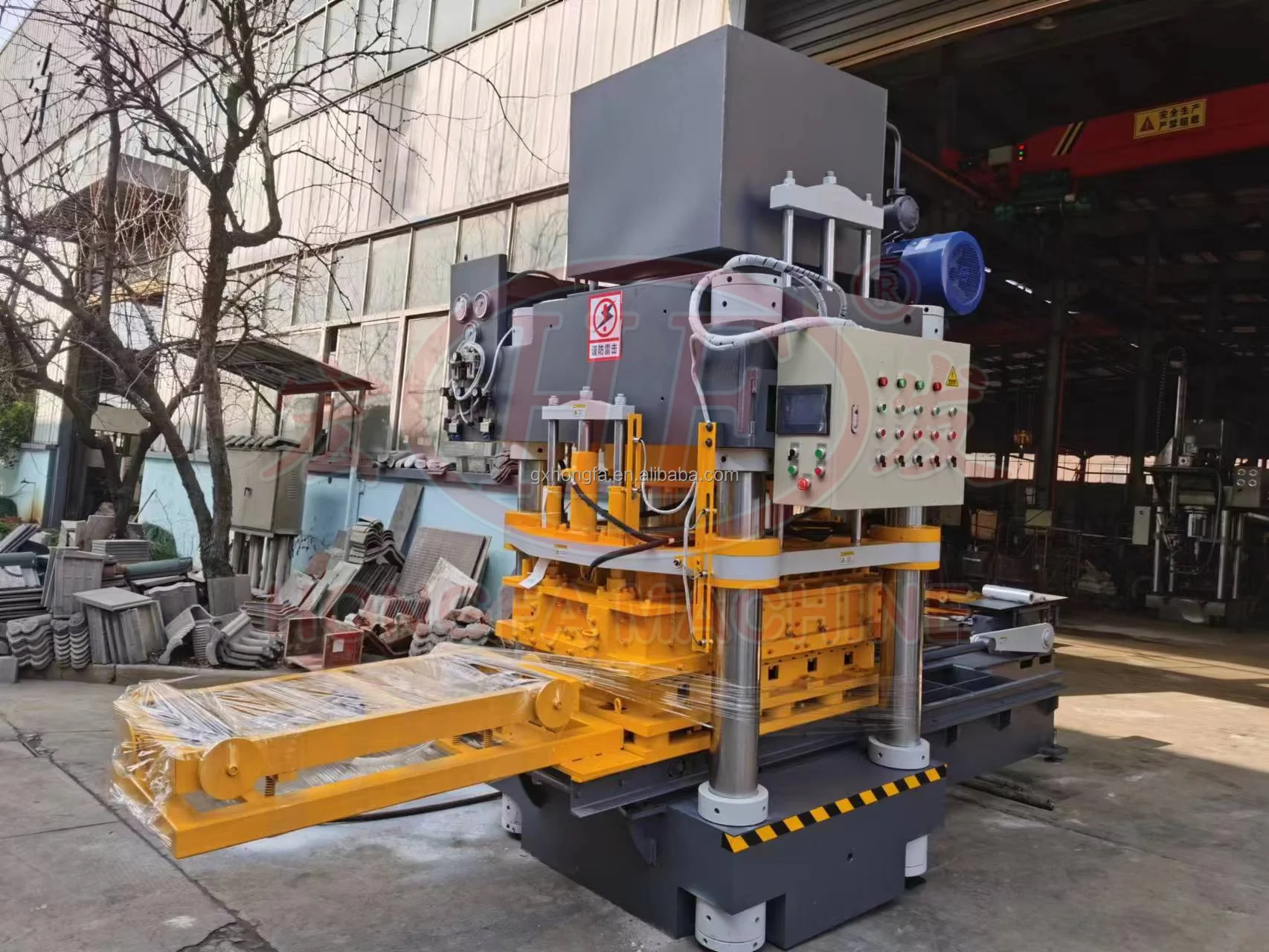

I. The features of HFT650 Terrazzo tile machine,curbstone machine,roof & floor tile slab machine
1.The molding process uses a high-pressure filter press molding process, which can comprehensively improve product quality and strength while ensuring rapid production;
2.The equipment is fully controlled by PLC computer, which can control all the actions of the equipment, oil circuit and gas circuit system through the computer, reducing labor costs and improving production efficiency;
3. Lifting mold frame, without changing the mold, by adjusting the limit of the frame, it can produce curb stone products with different thicknesses;
4.The main cylinder, base, guide column and other frame parts of the main engine are all made of integral castings, which can greatly extend the life of the main engine. Under natural circumstances, the castings can be guaranteed for 20 years.

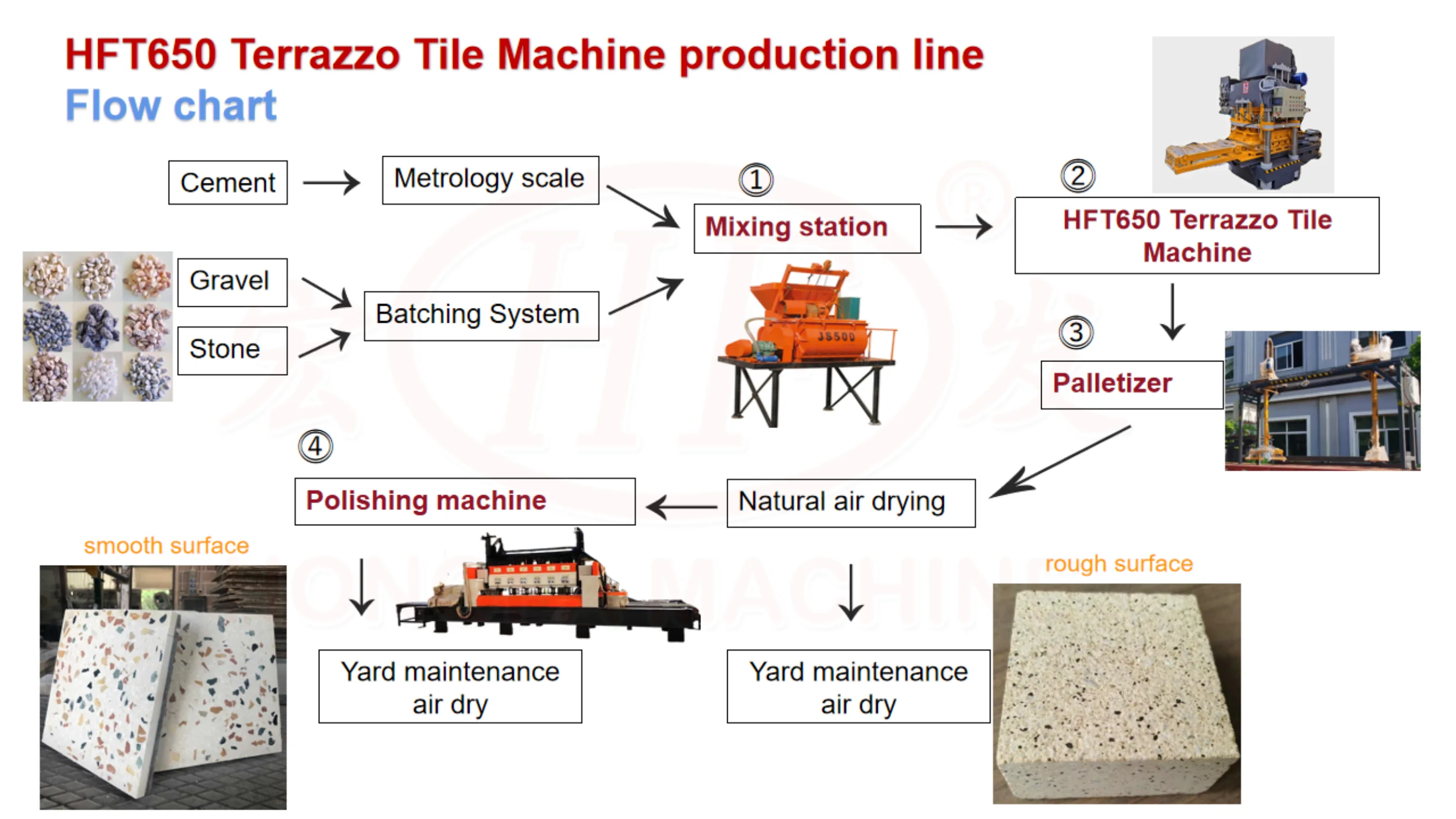

II. Technological Process of terrazzo floor tiles price machine (How to make tiles?)
Sand, cement, water---Mixer---Dosing machine---Spray rlease agent---Tile forming machine---Tile shelf---Demould---Tile Yard---Maintenance
III. Technical parameter of terrazzo floor tiles machine
| 1 | Product Name | HFT650 Tile & Curbstone Making Machine |
| 2 | Overall Dimension | 4000*2600*2650mm |
| 3 | Moulding Cycle | 1-2 Pieces/Min |
| 4 | Forming Method | Hydraulic Pressure(No Vibration) |
| 5 | Moulding Pressure | 500 Ton |
| 6 | Equipped Power | 24.5 kw |
| 7 | Mixer Power | 18.5kw |
| 8 | Capacity | 480-1000 Pieces/Shift(8 Hours) |
| 9 | Main Tile Size | 600*600MM, 800*800MM, 600*1200MM(Customized) |
| 10 | Operated Workers | 3-4 Persons |
| 11 | Mould Type | CNC Making(Automatic) |

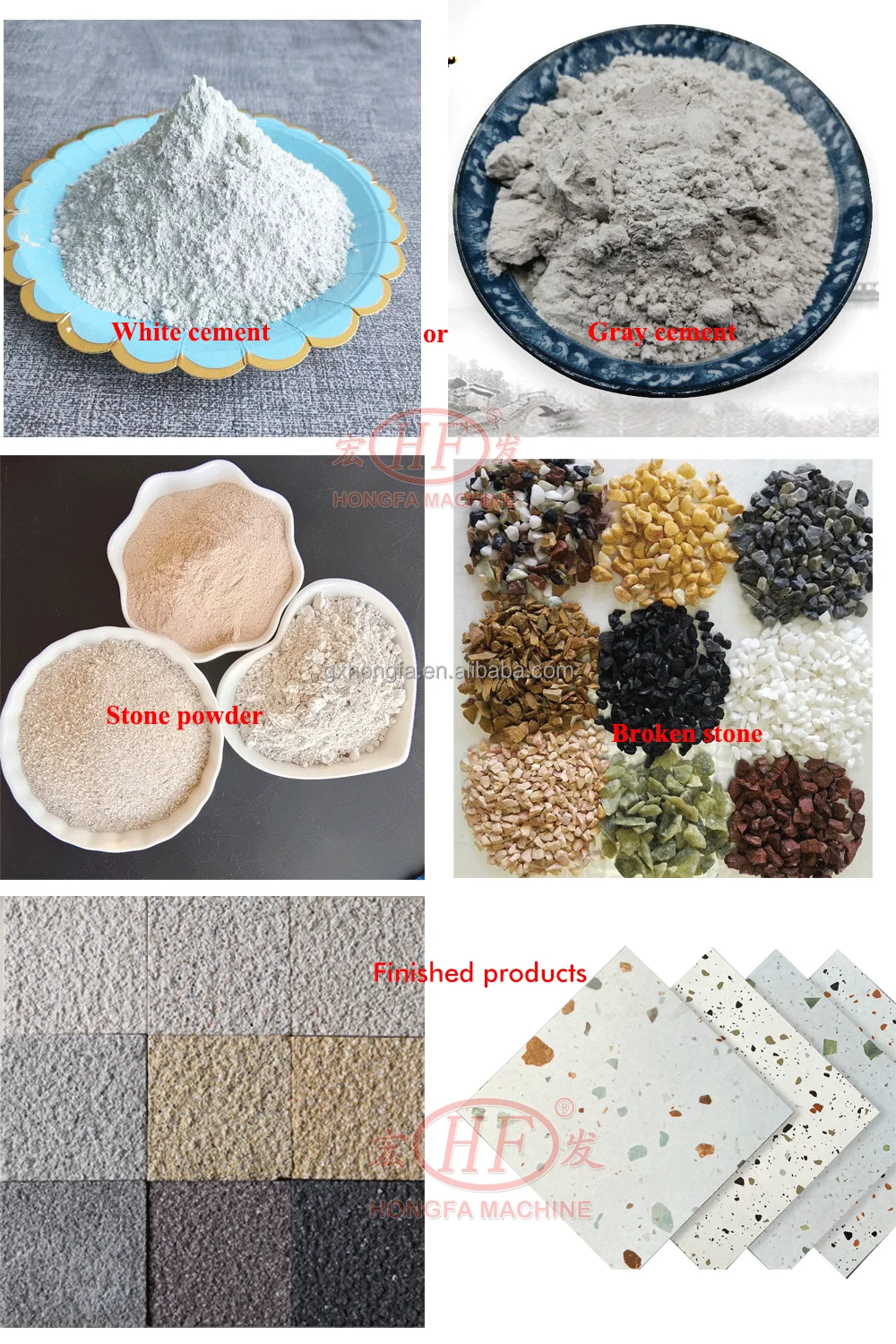

Raw Materials of Terrazzo tiles:Cement, Sand, Stone Powder, Surface paint.

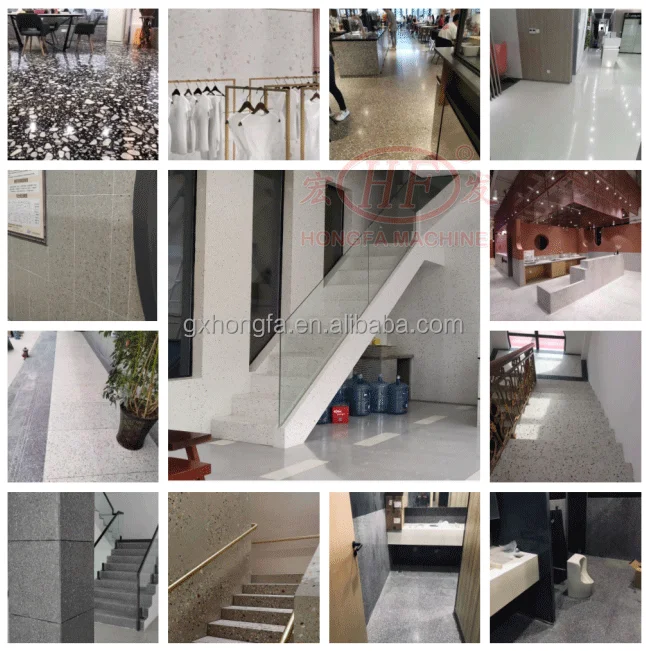

Product Application

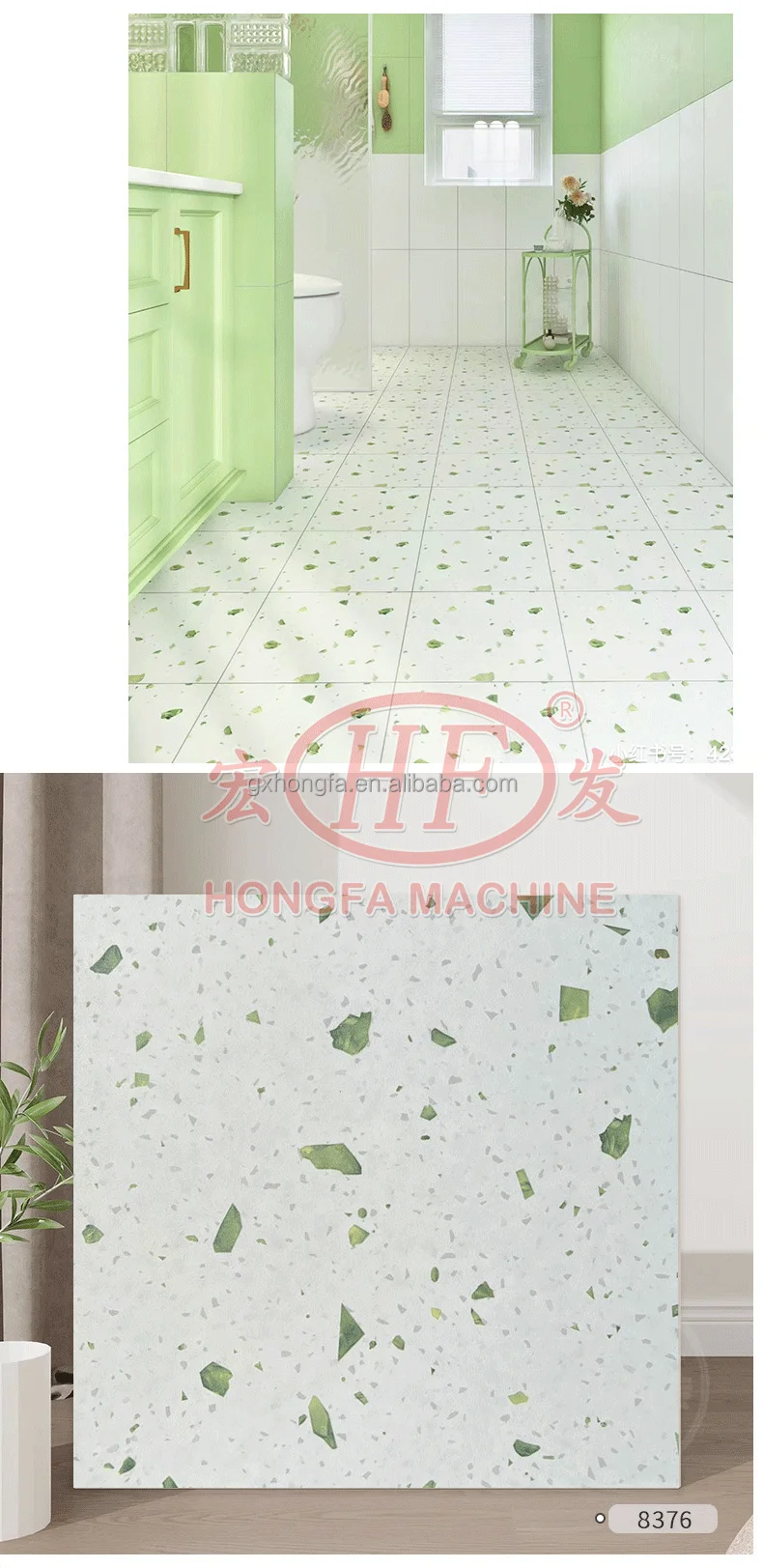

1.Decorative field
Terrazzo can be widely used in indoor and outdoor decoration fields. For example, the interior can be used as decorative materials for halls, stairs, foyers, walkways and other public places. Outside, terrazzo can be applied to squares, flower beds, walking paths, landscape roads.
2. Construction field
Because terrazzo can be mixed by color to get different textures and patterns, it is often used in the field of architecture, such as being used as wall tiles, floor materials, countertops, etc. At the same time, its compression performance is relatively good, can withstand a certain weight.
3. Road paving
Terrazzo pavement has the characteristics of anti-slip, wear resistance and impact resistance, so it is widely used in pavement, square, highway and other pavement pavement. It has a wide choice of colors, which can be selected according to the ground environment and architectural style for purposeful decoration.
4. Other field
In addition to indo
or and outdoor decoration and pavement paving, terrazzo is also used in other fields. For example, it is used to make kitchen countertops, bathroom basins, sinks and other household bathroom supplies, which can bring a closer feeling to nature.
 |  |

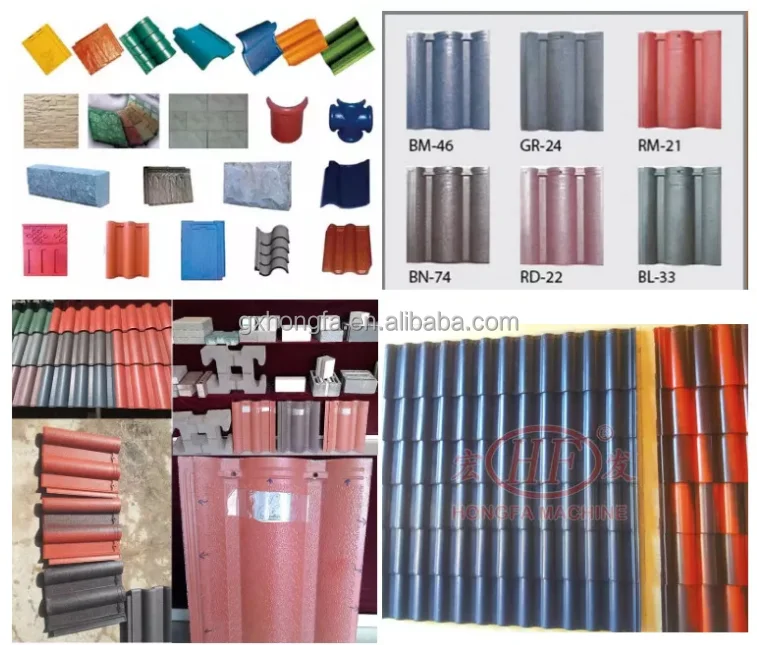

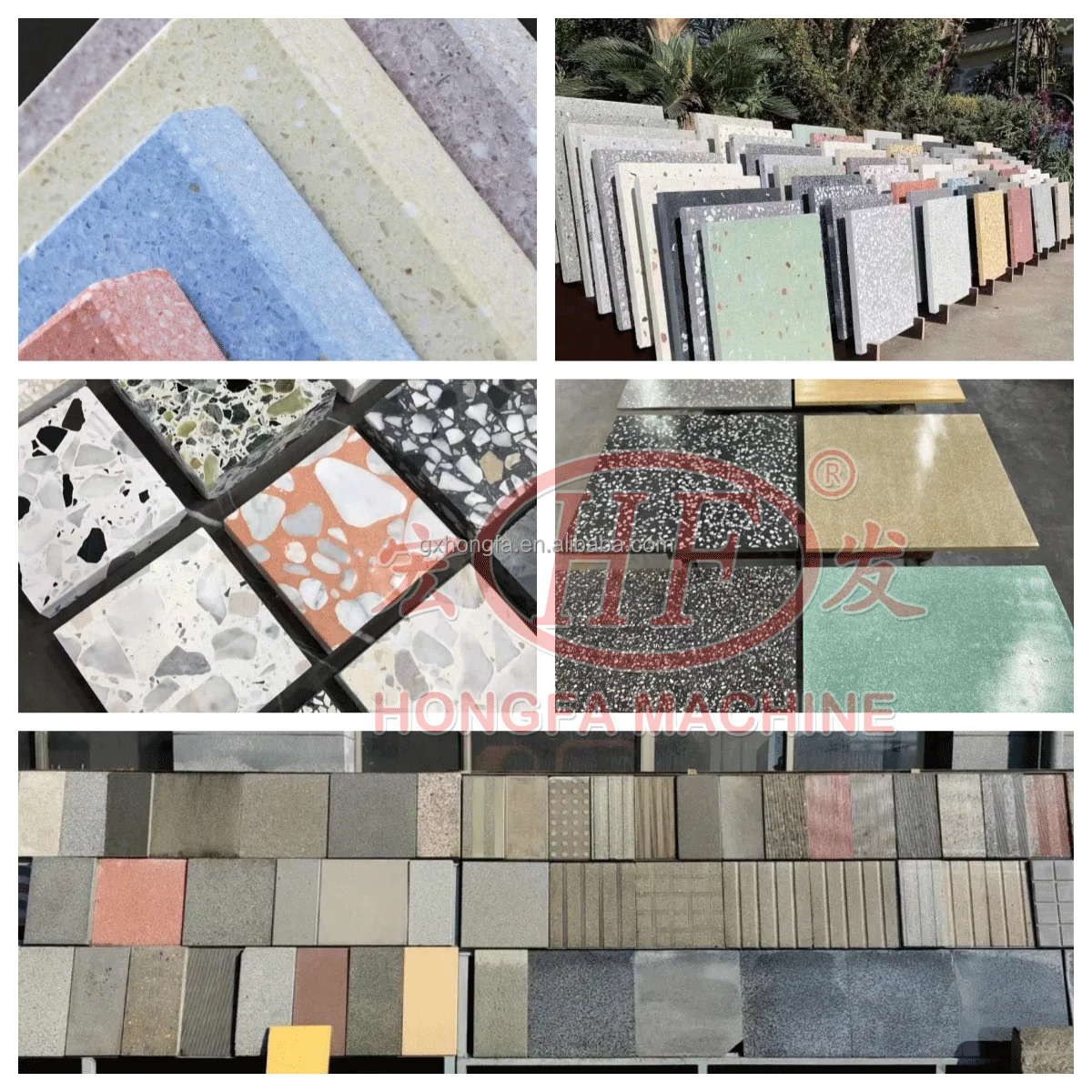

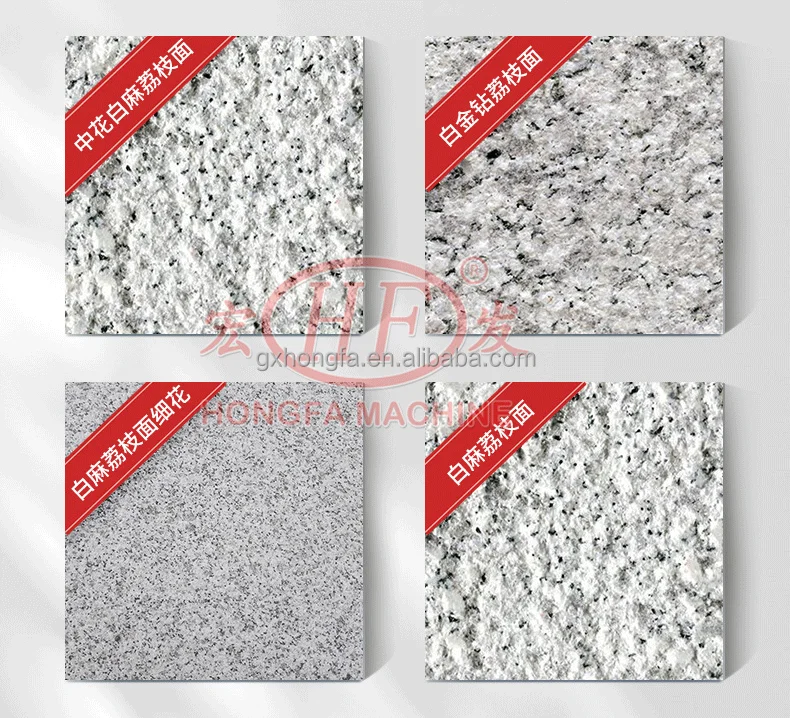

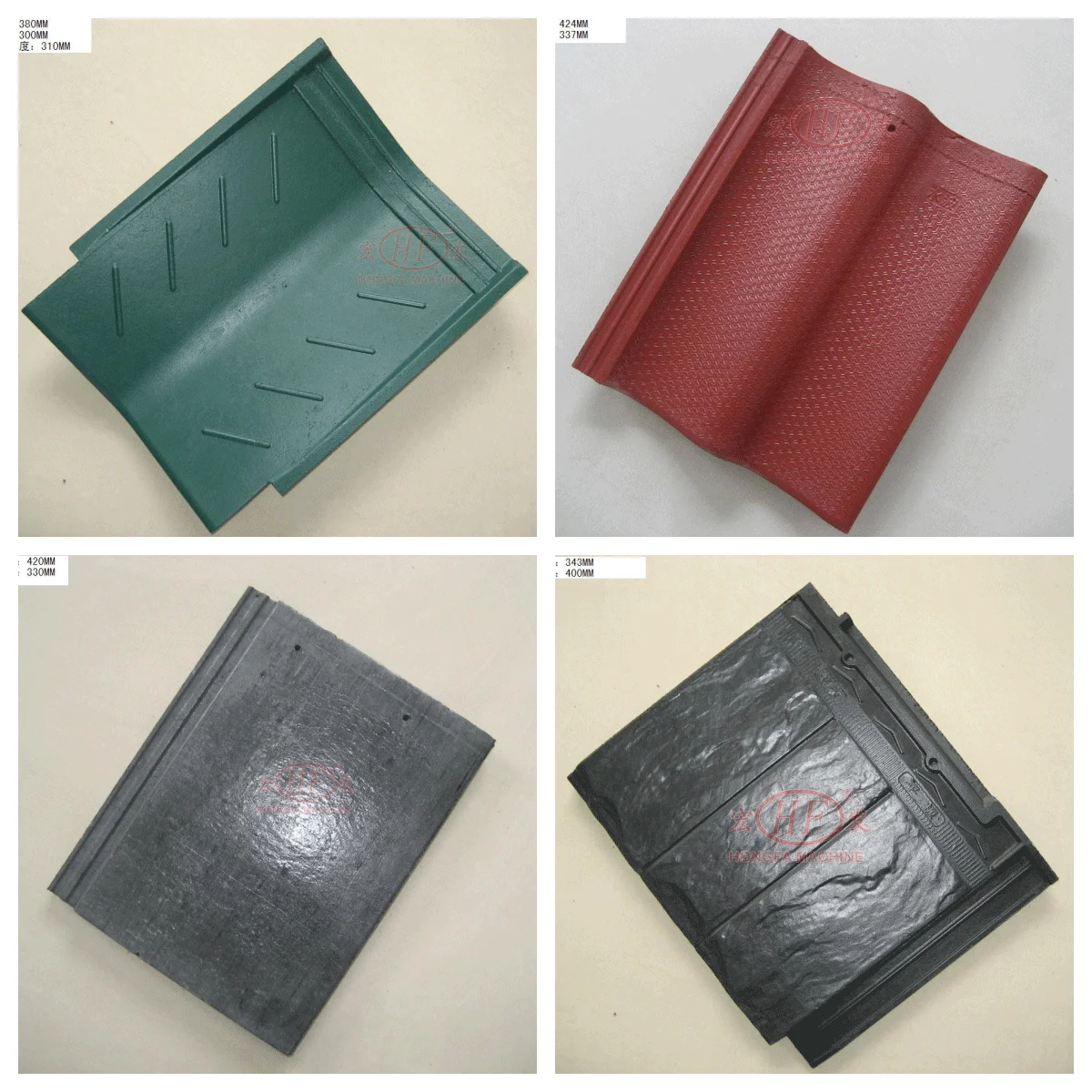

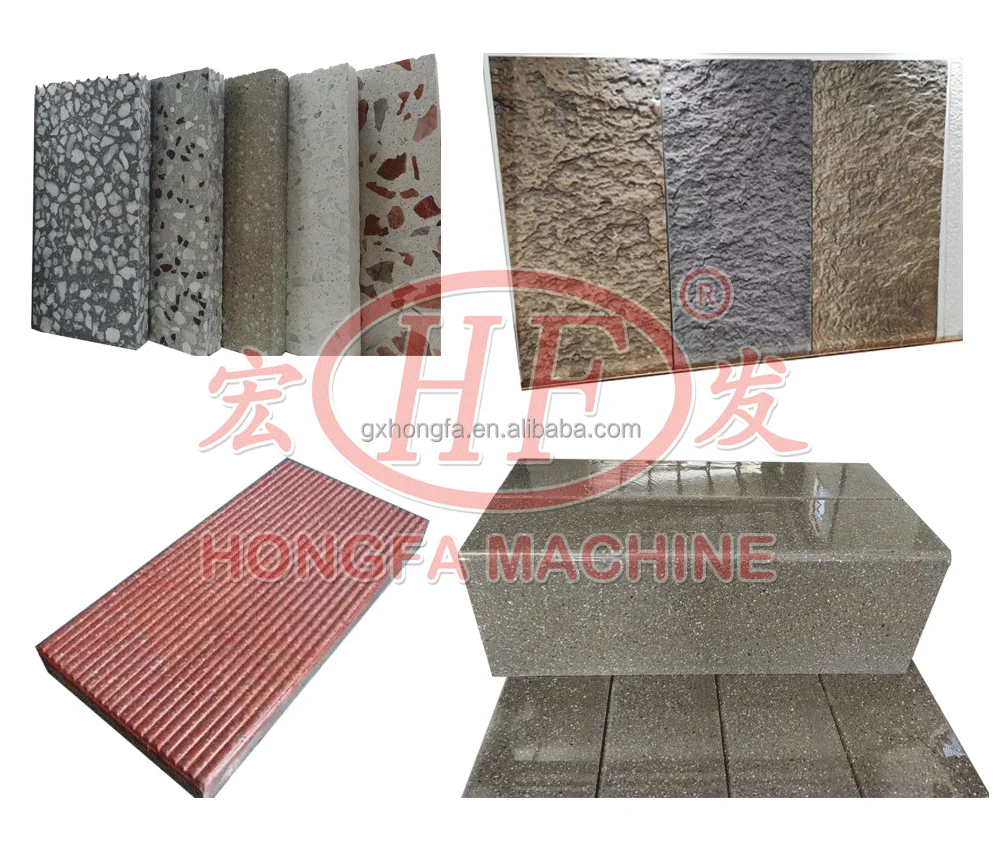

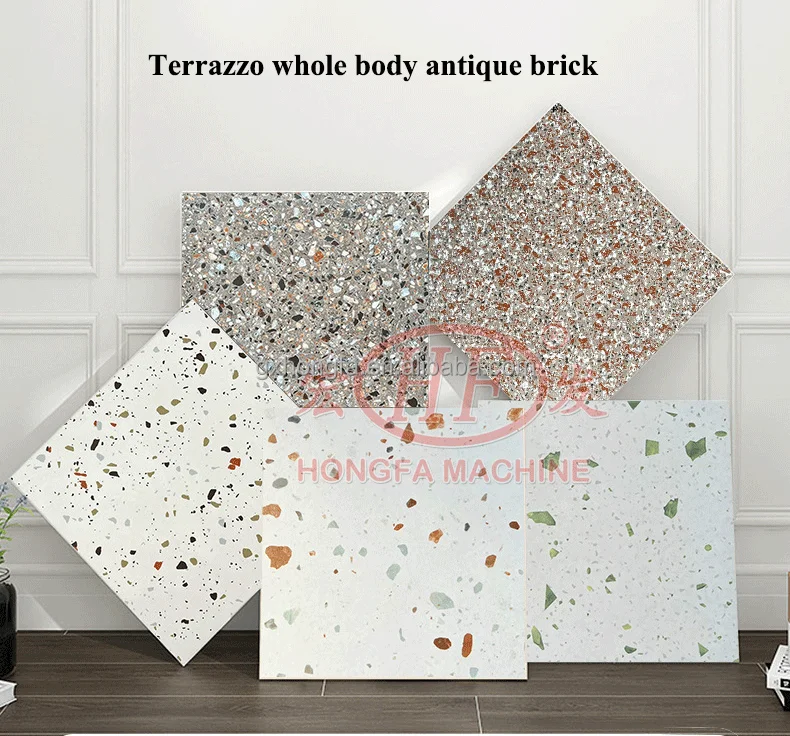

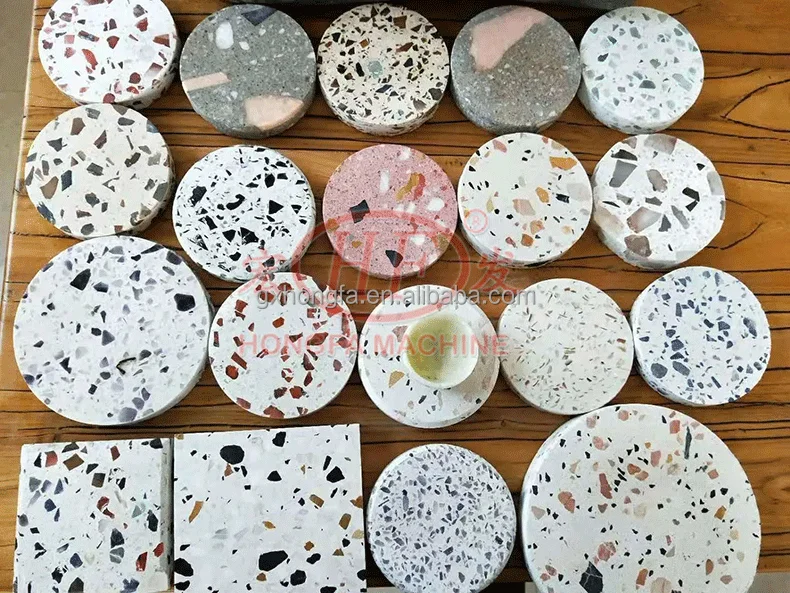

Finished Products Show:Our tile making machine can produce various of tiles. Many kinds of color floor and roof tiles.
One machine can produce roof tile, terrazzo tile ,paving block, curbstone,by changing the mold. Multifunctional machine
 |  |

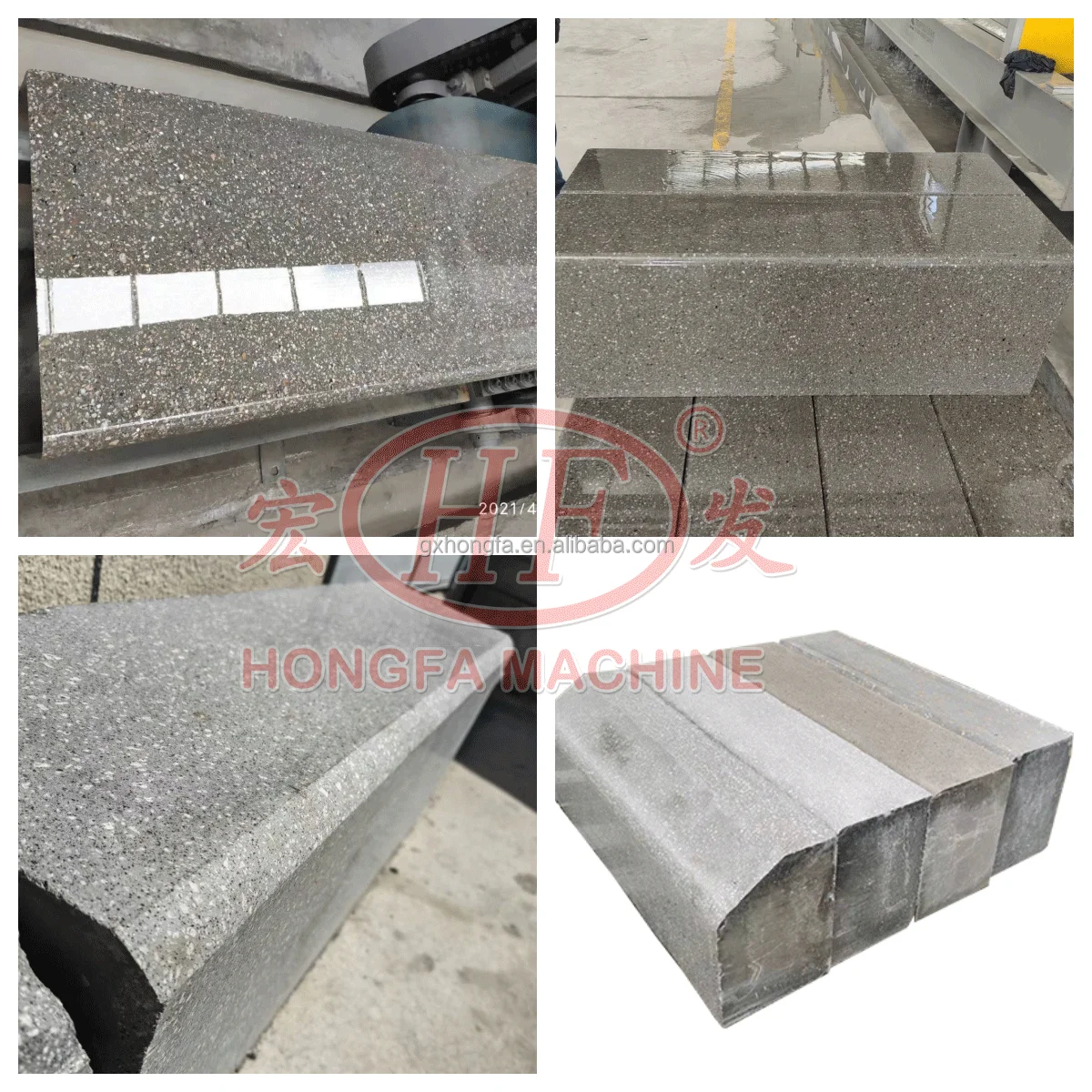

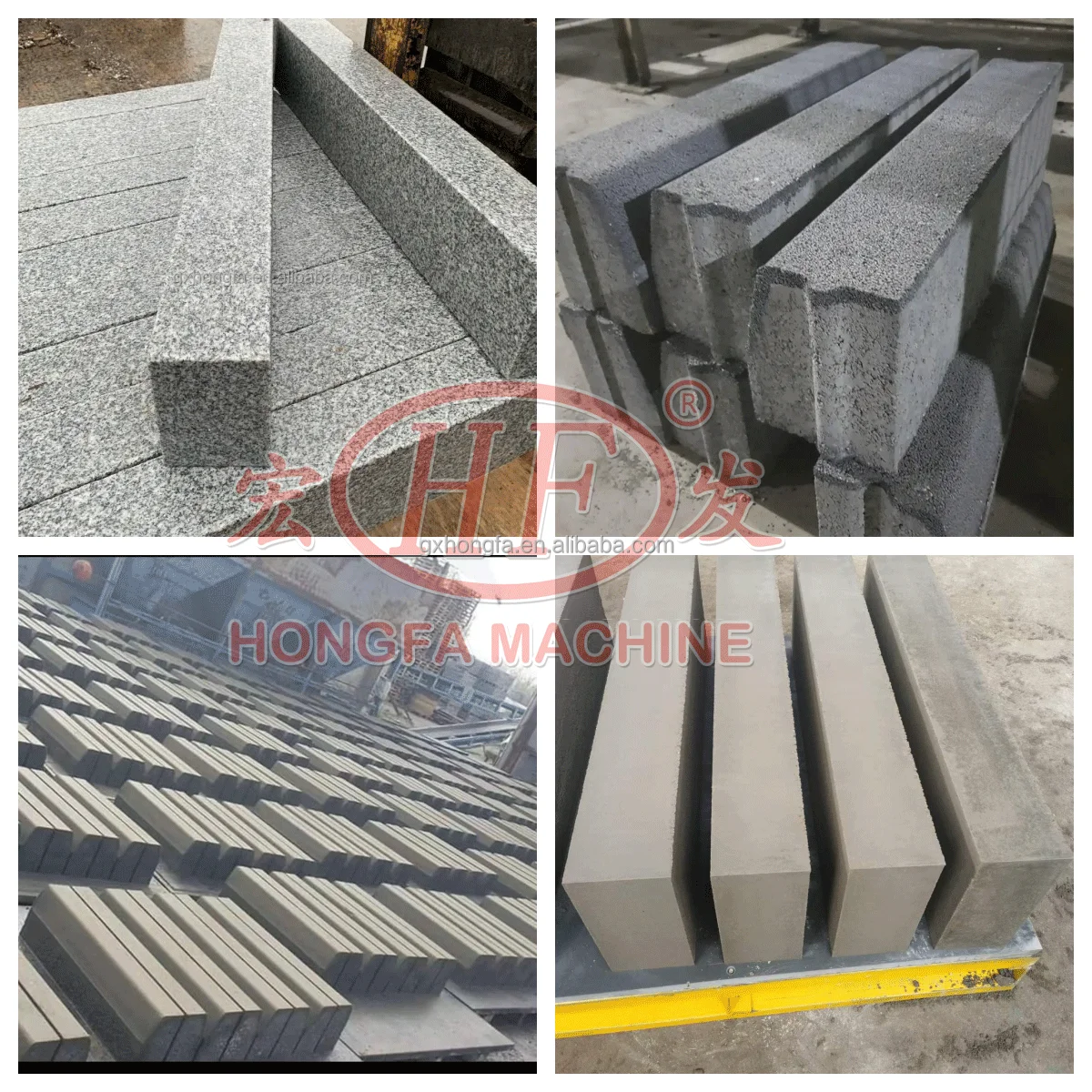

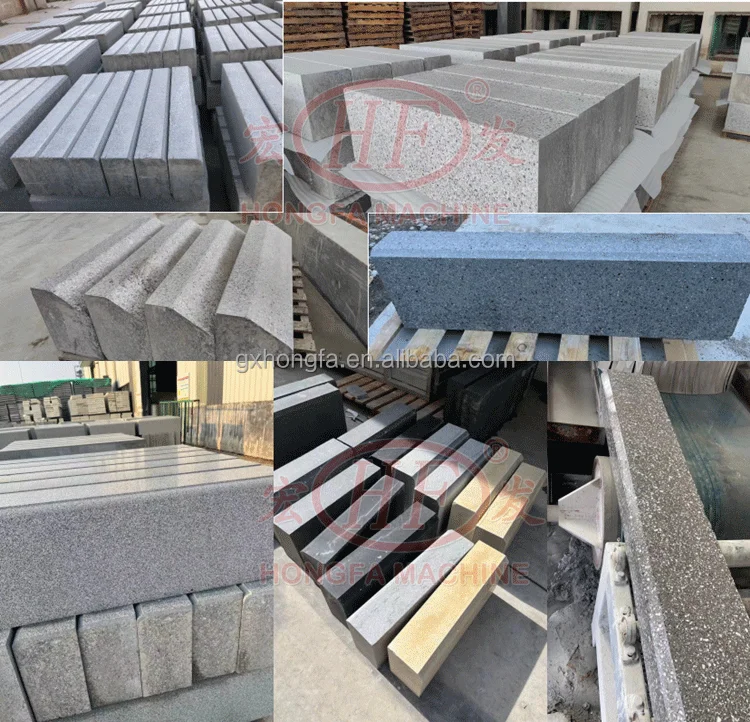

It also can make curbstone:
Curbstones are an essential part of urban design. They provide both durable and attractive results in landscaping and construction projects. As a supporting element, this is placed along roadsides. It's a very useful stone for draining accumulated rain, melted snow, or water transformed from ice along the roadside. We can use curbstones for many purposes like delineating the pavement's edge, alerting drivers not to park on sidewalks and lawns, or establish a clear separation from the roadside. This separation will help to support the pavement aesthetic and edge structurally. In addition, curbstones also direct the water when it rains or when melted from the snow into the storm drains.
Features of Curbstone
The following are the primary characteristics of curbstones, which can be manufactured in a variety of colors, sizes, shapes, and designs.
Advantages
It has a high resistance to cracks.
The surface quality is excellent.
After production, it is simple to install.
It has a high resistance to cracks.
The surface quality is excellent.
After production, it is simple to install.
Our Services
Pre-sales Service
(1) Professional suggestions (raw material matching, machine selection, the condition of building factory, feasibility analysis for panel machine production line).
(2) Device model choice (recommend the best machine according to the raw material, capacity and the size of panel).
(3) Welcome to visit our factory and production line anytime.
(4) Introduce the company file, product categories and production process.
After-sales Service
(1) Training how to install the machine, training how to use the machine.
(2) Engineers available to service machinery overseas.
(3) Recall clients regularly, get feedback in time, keep well communication with each other.
From the day our products sold, we will promise to do as follows:
(1) Provide corresponding technical solutions and site layout;
(2) Provide guidance equipment installation and operation for users.
(3) For each equipment ,we will train mainly operating personnel 5-10.
(4) 12 months guarantee, and provide lifelong technical support.
(5) Feedback within 24 hours after consulting.
(6) Build customers using and maintaining files as soon as dispatch machines;
(7) After finish debugging of equipment, users inspect and sign the acceptance certificate according to the situation of site service.

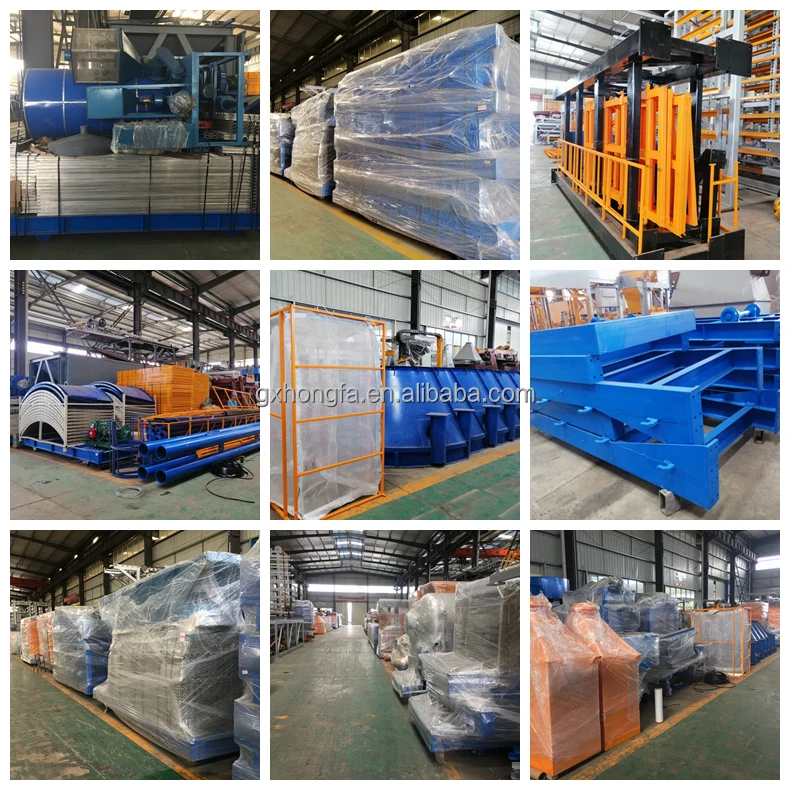

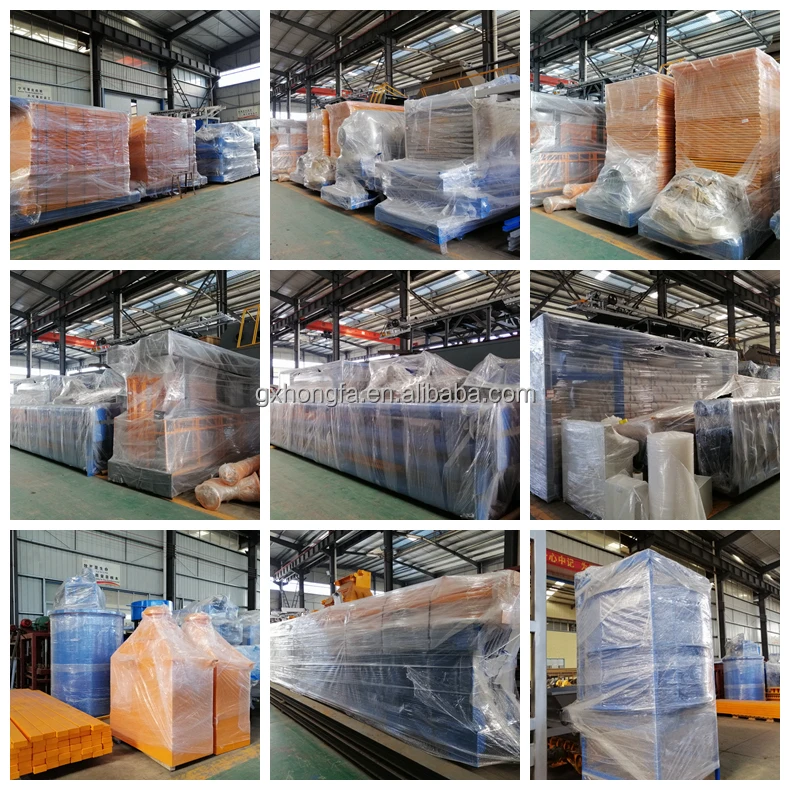

Packaging & Shipping
Packing: Naked packing or stretch film packing or according to customers' requirements
Delivery time: Within 30 days after receipt of deposit and moulds confirmation from buyer
