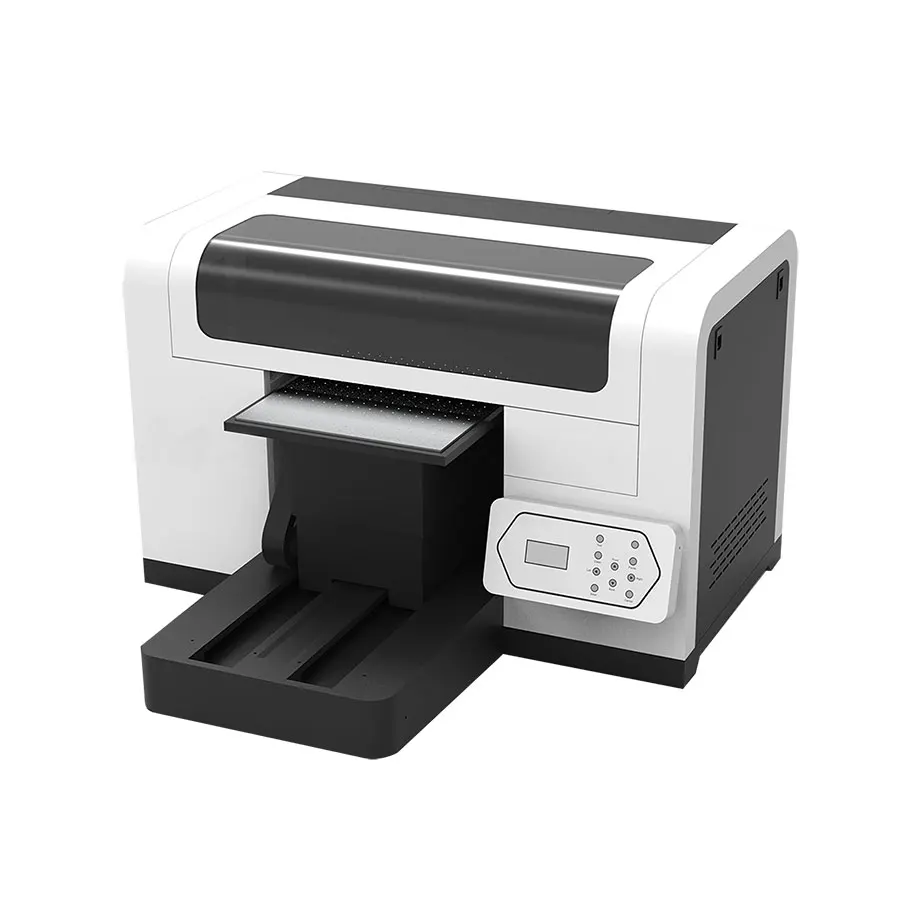

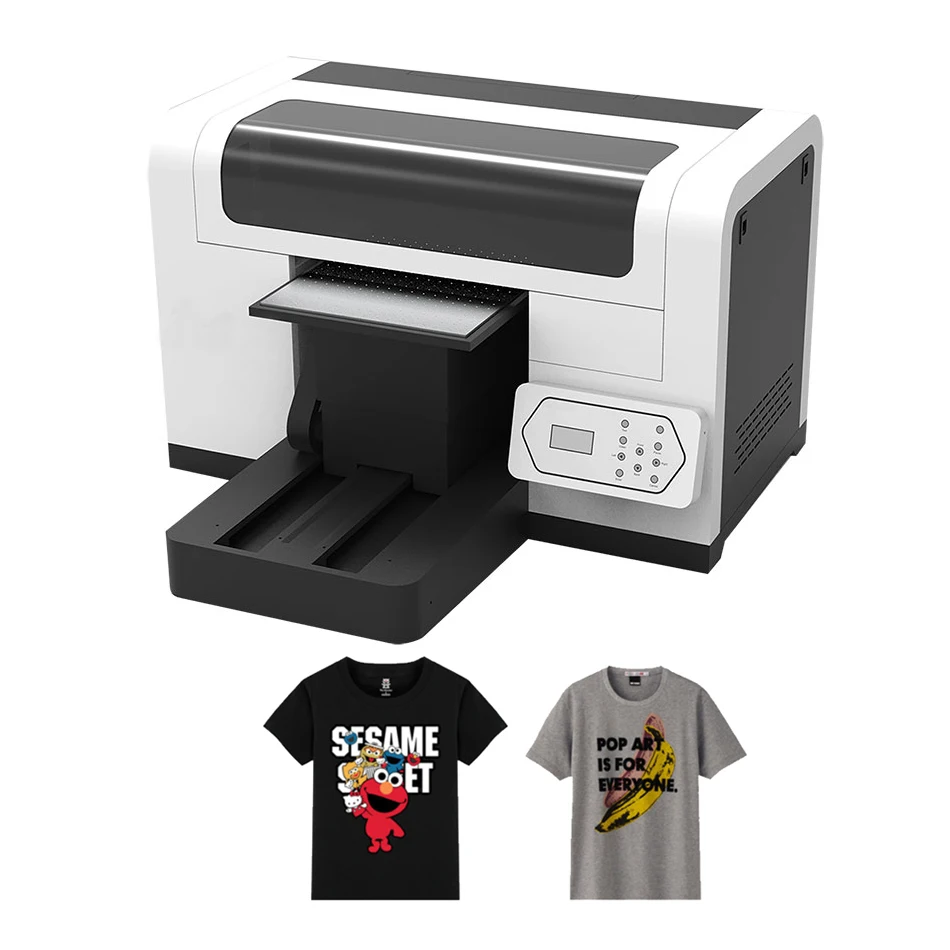

dtg 6 color printer dtg automatic textile printer dtg digital printer for future printing machine
- Category: >>>
- Supplier: Guangzhou Disen Electronic Equipment Co. Ltd.Guangzhou Ltd.
Share on (1601190153532):
Product Overview
Description
Product Description
Product Paramenters
Printer head | Double head Epson xp600 | ||||
Printing configuration | White+Color | ||||
Output accuracy | 360*720 dpi /360*1080 dpi / 720*720 dpi | ||||
Speed | (4PASS) Draft mode | 3m2/H | 1.5 mins/pc | ||
(6PASS) Standard mode | 2m2/H | 2mins/pc | |||
(8PASS) Accuracy mode | 1m2/H | 2.5 mins/pc | |||
Ink type | UV hard / neutral / flexible | ||||
Ink configuration | UV | CMYKLCL+WWWWWW | |||
Pigment Ink | CCMMYK+WWWWWW | ||||
Ink bottle configuration | 500 ml bottle for ink supply | ||||
RIP Software | Photoprint | ||||
Color control | International standard ICC color control | ||||
PC requirement | i5 / i7，Discrete graphics | ||||
File format | TIFF,JPEG,JPG,PNG | ||||
Operating system | Windows 7 | ||||
Bearing material | Suction platform adsorption | ||||
Maximum print range | 450*350MM | ||||
Supply ink system | Positive pressure ink supply system | ||||
Maximum print height | 100MM | ||||
Data interfece | USB2.0 / RJ45 Network cable interfece | ||||
Machine size | 980 ( L ) *1070 ( M ) *620 ( H ) MM | ||||
Packing size | 1000 (L) *1100 (M) *700 (H) MM | ||||
Net weight | 120KG | ||||
Gross weight | 180KG | ||||
UV and paint are combined into one design, and UV ink or paint ink can be selected for the first installation before leaving the factory, as opposed to becoming a desktop UV printer or T-shirt custom machine.
2. Double head design, equipped with cost-effective Epson XP600 nozzle, coating: CMYK color + W white, UV: CMYKLCLM + W white
3. Mini body design, the maximum printing format can reach 35*45CM.
4. The suction platform design can firmly absorb the printing medium.
5. The platform can be raised and lowered by 10CM, and the diameter of the printing medium can be within 10CM. The platform space can add corresponding fixtures. If it is UV, it can add printing pen fixtures, lighter fixtures, etc.; if it is paint, it can add up to children's clothing fixtures: A4, A5, 9*11CM, etc.
6. Equipped with high-speed, silent and wear-resistant imported THK guide rails, high-end stable and long-life Leisai servo motor, which perfectly ensures the printing quality of the machine and prolongs the service life of the body.
7. Visualized operation panel, one key to control the operation program of the fuselage.
8. International standard ICC curve color, optional Maintop or Photo print.
2. Double head design, equipped with cost-effective Epson XP600 nozzle, coating: CMYK color + W white, UV: CMYKLCLM + W white
3. Mini body design, the maximum printing format can reach 35*45CM.
4. The suction platform design can firmly absorb the printing medium.
5. The platform can be raised and lowered by 10CM, and the diameter of the printing medium can be within 10CM. The platform space can add corresponding fixtures. If it is UV, it can add printing pen fixtures, lighter fixtures, etc.; if it is paint, it can add up to children's clothing fixtures: A4, A5, 9*11CM, etc.
6. Equipped with high-speed, silent and wear-resistant imported THK guide rails, high-end stable and long-life Leisai servo motor, which perfectly ensures the printing quality of the machine and prolongs the service life of the body.
7. Visualized operation panel, one key to control the operation program of the fuselage.
8. International standard ICC curve color, optional Maintop or Photo print.
Note: The quotation does not include the nozzle

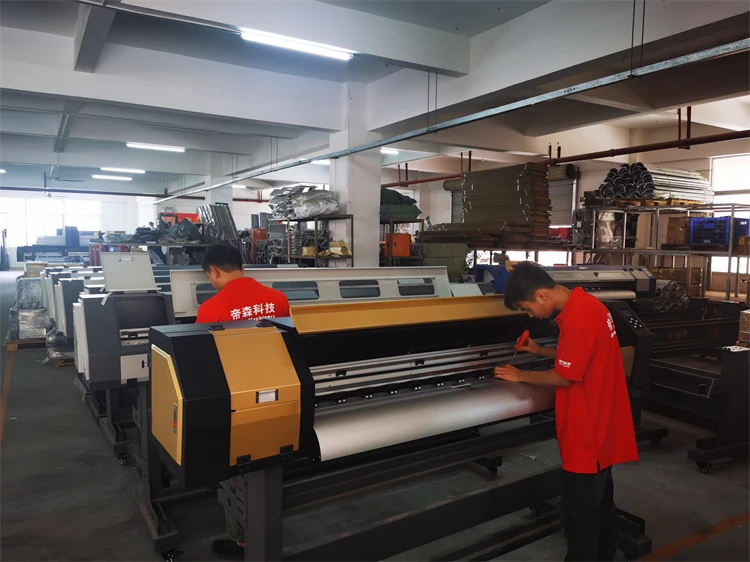

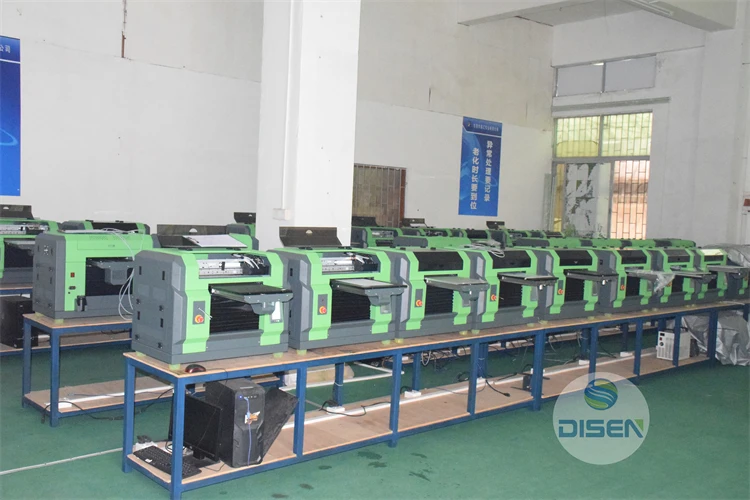

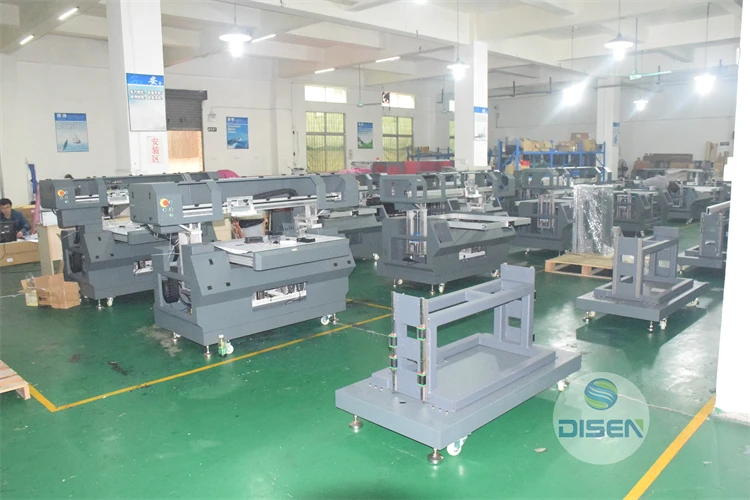

Company Profile
