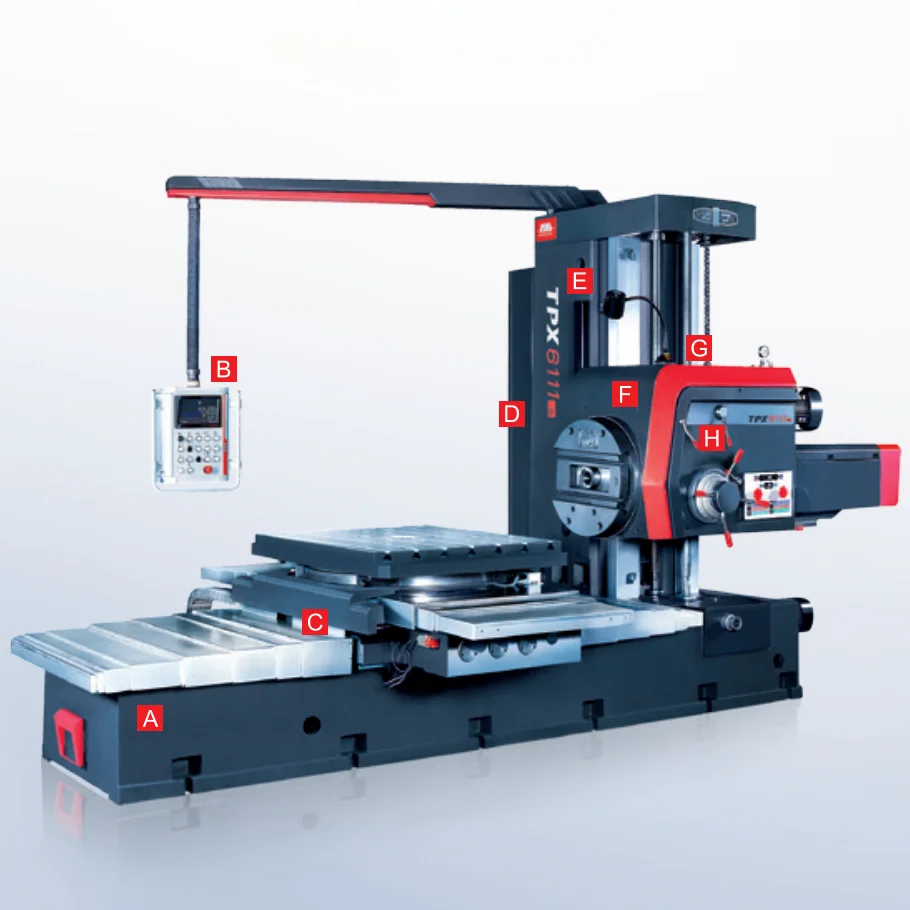

GT SMTCL TPX6111B Cylinder Boring Machine India Portable Hydraulic Line Boring Machine Line Boring Machine For Sale South Africa
- Category: >>>
- Supplier: Genertec Dalian Machine Tool(Wafangdian) Co. Ltd.
Share on (1601190244423):
Product Overview
Description
VR
Product Details
Item | Unit | TPX6111B | TPX6111B/2 | TPX6111B/3 | ||
Spindle | Diameter | mm | 110 | 110 | 110 | |
Taper | — | Morse No6 (ISO7:24No50) | Morse No6 (ISO7:24No50) | Morse No6 (ISO7:24No50) | ||
Max Torque | N.m | 1225 | 1225 | 1225 | ||
Max Axial Thrust | N | 12250 | 12250 | 12250 | ||
Speed Settings | — | 22 | 22 | 22 | ||
Speed Range | r/min | 8-1000 | 8-1000 | 8-1000 | ||
Main Motor Power | kW | 7.5 | 7.5 | 7.5 | ||
Facing Plate | Max Torque | N.m | 1960 | 1960 | 1960 | |
Diameter | mm | 600 | 600 | 600 | ||
Speed Range | r/min | 4-200 | 4-200 | 4-200 | ||
Speed Settings | — | 18 | 18 | 18 | ||
Worktable | Dimensions | mm | 1100X960 | 1100X960 | 1250X1100 | |
Max Load | kg | 5000 | 5000 | 5000 | ||
T- slot Size | mm | 22 | 22 | 22 | ||
T-slot Count | — | 7 | 7 | 7 | ||
Machining Range | X-axis Max Travel | mm | 900 | 1250 | 1600 | |
Y-axis Max Travel | mm | 900 | 900 | 1200 | ||
Z-axis Max Travel | mm | 1400 | 1400 | 1400 | ||
W-axis Max Travel (Spindle) | mm | 600 | 600 | 600 | ||
U-axis Max Travel (Facing Plate Slide) | mm | 180 | 180 | 180 | ||
B-axis Rotary Angle | o | 360 | 360 | 360 | ||
Min Distance Between Spindle Centerline and Worktable | mm | 0 | 0 | 0 | ||
Feed | Rapid Traverse | mm/min | X/Y/Z/W:2500 | X/Y/Z/W:2500 | X/Y/Z/W:2500 | |
Feed range of axes for each spindle revolution | mm/rev | 0.04-6/0.01-1.88 (X/Y/Z/W) | 0.04-6/0.01-1.88 (X/Y/Z/W) | 0.04-6/0.01-1.88 (X/Y/Z/W) | ||
Speed Range (X) | mm/min | — | — | — | ||
Accuracy | Linear Measurement Reading Accuracy (X/Y/Z-axis) | mm | 0.005 | 0.005 | 0.005 | |
Linear Measurement Reading Accuracy (B-axis) | O | 0.001 | 0.001 | 0.001 | ||
General Specs | Dimensions (LxWxH) | mm | 4910x2454x2750 | 4910x2870x2750 | 5028x3359x3079 | |
Machine Weight | kg | 11500 | 13000 | 14000 | ||
