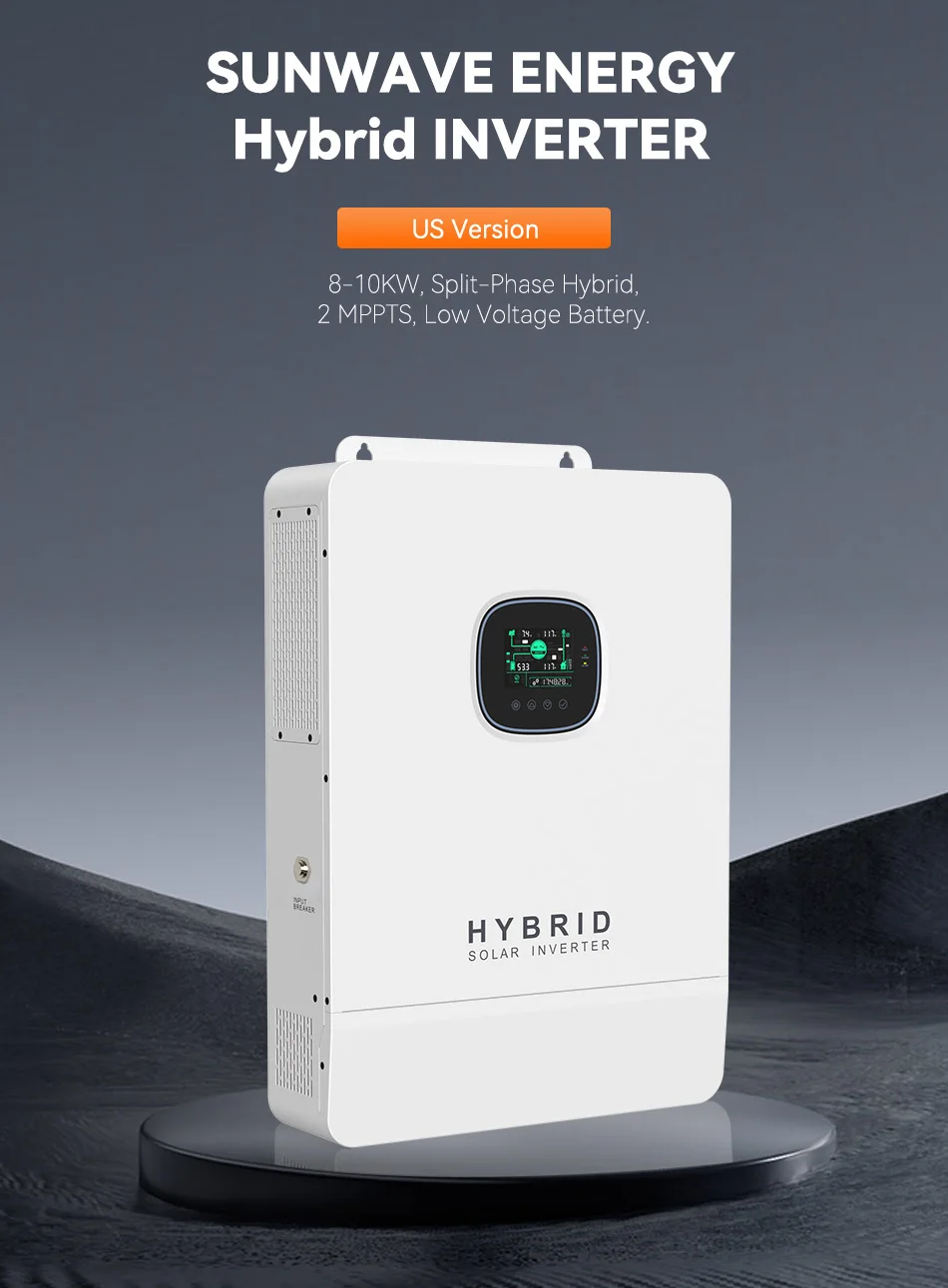

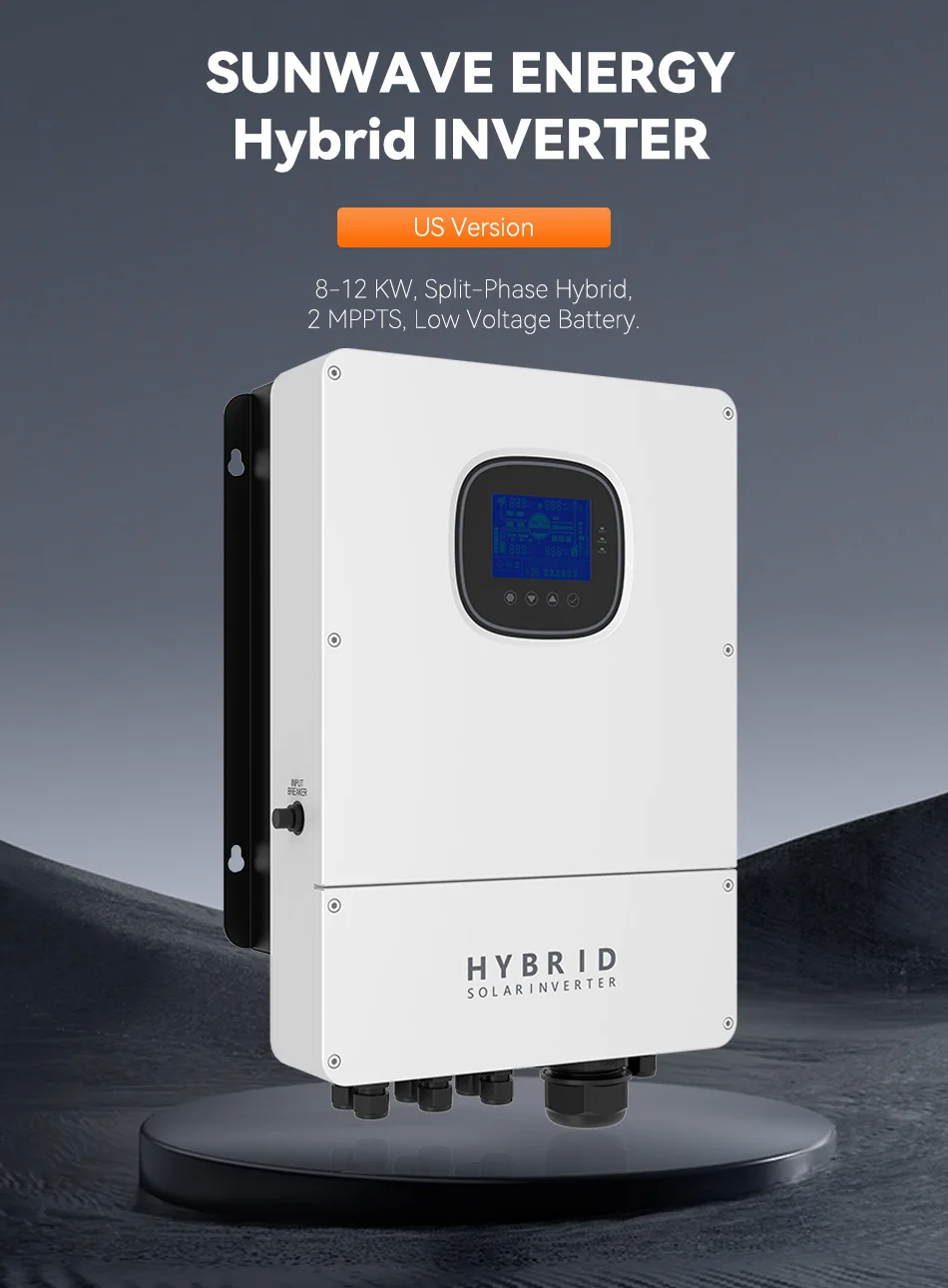

Sunwave Hot Selling US Version 8kw 10kw 12kw Hybrid Inverter 120/240V Split Phase Single Phase With Wi Fi For Home Solar System
- Category: >>>
- Supplier: Sunwave Technology Co. Ltd.
Share on (1601190494621):
Product Overview
Description
Product Descriptions
Product Specifications

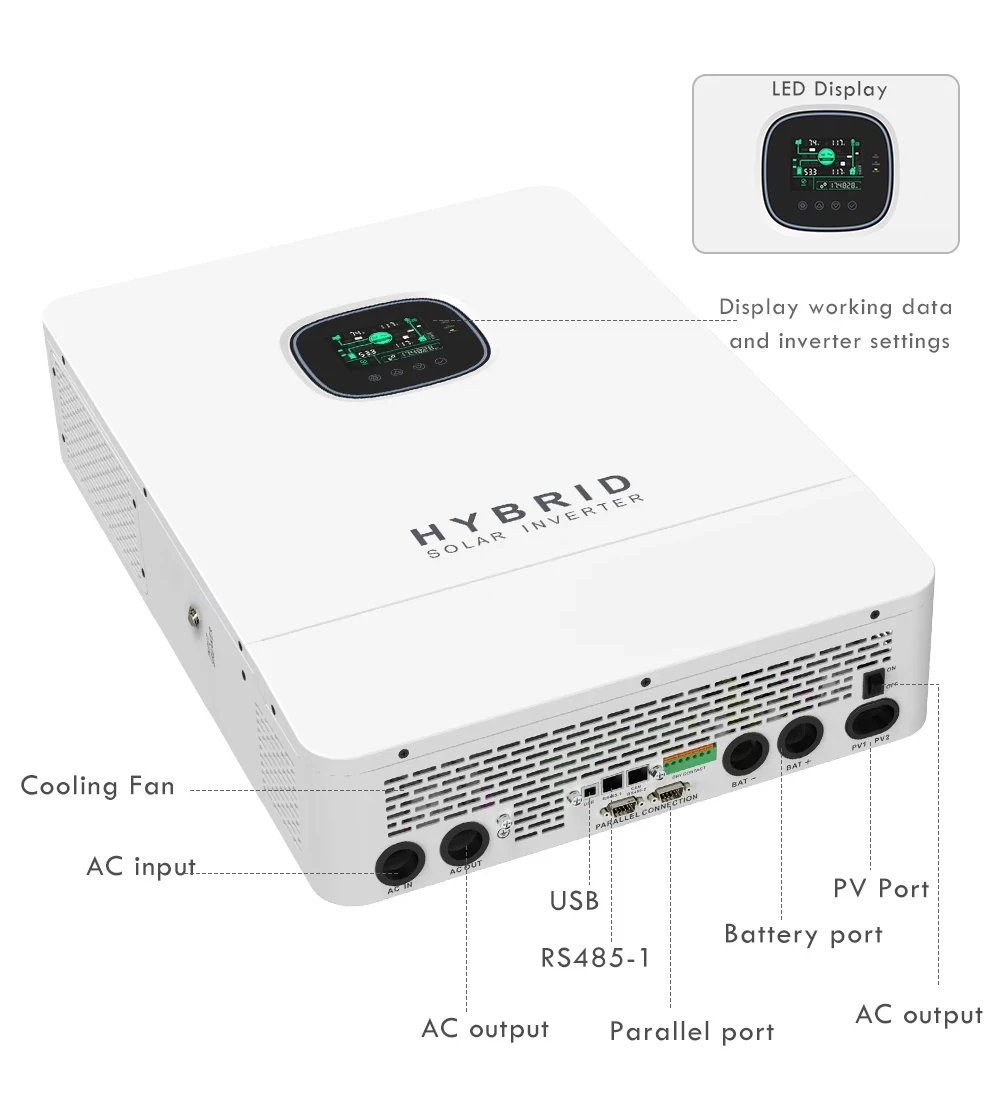

MODEL | SPI-8K-U | SPI-10K-U | ||
INVERTER OUTPUT | ||||
Rated Output Power | 8,000W | 10,000W | ||
Peak Power | 16,000W | 20,000W | ||
Rated Output Voltage | 120Vac,single-phase /240Vac,split-phase | |||
Load Capacity of Motors | 5HP | 6HP | ||
Rated AC Frequency | 50/60Hz | |||
Waveform | pure sine wave | |||
Switch Time | 10ms(typical) | |||
BATTERY | ||||
Battery Type | Li-ion /Lead-acid /User-defined | |||
Rated Battery Voltage | 48Vdc | |||
Battery Voltage Range | 40～60Vdc | |||
Max.PV Charging Current | 180A | 200A | ||
Max.Utility/Generator Charging Current | 100A | 120A | ||
Max.Hybrid Charging Current | 180A | 200A | ||
PV INPUT | ||||
Num.of MPPT | 2 | |||
Max.PV Array Power | 5,500W+5.500W | |||
Max.Input Current | 22A+22A | |||
Max.Open-circuit Voltage | 500Vdc+500Vdc | |||
MPPT Voltage Range | 125～425Vdc | |||
UTILITY /GENERATOR INPUT | ||||
Input Voltage Range | 90～140Vac | |||
Frequency Range | 50/60Hz | |||
Bypass Overload Current | 63A | |||
GENERAL | ||||
Dimensions | 620*445*130mm | |||
Weight | 27kg | |||
Protection Degree | IP20,indoor only | |||
Operating Temp.Range | -10~55℃,>45℃ derated | |||
Cooling Method | intelligent air cooling | |||
Warranty | 18 months | |||
COMMUNICATION | ||||
Embedded Interfaces | RS485 /CAN /USB /Dry contact | |||

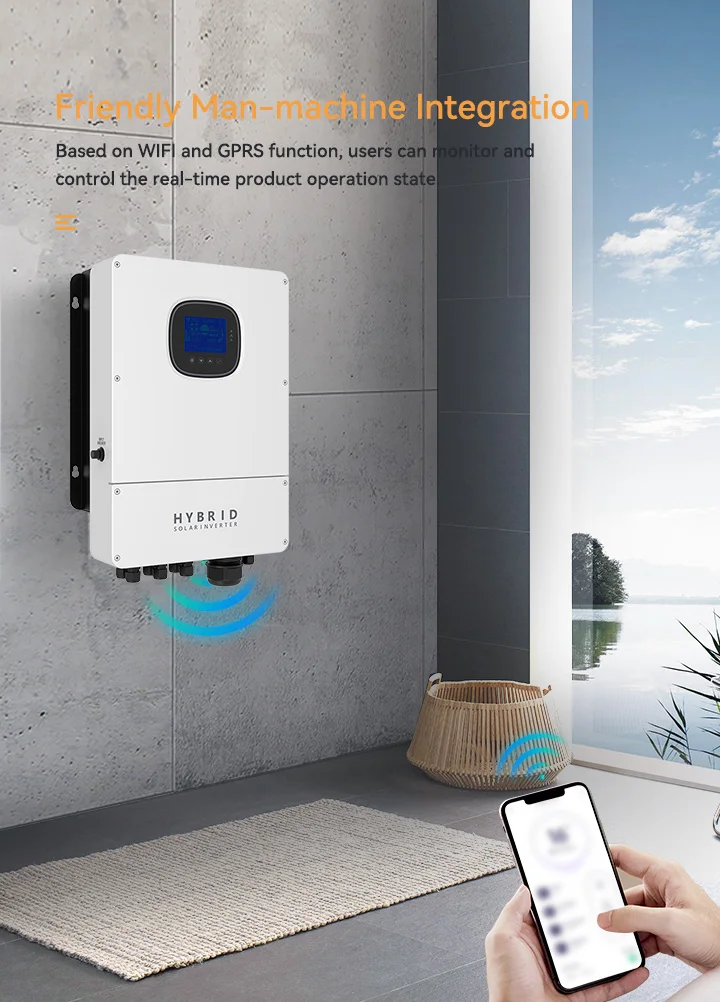

External Module(optional) | Wi-Fi/GPRS | |||

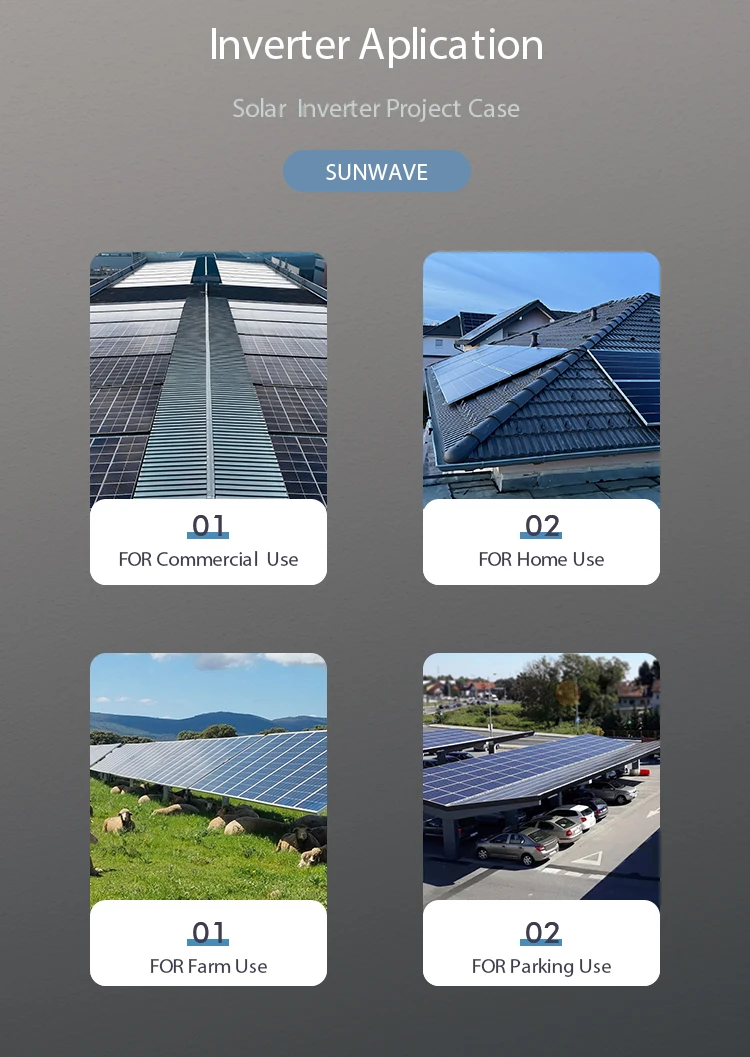

Project Case

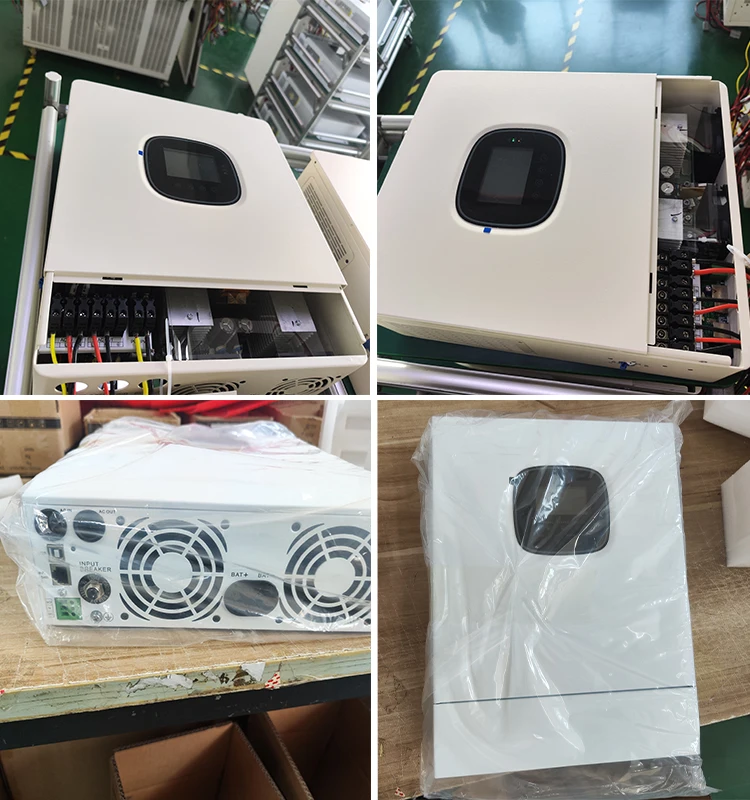

Product packaging
Product Descriptions
Product Specifications

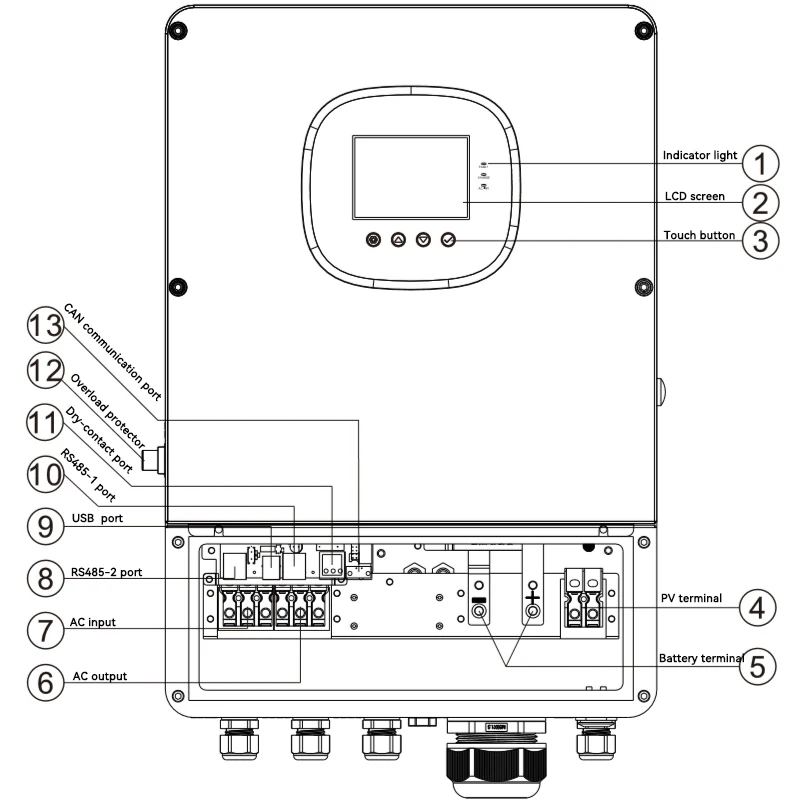

MODEL | SEI-8K-UP | SEI-10K-UP | SEI-12K-UP | |||
INVERTER OUTPUT | ||||||
Rated Output Power | 8,800W | 10,000W | 12,000W | |||
Peak Power | 17,600VA | 20,000VA | 24,000VA | |||
Rated Output Voltage | 120/240Vac,single-phase /split-phase /three-phase when in paralle | |||||
Load Capacity of Motors | 5HP | 6HP | ||||
Rated Output Frequency | 50/60Hz | |||||
BATTERY | ||||||
Battery Type | Lead-acid /Li-ion /User-defined | |||||
Bated Battery Voltage | 48V | |||||
Max.PV Charging Current | 200A | |||||
Max.Utility Charging Current | 120A | |||||
Max.Generator Charging Current | 60A | |||||
Max.Hybrid Charging Current | 200A | |||||
PV INPUT | ||||||
Num.of MPPT | 2 | |||||
Max.PV Array Power | 5,500W+5,500W | 6,600W+6.600W | ||||
Max.Input Current | 22A+22A | |||||
Max.Open-circuit Voltage | 500Vdc+500Vdc | |||||
MPPT Operating Voltage Range | 125～425Vdc | |||||
UTILITY /GENERATOR INPUT | ||||||
Input Voltage Range | 90～140Vac | |||||
Frequency Range | 50/60Hz | |||||
GENERAL | ||||||
Num.of Parallel | 1～6 units | |||||
Dimensions | 750*440*240mm | |||||
Weight | 42kg | |||||
Protection Degree | IP65 | |||||
Operating Temp.Range | -25~60℃,>45℃ derated | |||||
Cooling Method | intelligent air cooling | |||||
Warranty | 5 years | |||||
COMMUNICATION | ||||||
Internal Interface | RS485/CAN /USB /Dry contact | |||||

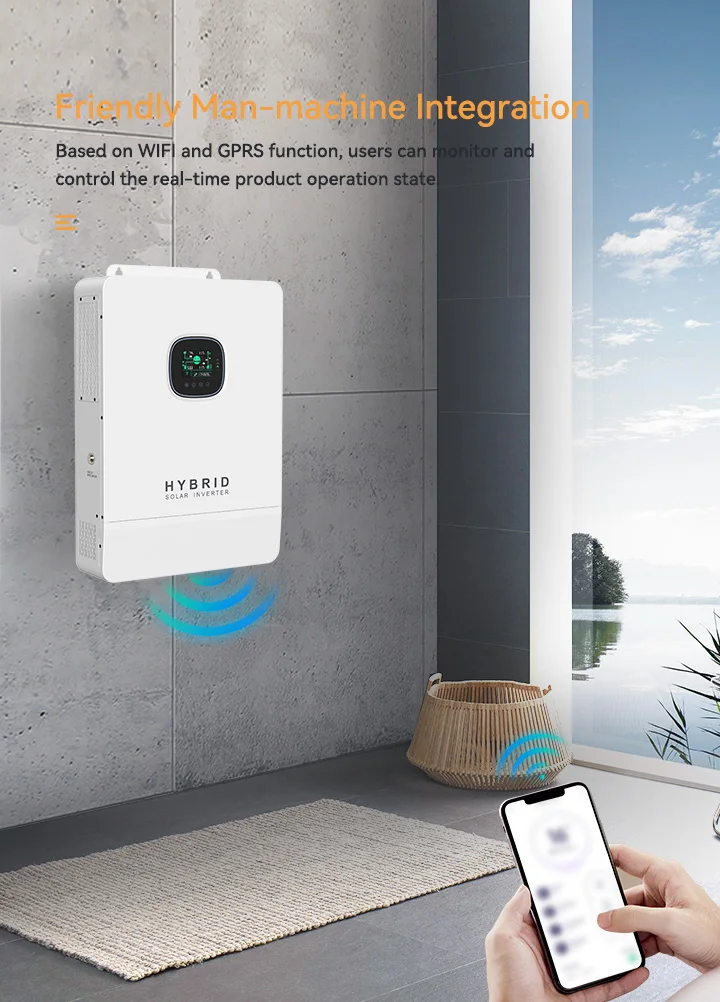

External Module(optional) | Wi-Fi/GPRS | |||||
Project Case
Product packaging
