CMOS Industrial and Medical Endoscope Camera Module OEM/ODM
- Category: >>>
- Supplier: Shenzhen Ojos Medical Co. Ltd.
Share on (1601190656748):
Product Overview
Description
9734

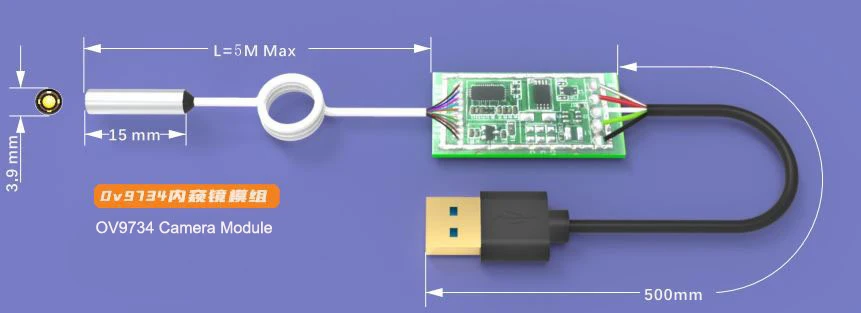

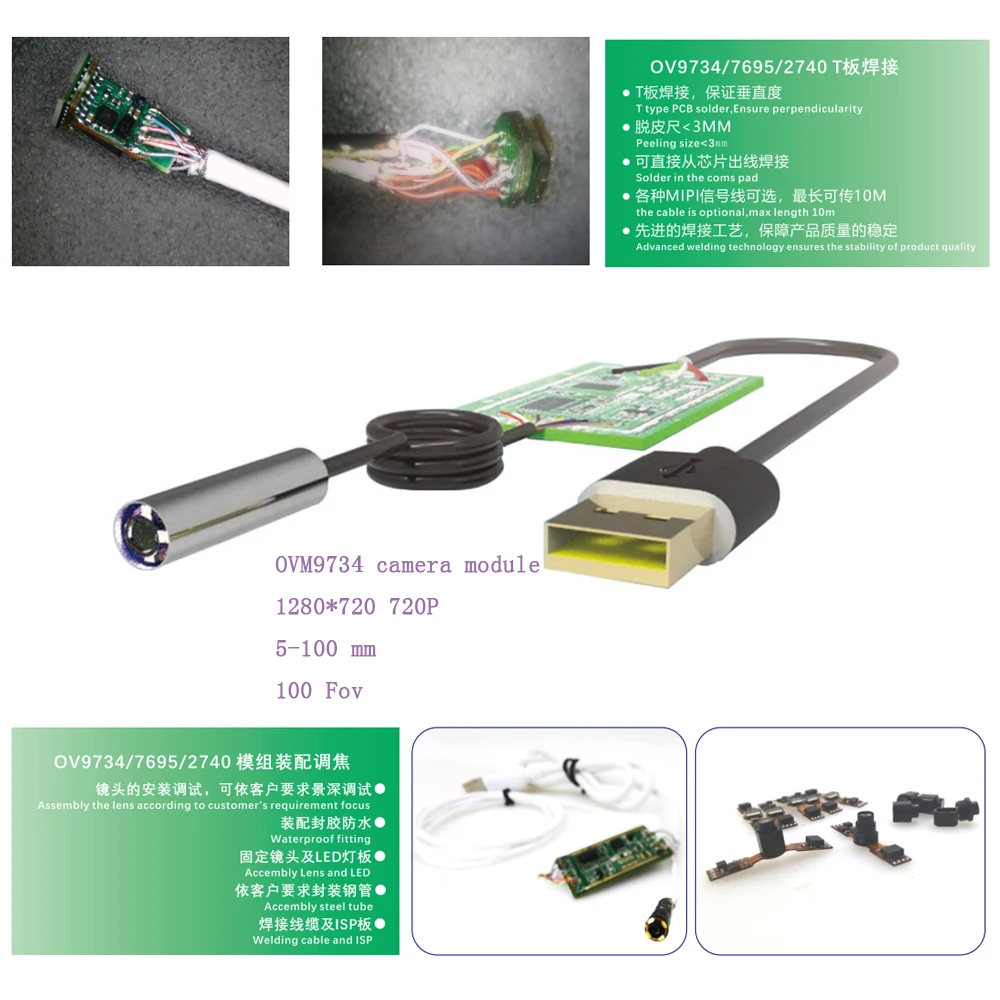

| OV9734 Camera Module | |

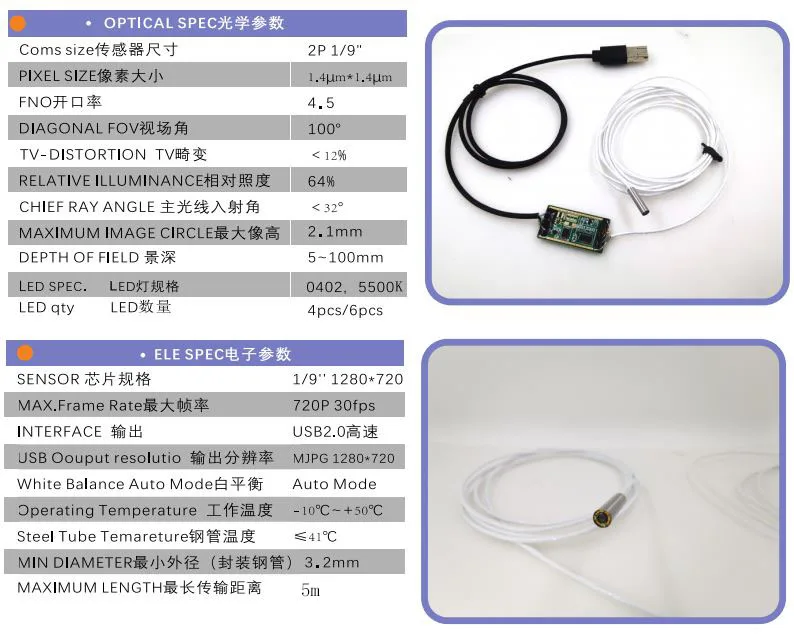

| OPT SPE | |
| CMOS/Sensor Size | 2P 1/9'' |
| Pixel Size | 1.4*1.4um |
| FNO/Lens FNO | F4.5 |
| Diagonal FOV (Field of view) | 100 degree |
| TV-Distortion | <12% |
| Relative Illumination/Illuminance | 64% |
| Chief Ray Angle | <32% |
| Maximum Image Circle | 2.1mm |
| Depth of Field | 5~100mm |
| LED SPEC | 0402, 5500K |
| LED qty | 0-6pcs |
| ELE SPEC | |
| SENSOR | 1/9 1280*720 |
| Max. Frame Rate | 720P 30fps |
| Interface | USB2.0 High Speed |
| USB output resolution | MJPG 1280*720 |
| AWB/Auto White Balance/ White Balance Auto Mode | Auto |
| Operating Temperature | -10℃~50℃ |
| Steel Tube Temperature | ≤41℃ |
| Min Diameter | 3.2mm |
| Maximum Length | 0-8M |
