Worth Buying Laser Marking Machine Portable 3d Uv Laser Marking Machine For Glass
- Category: >>>
- Supplier: liaocheng haorun commodity company Ltd.
Share on (1601190734378):
Product Overview
Description
PRODUCT DESCRIPTION
Brand
HAORUN
Delivery time
3-5 days
Product origin
Shandong Province China
Supply capacity
30 Sets / Month In stock!
UV laser marking machine for Glass and Ceramic an ultraviolet (UV) laser, which is a cold light.Uv laser marking systems are mainly used for plastics (ABS, PA), silicon, ceramics and glass.

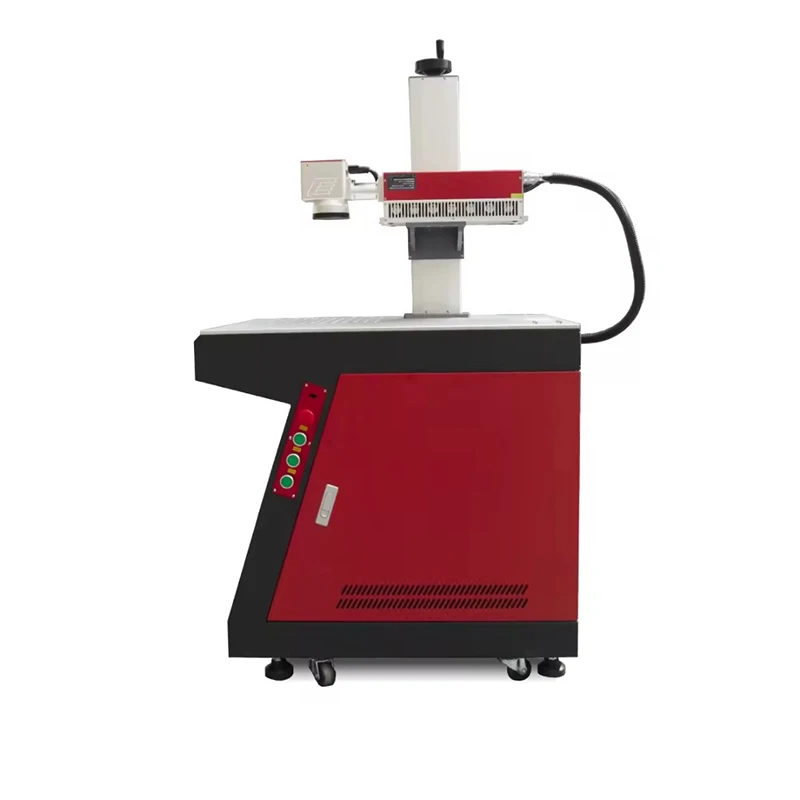

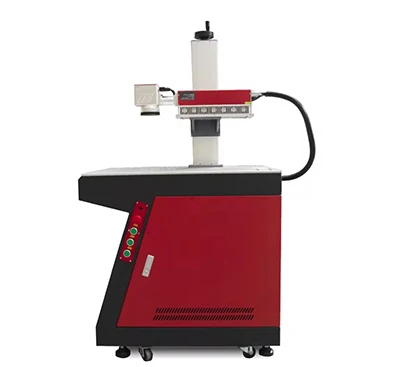

PRODUCT DISPLAY
PRODUCT PARAMETERS
Model | UV3, UV5, UV10, UV15 |
Laser output power | ≥3W@30KHZ |
Machine Power | <1KW |
Laser wavelength | 355nm |
Laser Repetition Frequency | ≤50KHz |
Standard marking area | 110*110mm |
Marking area | 110mm*110mm /175*175mm/200mm*200mm/300mm*300mm(Optional) |
Marking depth | 0.01-0.3mm(Adjustable according to material) |
Marking speed | ≤8000mm/s |
Repeatability accuracy | ±0.01mm |
Beam quality(Square meter) | <2 |
Positioning accuracy | ≤0.02mm |
Minimum character | 0.2mm |
Minimum line width | 0.015-0.1mm |
Marking and positioning method | Red Light Indicator Location |
Modulation frequency | 20KHZ-80KHZ |
Laser type | YAG Semiconductor End Pump |
Laser Repetition Frequency | ≤50KHz |
Power | 220V/50Hz/20A, 380V/50Hz/20A |
Laser continuous working time | 24H |
Cooling mode | Air cooling |
File Support Format | BMP, AI, GIF, JPEG, PCX, TGA, TIFF, PLT, CDR, DMG, DXF ect. |
PRODUCT DETAILS
PRODUCT ADVANTAGE

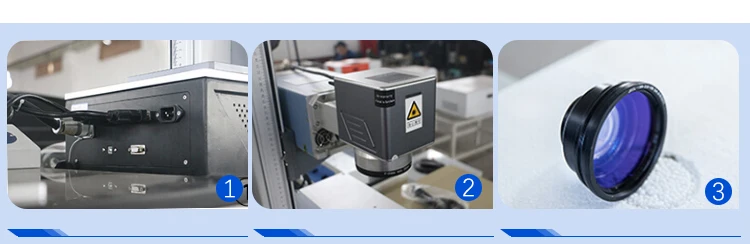

①External TTL and PWM controls are suitable for long term high stability industrial applications with good speed of light, good quality and stable mechanical properties

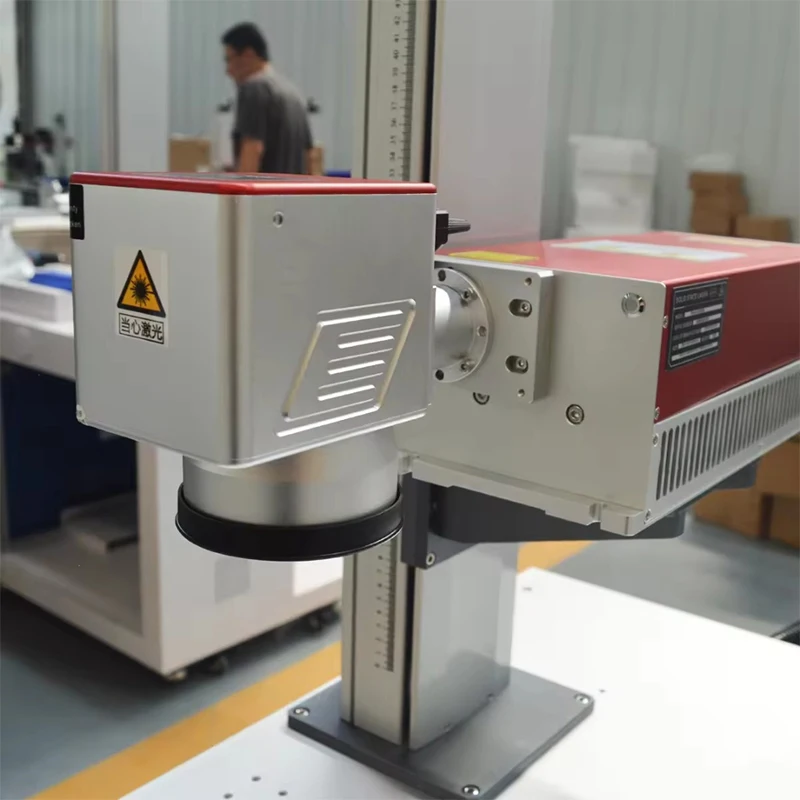

②Scanning Head
Adopt the advanced fiber laser system and speedy gavol scanning system, it ensures excellent laser focusable beam and stable performance.
Spot transmittance higher finer and smaller light output higher quality carving.
③F - Theta lens
The optional work areas: 110*110mm,150*150mm,175*175mm,200*200mm,300*300mm . You can select them according your requirements.

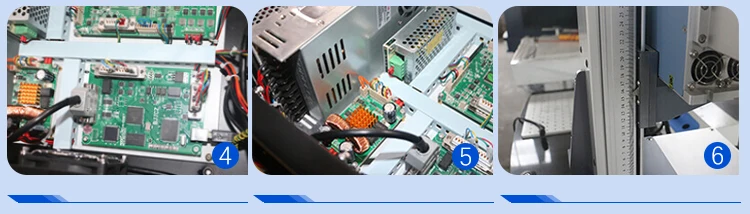

④EZCAD JCZ control card
Famous brand directional EZCAD control system, easy to operate.
⑤Switching power supply and wiring
Brand: MEANWELL Origin: China TAIWAN Using the world-famous brand MEANWELL 24V power supply and scientific wiring layout can minimize the equipment failure caused by the wiring.
②Scanning Head
Adopt the advanced fiber laser system and speedy gavol scanning system, it ensures excellent laser focusable beam and stable performance.
Spot transmittance higher finer and smaller light output higher quality carving.
③F - Theta lens
The optional work areas: 110*110mm,150*150mm,175*175mm,200*200mm,300*300mm . You can select them according your requirements.
④EZCAD JCZ control card
Famous brand directional EZCAD control system, easy to operate.
⑤Switching power supply and wiring
Brand: MEANWELL Origin: China TAIWAN Using the world-famous brand MEANWELL 24V power supply and scientific wiring layout can minimize the equipment failure caused by the wiring.
⑥Hand-cranked lifting system,easy to operate and easy to use.The laser focal length can be adjusted up and down according to different kinds of materials and marking materials.

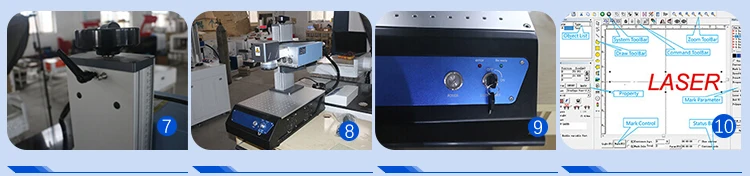

⑦Elevator shaft
Material quality, effective and stable, professional manufacturers positioning accuracy accurate, firm positioning
⑧Work platform
Standard positioning hole, convenient and quick positioning, arbitrary adjustable position can achieve a variety of combinations,with software multi-station printing to improve work efficiencyrate, firm positioning.
⑨Control button
Humanized control system, easy to operate.Dustproof design
⑩Software surface
Simpler and more friendly interface, users can easily get started
⑦Elevator shaft
Material quality, effective and stable, professional manufacturers positioning accuracy accurate, firm positioning
⑧Work platform
Standard positioning hole, convenient and quick positioning, arbitrary adjustable position can achieve a variety of combinations,with software multi-station printing to improve work efficiencyrate, firm positioning.
⑨Control button
Humanized control system, easy to operate.Dustproof design
⑩Software surface
Simpler and more friendly interface, users can easily get started
PRODUCT STANDARD ACCESSORIES
Allen wrench
Ruler
Data line
Pedal
Power cable
U disk and test card
PRODUCT OPTIONAL PARTS
Rotary
Arc or round workpiece marking, with speed motor
Optional rotary axis:Can be used for different cylindrical,spherical objects to rotate the marker axis.The stepping motor is used for digital control,and the speed can be automatically controlled by computer,which is more convenient,simple,safe and stable.
Optional rotary axis:Can be used for different cylindrical,spherical objects to rotate the marker axis.The stepping motor is used for digital control,and the speed can be automatically controlled by computer,which is more convenient,simple,safe and stable.

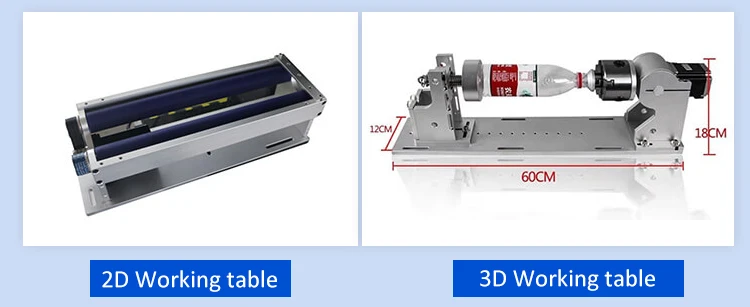

2D/3D Working table
The workbench can be adjusted up and down, forward and backward.We're moving in six directions.Users can adjust the direction according to actual needs.It's optional.
PRODUCT SERVICE
1. The Whole UV laser marking machine for Glass and Ceramic：Three years.
2. Laser source：
3W/5W/10W/15W for Two years (this is what laser source supplier offer to us).
3. Laser lens UV laser marking machine for Glass and Ceramic:four years.
If it is damaged during the warranty period, we will replace a new one for you free of charge. You only need to pay the transportation cost of the accessories.
4.24 hours online technical support, such as WhatsApp, Wechat, Skype,you can calling us if urgent.
The accessories of the machine include the installation program of the operating software of the machine and the teaching video.
The operation and learning of the machine are very simple. If there are problems that cannot be solved or cannot be solved, we can teach online by video.
2. Laser source：
3W/5W/10W/15W for Two years (this is what laser source supplier offer to us).
3. Laser lens UV laser marking machine for Glass and Ceramic:four years.
If it is damaged during the warranty period, we will replace a new one for you free of charge. You only need to pay the transportation cost of the accessories.
4.24 hours online technical support, such as WhatsApp, Wechat, Skype,you can calling us if urgent.
The accessories of the machine include the installation program of the operating software of the machine and the teaching video.
The operation and learning of the machine are very simple. If there are problems that cannot be solved or cannot be solved, we can teach online by video.
PRODUCT APPLICATIONS
COMPANY INFORMATION
"HAORUN LASER"is a rapidly developing new enterprise, which is special in manufacturing laser engraving machine, laser cutting machine, Fiber marking machine, CO2 laser marking machine, laser welding machine.
"HAORUN LASER” will continue to create value for customers at home and abroad. Continuously introduce advanced production technology and production process at home and abroad, develop and produce high-quality, cost-effective CNC equipment, adhere to provide users with design, installation, training, debugging, maintenance, consulting and other services. The company focuses on advocating the enterprise spirit of "unity and struggle, excellence, thrifty construction, striving for first-class" and the business philosophy of " Strive for quality with preciseness, survive with quality and develop with honesty", strengthening management, strict quality and integrity, willing to return customers at home and abroad with first-class quality and services.
"HAORUN LASER” will continue to create value for customers at home and abroad. Continuously introduce advanced production technology and production process at home and abroad, develop and produce high-quality, cost-effective CNC equipment, adhere to provide users with design, installation, training, debugging, maintenance, consulting and other services. The company focuses on advocating the enterprise spirit of "unity and struggle, excellence, thrifty construction, striving for first-class" and the business philosophy of " Strive for quality with preciseness, survive with quality and develop with honesty", strengthening management, strict quality and integrity, willing to return customers at home and abroad with first-class quality and services.
OUR CERTIFICATES
CUSTOMER AND EXHIBITION PHOTOS
FAQ
Q1. Are You A Factory Or Trading Company?
We are a manufacturer with export license.
Q2. Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
Q3. Will The Laser Machine Be Safe During Transport?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
Q4. What Should I Do When Something Goes Wrong With The Laser ?
(1)Inner: plastic stretch film and white foam.
(2)Middle: small pieces of wood and screws.
(3)outside: standard export woodencase. So,the laser machine will send to you safely. In case the machine was damaged , please contact us ,We will process the replacement as soon as possible to ensure that it arrives in time .
Q5. How Is The Shipping Method?
As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement
Q6. Payment Terms?.
TT/West Union/Payple/LC/Cash and so on.
Q7. I Don't Know How To Use After I Receive Or I Have Problem During Use,how To Do?
1) We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine.
2) If have any problem during use,you need our technician to judge The problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
Q8. Do The Laser Machines Need To Be Connected To A Laptop Or Desktop Computer To Work?
Yes, either is ok. It supports Windows 2000, Windows XP, Win 7 and other operating systems
