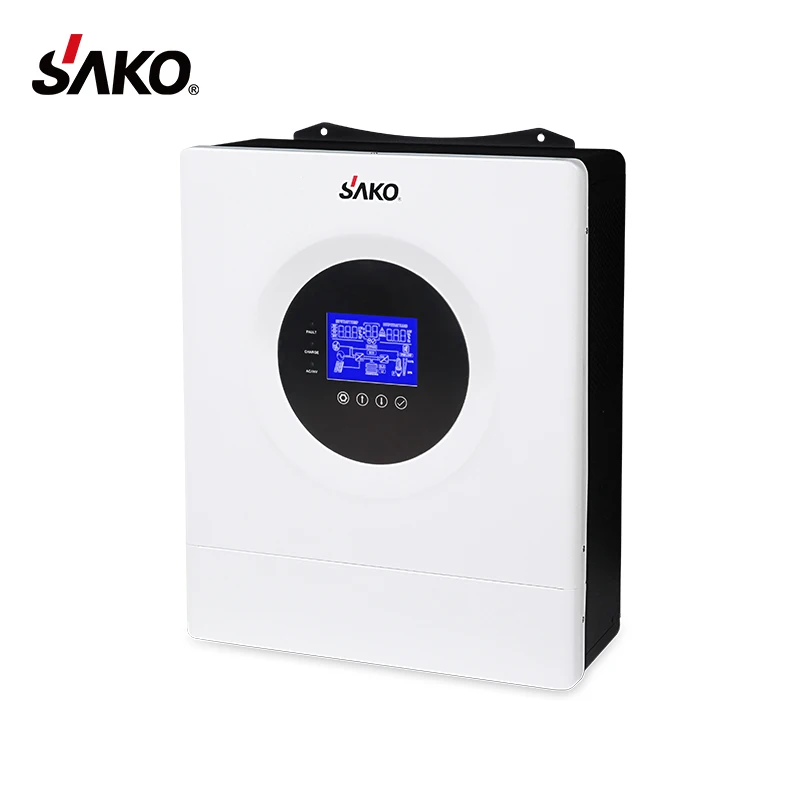

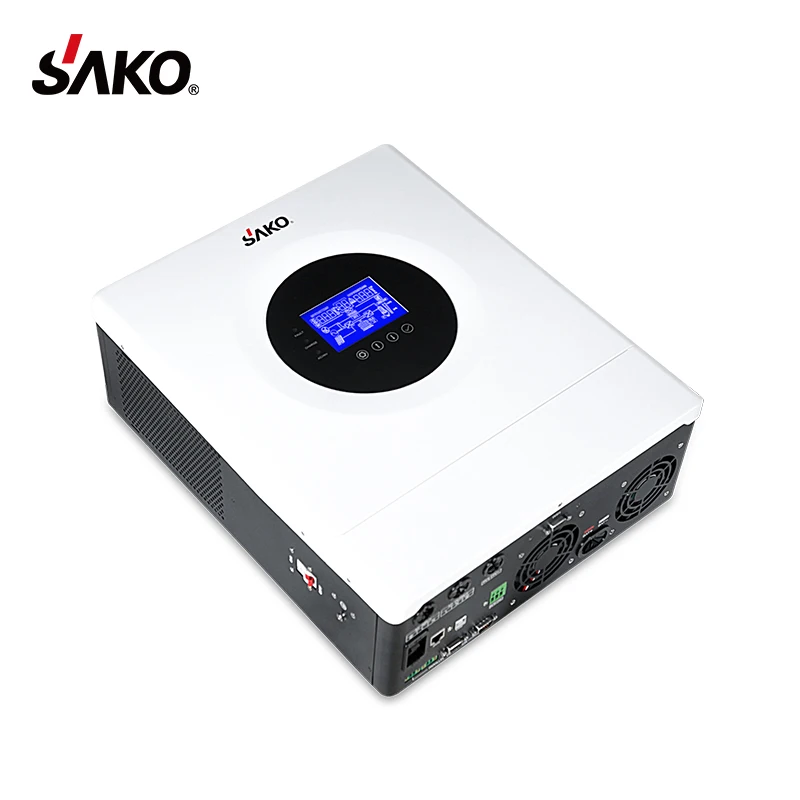

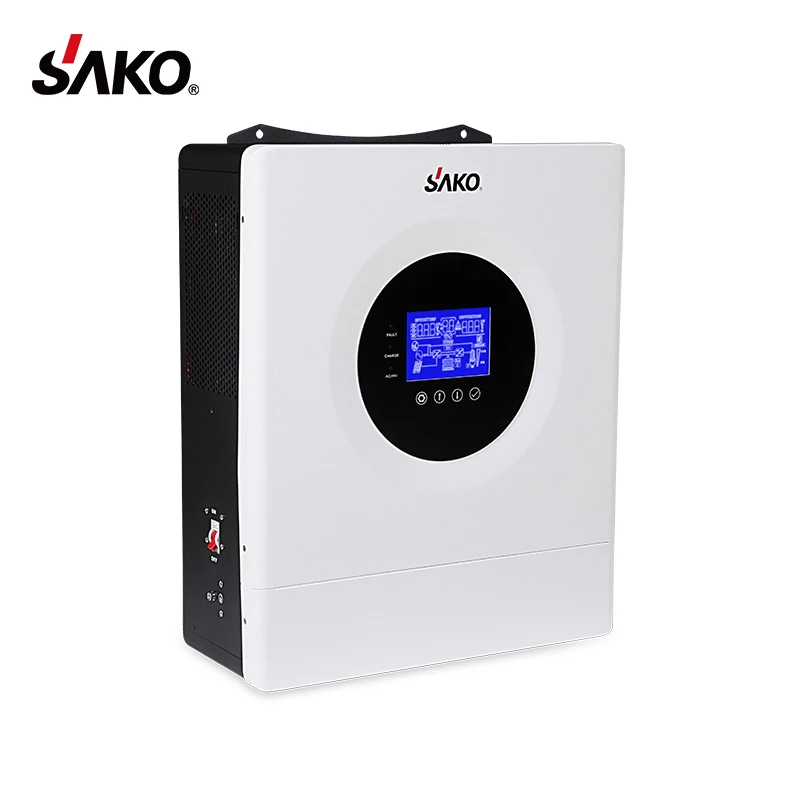

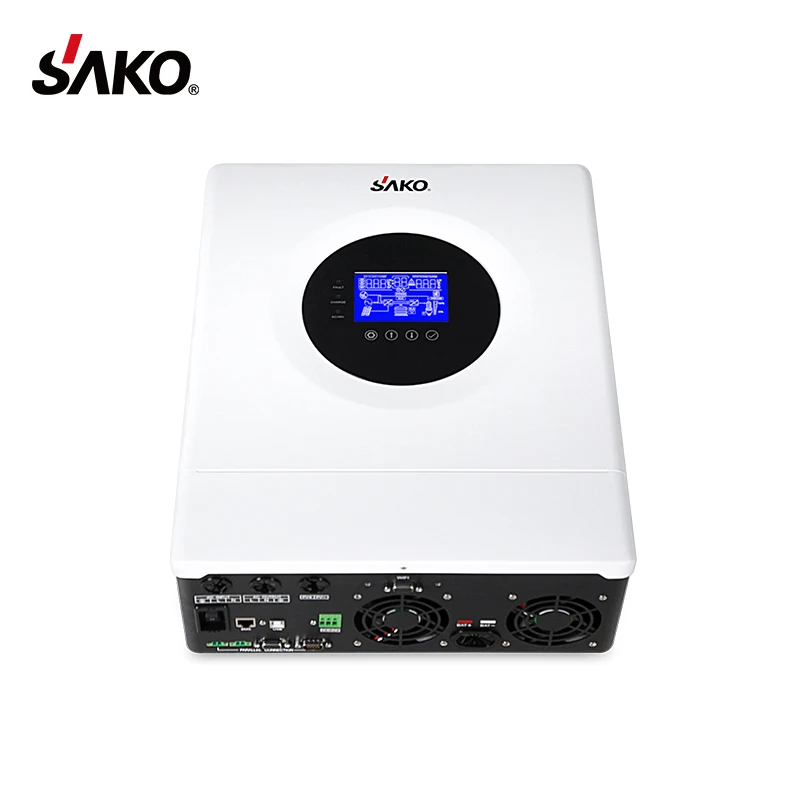

Sako Sunsee Amery Dc To Ac 48V Split Phase 120V 240V 5Kw 8Kw 10Kw On Off Grid Pure Sine Wave Power Mppt Hybrid Solar Inverter
- Category: >>>
- Supplier: Shenzhen Sako Solar Co. Ltd.
Share on (1601190871159):
Product Overview
Description
Product Description
MODEL | SUNSEE-AMERY-ECO 5KW | SUNSEE-AMERY 8KW | SUNSEE-AMERY 10KW | ||
INVERTER OUTPUT | |||||
Rated Output Power | 5000W | 8000W | 10000W | ||
Max.Peak Power | 10000VA | 16000W | 20000W | ||
Rated Output Voltage | 120Vac(L/N/PE single-phase) | 120/240Vac(split phase/single phase) | |||
Load Capacity of Motors | 4HP | 5HP | 6HP | ||
Rated AC Frequency | 50/60Hz | ||||
Waveform | Pure sine wave | ||||
Switch Time | 10ms(typical) | ||||
Parallel Capacity | 1-6 units (singgle/split/three phase) | / | / | ||
BATTERY | |||||
Battery Type | Li-ion / Lead-acid / user-define | ||||
Rated Battery Voltage | 48Vdc | ||||
Voltage Range | 40～60Vdc | ||||
Max.MPPT Charging Current | 100A | 200A | |||
Max.Mains/Generator Charging Current | 40A | 100A | 120A | ||
Max.Hybrid Charging Current | 100A | 180A | 200A | ||
PV INPUT | |||||
Num.of MPP Trackers | 1 | 2 | |||
Max. PV array power | 5500W | 5500W+5500W | |||
Max.input current | 22A | 22A+22A | |||
Max.Voltage of Open Circuit | 500Vdc | 500Vdc+500Vdc | |||
MPPT Voltage Range | 125～450Vdc | 125～425Vdc | |||
MAINS/GENERATOR INPUT | |||||
Input Voltage Range | 90～140Vac | ||||
Frequency Range | 50/60Hz | ||||
Bypass Overload Current | 63A | ||||
EFFICENCY | |||||
MPPT Tracking Efficiency | 99.90% | ||||
Max. Battery Inverter Effciency | 92% | ||||
GENERAL | |||||
Dimensions | 446.9*350*133mm | 620*445*130mm(2.03*1.45*0.42ft) | |||
Weight | 13kg | 27kg(59.52lb) | |||
Protection Degree | IP20, indoor only | ||||
Operating Temperature Range | ﹣15～50℃ | ﹣10～55℃,＞45℃ derated | |||
Noise | ＜60dB | ||||
Cooling Method | Intelligent fan | ||||
Warranty | 1 years | ||||
COMMUNICATION | |||||

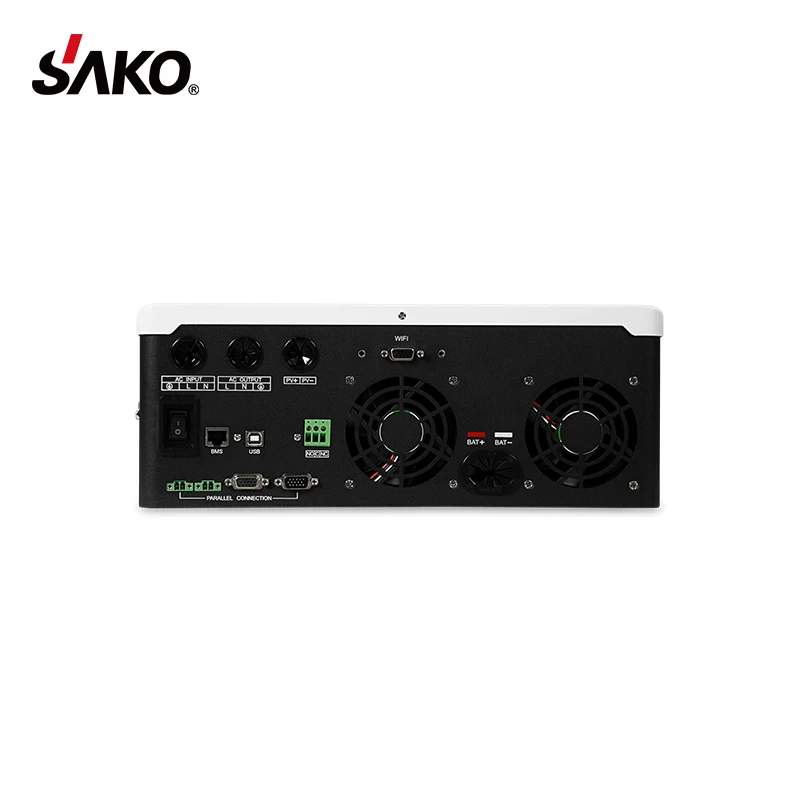

Embedded Interfaces | RS485/CAN/USB/dry contact | ||||
External Modules (Optional) | Wi-Fi/GPRS | ||||
