Heller machine smt reflow oven Heller 1809 MK7 for SMT machine pcb machine
Heller machine smt reflow oven Heller 1809 MK7 for SMT machine pcb machine
Heller machine smt reflow oven Heller 1809 MK7 for SMT machine pcb machine
Heller machine smt reflow oven Heller 1809 MK7 for SMT machine pcb machine

Heller machine smt reflow oven Heller 1809 MK7 for SMT machine pcb machine

Share on (1601190882266):


Price:$1,800.00

Quantity:


Product Overview

Description



Product Description




Heller 1809 MK7 is a high-capacity reflux furnace system with 9 heating zones and a belt speed of up to 1.88m/min. The 1809 MK7 provides a lower Δ T, reduces nitrogen and electricity consumption, and offers an advanced flux management system. The 12 inch wide heating module is compatible with mainstream products in the market.

1.Built in thermal monitoring
2.Nitrogen content<100 ppm
3.Energy management system
4.Almost no maintenance required
5.10 inch wide heater module


Specification




1809MK7 (Air)
1809MK7 (Nitrogen)
Electric Supply
Power Input (3 Phase) Standard
480 volts
480 volts
Breaker Size
100 amps @ 480v
100 amps @ 480v
kW
8.5 - 16 Continuous
7.5 - 16 Continuous
Typical Run Current
25 - 35 amps @ 480v
25 - 35 amps @ 480v
Optional Power Inputs Available
208/240/380/400/415/440/480 VAC
208/240/380/400/415/440/480 VAC
Frequency
50/60 Hz
50/60 Hz
Sequential Zone Turn On
S
S
Dimensions
Overall Oven Dimensions
183" (465cm) L x 60” (152cm) W x 57” (144cm) H
183" (465cm) L x 60” (152cm) W x 57” (144cm) H
Typical Net Weight
4343 lbs. (1970 kg)
4550 lbs. (2060 kg)
Typical Shipping Weight
5335 lbs. (2420 kg)
5556 lbs. (2520 kg)
Typical Shipping Dimension
495 x 185 x 185 cm
495 x 185 x 185 cm
Computer Control
AMD or Intel Based Computer
S
S

Flat Screen Monitor w/Mount
S
S

Windows Operating System
Windows 10Ò Home
Windows 10Ò Home

Auto Start Software
S
S

Data Logging
S
S

Password Protection
S
S

LAN Networking
O
O

Inert Atmosphere
Minimum PPM Oxygen
-
10-25 PPM*
Waterless Cooling w/ Flux Separation System
-
O
Nitrogen On/Off Valve
-
O
Oxygen Monitoring System
-
O
Nitrogen Standby System
-
O
Typical Nitrogen Consumption
-
500 - 700 SCFH **
Additional Features
KIC Profiling Software
S
S
Signal Light Tower
S
S
Powered Hood Lift
S
S
Five (5)Thermocouple Profiling
S
S
Redundant Alarm Sensors
O
O
Intelligent Exhaust System
O
O
KIC Profiler / ECD Profiler
O
O
Center Board Support
O
O
Board Drop Sensor
O
O
Board Counter
O
O
Bar Code Reader
O
O
Custom Paint & Decal
O
O
Battery Backup for Conveyor and PC
O
O
GEM/SECS Interfacing
O
O
Mesh Belt Conveyor
Height From Floor
36.6" + 2.4" (93 cm + 6 cm)
36.6" + 2.4" (93 cm + 6 cm)
Maximum PCB Width
22" (56 cm)
22" (56 cm)
Space Required Between PCB's
0.0" (0.0 cm)
0.0" (0.0 cm)
Conveyor Length On-Load
18" (46 cm) *
3" (7.5 cm) *
Conveyor Length Off-Load
18" (46 cm) *
3" (7.5 cm) *

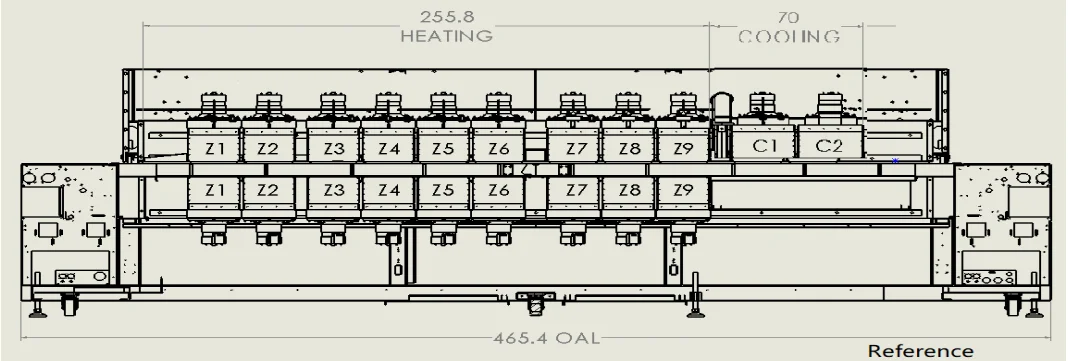

Heated Tunnel Length
101" (256 cm)
101" (256 cm)
Process Clearance Above Mesh Belt
2.3" (5.8 cm)
2.3" (5.8 cm)
Mesh Belt Pitch
0.5" (1.27 cm)
0.5" (1.27 cm)
Maximum Conveyor Speed
74"/Min (188 cm/min.)
74"/Min (188 cm/min.)
Conveyor Direction Left to Right
S
S
Conveyor Direction Right to Left
O
O
Conveyor Speed Control
Closed Loop
Closed Loop
Edge Hold Conveyor System Option
Height from Floor – Standard
37.8" + 2.4" (96 cm + 6 cm)
37.8" + 2.4" (96 cm + 6 cm)
Height from Floor – Optional
35.4" + 2.4"
(90 cm + 6 cm)
35.4" + 2.4"
(90 cm + 6 cm)
Clearance Above & Below Conveyor Pins
1.15" (2.9 cm)
1.15" (2.9 cm)
Length of PCB Support Pins
.187" (4.75 mm)
.187" (4.75 mm)
3 mm long support pins
O
O
Minimum/Maximum Board Width
2" – 22" (5 – 56 cm)
24” (61cm) Optional**
2" - 22" (5 – 56 cm)
24” (61cm) Optional**
Power Width Adjustment
S
S
Computer Controlled Width Adjust
O
O
Auto Lubrication System
S
S
Forced Convection Zones
Top & Bottom
9
9
Heater Type
Instant response open coil
Instant response open coil
Heater Material
Nichrome
Nichrome
Profile Change Time
5 – 15 minutes
5 - 15 minutes
Temperature Control


Accuracy of Temperature Controller
+ .1°C
+ .1°C
Cross-Belt Temperature Tolerance
+ 3.0°C
+ 3.0°C
Heater Wattage Per Zone
5400 w***
5400 w***
Temperature Range Standard
60-350°C
60-350°C
High Temperature Up to 450°C
O
O
Cooling Systems
Number of Cooling Zones Standard
2
2
Cooling zone Length
70cm
75cm
Additional Cooling Zones
O
O
Water Cooling
-
O


Packing & Delivery
