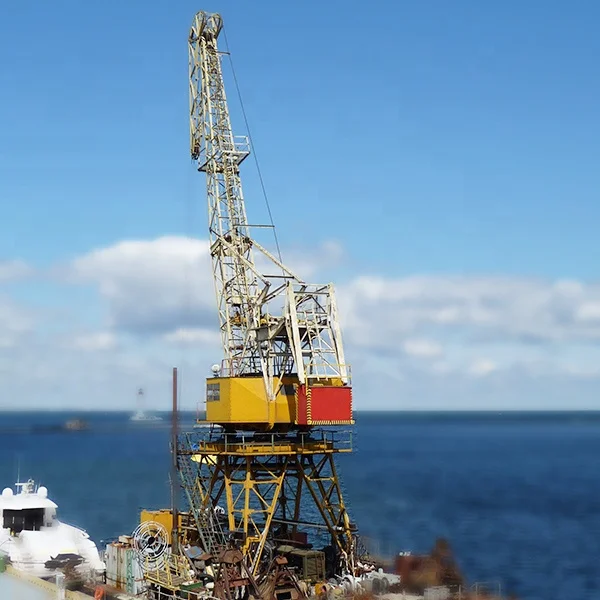

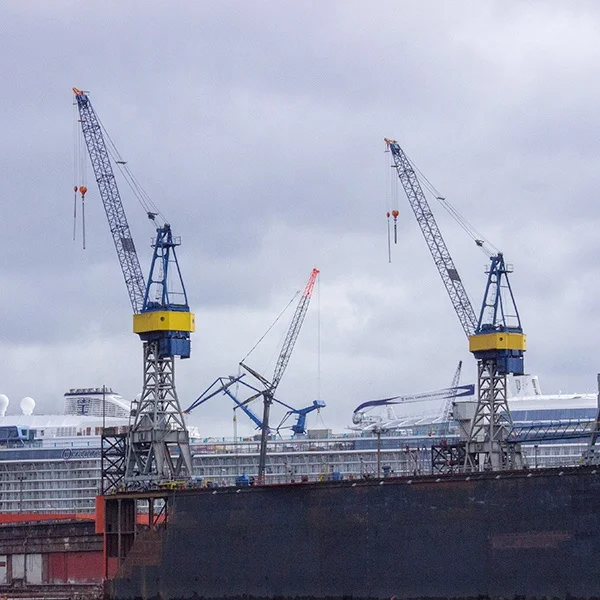

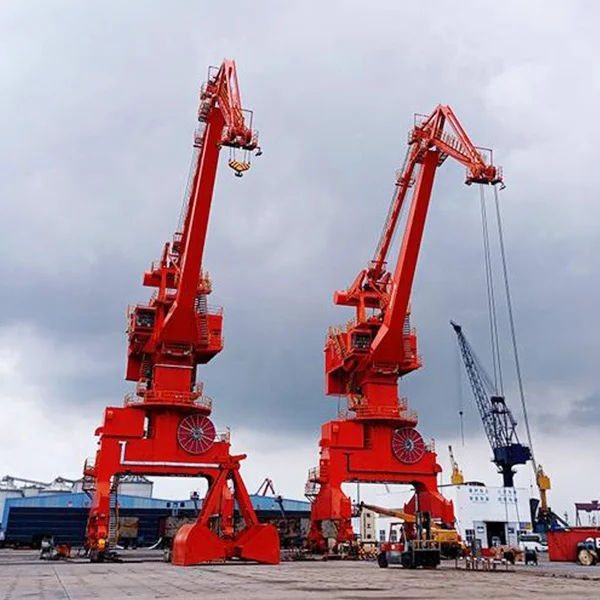

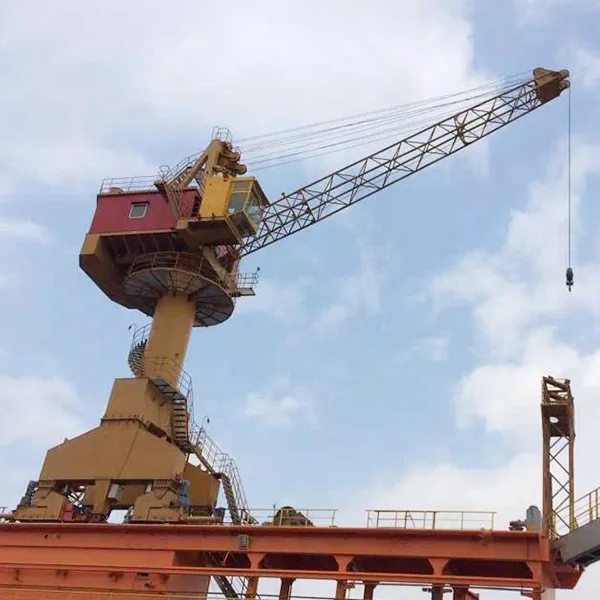

40 ton port mobile harbour pedestal gantry crane portal

Product Overview

Description



 40 ton port mobile harbour pedestal gantry crane portal

The four-link portal crane adopts a powerful lifting mechanism system, which can carry and lift heavy goods and equipment to meet the handling needs of large engineering projects and heavy materials.





>> PRODUCT PARAMETERS <<

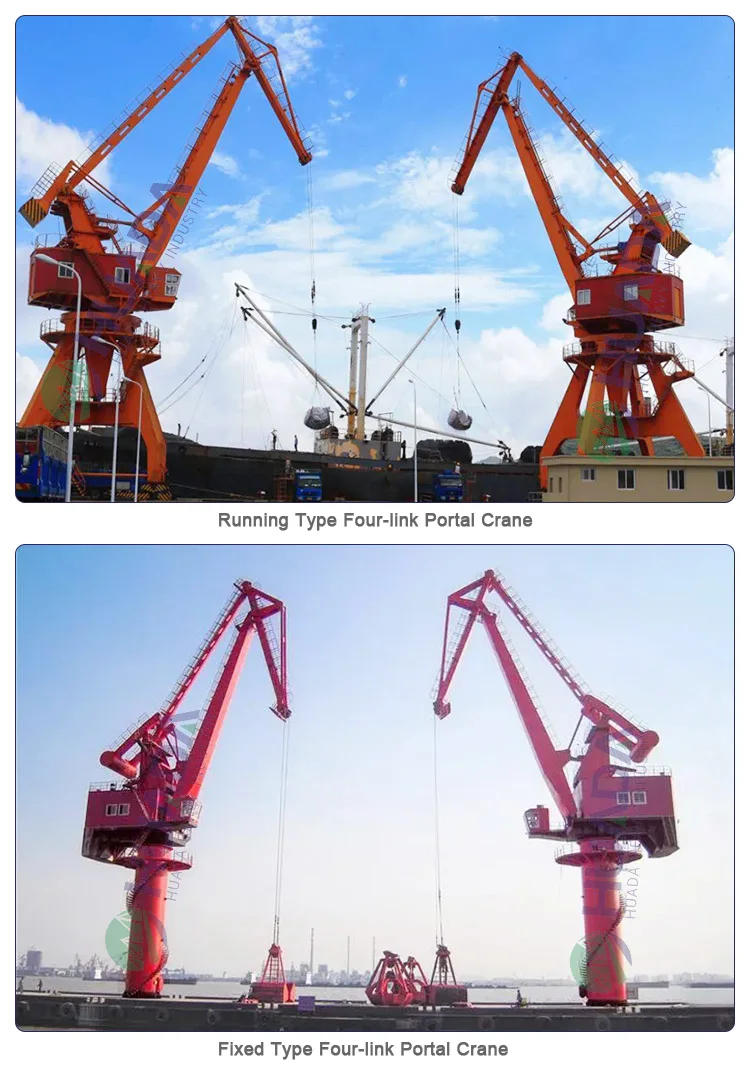

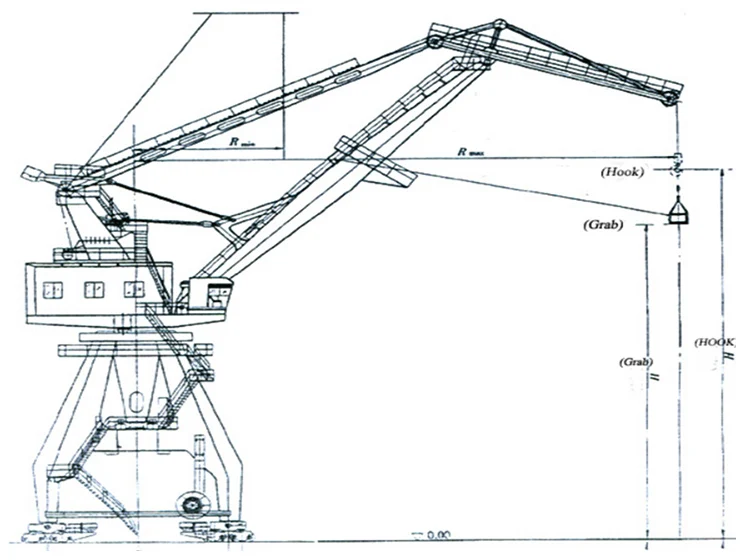

Four-link Type Portal Crane Drawing:

Common Technical Parameters:



Hoisting capacity-hook (t)	80
Hoisting capacity-Grab (t)	80
Hoisting capacity-luffing(m)	12-43
Base (m)	12
Rail span(m)	12
Max. slewing diameter (m)	≤9
Max. hoisting height-above rail (hook/Grab) (m)	30/20
Max. hoisting height-below rail(m)	20
Max. wheel load (kN)	300
Hoisting speed-hook with full load(m/min)	30
Hoisting speed-grab with full load(m/min)	50
Slewing speed (r/min)	0.8/1.0
Luffing speed(m/min)	50
Travelling speed (m/min)	26

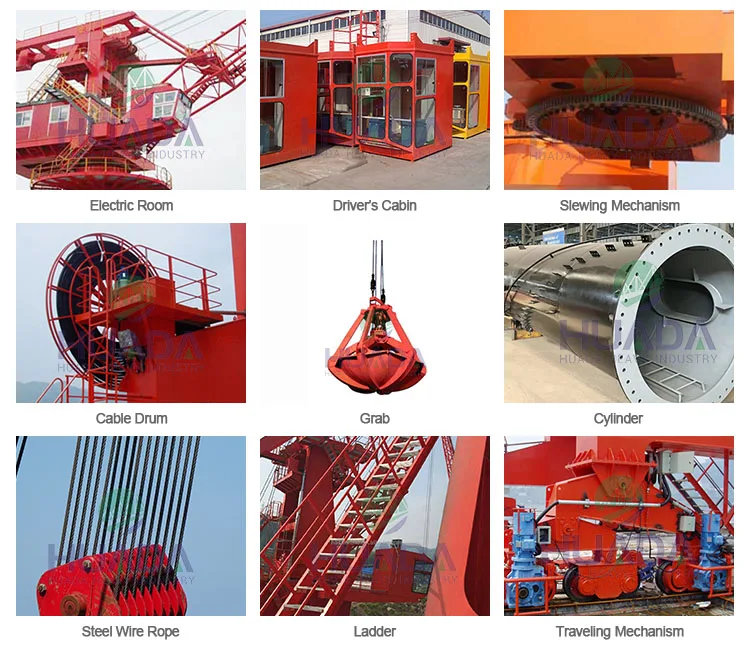

>> PRODUCT DETAILS <<







 >> OUR ADVANTAGE <<

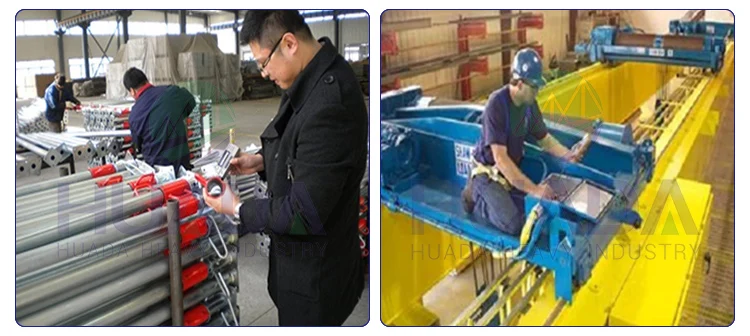

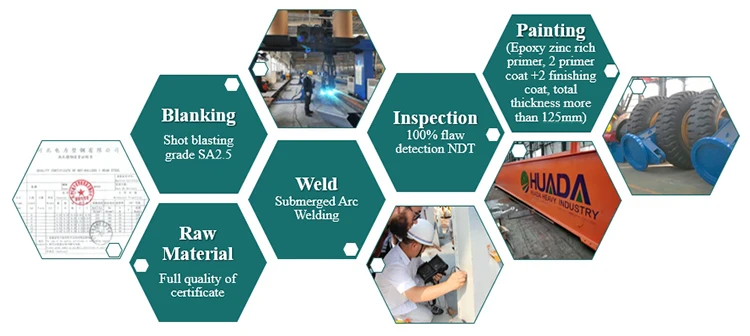

1. Product Quality Assurance

a. Strict Quality Control in Production

b. Internal Inspection

c. Third Party Inspection

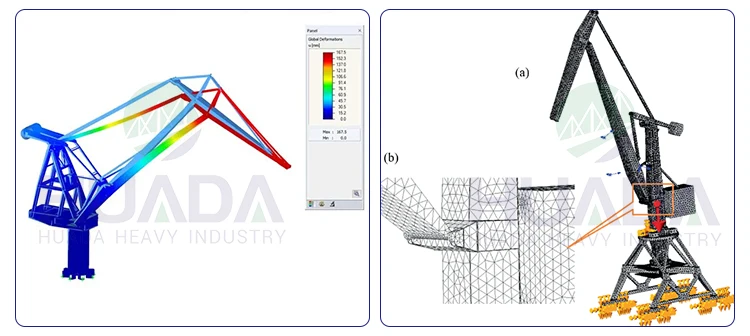

2. Much Experienced Professional Engineers to Design with Finite Element Method

Analyze the Force of Each Part of the Steel Structure
More Scientific, Accurate and Safe

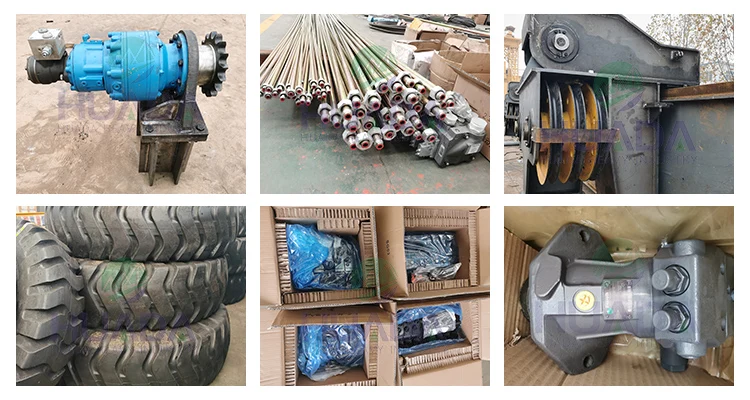

3. Free Spare Parts
Provide Free Spare Parts within 12 Months From the Date of B/L
The Vulnerable Part Will be Sent Together with The Bulk Goods

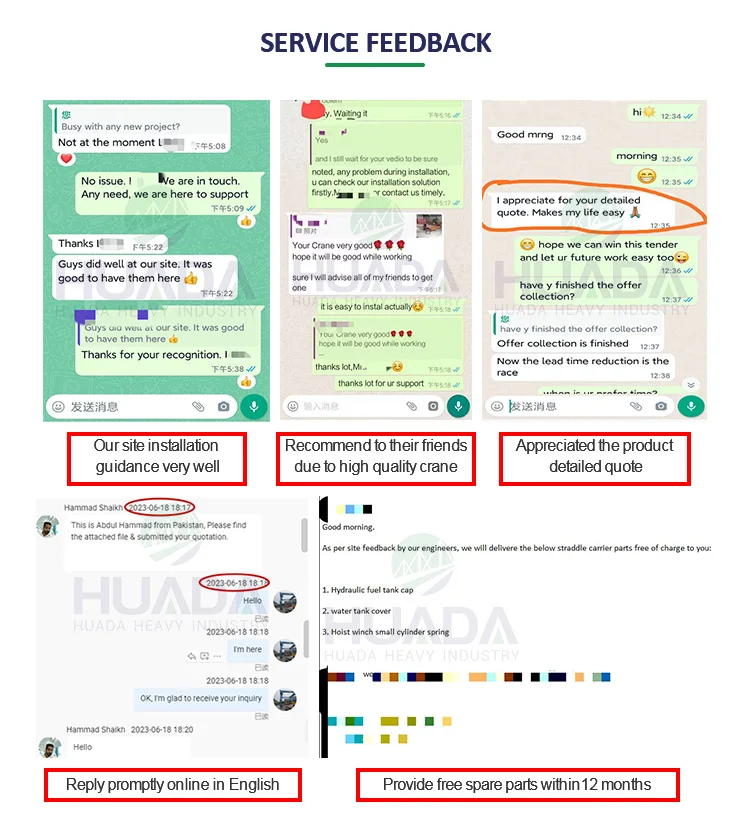

4. Sincerely, Reliable, Timely Sales Service
Prompt Online English Response; Professional Installation Guidance; Professional Quotation





Why choose Huada Heavy Industry?



a. Competitive price

b. Excellent technical & lifetime service& support
c. Professional & Customized Design according to your actual need.

d. Full set safety protection device

e. High quality configuration

f. International brand accessories

g. Complete after-sales service in time

h. Rich project experience



Huada Heavy Industry has involved in the design and manufacturer of bridge erection equipment and gantry crane field since 2008, and specialized in providing series of customized construction solutions and equipment to the world, which covers rubber tyred gantry crane, straddle carrier, girder dolly, marine travel lift, portal crane, launching gantry, beam launcher, overhead crane and series of gantry cranes, etc.





 >> OUR FACTORY <<

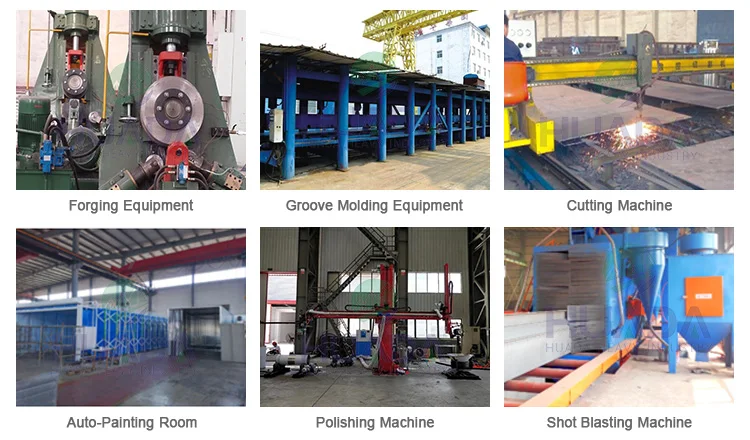

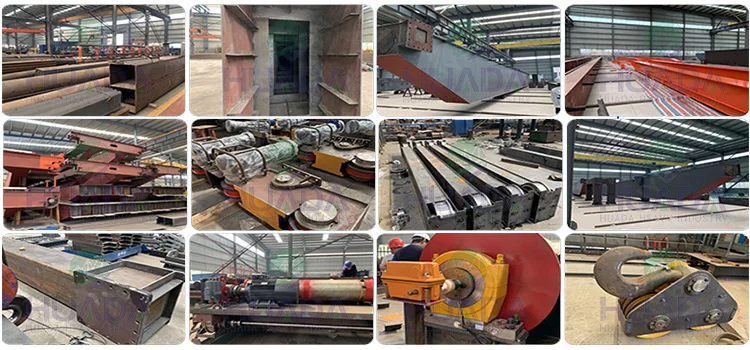

Production Equipment

Workshop Show

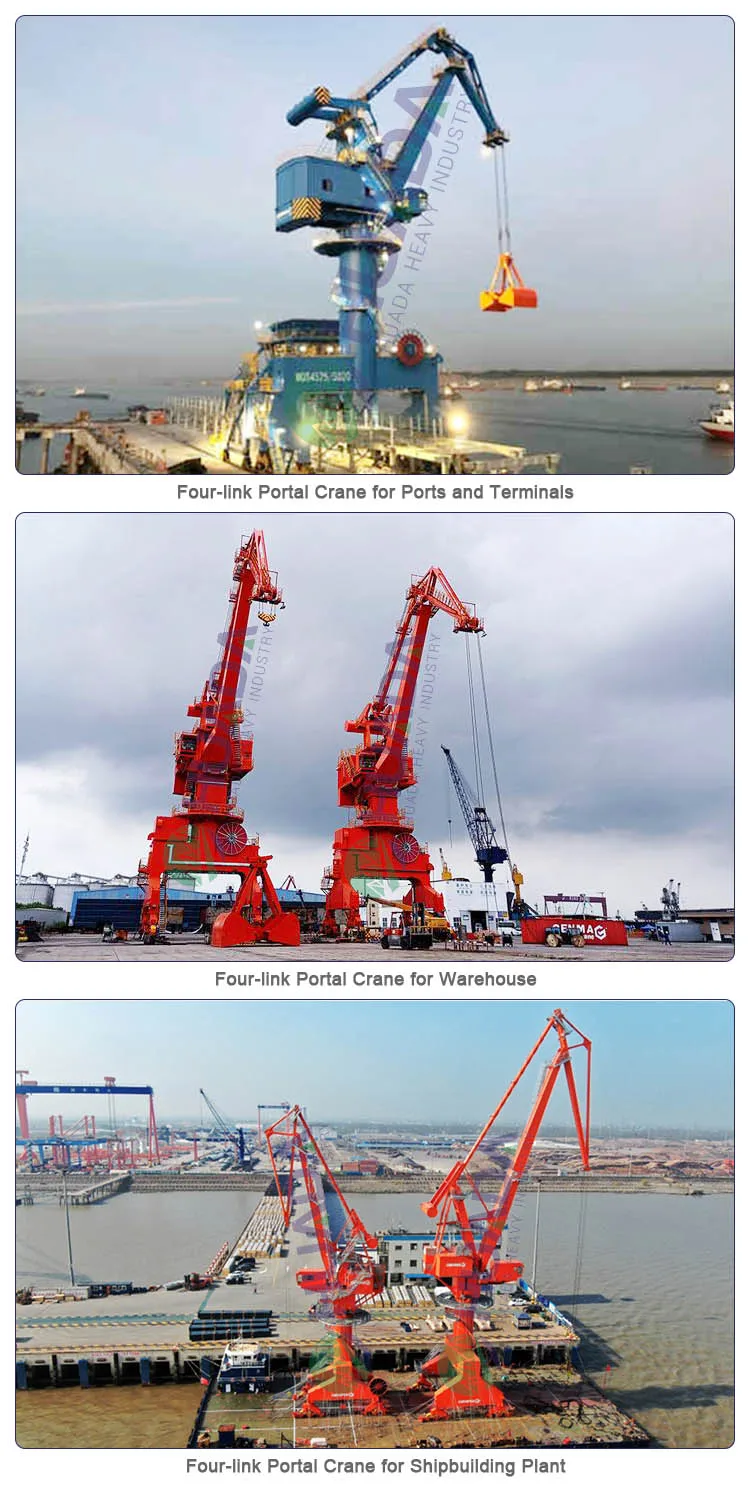

>> PRODUCT APPLICATIONS <<



Four-link Type Portal Crane is mainly applied to ports and terminals, Construction site, Steel mills and metallurgical industries, Shipbuilding plant, Warehouse and logistics center

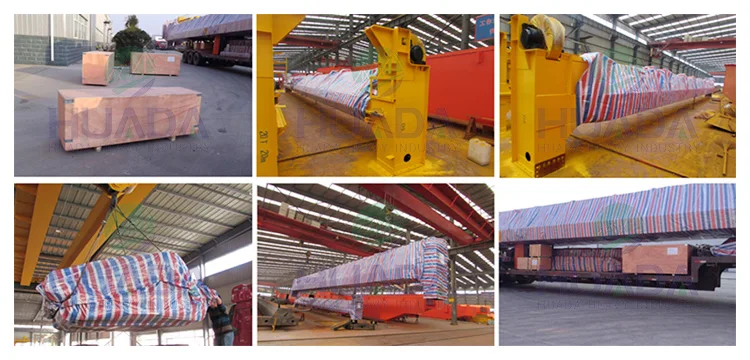

 PACKING & DELIVERY <<



Stable forwarder, Timely Fast delivery



FAQ

1. How can we get the design and quotation of the portal crane?
You need to inform us the capacity, size, weight of the portal crane. If you have more details, it will be better.



2. Can you provide CCS or BV certificate of the portal crane?
Yes, we have obtained them for many of our completed projects.



3. How long is the delivery time?
Generally, we need around 4 months production time + 1month FAT time. We can try our best to shorten for you according to your actual equipment solution.



4. How long is your warranty?
The portal crane & its parts are guaranteed for 12 months from the B/L date.
Within 12 months warranty period: free parts provided (excludes man-made damage)



5. What’s the driving mode of the portal crane?
Full hydraulic driving + CUMMINS engine
