China Factory Oilfield API Standard XSL SL Series Water Swivel
- Category: >>>
- Supplier: Qingdao Jincheng International Business Co. Ltd.Qingdao Ltd.
Share on (1601190929690):
Product Overview
Description
Product Overview

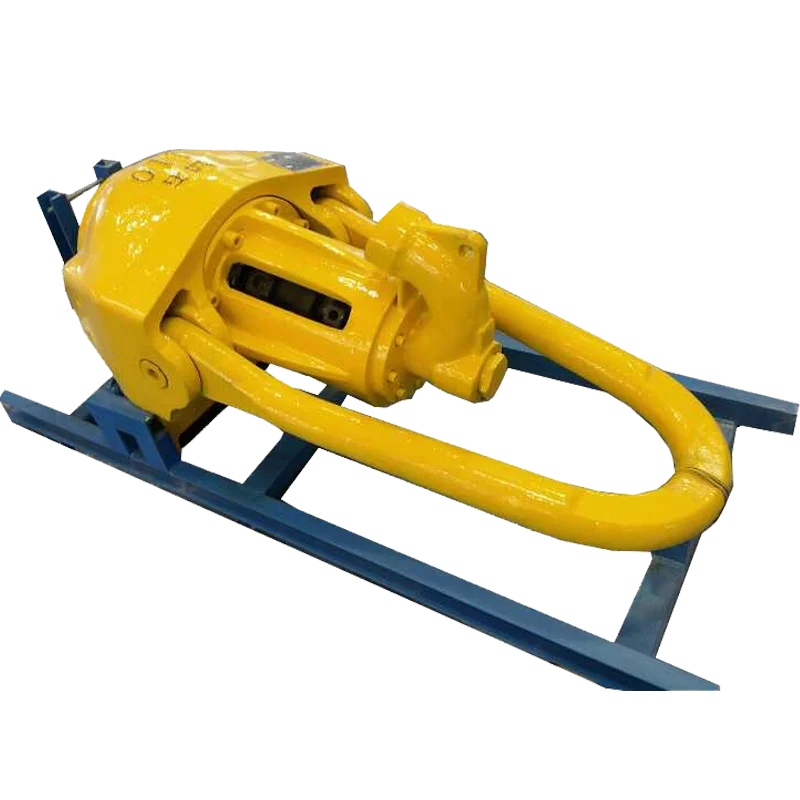

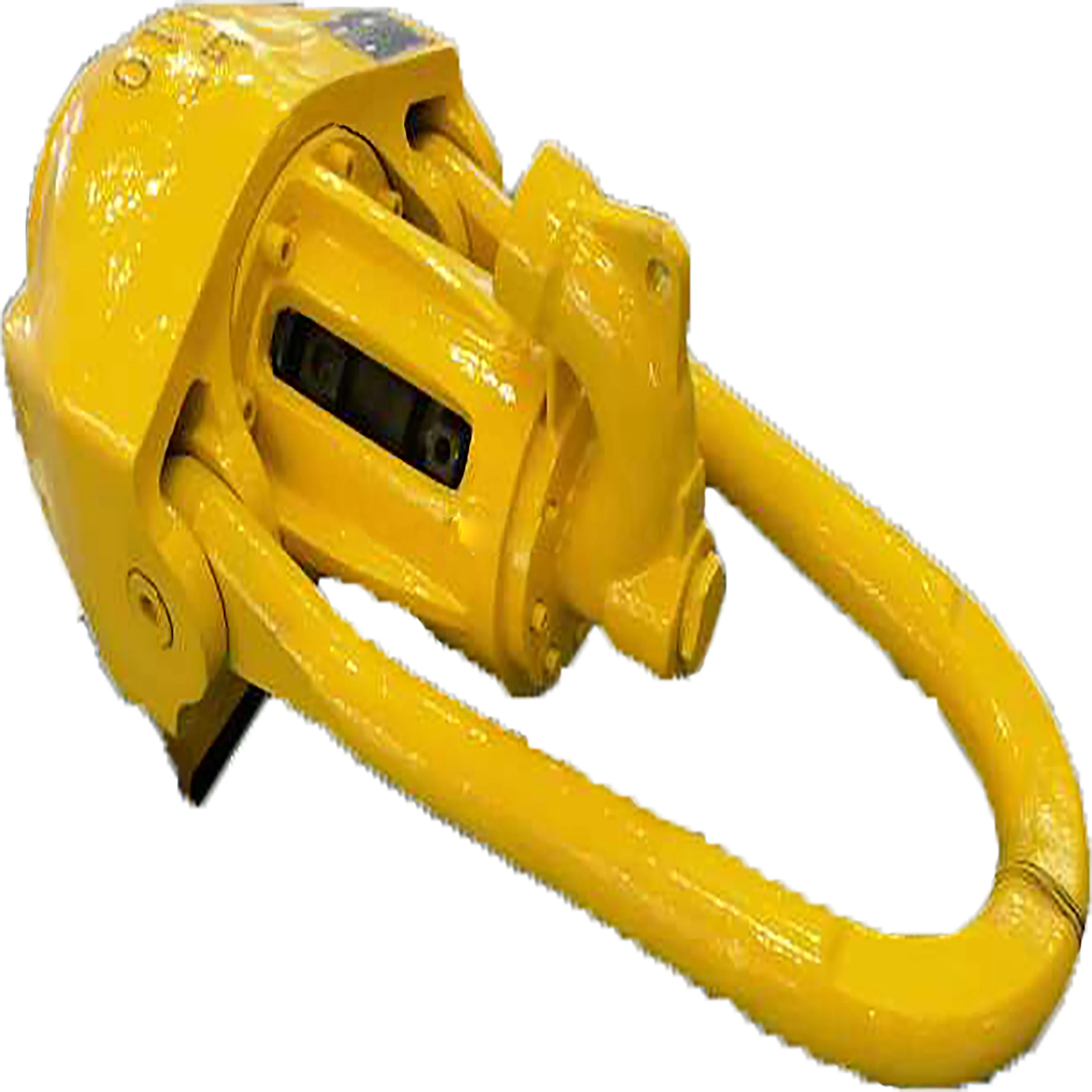

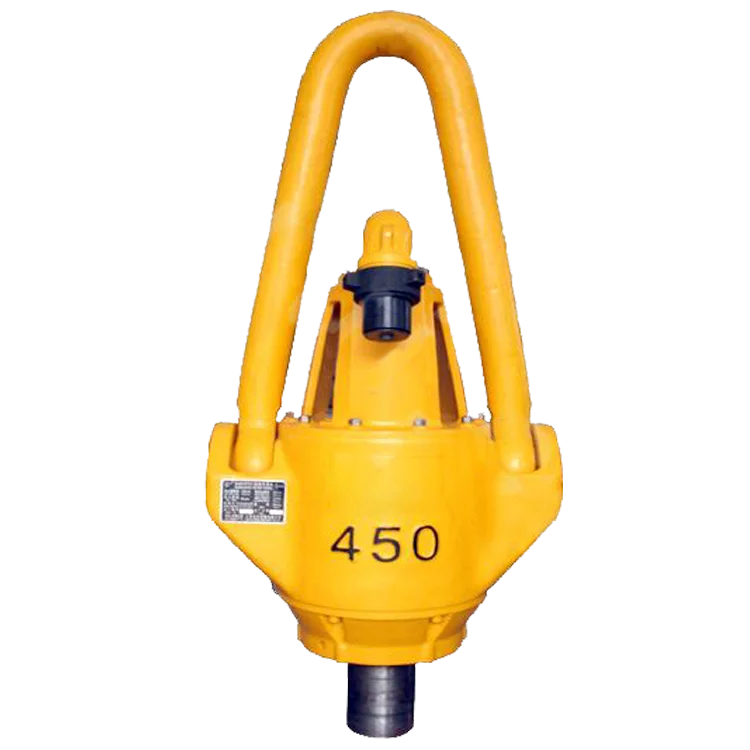

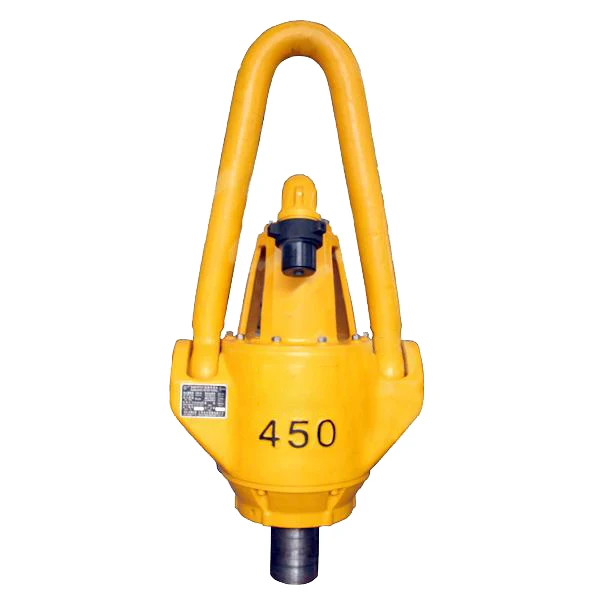

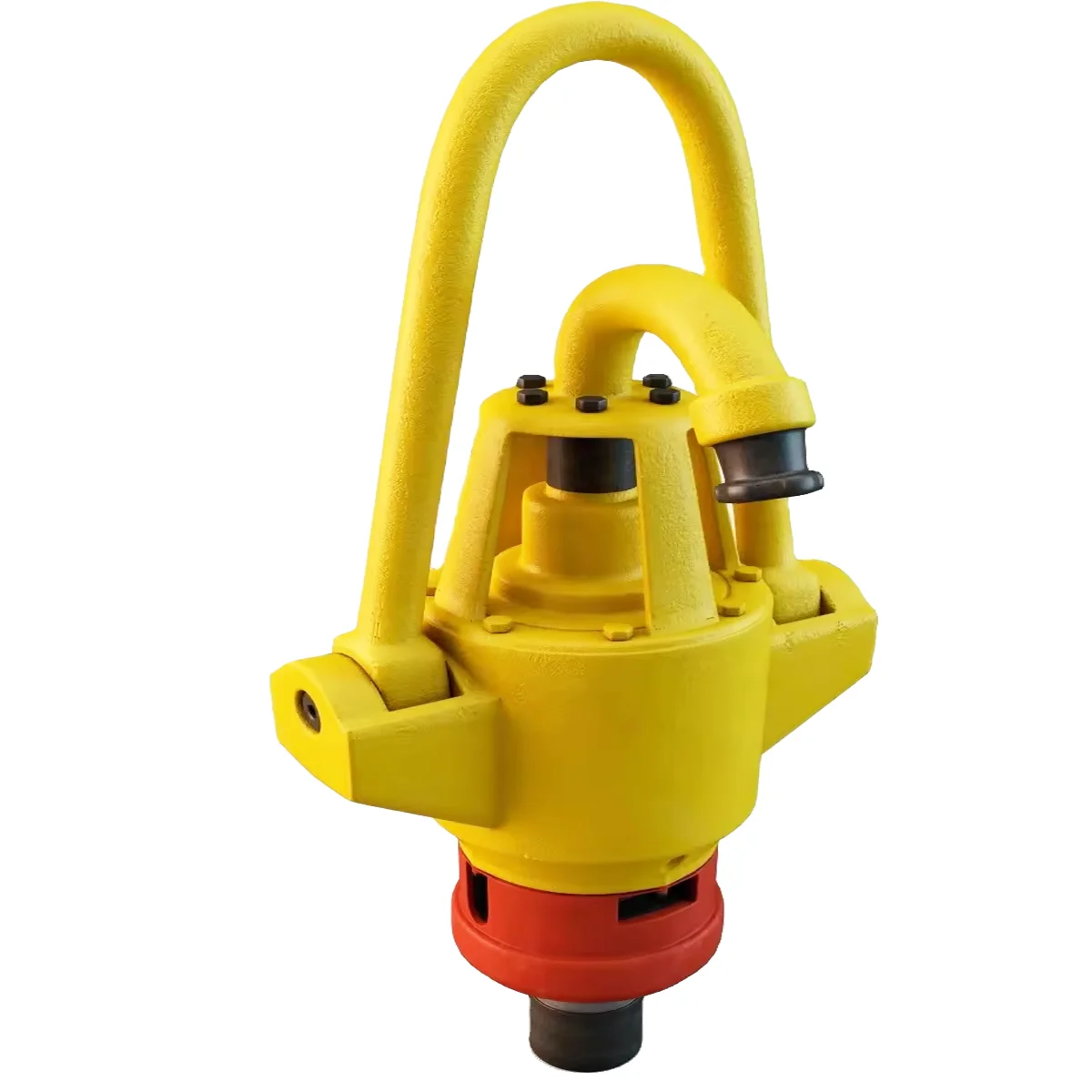

SL series water swivel for dril rig system:

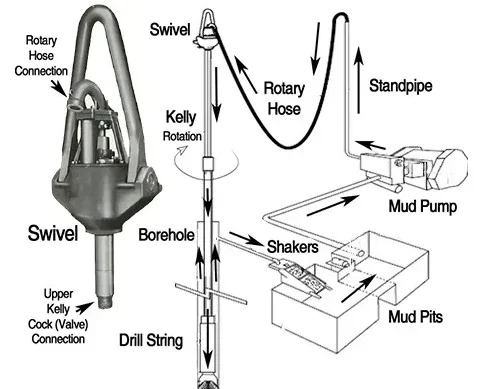

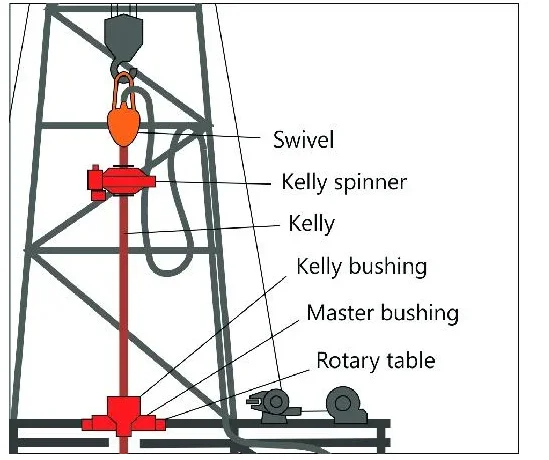

Swivel is a mechanical device used on a drilling rig that hangs directly under the traveling block and directly above the kelly drive, that provides the ability for the kelly (and subsequently the drill string) to rotate while allowing the traveling block to remain in a stationary rotational position (yet allow vertical movement up and down the derrick) while simultaneously allowing the introduction of drilling fluid into the drill string.
Parts: bail, Gooseneck, upper shell, body, lower shell, swivel stem, shaft, sealing system etc.
Parts: bail, Gooseneck, upper shell, body, lower shell, swivel stem, shaft, sealing system etc.
FEATURES AT A GLANCE
Main Mechnical Feature:
1. As per API 8C standard;
2. Swivel and Kelly spinner are combination;
3. High strength steel ensure the service time and capacity;
4. High pressure drilling fluid sealing system;
5. With keyless connection adopted between spinner and central pipe of swivel
1. As per API 8C standard;
2. Swivel and Kelly spinner are combination;
3. High strength steel ensure the service time and capacity;
4. High pressure drilling fluid sealing system;
5. With keyless connection adopted between spinner and central pipe of swivel

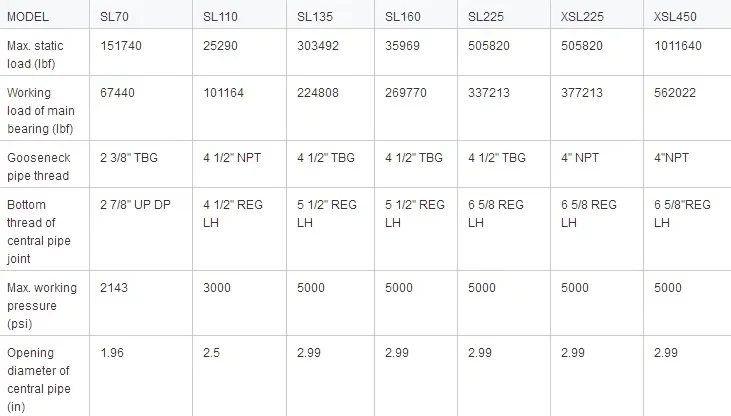

PRODUCT SPECIFICATIONS
Model | SL135 | SL170 | SL225 | SL450 | |
Max. static load(KN) 1350 | 1700 | 2250 | 4500 | ||
Max. Speed(Rpm) | 300 | 300 | 300 | 300 | |
Max. working pressure(Mpa) | 35 | 35 | 35 | 35 | |
Central Pipe dia.(mm) | 64 | 64 | 75 | 75 | |
Hook body space(mm) | 495 | 495 | 540 | 549 | |
Why Choose Us
Our factory
Our factory has a safe environment, a high degree of production standardization, and meets international standards. We provide a series of high-quality products with high quality and high pursuit.
FAQ
Q:How can I place order?
A: You can contact us by email or social media like WhatsApp on the order detail or place order on line.
Q:How about the payment?
A: For new clients, advance payment(30%-100% of total amount) is required, the balance need to be paid before the delivery after
your inspection.
Q:How can I pay you?
A: By T/T (Telegraphic Transfer) or L/C (Letter of Credit). After you receive the PI, you can make the payment through your bank
as per the terms mentioned in PI.
Q: How do you deal with defective products received by the clients?
A: If there are some defective items, we usually credit to our customer or replace them in next shipment.
A: You can contact us by email or social media like WhatsApp on the order detail or place order on line.
Q:How about the payment?
A: For new clients, advance payment(30%-100% of total amount) is required, the balance need to be paid before the delivery after
your inspection.
Q:How can I pay you?
A: By T/T (Telegraphic Transfer) or L/C (Letter of Credit). After you receive the PI, you can make the payment through your bank
as per the terms mentioned in PI.
Q: How do you deal with defective products received by the clients?
A: If there are some defective items, we usually credit to our customer or replace them in next shipment.
