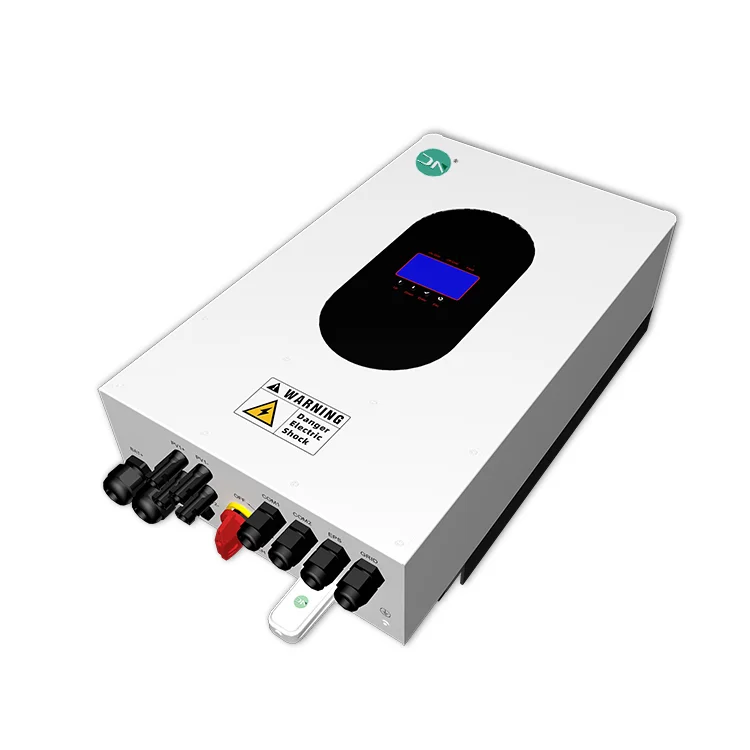

DONNERGY High Quality Solar On and Off Hybrid Inverter to Form a Home Energy System 4.6KVA/4600w/5KW/5000W/3kw
- Category: >>>
- Supplier: Shenzhen Donnergy Technology Co. Ltd.
Share on (1601191006043):
Product Overview
Description
Product Description
Function：
Power generated by the PV array or from the Utility Grid can be stored in a battery or to be used to power your loads.
Power generated by the PV array or stored inside the battery can be sold to the Utility Grid or to be used to power your loads.Featured with UPS function, ensure that the load is not powered off.
Cloud energy management App for data collection and remote control.
Power generated by the PV array or stored inside the battery can be sold to the Utility Grid or to be used to power your loads.Featured with UPS function, ensure that the load is not powered off.
Cloud energy management App for data collection and remote control.
Product Name | GH5000TL | GH4600TL | GH3600TL | ||
PV Input (DC) | |||||
Max input power(W) | 7000W | 6600W | 5200W | ||
Max input voltage(V) | 500V | ||||
Start-up voltage | 150V | ||||
PV input voltage range | 150V ~ 500V | ||||
MPPT voltage range | 120V ~430V | ||||
MPPT quantity | 2 | ||||
Number of Strings per MPPT | 1 | ||||
Max. Input Current per MPPT (A) | 15A | ||||
AC Output Data | |||||
Nominal Apparent Power Output to Utility Grid (W) | 5000W | 4600W | 3600W | ||
Max. Apparent Power Output to Utility Grid (VA) | 5500VA | 4600VA | 3960VA | ||
Max. AC Current Output to Utility Grid (A) | 23.9A | 20A | 17.2A | ||
Nominal Output Voltage (V) | 230V | ||||
Nominal AC Grid Frequency (Hz) | 50Hz | ||||
Max. Total Harmonic Distortion | <3% | ||||
Power Factor （cos ) | ~0.99 (Adjustable from 0.8 leading to 0.8 lagging) | ||||
Battery | |||||
Battery Voltage Range (V) | 41.6~ 58.5 | ||||
Max. Continuous Charging Current (A) | 95A(PV&AC hybrid charging） | 95A(PV&AC hybrid charging） | 80A(PV&AC hybrid charging） | ||
Max. Continuous Discharging Current (A) | 100A | 100A | 85A | ||
Battery Type | Lithium / Lead-Acid | ||||
Conversion Efficiency | |||||
Max. Efficiency | 97.8% | ||||
EU Efficiency | 97% | ||||
Max. Battery to AC Efficiency | 95% | ||||
MPPT Efficiency | 99.99% | ||||
System | |||||
IP Rate | IP65 | ||||
Noise | <35dB | ||||
Operating Temperature Range (°C) | -25℃-60℃ | ||||
Cooling Method | Natural Cooling | ||||
Relative Humidity | 0 to 95 %, non-condensing | ||||
Installation Altitude above Sea Level | Up to 2000 m above sea level | ||||
Self-consumption at Night (W) | <10W | ||||
Display | LCD | ||||
Communication Way | RS485/CAN/ Wifi | ||||
Warranty | 5 years | ||||
Dimensions (W x H x D mm) | 350 x 580 x 230mm | ||||
Net Weight | 23.5kg ±0.5kg | ||||
Gross Weight | 28Kg ±0.5kg | ||||
Suitable for customizing various PV Energy Storage System

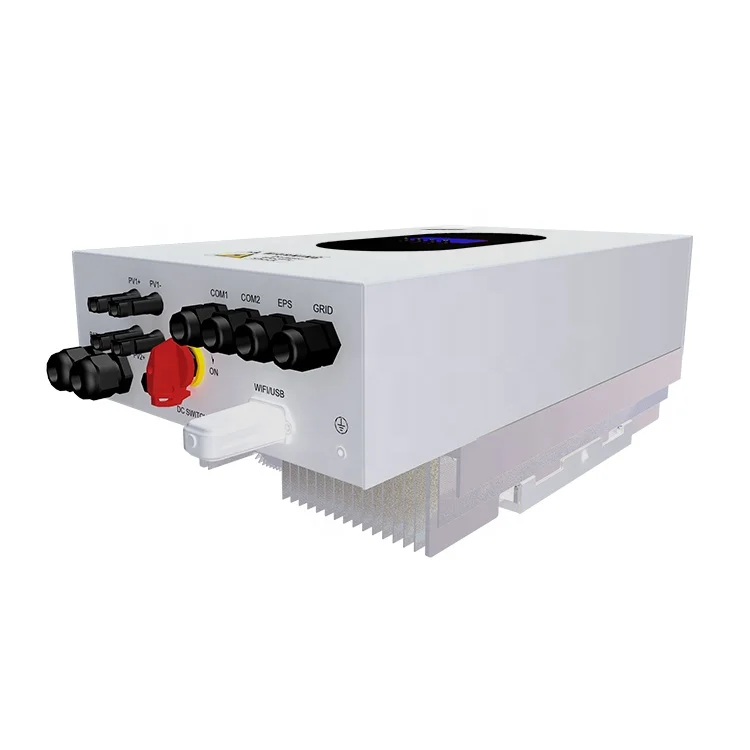

Detailed Images
off-grid and UPS, MPPT charger built in.
Controlled by built-in DSP and
adopt advanced SPWM technology
adopt advanced SPWM technology
diagnose and update.
Droop control, Max 6pcs in parallel.
battery pack.

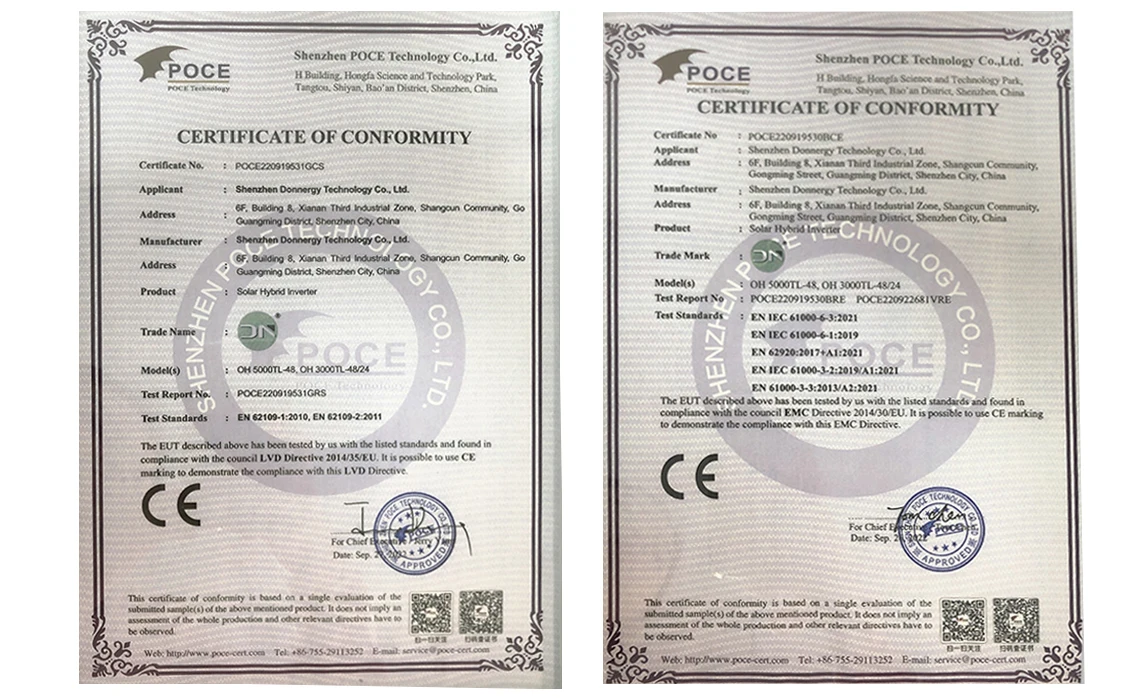

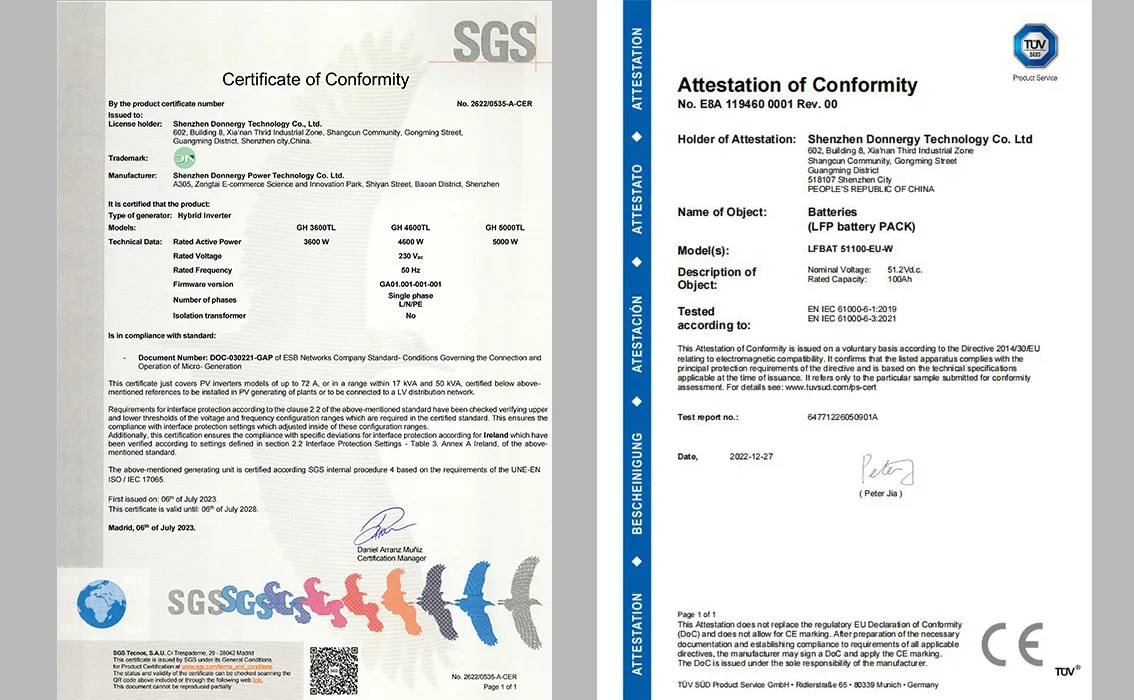

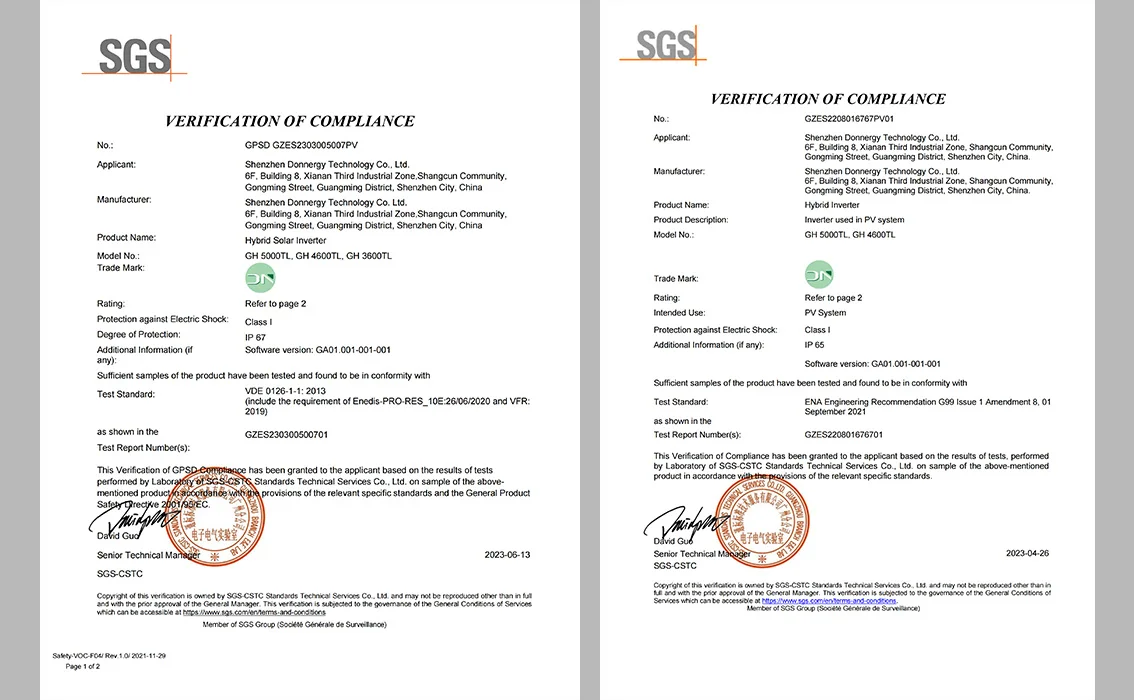

Certificate
Packing&Shipping

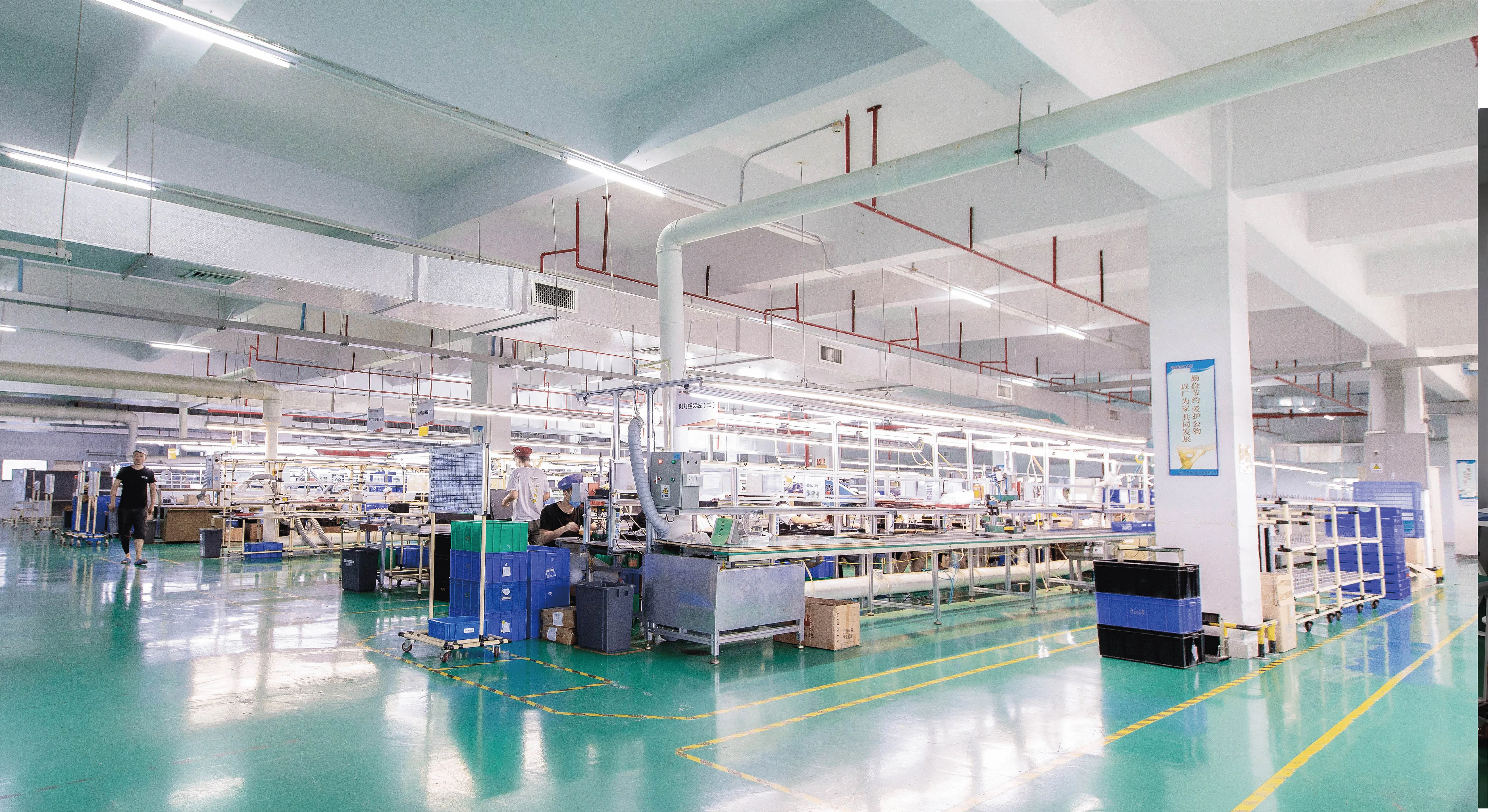

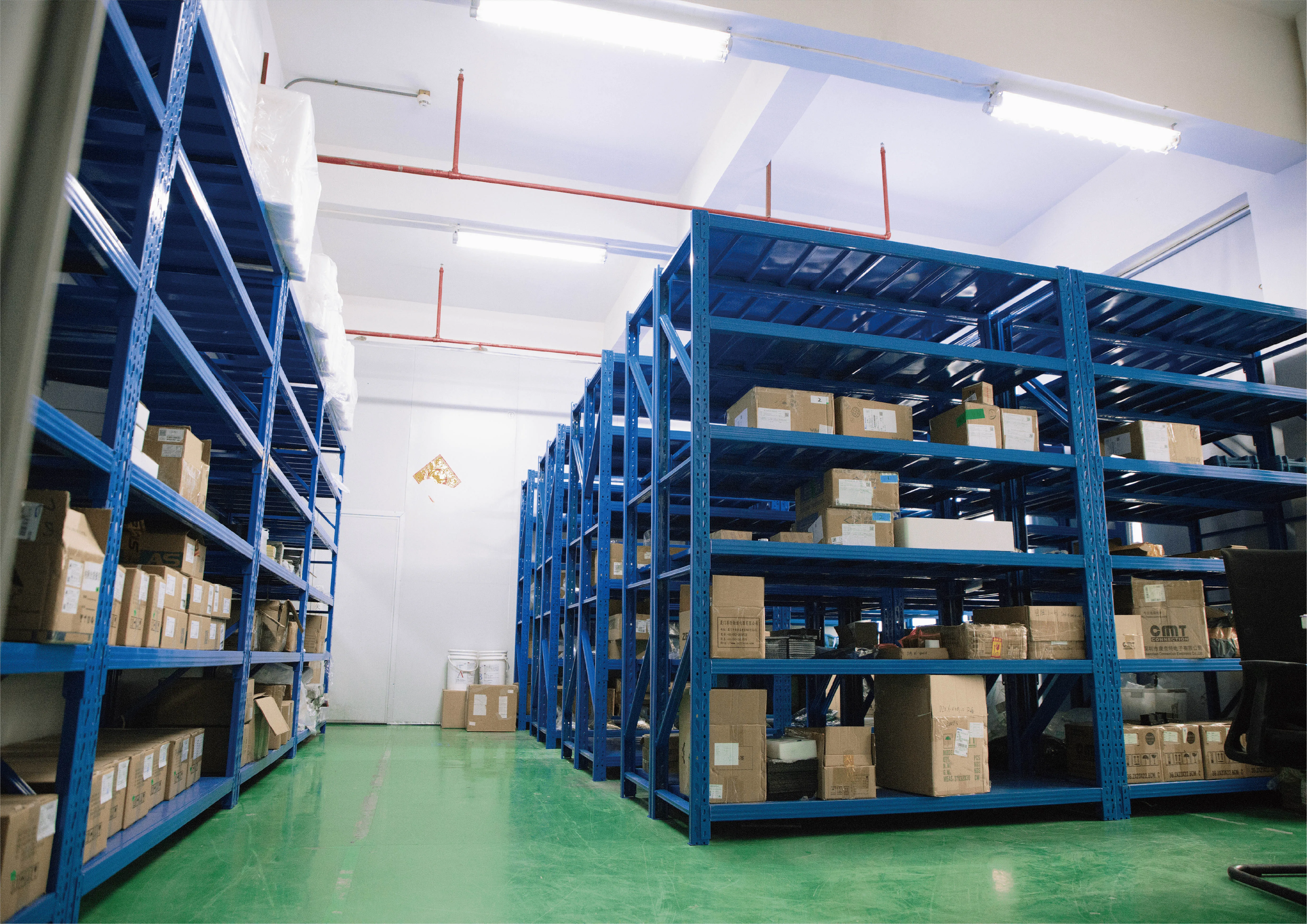

Company Introduction
SHENZHEN DONNERGY TECHNOLOGY CO., LTD (i.e. DONNERGY) is a leading provider of PV Inverters and Energy Storage Solutions, Integrating R&D, production, sales and service. As a professional manufacturer which was honored with National High-tech Enterprise due to the continuous research and development in the field of Solar Energy Conversion and Power Storage, DONNERGY has gained core technical advantages in PCS, EMS, BMS and Cloud System.
With independent intellectual property rights, DONNERGY focuses on Residential Energy Storage, Microinverters and Industrial & Commercial Energy Storage Systems, and has been committed to providing specialized, intelligent and serialized energy storage products and energy management systems. Continuous R&D innovation and strict quality
control is the cornerstone of DONNERGY. With a dedicated team of over 60 engineers, DONNERGY has developed a wide range of products and obtained dozens of patents. Most of products are certified with EN50549-1, IEC 62109-1&-2,
IEC 61000-6-1&-3, VDE4105, CEI 0-21, G98&G99, UTE C15-712-120107, RD1663/2000, etc by TUV, SGS or ITS.
DONNERGY pledges to supply top quality products and service to our partners worldwide, including agents, OEM or ODM customers and business partners, aiming to work together to turn the planet a better place for life with solar energy.
Exhibition
FAQ
Q1. What's your main products?
A1: Solar energy system like solar inverter, energy storage battery, energy management system, etc.
Q2: Can you accept OEM, ODM service?
A2: Yes, OEM & ODM is acceptable.
Q3: Can I install this solar energy system myself?
A3: Considering to the safety concerns, we highly recommend to get the help of a professional installer / certified
electrician.You may plan on potential costs associated with this as well.
Q4: What kinds of certificates do you have?
A4: EN50549-1, IEC 62109-1&-2, IEC 61000-6-1&-3, VDE4105, CEI 0-21, G98&G99, UTE C15-712-120107, etc.
Q5: What's your deliery term?
A5: Accept Delivery Terms: EXW, FOB, CFR, CIF, etc.
Q6: How's your delivery time?
A6: Sample order: 1-3 days after receipt of the full payment. Stock order: 3-7 days after receipt of the full payment. OEM order: 12-30 days after receipt of the deposit.
Q7: What's your shipping way? and how much does shipping cost?
A7: DHL, UPS , EMS, FedEx, TNT, Air freight, Railway, Sea shipping. Shipping is calculated according to the different countries.You can contact us, we will try to find a suitable and economic way for you.
Q8: Where do you ship from?
A8: We can ship from our factory directly in China, or ship from our warehouse in Germany.
Q9: How long of the warranty for your products?
A9: Our solar on/off grid hybrid inverter is 5 years, solar off grid inverter is 2 years, our battery pack is 5-10 years.
Q10: What's your return policy?
A10: We try and keep returns simple and easy. If something arrives damaged, we'll cover all of the costs to get you a properly working product. But firstly if there is any problems of our products, please contact us and we have 24-hour online after-sales customer service to solve problems for you.
