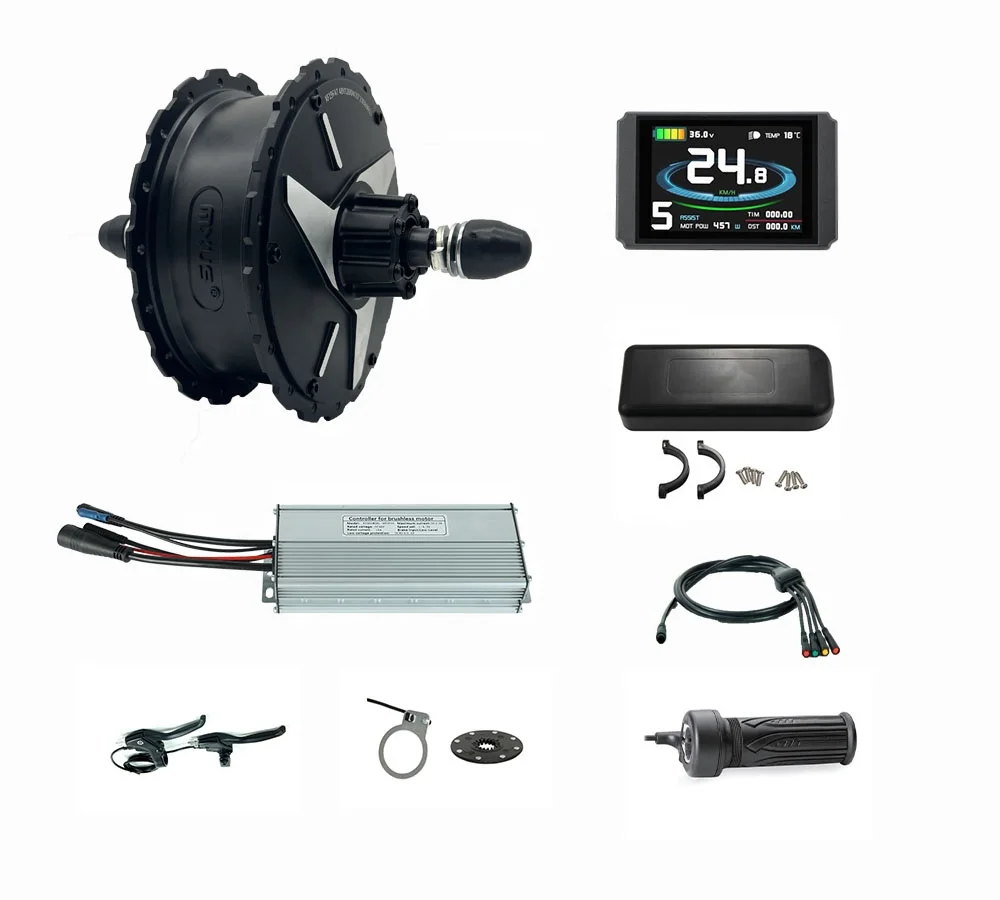

MXUS GDR19FAT 48/60V 750/1500w electric bike motor conversion kit for fatbike with huge torque 120Nm and super speed 55km/h
- Category: >>>
- Supplier: Changzhou Mxus Imp.&Exp. Co. Ltd.Changzhou Ltd.
Share on (1601191162034):
Product Overview
Description
Product Description

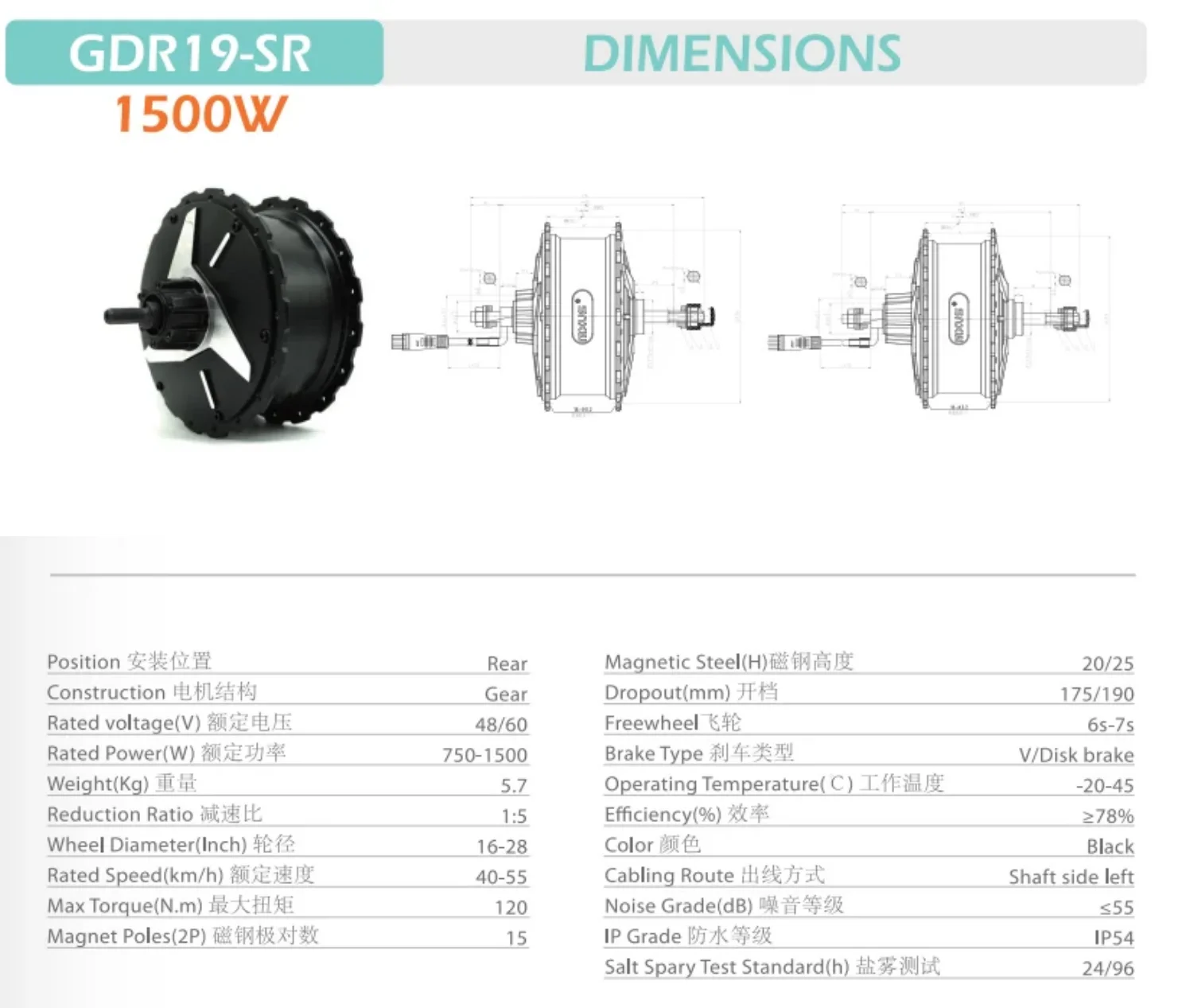

SPECIFICATION FOR FAT BIKE HUB MOTOR | ||||||
48/60Rated Voltage (V) | 48/60 | Surface | Black | |||
Rated Power (W) | 750-1500 | Brake Type | Disc brake/V brake | |||
Wheel Size | 16--28 | Weight (Kg) | 5.7 | |||

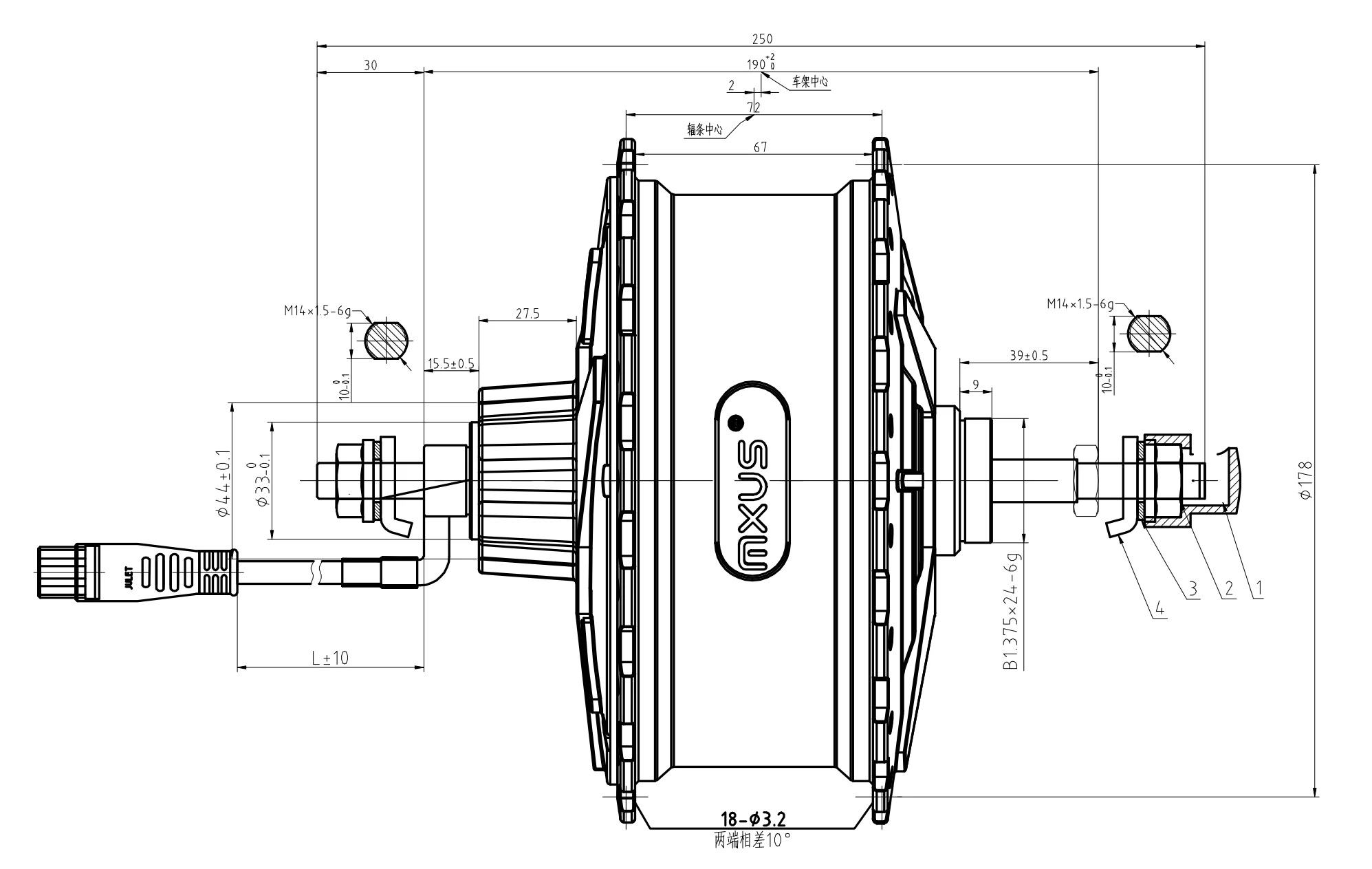

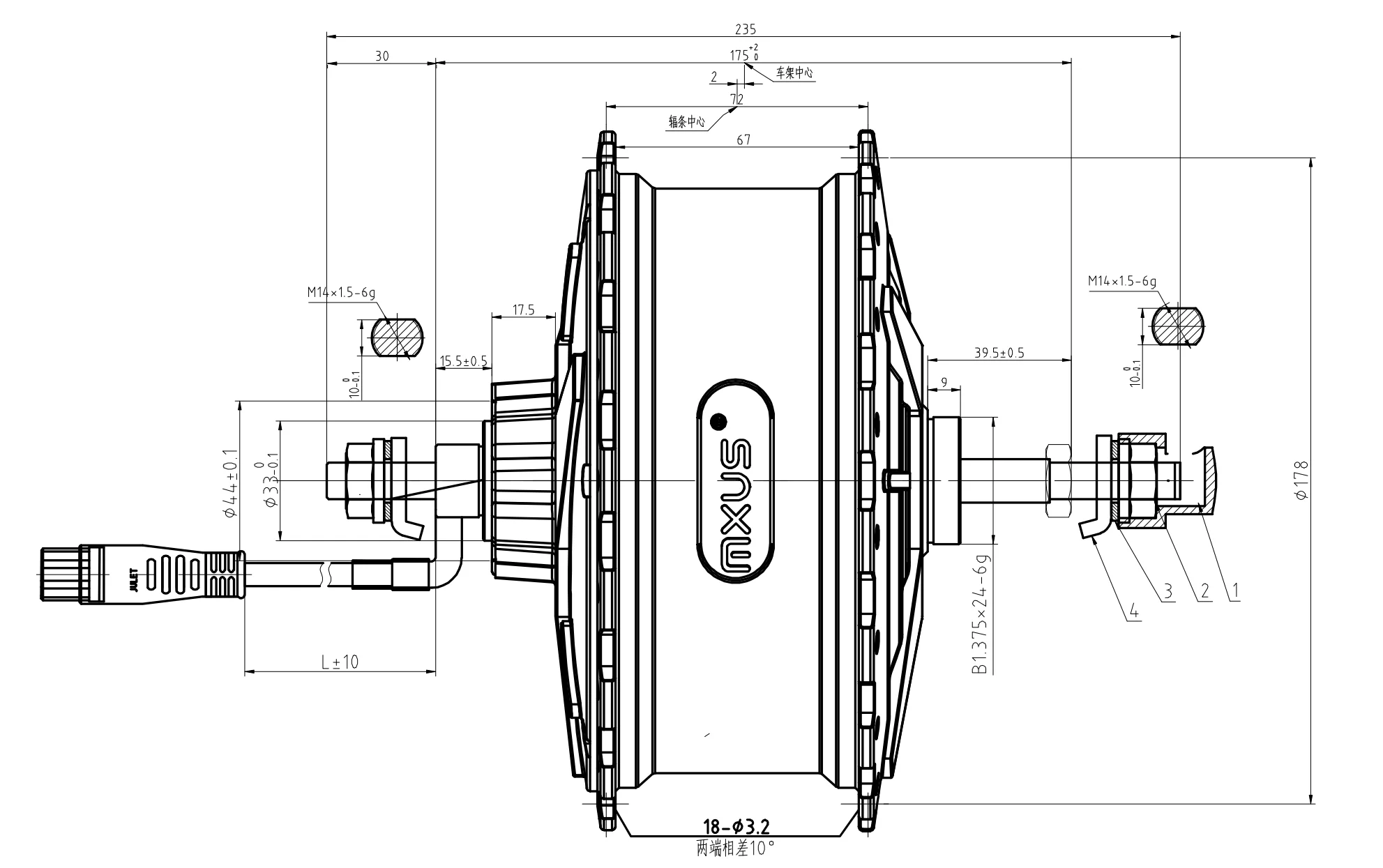

Rated Speed (km/h) | 40-55 | Open Size (mm) | 175/190 | |||
Drive and Freewheel | Rear 6-7s | |||||

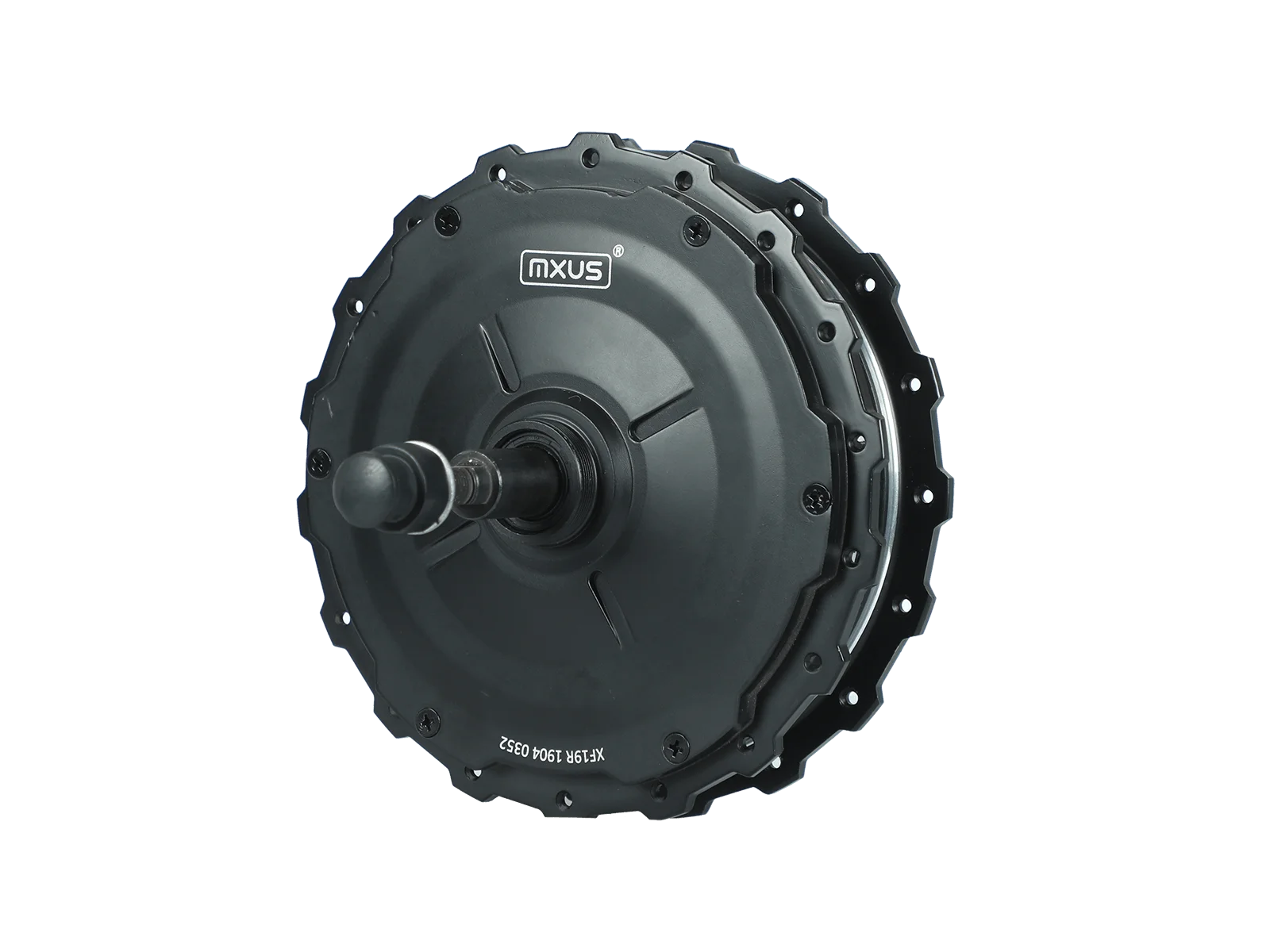

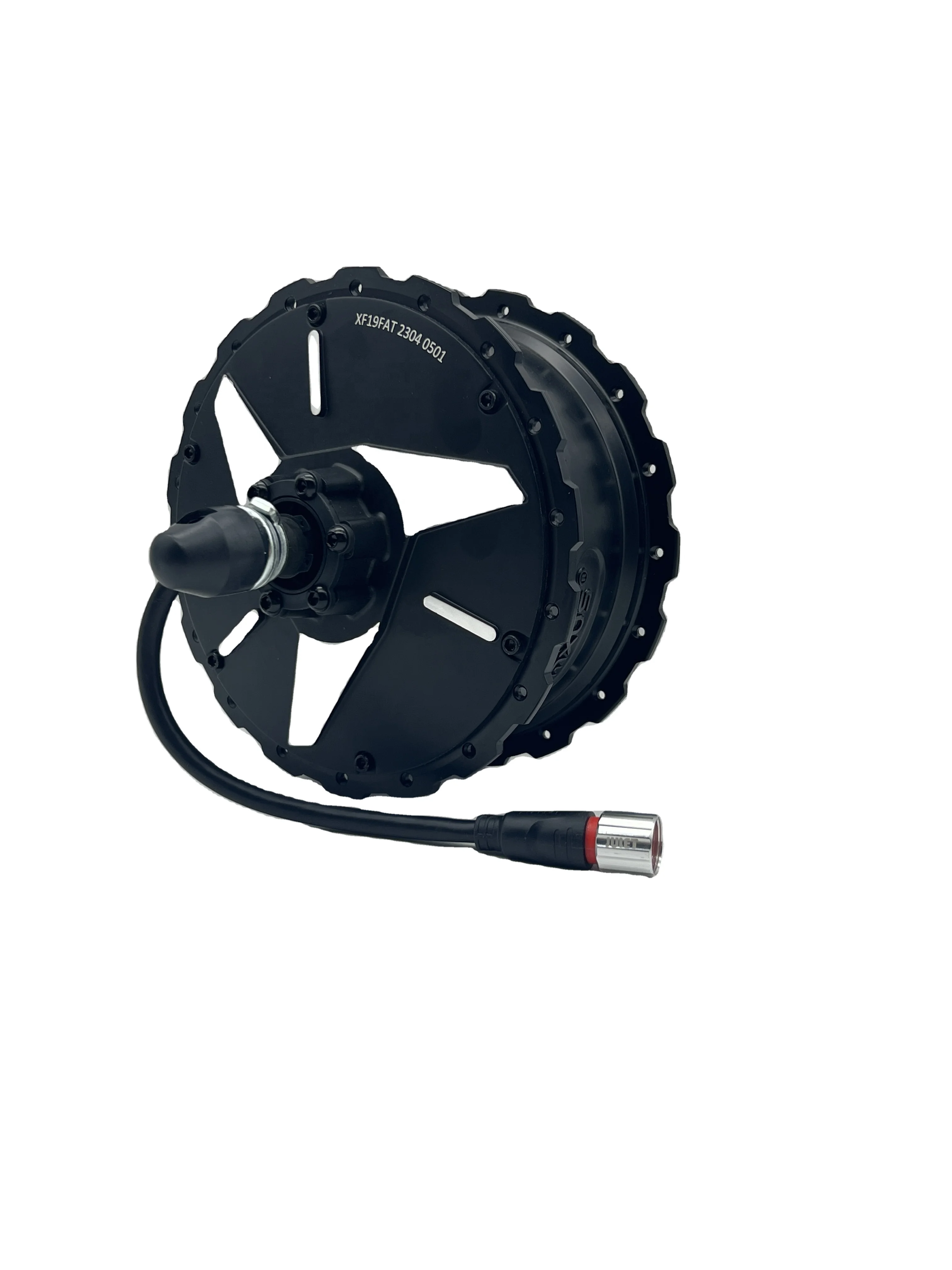

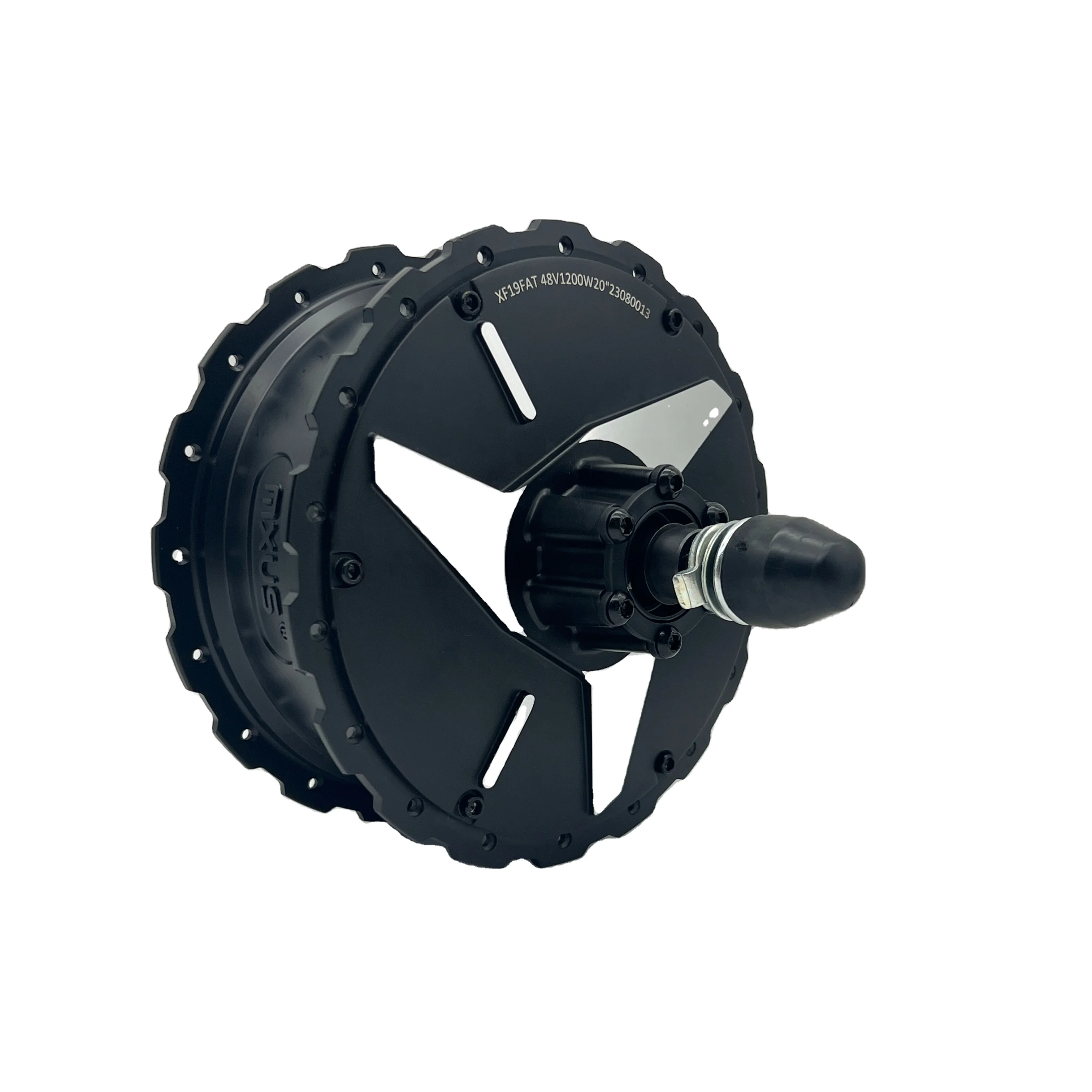

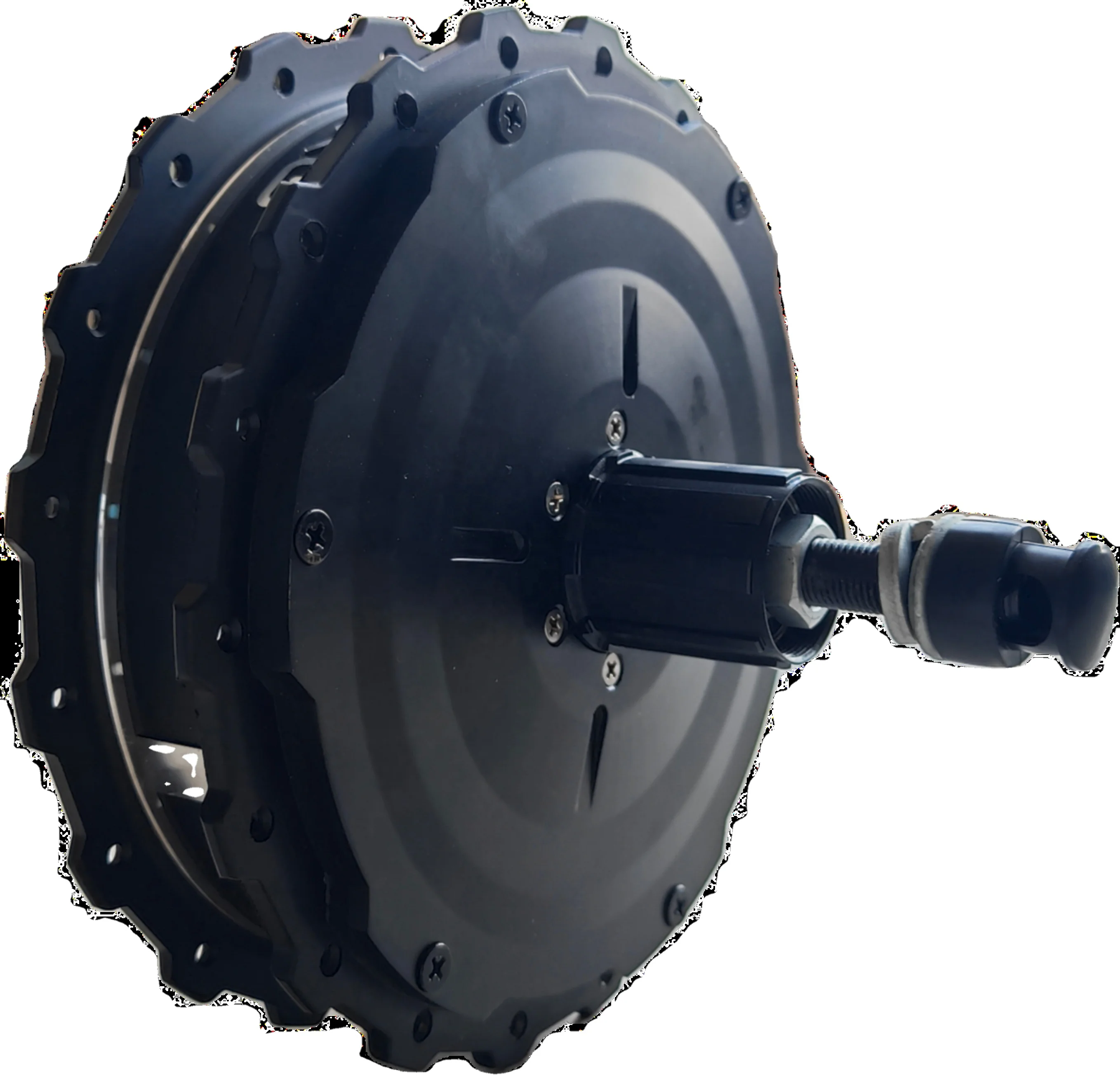

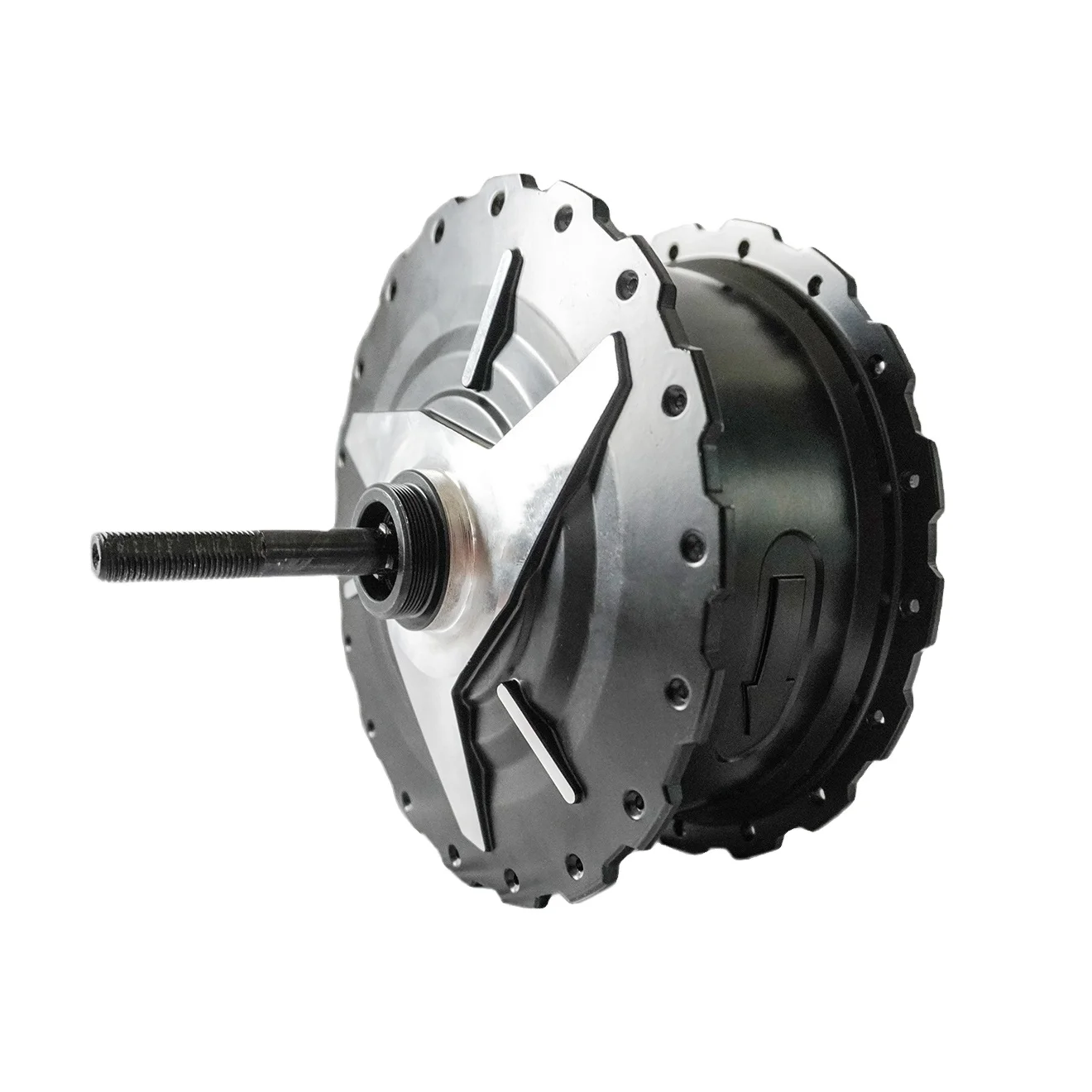

Motor | 48v 1500w Rear fat bike hub motor (Model GDR19-SR) |
Laced with fat bike 75mm width or 90mm width rim | |
20inch-28inch available | |
V Disk/Disk brake available | |
Rated speed=40-55KM/H | |
Motor cable with waterproof connector | |
Battery | 48V 12.8Ah lithium ion battery |
All battery including fuse and BMS | |
Charger | AC 100V~240V 2amps smart charger |
Controller | 48V 45A intelligent brushless controller |
Throttle | Thumb throttle / Twist throttle for option |
Brakes | E-brakes levers or E-brake sensor for motor power cut off |
PAS | 1:1 intelligent pedal assistant system (8 points/12 points magnet) |
Display | LED /LCD Display for option |
Wiring | Waterproof harness or regular connection |
Detailed Images
3 Options
LCD Options
LCD12 LCD8S P LCD8S LCD8H
KT Waterproof Connectors Controller
6 mosfets 9 mosfets 12 mosfets
Accessories
Thumb Throttle & Twist Throttle
E-bus 1 with 4 waterproof connectors cable
It's used to be connected with LCD、Throttle、Ebrake
Pedal Assist Sensor
Battery Options
Packing & Delivery
Packaging | ||
Carton Size | ||
Packaging Details | 16'' : 35*35*23mm (front) 35*35*25mm (rear) 20'' : 45*45*23mm (front) 45*45*25mm (rear) 26'' : 60*60*23mm (front) 60*60*25mm (rear) 28'': 65*65*23mm (front) 65*65*25mm (rear) | |
Our Factory
Changzhou Huayu Xinfeng Motor Co., Ltd. was founded in 1995, located in Changzhou city, near Shanghai port, mainly specialized in
design and manufacture motors for ebike. MXUS is our brand name.
Quality first is our principle, all products need to be seriously tested before packing. We have obtained all necessary
certificates, such as CE, CCC, EN15194 and ROHS.
We has workshop of 100,000 sq.m, 200 workers and 30 professional engineers. In 2015, we manufactured over one million motors and
exported 100 thousand sets of e-bike conversion kits. To better serve and develop European market, we have establish branch office
in Holland and Spain.
design and manufacture motors for ebike. MXUS is our brand name.
Quality first is our principle, all products need to be seriously tested before packing. We have obtained all necessary
certificates, such as CE, CCC, EN15194 and ROHS.
We has workshop of 100,000 sq.m, 200 workers and 30 professional engineers. In 2015, we manufactured over one million motors and
exported 100 thousand sets of e-bike conversion kits. To better serve and develop European market, we have establish branch office
in Holland and Spain.
