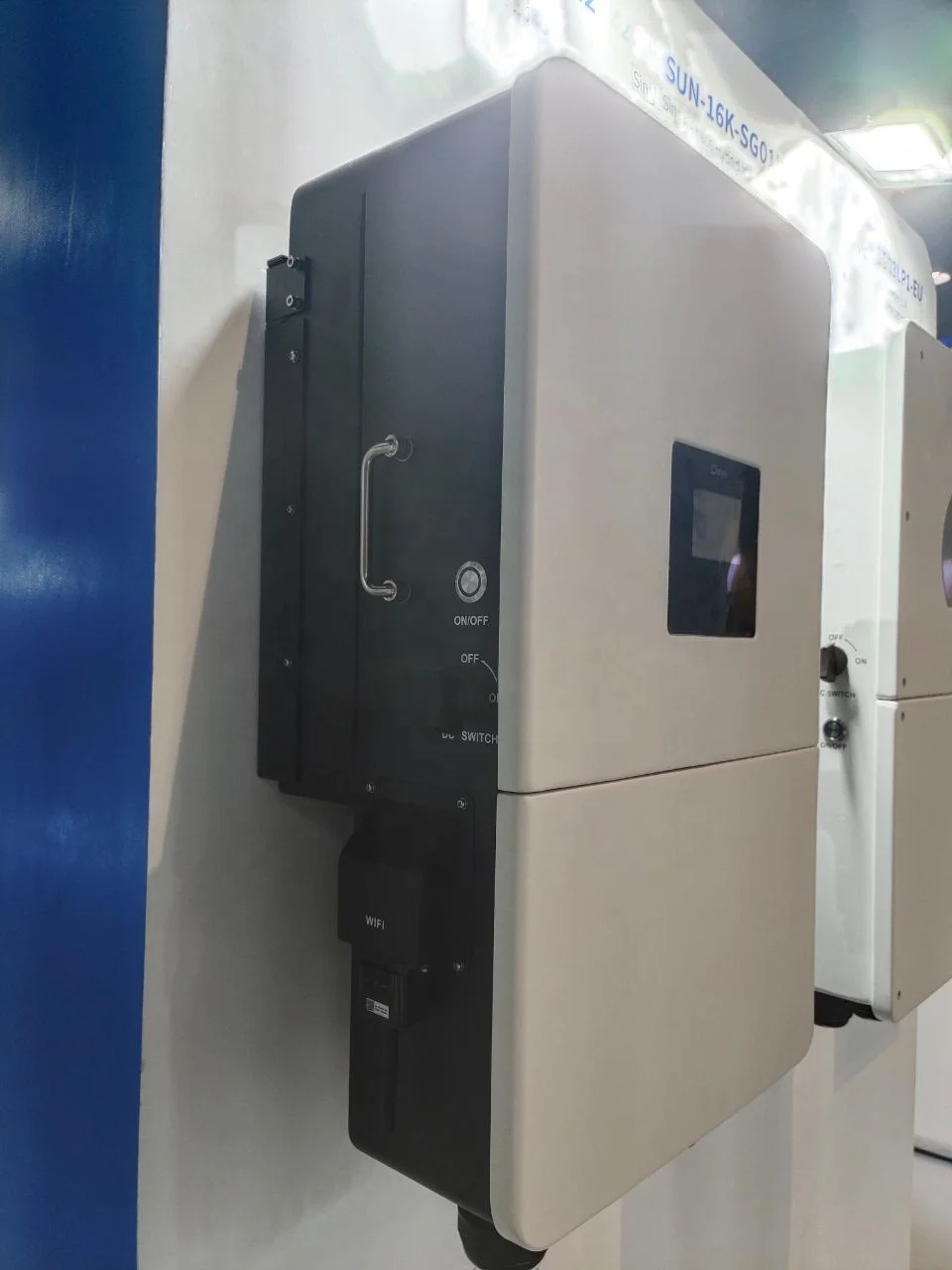

Deye 16kw 20kw 30kw 50kw 12Kw Double Mppt Hybrid Solar Inverter deye Hybrid Inverter 16kw
- Category: >>>
- Supplier: Greensun Solar Energy Tech Co. LimitedGreensun Limited
Share on (1601191172783):
Product Overview
Description
Products Description

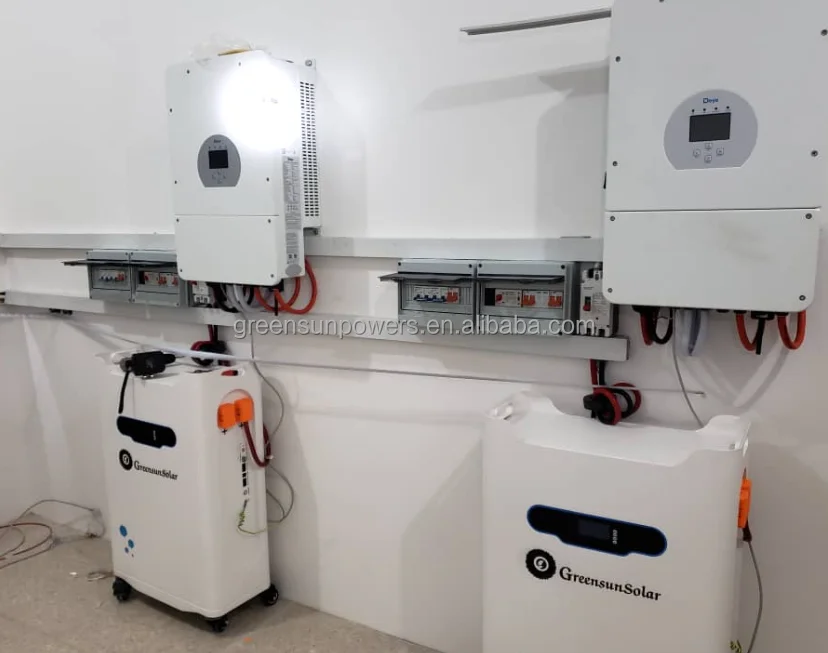

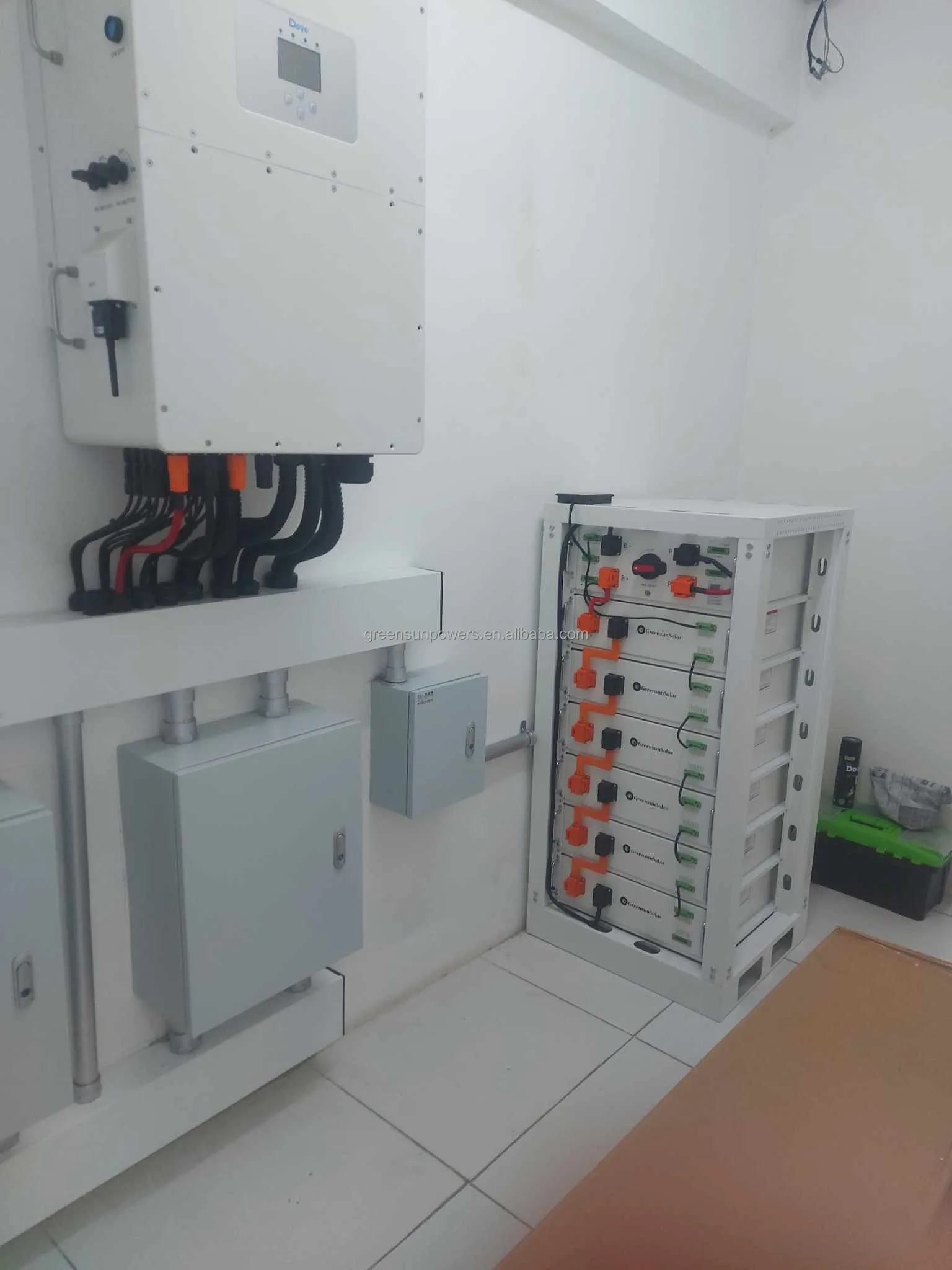

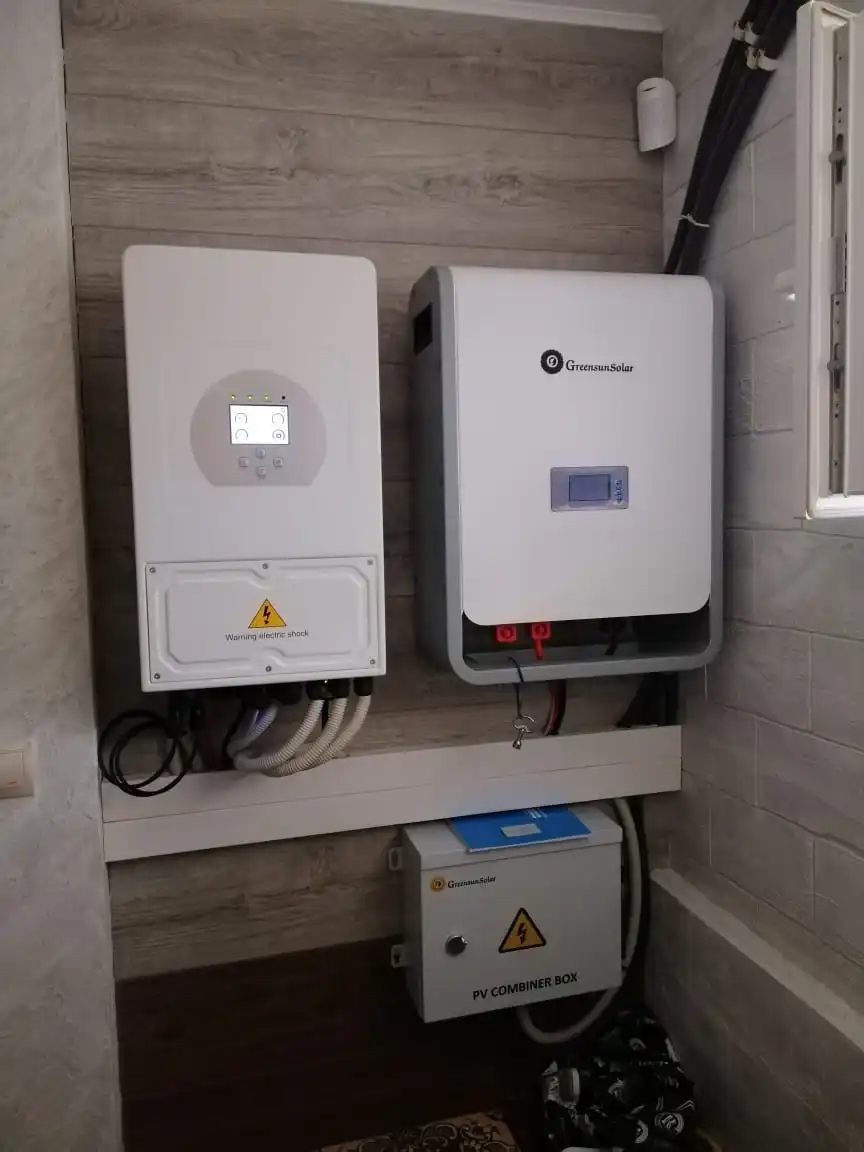

Solar System Configuration

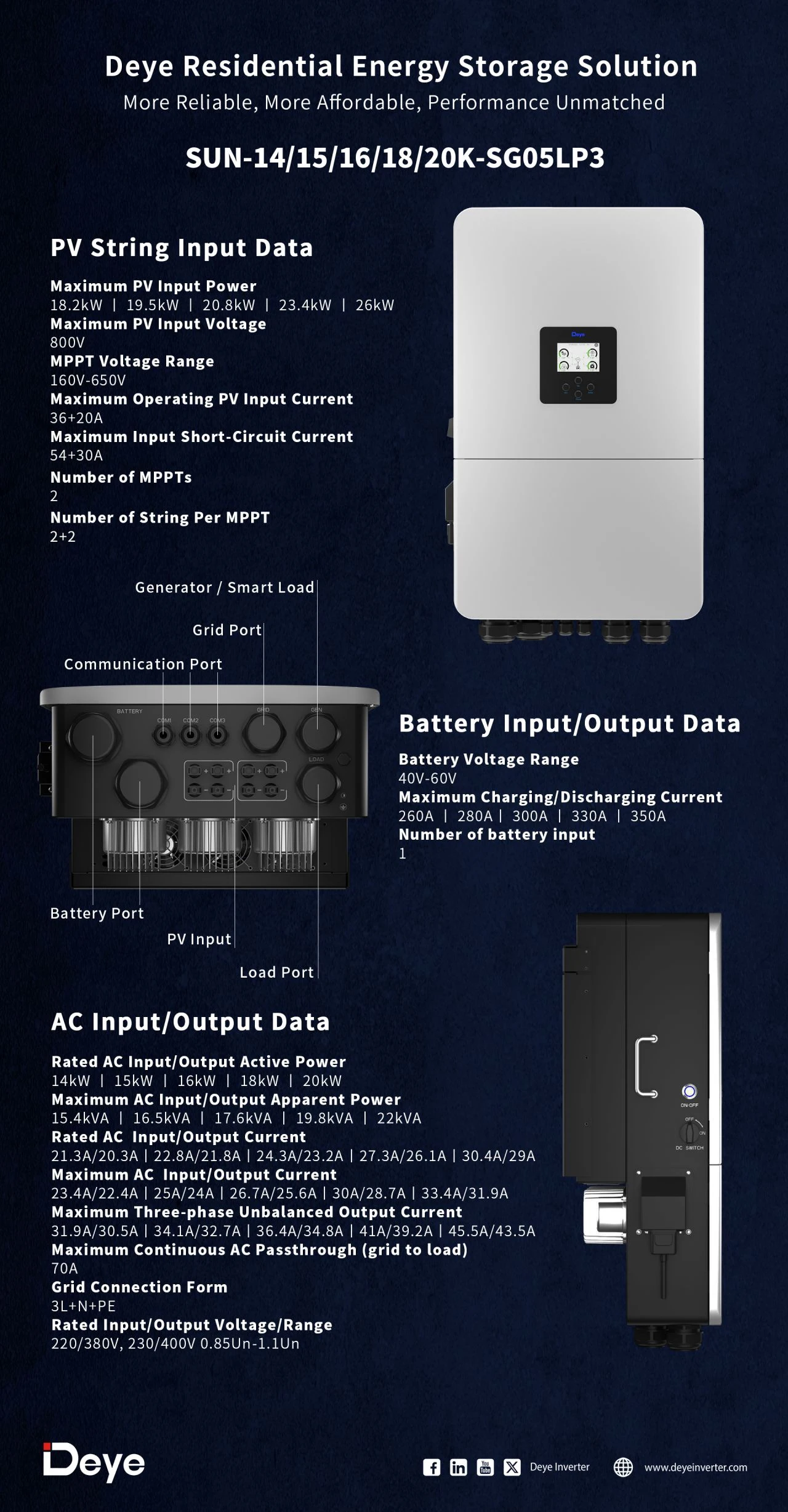

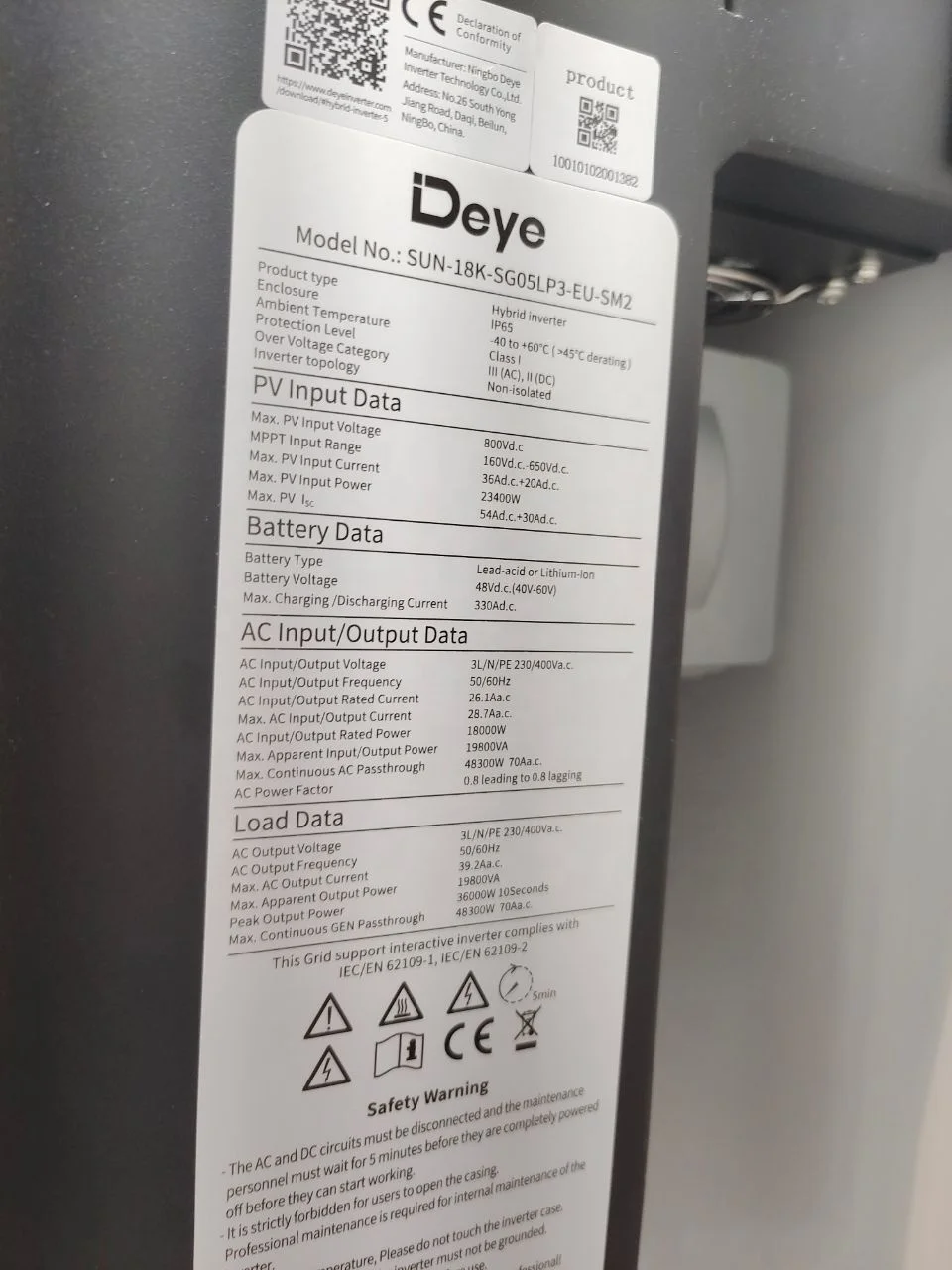

Hybrid Inverter 3Phase EU Standard | 14KW | 15KW | 16KW | 18KW | 20KW | ||||
Battery Type | Lithium Battery/Lead Acid | ||||||||
Battery Voltage Range | 40-60V | ||||||||
Max.Charging Current (A) | 260A | 280A | 300A | 330A | 350A | ||||
Max.Discharging Current (A) | 260A | 280A | 300A | 330A | 350A | ||||
BMS | Self-adaption to BMS | ||||||||
Max Input Power | 21000W | 22500W | 24000W | 27000W | 30000W | ||||
PV Input Voltage | 160-800V | ||||||||
MPPT Voltage Range | 160-650V | ||||||||
Number of MPPT | 2 | 2 | 2 | 2 | 2 | ||||
No.of Strings Per MPPT Tracker | 2+1 | 2+1 | 2+1 | 2+1 | 2+1 | ||||
PV Input Current (A) | 36+20 | ||||||||
Rated AC Output and UPS Power (W) | 14000W | 15000W | 16000W | 18000W | 20000W | ||||
Max. AC Output Power (W) | 15400W | 16500W | 17600W | 19800W | 22000w | ||||
Peak Power (off grid) | 2 times of rated power, 10 S | ||||||||
Output Frequency and Voltage | 220/380V, 230/400V 0.85Un-1.1Un | ||||||||
AC Output Rated Current (A) | 21.3/20.3 | 22.8/21.8 | 24.3/23.2 | 27.3/26.1 | 30.4/29 | ||||
Max. AC Current (A) | 21.3/20.3 | 22.8/21.8 | 24.3/23.2 | 27.3/26.1 | 30.4/29 | ||||
Max Efficiency | 97.6% | ||||||||
MPPT Efficiency | 99.90% | ||||||||
Grid Regulation | IEC 61727, IEC 62116,CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99,VDE-AR-N 4105 | ||||||||
Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||||||
Dimension (mm) | 456×750×268.5 (Excluding Connectors and Brackets) | ||||||||
Weight | 50.6KG | ||||||||
Protection Degree | IP65 | ||||||||
Communication with BMS | RS485/RS232/CAN | ||||||||

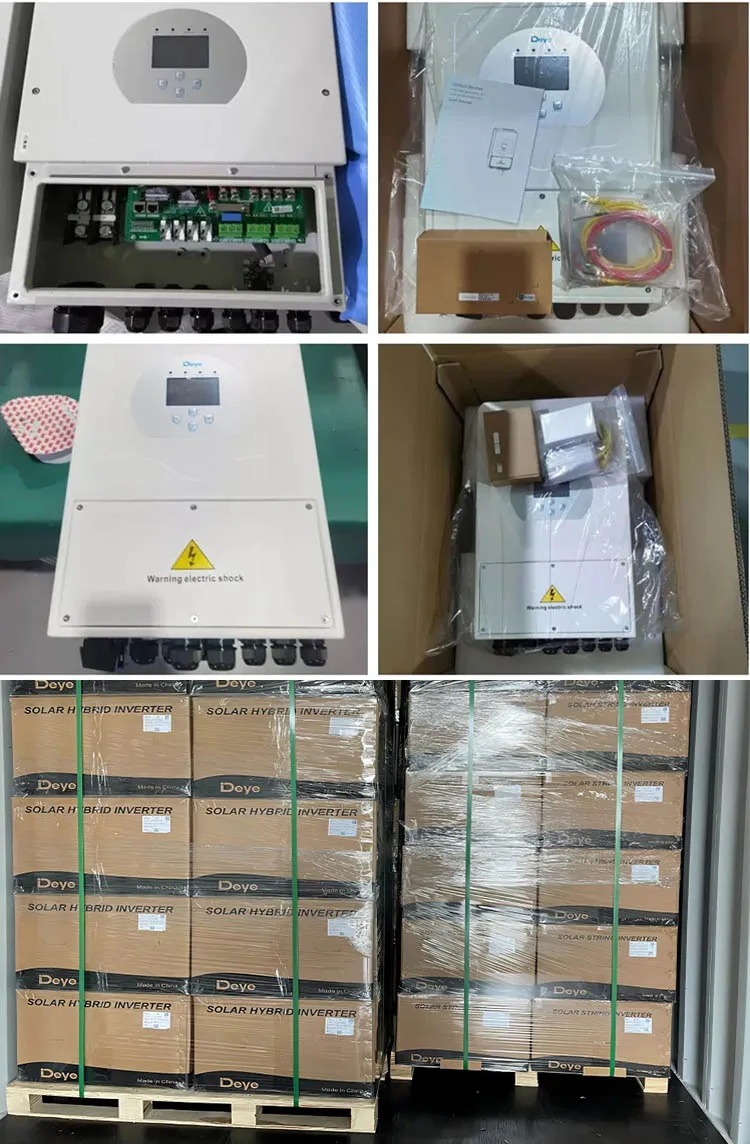

Product packaging
All products will be packed in cartons first after production and testing.
Then put it into a custom-made wooden box and nail it tightly.
Make sure that there will be no damage during sea transportation.
Then put it into a custom-made wooden box and nail it tightly.
Make sure that there will be no damage during sea transportation.

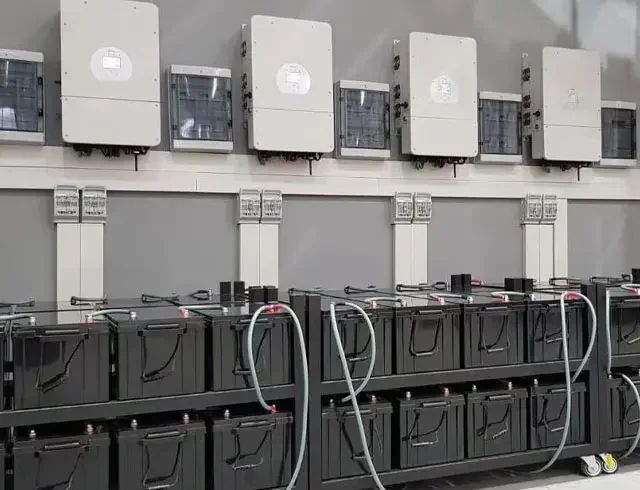

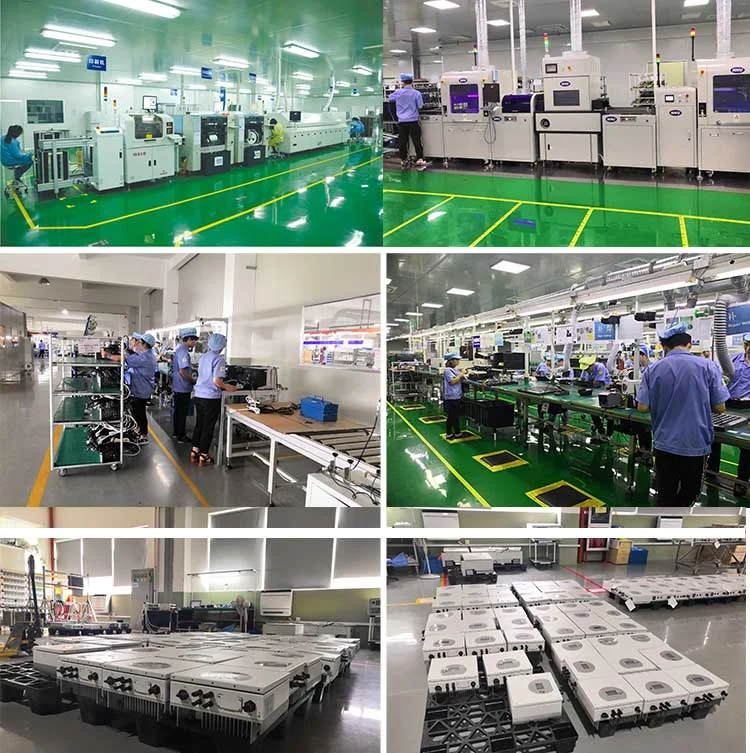

Factory and Production
Greensun Solar Energy Tech. Co., Limited is a professional, fast growing company. Greensun Solar is well known as a world leading manufacturer of cost-effective, high efficiency and good quality photovoltaic panel, storage battery, and complete solar energy system for residential and C&I application.
Having professional engineering team, Greensun Solar provide best design and customization of One-Stop Solar Solution. Greensun Solar was founded in 2004, headquartered in Hefei, Anhui China.
Our factory covers 90,000 square meters area and has more than 2,000 employees. Greensun Solar has 15years experience in solar industry and is dedicated to research and development, production innovation and strict quality control management.
We have comprehensive product range: solar panel, inverter, controller, battery, on grid and off grid solar system, hybrid solar system and solar pump system.
We aim to manufacture and provide reliable and innovated solar panel and solar energy solutions to the world.
We aim to manufacture and provide reliable and innovated solar panel and solar energy solutions to the world.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

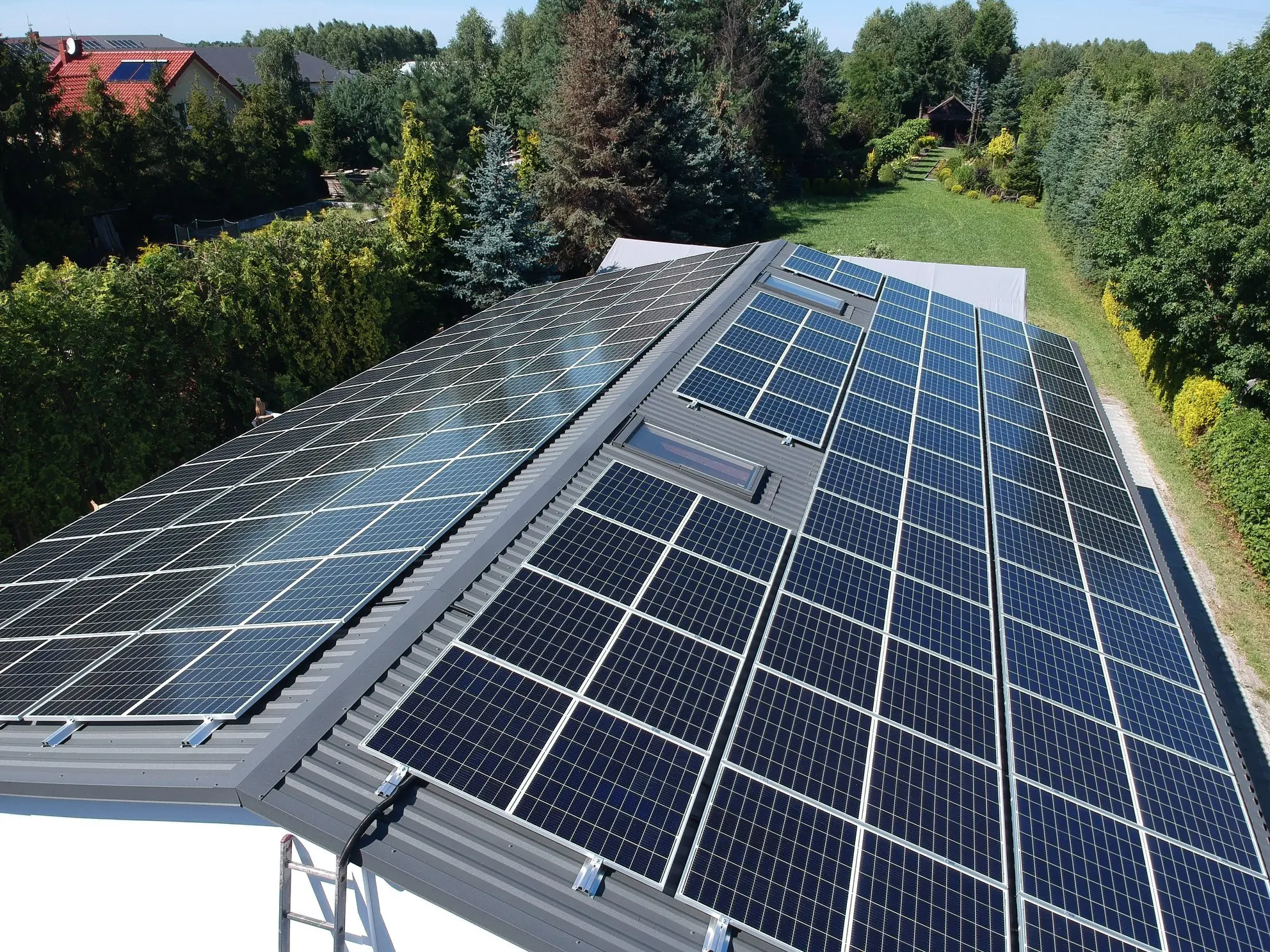

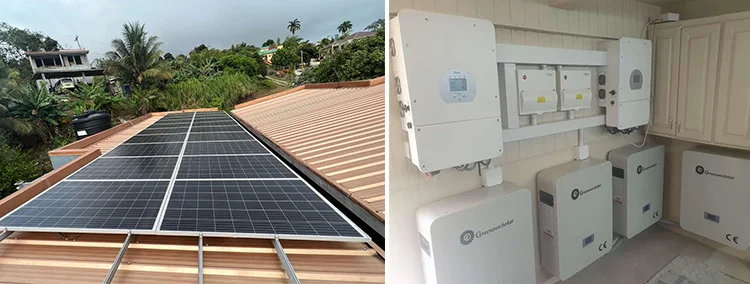

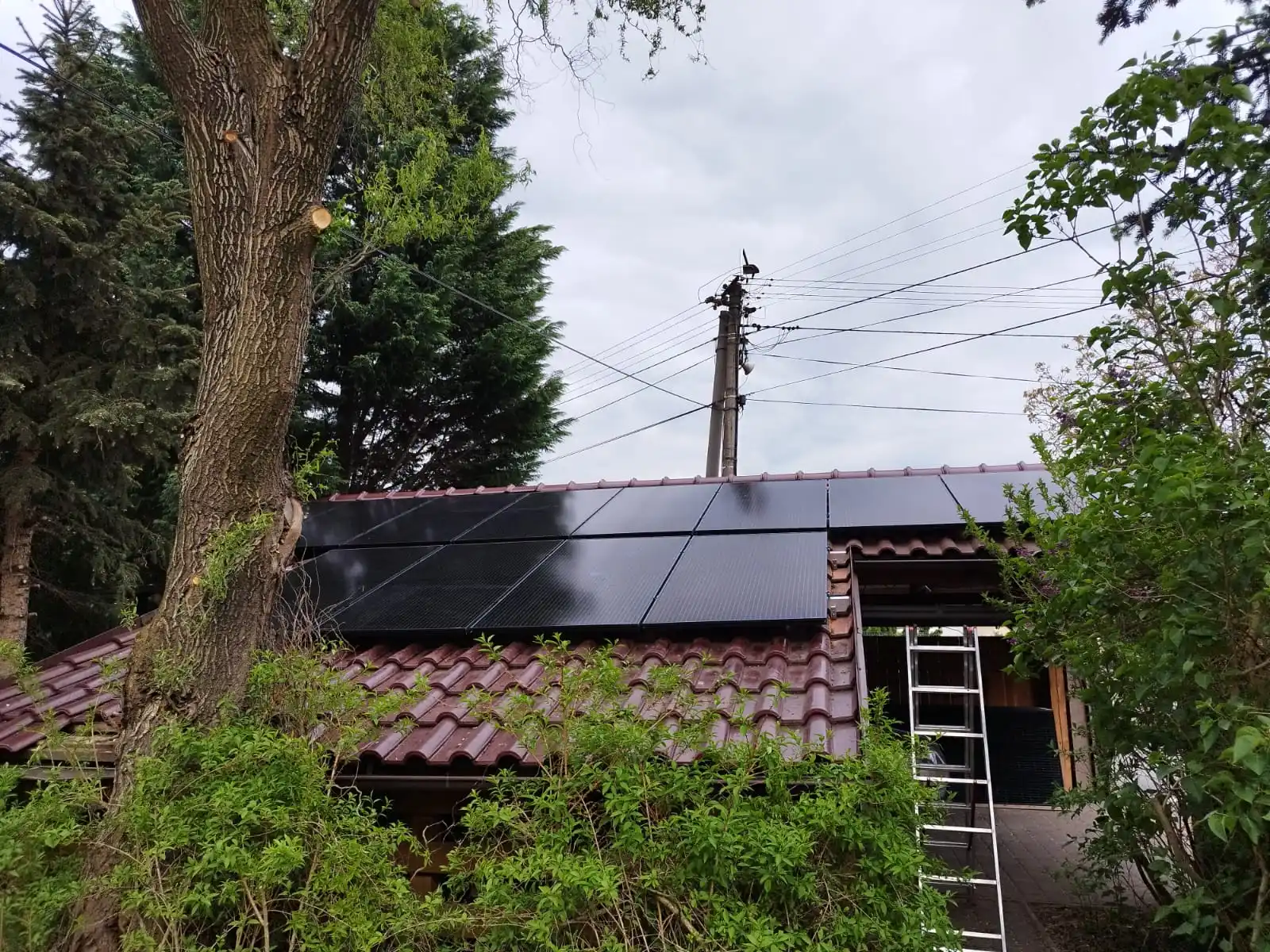

Global Project
We have sold and installed over 20,000 solar systems around the world.
Including residential energy storage systems and large-scale commercial solar photovoltaic systems.
Contribute to global carbon neutrality.
Including residential energy storage systems and large-scale commercial solar photovoltaic systems.
Contribute to global carbon neutrality.
Why Choose Us
1. We are a real factory and have strict requirements on the quality of products.
2. We provide OEM services for many leading companies around the world.
It has long-term cooperation with Longi, Risen, Jinko and other first-line brands.
3. As a factory, we have better control over product costs.
4. Both production and delivery are very fast.
5. Also, we provide stable and long-term after-sales service.
2. We provide OEM services for many leading companies around the world.
It has long-term cooperation with Longi, Risen, Jinko and other first-line brands.
3. As a factory, we have better control over product costs.
4. Both production and delivery are very fast.
5. Also, we provide stable and long-term after-sales service.
