1' 2 Way Normally Open Brass Electromagnetic Valve Solenoid Valve For Water Air Gas Liquid 220VAC 110VAC 24VAC 24VDC 12VDC
- Category: >>>
- Supplier: Ningbo Brando Hardware Co. Ltd.
Share on (1601191393083):
Product Overview
Description

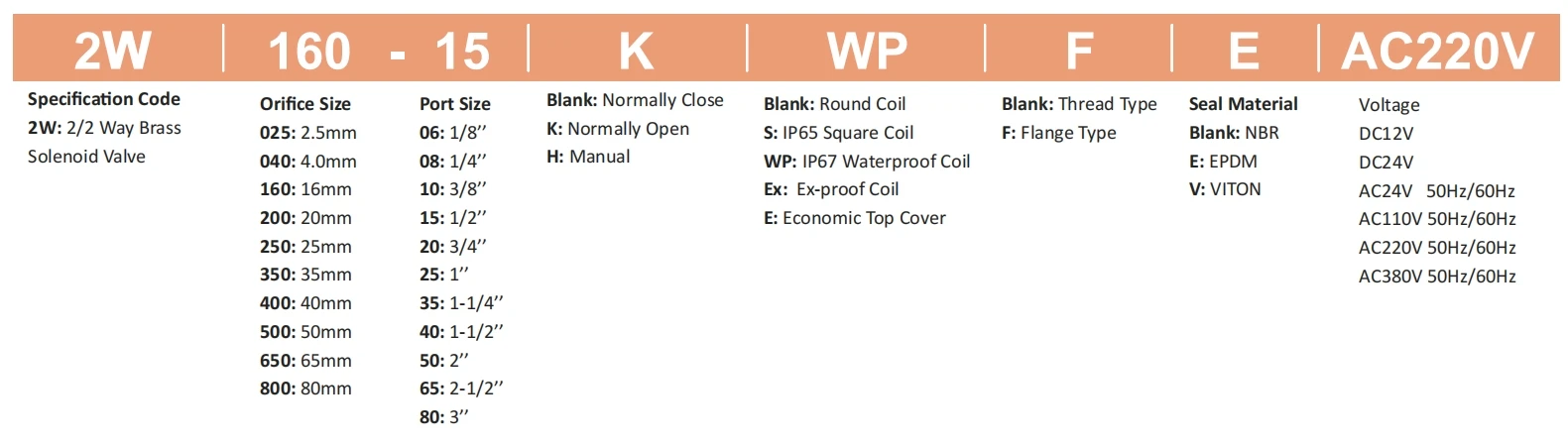

How To Order
Technical Data
Model No | 2W160-10K | 2W160-15K | 2W200-20K | 2W250-25K | 2W350-35K | 2W400-40K | 2W500-50K | ||||||
Orifice Size | 16mm | 16mm | 20mm | 25mm | 35mm | 40mm | 50mm | ||||||
Port Size | 3/8'' | 1/2'' | 3/4'' | 1'' | 1-1/4'' | 1-1/2'' | 2'' | ||||||
Body Material | Brass | ||||||||||||
Diaprhagm Material | NBR, EPDM, FKM | ||||||||||||
Working Medium | Water, Air, Gas, Liquid, etc | ||||||||||||
Operation | Direct Lifting Diaphragm | ||||||||||||
Function | 2 Way Normally Open | ||||||||||||
Fluid Viscosity | 20 CST below | ||||||||||||
Working Pressure | 0 to 8 bar | ||||||||||||
Working Temperature | NBR: -5 to +80℃ EPDM: -5 to +120℃ FKM: -10 to +150℃ | ||||||||||||
Voltage | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC | ||||||||||||

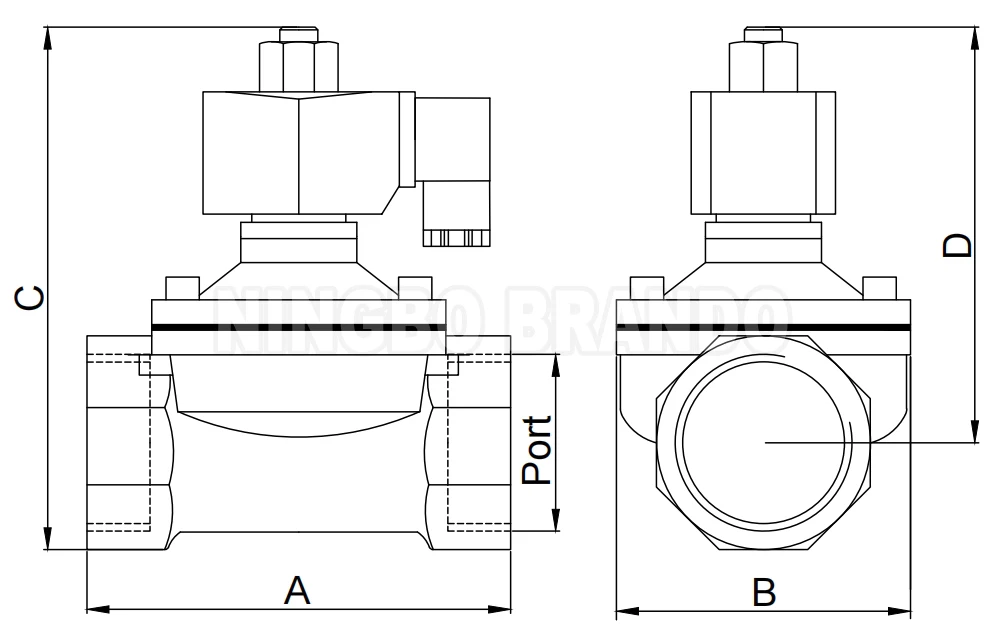

Main Dimension
Model No | Port | A | B | C | D |
2W160-10K | 3/8'' | 63 | 56 | 181 | 118 |
2W160-15K | 1/2'' | 63 | 56 | 181 | 118 |
2W200-20K | 3/4'' | 66 | 56 | 122 | 123 |
2W250-25K | 1'' | 90 | 76 | 130 | 147 |
2W350-35K | 1-1/4'' | 99 | 76 | 134 | 160 |
2W400-40K | 1-1/2'' | 115 | 93 | 160 | 165 |
2W500-50K | 2'' | 133 | 93 | 170 | 176 |

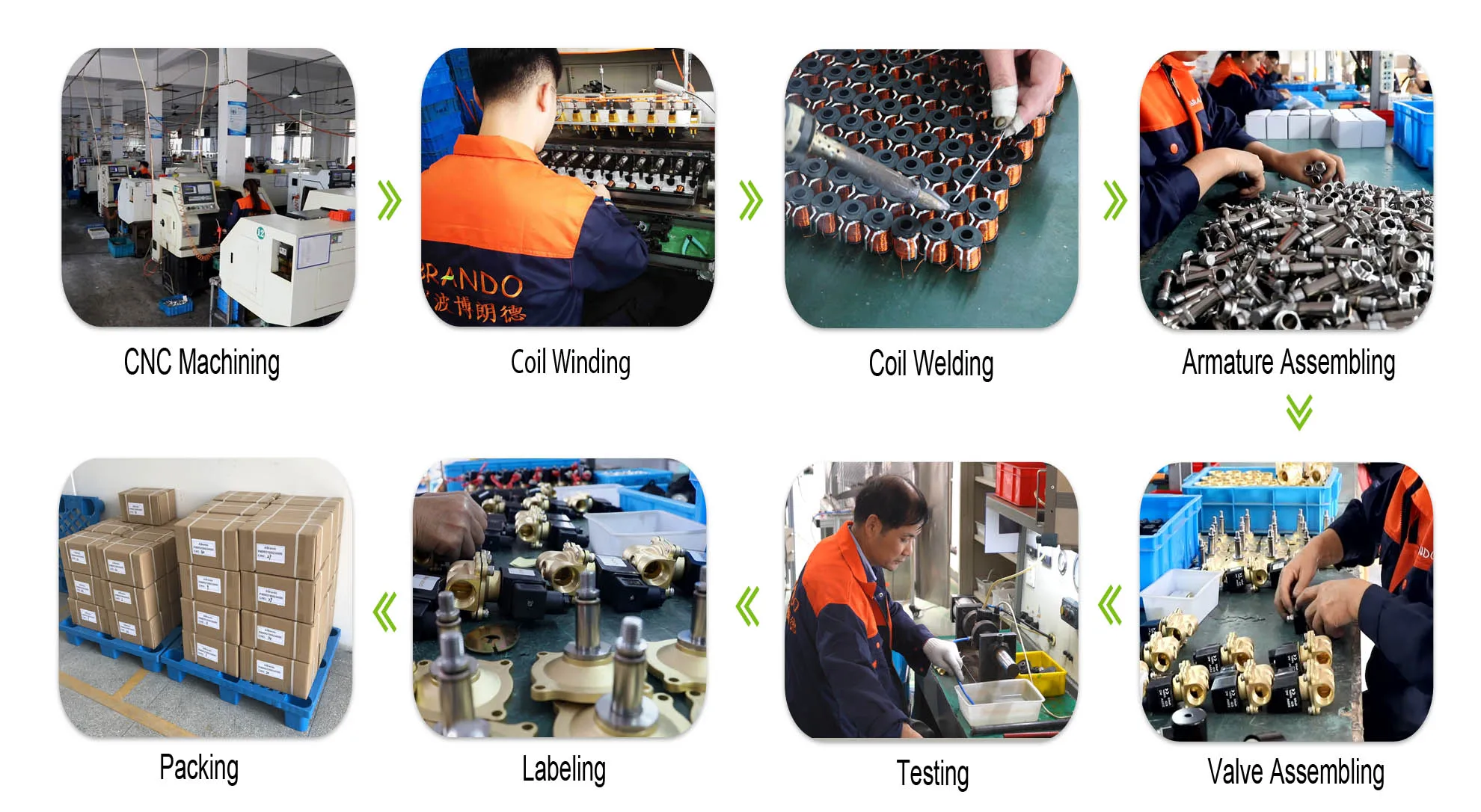

Our Production
