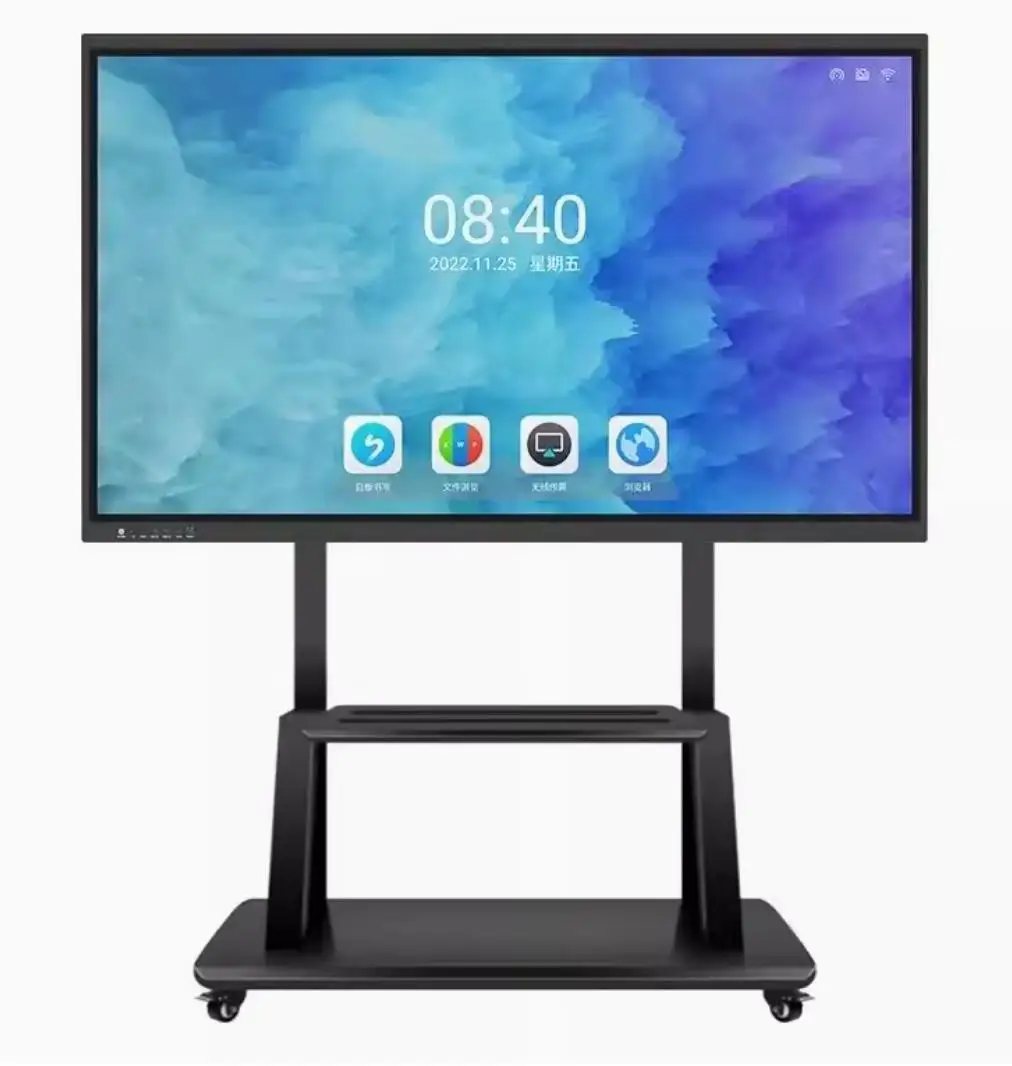

Interactive Flat Panel Finger Touch Digital Interactive Whiteboard 4k Smart Board For Classroom Meeting Room
- Category: >>>
- Supplier: Shenzhen Yatexin Technology Co. LTD
Share on (1601191520898):
Product Overview
Description
Products Description
Details Images
Advantage:
1. Intuitive interactivity: It supports touch operation. Users can write, mark, click and other operations directly on the screen with their fingers or special pens. This intuitive interactive method can greatly improve the enthusiasm and concentration of participants.2. High-definition display: With high resolution and excellent color performance, it can clearly and realistically display images, text and videos, ensuring the accuracy of information transmission and the quality of visual effects.
3. Multi-functional integration: It integrates the functions of multiple devices such as computers, projectors, electronic whiteboards, and audio, reducing the complexity of equipment and the cumbersome wiring, saving space and improving usage efficiency.
4. Real-time annotation and saving: During the demonstration or explanation process, you can annotate and modify the content at any time, and these modifications can be saved in real time for subsequent review and sorting.
5. Wireless connection: It supports functions such as wireless projection and network connection, which allows users to easily share data and files on various devices and achieve efficient information exchange.
6. Flexible mobility: Some models are designed as movable styles, which can be flexibly arranged according to different meeting or teaching scenarios to increase the convenience of use.
7. Rich software: Equipped with a variety of professional teaching and conference software, such as drawing tools, document editing software, remote conference software, etc., to meet various specific needs.
8. Energy saving and environmental protection: Compared with traditional projection equipment, it has lower energy consumption and longer service life, reducing long-term use costs and environmental impact.
Product Paramenters
Product name | Conference Teaching Touch All-in-one Machine | 15.6 inch | |
Model | YTXGGJ911 | 430*278*35mm | |
Panel size | 75 inches | 32G | |
Panel type | LCD | RK3326 | |
Light source | DLED | 1920*1080 | |
Resloution | 3840 x 2160pixels | ||
Brightness(typ)/(min) | 350cd/m²(typ.) | ||
Contrast ration(typ)/(min) | 1200:1(typ.) | ||
Response time(typ)/(min) | 8ms(typ.) | ||
Pixel distance | 0.372mm x 0.372mm | ||
Frame rate | 60Hz | ||
Viewing angle | 178°(H)/178°(V) | ||
Life(typ)/(min) | 30,000hrs(min.) | ||
Color saturability(x%NTSC) | 72% | ||
Pixel pitch | 0.372*0.372mm | ||
Display colors | 1.07b | ||
In Interface | LAN*1, HDMI*2, VGA*1, MIC*1, Audio*1, AV*1, SD card slot*1, USB 2.0*2 | ||
Out interface | TOUCH-USB (USB Type B)*1, RS232, AV*1, EARPHONE*1, SPDIF*1 | ||
Front interface | PC USB2.0*1, TV USB2.0*1, TOUCH-USB*1, HDMI*1 | ||
Front button | 7 buttons control (ECO,MENU,HOME,POWER,VOL-,VOL+SOURCE) | ||
language | OSD (CH, En) | ||
Accessory | Remote-control unit x 1, Power line (1.5M)x 1, WhiteBoard markerx 1, Instruction bookx 1, Warranty cardx 1, Certifificate of qualifificationx 1, Batteryx 1 (pair), WIFI Linex 1 | ||
Touch Panel | |||
Touch specififications | infrared touch sensor technology, support 20 points | ||
Frame material | Aluminium alloy face frame, PCBA | ||
Glass | 4MM | ||
Glass transmittance | ＞92% | ||
Response time | Single point : Click 13ms continuous 3ms Multipoint : Click 13ms, continuous 5-10ms Two touch at the same time: click 10ms | ||
Positioning accuracy | ≤2mm | ||
Input method | opaque objects (such as fifingers, pens, etc.) | ||
Theoretical clicks | more than 60 million times in the same position | ||
Min touch | ≥ 5MM | ||
Light resistance | Incandescent lamp (220V, 100W), vertical distance above 350mm, the illuminance of solar radiation reaches 90000Lux | ||
Power supply | USB Power supply | ||
Supply voltage | DC 5.0±5% | ||
Operating System | |||
System version | Android 11.0 | ||
CPU | Cortex A53*2，A73*2 | ||
Frequency | 1.5GHZ | ||
GPU | Mail450MP4（4+2）600MHZ | ||
Power | |||
Voltage | Rated | ||
Max power consumption | ≤140W | ||
Standby power consumption | ＜0.5W | ||
Speaker | 2 x 10W | ||
Power supply (AC) input | 100-240V | ||
Power switch | Ship type switch | ||
Environmen | |||
Working temperature | 0℃～40℃ | ||
Storage temperature | -20℃～60℃ | ||
Working humidity | 10%〜90%No condensation | ||
Structure | |||
Net weight | 56KGS | ||
Gross weight | 66KGS | ||
Product dimensions | 1736.2 mm *1070.9mm*111mm | ||
Packing dimensions | 1888*1200*255mm | ||
Shell color | Black | ||
VESA hole site | 4-M6 screws hole 400 x 400 mm | ||
