China hot selling aluminium profile double head cutting saws
- Category: >>>
- Supplier: Jinan Haijinna CNC Machinery Co. Ltd.
Share on (1601191702362):
Product Overview
Description
Product Description

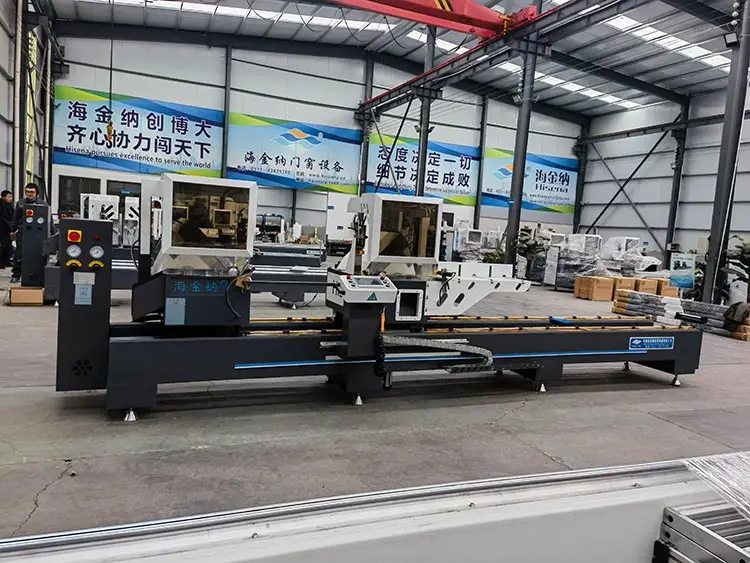

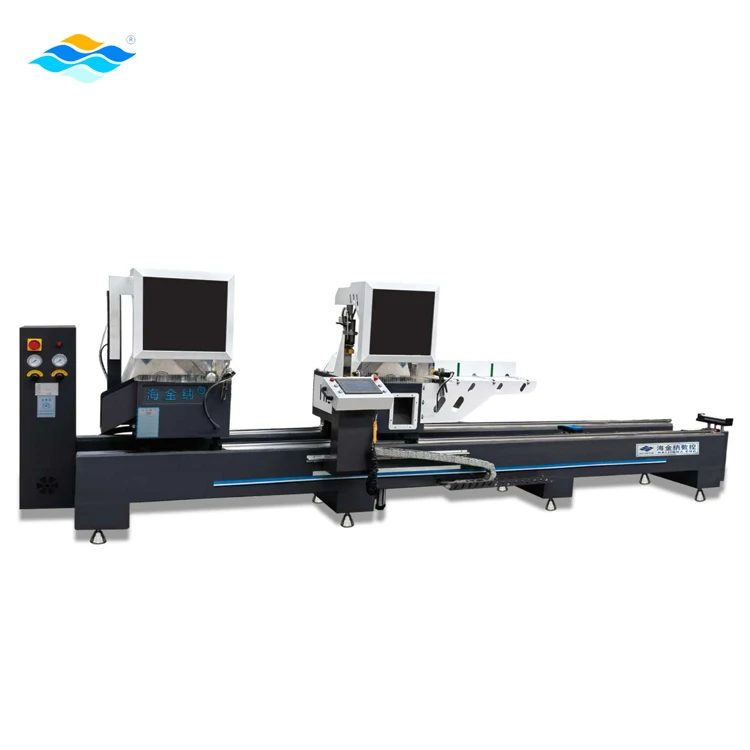

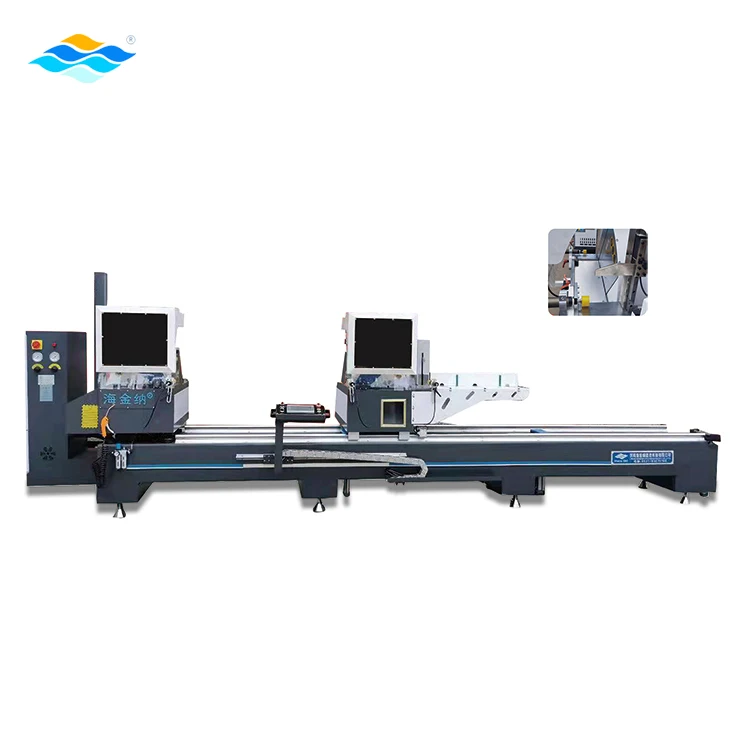

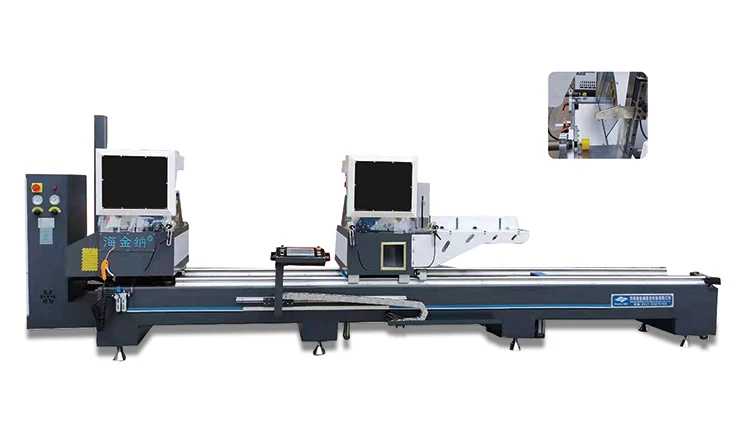

HJN3A-500*4200 is a fully automatic double head saw for 90 degree and 45 degree cutting, used for the production of aluminum windows and doors. The cutting angle, length and quantity can be set through HMI and executed automatically.
Standard Features:
* Applicable material: aluminum,thermal break profile and curtain wall profile.
* Hydro-pneumatic saw feed
* Saw heads can be pneumatically tilted at outward 45 and 90 degrees.
* The one-piece cast and machined tilting shaft has no deformation after long-term use to ensure angular positioning accuracy.
* Equipped with high precision spindle motor
* Servo-controlled right head positioning and feeding to ensure accuracy.
* Automatic profile height measurement.
* The CNC operating system provides four processing modes: Single, Form, Short, Corner cleat
* Comes standard with three pneumatic lift stands for supporting the profile.
* 7 inch LCD touch screen color monitor.
* Hydro-pneumatic saw feed
* Saw heads can be pneumatically tilted at outward 45 and 90 degrees.
* The one-piece cast and machined tilting shaft has no deformation after long-term use to ensure angular positioning accuracy.
* Equipped with high precision spindle motor
* Servo-controlled right head positioning and feeding to ensure accuracy.
* Automatic profile height measurement.
* The CNC operating system provides four processing modes: Single, Form, Short, Corner cleat
* Comes standard with three pneumatic lift stands for supporting the profile.
* 7 inch LCD touch screen color monitor.
Optional:
* Wireless connection and transmission with optimized software.
* Label printer
* Chips extractor
* Label printer
* Chips extractor
Specification
Model | HJN3A-500*4200 | Max.cutting width | 145mm |
Motor power: | 2*3kw | Cutting angle: | 90°/45° |
Input power | 6.8kw | Repeatability | ≤0.2mm |
Air pressure | 0.5-0.8Mpa | Angle tolerance | ±5′ |
Air consumption | 200L /min | Flatness | ≤0.05mm |
Rotation speed | 2800rpm. | Surface roughness | Ra12.5um |
Blade size: | Ø500*Ø30*4.4mm*140T | Overall dimension | 5800x1370x1700mm |
Cutting length | 50mm high profile:329-8000mm (double miter 45° cut) | Weight | 1600Kg |
Hisena CNC，since 2008
Our Team
Our Customers
FAQ
• Are you factory or trading company?
We are a factory with more than 10 years experience in manufacturing door and window equipmen
• What kind of payment methods do you have?
We support T/T and L/C payment.
• Do you have customized service?
Yes, we can do customized order.
• How about shipping time and method?
The delivery time of our regular stock machines is 10-15 days, and the shipping method is mainly by sea. Small machines, tools and accessories can be shipped by air.
• How long is the service life and warranty?
The designed service life of our machines can be more than ten years, and all machines have one year warranty except consumables.
• How to install and use the machine after arrival?
Our equipment has been debugged before leaving factory to meet production standard requirements.
We can provide engineers on-site installation training, remote videophone installation guidance, installationand commissioning videos, user manuals and variety methods.
• How to do the maintenance for machine?
Please carry out daily maintenance, monthly and annual maintenance and inspection for the machine according to the requirements in product instruction manual.
