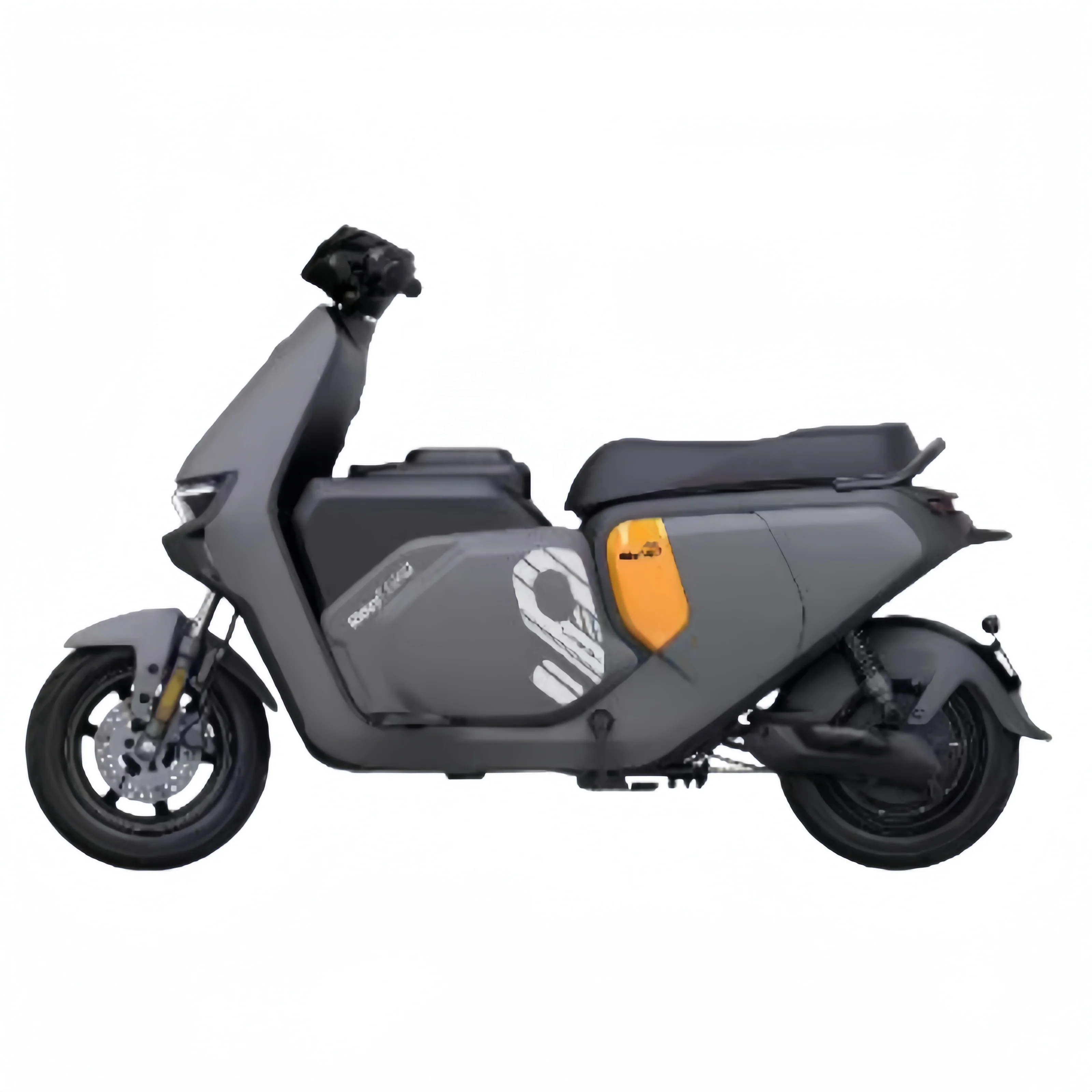

New model H2 hydrogen fuel cell hydrogen electronic scooter Bike hydrogen powered bicycle
- Category: >>>
- Supplier: Wuxi Daze New Energy Development Co. Ltd.
Share on (1601191798519):
Product Overview
Description
Product Description
Hydrogen can change life. Hydrogen can change the world
Our independently developed hydrogen powered bicycle adopts low-pressure hydrogen storage and exchange technology, with a fresh and beautiful appearance, and outstanding advantages such as long endurance, lightweight, impact resistance, and high temperature resistance.
Hydrogen powered bicycles can greatly facilitate people's long-distance travel needs. Especially in the northern regions, hydrogen fuel has full power and is not affected by cold temperatures.
Hydrogen powered bicycles can greatly facilitate people's long-distance travel needs. Especially in the northern regions, hydrogen fuel has full power and is not affected by cold temperatures.
The hydrogen powered bicycle weighs about 30-40 kilograms, with a total range of about 60-80 kilometers and a top speed of 25 kilometers per hour. It only takes 10 seconds for manual hydrogen replacement.
During operation, vehicles use hydrogen fuel to convert electrical energy into power for the entire vehicle, which has outstanding advantages such as long endurance, lightweight, and high safety.
During operation, vehicles use hydrogen fuel to convert electrical energy into power for the entire vehicle, which has outstanding advantages such as long endurance, lightweight, and high safety.
Specification

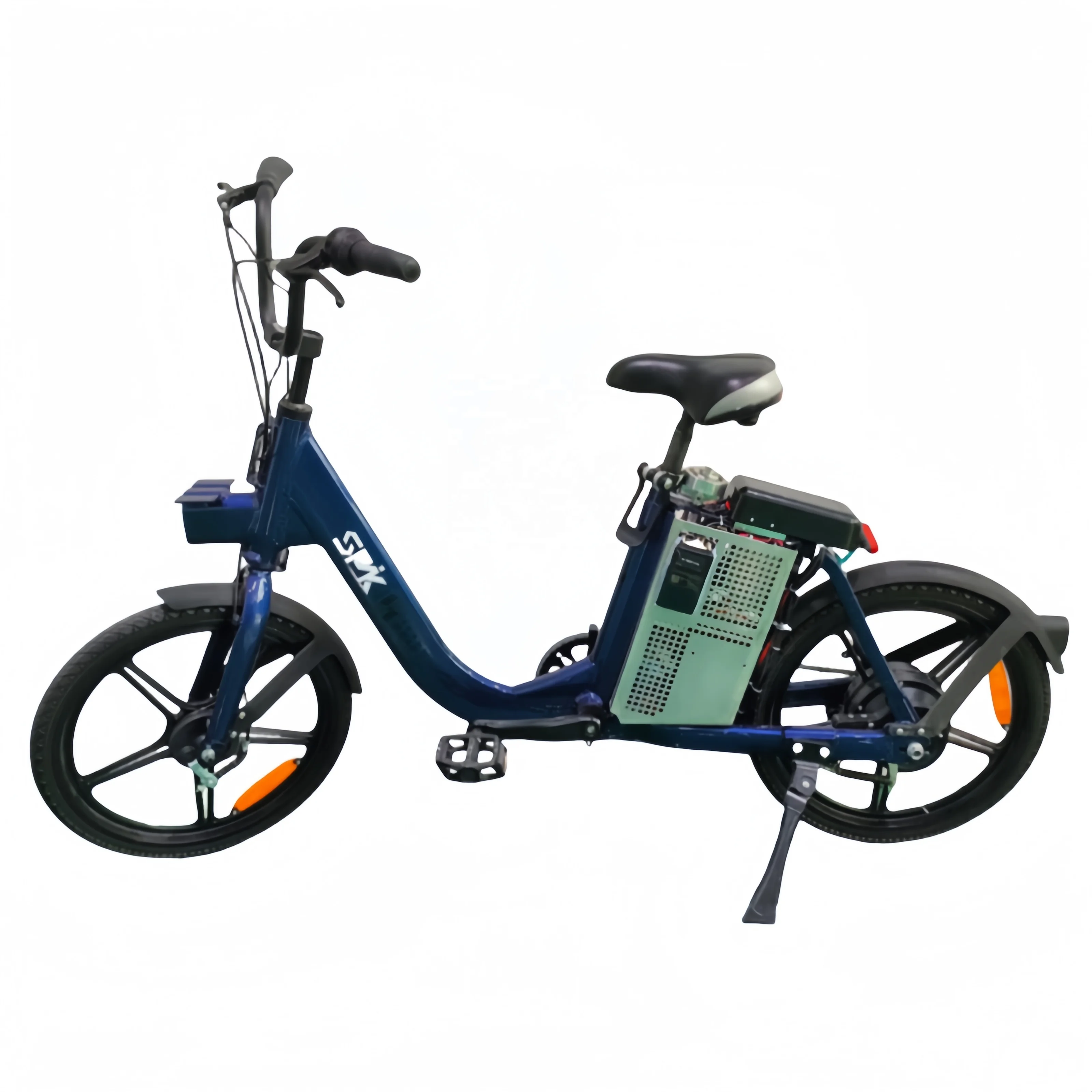

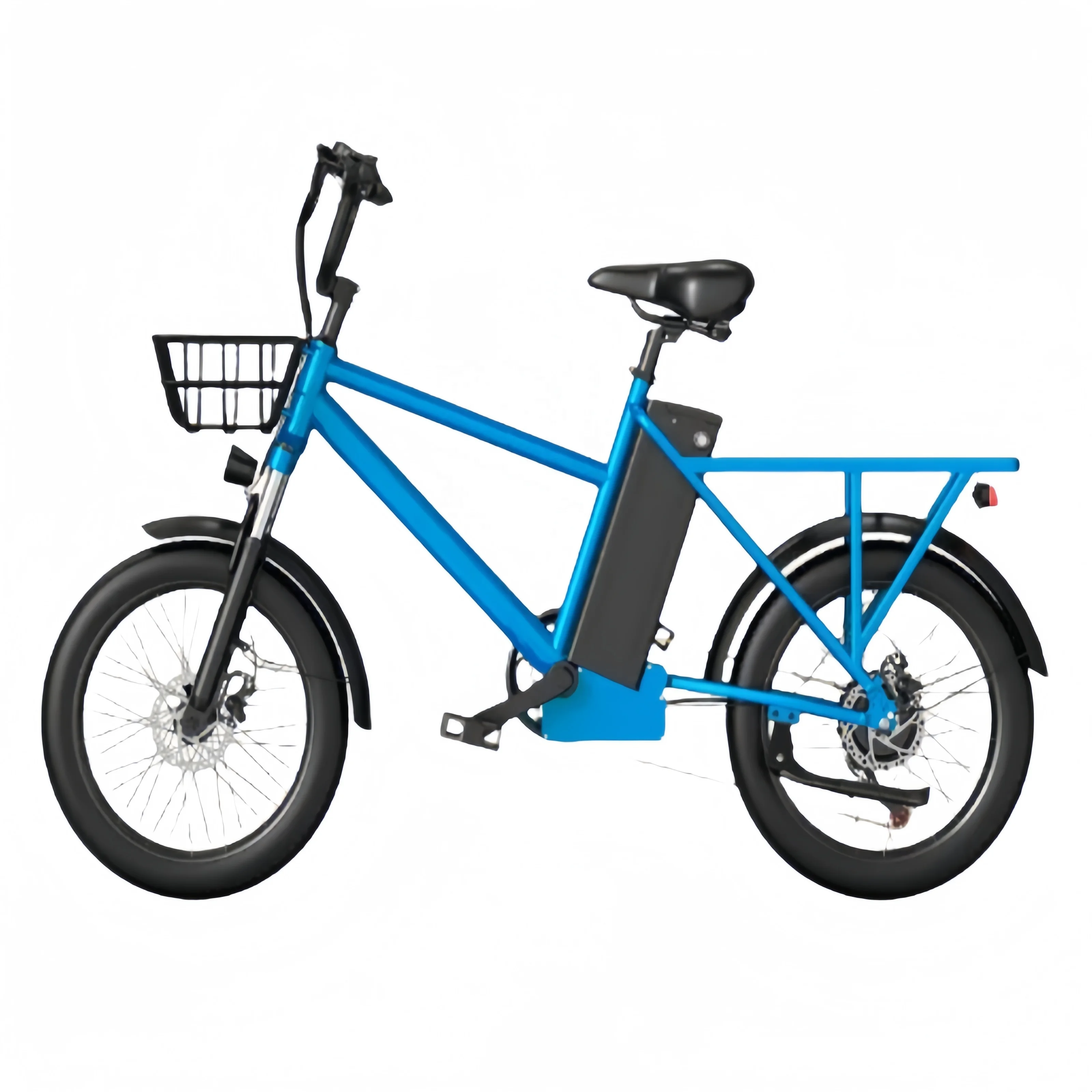

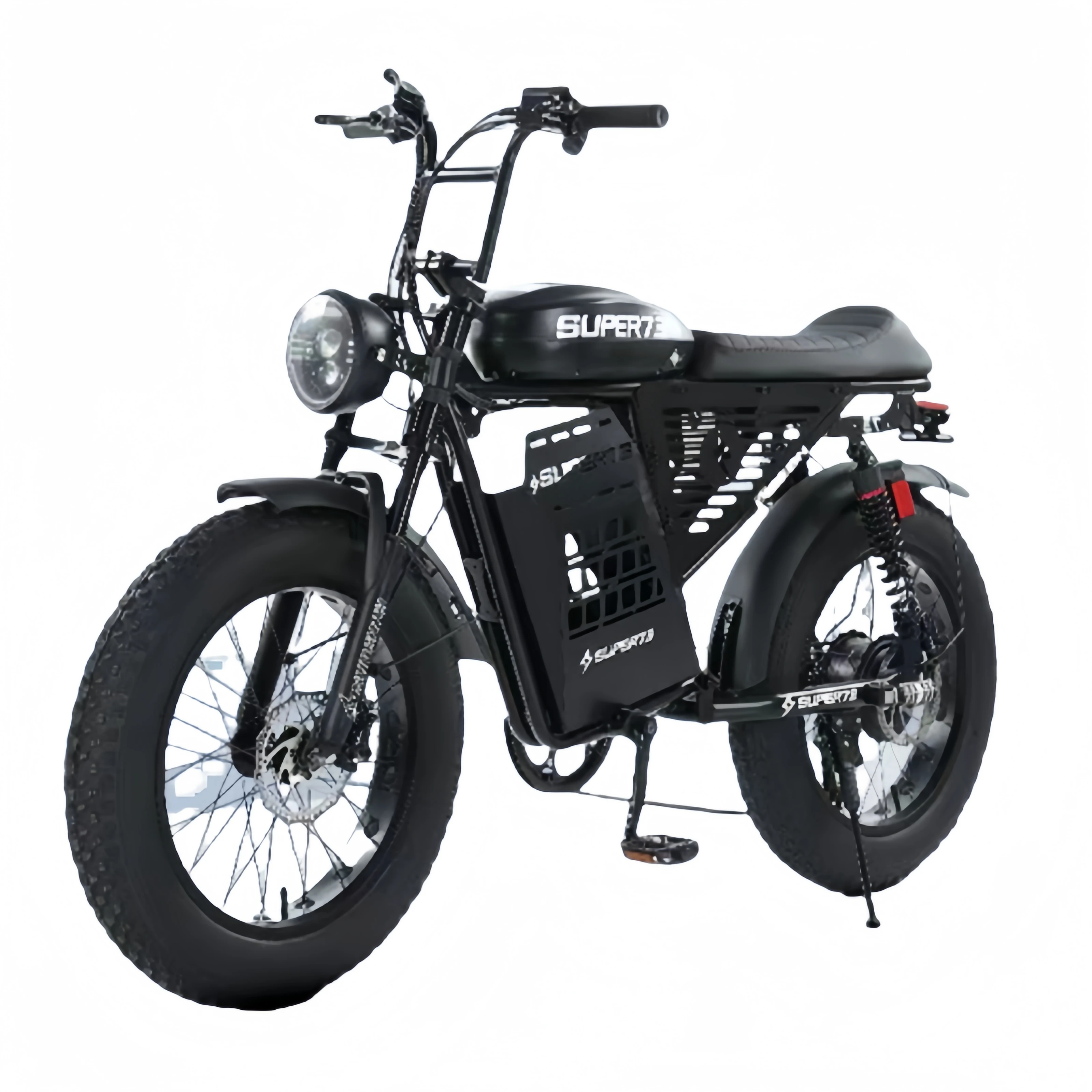

Hydrogen Bicycle
Hydrogen powered bicycles have a simple structure and a lightweight body. Providing hydrogen powered assistance during cycling can significantly reduce cycling burden, improve speed, and have low energy consumption and long range. They are very suitable for outdoor cycling and daily commuting.
Hydrogen Bicycle | ||||
Model | V-B-A0 | V-B-C0 | ||
Dimensions (L x W x H mm) | 1590×600×1040 | 1700×670×1070 | ||
Vehicle weight | 30 kg | 42 kg | ||
Maximum speed | 25 km/h | 25 km/h | ||
Range | 70~80 km | 60~80 km | ||
Rated voltage | 12~24 V | 48 V | ||
Fuel cell power | 300 W | 500 W | ||
Working environment temperature | -20~70 ℃ | -20~70 ℃ | ||
Hydrogen powered electric vehicles

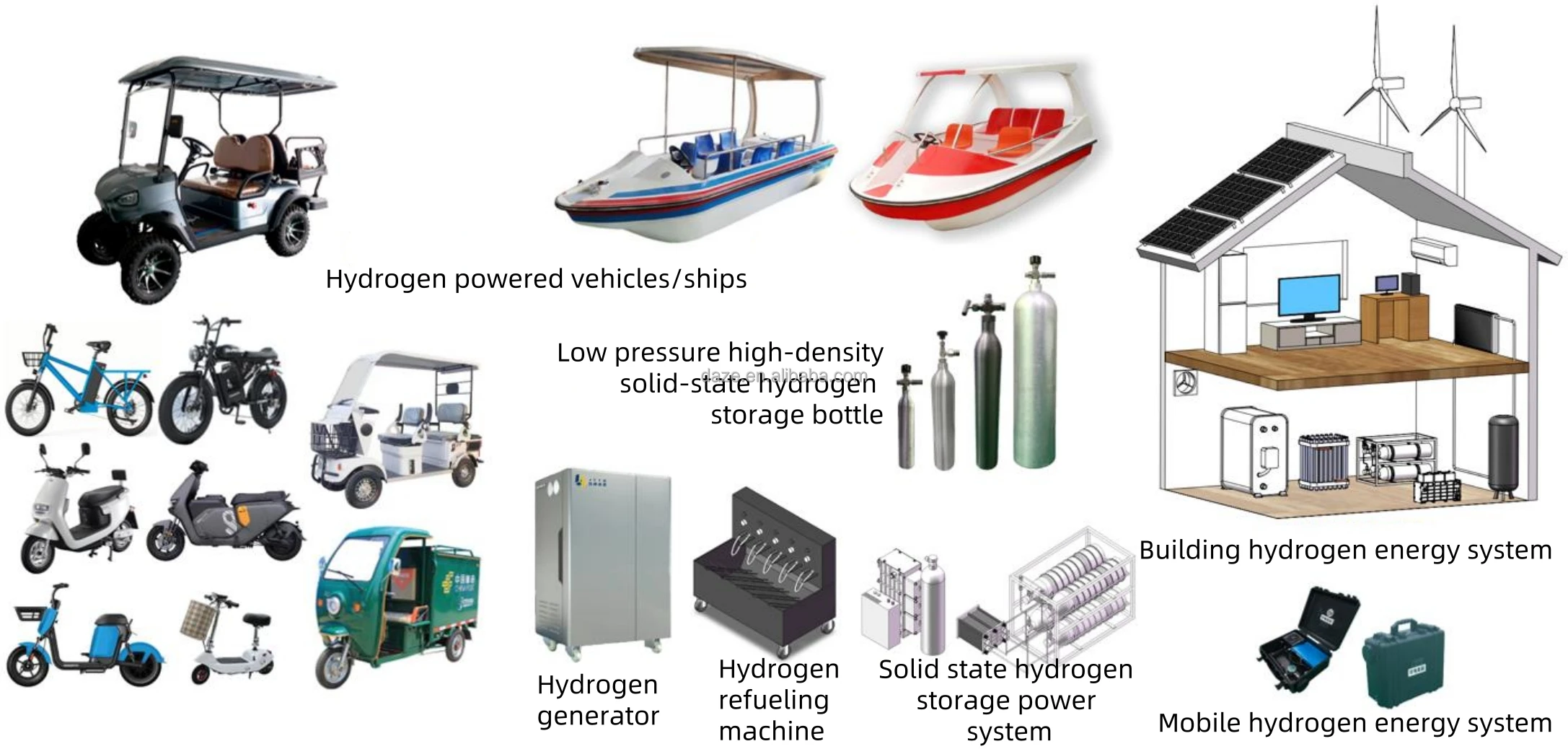

We have developed hydrogen powered vehicles with various specifications and functions for in vehicle power scenarios.
Hydrogen powered vehicles adopt a solid-state hydrogen storage fuel cell power system, which can be equipped with different models and quantities of solid-state hydrogen storage cylinders according to endurance requirements. The fuel cell power system can adopt various specifications such as 300W, 350W, 450W, 1kW, 3kW, 5kW, etc.
Adopting a rotary drive method, easy to operate, safe and efficient.
Hydrogen powered vehicles adopt a solid-state hydrogen storage fuel cell power system, which can be equipped with different models and quantities of solid-state hydrogen storage cylinders according to endurance requirements. The fuel cell power system can adopt various specifications such as 300W, 350W, 450W, 1kW, 3kW, 5kW, etc.
Adopting a rotary drive method, easy to operate, safe and efficient.

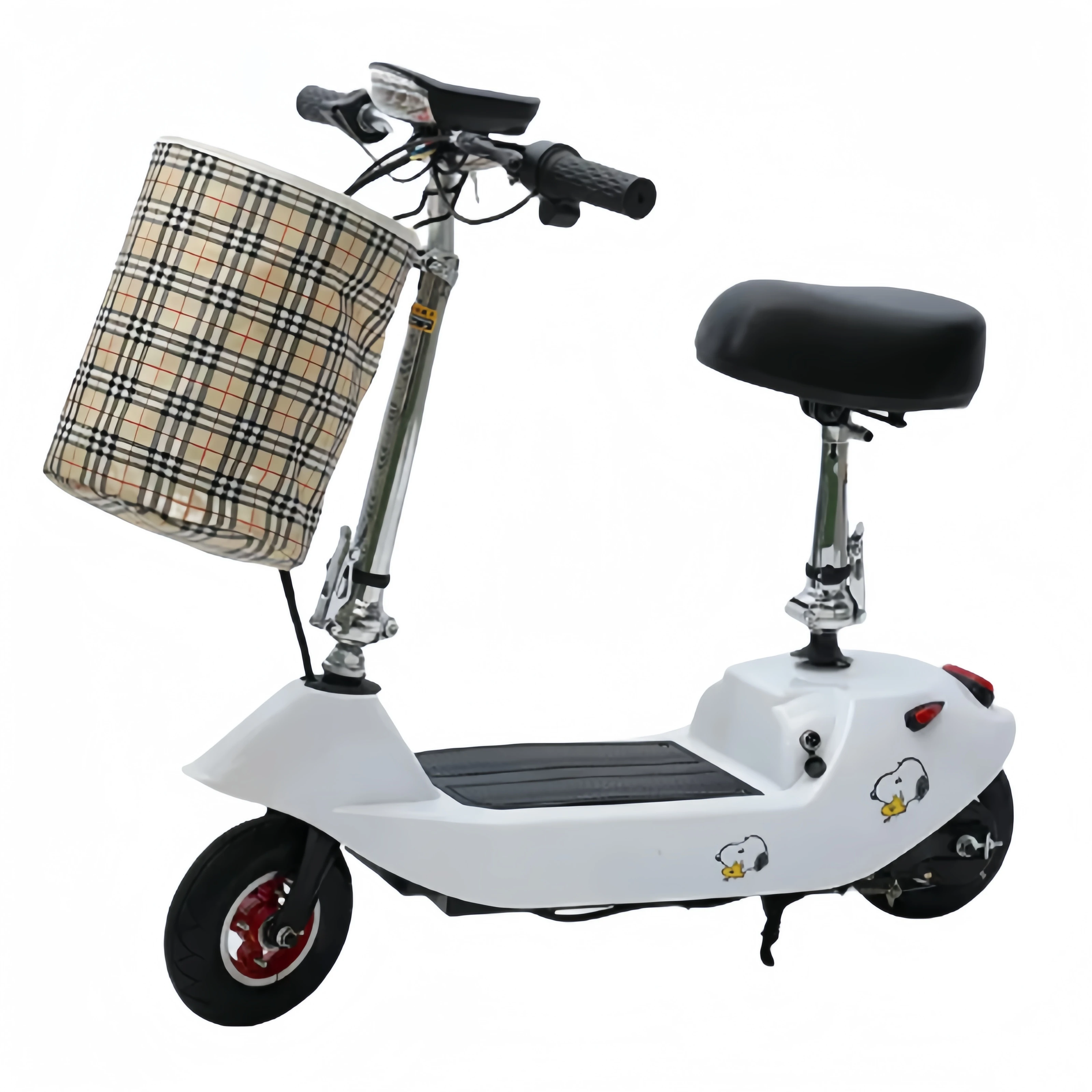

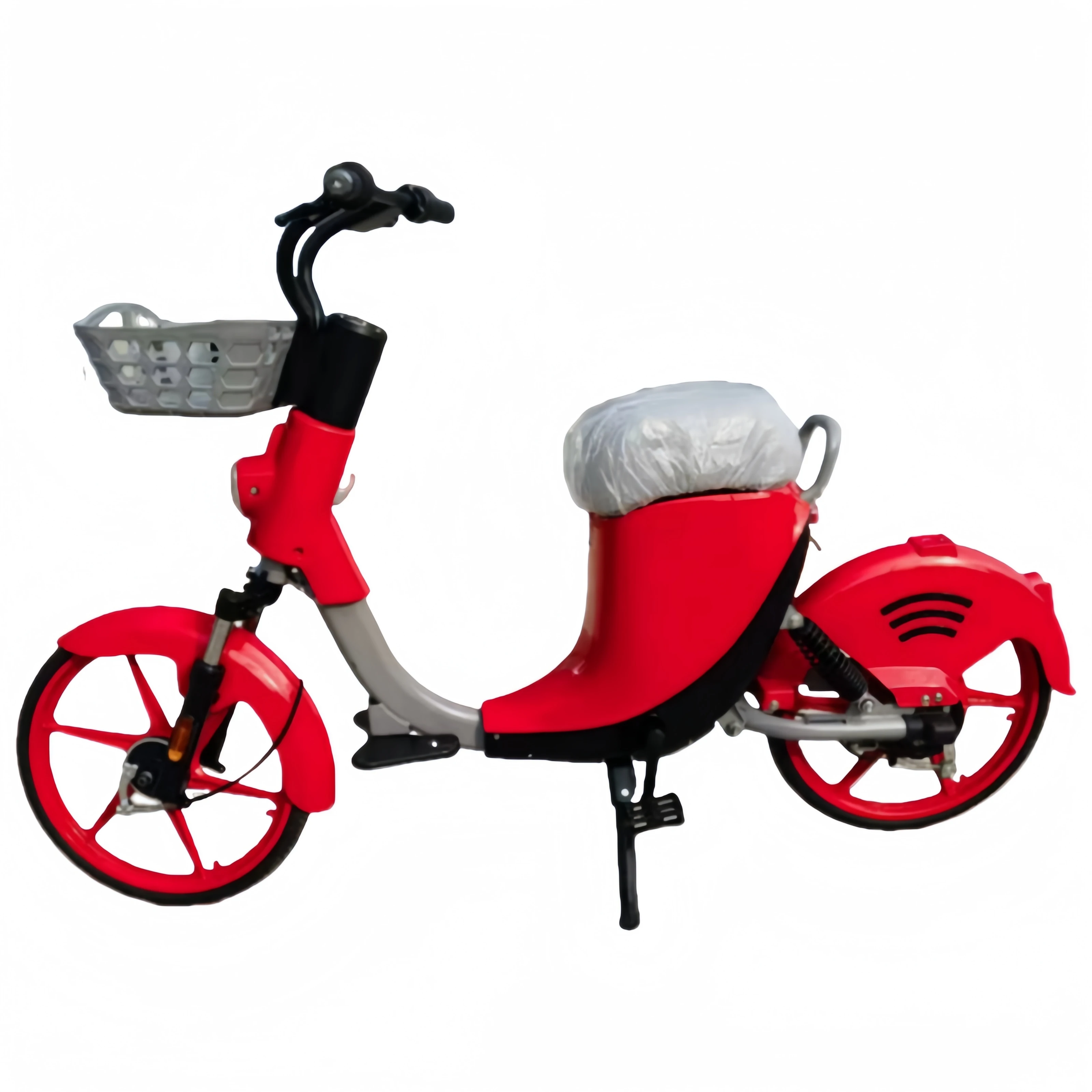

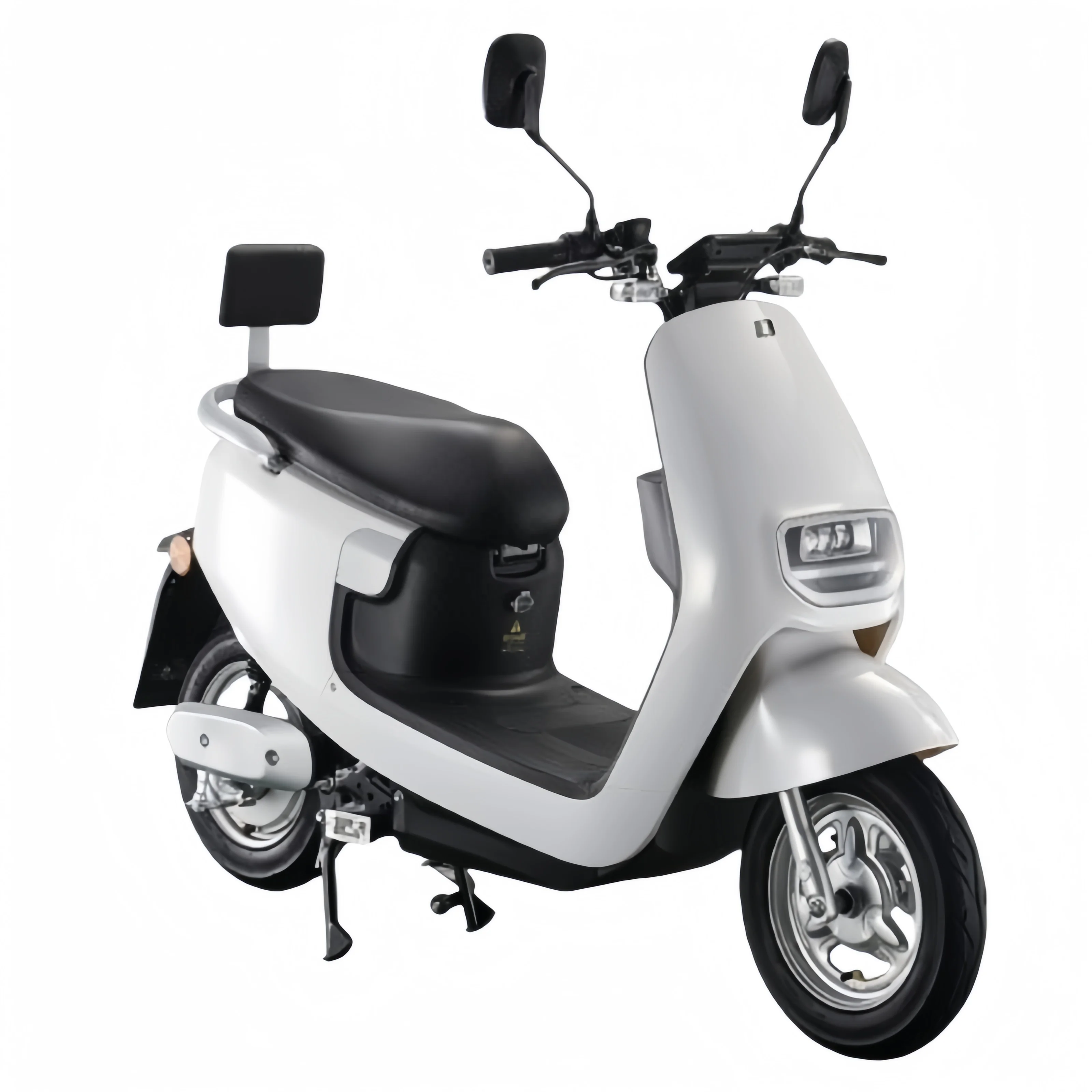

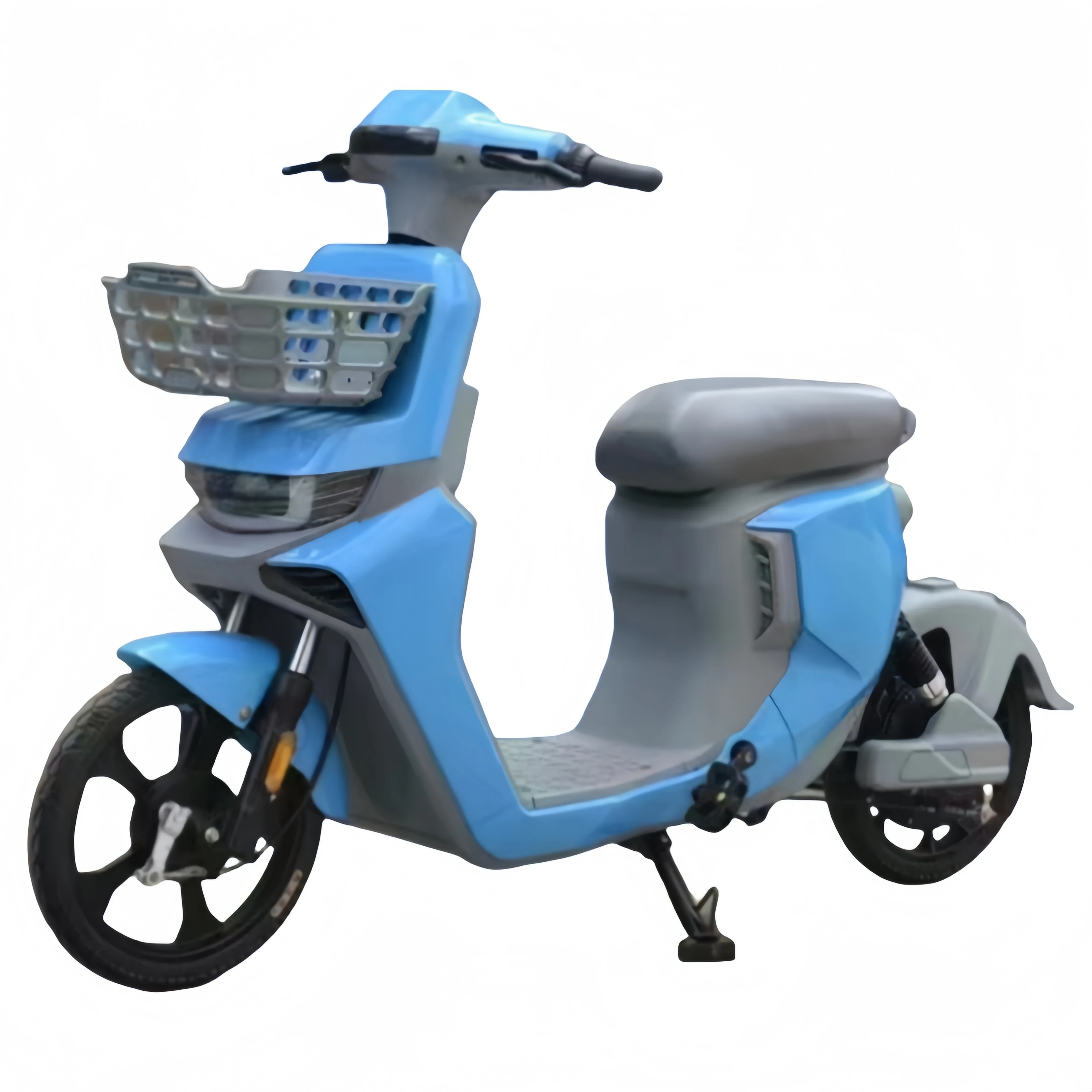

Name | Hydrogen powered electric vehicles | Hydrogen powered electric vehicles | Hydrogen sharing electric vehicle | Hydrogen powered scooter |
Model | V-S-A0 | V-S-9B | V-SS-A0 | V-S-mini-A0 |
Dimensions (L x W x H mm) | 1714×733×1064 | 1714×733×1064 | 1495×640×1035 | 880×280×880 |
Vehicle weight | 58 kg | 60 kg | 55 kg | 35 kg |
Maximum speed | 25 km/h | 25 km/h | 25 km/h | 20 km/h |
Range | 60~80 km | 60~80 km | 60~80 km | 60 km |
Rated voltage | 48 V | 48 V | 48 V | 48 V |
Fuel cell power | 450 W | 450 W | 350 W | 300 W |
Working environment temperature | -20~70 ℃ | -20~70 ℃ | -20~70 ℃ | -20~70 ℃ |

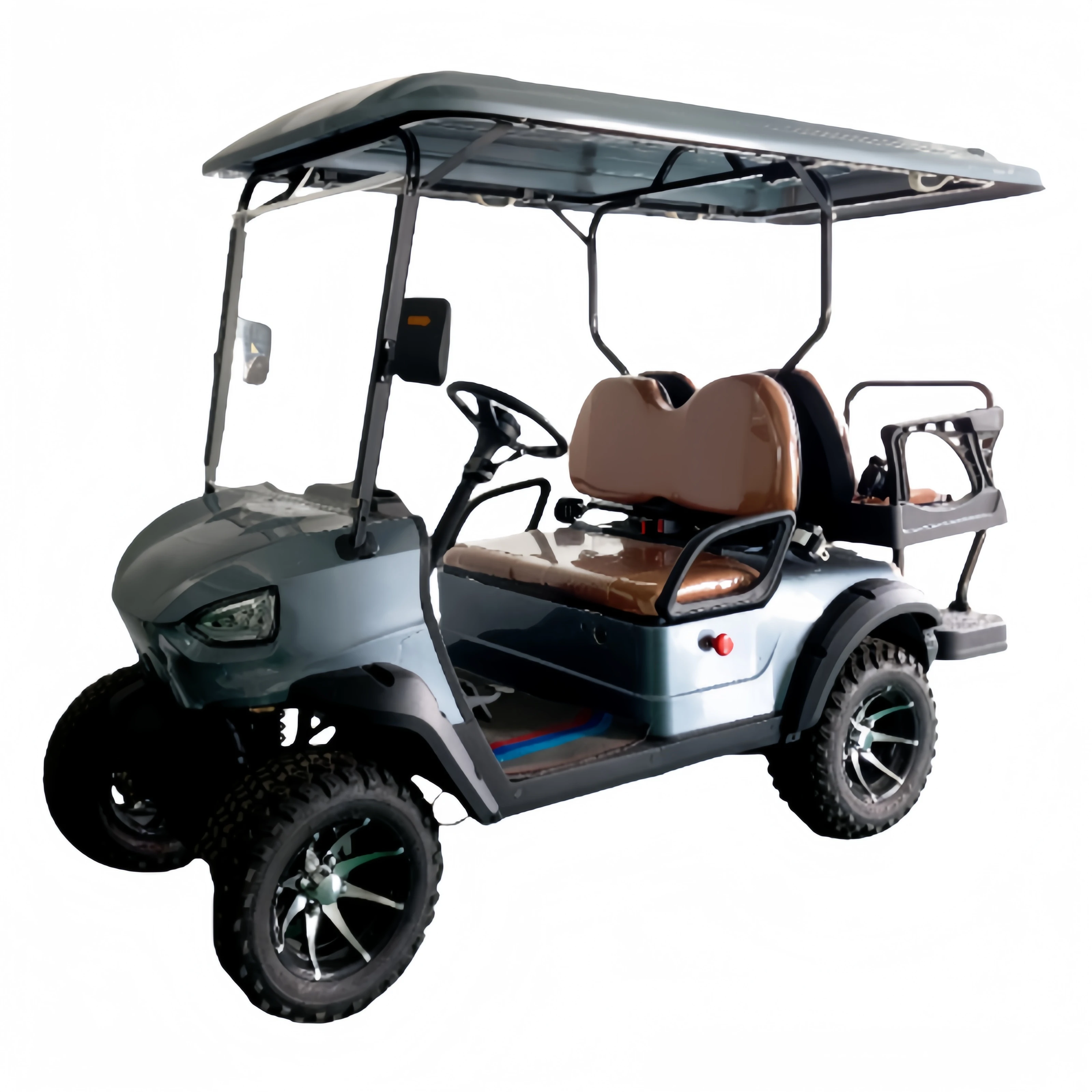

Name | Hydrogen powered golf cart | Hydrogen powered off-road golf car |
Model | V-GC-A0 | V- GC-SU0 |
Dimensions (L x W x H mm) | 2200×1060×1630 | 2900×1250×1850 |
Vehicle weight | 158 kg | 300 kg |
Allowable passenger | 3~4人 | 3~4人 |
Maximum speed | 43 km/h | 30 km/h |
Range | 100 km | 100 km |
Rated voltage | 60 V | 72 V |
Fuel cell power | 1 kW | 3 kW |
Working environment temperature | -20~70 ℃ | -20~70 ℃ |

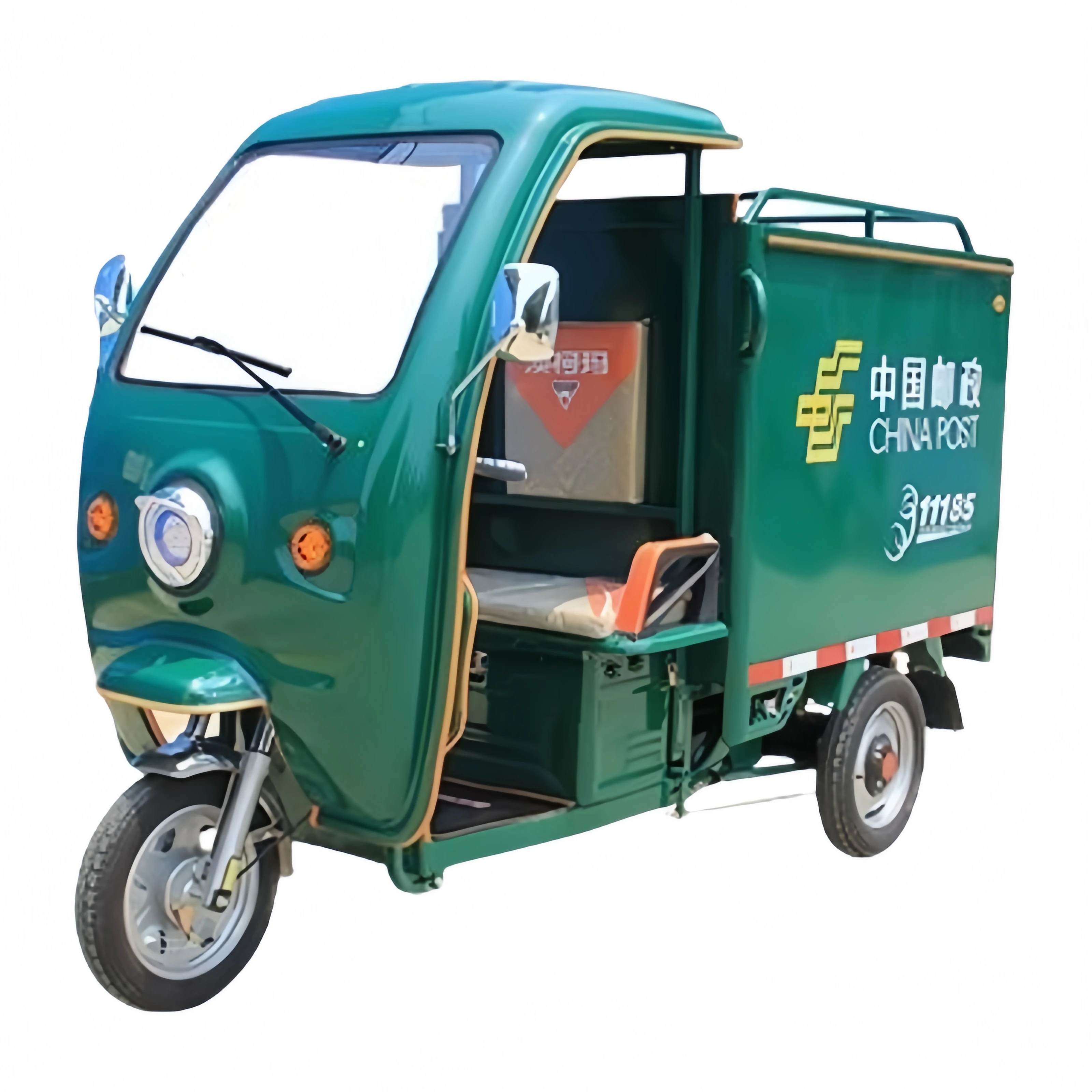

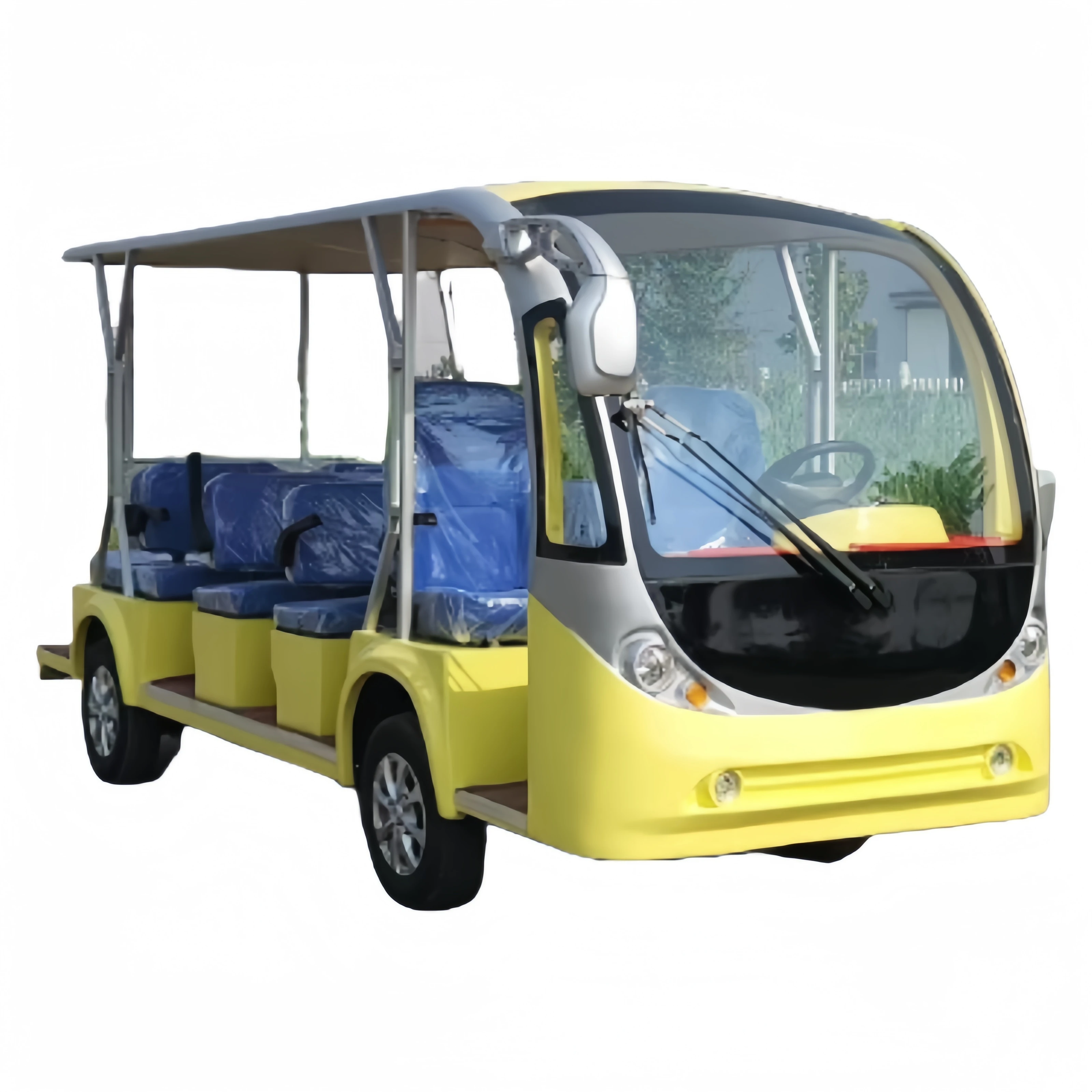

Hydrogen powered sightseeing vehicle | Hydrogen powered sightseeing vehicle | Hydrogen logistics vehicle | |||
Model | V-BU-A0 | Model | V-C-T0 | ||
Dimensions (L x W x H mm) | 5200×1500×1870 | Dimensions (L x W x H mm) | 2950×1000×1700 | ||
Vehicle weight | 1135 kg | Loading weight | 200 kg | ||
Allowable passenger | 14人 | Maximum speed | 26 km/h | ||
Maximum speed | 30 km/h | Range | 160 km | ||
Range | 100 km | Rated voltage | 48 V | ||
Rated voltage | 72 V | Fuel cell power | 1 kW | ||
Fuel cell power | 5 kW | Working environment temperature | -20~70 ℃ | ||
Working environment temperature | -20~70 ℃ | ||||

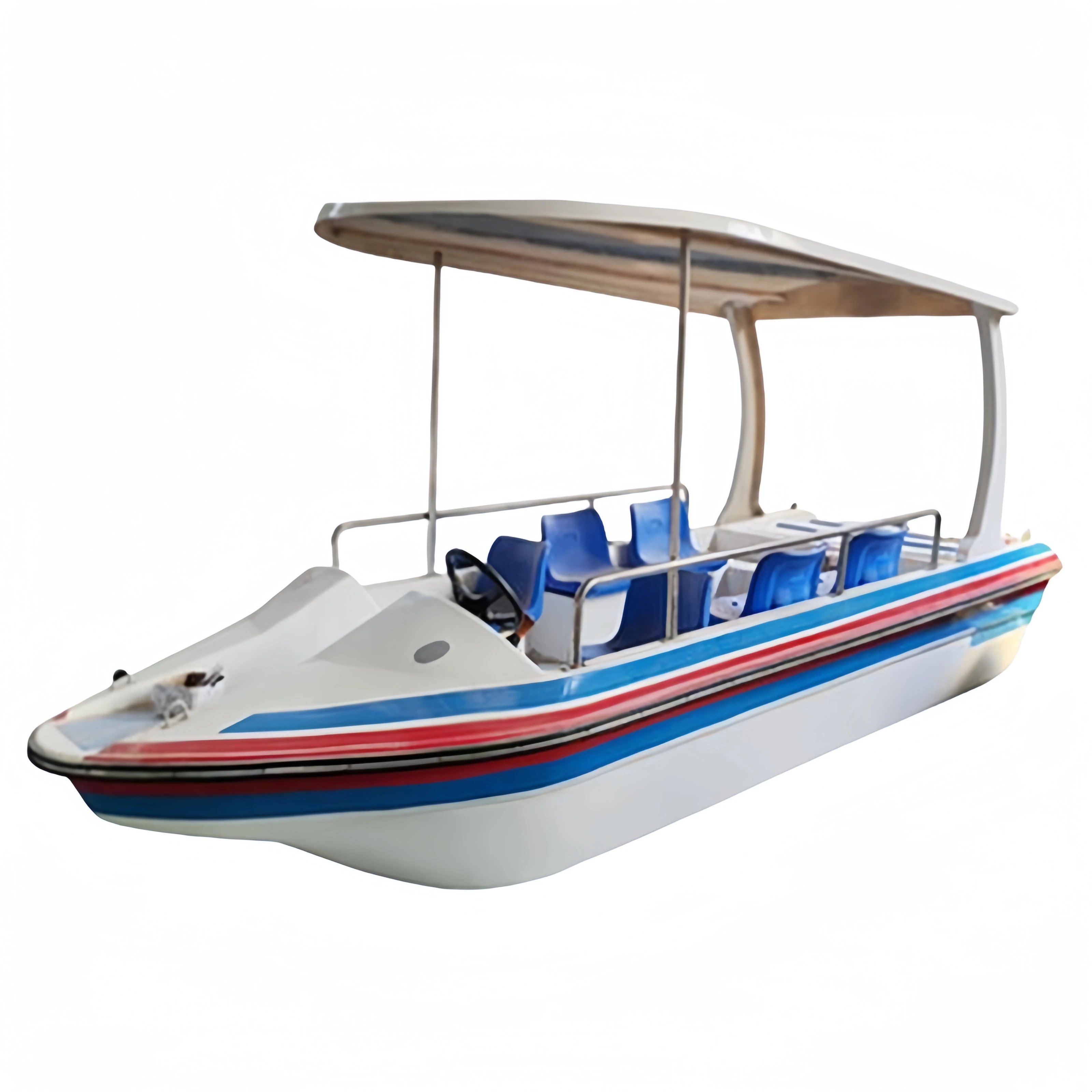

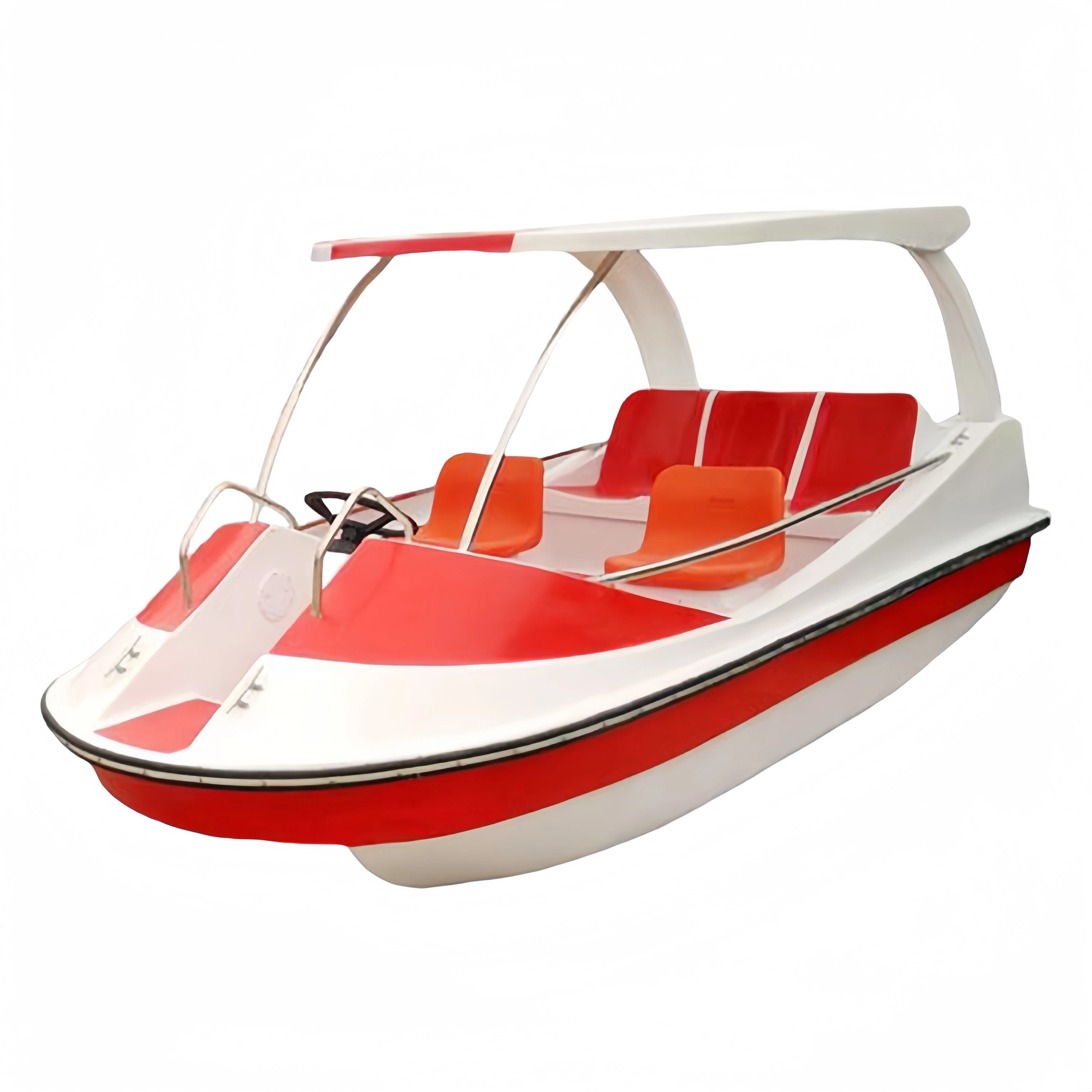

Hydrogen powered electric ship
For water powered vehicles, we have developed hydrogen powered ships and yachts. Compared with the electric ship technology route, hydrogen powered ships significantly reduce the weight and maintenance difficulty of the power system under the same endurance capacity, and fundamentally eliminate the safety risks of battery energy storage, significantly improving system reliability.
Hydrogen powered electric ship | ||||
Model | B-Y-A0 | B-Y-B0 | ||
Dimensions (L x W x H m) | 4.6×1.7×2.2 | 4×1.5×0.8 | ||
texture of material | FRP | FRP | ||
Hull self weight | 260 kg | 240 kg | ||
load | 1200 kg | 500 kg | ||
crew | 6~8人 | 4~5人 | ||
Rated voltage | 48 V | 48 V | ||
Fuel cell power | 1 kW | 750 W | ||
Working environment temperature | -20~70 ℃ | -20~70 ℃ | ||
