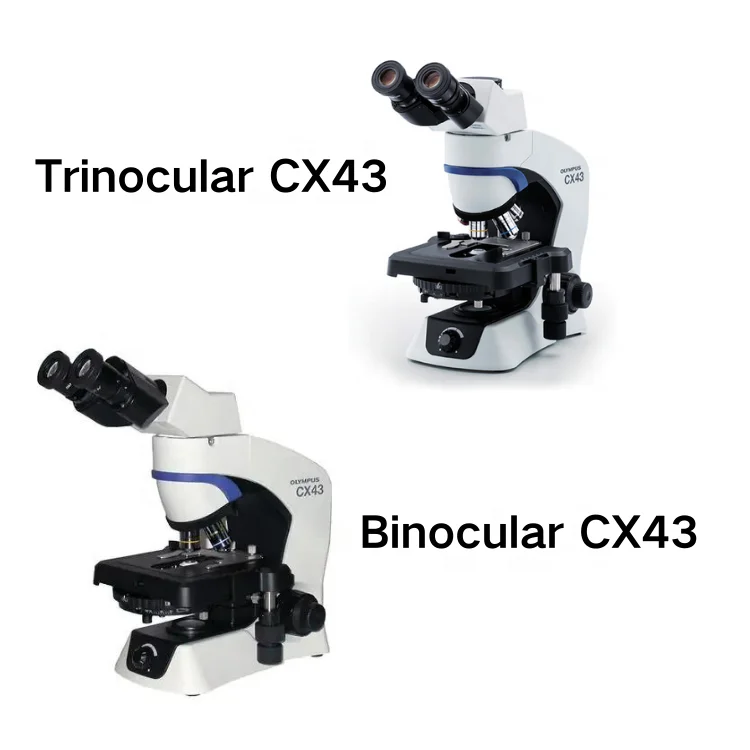

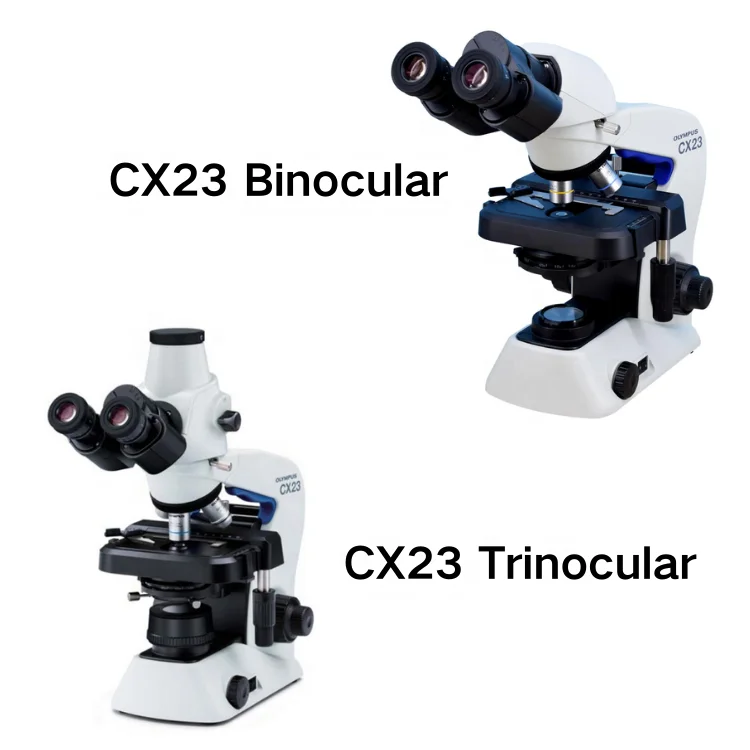

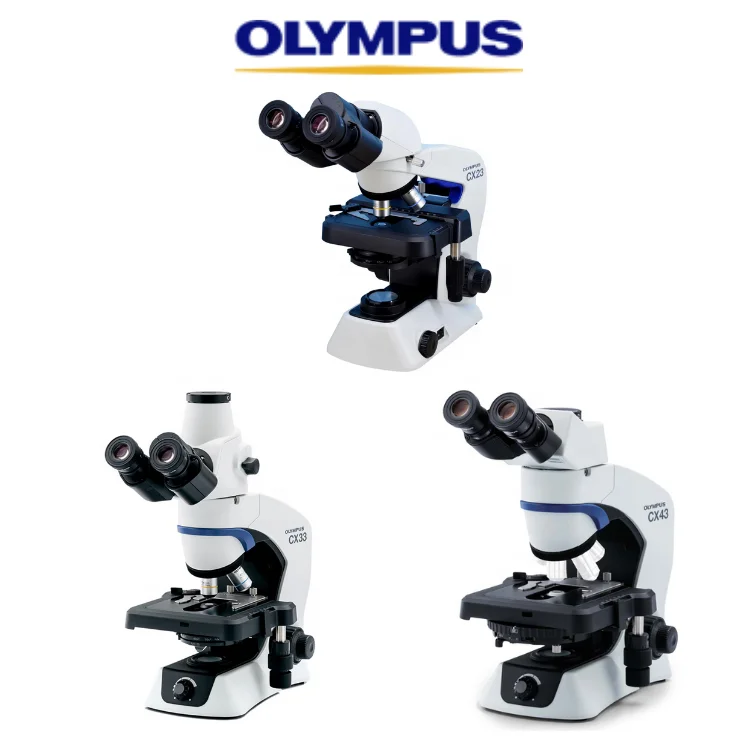

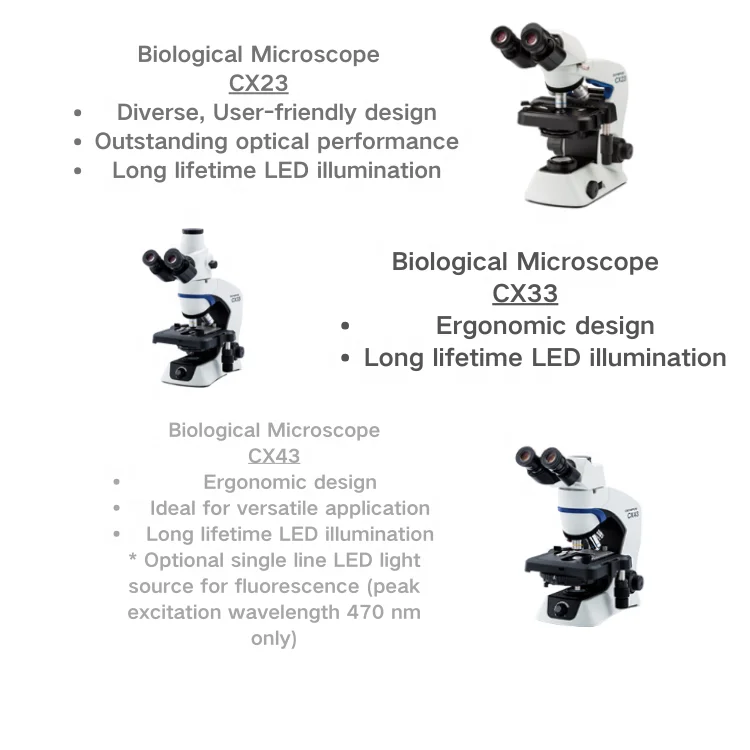

Olympus digital biological microscope cx23 cx33 cx43 binocular trinoculr Upright microscope camera price for lab school
- Category: >>>
- Supplier: Guangzhou Aokangsi Medical Equipment Co. Ltd.
Share on (1601192059448):
Product Overview
Description
Product Description
Specification
CX43 Specifications | ||
Optical System | UIS2 (universal infi nity-corrected) optical system | |
Illumination System | · Built-in transmited illumination system · Köhler illumination (fi xed fi eld diaphragm) · LED power consumption 2.4 W (nominal value), precentered | |
Focusing | · Stage height movement (coarse movement stroke: 15 mm ) · Stroke per rotation for coarse adjustment knob: 36.8 mm, Focusing stopper · Torque adjustment for coarse adjustment knob · Fine focus knob (minimum adjutsment gradations: 2.5 μm | |
Revolving Nosepiece | Fixed quintuple nosepiece with inward tilt | |
Stage | · Wire movement mechanical fixed stage, (W × D): 211 mm × 154 mm · Traveling range (X × Y): 76 mm × 52 mm · Single specimen holder (optional: double specimen holder, sheet holder) · Specimen position scale · Stage XY movement stopper | |
Observation Tube | Type(anti-fungal) Binocular Trinocular Tilting binocular Eyepiece (anti-fungal) 10X Field Number (FN): 20 10X Field Number (FN): 20 10X Field Number (FN): 18 Tube Inclination 30° 30° 30°‒60° Light Path Selector None None (eyepiece/ None camera port= 50/50 fi xed) Interpupillary Distance 48‒75 mm 48‒75 mm 48‒75 mm Adjusting Range | |
Condenser | · Abbe condenser NA 1.25 with oil immersion · Universal condenser with 7 turret positions: BF (4‒100X), 2X, DF, Ph1, Ph2, Ph3, FL · Condenser turret lock pin (BF only) · Built-in aperture iris diaphragm · AS lock pin | |
Observation Methods | Brightfi eld, simple polarization, fl uorescence, phase contrast, darkfield | |
Objectives | Plan achromat (UIS2), anti-fungal 2X NA 0.06 W.D. 5.8 mm 4X NA 0.1 W.D. 18.5 mm 10X NA 0.25 W.D. 10.6 mm 10XPH NA 0.25 W.D. 10.6mm 20X NA 0.4 W.D. 1.2 mm 20XPH NA 0.4 W.D. 1.2 mm 40X NA 0.65 W.D. 0.6 mm 40XPH NA 0.65 W.D. 0.6 mm 60X NA 0.8 W.D. 0.2 mm 100XO NA 1.25 W.D. 0.13 mm 100XOPH NA 1.25 W.D. 0.15 mm 100XOI NA 1.25‒0.6 W.D. 0.13 mm | |
Fluorescence Light Source | Easily add an LED refl ected fl uorescence illuminator (peak excitation wavelength 470 nm: B excitation only), precentered | |
Rated Voltage /Electric Current | AC 100‒240 V 50/60 Hz 0.4 A | |

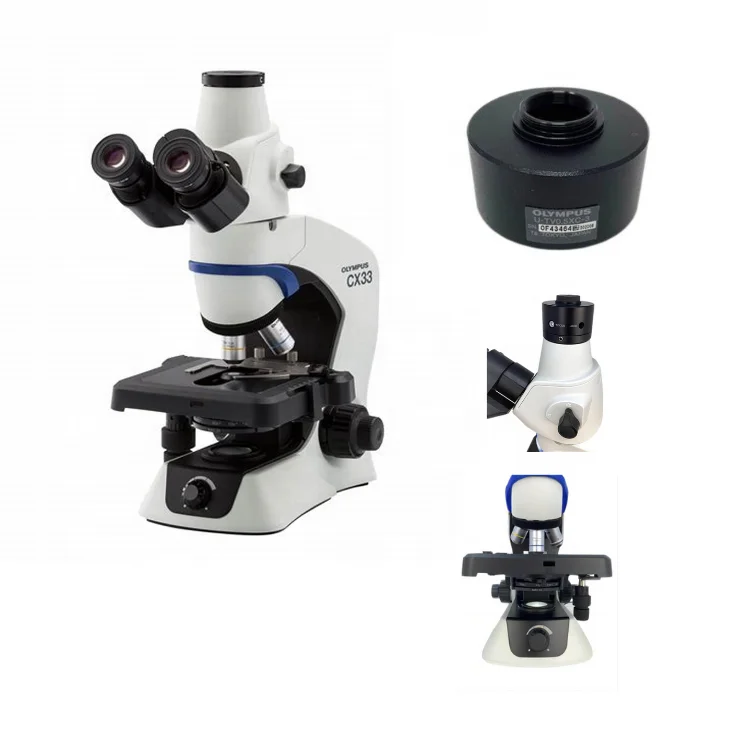

CX33 Specifications | ||
Optical System | Infinity optical system | |
Illumination System | · Built-in transmited illumination system · Köhler illumination (fixed fi eld diaphragm) · LED power consumption 2.4 W (nominal value), precentered | |
Focusing | · Stage height movement (coarse movement stroke: 15 mm ) · Stroke per rotation for coarse adjustment knob: 36.8 mm, Focusing stopper · Torque adjustment for coarse adjustment knob · Fine focus knob (minimum adjutsment gradations: 2.5 μm) | |
Revolving Nosepiece | Fixed quadruple nosepiece with inward tilt | |
Stage | · Wire movement mechanical fixed stage, (W × D): 211 mm × 154 mm · Traveling range (X × Y): 76 mm × 52 mm · Single specimen holder (optional: double specimen holder, sheet holder ) · Specimen position scale · Stage XY movement stopper | |
Observation Tube | · 30° inclined trinocular tube (anti-fungal) · Light path selector: eyepiece/camera port = 100/0 or 0/100 ·Interpupillary distance adjusting range: 48‒75 mm · Eyepoint adjustment: 375.0‒427.9 mm | |
Eyepieces (anti-fungal) | · 10X Field Number(FN): 20 · 15X Field Number (FN): 16 (optional) | |
Condenser | . Abbe condenser NA 1.25 with oil immersion · Built-in aperture iris | |
diaphragm Observation Methods | Brightfield, darkfield | |
Objectives | Plan achromat, anti-fungal 4X NA 0.1 W.D. 27.8 mm 10X NA 0.25 W.D. 8.0 mm 20X NA 0.4 W.D. 2.5 mm (optional) 40X NA 0.65 W.D. 0.6 mm 100X NA 1.25 W.D. 0.13 mm (optional) | |
Rated Voltage /Electric Current | AC 100‒240 V 50/60 Hz 0.4 A | |
Packing & Delivery
# 1 Unit per box
# Packing by strong corrugated carton (10 mm thickness)
# 1Units per carton
# 650 cartons per 40'ft Container
#250 cartons per 20'ft Container
