EU PL STOCK Seplos 3.0 BMS 280 Diy Kit lifepo4 battery box case 280Ah 300Ah energy storage Seplos MASON 280 battery BOX Lifepo4
- Category: >>>
- Supplier: Shenzhen Rimdin energy Co. LTD
Share on (1601192185727):
Product Overview
Description
HOT Product
Products Description
Basic Parameters | MASON 280 2.0 | MASON 280 3.0 | MASON 280L 3.0 |
Nominal Voltage (V) | 42V-58V | 42V-58V | 42V-58V |
Dimension (mm) | 750*440*251mm | 750*440*251mm | 817*412*267mm |
Weight (Kg) | 30KG | 30KG | 30KG |
Discharge Cut-off Voltage (V) | 41.6V | 41.6V | 41.6V |
Suitable battery | 280Ah/302Ah/304Ah | 280Ah/302Ah/304Ah | 280Ah/302Ah/304Ah |
Max Standard Charge/Discharge Current (A) | 200A @25±2°C | 200A @25±2°C | 200A @25±2°C |
Working Temperature | 0~50°C(Charge） | 0~50°C(Charge） | 0~50°C(Charge） |
-10~50°C(Discharge） | -10~50°C(Discharge） | -10~50°C(Discharge） | |
-20～55℃(Storage) | -20～55℃(Storage) | -20～55℃(Storage) | |
SOC Range | 5%-100% | 5%-100% | 5%-100% |
Recommunication SOC Range | 15-95% | 15-95% | 15-95% |
Communication Interface | CAN(Default) and RS485 | CAN(Default) and RS485 | CAN(Default) and RS485 |
Humidity | 10%-85% | 10%-85% | 10%-85% |
IP level | IP 20 | IP 20 | IP 20 |
Do you want to know more product details,please click this link to our Youtube channel ,you will get it.
https://www.youtube.com/channel/UCTh9ZWzDt8pBb1BMNxjrBvA
https://www.youtube.com/channel/UCTh9ZWzDt8pBb1BMNxjrBvA
EU STOCK
We have set up a warehouse in Germany, where batteries and battery boxes can be shipped quickly and products can be received within 3-7 days

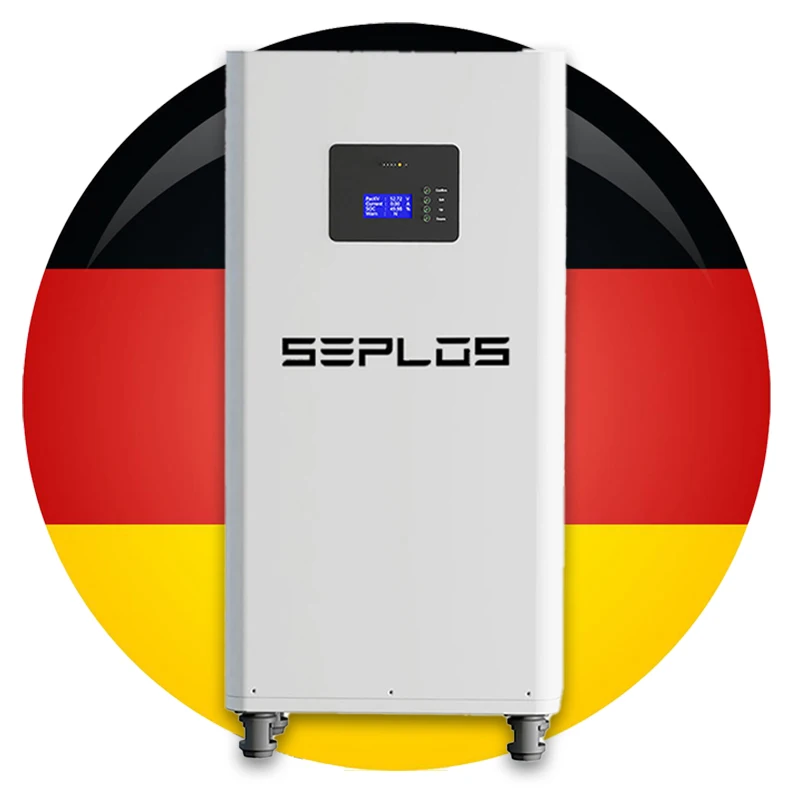

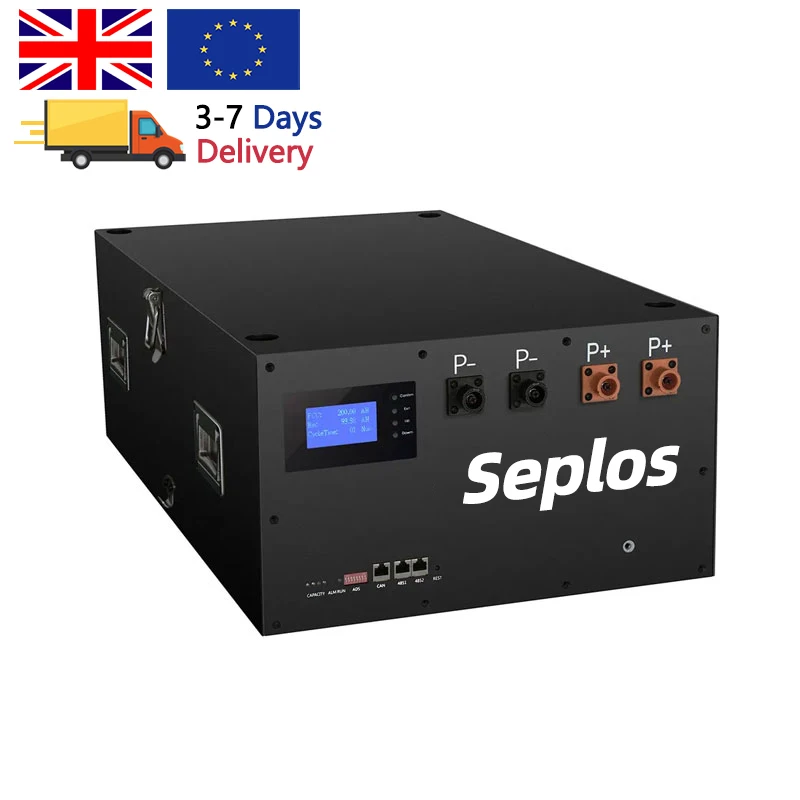

Mason 3.0
Our overseas warehouse's battery boxes come with or without active balancing modules. You can contact customer service to determine which model you need to purchase
Mason 2.0
Our overseas warehouse also has Mason2.0 battery boxes

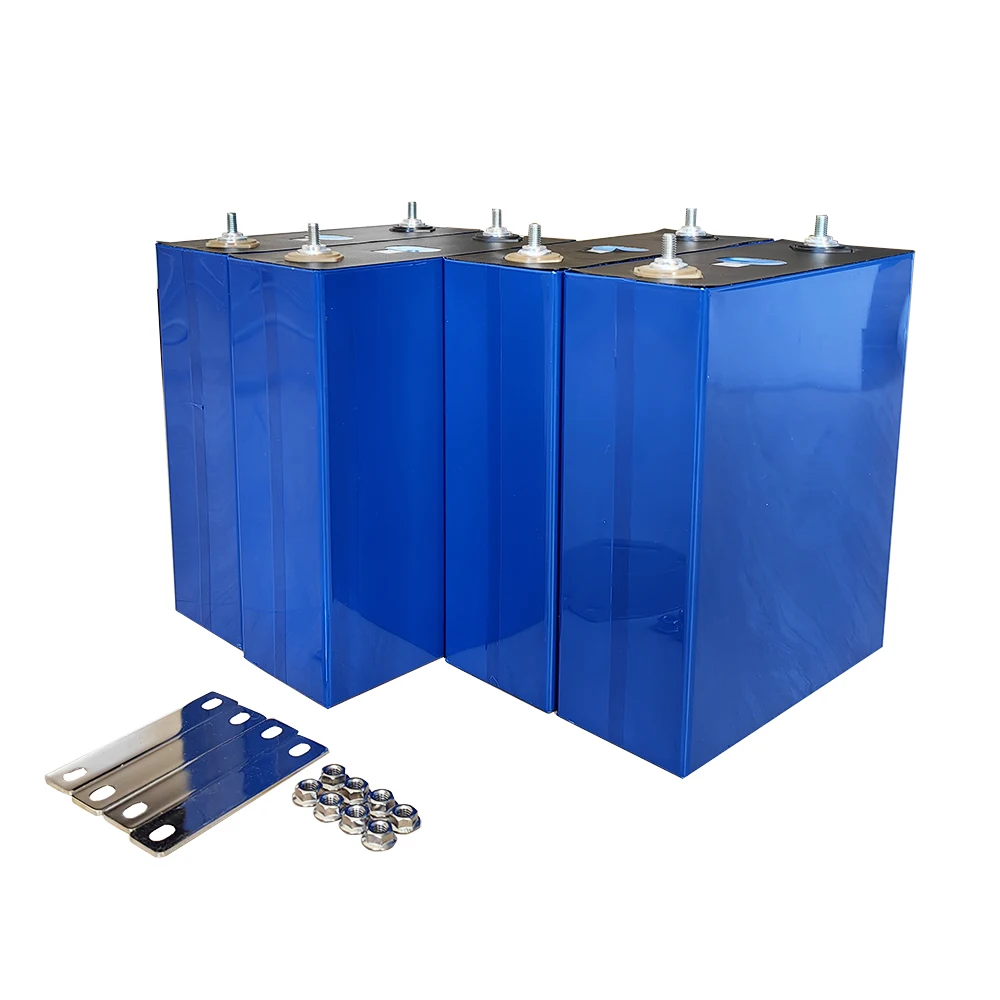

EU STOCK 280Ah and 304Ah
Our overseas warehouse also has 280Ah and 304Ah A-level battery cells. If you purchase both at the same time, we will give you an additional discount
FAQ
Q：Does your BMS have current balance?
A：yes,We have the current passive balance function, the passive balance function module is integrated on the BMS board, do not need external balance device.
Q：What brand of inverter can your BMS connect to?
A：This is the inverter brand we have actually tested,they are work well together,
1.Goodwe
2.Growatt
3.Victron
4.Voltronic
5.LUXPOWET
6.Sofar
7.DEYE
8.Sermatec
9.RENAC
10.TBBPOWER
11.SOLIS
12.SMA
13.FoxESS
Q：How does your BMS look at battery data?
A：We can view the simple data of the battery string through the LCD screen connected with BMS, or view the detailed data of the battery string from the inverter after communicating with the inverter, or connect the computer through RS485 to USB adapter, and view the upper computer software we provide installed on the computer.
Q：What brand of inverter can your BMS connect to?
A：This is the inverter brand we have actually tested,they are work well together,
1.Goodwe
2.Growatt
3.Victron
4.Voltronic
5.LUXPOWET
6.Sofar
7.DEYE
8.Sermatec
9.RENAC
10.TBBPOWER
11.SOLIS
12.SMA
13.FoxESS
Q：How does your BMS look at battery data?
A：We can view the simple data of the battery string through the LCD screen connected with BMS, or view the detailed data of the battery string from the inverter after communicating with the inverter, or connect the computer through RS485 to USB adapter, and view the upper computer software we provide installed on the computer.
