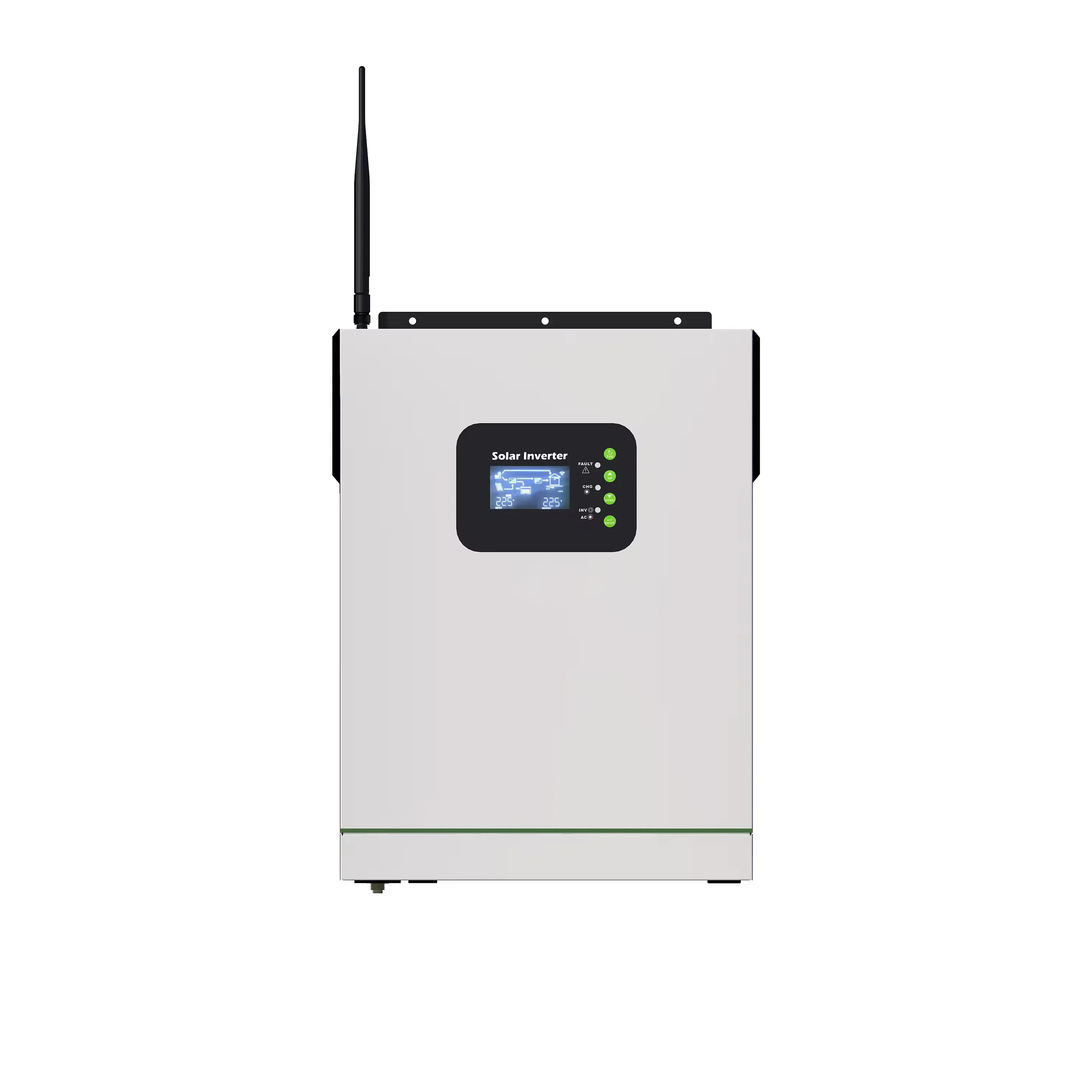

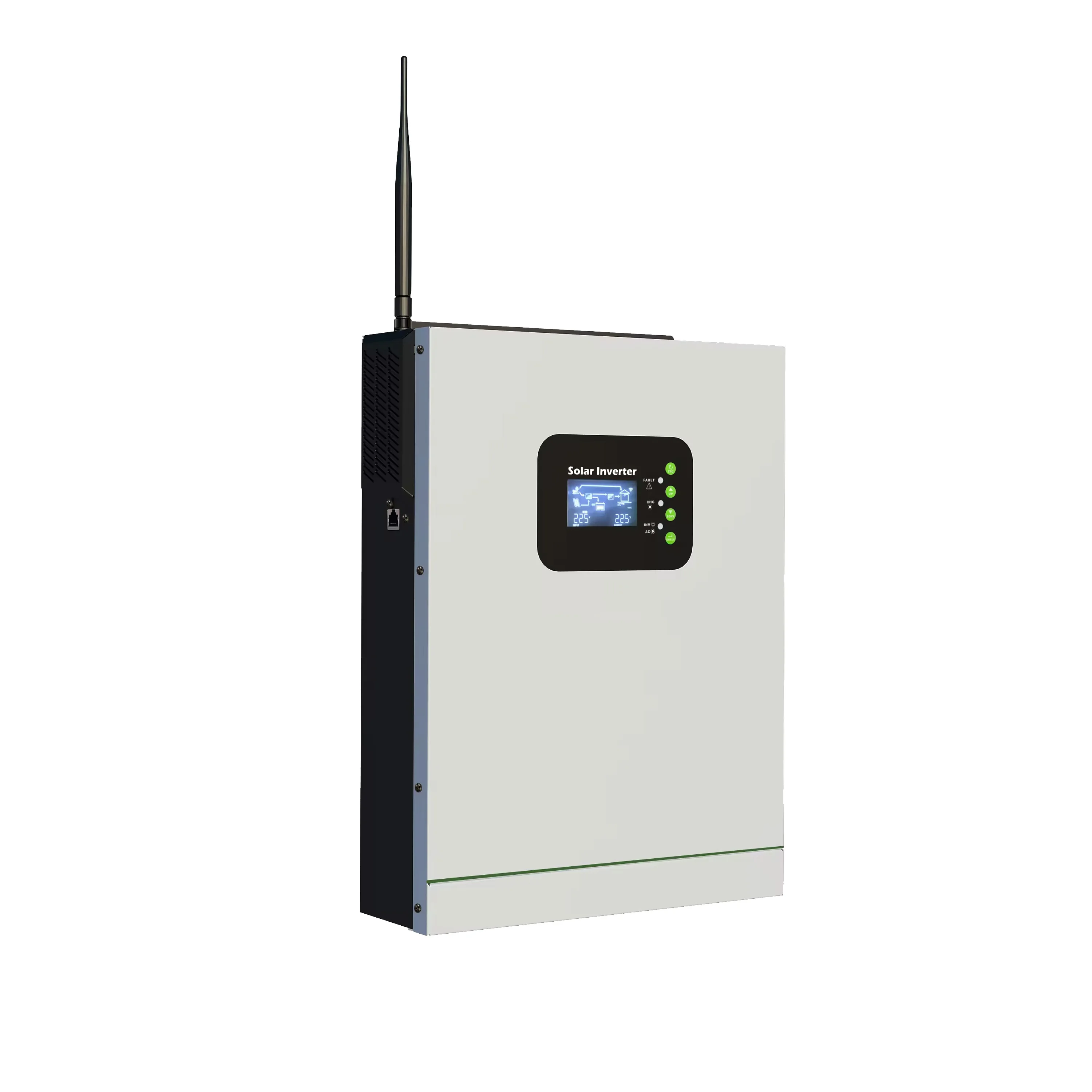

Inverters & Converters 1.2kw1.5Kw 3.2kw 5.5kw solar inverter charger built in mppt controller hybrid inverter 5000w
- Category: >>>
- Supplier: Guangdong Chuangfeng New Energy Technology Co. Ltd.
Share on (1601192797836):
Product Overview
Description
Product Description
Model | SYGHB3548120H | SYGHB5048120H | ||||
Rated Power | 3500W | 5000W | ||||
AC mode | ||||||
AC Input Voltage | 110/120Vac | |||||
AC Input Range | (90Vac-140Vac)±2% | |||||
Frequency | 50Hz/ 60Hz (auto-sensing) | |||||
Maximum bypass overload current | 40A | |||||
Inverting mode | ||||||
Output voltage waveform | Pure sine wave | |||||
Rated output power(W) | 3500W | 5000W | ||||
Rated output voltage (Vac) | 120Vac | |||||
Efficiency | 92% | |||||
Peak power | 7000W | 10000W | ||||
Output short-circuit protection | Breaker | |||||
Rated battery input voltage | 48V (minimum start voltage 44V) | |||||
Battery voltage range | 40Vdc-60Vdc ±0.6Vdc (undervoltage alarm/turnoff voltage/ overvoltage alarm/overvoltage restoration... settable LCD screen) | |||||
No-load Power | ≤50W | |||||
AC charge | ||||||
Battery type | Lead acid or lithium battery | |||||
Output Voltage Waveform | Pure Sine Wave | |||||
Maximum charge current | 40A | |||||
Charge voltage range | 40Vdc~60Vdc | |||||
Solar charge | ||||||
Maximum PV opencircuit voltage | 500VDC | |||||
PV operation voltage range | 90-500Vdc | |||||
Charge current range of solar energy (settable) | 0-80A | |||||
Dimension (L*W*D) | 550x400x220MM | 550x400x220MM | ||||
Weight (kg) | 10.7 | 11 | ||||
Packing & Delivery
Company Profile
Guangdong Chuangfeng New Energy Technology Co, Ltd. occupies a total area of 66,666 squaremeters. Our factory has been deeply involved in the supply chain of new energy smart home appliances for 20 years, and we are proud to be the home appliance suppliers for Gree and Midea .With 18 production lines dedicated to the manufacturing of DC charging piles and AC charging piles, along with an additional 10 production lines for portable energy storage, we ensure quality cost efficiency, and innovation in our products. Furthermore, 8 production lines are dedicated to the production of our home appliance products. This comprehensive setup gives us a competitive edge in terms of quality, cost, and research and development.
Our experienced team boasts 5 years of foreign trade expertise, and we have established fruitful partnerships with companies in the USA, the Netherlands, Spain, Russia, Finland, Israel, Turkey.Canada, Australia, Austria, and Germany. Committed to providing clean and inclusive electricity solutions, we aim to enhance the quality of life for families and friends worldwide.
Our experienced team boasts 5 years of foreign trade expertise, and we have established fruitful partnerships with companies in the USA, the Netherlands, Spain, Russia, Finland, Israel, Turkey.Canada, Australia, Austria, and Germany. Committed to providing clean and inclusive electricity solutions, we aim to enhance the quality of life for families and friends worldwide.
